YKX-83 Uni Twist Vaporizer Box Mod
Instruction Manual

SAFETY WARNING & INSTRUCTIONS

Please read the information carefully before using the product and keep it in a safe place:

SAFETY WARNING

1. Do not expose the device to extreme temperatures.
2. Do not charge your battery through a car.
3. Do not overcharge or charge unattended.
4. Do not use the device while charging.
5. Do not disassemble the device or charge the battery.

Contact your direct seller or Yocan manufacturer for after-sale support:
www.yocan.com
service@yocantech.com

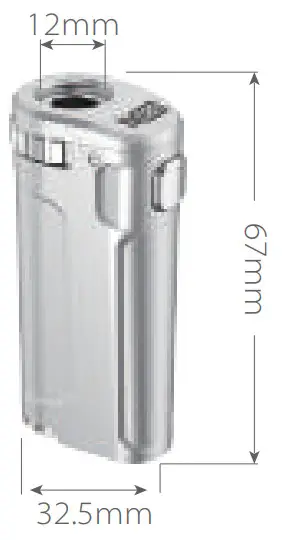

Specification:

Size: 67*32.5*22mm
Capacity: 650mah
Material: Zinc alloy
Atomizer Compatibility:
Resistance >0.75Ω
Diameter 6mm-12mm
Length >40mm

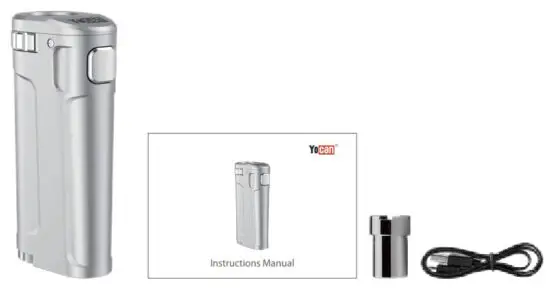

Package Content:

1x UNI Twist Box Mod
1x Magnetic Adapter
1x Type-C Cable
1x Instructions Manual

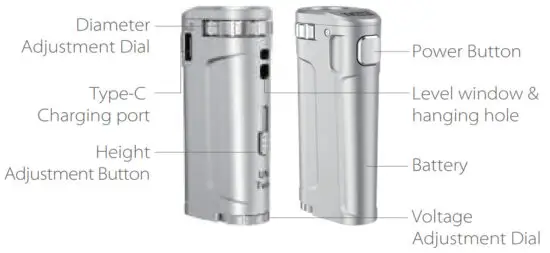

How To Use:

1. To connect your atomizer, use the included magnetic 510 thread adapter.
2. Turn on/off battery: Click the power button quickly 5 times in 2 seconds.
   The white light will flash 5 times.
3. Put the atomizer into the battery, the white light will stay on for 2 seconds indicating a successful connection.
4. Preheat Mode: Click the power button 2 times. Preheat function will run for 10 seconds with white light on. When preheat is completed, the white light will flash 8 times and then shut off. To stop preheating, press the button another 2 times. Light will turn off.
5. Adjustable voltage: 1.8-4.2V
   To change voltage simply rotate the voltage adjustment dial at the bottom to get to desired voltage setting.
6. Height-adjust button: This device is compatible with atomizers with lengths over 40mm. Simply push the height button up or down to adjust the height of your atomizer.
7. Adjustable cartridge holder: This device is compatible with atomizers with a diameter of 6mm-12mm. Simply rotate the diameter adjustment dial to adjust the inner diameter to fit the atomizer. Make sure your atomizer is locked in position.
8. USB type-c battery charger included. The battery indicator will glow when it is charging. In around one hour the battery will be fully charged. Once fully charged, the indicator flashes 8 times and then shuts off.

Protection:

Safety cutoff: If the power button is pressed continuously for more than 15 seconds, the white light will flash 8 times before powering off. Release the power button and then press the power to continue vaping.
No Atomizer: White light flashes 3 times.
Short-circuit: Red light flashes 5 times.
Low battery: Red light flashes 10 times and stops working.

Disclaimers:

People under 21 years of age are not permitted to purchase or use this device. Non-smokers, children, and women breastfeeding should not use this product. The device is not a medical device and is not intended to diagnose, cure or prevent any diseases or other conditions. The manufacturers and sellers will not be responsible for any consequential or incidental damage resulting from the sale or use of any merchandise.

PATENT NUMBER: 201821255493.3
Original and Exclusive Manufacturer:
Shenzhen Yocan Technology Co., Ltd
www.yocan.com
Sha’er Industrial Area, Shajing Street,
Baoan District, Shenzhen, China.Made in China
