tp-link TD-W8961ND Wireless DSL Modem Router

Connect the Hardware

If you don’t need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

Note: Image may differ from actual product.

Configure via Web Browser

1. Connecting your computer to the modem router via a wired or wireless connection Wired Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable.
   Wireless
   Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router.
2. Configuring the modem router via a web browser
   1. Launch a web browser and type in http:// tplinkmodem.net or 192.168.1.1.
      Note: If the login page does not appear, please refer to FAQ > Q1.
   2. Create a password for future login attempts, or use admin for both username and password for some routers.
   3. Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration.

Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link’s official website at www.tp-link.com

Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more. Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.Note: Tether is not supported by some routers. Please check the app description before downloading.

FAQ (Frequently Asked Questions)

1. Q1. What can I do if the login page does not appear?
   1. A1. If the computer is set to a static or fixed IP address, change the settings to obtain an IP address automatically from the modem router.
   2. A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.
   3. A3. Use another web browser and try again.
   4. A4. Reboot your modem router and try again.
   5. A5. Disable and enable the active network adapter.
2.  Q2. What can I do if the LED status is not correct?
   1. A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.
   2. A2. Restore your modem router to its factory default settings.
   3. A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then reconfigure the modem router by following the instructions in this Quick Installation Guide.
   4. A4. Contact your ISP to verify if the DSL line is in good status.
   5. A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.
3. Q3. What can I do if I cannot access the internet?
   1. A1. Make sure the telephone and Ethernet cables are plugged in correctly.
   2. A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router.
   3. A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again.
   4. A4. Restore the modem router to its factory default settings and reconfigure the modem router by following the instructions in this Quick Installation Guide.
   5. A5. Please contact our Technical Support if the problem still exists.
4. Q4. What can I do if I forget my password?
   1. Web Management page password:
      A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.
   2. Wireless Network password:
      A1. The default Wireless Password/PIN is printed on the product label of the modem router.
      A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your wireless password.
5. Q5. How do I restore the modem router to its factory default settings?
   1. A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious change of LEDs, and then release the button.
   2. A2. Log in Web Management page of the modem router and go to the system management page to restore the modem router.

Set up with videos:

Scan the QR code or visit
https://www.tp-link.com/support/setup-video/#wi-fi-routers to search for the setup video of your product.

Connect the Hardware

• If your internet connection is through an Ethernet cable from the wall instead of through a DSL / Cable / Satellite modem, connect the Ethernet cable directly to the router’s Internet port, then follow steps 1, 5 and 6 to complete the hardware connection.
• If you already have a router and want to configure this new router as an access point to extend your network, refer to the Access Point Mode section on the back page.

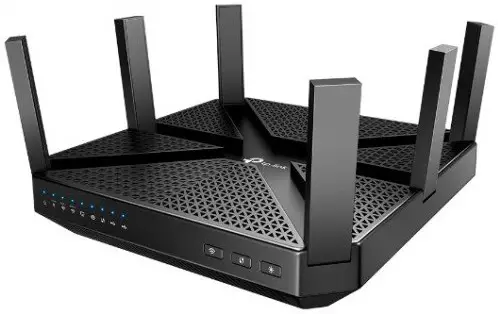

1. Place the router horizontally and extend the antennas to the maximum angle.
   Note: For best performance, horizontal installation is recommended. Antenna’s direction and position can affect performance in vertical installation situations.
2. Unplug your modem, and remove the backup battery if it has one.
3. Connect the powered-off modem to the router’s Internet port with an Ethernet cable.
4. Turn on the modem, and then wait about 2 minutes for it to restart.

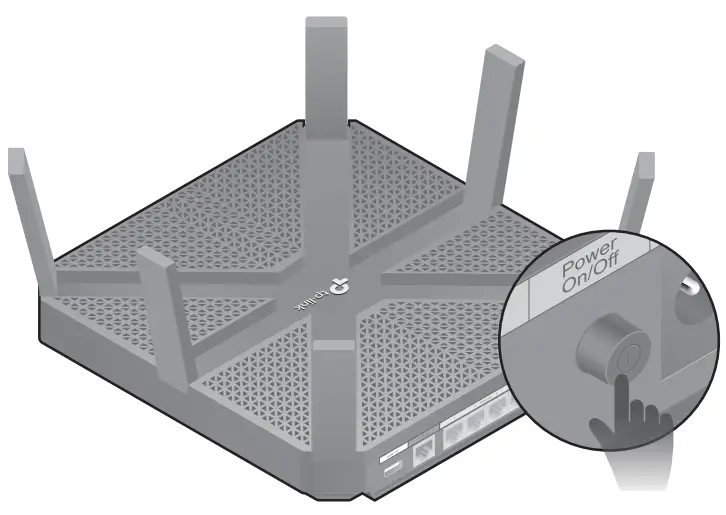

5. Connect the power adapter to the router and turn it on.

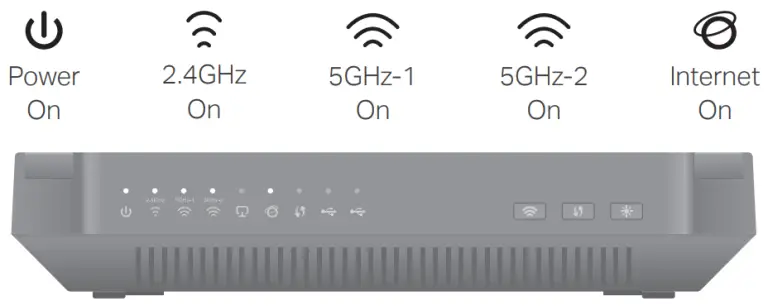

6. Check for the following LEDs to confirm the hardware connection, then refer to the next section to set up the internet.


Notes:

1. If all the LEDs are off, press the LED On/Off button for about 1 second, then check the LEDs again.
2. If the 2.4GHz, 5GHz-1, and 5GHz-2 LEDs are off, press the Wi-Fi On/Off button for about 1 second, then the three LEDs should turn solid on

Set Up the Network

Method 1: Via TP-Link Tether App

1. Download the Tether app.




2. Open the Tether app and log in with your TP-Link ID.
   Note: If you don’t have an account, create one first.

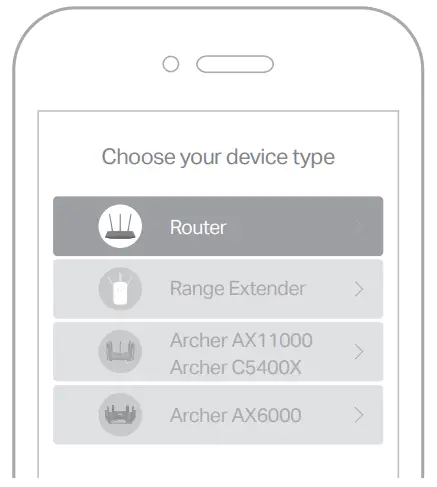

3. Tap the button in the Tether app and select Router > Wireless Router. Follow the steps to complete the setup and connect to the internet.
   Enjoy the internet

Method 2: Via a Web Browser

1. Connect your device to the router (wired or wireless).

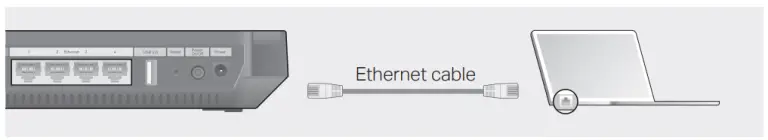

   Wired
   Turn off the Wi-Fi on your computer and connect to the router using an Ethernet cable.

   Wireless
   • a. Find the SSID and wireless password printed on the label of the router.
   • b. Click the network icon of your computer or go to Wi-Fi settings of  your smart device, and then select the SSID to join the network.
2. Connect the router to the internet.

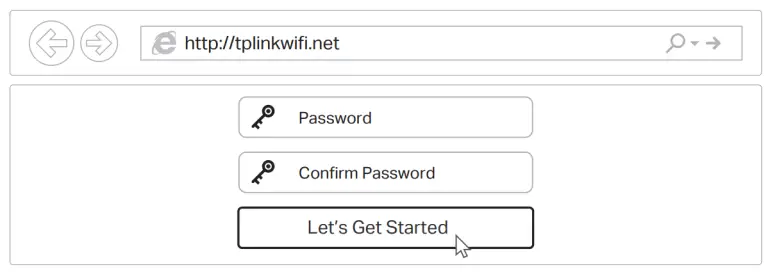

   • a. Launch a web browser, and enter http://tplinkwifi.net or http://192.168.0.1 in the address bar. Create a password to log in.

     Note: If the login window does not appear, please refer to Q1 of Need Help? in this guide.
   • b. Follow the step-by-step instructions to set up the internet connection and register for the TP-Link Cloud service.

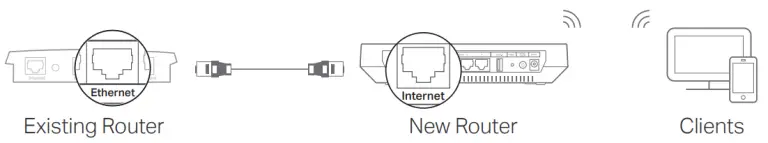

Access Point Mode

If you already have a router, you can switch this new router to Access Point mode to extend your existing network. Follow the steps below.

1. Power on the router.
2. Connect the router’s Internet port to your existing router’s Ethernet port via an Ethernet cable as shown above.
3. Connect a computer to the router via an Ethernet cable or wirelessly by using the SSID (network name) and Wireless Password printed  on the label at the bottom of the router.
4. Launch a web browser, and enter http://tplinkwifi.net in the address bar. Create a password to log in.
5. Go to Advanced > Operation Mode, select Access Point and click Save.
6. Wait for the router to reboot, then log in and follow the Quick Setup to complete the setup.

Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.

Change the Router’s Settings

After setup, you can change the router’s settings via the intuitive Tether app, or via a web browser as shown below.

1. Connect your device to the router via an Ethernet cable or wirelessly.
2. Launch a web browser, enter http://tplinkwifi.net in the address bar, and log in.
   Note: If the login window does not appear, please refer to Q1 of Need Help? in this guide.
3. Change the router’s settings as needed.

Need Help?

Q1. What should I do if I cannot access the web management page?

• Reboot your router and try again.
• If the computer is set to a static IP address, change its settings to obtain an IP address automatically.
• Verify that http://tplinkwifi.net is correctly entered in the web browser. Alternatively, enter
  http://192.168.0.1 or http://192.168.1.1 in the web browser and press Enter.
• Use another web browser and try again.
• Disable then re-enable the network adapter being used.

Q2. What should I do if I cannot access the internet?

• Reboot your modem and router, then try again.
• Check if you have an internet connection by connecting a computer directly to the modem using an Ethernet cable. If you don’t, contact your internet service  provider.
• Log in to the web management page of the router, and go to the Basic > Network Map page to check whether the internet IP address is valid or not. If it is not, check the hardware connection or contact your internet service provider.
• For cable modem users, log in to the web management page of the router. Go to Advanced > Network > Internet > MAC Clone, click Use Current Computer MAC Address and click Save, then reboot both the modem and the router.

Q3. How do I restore the router to its factory default settings?

• While the router is powered on, press and hold the Reset button on the back until all LEDs go off, then release the button.
• Log in to the web management page of the router. Go to Advanced > System Tools > Backup & Restore, and click Factory Restore. The router will restore and reboot automatically.

Q4. What should I do if I forget my web management page password?

• If you are using a TP-Link ID to log in, click Forgot password on the login page and then follow the instructions to reset the password.
• Alternatively, press and hold the Reset button on the back until all LEDs go off to reset the router, and then visit http://tplinkwifi.net to create a new login password.

Q5. What should I do if I forget my wireless network password?

• If you haven’t changed the default wireless password, it can be found on the product label at the bottom of the router.
• If you have changed the default wireless password, log in to the router’s web management page, and go to Basic > Wireless to obtain or reset your  wireless password.

For technical support, replacement services, user guides, and other information,
please visit https://www.tp-link.com/support, or simply scan the QR code.

To communicate with TP-Link users or engineers, please join the TP-Link Community at https://community.tp-link.com.

If you have any suggestions or needs for our product guides, you are welcome to
email techwriter@tp-link.com.cn.

Quick Start Guide
Tapo Security Camera

STEP 1

DOWNLOAD APP
Get the Tapo app from the App Store or Google Play.

https://www.tapo.com/app/download-app/

STEP 2

SET UP
Tap the + button in the app and select your camera model. Follow app instructions to complete setup.

Safety Information

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use a damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.

For indoor camera

• Keep the device away from water, fire, humidity or hot environments.
• The adapter shall be installed near the equipment and shall be easily accessible.

For outdoor camera

• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• The adapter shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents
or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU, and (EU)2015/863.

The original EU Declaration of Conformity may be found at https://www.tapo.com/support/ce/.
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca/.

For TP-Link Branded Products Only. For more information about the warranty, please visit https://www.tapo.com/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally according to TP-Link’s guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

?
Visit www.tapo.com/support for technical support, user guides, and more information

7106509582 REV1.2.0

© 2022 TP-Link

TP-Link TL-WN8200ND 300Mbps Wireless USB Adapter

For Mac OS X

Connect to a Computer

Install the antennas and connect the adapter to your computer using the USB cable provided.

Install Driver and Utility

• a. Download the driver and utility from this product’s Support page at www.tp-link.com.
  Note: If your computer has a CD drive, you can also run the included CD to install the driver and utility.
• b. Unzip the downloaded folder and run the Install.pkg.
• c. Follow the instructions to complete the installation.


Join a Wireless Network

Option 1: Via TP-Link Utility

• a. Click (TP-Link Utility) on the menu bar.
• b. Select your Wi-Fi network and enter the Wi-Fi password when prompted.


Option 2: Via Wi-Fi Protected Setup (WPS)

• a. Press the WPS button on your router.
• b. Within 2 minutes, press and hold the WPS button on the adapter until the WPS progress window appears.

• c. When the “WPS Protocol Finished!” message appears, click OK.

For Windows

Connect to a Computer

Install the antennas and connect the adapter to your computer using the USB cable provided.

Install Driver and WPS Tool

• a. Insert the CD and run the Autorun.exe.
  Note: You can also download the driver from this product’s Support page at www.tp-link.com.
• b. Select TL-WN8200ND and follow the steps to install the driver and WPS Tool.
  Note: If you can’t install the driver successfully, disable the antivirus software and firewall, then try again.


Join a Wireless Network

Option 1: Via Windows Wireless Utility

• a. Click the network icon (or ) on the taskbar.
• b. Select your Wi-Fi network, click Connect, and enter the password when prompted.


Option 2: Via WPS Tool

• a. Press the WPS button on your router.
• b. Within 2 minutes, press and hold the WPS button on the adapter until WPS Tool opens.
• c. When the “Success!” message appears, your computer is connected to Wi-Fi.


Support

For detailed instructions, please refer to the User Manual from this product’s Support page at www.tp-link.com. For technical support and other information, please visit http://www.tp-link.com/support, or simply scan the QR code.

This USB Adapter can only be powered by computers that comply with Limited Power Source (LPS).

FAQ’s

About This Guide

This guide is a complement to the Quick Installation Guide. The Quick Installation Guide instructs you on quick installation, and this guide provides the product overview and
detailed instructions for each step.
When using this guide, please notice that the features of the adapter may vary slightly depending on the model and software version you have. All screenshots, images, parameters and descriptions documented in this guide are used for demonstration only.
Conventions
In this guide, the following conventions are used:

Convention	Description
Teal Italic	Hyperlinks are in teal italic. You can click to redirect to a website or a specific section.
Teal	Contents to be emphasized and texts on the web page are in teal, including the menus, items, buttons, etc.
Note:	Ignoring this type of note might result in a malfunction or damage to the device.
Tips:	Indicates important information that helps you make better use of your device.

More Info

• The latest driver can be found at Download Center at http://www.tp-link.com/support.
• The Quick Installation Guide (QIG) can be found where you find this guide or inside the package of the product.
• Specifications can be found on the product page at http://www.tp-link.com.
• Our Technical Support contact information can be found at the Contact Technical Support page at http://www.tp-link.com/support.

Chapter 1 Get to Know About YourAdapter

This chapter introduces what the adapter can do and shows its appearance.
This chapter contains the following sections:

• Product Overview
• LED Status

Product Overview

The TP-Link Wireless PCI Express Adapter connects your desktop computer to a Wi-Fi network for lag-free video streaming, online gaming, secure internet surfing, and internet calls.

• Compatible with 802.11b/g/n products
• Supports ad-hoc and infrastructure mode
• The maximum speed of up to 300Mbps for a 2.4GHz network
• 2×2 MIMO for more efficient data transfer
• Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Supports Windows and Linux

LED Status

You can check the adapter’s working status by following the LED Explanation table.

Tips:
If the LED is off, try these troubleshooting tips:

1. Remove and reinstall the adapter.
2. Refer to Troubleshooting-T2 to check if the adapter is recognized and enabled. Reinstall the adapter software, if necessary.

Chapter 2 Connect to a Computer

This chapter introduces how to install the adapter into your computer.

Follow the steps below to insert the adapter into your computer:

1. Turn off the computer, unplug the power cable and remove the case panel.
2. Locate an available PCI-E slot and carefully insert the adapter.
3. Connect the antennas to the adapter.
4. Replace the case panel, plug in the power cable and turn on your computer.
   Note:
   If the bracket is not suitable for your computer, detach it from the adapter’s board and replace it with the low-profile bracket provided.
   After connecting your adapter to the computer, please follow the instructions in the appropriate chapter for your operating system: Windows, Linux.

Chapter 3 Windows

This chapter introduces how to install your adapter’s driver, use your adapter to join a wireless network, and uninstall the driver in a Windows system. The adapter is equipped  with a setup wizard, which can guide you through the installation process.
This chapter includes the following sections:

• Install Driver
• Join a Wireless Network
• Uninstall Driver

Install Driver

Follow the steps below to set up your adapter:

1.  Insert the Resource CD into your CD drive and run the Autorun.exe.
   Note:
   You can also download the driver from the product’s Support page at www.tp-link.com.
2. Select TL-WN881ND and follow the instructions to continue the installation.
   Note:
   If you can’t install the driver successfully, disable the antivirus software and firewall, then try again.
3. When the following screen appears, the driver has been installed successfully.

Join a Wireless Network

You can join a wireless network via Windows Wireless Utility.
Follow the instructions below to use your computer system’s built-in wireless utility:

1. Click, or (Network icon) on the taskbar. Select the Wi-Fi network you want to join, and click Connect. Enter the network password when prompted.
2. When the network icon changes to , it indicates a successful network connection.

Uninstall Driver

The software uninstallation steps vary a bit in different systems, please follow the appropriate instructions for your Windows operating system: Windows 8/8.1/10, Windows 7.

• Windows 8/8 1/10
  Go to Start > Apps, find the TP-Link application. Click Uninstall TP-Link TL-WN881ND
  Driver, then follow the on-screen instructions to complete the uninstallation.
• Windows 7
  Go to Start > All Programs > TP-Link > Uninstall TP-Link TL-WN881ND Driver. Follow the on-screen instructions to complete the uninstallation.

Chapter 4 Linux

Visit the TP-Link’s website at http://www.tp-link.com, and go to TL-WN881ND’s product page. Then find the compatible version of the driver in the support page. Download and install the driver on your computer.

Appendix: Troubleshooting

T1. What should I do if the adapter is not detected?

• Make sure the adapter is securely located in the appropriate PCI-E slot.
• Make sure you meet the minimum system requirements for the adapter and that the latest Windows and system updates are installed on your computer.
• Make sure you use the latest driver for your specific adapter. The latest drivers can be found at the product’s Support page at http://www.tp-link.com.
• Try a different PCI-E slot on the computer.
• Try restarting the computer or try the adapter on a different computer.

T2. How to check if I have installed the driver for my adapter successfully or not?

1. On your computer, please right-click the Computer icon and go to Manage;
2. Open the Device Manager and go to Network adapters, and then find the corresponding TP-Link adapter, right-click it, and then go to Properties;
3. If you can see “This device is working properly.” in the red box, you have already installed the driver successfully.

T3. What should I do if can’t connect to the Wi-Fi after installing the driver?

• Refer to T2 to check if you have installed the driver for your adapter successfully.
• Disable the antivirus software and firewall, then try again.
• Make sure the adapter is securely located in the appropriate PCI-E slot.
• Try a different PCI-E slot on the computer.
• Restart your computer and try again.
• Re-install the driver and try again.

T4. How to find the hardware version of the adapter?
The hardware version is printed on the product label on the package or the adapter.
There is a character string “Ver: X.Y” (for example, Ver:2.0) in the Serial Number field, and the number X is the hardware version of the adapter.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the  user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2.  This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.  “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The  antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction  with any other antenna or transmitter.”

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
OPERATING FREQUENCY(the maximum transmitted power) 2412MHz—2472MHz(20dBm)
EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU,  2009/125/EC and 2011/65/EU.
The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device is used at 20 cm from your body.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS. Operation is subject to the following two conditions:

1. This device may not cause interference, and
2.  This device must accept any interference, including interference that may cause undesired operation of the device.

Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 20cm between the radiator & your body.

Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)

Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device
• Do not use a damaged charger or USB cable to charge the device.
• Do not use the device where wireless devices are not allowed.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device.  Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label

Symbol

Explanation

RECYCLING This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. The user has the choice to give his product to a competent recycling organization or to the retailer  when he buys new electrical or electronic equipment.

Power On

Plug the extender into a power outlet next to your router. Wait until its Power LED turns solid on.
Note: For safety, only plug the extender in the direction is shown below.

Set-Up

Via the Tether App

1. Get the up-to-date Tether app from the Apple App Store or Google Play, or simply scan the QR code.
2. Launch the Tether app and log in with your TP-Link ID. If you don’t have an account, create one first.
3. Tap the button and select Range Extender.
   Note: If you cannot find your device, please refer to FAQ > Q1.
4. Follow app instructions to complete the setup.
   The RE LED should turn solid on, indicating a successful connection to your router.
   Note: If the LED does not turn solid on, please refer to FAQ > Q2.

More Setup Methods
Via a Web Browser

1. Connect your computer or smartphone to the extender’s network TP-Link_Extender.
2. Visit http://www.tplinkrepeater.net or http://192.168.0.254 in a web browser.
   Create a password to log in.
3. Follow web instructions to complete the setup.

Via the WPS Button

1. Press the WPS button on your router.
2. Within 2 minutes, press the WPS button on the extender for 1 second. The RE LED should change from blinking to solid, indicating a successful connection.
   Extended Network Name: Router’s network name with _EXT at the end
   Password: Same as your router

For more details, please refer to the user guide at https://www.tp-link.com/support/download/.

Relocate

1. Plug in the extender about halfway between your router and the Wi-Fi dead zone. The location you choose must be within the range of your router.
2. Wait for about 2 minutes until 3 or more LEDs light up. If not, relocate the extender closer to the router to achieve better signal quality.

https://www.tp-link.com/support/faq/3103/

Tip: To place the extender for optimal Wi-Fi performance, access extender settings via the Tether app and go to Tools > Location Assistant, or simply scan the QR code to visit https://www.tp-link.com/support/faq/3103/.

Enjoy!
Connect your devices to the extender wirelessly or via an Ethernet cable, then enjoy the internet. The password of your extended network is the same as your host router.
Tip: You can also set up the extender in Access Point mode to transform your existing wired network into a wireless one. For details, refer to the user guide at https://www.tp-link.com/support/download/.

Access Extender Settings
After setup, you can access extender settings via any of the methods below. You can reselect the host networks, change extended network settings, and more.
Note: If your extender and router use the same network name, Method 1 is recommended.

Method 1: Via the Tether App

1. Connect your smartphone to the extender‘s or router’s network.
2. Launch the Tether app, select your extender, and log in.
3. View or change extender settings as needed.

Method 2: Via a Web Browser

1. Connect your computer or smartphone to the extender’s network. If you are using a computer, unplug the Ethernet cable if any.
2. Launch a web browser, enter http://www.tplinkrepeater.net in the address bar, and log in.
3. View or change extender settings as needed.

LED Explanation

LED	Status	Indication (For Range Extender Mode)
RE	On/Off Blinking	The extender is connected or not connected to your router’s wireless network. WPS connection is in progress.
Wireless	On/Off	The extender’s wireless function is enabled or disabled.
Power	On/Off Blinking	The extender is on or off. The system is starting up or a firmware upgrade is in progress.
(Signal Strength)	On/Off	Indicates the Wi-Fi connection between the extender and the router. More lit LEDs indicate better signal strength.
Ethernet	On/Off	The Ethernet port is connected or not connected to a powered-on device.

FAQ (Frequently Asked Questions)

Q1. What should I do if the Tether app cannot find my device during setup?
Try another method by following the steps below:

1. Connect your smartphone to the extender’s network TP-Link_Extender.
2. Launch the Tether app, and select your extender.
   Tip: If you have connected to the extender’s Wi-Fi but still cannot find your device, try turning off your cellular data.
3. Follow app instructions to complete the setup.
   If you are still having problems, contact our technical support.

Q2. What should I do if the RE LED doesn’t turn solid on after completing the setup via the Tether app or web browser?

• You may have entered an incorrect Wi-Fi password for your host router during the configuration. Check the password and try again.
• Make sure the extender is close to your router, preferably within 16 feet, and away from large electrical appliances.
• If you have enabled wireless MAC filtering, wireless access control, or access control list (ACL) on your router, disable them first, then follow any method on the front page to complete the configuration.
• Try setting it up via the WPS button.
• Reset the extender and go through the configuration again.

If you are still having problems, contact our technical support.

Q3. How do I reset the extender?

• With the extender powered on, use a pin to press the RESET button for 1 second. The extender will reboot.

If you need more setup help, please visit https://www.tp-link.com/support/faq/3074/, or simply scan the QR code.

https://www.tp-link.com/support/faq/3074/

Safety Information

• Keep the device away from water, fire, humidity, or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• The socket outlet shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU, and (EU) 2015/863. The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca

To communicate with TP-Link users or engineers, please join the TP-Link Community at https://community.tp-link.com.
If you have any suggestions or needs for our product guides, you are welcome to email techwriter@tp-link.com.cn.
For technical support, replacement services, user manuals, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

http://www.tp-link.com/support
Setup with videos
Scan the QR code, or visit
https://www.tp-link.com/download/TL-WA850RE.html
* Images may differ from your actual product.
https://www.tp-link.com/download/TL-WA850RE.html
300Mbps Wi-Fi Range Extender
Model: TL-WA850RE
©2022 TP-Link 7106509569 REV7.2.0

Quick Installation Guide
Wireless 4G LTE Router

Images may differ from actual products.
©2020 TP-Link 7106508980 REV2.0.0

 Connect the Hardware

SIM Card Requirements

• Size: Use a micro SIM card, or manually convert a nano-SIM card using the SIM card adapter and sticker.
  Note: To prevent damage, do not insert a nano-SIM card directly, and do not insert an empty SIM card adapter or any other object into the slot.
•  Direction: With the gold contacts facing down, gently slide the SIM card into the slot.

Verify the Hardware Connection

Check the following LEDs’ status. If the Internet LED is on, your router is connected to the internet successfully.

Note: If the Internet LED does not turn on, please refer to Q2 of Need Help? in this guide.
For better internet connection, make sure 2 or 3 bars of the Signal Strength LED are lit. Otherwise, try relocating the router to a spot that may receive a stronger mobile network signal, such as near a window.

Enjoy the Internet

• Wired
  Connect your computers to the router’s LAN ports via Ethernet cables.
• Wireless
  a. Find the SSIDs (network names) and wireless password printed on the label at the bottom of the router.
  b. Click the network icon of your computer or go to the Wi-Fi settings of your smart device, and then select the SSID to join the network.

Customize the 4G LTE Router

1. Make sure your computer is connected to the router (wired or wireless).
2. Launch a web browser and type in http://tplinkmodem.net or http://192.168.1.1.
   Create a new password for future logins.
   Note: If the login page does not appear, please refer to Q1 of Need Help? in this guide.
3. Follow the step-by-step instructions of the Quick Setup to complete the initial configuration.
   Note: The router can also be used (or configured) in Wireless Router Mode for ADSL/Cable connections. For more advanced configurations, please refer to the user guide on TP-Link official website at www.tp-link.com.

Configure the router via Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router.

	Block unwelcome users from connecting to your network
	Change the basic wireless network settings
	View information about clients connected to your router
	Set up Parental Controls with access time

How to begin?

1.  Download the TP-Link Tether app.
2. Open the Tether app and log in with your TP-Link ID.
   Note: If you don’t have an account, create one first.
3. Tap the button in the Tether app and select Router > 3G/4G Router.
   Follow the steps to complete the setup and connect to the internet.

Need Help?
Q1. What should I do if I cannot access the web management page?

• If the computer is set to a static IP address, change its settings to obtain an IP address automatically.
• Make sure http://tplinkmodem.net or http://192.168.1.1 is correctly entered in the web browser.
• Use another web browser and try again.
• Reboot your router and try again.
• Disable and enable the active network adapter in use.

Q2. What should I do if I cannot access the internet?

• Verify that your SIM card is an LTE or WCDMA card.
• Verify that your SIM card is in your internet service provider’s service area.
• Verify that your SIM card has sufficient credit.
•  Check the LAN connection: Open a web browser and enter http://tplinkmodem.net or http://192.168.1.1 in the address bar. If the login page does not appear, refer to Q1  and then try again.
• Launch a web browser, log in to the web management page, and check the following:
  1) Go to Advanced > Network > Internet to verify the parameters provided by your ISP are correctly entered. If the parameters are incorrect, click Create Profile and enter the correct parameters, then select the new profile from the Profile Name list.
  2) Go to Advanced > Network > PIN Management to verify if the PIN is required. If it is, enter the correct PIN provided by your ISP, and click Save.
  3) Go to Advanced > Network > Data Settings to verify if the Total/Monthly Used exceeds the Total/Monthly Allowance. If it does, click Correct and set Total/Monthly  Used to 0 (zero), or disable Data Limit.
  4) Go to Advanced > Network > Internet to verify that Mobile Data is enabled. If it is not, enable it to access the internet.
  5) Confirm with your ISP if you are in a roaming service area. If you are, go to Advanced > Network > Internet to enable Data Roaming.

Q3. How do I restore the router to its factory default settings?

• With the router powered on, press and hold the RESET button on the rear panel of the router until the Power LED starts flashing, then release the button. Wait while the router resets.
• Log in to the web management page of the router, and go to Advanced > System Tools > Backup & Restore, click Factory Restore and wait until the reset process is complete.

Q4. What should I do if I forget my web management page password?

• Refer to Q3 to reset the router, then create a new password to log in.

Q5. What should I do if I forget my wireless network password?

• The default wireless password is printed on the product label of the router.
• Connect a computer directly to the router using an Ethernet cable. Log in to the router’s web management page and go to Basic > Wireless to retrieve or reset your wireless password.

For technical support, the user guide, and other information, visit https://www.tp-link.com/support.

Safety Information

• Keep the device away from water, fire, humidity, or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use a damaged charger or USB cable to charge the device.
• Do not use any other chargers other than those recommended.
• Do not use the device where wireless devices are not allowed.
• The adapter shall be installed near the equipment and shall be easily accessible.

tp-link Archer-A6 AC1200 Wireless MU-MIMO Wi-Fi Router

Quick Installation Guide

Connect the Hardware

If your internet comes from an Ethernet outlet, connect the router’s WAN port to it, then follow Step 4 and Step 5.
If you want to configure this new router as an access point to extend your network, refer to the Access Point Mode section on the back page.

 Set Up the Network

Method 1: Via TP-Link Tether App 1.

1. Download the Tether app.
2. Open the Tether app and log in with your TP-Link ID.
   Note: If you don’t have an account, create one first.
3. Tap the button in the Tether app and select Router > Wireless Router. Follow the steps to complete the setup and connect to the internet.

Method 2: Via a Web Browser

1. Connect your device to the router (wired or wireless).
   • Wired
     Turn off the Wi-Fi on your computer and connect to the router using an Ethernet cable.
   • Wireless
   • Find the SSID (network name) and Wireless Password printed on the label at the bottom of the router.
   • Click the network icon of your computer or go to the Wi-Fi settings of your smart device, and then select the SSID to join the network.
2.  Connect the router to the internet.
   • Launch a web browser, and enter http://tplinkwifi.net or http://192.168.0.1
   • in the address bar. Create a password to log in.
     Note: If the login window does not appear, please refer to Q1 of Need Help? in this guide.
   • Follow the step-by-step instructions to set up the internet connection and register for the TP-Link Cloud service.

Access Point Mode

If you already have a router, you can switch this new router to Access Point mode to extend your existing network. Follow the steps below.

1.  Power on the router.
2.  Connect the router’s WAN port to your existing router’s Ethernet port via an Ethernet cable as shown above.
3.  Connect a computer to the router via an Ethernet cable or wirelessly by using the SSID (network name) and Wireless Password printed on the label at the bottom of the router.
4.  Launch a web browser, and enter http://tplinkwifi.net in the address bar.
5. Go to Advanced > Operation Mode and switch to Access Point Mode. Wait for the router to reboot, then log in and follow the Quick Setup to complete the setup.
6. Wait for the router to reboot, then log in and follow the Quick Setup to complete the setup

Need Help?

Q1. What should I do if I cannot access the web management page?

• Reboot your router and try again.
• If the computer is set to a static IP address, change its settings to obtain an IP address automatically.
• Verify that http://tplinkwifi.net is correctly entered in the web browser. Alternatively, enter http://192.168.0.1 or http://192.168.1.1 in the web browser and press Enter.
• Use another web browser and try again.
• Disable and enable the network adapter being used.

Q2. What should I do if I cannot access the internet?

• Reboot your modem and router, then try again.
• Check if the internet is working normally by connecting a computer directly to the modem using an Ethernet cable. If it is not, contact your internet service provider.
• Log in to the web management page of the router, and go to the Network Map to check whether the internet IP address is valid or not. If it is not, check the hardware connection or contact your internet service provider.
• For cable modem users, log in to the web management page of the router. Go to Advanced > Network > Internet > MAC Clone, select Clone Current Computer MAC Address and click Save. Then reboot both the modem and the router.

Q3. How do I restore the router to its factory default settings?

• With the router powered on, use a pin to press and hold the RESET button on the back until the Power LED blinks.
• Log in to the web management page of the router, go to Advanced > System Tools
• > Backup & Restore > Factory Default Restore, and click Factory Restore. The router will restore and reboot automatically.

Q4. What should I do if I forget my web management page password?

• If you are using a TP-Link ID to log in, click Forgot password on the login page and then follow the instructions to reset it.
• Alternatively, refer to Q3 to reset your router, then visit http://tplinkwifi.net to create a new login password.

Q5. What should I do if I forget my wireless network password?

• If you have not changed the default wireless password, it can be found on the label at the bottom of the router. Connect a computer directly to the router using an Ethernet cable.
• To communicate with TP-Link users or engineers, please join the TP-Link Community at https://community.tp-link.com. replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.
• If you have any suggestions or needs for our product guides, you are welcome to email techwriter@tp-link.com.cn.

Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use a damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• The adapter shall be installed near the equipment and shall be easily accessible

Setup with videos
Scan the QR code, or visit https://www.tp-link.com/support/setup-video/#range-extenders and search for the setup video of your model.

Power On

Plug the extender into a power outlet next to your router. Wait until its Power LED turns solid on.

Set Up

Via the Tether App

1. Get the up-to-date Tether app from the Apple App Store or Google Play, or simply scan the QR code.



2. Launch the Tether app and log in with your TP-Link ID. If you don’t have an account, create one first.

3. Tap the  button and select Range Extender
   Note: If you cannot find your device, please refer to FAQ > Q1.

4. Follow app instructions to complete the setup.
   The  LED should turn solid on, indicating successful connection to your router.
   Note: If the LED does not turn solid on, please refer to FAQ > Q2.


More Setup Methods

Via a Web Browser

1. Connect your computer or smartphone to the extender’s network TP-Link_Extender.
2. Visit http://tplinkrepeater.net or http://192.168.0.254 in a web browser.
   Create a password to log in.
3. Follow web instructions to complete the setup

Via the WPS Button

1. Press the WPS button on your router.
2. Within 2 minutes, press the WPS button on the extender for 1 second. The LED should change from blinking to solid on, indicating successful connection.
3. If the extender connects to a dual band router, repeat steps 1 and 2 to connect to the other band.

Extended Network Names:
Router’s network name with _EXT at the end
or
Same as your OneMesh router (See back for OneMesh details)

Passwords:
Same as your router

For more details, please refer to the user guide at https://www.tp-link.com/support/download/.

Relocate

1. Plug in the extender about halfway between your router and the Wi-Fi dead zone. The location you choose must be within the range of your router.
2. Wait for about 2 minutes until the LED turns solid blue. If it doesn’t, relocate the extender closer to the router to achieve better signal quality.


Manage the Extender

After setup, you can manage the extender via any of the methods below.
Note: If your extender and router use the same network name, Method 1 is recommended.

Method 1: Via the Tether App

1. Connect your smartphone to the extender‘s or router’s network.
2. Launch the Tether app, select your extender, and log in.
3. Manage the extender as needed.

Method 2: Via a Web Browser

1. Connect your computer or smartphone to the extender’s network. If you are using a computer, unplug the Ethernet cable if any.
2. Launch a web browser, enter http://tplinkrepeater.net in the address bar, and log in.
3. Manage the extender as needed.

OneMesh™ with Seamless Roaming

TP-Link OneMeshTM router and extenders work together to form one unified Wi-Fi network. Walk through your home and stay connected with the fastest possible speeds thanks to OneMesh’s seamless coverage.

Unified Wi-Fi Network
Router and extenders share the same wireless settings, including network name, password, access control settings and more.

Seamless Roaming
Devices automatically switch between your router and extenders as you move through your home for the fastest possible speeds.

Easy Setup and Management
Set up a OneMesh network with a push of WPS buttons. Manage all network devices on the Tether app or at your router’s web management page.

To check full list of TP-Link OneMesh devices, scan the QR code, or visit https://www.tp-link.com/One-Mesh/compatibility

LED Explanation

–	Status	Indication
5GHz	On/Of	The extender is connected or not connected to the 5GHz wireless network of your host router.
2.4GHz	On/Of	The extender is connected or not connected to the 2.4GHz wireless network of your host router.
(Signal)	Solid blue	The extender is connected to your router’s wireless network and is in a suitable location.
	Solid red	The extender is experiencing poor signal strength. Try relocating it closer to your router
	Of	No wireless connection is established.
(Power)	On/Of	The extender is on or off.
	Blinking	The system is starting up or firmware is being upgraded.
(WPS)	On	WPS connection is established.
	Blinking	WPS connection is in progress.
	Of	WPS connection has been established for more than 5 minutes or WPS connection failed.

FAQ (Frequently Asked Questions)

Q1. What should I do if the Tether app cannot find my device during setup?

Try another method by following the steps below:

1. Connect your smartphone to the extender’s network TP-Link_Extender.

2. Launch the Tether app, and select your extender.

3. Follow app instructions to complete the setup.
   If you are still having problems, contact our technical support.

Q2. What should I do if the LED doesn’t turn solid on after completing setup via the Tether app or web browser?

• You may have entered incorrect Wi-Fi password for your host router during the configuration. Check the password and try again.
• Make sure the extender is close to your router, preferably within 16 feet, and away from large electrical appliances.
• If you have enabled wireless MAC filtering, wireless access control, or access control list (ACL) on your router, disable them first, then follow any method on the front page to complete the configuration.
• Try setting it up via the WPS button.
• Reset the extender and go through the configuration again.

If you are still having problems, contact our technical support.

Q3. How do I reset the extender?

• With the extender powered on, use a pin to press the RESET button for 1 second.
  The extender will reboot.


Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device.
Please use this product with care and operate at your own risk.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

Customer Support

To communicate with TP-Link users or engineers, please join the TP-Link Community at https://community.tp-link.com.

If you have any suggestions or needs for our product guides, you are welcome to email techwriter@tp-link.com.cn.

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code.

Quick Installation Guide
Range Extender

Setup with videos
Scan the QR code, or visit
https://www.tp-link.com/support/setup-video/#range-extenders  and search for the setup video of your model.
* Images may differ from your actual product.

https://www.tp-link.com/support/setup-video/#range-extenders

Power On

Plug the extender into a power outlet next to your router. Wait until its Power LED turns solid on.
Note: For safety, only plug the extender in the direction as shown below.

Set-Up

Via the Tether App

1. Get the up-to-date Tether app from the Apple App Store or Google Play, or simply scan the QR code.


   or

   https://www.tp-link.com/app/qrcode/?pp=tether  Scan for Tether

2. Launch the Tether app and log in with your TP-Link ID. If you don’t have an account, create one first.
3. 3. Tap the button and select Range Extender.
   Note: If you cannot find your device, please refer to FAQ > Q1.
4. Follow app instructions to complete the setup. The LED should turn solid on, indicating a successful connection to your router.
   Note: If the LED does not turn solid on, please refer to FAQ > Q2.

More Setup Methods

• Via a Web Browser

1. Connect your computer or smartphone to the extender’s network TP-Link_Extender.
2. Visit http://tplinkrepeater.net or http://192.168.0.254 in a web browser. Create a password to log in.
3. Follow web instructions to complete the setup.

• Via the WPS Button

1. Press the WPS button on your router.
2. Within 2 minutes, press the WPS button on the extender for 1 second. The LED should change from blinking to solid on,  indicating a successful connection.
3. If the extender connects to a dual-band router, repeat steps 1 and 2 to connect to the other band.
   Extended Network Names:
   Router’s network name with _EXT at the end Same as your OneMesh router (See back for OneMesh details)
   Passwords:
   Same as your router
   For more details, please refer to the user guide at https://www.tp-link.com/support/download/.

Relocate

1. Plug in the extender about halfway between your router and the Wi-Fi dead zone. The location you choose must be within the range of your router.
2. Wait for about 2 minutes until the LED turns solid blue. If it doesn’t, relocate the extender closer to the router to achieve better signal quality.
Tip: To place the extender for optimal Wi-Fi performance, access extender settings via the Tether app and go to Tools > Location  Assistant, or simply scan the QR code to visit https://www.tp-link.com/support/faq/3103/.

https://www.tp-link.com/One-Mesh/compatibility/

Enjoy!
Connect your devices to the extender wirelessly or via an Ethernet cable, then enjoy the internet. The password of your extended network is the same as your host router.
Tip: You can also set up the extender in Access Point mode to transform your existing wired network to a wireless one. For details, refer to the user guide at https://www.tp-link.com/support/download/.

Access Extender Settings

After setup, you can access extender settings via any of the methods below. You can reselect the host networks, change extended network settings, and more.
Note: If your extender and router use the same network name, Method 1 is recommended.

Method 1: Via the Tether App

1. Connect your smartphone to the extender‘s or router’s network.
2. Launch the Tether app, select your extender, and log in.
3. View or change extender settings as needed.

Method 2: Via a Web Browser

1. Connect your computer or smartphone to the extender’s network. If you are using a computer, unplug the Ethernet cable if any.
2.  Launch a web browser, enter http://tplinkrepeater.net in the address bar, and log in.
3. View or change extender settings as needed.

LED Explanation

LED	Status	Indication (For Range Extender Mode)
(Signal)	Solid blue Solid red Blinking Off	The extender is connected to your router’s wireless network and is in a suitable location. The extender is receiving a weak signal. Try relocating it closer to your router. WPS connection is in progress. No wireless connection is established.
2.4GHz	On/Off	The extender is connected or not connected to the 2.4GHz wireless network of your router.
5GHz	On/Off	The extender is connected or not connected to the 5GHz wireless network of your router.
Power	Rosoff Blinking	The extender is on or off. The system is starting up or a firmware upgrade is in progress.

TP-Link OneMesh router and extenders work together to form one unified Wi-Fi network. Walkthrough your home and stay connected with the fastest possible speeds thanks to OneMesh’s seamless coverage.

Unified Wi-Fi Network
Router and extenders share the same wireless settings, including network name, password, access control settings, and more.

Seamless Roaming
Devices automatically switch between your router and extenders as you move through your home for the fastest possible speeds.

Easy Setup and Management
Set up a OneMesh network with a push of WPS buttons. Manage all network devices on the Tether app or at your router’s web management page.

To check the full list of TP-Link OneMesh devices, scan the QR code, or visit https://www.tp-link.com/One-Mesh/compatibility.https://www.tp-link.com/support/faq/3074/

FAQ (Frequently Asked Questions)

Q1. What should I do if the Tether app cannot find my device?
1. Connect your smartphone to the extender’s network TP-Link_Extender.

2. Launch the Tether app, and select your extender.
Tip: If you have connected to the extender’s Wi-Fi but still cannot find your device, turn off your cellular data.

3. Follow app instructions to complete the setup.
If you are still having problems, contact our technical support.

Q2. What should I do if the LED doesn’t turn solid on after completing the setup via the Tether app or web browser?

• You may have entered incorrect Wi-Fi passwords for your host router during the configuration. Check the passwords and try again.
• Make sure the extender is close to your router, preferably within 16 feet, and away from large electrical appliances.
• If you have enabled wireless MAC filtering, wireless access control, or access control list (ACL) on your router, disable them first,  then follow any method on the front page to complete the configuration.
• Try setting it up via the WPS button.
• Reset the extender and go through the configuration again.
  If you are still having problems, contact our technical support.

Q3. How do I reset the extender?

• With the extender powered on, use a pin to press the Reset button for 1 second.
  The extender will reboot.

If you need more setup help, please visit
https://www.tp-link.com/support/faq/3074/, or simply scan the QR code

http://www.tp-link.com/support

• Login/Reset instructions

Safety Information

• Keep the device away from water, fire, humidity, or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• The socket outlet shall be installed near the equipment and shall be easily accessible.
  Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
  TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011 /65/EU, and (EU) 2015/863.
  The original EU Declaration of Conformity may be found at https://www.tp-link.com/en/support/ce
  TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.
  The original UK Declaration of Conformity may be found at https://www.tp-link.com/support/ukca

To communicate with TP-Link users or engineers, please join the TP-Link Community at https://community.tp-link.com.

If you have any suggestions or needs for our product guides, you are welcome to email techwriter@tp-link.com.cn.

For technical support, the user guide, and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code.

https://www.tp-link.com/support/faq/3103/

AC1750/AC1900 Wi-Fi Range Extender Model: RE450/RE550
