THRUSTMASTER Ferrari Racing Wheel User Manual

Compatible: PlayStation®3 / PC

TECHNICAL FEATURES

  1. 2 digital gearshift levers (UP and DOWN)
  2. LED
  3. Action buttons
  4. D-Pad
  5. SE” and “ST” buttons:
    – for Select and Start
    – for programming
  6. Home” button for PlayStation®3
  7. USB selector (“PC” / “PS3”)
  8. Pedal cable
  9. RJ45 connector for pedal set
  10. Table clamp
  11. Clamp screw
  12. USB connector (for PC and PlayStation®3)
  13. Pedal set

INSTALLING THE WHEEL

Fixing the wheel in place

  1. Place the wheel on a table or other flat surface.
  2. Place the clamp screw (11) in the table clamp (10) and then screw the clamping unit into the hole on the underside of the wheel until firmly fixed in place. Do not turn the screw too tightly, as you risk damaging the clamping unit and/or the table.

Connecting the pedal set

  1. Connect the pedal cable (8) to the wheel’s RJ45 connector (9).

Warning

For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.

THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

PLAYSTATION®3

INSTALLATION ON PLAYSTATION®3

  1. Set the wheel’s USB selector (7) to the “PS3” position.
  2. Connect the USB connector (13) to a USB port on your console.
  3. Turn on your console.
  4. Launch the game.
    You are now ready to play!

USING THE “HOME” BUTTON (6)

Your wheel’s “Home” button allows you to exit games and access your PlayStation®3 system’s menus.

IMPORTANT NOTES ON PLAYSTATION®3

  • The wheel’s USB selector (7) must always be set to the “PS3” position before connecting your wheel.
  • In “1 Player” mode: If your official gamepad is turned on, you will have to switch it to “controller port 2” in order for your wheel to be functional.
  • On PlayStation®3, the wheel is only compatible with PlayStation®3 games (and will not function with PlayStation® 2 games).
  • In certain racing games, do not hesitate to test out your wheel’s 2 sensitivity modes in order to optimize its precision and responsiveness.

“Gran Turismo® PS3™” configuration procedure for the “Ferrari Racing Wheel: Red Legend edition” racing wheel

By default in this game, acceleration and braking are not assigned to the “R2/L2” buttons and switching gears is not assigned to the “R1/L1” buttons (which is the case for the pedals and Up/Down levers on the “Ferrari Racing Wheel: Red Legend edition” racing wheel).

Procedure to configure and optimize the wheel:

(This procedure only needs to be carried out once, as the changes will then be saved in the game)

  1. Start up your game.
  2. Go to the OPTION menu.
  3. Go to the CONTROLLER SETUP menu
    (by clicking the symbol representing the gamepad and the D-Pad).
  4. Configure your controller as follows:
    • Accelerate on R2
    • Brake on L2
    • Shift Up on R1
    • Shift Down on L1
    • Rear View on L3 and/or R3
    • Left & Right View on D-Pad Left & Right
  5. Click OK (in the lower right part of your screen).
  6. Return to the main menu to access the track of your choice.

You are now ready to play!

Note: The steering wheel on your “Ferrari Racing Wheel: Red Legend edition” racing wheel features 2 sensitivity modes (normal or high). To achieve optimal precision in “Gran Turismo® PS3™”, we recommend that you enable “high sensitivity” mode.

PC

Installation on PC

  1. Set the wheel’s USB selector (7) to the “PC” position.
  2. Go to http://support.thrustmaster.com to download the drivers and the force feedback software for PC. Click Racing Wheels / Ferrari Racing Wheel Red Legend Edition, then select Drivers.
  3. Connect the USB connector (13) to one of your computer’s USB ports. Windows® will automatically detect the new device.
  4. Driver installation
    Drivers are installed automatically. Follow the on-screen instructions to complete the installation.
  5. Click Start/Settings/Control Panel and then double-click Game Controllers (or Gaming Options, depending on your operating system). The Game Controllers dialog box displays the wheel’s name with OK status.
  6. In the Control Panel, click Properties to configure your wheel:
    • Test device: Allows you to test and visualize the buttons, D-pad and axes of the wheel and pedal set.

You are now ready to play!

IMPORTANT NOTES ON PC

  • The wheel’s USB selector (7) must always be set to the “PC” position before connecting your wheel.
  • Your wheel and pedals automatically self-calibrate upon connection of the USB connector. In the event of any problems, you can also carry out manual calibration by downloading the “Thrustmaster Calibration Tool” software, available at the following address: http://support.thrustmaster.com

ADVANCED FUNCTIONS

ADJUSTING THE WHEEL’S SENSITIVITY

Your wheel’s steering has 2 sensitivity modes:

  • Normal sensitivity (the default mode)
  • High sensitivity (must be set)

Setting “High Sensitivity” mode:

Your wheel’s steering is now more sensitive.
(This procedure must be repeated each time you restart or disconnect your wheel)

Setting “Normal Sensitivity” mode (default mode):

Your wheel’s steering has now returned to normal sensitivity (the default mode)

PROGRAMMING THE WHEEL AND PEDALS

Your wheel is fully programmable:

  • All buttons as well as the D-Pad can be switched between themselves.
  • All buttons as well as the D-Pad can be programmed onto the 2 pedals.

Examples of possible applications:

  • On PS3: Programming L2/R2 or L3/R3 onto the 2 UP and DOWN digital levers (L1/R1).
  • Programming a button(s) onto one or both pedals.
  • Switching different buttons for greater accessibility.

Programming procedure

Your programming has now taken effect.

(You must repeat this procedure each time you restart or disconnect your wheel)

Erasing your programming

Your programming has now been erased.

CONFIGURING THE PEDALS ON PLAYSTATION®3

On PlayStation®3, your wheel’s accelerator and brake controls are in “separate” mode by default, meaning that the pedals function on independent axes:

“Accelerator” = “R2” trigger & “Brake” = “L2” trigger

For a different type of control (to limit skidding, for example), you can switch your wheel to “combined” (2 axes) mode: the pedals then function on a single axis.

“Accelerator and Brake” = Up/Down direction on “Right mini-stick”

Setting “Combined Pedals” mode

Your pedals are now combined

(You must repeat this procedure each time you restart or disconnect your wheel)

To return to “Separate Pedals” mode (the default mode)

Your pedals have now returned to the default mode: “Separate”

CONFIGURING THE PEDALS ON PC

Your wheel’s accelerator and brake controls are in “separate” (3 axes) mode by default, meaning that the pedals function on independent axes.

3 axes mode allows you to considerably improve the precision of your driving. If your game does not support 3 axes mode, your wheel’s pedals will not function properly. You will then have to exit the game and select “combined” (2 axes) mode instead.

  • Selecting axes via “Software”

(This setting will be saved even after you restart or disconnect your wheel)

On page 1 of the “Control Panel”: Select the mode you wish to use, then click OK.

  • Selecting axes via “Hardware”

(This setting will not be saved: It must be repeated each time you restart or disconnect)

(Allows you to select your mode directly in your game’s “Controls” options)

Simultaneously press and release: the 2 pedals (14) + the “Home” button (6)

TROUBLESHOOTING AND WARNINGS

  • My wheel doesn’t function correctly or appears to be improperly calibrated:
    • Switch off your computer or your console, completely disconnect your wheel including all cables, then reconnect the wheel and restart your game.
    • If the problem persists on PC, download the “Thrustmaster Calibration Tool” manual calibration software available at the following address: http://support.thrustmaster.com
    • Never move the wheel or pedals when connecting your wheel in order to avoid any calibration problems.
  • My pedal set does not work correctly:
    • Reconfigure your wheel in your game’s controller options section.
    • If the problem persists on PC, exit the game and switch the pedals to “combined” (2 axes) mode. You can then return to your game to reconfigure the wheel with the new axes.
  • I can’t configure my wheel:
    • On PS3: In your game’s “Options / Controller / Gamepads” menu: select the most appropriate configuration.
    • On PC: In your game’s “Options / Controller / Wheels” menu: select the most appropriate configuration.
    • Please refer to your game’s user manual or online help for more information.
    • You can also use your wheel’s “programming” function to resolve this type of problem.
  • On PC or PS3, my wheel does not work correctly:
    • Exit your game, disconnect your wheel, verify that the “PC/PS3 ” USB selector (7) is in the proper position, then reconnect everything and try again.
  • On PC, my game’s menus scroll by themselves:
    • Exit the game and switch the pedals to “combined” (2 axes) mode. Then return to your game to reconfigure the wheel with the new axes.
  • My wheel’s steering is not responsive enough:
    • Switch your wheel to high sensitivity mode.

COPYRIGHT

© 2017 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. All other trademarks are the property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

ENVIRONMENTAL PROTECTION RECOMMENDATION

In the European Union: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling. This is confirmed by the symbol found on the product, user manual or packaging. Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment. Please contact your local authorities for information on the collection point nearest you. For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.

Retain this information. Colours and decorations may vary.

Plastic fasteners and adhesives should be removed from the product before it is used.

www.thrustmaster.com

*Applicable to EU and Turkey only

]]>
THRUSTMASTER Formula Wheel Add-On Ferrari SF1000 Edition manual https://usemanuals.com/thrustmaster/formula-wheel-sf1000/ Tue, 04 Apr 2023 04:48:51 +0000 https://usemanuals.com/?p=52747 Read More...

]]>


Formula Wheel Add-On Ferrari SF1000 Edition Wireless
User Guide

Formula Wheel Add-On Ferrari SF1000 Edition Wireless Connection Tutorial
Wi-Fi Pairing & UDP configuration

MAKE SURE TO UPDATE YOUR DRIVER AND FIRMWARE OF YOUR BASE

COMMANDS & SCREEN NAVIGATION

: Navigate in the menu (DPAD)
: Change Skin (turn left or right)
: Menu (push)
: Change Screen (turn left or right)
: Dark/Bright Mode (push)
: Change menu parameter (turn left or right)
: Validate menu parameter (push)
: Switch ON LED+LCD (Toggle up)
: Switch OFF LED+LCD (Toggle down)

Display buttons assignment

ENABLE WI-FI CONNECTION

To enable the Wi-Fi of your wheel:
a. First, enter the menu by pressing the E5 button (Good ).
b. Then using the DPAD (  ), go right ( Blue) to the Wi-Fi enable button ( ).
c. Finally press the E7 ( Bad) button to enable Wi-Fi it the circle will move to the right ( ).

2) PAIR YOUR WHEEL TO YOUR HOME NETWORKThis wheel includes a Wi-Fi module to let you enjoy display functionalities through UDP-compatible games.
This Wi-Fi module has a unique identifier and when it is not paired to a network it will broadcast its identifier, in the example it is `TM_Connect_98378F’. At the end of the process, it will be replaced by your home network name. Please record this identifier as you will have to use in the pairing process

PAIR YOUR WHEEL TO YOUR PHONE OR TABLET (USING IOS)

THRUSTMASTER CONNECT PORTAL

Error message: don’t worry
At the end of the process, you may encounter a warning message ` impossible to access to the page’.
It is because Wi-Fi will save setting and then reboot to connect to your network. Don’t worry and follow the process
If you succeed to pair the wheel to your network, you will notice the SSID parameter changed from `wheel identifier’ to `your network name’

5) ENTER YOUR WHEEL IP IN THE F1 2020 GAME

* Telemetry is a set of data such as (brake temperature, fuel load, tires wear…)
** UDP (User Datagram Protocol) is a protocol commonly used to exchange data between a PC/Console and a device

START THE UDP* SESSION

warning Do this each time you start playing follow the process below:warning

To start enjoying your display information with UDP :
First, enter the menu by pressing the E5 button (FORTINET FAZ-150G-QSG FortiAnalyzer 150G - Green ).
Second, go the UDP game ( )selection using the DPAD ( ).
Then using the DPAD ( ), go right ( ) to select your favorite game
Finally, press the E7 (MATelec FPC-30120 SMS Alarm Status Communicator - icon 3 ) to start the UDP

* UDP (User Datagram Protocol) is a protocol commonly used to exchange data between a PC/Console and a device

OWN THE RACE


]]>
THRUSTMASTER Hotas Warthog Flight Stick Manual https://usemanuals.com/thrustmaster/hotas-warthog-flight-stick/ Wed, 26 Apr 2023 11:01:54 +0000 https://usemanuals.com/?p=88355 Read More...

]]>


Compatible: PC
Hardware User Manual

U.S. Air Force A-10C attack aircraft replica joystick:

Replica JOYSTICK

  • Innovative H.E.A.R.T HallEffect AccuRate Technology (*):
    – 3D magnetic sensors (Hall Effect) on the stick
    – 16-bit resolution (65536 x 65536 values)
    – 5 coil spring system (*)
  • USB connection with upgradeable firmware
  • Super-stable, weighted base (over 3kg)
  • Detachable handle, crafted entirely of metal:
    – also compatible with HOTAS COUGARTM handle (and vice-versa)
    – replica shape
    – detachable metal plate for desk
    – or cockpit-style use
    – realistic pressure on buttons and trigger
    – 19 action buttons in total + one 8-way “point of view” hat:
  • 1 x 8-way “point of view” hat
  • 2 x 8-way hats.
  • 1 x 4-way hat with push button
  • 1 x metal dual trigger
  • 2 x push buttons
  • 2 x pinkie push buttons
    (*) Patent pending.
    (**) HOTASTM is a trademark of Guillemot Corporation S.A.

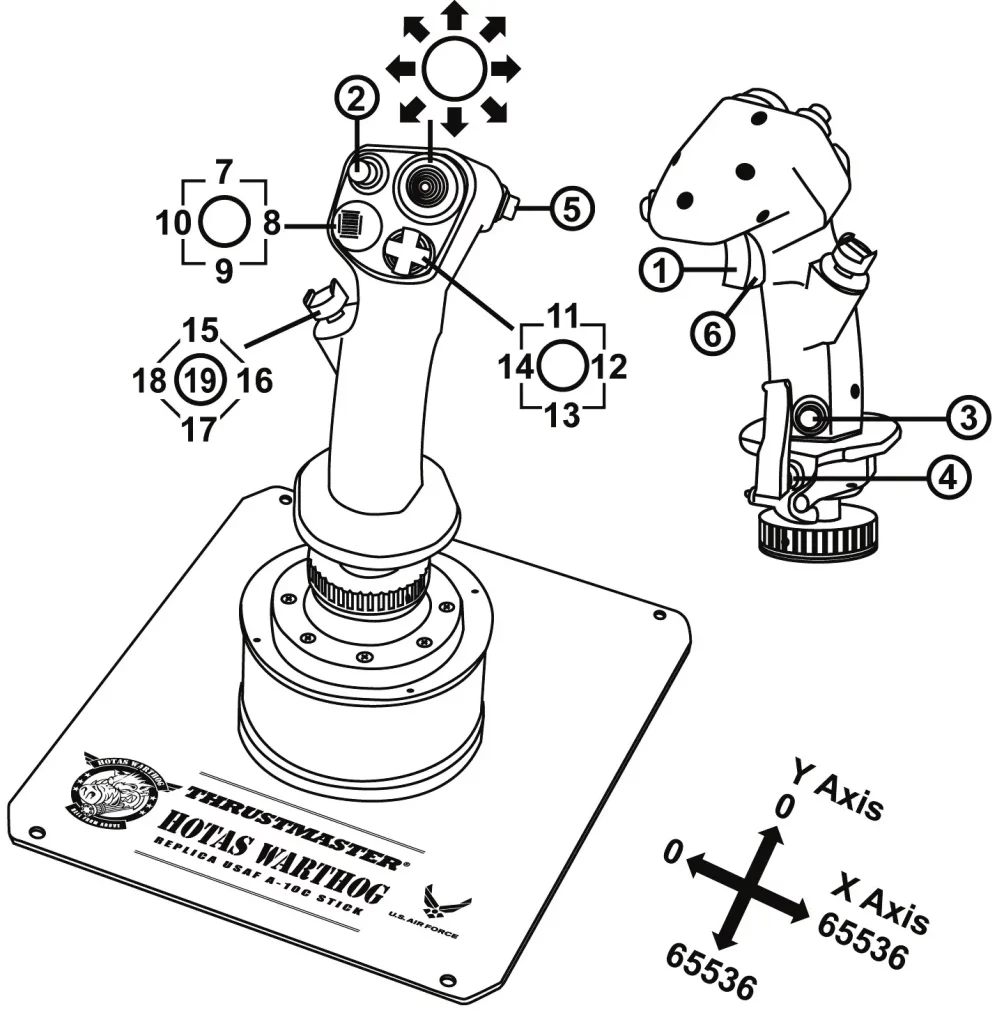

CONFIGURATION OF BUTTONS AND AXES

INSTALLING THE JOYSTICK IN A COCKPIT OR OTHER FIXED SUPPORT

To attach the joystick in a cockpit:
– Unscrew the 4 screws located underneath the joystick’s metal base plate, and remove the metal base plate.
– Use the 4 screw threads located on the underside of the joystick to attach the joystick directly to your fixed support.
You can also use the 4 holes located in the corners of the metal base plates of the joystick and the throttle to attach both elements to a fixed support.

BACKWARDS-COMPATIBILITY
The “HOTAS Warthog” handle is backwards-compatible with the base of the “HOTAS Cougar” (and vice versa). Only the CMS push button (button 19) will be non-functional, as it was not originally featured on the HOTAS Cougar.

CONSUMER WARRANTY INFORMATION
Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter “Guillemot”) warrants to the consumer that this Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Thrustmaster product).

Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase.

Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer’s defective product shall, at Technical Support’s option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer’s request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product’s lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction. This warranty is nontransferable. The consumer’s legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

Additional warranty provisions
During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Thrustmaster product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions ­ for example, due to the simplicity and the lack of confidentiality of the reconditioning process ­ and by providing the consumer with the required spare part(s), where applicable). Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product whose warranty period has expired.

In the United States of America and in Canada, this warranty is limited to the product’s internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.

Liability
If permitted under applicable law, Guillemot Corporation S.A. (hereinafter “Guillemot”) and its subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).

DECLARATION OF CONFORMITY
CANADIAN COMPLIANCE NOTICE: this Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. USA COMPLIANCE NOTICE: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

COPYRIGHT
© 2021 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Windows® is a registered trademark of Microsoft Corporation in the United States and/or other countries. All other trademarks and brand names are hereby acknowledged and are property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China. Officially licensed product of the Department of the Air Force. Endorsement by the United States Air Force is neither intended nor implied.

ENVIRONMENTAL PROTECTION RECOMMENDATION
In the European Union: At the end of its working life, this product should not be disposed * of with standard household waste, but rather dropped off at a collection point for the
disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling. This is confirmed by the symbol found on the product, user manual or packaging. Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.
Please contact your local authorities for information on the collection point nearest you. For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.
Retain this information. Colors and decorations may vary.
Plastic fasteners and adhesives should be removed from the product before it is used. This product conforms to all standards regarding children 16 years of age and older. This product is not suitable for use by children less than 16 years of age.
www.thrustmaster.com
*Applicable to EU and Turkey only


TECHNICAL SUPPORT
https://support.thrustmaster.com


]]>
THRUSTMASTER Ferrari 458 Spider Racing Wheel for XBOX One Manual https://usemanuals.com/thrustmaster/ferrari-458-spider-wheel/ Mon, 08 May 2023 18:31:14 +0000 https://usemanuals.com/?p=105800 Read More...

]]>


THRUSTMASTER Ferrari 458 Spider Racing Wheel for XBOX One

User manual (ENGLISH)

TECHNICAL SPECIFICATIONS

  1. Tabletop attachment system 5 USB connector
  2. Attachment screw 6 Xbox Guide button + white LED
  3. Pedal set cable 7 Controller pairing LED for Kinect
  4. USB connector for pedal set

ADJUSTING THE RACING WHEEL’S SENSITIVITY IN GAMES

Your racing wheel offers four sensitivity levels:

  • – 1 = NORMAL (default) – 2 = LOW –
  • – 3 = VERY LOW – 4 = MINIMUM

To adjust the racing wheel’s sensitivity setting, press the four following buttons simultaneously, then release them: Lever DOWN (LB) + Lever UP (RB) + Button Y + Button B
(the racing wheel’s white LED flashes, according to the selected sensitivity setting)

Racing wheel sensitivity setting

(LB + RB + Y + B)

Flashing white LED
Sensitivity setting 1 = NORMAL Once
Sensitivity setting 2 = LOW Twice
Sensitivity setting 3 = VERY LOW 3 times
Sensitivity setting 4 = MINIMUM 4 times
Sensitivity setting 1 = NORMAL Once

When playing FORZA MOTORSPORT 5, we recommend using sensitivity settings 3 (very low) or 4 (minimum).
Note: changes made to the sensitivity setting are not saved, and must repeated every time you restart or disconnect your racing wheel.

SETTING UP THE RACING WHEEL

Attach the racing wheel.

  1. Place the racing wheel on a table or another flat, level surface.
  2. Place the attachment screw (2) in the attachment system (1), then insert the attachment device into the relevant hole located beneath the racing wheel, until the racing wheel is perfectly stable. Do not overtighten the screw; this could cause damage to both the attachment system and the table. Connect the pedal set
  3. Connect the pedal set cable (3) to the racing wheel’s connector (4).

SETTING THE RACING WHEEL UP FOR YOUR XBOX ONE

  1. Plug the USB connector (5) into one of the console’s USB ports.
  2. Power on the console using the XBOX button located on the console or the racing wheel. (Do not power on your console using an Xbox controller, to avoid any conflict with the racing wheel!) The white LED lights up automatically when your racing wheel powers up.
  3. Connect to your profile using the racing wheel’s buttons.
  4. Start the game using the racing wheel’s buttons.

For safety reasons, do not use the pedal set with bare feet or when wearing only socks. THRUSTMASTER® SHALL NOT BE HELD RESPONSIBLE FOR ANY PHYSICAL INJURIES OCCURRING WHEN USING THE PEDAL SET WITHOUT SHOES. You are now ready to play!

TROUBLESHOOTING AND WARNING

  • My racing wheel doesn’t work correctly, or seems incorrectly calibrated.
  1. Power off the console.
  2. Unplug the power cable located at the back of the console (the console’s power supply LED turns ORANGE).
  3. Leave the racing wheel connected to the console.
  4. Reconnect the power cable located at the back of the console (the console’s power supply LED turns WHITE).
  5. Power on the console again using the XBOX button located on the console (do not use the XBOX button on the controller).
  6. Start the game using the racing wheel; be careful not to turn the controller on!
  • To avoid any calibration problems:
    • Never turn the wheel or press on the pedals when connecting the racing wheel or starting a game.
    • Always connect the pedal set to the racing wheel before connecting the racing wheel’s USB connector to the console.
  • I cannot configure my racing wheel.
    • In FORZA MOTORSPORT 5, you can adjust your racing wheel’s settings in the FORZA PROFILE/CONTROLLER/ADVANCED section (press X).
    • In other games, access the Options / Controller menu, then select the most relevant configuration.
    • Please refer to your game’s user manual or online help for further information.
  • Connect to http://ts.thrustmaster.com/. In the Xbox One/Racing wheel/Ferrari 458 Spider section:
    • Review various FAQs and hints on how to use games for Xbox One (including FORZA MOTORSPORT 5) with your racing wheel.
    • Access the list of games compatible with the racing wheel (this will be regularly updated).

When playing these games, do not hesitate to test and compare the four sensitivity settings offered by your racing wheel.


]]>
THRUSTMASTER T500RS RS GT5 Racing Wheel For PC Manual https://usemanuals.com/thrustmaster/t500rs-rs-gt5-wheel/ Wed, 28 Jun 2023 04:37:09 +0000 https://usemanuals.com/?p=131304 Read More...

]]>

THRUSTMASTER T500RS RS GT5 Racing Wheel For PC



Manual firmware update procedure

Windows 7 / 8 / 8.1 / 10

Install the drivers
“PC – DRIVERS FORCE FEEDBACK:
https://support.thrustmaster.com/en/product/t-gt-en/

  •  DO NOT CONNECT the T-GT wheel to your PC before being prompted to do so.
  •  The wheel must be connected directly to the computer’s USB port. We recommend that you do not use a USB hub for this procedure.
  •  DO NOT CLICK in any Windows dialog boxes that may appear during the update.

Restart the computer.

ON WINDOWS 7

In the “Start > All Programs > Thrustmaster > FFB Racing wheel > Control Panel” menu, verify that your wheel appears under the name “Thrustmaster T-GT Racing Wheel”

 On Windows 8 / 8.1 / 1010 Beta
From the Start menu, start typing the words Control Panel. This will bring up the Search function, giving you access to the Game Controller Control Panel.

It is also available under Apps > Thrustmaster:

Your wheel should appear under the name “Thrustmaster T-GT Racing Wheel”.

Your wheel’s firmware version is displayed in the upper right-hand corner of the Control Panel tabs. Firmware: 10.00 (Base) – R32 (Rim) is currently the latest version

If the firmware version is earlier than 10.00 (Base) – R32 (Rim)

On Windows 8 / 8.1 / 10

In the “Start > All Programs > Thrustmaster > FFB Racing wheel” menu, click on “Firmware Update”.

From the Start menu, start typing the words Firmware Update. This will bring up the Search function, giving you access to the Firmware application:

It is also available under Apps > Thrustmaster:

  •  The T-GTdevice is listed in the “Device” section. The version of the firmware currently found in the device is displayed.
  •  The “Firmware” section displays information regarding the version of the firmware that will be applied to the device.

When you are ready to continue, click OK. IMPORTANT: DO NOT UNPLUG your wheel from the USB port, and DO NOT DISCONNECT the wheel’s power supply during the firmware update procedure! The firm ware update procedure begins (the update progress is displayed onscreen). During the firmware update, the MODE LED on the wheel will be OFF: this is perfectly normal.

The update program will inform you whether the firmware has been successfully updated.

If the firm ware has been successfully updated, the wheel will automatically calibrate itself, and the MODE LED will return to its original state:

Click OK to return to the update program’s main window, and then click on exit the program.

If the firmware update procedure has failed or displays an error message, please contact Thrustmaster technical support, who will guide you through the entire process to follow. Once the firm ware has been successfully updated, verify that the wheel is functioning properly in the Control Panel

]]>
THRUSTMASTER T300 RS GT Edition Racing Wheel Manual https://usemanuals.com/thrustmaster/t300-rs-gt-wheel/ Wed, 28 Jun 2023 09:13:51 +0000 https://usemanuals.com/?p=132646 Read More...

]]>

THRUSTMASTER T300 RS GT Edition Racing Wheel

TECHNICAL FEATURES

  1. T300 RS base
  2. T300 GT wheel
  3. 2 sequential paddle shifters (up & down)
  4. Directional buttons
  5. Built-in USB sliding switch for PS5™ consoles, PS4™ consoles and PC
  6. MODE button + red/orange/green indicator light.
  7. SHARE/OPTIONS buttons on PS4™ consoles and CREATE/OPTIONS on PS5™ consoles
  8. PS button
  9. Large threaded hole (for attachment system and fastening screw)
  10. Attachment system
  11. Metal fastening screw
Important notes regarding the USB sliding switch (5):
  • In order to function on a PS5™ console or PS4™ console, the USB sliding switch (5) on the racing wheel’s base must always be in the PS5™-PS4™ position before connecting the racing wheel’s USB cable to the console.
  • In order to function on a PS3™ console, the USB sliding switch (5) on the racing wheel’s base must always be in the PC position before connecting the racing wheel’s USB cable to the console.
  • In order to function on PC, the USB sliding switch (5) on the racing wheel’s base must always be in the PC position before connecting the racing wheel’s USB cable to the PC.

  1. Thrustmaster Quick Release
  2. L3/R3 buttons
  3. Power supply connector (type A or B)(varies from one country to another)
  4. Racing wheel USB cable and connector
  5. Gearbox connector
    (gearbox sold separately)
  6. Pedal set connector
PLUGGING THE RACING WHEEL INTO AN ELECTRICAL OUTLET:

PLEASE READ BEFORE PROCEEDING!
Your racing wheel’s power supply varies according to the country where you purchased your device. The power supply can be:

Internal, with:

* a power supply unit located directly inside the racing wheel’s base, with a type A connector.
* a 220-240 V power supply cable.
= compatible only with 220-240 V electrical power.

Never connect the 220-240 V cable to a 100-130 V electrical outlet!!!
Never connect this cable to a power adapter!!!

Internal, with:

* a power supply unit located directly inside the racing wheel’s base, with a type A connector.
* a 100-125 V power supply cable.
= compatible only with 100-125 V electrical power.

Never connect the 100-125 V cable to a 220-240 V electrical outlet!!!
Never connect this cable to a power adapter!!!

IMPORTANT: if you do not know which voltage is supplied in the area in which you are using your racing wheel, please ask your local electricity supplier.

External, with:

* an external power supply unit, with a type B connector. * a power supply cable.
= compatible with all electrical voltages, from 110-240 V.

WARNING
Before using this product, please read this manual carefully and save it for later reference.

Warning – Electrical shock

  • Keep the product in a dry location and do not expose it to dust or sunlight.
  • Do not twist or pull on the connectors and cables.
  • Do not spill any liquid on the product or its connectors.
  • Do not short-circuit the product.
  • Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
  • Do not use a power supply cable other than the one provided with your racing wheel.
  • Do not use the power supply cable if the cable or its connectors are damaged, split or broken.
  • Make sure that the power supply cable is properly plugged into an electrical outlet, and properly connected to the connector at the rear of the racing wheel’s base.
  • Do not open up the racing wheel: there are no user-serviceable parts inside. Any repairs must be carried out by the manufacturer, its authorized representative or a qualified technician.
  • Only use attachment systems/accessories specified by the manufacturer.
  • If the racing wheel is operating abnormally (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, unplug the power supply cable from the electrical outlet and disconnect the other cables.
  • If you will not be using the racing wheel for an extended period of time, unplug its power supply cable from the electrical outlet.
  • The power outlet shall be installed near the equipment and shall be easily accessible.

Air vents
Make sure not to block any of the air vents on the racing wheel’s base. For optimal ventilation, make sure to do the following:

  • Position the wheel’s base at least 10 cm away from any wall surfaces.
  • Do not place the base in any tight spaces.
  • Do not cover the base.
  •  Do not let any dust build up on the air vents.

For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.
THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning: Injuries due to Force Feedback and repeated movements
Playing with a Force Feedback racing wheel may cause muscle or joint pain. To avoid any problems:

  • Avoid lengthy gaming periods.
  • Take 10 to 15 minute breaks after each hour of play.
  • If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.

Warning: Injuries due to Force Feedback and repeated movements (continued)

  • If the symptoms or pain indicated persist when you start playing again, stop playing and consult your doctor.
  • Keep out of children’s reach.
  • During gameplay, always leave both hands correctly positioned on the wheel without completely letting go.
  • During gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.
  • During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
  • Make sure that the racing wheel’s base is properly secured, as per this manual’s instructions.

  • Product to be handled only by users 16 years of age or older
  • Be careful not to drop the product on yourself or on anyone else!
  • Never

Warning: Pedal set pinch hazard when playing

  • Keep the pedal set out of children’s reach.
  • During gameplay, never place your fingers on or anywhere near the sides of the pedals.
  • During gameplay, never place your fingers on or anywhere near the pedal’s rear base.
  • During gameplay, never place your fingers on or anywhere near the pedal’s front base.
  • Never

Warning: Pedal set pinch hazard when not playing

  • Store the pedal set in a safe place, and keep it out of children’s reach.
UPDATING YOUR RACING WHEEL’S FIRMWARE

The firmware included in your racing wheel’s base can be updated to a more recent version featuring product enhancements.
To display the firmware version that your racing wheel is currently using and update it if required: on PC, visit https://support.thrustmaster.com. Click Racing Wheels / T300RS GT Edition, then select Firmware and follow the instructions describing the download and installation procedure.

Important note:
In order to function on PC, the USB sliding switch (5) on the racing wheel’s base must always be in the PC position before connecting the racing wheel’s USB cable to the PC.

INSTALLING THE WHEEL ON ITS BASE

Align the connector positions using the arrows:

  • Base (1) connector: Arrow pointing upwards
  • Racing wheel (2) connector: Arrow pointing upwards

Once the connectors are correctly positioned, simply rotate the Thrustmaster Quick Release (12) device’s ring anticlockwise, while holding the racing wheel (2) in position.
Then, tighten the ring as much as you can: to do so, hold the ring in position and rotate the racing wheel clockwise.

Once you have installed the wheel, rotate it 180° (when facing the wheel, the GT logo should be upside down) to access the small attachment screw located on the ring of the Thrustmaster Quick Release (12) device. Use a large Phillips screwdriver to tighten the small attachment screw (do not use excessive force), turning it clockwise.

When using a Philips screwdriver, ensure NOT to use excessive force when tightening the small attachment screw!
Stop turning the screw as soon as you feel some resistance.

ATTACHING THE RACING WHEEL

Attaching the racing wheel to a table or a desktop

  1. Place the racing wheel on a table or any other horizontal, flat and stable surface.
  2. Insert the fastening screw (11) in the attachment system (10), then tighten the device by turning the screw anticlockwise, so that it feeds into the large threaded hole (9) located beneath the racing wheel, until the wheel is perfectly stable.

WARNING: Never tighten the screw alone, without the attachment system in place!
(This could damage the racing wheel.)

Attaching the racing wheel’s base to a cockpit
  1. Place the racing wheel’s base on the cockpit shelf.
  2. Drive two M6 screws (not included) through the cockpit shelf, then feed them into the two small screw threads located on the underside of the racing wheel.
    Important: The length of the two M6 screws must not exceed the thickness of the shelf + 12 mm; longer screws could cause damage to internal components located in the racing wheel’s base.
  3. If required, tighten the standard attachment system by inserting the fastening screw in the large threaded hole.
ATTACHMENT / REMOVAL DIRECTION
To tighten:
Turn the screw counterclockwise
To release:
Turn the screw clockwise

MAPPING FOR PLAYSTATION®5 CONSOLES AND PLAYSTATION®4CONSOLES

MAPPING FOR PC

SETTING UP THE RACING WHEEL FOR PLAYSTATION®5 CONSOLES AND PLAYSTATION®4 CONSOLES

  1. Connect the pedal set to the connector (17) located at the back of the racing wheel’s base.
  2. Connect the power supply cable to the connector (14) located at the back of the racing wheel’s base.
  3. Plug the power supply cable into an electrical outlet with the same voltage specifications.
    For more information about this, please refer to the PLUGGING THE RACING WHEEL INTO AN ELECTRICAL OUTLET section, on page 4 of this manual.
  4.  Set the USB sliding switch (5) on the racing wheel’s base to PS5™-PS4™.
  5. Connect the racing wheel’s USB connector (15) to one of the console’s USB ports.
  6. Once your console is powered on, your racing wheel will calibrate itself automatically.
  7.  Press the racing wheel’s PS button (8) and sign in to your PlayStation® Network account, in order to be able to use the wheel.

You are now ready to play!

SWITCHING FROM PS5™ MODE TO PS4™ MODE AND VICE VERSA
Press and hold down the MODE button (6) for five seconds, and then release it.
The indicator light changes color, and the selection you have made is instantly saved in the racing wheel’s internal memory.

SELECTED MODE Color of indicator light (6)


PS5™



RED


PS4™



ORANGE

Important notes:

  • The USB sliding switch (5) on the racing wheel’s base must always be set to the proper position (PS5™-PS4™) before connecting the wheel’s USB cable to the console.
    To change the sliding switch’s position, disconnect the USB cable from the console and then change the position of the switch before reconnecting the USB cable to the console.
  • On PlayStation®5 consoles and PlayStation®4 consoles, with the USB sliding switch (5) in the PS5™-PS4™ position:
    • Don’t forget to press the racing wheel’s PS button (8) in order to be able to use the wheel.
    • The wheel is recognized in most games as a T300 RS wheel.
    • The wheel is functional in compatible games and in console menus.
    • The “CREATE/SHARE” and “PS” functions are functional on the wheel.
  • The list of games compatible with the PS5™ console and the PS4™ console is available at: https://support.thrustmaster.com (click Racing Wheels / T300RS GT Edition / Games settings).

This list is updated regularly.

SETTING UP THE RACING WHEEL FOR PC

PC compatibility not endorsed by Sony Interactive Entertainment.

  1. Connect the pedal set to the connector (17) located at the back of the racing wheel’s base.
  2. Connect the power supply cable to the connector (14) located at the back of the racing wheel’s base.
  3. Plug the power supply cable into an electrical outlet with the same voltage specifications.
    For more information about this, please refer to the PLUGGING THE RACING WHEEL INTO AN ELECTRICAL OUTLET section, on page 4 of this manual.
  4. Set the USB sliding switch (5) on the racing wheel’s base to PC.
  5. Go to https://support.thrustmaster.com, then select Racing Wheels / T300RS GT Edition to download the drivers and the Force Feedback software for PC.
  6. Once the download is complete, launch the installation, and follow the on-screen instructions to connect the wheel’s USB plug to your PC and complete the installation. The racing wheel automatically self-calibrates. The indicator light (6) is green.
  7. Once the installation is complete, click Finish and restart your computer.
  8. Select Start / All Programs / Thrustmaster / T300RS GT Edition / Control Panel to open the Game Controllers window.
    The Game Controllers window displays the racing wheel’s name (Thrustmaster T300RS Racing Wheel) with the status OK.
  9. Click Properties to configure your wheel in the T300 control panel:
    • Test Input tab: lets you test and view the action buttons, directional buttons, wheel and pedals axes, and adjust the wheel’s rotation angle in your PC games.
    • Test Forces tab: lets you test 12 Force Feedback effects.
    • Gain Settings tab: lets you adjust the power of the Force Feedback effects in your PC games.

General notes:

  • On PC, always remember to completely close the Game Controllers window by clicking OK before launching the game.
  • Your racing wheel’s firmware version is displayed in the upper right-hand corner of the control panel tabs.

You are now ready to play!

Important note:
In order to function on PC, the USB sliding switch (5) on the racing wheel’s base must always be in the PC position before connecting the racing wheel’s USB cable to the PC.

SELECTED MODE Color of indicator light (6)


PC




GREEN

AUTOMATIC RACING WHEEL AND PEDAL SET CALIBRATION
The wheel automatically self-calibrates when you plug the racing wheel into an electrical outlet and connect the racing wheel’s USB connector to the console.
During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 1080-degree angle, before stopping at the center.

WARNING: Never touch the racing wheel during the self-calibration phase!  (This could result in improper calibration and/or personal injuries.)

Never connect the pedal set to the racing wheel’s base (or disconnect it from the base) when it is connected to the console or during gameplay (this could result in improper calibration).
Always connect the pedal set before connecting the racing wheel to the console.
Once the racing wheel’s calibration is complete and the game has been started, the pedals are automatically calibrated after a few presses.

WARNING: Never press the pedals during the racing wheel’s  self-calibration phase or while a game is loading! (This could result in improper calibration.)

If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated:
Power off your console and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console and your game.

INTERNAL TEMPERATURE SENSOR
The wheel’s cooling system is composed of a heat sink and a fan.

  • A thermostat monitors the wheel’s internal temperature.
  • When you are using the wheel in a game:
    • The cooling fan starts up when the wheel has reached a certain temperature (after a few minutes of gameplay, depending on the strength of the Force Feedback effects used).
    • The power of the Force Feedback effects automatically decreases as soon as the wheel reaches a much higher temperature level (to protect the motor). The power of these effects automatically increases as soon as the temperature slightly decreases.
  • When you’re done playing: due to the motor’s thermal inertia, the cooling fan continues to operate until the temperature drops below the fan’s startup level. Your wheel has been designed in this way in order to facilitate cooling, and to protect the motor (this may take from 5 to 45 minutes, depending on the temperature reached while using the wheel in a game).
MODE BUTTON AND INDICATOR LIGHT

MODE button for the pedal set
You can electronically swap the accelerator and clutch pedals.
Procedure:
Simultaneously press and hold down the MODE + L3 + R3 buttons (located on the T300 racing wheel’s base) for five seconds, and then release them.

The racing wheel’s internal memory stores whether the pedals have been swapped around or not, and the indicator light (6) flashes differently according to the mode you have selected:

GAS AND CLUTCH PEDALS Color of the MODE indicator light
Switching to INVERTED mode Flashes five times after the procedure, then continuously flashes once every eight seconds.
Switching to NORMAL mode Flashes once after the procedure, then does not flash continuously.

Other information regarding the MODE button
To learn more about the MODE button and indicator light, please visit https://support.thrustmaster.com. Click Racing Wheels / T300RS GT Edition, and then select Manual or FAQ.

HELP FILES AND FAQS
Please visit https://support.thrustmaster.com. Click Racing Wheels / T300RS GT Edition, and then select Manual or FAQ.

T3PA – GT EDITION PEDAL SET

TECHNICAL FEATURES

  1. Metal support for conical stop (not installed by default)
  2. Conical stop
  3. Attachment screw for metal support
  4. 2.5 mm Allen key (included)
  5. Position adjustment nut for conical stop
  6.  Pedal arm
  7. Plastic head support
  8. Metal pedal head

WARNING
Before using this product, be sure to read these instructions carefully and save them for future reference..
For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.
THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning: Pedal set pinching hazard during gaming sessions.

  • Keep the pedal set out of the reach of children.
  • During gaming sessions, never place your fingers or thumbs on or near the sides of the pedals.
  • During gaming sessions, never place your fingers or thumbs on or near the rear base of the pedals.
  • During gaming sessions, never place your fingers or thumbs on or near the front base of the pedals.

AUTOMATIC CALIBRATION OF PEDALS

IMPORTANT

  • Never connect or disconnect the pedal set from the base of the wheel when the wheel is connected to the PS5™ console, PS4™ console or to a PC, or during gaming sessions, to avoid calibration problems.
  • Always connect the pedal set to the wheel before connecting the wheel to the PS5™ console, PS4™ console or to a PC.
  • Once the wheel has self-calibrated and the game has started, the pedals automatically calibrate themselves after being pressed a few times.
  • Never press on the pedals when the wheel is self-calibrating or when your game is starting up, to avoid calibration problems.
  • If the pedals are not functioning correctly or appear to be improperly calibrated, power off your console, completely disconnect your wheel, then reconnect all of the cables (including the power supply cable and the pedal set cable), power the console back on and restart your game.
ATTACHING THE PEDAL SET TO A COCKPIT
  • Attach the pedal set using the small screw threads located on the underside of the pedal set.
  • Screw two M6 screws (not included) into the cockpit’s pedal support plate and into the two small screw threads located on the underside of the pedal set.

Important: The length of the two M6 screws must not exceed the thickness of the cockpit’s pedal support plate plus an additional 10 mm, to avoid damaging the pedal set’s internal components.

ADJUSTING THE PEDAL SET

Each of the three pedals includes:

  • A metal head (8) with multiple perforations (nine for the accelerator – two for the brake – six for the clutch).
  • A plastic head support (7) (placed between the head and the arm) with four perforations.
  • A pedal arm (6) with two perforations.

ATTENTION: To avoid any calibration problems, be sure to always disconnect your racing wheel’s USB cable before making any adjustments to your pedal set.

Adjusting the HEIGHT of the accelerator pedal
  • Using the included 2.5 mm Allen key (4), unscrew the two screws holding the metal head (8) and its support (7) in place.
  • Select your preferred height position, then replace and re-tighten the screws so that the metal head (8) and its support (7) are held firmly in place.

Adjusting the SPACING
  • Using the included 2.5 mm Allen key (4), unscrew the two screws holding the metal head (8) and its support (7) in place.
  • Select your preferred position (to the left, centered, or to the right), then replace and re-tighten the screws so that the metal head (8) and its support (7) are held firmly in place.

Examples illustrating the clutch pedal:

  • Left position
  • Centered position (default)
  • Right position

Number of possible spacing positions per pedal:

  • Three for accelerator pedal
  • Three for clutch pedal
Adjusting the INCLINATION of the pedals
  • Using the included 2.5 mm Allen key (4), unscrew the two screws holding the metal head (8) and its support (7) in place.
  • Turn the plastic head support (7) 180°, then replace and re-tighten the screws so that the metal head (8) and its support (7) are held firmly in place.

Examples illustrating the accelerator pedal:

  •  Less inclined position
  • More inclined position (default)

Number of possible inclination positions per pedal:

  • Two for accelerator pedal
  • Two for brake pedal
  • Two for clutch pedal

Installing the conical stop (“CONICAL RUBBER BRAKE” mod)
This modification (or “mod”) is not essential, and is not installed by default. This means that the brake pedal functions perfectly even if the mod is not installed.

This mod lets you experience a different feeling and resistance when braking. It’s up to you whether or not to install it, depending on your own preferences.

  • Screw the conical stop (2) onto its metal support (1).
  • Screw the position adjustment nut (5) onto the bottom (onto the conical stop’s screw thread).
  • Position the unit at the back of the brake pedal’s arm.
  • Using the included 2.5 mm Allen key (4), attach the unit using the attachment screw (3) and the small central screw thread located on the underside of the pedal set.

The “CONICAL RUBBER BRAKE” mod is now installed!

Adjusting the brake pedal’s RANGE of travel and STRENGTH of resistance
By slightly unscrewing the nut (5), you can further strengthen the resistance of the brake pedal by moving the conical stop (2) closer to the back of the pedal’s arm (if necessary, use a 14 mm wrench or pliers to re-tighten the nut and maintain the selected position). The closer the conical stop is positioned to the back of the pedal’s arm, the greater the strength of resistance will be.

Note: When the conical stop is very close to the back of the brake pedal’s arm, you may experience difficulties in reaching the maximum calibration value. Should that be the case:

  • Slowly, press very hard on the brake pedal so as to reach the maximum value (if necessary, stand very briefly on the pedal – just for a second), then release the pressure; or else
  • Move the conical stop a bit farther away from the back of the brake pedal’s arm.

CONSUMER WARRANTY INFORMATION
Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter “Guillemot”) warrants to the consumer that this Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Thrustmaster product).
Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer’s defective product shall, at Technical Support’s option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer’s request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose. This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product’s lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.
This warranty is nontransferable.
The consumer’s legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

Additional warranty provisions
During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Thrustmaster product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process – and by providing the consumer with the required spare part(s), where applicable).
Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Thrustmaster product whose warranty period has expired.
In the United States of America and in Canada, this warranty is limited to the product’s internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.

Liability
If permitted under applicable law, Guillemot Corporation S.A. (hereinafter “Guillemot”) and its subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).

DECLARATION OF CONFORMITY
CANADIAN COMPLIANCE NOTICE: this Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
USA COMPLIANCE NOTICE: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

TECHNICAL SUPPORT
https://support.thrustmaster.com
UK: 020 3147 4889
US: (866) 889-5036
Canada: 866-889-2181

COPYRIGHT
©2022 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. Manufactured and distributed by Guillemot Corporation S.A. All other trademarks and brand names are hereby acknowledged and are the property of their respective owners. Contents, design, and specifications are subject to changes without notice and may vary from one country to another. Photos and illustrations not binding. Designed in North America and Europe, made in China.
For use exclusively with PlayStation®5 consoles and PlayStation®4 consoles.
“PlayStation”, “PS5”, “PS4” and “PlayStation Shapes Logo” are registered trademarks or trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners. Manufactured and distributed under license from Sony Interactive Entertainment LLC.

WARNING: this product can expose you to chemicals including Bisphenol A (BPA), which is known to the State of California to cause cancer and/or birth defects or other reproductive harms. For more information go to www.P65Warnings.ca.gov

ENVIRONMENTAL PROTECTION RECOMMENDATION
In the European Union and Turkey: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.
This is confirmed by the symbol found on the product, user manual or packaging. Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.
Please contact your local authorities for information on the collection point nearest you.
For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.

Retain this information. Colors and decorations may vary. Plastic fasteners and adhesives should be removed from the product before it is used
www.thrustmaster.com
*Applicable to EU, UK and Turkey only

]]>
THRUSTMASTER 4469023 TMX Pro Racing Wheel Manual https://usemanuals.com/thrustmaster/4469023-wheel/ Thu, 13 Jul 2023 10:20:38 +0000 https://usemanuals.com/?p=161541 Read More...

]]>

THRUSTMASTER 4469023 TMX Pro Racing Wheel

TECHNICAL FEATURES

  1. MX base
  2. Wheel
  3. 2 sequential paddle shifters (up & down)
  4. Directional buttons
  5. Action buttons
  6. Action buttons
  7. Xbox Guide button + White indicator light
  8. MODE button + Red/Green indicator light
  9. Large threaded hole (for attachment system and fastening screw)
  10. Attachment system
  11. Metal fastening screw
  12. Steering axis
  13. Xbox Guide button + White indicator light
  14. Power cable or Power supply connector (varies from one country to another)
  15. Racing wheel USB cable and connector
  16. Gearbox connector (gearbox sold separately)
  17. Pedal set connector

WARNING
Before using this product, please read this manual carefully and save it for later reference.

Warning – Electrical shock

  • Keep the product in a dry location and do not expose it to dust or sunlight.
  • Do not twist or pull on the connectors and cables.
  • Do not spill any liquid on the product or its connectors.
  • Do not short-circuit the product.
  • Never dismantle the product; do not throw it onto a fire and do not expose it to high temperatures.
  • Do not use a power supply cable other than the one provided with your racing wheel.
  • Do not use the power supply cable if the cable or its connectors are damaged, split or broken.
  • Make sure that the power supply cable is properly plugged into an electrical outlet, and properly connected to the connector at the rear of the racing wheel’s base.
  • Do not open up the racing wheel: there are no user-serviceable parts inside. Any repairs must be carried out by the manufacturer, its authorised representative or a qualified technician.
  • Only use attachment systems/accessories specified by the manufacturer.
  • If the racing wheel is operating abnormally (if it is emitting any abnormal sounds, heat or odors), stop using it immediately, unplug the power supply cable from the electrical outlet and disconnect the other cables.
  • If you will not be using the racing wheel for an extended period of time, unplug its power supply cable from the electrical outlet.
  • Only use the power supply provided with your racing wheel (in the event of an external power supply).
  • The power outlet shall be installed near the equipment and shall be easily accessible.

Air vents
Make sure not to block any of the air vents on the racing wheel’s base. For optimal ventilation, make sure to do the following:

  • Position the wheel’s base at least 10cm away from any wall surfaces.
  • Do not place the base in any tight spaces.
  • Do not cover the base.
  • Do not let any dust build up on the air vents.

For safety reasons, never use the pedal set with bare feet  or while wearing only socks on your feet.  THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF  INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning – Injuries due to force feedback and repeated movements
Playing with a force feedback racing wheel may cause muscle or joint pain. To avoid any problems:

  • Avoid lengthy gaming periods.
  • Take 10 to 15 minute breaks after each hour of play.
  •  If you feel any fatigue or pain in your hands, wrists, arms, feet or legs, stop playing and rest for a few hours before you start playing again.

Warning – Injuries due to force feedback and repeated movements (continued)

  • If the symptoms or pain indicated persist when you start playing again, stop playing and consult your doctor.
  • Keep out of children’s reach.
  • During gameplay, always leave both hands correctly positioned on the wheel without completely letting go.
  • uring gameplay, never place your hands or your fingers under the pedals or anywhere near the pedal set.
  • During calibration and gameplay, never place your hand or your arm through the openings in the racing wheel.
  • Make sure that the racing wheel’s base is properly secured, as per this manual’s instructions.

SETTING UP THE RACING WHEEL FOR XBOX SERIES X|S / XBOX ONE

  1. Connect the pedal set to the connector (17) located at the back of the racing wheel’s base.
  2. Connect the power supply cable to the connector (14) located at the back of the racing wheel’s base.
  3.  Plug the power supply cable into an electrical outlet with the same voltage specifications.
  4. Connect the racing wheel’s USB connector (15) to one of the console’s USB ports.
  5.  Once your console is powered on, your racing wheel will calibrate itself automatically. You are now ready to play!
    •  The list of Xbox Series X|S / Xbox One games compatible with the TMX Force Feedback is https://support.thrustmaster.com (in the Racing Wheels/TMX section).  This list is updated regularly.

XBOX SERIES X|S / XBOX ONE MAPPING

SETTING UP THE RACING WHEEL FOR PC

  1.  Go to https://support.thrustmaster.com to download the drivers and the force feedback software for PC. Click Racing Wheels / TMX Force Feedback, then select Drivers.
  2. Once the download is complete, launch the installation, and follow the on-screen instructions to connect the wheel’s USB plug to your computer and complete the installation.
  3. Once the installation is complete, click Finish and restart your computer.
  4. Select Start / All Programs / Thrustmaster / FFB Racing Wheel / Control Panel to open the Game Controllers window.
    The Game Controllers window displays the racing wheel’s name Thrustmaster TMX Racing Wheel with the status OK.
  5. Click Properties to configure your wheel in the TMX control panel:
  • Test Input tab: allows to test and view the action buttons, directional buttons, wheel and pedals axes, and to adjust the wheel’s rotation angle in your PC games.
  • Test Forces tab: allows to test 12 force feedback effects.
  • Gain Settings tab: allows to adjust the power of the force feedback effects in your PC games.

You are now ready to play!

General notes:

  • On PC, click OK to close the Game Controllers window before launching the game.
  • On PC, the adjustments made in the Game Controllers window will only be saved on your computer (hence they will have no effect on Xbox Series X|S / Xbox One).
  • Your wheel’s firmware version is displayed in the upper right-hand corner of the TMX Force Feedback control panel tabs.

PC MAPPING

ATTACHING THE RACING WHEEL Attaching the racing wheel to a table or a desktop

  1.  Place the racing wheel on a table or any other horizontal, flat and stable surface.
  2. Insert the fastening screw (11) in the attachment system (10), then tighten the device by turning the screw counterclockwise, so that it feeds into the large threaded hole (9) located beneath the racing wheel, until the wheel is perfectly stable.

AUTOMATIC RACING WHEEL CALIBRATION

The wheel automatically self-calibrates when you plug the racing wheel into an electrical outlet and connect the racing wheel’s USB connector to the Xbox Series X|S / Xbox One. During this phase, the racing wheel will rotate quickly towards the left and the right, covering a 900 degree angle, before stopping at the center.

WARNING: Never touch the racing wheel during the self-calibration phase!  (This could result in improper calibration and/or personal injuries.)

MODE BUTTON AND INDICATOR LIGHT (8)

MODE button for the pedal set
The MODE button allows you to electronically swap the accelerator and clutch pedals. To do so, simply press the MODE button (8) for 2 seconds. The racing wheel’s internal memory stores whether the pedals have been swapped around or not.

WARNING: With the included T3PA pedal set, make sure that the indicator light remains red!  (or else the gas pedal will not function properly)

Other information regarding the MODE button
To learn more about the MODE button and indicator light, please visit https://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

UPDATING YOUR RACING WHEEL’S FIRMWARE

The firmware included in your racing wheel’s base can be updated to a more recent version featuring product enhancements. To display the firmware version that your racing wheel is currently using and update it if required: on PC, visit https://support.thrustmaster.com. Click Racing Wheels / TMX Force Feedback, then select Firmware and follow the instructions describing the download and installation procedure.

HELP FILES AND FAQS (NOT INCLUDED IN THIS MANUAL)

Please visit https://support.thrustmaster.com, click Racing Wheels / TMX Force Feedback, then select Manual or FAQ. If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated: Power off your console or PC and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console or PC and your game.

WARNING
Before using this product, be sure to read these instructions carefully and save them for future reference.

For safety reasons, never use the pedal set with bare feet or while wearing  only socks on your feet.  THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF  INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

Warning – Pedal set pinching hazard during gaming sessions

  • Keep the pedal set out of the reach of children.
  • During gaming sessions, never place your fingers or thumbs on or near the sides of the pedals.
  • During gaming sessions, never place your fingers or thumbs on or near the rear base of the pedals.
  • During gaming sessions, never place your fingers or thumbs on or near the front base of the pedals.

AUTOMATIC CALIBRATION OF PEDALS

IMPORTANT:

  • Never connect or disconnect the pedal set from the base of the wheel when the wheel is connected to the console or PC, or during gaming sessions, to avoid calibration problems.
  • lways connect the pedal set to the wheel before connecting the wheel to the console or PC.
  • Once the wheel has self-calibrated and the game has started, the pedals automatically calibrate themselves after being pressed a few times.
  • Never press on the pedals when the wheel is self-calibrating or when your game is starting up, to avoid calibration problems.
  • If your racing wheel and/or pedal set do not function correctly, or if they seem to be improperly calibrated: Power off your console or PC and completely disconnect the racing wheel. Then reconnect all cables (including the power supply cable and the pedal set), and restart your console or PC and your game.

ATTACHING THE PEDAL SET TO A COCKPIT

  • Attach the pedal set using the small screw threads located on the underside of the pedal set.
  • Screw two M6 screws (not included) into the cockpit’s pedal support plate and into the two small screw threads located on the underside of the pedal set.
    Important: The length of the two M6 screws must not exceed the thickness of the cockpit’s pedal support plate plus an additional 10 mm, to avoid damaging the pedal set’s internal components. Layout diagrams for cockpits are available at https://support.thrustmaster.com: click Racing Wheels / TMX Force Feedback, then select Manual or FAQ.

ADJUSTING THE PEDAL SET

Each of the three pedals includes:

  • A metal head (8) with multiple perforations (nine for the accelerator – six for the brake – six for the clutch).
  • A plastic head support (7) (placed between the head and the arm) with four perforations.
  • A pedal arm (6) with two perforations.

ATTENTION: To avoid any calibration problems, be sure to always disconnect your wheel’s USB cable from the console or PC before making any adjustments to your pedal set.

Adjusting the HEIGHT of the accelerator pedal

  • Using the included 2.5 mm Allen key (4), unscrew the two screws holding the metal head (8) and its support (7) in place.
  • Select your preferred height position, then replace and re-tighten the screws so that the metal head (8) and its support (7) are held firmly in place.

Adjusting the SPACING of the three pedals

  • Using the included 2.5 mm Allen key (4), unscrew the two screws holding the metal head (8) and its support (7) in place.
  • Select your preferred position (to the left, centered, or to the right), then replace and re-tighten the screws so that the metal head (8) and its support (7) are held firmly in place.

Adjusting the INCLINATION of the pedals

  • Using the included 2.5 mm Allen key (4), unscrew the two screws holding the metal head (8) and its support (7) in place.
  • Turn the plastic head support (7) 180°, then replace and re-tighten the screws so that the metal head (8) and its support (7) are held firmly in place.

Installing the conical stop (“CONICAL RUBBER BRAKE” mod)

This modification (or “mod”) is not essential, and is not installed by default. This means that the brake pedal functions perfectly even if the mod is not installed.This mod lets you experience a different feeling and resistance when braking. It’s up to you whether or not to install it, depending on your own preferences.

  • Screw the conical stop (2) onto its metal support (1).
  • Screw the position adjustment nut (5) onto the bottom (onto the conical stop’s screw thread).
  • Position the unit at the back of the brake pedal’s arm.
  •  Using the included 2.5 mm Allen key (4), attach the unit using the attachment screw (3) and the small central screw thread located on the underside of the pedal set.

Adjusting the brake pedal’s RANGE of travel and STRENGTH of resistance

By slightly unscrewing the nut (5), you can further strengthen the resistance of the brake pedal by moving the conical stop (2) closer to the back of the pedal’s arm (if necessary, use a 14 mm wrench or pliers to re-tighten the nut and maintain the selected position). The closer the conical stop is positioned to the back of the pedal’s arm, the greater the strength of resistance will be.

Note: When the conical stop is very close to the back of the brake pedal’s arm, you may experience difficulties in reaching the maximum calibration value. Should that be the case:

  • Slowly, press very hard on the brake pedal so as to reach the maximum value (if necessary, stand very briefly on the pedal – just for a second), then release the pressure; or else
  • Move the conical stop a bit farther away from the back of the brake pedal’s arm.

CONSUMER WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter “Guillemot”) warrants to the consumer that this Thrustmaster product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Thrustmaster product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Thrustmaster product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Thrustmaster product (if no such action exists in the corresponding country, then the warranty period shall be one

  1. year from the original date of purchase of the Thrustmaster product). Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase. Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support). Within the context of this warranty, the consumer’s defective product shall, at Technical Support’s option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer’s request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose. This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product);
  2. if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product’s lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction. This warranty is nontransferable. The consumer’s legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.
  3. year from the original date of purchase of the Thrustmaster product). Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase.
    Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support). Within the context of this warranty, the consumer’s defective product shall, at Technical Support’s option, be either replaced or returned to working order. If, during the warranty period, the Thrustmaster product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer’s request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Thrustmaster product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose. This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Thrustmaster product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product);
  4. if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product’s lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.
    This warranty is nontransferable. The consumer’s legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

COPYRIGHT
© 2021 Guillemot Corporation S.A. All rights reserved. Thrustmaster® is a registered trademark of Guillemot Corporation S.A. All other trademarks are the property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.
ENVIRONMENTAL PROTECTION RECOMMENDATION

    •  In the European Union, the UK and Turkey: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling. This is confirmed by the symbol found on the product, user manual or packaging. Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment. Please contact your local authorities for information on the collection point nearest you. For all other countries: Please adhere to local recycling laws for electrical and electronic equipment. Retain this information. Colors and decorations may vary. Plastic fasteners and adhesives should be removed from the product before it is used.www.thrustmaster.com
    • Applicable to EU, UK and Turkey only

]]>
