TAOTRONICS TT-IC002 Ice Maker

IMPORTANT SAFETY INSTRUCTl0NS

• DO NOT touch or hold the mains plug with wet hands.
• DO NOT immerse any part in water or any other liquid.
• DONOTtip thelce Maker over.

INTENDED USE

• This appliance is not intended for use by persons
  (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by person responsible for their safety.
• Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.
• Use the appliance only for intended household purposes as described in this User Manual. Any other use is not recommended that may cause fire, electric shock, or injury to persons.

WARNING
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURYTO PERSONS, INCLUDING THE FOLLOWING:

ELECTRICITY SAFETY

• This appliance must be provided with correct voltage via a professionally installed power socket. Make sure the voltage indicated on the label of the appliance is the same as your local supply.
• DO NOT operate the appliance if the plug, the main cord or the appliance itself is damaged. Always make sure that the plug is inserted properly into a wall outlet.
• DO NOT use an extension cord with this unit.

RELATED TO USE

• Always make sure to place the Ice Maker on a flat, level surface before operation.
• DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
• DO NOT use any other liquid to make ice other than water.
• dO NOT use mechanical devices to defrost.
• DO NOT attempt to disassemble, repair, modify or replace any part any part of your product. All servicing should be performed by qualified personnel only.
• DO NOT tip the appliance over. If it is stored tipped over, please set upright for at least 2 hours before plugging it in.
• Always unplug the appliance before cleaning, making any repairs or servicing, or whenever not in use.
• If the appliance is stored in a cold environment, wait at least 3 hours for the appliance to warm to room temperature before plugging it in.

HAVE YOUR ICE MAKER CHECKED REGULARLY FOR ANYSIGNOF MALFUNCTION!

Check if Plug, cord or appliance is damaged Stop using, check FAQ and contact TaoTronics Support Team.

SPECIFICATIONS

BEFORE USING ICE -MAKER

PREPARING FOR USE

1. parts Remove are all inside. exte water
2. Clean and the a interior, soft cloth. ice basket and ice scoop with lukewarm
3. Place sunlight upright and/or on a other flat, heat level sources. surface
4. Settle the appliance for at least 2 hours before plugging in.

CONTROL PANEL AND DISPLAY

Display Screen

Control Panel

USING ICE -MAKER

NOTE

• When “Add Water” lights up, fill water up to the max level and press “Start/Stop”. When I (3;9 l”lce Full” lights up, remove the ice in time.
• It is recommended to change water every 24 hours to ensure a reasonable hygiene level.
• Not a freezer, please put the ice in use or into freezer once it is made.

If you reselect the ice size during ice making, the new size will be made only when the previous cycle is completed.

1. Fill with clean drinking water. Do not exceed the MAX line.
2. Plug into a properly installed grounded wall outlet.
3. Press S/L to select the desired size of ice (Small/ Large).
4. Press Start/Stop to start ice making cycle (6-8 minutes).
5. Once ready, remove the ice from the basket with scoop.

CLEANING ANB MAINTENENCE

REGULAR CLEANING
Unplug the ice maker before regular cleaning.

1. Take out the ice basket.
2. Clean the interior with warm water and a soft cloth.
3. Rinse inside parts and drain out the water.
4. Clean the exterior with lukewarm water and a soft cloth.
5. When not in use for an extended period of time, drain water completely and dry the interior.

SYSTEM CLEANING

Plug the ice maker into a properly installed grounded wall outlet before system cleaning.

• Fill with clean drinking water. Do not exceed the MAX line.
• Press Clean, then press Start/Stop to start cleaning cycle.
• Once completed, drain out the water by unplugging the drain cap.

TROUBLESHOOTING GUIDE

The troubleshoot ing guide addresses the most com mon problems. If problems persist, feel free to contact the Customer Support at support@taotronics.com

WARRANTY AND SERVICE

Thanks for choosing TaoTronics Ice Maker.
This product is covered with Tao T ronics product and labor warranty for 12 months from the date of its original purchase.

The warranty will not apply in cases of:

• Accident, misuse, or repairs performed by unauthorized personnel.
• Any unit that has been tampered with or used for commercial purpose.
• Normal wear and tear of wearable parts.
• Use of force, damage caused by external influences.
• Damage caused by non-obseivance of the User Manual, e.g. connection to an unsuitable mains supply or non-compliance with the instructions.
• Partially or completely dismantled appliances.
• Defects caused by or resulting from damages from shipping or from repairs, service, or alteration to the product or any of its parts that have been performed by a repair person not authorized byTaoTronics.

We can only provide after sales service for products that are sold by TaoTronics or Tao T ronics authorized retailers and distributors. If you have purchased your unit from a different place, please contact your seller for return and warranty isues.

TAOTRONICS Air Purifier User Guide

TT-AP002

Product Diagram

1. Control Panel
2. Air Outlet
3. Dust Sensor
4. Filter
5. Power Cord
6. Rear Grille

Warnings

This product should be used only in accordance with the specifications outlined in this User Guide. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• IMPORTANT – This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to rig this safety feature.
• To avoid fire or shock hazard, plug the appliance directly into a right AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves, or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
• Always unplug the air purifier before moving it, opening the grille, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug, not the cord.
• NEVER drop or insert any objects into any openings.
• DO NOT run the cord under carpeting.
• DO NOT cover the cord with throw rugs or similar coverings.
• DO NOT route the cord under furniture or appliances. Arrange the cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if the motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Send to Customer Service for assistance.
• Use appliance only for intended household purposes as described in this manual. Any other use is not recommended that may cause fire, electric shock, or injury to persons.
• DO NOT use outdoors.
• DO NOT place anything on top of the unit.
• NEVER block the air openings, grille / outlets or place the unit on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air inlet or outlet.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
• To reduce the risk of fire or electric shock, do not use this purifier with any solid-state speed control device.

Specifications

Operations and Functions

Connecting to a power source, all the indicators on the control panel will flash once and a beep sound will be heard. The product is in standby mode now.

• Power Button
  Press the Power Button to turn on / off the unit.
•  Fan Speed Button
  1. Press the Fan Button to cycle through Turbo/ High /Middle / Low wind modes.
  2. Press and hold it for 3 seconds to enter automatic wind mode where all the wind indicators will light up.
•  Timer Button
  Press the Timer Button to set 1h, 2h, 4h, 8h timer and turn the timer off.
•  Sleep Button
  Press the Sleep Button to turn on the sleep mode. In sleep mode, all the indicators except the sleep indicator will turn off. Press twice to turn off the sleep mode.
•  ION Button
  Press the ION Button to activate or turn off the ION mode.
•  Change Filter Reminder
  1. Change the filter when this indicator flashes.
  2. Press and hold the ION Button for 3 seconds to reset the unit after Installing of the new filter.

Note:

1. when the unit is on, the Air Quality indicator will light up to show the current air quality:


   Air Quality Indicator	Green	Orange	Red
   Air Quality	Good	Moderate	Unhealthy

2. To achieve better purification, make sure to keep the purifier 30 centimeters / 11.8 inches away from walls, furniture and so on and at least 50 centimeters / 19.7 inches away from metals / electrical appliances.

3. In sleep mode, press the Sleep Button once to check the current settings. Press twice to turn off the sleep mode.
4. In automatic wind mode, the unit will adjust the fan speed according to the results read by the dust sensor (dust concentration).

Installing and Removing the Filter

1. Use soft brushes to dust off the filter regularly for better purification. Don’t wash it with water.
2. Replace the filter when the Change Filter Reminder flashes:
   1. Unplug the power source.
   2. Remove the rear grille.

   3. Take out the old filter by pulling the tabs.
   4. Install a new or the cleaned filter and put the rear grille back on.

   5. Press and hold the ION Button for 3 seconds to reset the unit. The Change Filter Reminder will turn off.


Cleaning and Maintenance

Clean the purifier at least once every month with a clean, dry, soft cloth. More frequent cleaning may be required depending on environmental conditions.

Note:

• Do NOT stick any foreign objects or your fingers inside of the unit.
• Do NOT use gasoline, benzene, and other abrasive or harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product.
• NEVER use alcohol or other solvents.

Maintaining the Filters

The True HEPA filter should be cleaned once each month by a vacuum cleaner.

Note:

• Filter should be replaced at least once each 3 to 6 months. More frequent cleaning and replacing may be required depending on environmental conditions.
• The air purifier works the best in a closed environment. Its performance may be compromised in a well-ventilated room.
• Air the filters under the sun for an hour before using it again if the purifier has not been used for a long time.

Warranty and Service

This product is covered with TaoTronics product and labor warranty for 12 months from the date of its original purchase.

If any problems occur, please contact the TaoTronics Customer Care Centre via the contact information listed in this User Guide.

We can only provide after sales service for products that are sold by TaoTronics or TaoTronics authorized retailers and distributors. If you have purchased your unit from a different place, please contact your seller for return and warranty issues.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

WEEE Compliance
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Support

E-mail: support@taotronics.com

MANUFACTURER
Manufacturer: Shenzhen NearbyExpress Technology Development Co.,Ltd. Address: Floor 7, Building E, Galaxy World Phase II, Shenzhen, China Learn more about the EU Declaration of Conformity: https://www.taotronics.com/pages/user-manual

MADE IN CHINA

Visit: www.taotronics.com

Thank you for choosing the TaoTronics LED Starry String Light. Please read this manual carefully and store it in a safe place for future reference.If you need any assistant regarding this product, please email support@taotronics.com with details

IMPORTANT SAFETY INSTRUCTIONS

When using electrical products, basic precautions should always be followed including the following:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS AND SAVE THESE INSTRUCTIONS

The risk of fire, electric shock, or injury to persons that may be associated with the use of the product, Operation of the product, and User-maintenance and storage.

1.  Do not use seasonal products outdoors unless marked suitable for indoor and outdoor use. When products are used in outdoor applications, connect the product to a Ground Fault Circuit Interrupting (GFCI) outlet. If one is not provided, contact a qualified electrician for proper installation.
2. This seasonal use product is not intended for permanent installation or use.
3. Do not mount or place near gas or electric heaters, fireplaces, candles or other similar sources of heat.
4. Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.
5. Do not let lamps rest on the supply cord or on any wire.
6. Unplug the product when leaving the house, or when retiring for the night, or if left unattended.
7. This is an electric product – not a toy! To avoid risk of fire, burns, personal injury and electric shock it should not be played with or placed where small children can reach it.
8. Do not use this product for other than its intended use.
9. Do not hang ornaments or other objects from cord, wire, or light string.
10. Do not close doors or windows on the product or extension cords as this may damage the wire insulation.
11. Do not cover the product with cloth, paper or any material not part of the product when in use.
12. Read and follow all instructions that are on the product or provided with the product.
13. CAUTION
    To reduce the risk of fire and electric shock:
    Do not install on trees having needles, leaves or branch coverings of metal or materials which look like metal, and Do not mount or support strings in a manner that can cut or damage wire insulation.
    For indoor and outdoor use.
14. CAUTION – Do not connect to another lighting string, decorative outfit, or seasonal product.
    This seasonal product is not intended for permanent installation.
15. CAUTION – Do not connect to another lighting string, decorative outfit, or seasonal product.
    A decorative-lighting string is parallel-connected.
16. CAUTION: To reduce the risk of fire and electric shock, use only the power DC 5V.

SAVE THESE INSTRUCTIONS

Use and Care Instructions

1. When the product is placed on a live tree, the tree should be well maintained and fresh. Do not place on live trees in which the needles are brown or break off easily. Keep the tree holder filled with water.
2. If the product is placed on a tree, the tree should be well secured and stable.
3. Before using or reusing, inspect product carefully. Discard any products that have cut, damaged, or frayed wire insulation or cords, cracks in the lampholders or enclosures, loose connections, or exposed copper wire.
4. When storing the product, carefully remove the product from wherever it is placed, including trees, branches, or bushes, to avoid any undue strain or stress on the product conductors, connections, and wires.
5. When not in use, store neatly in a cool, dry location protected from sunlight.

While installing, it shall not be twined to a ball part or all LED in anytime.

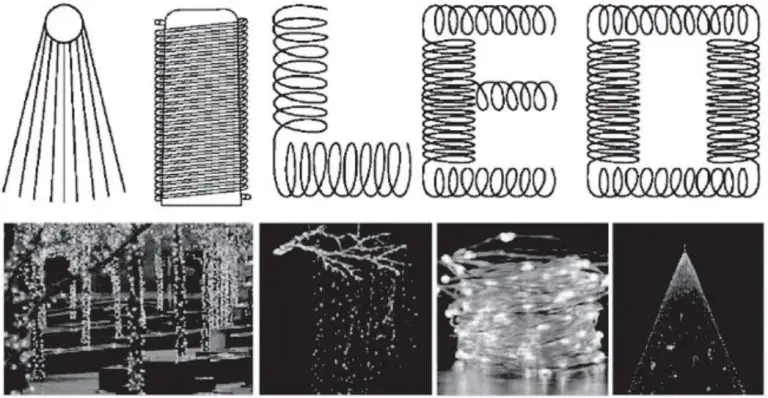

Installation instructions

Caution: While installing, the min. coiling diameter is 5mm.

Package Contents

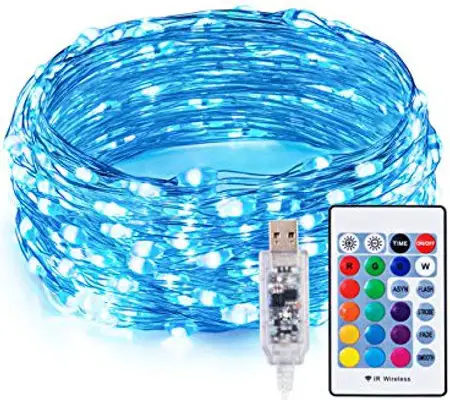

• 1 x TaoTronics LED Starry String Light (Model: TT-SL213)
• 1 x Remote Controller
• 1 x User Guide

Features

• Versatile String Light: Bendable high quality copper wire that can be shaped into different forms.
• Weather Resistant: IP65 water-resistant for light string, good for both indoor and outdoor use.
• Festival Lighting: Create a warm, soft, and joyful ambience.
• Ideal for Business Use: Highlight business signs and complement decorations.

Specifications

LED String Light

• Model: TT-SL213
• Color Temperature: 15 Colors
• Length: 10 m / 33 ft string
• LED: 100 individual LEDs
• Input: DC 5V 1A
• Power: 2.2W Max.
• Water-resistant: IP65 for light string only (USB port and remote controller are non-water-tight)

Button Control

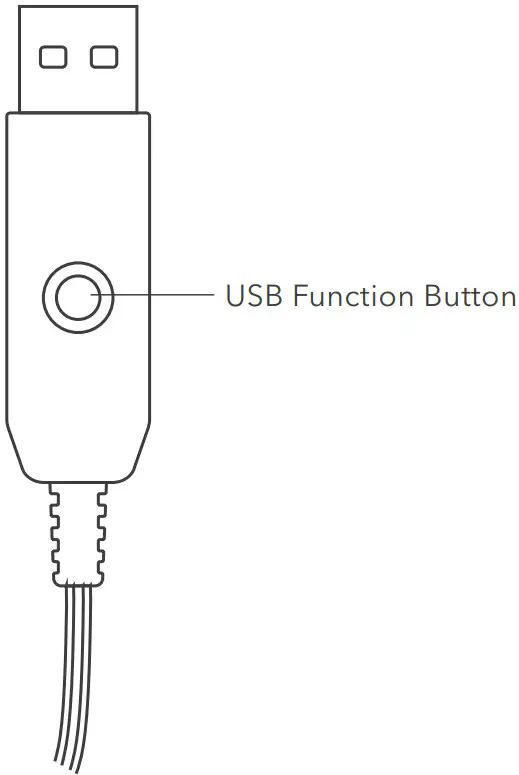

USB Function Button

1) Connect the USB charging port to any active USB port (5V 1A), the string light will light up red (default).
2) Each time you press the Function Button once, the string light cycles through 7 colors (Red→Green→Blue→Yellow→Purple→Cyan→White).
3) To turn off the string light, press and hold the Function Button for 3 seconds. To turn on the string light, press the Function Button once.

Note: This string light will remember your last setting when turned on. But this memory function is not available when turning on/off the light via USB Function button.

Remote Controller

Note:

• Remote Control Distance: Linear range 5m without obstacles
• This string light will remember your last setting when turned on again. But this memory function is only available when turning on/off the light via the remote controller.

Care and Maintenance

1. Unplug from the USB port, tidy up in a roll and store in a dry and shady place when not in use.
2. Keep away from water and heat.
3. Wipe with a dry cloth to clean and get rid of dust.

Caution

• Serial connection may result in a fire hazard and damage to the product, please do not interconnect.
• Please do not cut the string light, this will permanently break the circuit and damage the light beyond repair. Do not squeeze or fold the string light into sharp shapes and angles.
• Although our lights are built with safety measures, we do not recommend leaving the light unattended or turned on permanently.
• This is not a toy. It contains small parts and possible choking hazards, please keep it away from children.
• Please do not hang anything from the string light as the extra weight may break the light and cause a potential fire hazard.
• Be careful not to damage the wire or LEDs when used with staples, nails, and other sharp objects.

Warranty

TaoTronics products are covered by a 12 month limited warranty from the date of its original purchase. If any problems occur, please contact our support team.We can only provide after sales service for products that are sold by TaoTronics or TaoTronics authorized retailers and distributors. If you have purchased your unit from a different place, please contact your seller for return and warranty issues.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must withstand any interference received, including interference that may cause undesired operation.

WEEE Compliance

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories should not be disposed of with other household wast eat the end of their working life. To prevent possible harm to the environment  or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

CONTACT US

ASIA PACIFIC
E-mail: support.jp@taotronics.com(JP)

EUROPE
E-mail:

• support.uk@taotronics.com(UK)
• support.de@taotronics.com(DE)
• support.fr@taotronics.com(FR)
• support.es@taotronics.com(ES)
• support.it@taotronics.com(IT)

EU Importer: ZBT International Trading GmbH
Address: Halstenbeker Weg 98C, 25462 Rellingen, Deutschland

NORTH AMERICA
E-mail: support@taotronics.com(US)
support.ca@taotronics.com(CA)
Tel: 1-888-456-8468 (Monday-Friday: 9:00 – 17:00 PST)
US Distributor: SUNVALLEYTEK INTERNATIONAL INC.
Address: 46724 Lakeview Blvd, Fremont, CA 94538

MANUFACTURER
Manufacturer: Shenzhen NearbyExpress Technology Development Co.,Ltd.
Address: 333 Bulong Road, Shenzhen, China, 518129

Learn more about the EU Declaration of Conformity:
https://www.taotronics.com/downloads-TT-SL213-CE-Cert.html

Model: TT-SL212
TAOTRONICS LED STARRY STRING LIGHT
User Guide

IMPORTANT SAFETY INSTRUCTIONS

When using electrical products, basic precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS AND SAVE THESE
INSTRUCTIONS
The risk of fire, electric shock, or injury to persons that may be associated with the use of the product, Operation of the product, and User-maintenance and storage.

1. Do not use seasonal products outdoors unless marked suitable for indoor and outdoor use. When products are used in outdoor applications, connect the product to a Ground Fault Circuit Interrupting (GFCI) outlet. If one is not provided, contact a qualified electrician for proper installation.
2. This seasonal use product is not intended for permanent installation or use.
3. Do not mount or place near gas or electric heaters, fireplaces, candles or other similar sources of heat.
4. Do not secure the wiring of the product with staples or nails, or place on sharp hooks or nails.
5. Do not let lamps rest on the supply cord or on any wire.
6. Unplug the product when leaving the house, or when retiring for the night, or if left unattended.
7. This is an electric product ­ not a toy! To avoid risk of fire, burns, personal injury and electric shock it should not be played with or placed where small children can reach it.
8. Do not use this product for other than its intended use.
9. Do not hang ornaments or other objects from cord, wire, or light string.
10. Do not close doors or windows on the product or extension cords as this may damage the wire insulation.
11. Do not cover the product with cloth, paper or any material not part of the product when in use.
12. Read and follow all instructions that are on the product or provided with the product.
13. CAUTION To reduce the risk of fire and electric shock: Do not install on trees having needles, leaves or branch coverings of metal or materials which look like metal, and Do not mount or support strings in a manner that can cut or damage wire insulation. For indoor and outdoor use.
14. CAUTION ­ Do not connect to another lighting string, decorative outfit, or seasonal product. This seasonal product is not intended for permanent installation.
15. CAUTION ­ Do not connect to another lighting string, decorative outfit, or seasonal product. A decorative-lighting string is parallel-connected.
16. CAUTION: To reduce the risk of fire and electric shock, use only the power DC 5V.

SAVE THESE INSTRUCTIONS

Use and Care Instructions

1. When the product is placed on a live tree, the tree should be well maintained and fresh. Do not place on live trees in which the needles are brown or break off easily. Keep the tree holder filled with water.
2. If the product is placed on a tree, the tree should be well secured and stable.
3. Before using or reusing, inspect product carefully. Discard any products that have cut, damaged, or frayed wire insulation or cords, cracks in the lamp holders or enclosures, loose connections, or exposed copper wire.
4. When storing the product, carefully remove the product from wherever it is placed, including trees, branches, or bushes, to avoid any undue strain or stress on the product conductors, connections, and wires.
5. When not in use, store neatly in a cool, dry location protected from sunlight.

While installing, it shall not be twined to a ball part or all LED in anytime.

Installation instructions

Caution: While installing, the min. coiling diameter is 5mm.

Thank you for choosing the TaoTronics LED Starry String Light. Please read this manual carefully and store it in a safe place for future reference. If you need any assistant regarding this product, please email support@taotronics.com with details.

Package Contents

• TaoTronics LED Starry String Light (Model: TT-SL212)
• Remote Controller
• User Guide

Features

• Versatile String Light: Bendable high quality copper wire that can be shaped into different forms.
• Weather Resistant: IP65 water-resistant for light string, good for both indoor and outdoor use.
• Festival Lighting: Create a warm, soft, and joyful ambiance.
• Ideal for Business Use: Highlight business signs and complement decorations.

Specifications LED light string

• Model: TT-SL212
• Color Temperature: 2500-2800K
• Length: 10 m / 33 ft string
• LED: 100 individual LEDs
• Input: DC 5V 1A
• Power: 1.3W Max.
• Water-resistant: IP65 for light string only (USB port and remote controller are non-water-tight)

Button Control USB Function Button

1. Connect the USB charging port to any active USB port (5V 1A).
2. Each time you press the Function Button once, the string light cycles through eight modes: OFF ¹Combination¹In Wave¹Sequential¹Slow Glow¹ Chasing/Flash¹Slow Fade¹ Twinkle/Flash¹Steady ON.
3. To turn off the string light, press and hold the USB Function Button for 3 seconds.

Note: This string light will remember your last setting when turned on. But this memory function is not available when turning on/off the light via USB Function button.

Remote Controller

Note: · Remote Control Distance: Linear range 10m without obstacles · This string light will remember your last setting when turned on again. But this memory function is only available when turning on/off the light via the remote controller.

TAOTRONICS www.taotronics.com
ASIA PACIFIC
E-mail: support.jp@taotronics.com(JP)
JP Importer: SUNVALLEY JAPAN
Address: 104-0032 318-6 PMO9F
EUROPE E-mail: support.uk@taotronics.com(UK) support.de@taotronics.com(DE) support.fr@taotronics.com(FR) support.es@taotronics.com(ES) support.it@taotronics.com(IT) EU Importer: ZBT International Trading GmbH Address: Halstenbeker Weg 98C, 25462 Rellingen, Deutschland
NORTH AMERICA E-mail: support@taotronics.com(US) support.ca@taotronics.com(CA) Tel: 1-888-456-8468 (Monday-Friday: 9:00 ­ 17:00 PST) US Distributor: SUNVALLEYTEK INTERNATIONAL INC. Address: 46724 Lakeview Blvd, Fremont, CA 94538
MANUFACTURER Manufacturer: Shenzhen NearbyExpress Technology Development Co.,Ltd. Address: 333 Bulong Road, Shenzhen, China, 518129
Learn more about the EU Declaration of Conformity: https://www.taotronics.com/downloads-TT-SL212-CE-Cert.html

Care and Maintenance

1. Unplug from the USB port, tidy up in a roll and store in a dry and shady
   place when not in use.
2. Keep away from water and heat.
3. Wipe with a dry cloth to clean and get rid of dust.

Caution

• Serial connection may result in a fire hazard and damage to the product, please do not interconnect.
• Please do not cut the string light, this will permanently break the circuit and damage the light beyond repair. Do not squeeze or fold the string light into sharp shapes and angles.
• Although our lights are built with safety measures, we do not recommend leaving the light unattended or turned on permanently.
• This is not a toy. It contains small parts and possible choking hazards, please keep it away from children.
• Please do not hang anything from the string light as the extra weight may break the light and cause a potential fire hazard.
• Be careful not to damage the wire or LEDs when used with staples, nails, and other sharp objects.

Warranty

TaoTronics products are covered by a 12 month limited warranty from the date of its original purchase. If any problems occur, please contact our support team.We can only provide after sales service for products that are sold by TaoTronics or TaoTronics authorized retailers and distributors. If you have purchased your unit from a different place, please contact your seller for return and warranty issues.

MADE IN CHINA

TAOTRONICS TT-SK028 PC Soundbar

IMPORTANT SAFETY INSTRUCTIONS

Thanks for choosing TaoTronics PC Sound Bar. Please read this User Guide thoroughly before use and retain it for future reference.
WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• Keep the soundbar away from extreme heat and humidity, and do not expose to direct sunlight.
• Do not place near any heat sources such as radiators, heat registers, stoves, etc.
• Only use this Sound Bar indoors.
• Never place this Sound Bar on other electrical equipment.
• Keep the Sound Bar clean and dry. Do not clean the product with detergent containing alcohol, ammonia, benzene or abrasives.

CAUTION

• Do not scrape the surface with sharp objects.
• Do not block any ventilation openings.
• Unplug this device during lightning storms or when not used for long periods of time.
• Do not drop or knock your soundbar on hard surfaces as it may damage the interior circuits.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device.
• Close attention is needed when using near children.
• Unauthorized disassembly of any parts of this appliance is forbidden.
• Always ask a professional technician or authorized personnel for repair.
• Do not use chemicals or detergents to clean the appliance. Clean only with a dry cloth.

Package Contents

• 1 x Tao Tronics PC Sound Bar (TT-SK028)
• 1 x3.5mmAudio Cable
• 1 x User Guide
• 1 x Thank You Card

Product Diagram

1. Volume Knob
2. Volume Knob Indicator
3. Bluetooth® Indicator
4. AUX OUT Port
5. AUXIN port
6. USB Power Cord

Button Control

Use Your Sound Bar

Place the Sound Bar

1.  Place this unit on a level table near the place where the USB power plug can be easily reached.
2.  Never place this unit in an enclosed cabinet when the soundbar is playing.

AUX Cable Connection

1.  Connect the soundbar with any USB power adapter or active computer USB port to turn on the unit.
2.  Plugin the 3.5mm audio cable into the AUX IN port at the back of the soundbar.
3.  Connect to your AUX device via the cable.

Bluetooth” Connection

1.  Connect the soundbar with any USB charging adapter or active computer USB port to turn on the unit.
2.  Pness the Volume Knob twice to turn on Bluetooth® mode. The Bluetooth”‘ indicator will flash blue and white alternately indicating the soundbar is in pairing mode now.
3.  Turn on the Bluetooth® function on your device and search for nearby devices. Find “TaoTronics TT-SK028” in the search results and tap to connect.
4.  Once connected, a beep will be heard and the Bluetooth® indicator will flash blue every 5 seconds.

Note· When the Bluetooth., the mode is turned on, the soundbar will automatically enter pairing and re-pairing mode. If the soundbar has been connected before, it will attempt to pair with the last connected device. If not, the soundbar will enter pairing mode for pairing with other Bluetooth(!i devise. make sure no other active  Bluetooth devices are within range, and that the sound bar·,. within 3ft/ 1 m away from your device

Clear Pairing List
If you failed to pair your device with the soundbar, press and hold the Volume Knob for 10 seconds under Pairing mode.

Cleaning and Maintenance

• Clean the Sound Bar on a regular basis.
• Use dry and soft cotton cloth to wipe the unit.
• Keep away from sharp objects to avoid scratches.
• Put the unit in a dry and shady place if it is to be idle for a long time.
• Do not clean the product with detergent or chemicals.
• Do not insert anything into the product.

Warranty and Service

This product is covered with TaoTronics product and labor warranty for 12 months from the date of its original purchase. If any problems occur, please contact the TaoTronics Customer Care Centre via the contact information listed in this User Guide. We can only provide after sales service for products that are sold byTaoTronics orTaoTronics authorized retailers and distributors. If you have purchased your unit from a different place, please contact your seller for return and warranty issues.

Thank you for choosing the TaoTronics TT-BA09

Wireless Adapter
Please read this guide carefully and keep it in a safe place for future reference. If you need any further assistance, please contact our the customer support team at support@taotronics.com

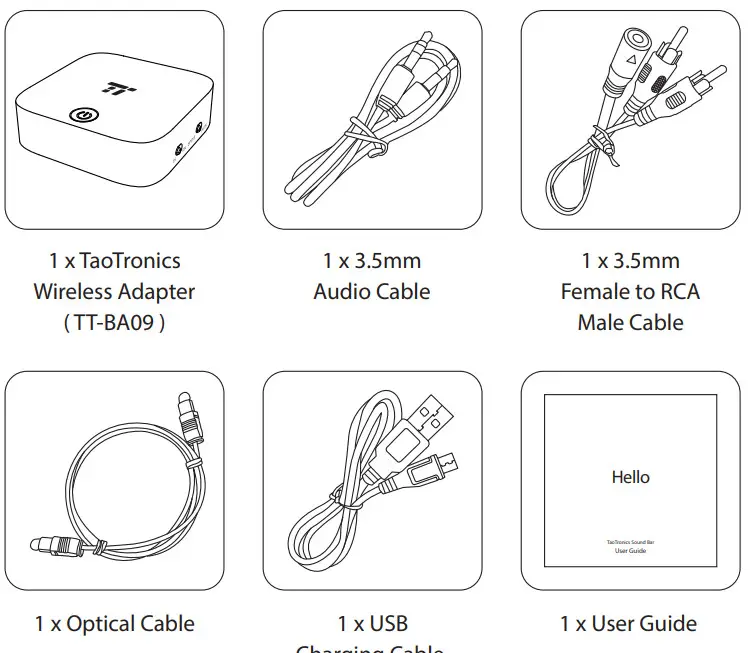

Package Contents

Specifications

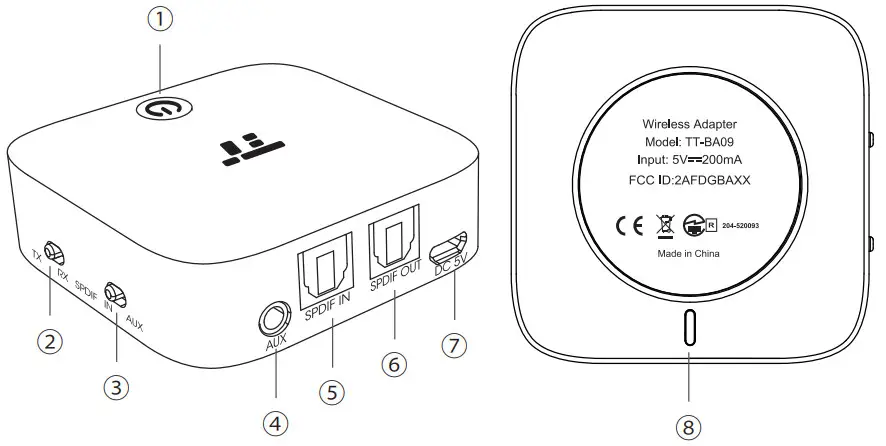

Product Diagram

1. Power Button
2. Transmitter (TX) / Receiver (RX) Mode Switch
3. SPDIF / AUX Mode Switch
4. 3.5mm Audio Port
5. Optical Audio Input Port
6. Optical Audio Output Port
7. Charging Port
8. LED Indicator

Control Functions

Note:

RX / TX mode can only be successfully switched after the adapter is turned off for 3 seconds. After the switch, the pairing history of the devices will be cleared.

• You can freely switch between SPDIF and AUX mode.
• In SPDIF mode, connect devices through SPDIF IN for TX mode and SPDIF OUT for RX mode.

LED Indicators

How to Use

Charging

1. Connect the Micro USB end of the charging cable to the charging port of the Bluetooth ® adapter.
2. Plug the USB end of the charging cable into a USB charging port or any active USB port.
3. The LED indicator will turn red when charging. It will automatically turn off when the device is fully charged.

Note:

• You can use the adapter while it is charging.
• We recommend charging the unit for at least 2 hours before using it for the first time.

Pairing

Pair in TX mode:

1. Set the TT-BA09 to TX mode and connect it to your non-Bluetooth ® audio transmitting device.
2. Place your Bluetooth ® audio receiving device, like earphones or speakers, within a 3 feet / 1-meter range and set it to pairing mode.
3. Turn on the TT-BA09 and tap the power button twice to enter pairing mode. After approximately 10 seconds, the pairing will be complete.

Pair in RX mode:

1. Set the TT-BA09 to RX mode and connect it to your non-Bluetooth ® audio receiving device.
2. Turn on the TT-BA09 and tap the power button twice to enter pairing mode.
3. Activate the Bluetooth ® function on your transmitting device – phone/tablet, and search for the nearby Bluetooth ® devices:
   • For iOS: Settings > Bluetooth ® > On
   • For Android: Settings > Bluetooth ® > On > Scan for devices
4. Find “TaoTronics TT-BA09” in the search results and tap on it to connect. Once connected, the LED indicator will turn solid blue.

Note:

• The adapter will enter pairing mode automatically when powered on for the rst time.
• The original pairing memory will be cleared after a mode switch. It will automatically start pairing each time it’s powered on.
• If a PIN code is required for pairing, try 0000 (four zeroes), 8888 (four eights), 1111 (four ones), or 1234.
• The adapter can remember previously paired devices and will attempt to pair with devices automatically, without going into pairing mode.

Pair with two devices at the same time In TX mode:
In TX mode, the adapter is able to pair with two Bluetooth ® stereo earphones/speakers at the same time.

1. Follow the previous instructions in the “Pairing” section to pair the TT-BA09 with your first device.
2. Turn of the Bluetooth ® function on your first device, tap the Power Button twice to pair and connect to your second device.
   3. Turn on the Bluetooth ® function on your atrst device. In approximately 10 seconds, the atrst device will automatically connect in.

Note:

• When you pair with two devices, both can play music at the same time.
• The adapter will automatically re-pair when powered on.

In RX mode:

In RX mode, the adapter is able to pair with two Bluetooth ® devices at the same time.

1. Follow previous instructions in the “Pairing” section to pair the TT-BA09 with your first device. Disable the Bluetooth ® function on your first device.
   Tap the Power Button twice to pair with the second device.
2. Turn on the Bluetooth ® of the first device, now the TT-BA09 adapter is successfully paired with both devices.

Note:

• Only one device can play music at any time. You have to stop the music on one device to play on the other.
• The adapter will automatically re-pair when powered on.

Care and Maintenance

• Do not expose the adapter to direct sunlight or extreme heat.
• Do not try to take the adapter apart. It may cause serious damage.
• Do not drop or knock the adapter on hard surfaces as it may damage the interior circuitry.
• Do not use chemicals or detergents to clean the product.
• Do not scrape the surface with sharp objects.

Troubleshooting

My adapter will not power on:
Please recharge it and make sure the adapter has enough battery power.
Plug the unit into a charger and see if the LED indicator turns red.
I am having trouble pairing and connecting to my Bluetooth device.

Please check the following:

• Your Bluetooth ® device supports the Bluetooth ® proles listed in the specifications.
• The adapter and your device are next to each other or within 3 feet / 1 meter.
• The adapter is in pairing mode; this is indicated by the LED ashing in red and blue alternately.
  After connecting and pairing with my Bluetooth ® device, I cannot hear any music from my sound system.

Please check the following:

• Your sound system is connected to the adapter via the 3.5mm Audio Cable.
• Make sure the music volume is at an audible level on both your Bluetooth ® device and sound system.
• For some systems, you may need to select “AUX” or “Line-in” as the audio input mode.
• Please make sure your audio device is playing music via Bluetooth ®. Some devices (such as computers) require manually selecting the music output mode.

Can I use the TT-BA09 adapter while it is charging?
Yes, the adapter is designed to be used while charging. The internal circuit is protected from over-charging.

Warranty
This product is covered by the TaoTronics Product and Labor Warranty for 12months from the date of its original purchase. If manufacturing defects occur, please contact  TaoTronics support (support@taotronics.com) immediately to launch a warranty claim. We will instruct you on how to return the defective unit back to us for repair or replacement. No return will be accepted without seller authorization.
The following are excluded from TaoTronics warranty cover:

• Device purchased as 2nd hand, used, or from unauthorized sellers
• Damage resulted from misuse and abusive action
• Damage resulted from chemical, are, radioactive substance, poison, or liquid
• Damage resulted from natural disaster
• Damage caused to any 3rd party, person, object, and beyond

Statement
We can only provide after-sale services for products that are sold by TaoTronics or TaoTronics authorized retailers and distributors. If you have purchased your unit from a  different place, please contact the seller for return and warranty issues.

The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sunvalleytek International Inc. is under license. Other trademarks and trade names are those of their respective owners.

FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must withstand any interference received, including interference that may cause undesired operation.

www.taotronics.com

NORTH AMERICA
E-mail: support@taotronics.com
Tel : 1-888-456-8468 (Monday-Friday: 9:00 – 17:00 PST)
Address: 46724 Lakeview Blvd, Fremont, CA 94538

EUROPE
E-mail: support.uk@taotronics.com

 R 204-520093
MADEIN CHINA
FCC ID:2AFDGBAXX
TECHNOLOGY ENHANCES LIFE

TaoTronics Air Purifier TT-AP001

www.taotronics.com

E-mail:
support@taotronics.com
MANUFACTURER
Manufacturer: Shenzhen NearbyExpress Technology Development Co.,Ltd.
Address: Floor 7, Building E, Galaxy World Phase II, Shenzhen, China
Learn more about the EU Declaration of Conformity:
https://www.taotronics.com/pages/user-manual

Warnings

This product should be used only in accordance with the specifications outlined in this User Guide. Usage other than what has been specified here may result in serious injury.
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• IMPORTANT – This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to rig this safety feature.
• To avoid fire or shock hazard, plug the appliance directly into a right AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid f fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves, or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
• Always unplug the air purifier before moving it, opening the grille, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug, not the cord.
• NEVER drop or insert any objects into any openings.
• DO NOT run the cord under carpeting.
• DO NOT cover the cord with throw rugs or similar coverings.
• DO NOT route the cord under furniture or appliances. Arrange the cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if the motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Send to Customer Service for assistance.
• Use appliance only for intended household purposes as described in this manual. Any other use is not recommended that may cause fire, electric shock, or injury to persons.
• DO NOT use outdoors.
• DO NOT place anything on top of the unit.
• NEVER block the air openings, grille/outlets or place the unit on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air inlet or outlet.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
• To reduce the risk of fire or electric shock, do not use this purifier with any solid-state speed control device.

Specifications

Product Diagram

3-In-1 True HEPA Filter
Improve your indoor air quality with our new Air Cleaning System. Multiple levels of cleaning include a combination of Pre-filter that traps big particles, Activated Carbon Filter that reduces odour, and True HEPA filter that captures micro particles.

1. The Pre-filter filters out abrasive substances as a defence for the True HEPA filter.
2. The Activated Carbon Filter removes large dust particles, pet dander, and household odor.
3. True HEPA Filter eliminates 99.97% of pollutants as small as 0.3 m or larger pollen and dust mites and filters air pollution of PM 2.5.

Before Operating the Air Purifier

1. Carefully remove your air purifier from the packaging box and plastic bag.
2. Place it on a firm, level and flat area.
   • For proper air flow, locate the unit at least 1 foot / 30 cm away from any wall or furniture.
   • Make sure none of the grilles are blocked.
3. Plug the power adapter into an appropriate voltage AC outlet.
   IMPORTANT: When moving the air purifier, always lift the unit firmly by both hands.

Operating the Air Purifier

Power / Filter Reset Button
Press to turn on / off the unit, the LED light and corresponding mode indicators will turn on / off. The FILTER RESET indicator will turn on red to remind you to change the filter, press and hold the POWER / FILTER RESET Button for 5 seconds to turn off the LED indicator. Change the filter, turn on the purifier again to start working normally.

Note: Refer to “Installing and Removing the Filter” part for more information about the filter reset function.

Light Button
When the purifier is on, press to adjust 3 levels of the LED light brightness.

Sleep Button
When the purifier is on, press to activate SLEEP mode.

Note: In Sleep mode, only the SLEEP button indicator will stay on, and the unit will run in low speed.

Fan Speed Button
Press to adjust the fan speed when the unit is in operation and cycle through LOW I / MEDIUM II / HIGH III / TURBO settings.

Note:

• In turbo mode, all the three FAN SPEED LED indicators will turn on.
• When the unit is not in use, please switch it off and unplug from power.

Installing and Removing the Filter

Filter Reset Indicator
The flickering FILTER RESET LED indicates that it is time to replace the filter. Replace the filter according to the directions below, then press and hold the POWER / FILTER RESET button for 5 seconds to reset the light, and it will stop flickering.
Replace the filter every 3 to 6 months depending on the usage.

1. Lift the unit upside down.
2. Remove the base by unscrewing the screw cap.
3. Take out the dirty filter and replace with a new one.
4. Reattach the base to the unit and fasten it with the screw cap.

Cleaning and Maintenance

Clean the purifier at least once every month with a clean, dry, soft cloth. More frequent cleaning may be required depending on environmental conditions.

Note:

• Do NOT stick any foreign objects or your fingers inside of the unit.
• Do NOT use gasoline, benzene, and other abrasive or harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product.
• NEVER use alcohol or other solvents.

Maintaining the Filters
The True HEPA filter should be cleaned once each month by a vacuum cleaner.

Note:

• Filter should be replaced at least once each 3 to 6 months. More frequent cleaning and replacing may be required depending on environmental conditions.
• The air purifier works the best in a closed environment. Its performance may be compromised in a well-ventilated room.
• Air the filters under the sun for an hour before using it again if the purifier has not been used for a long time.

Warranty and Service

This product is covered with TaoTronics product and labor warranty for 12 months from the date of its original purchase.
If any problems occur, please contact the TaoTronics Customer Care Centre via the contact information listed in this User Guide.
We can only provide after sales service for products that are sold by TaoTronics or TaoTronics authorized retailers and distributors. If you have purchased your unit from a different place, please contact your seller for return and warranty issues.

Documents / Resources

TAOTRONICS TaoTronics Air Purifier TT-AP001 [pdf] User Manual TaoTronics, Air, Purifier, TT-AP001

References

•
  TaoTronics Official Site – Technology Enhances Life
•
  User Manual – TaoTronics

Leave a comment

Cancel reply

TAOTRONICS TT-BH053 Soundliberty 53 True Wireless Stereo Earbuds

PACKAGE CONTENTS

(Fig. 1)

1. TaoTronics True Wireless Stereo Earbuds (TT-BH053)
2. 8 x Ear Tips (two are equipped on the earbuds)
3. 1 x USB Charging Cable
4. 1 x User Manual
5. 1 x Quick Start Guide

PRODUCT DIAGRAM

(Fig. 2)

1. Multifunction Touch Controlｗ LED Indicator
2. Microphone
3. Charging Contacts
4. Micro USB Charging Port
5. Charging Case
6. Charging Indicator
7. Charging Slot

IMPORTANT SAFETY INSTRUCTIONS

Please read the instructions thoroughly before using this product and retain it for future reference.

Hearing Safety

• Do not wear earbuds with high volume for a long time to avoid damaging your hearing.
• Set the earbuds to low volume before you put them on, then increase the volume gradually as per your preference.
• Do not set volume too high to stay aware of your surroundings.
• Please refer to local laws and regulations if you want to answer phone calls via this device during driving.
• For your safety, avoid distraction from music or phone calls when you are driving or doing other activities with potential dangers.
  Warning: Please set the volume to proper level to avoid hearing damages. Caution
• Do not expose this product to high temperatures.
• Do not immerse the earbuds into water or expose them to humidity for a long time.
• Do not clean the product with detergent containing alcohol, ammonia, benzene or abrasives.
• Avoid dropping.
• Place the earbuds back into the charging case when not in use and keep it away from children and pets to avoid choking hazard.
• Unauthorized disassembly of any parts of this product is forbidden, which 01 may cause fire hazard, warranty voidance, and/or property loss.
• Close attention is needed when using near children.
• Keep the charging case away from water, rain or any other liquid.
• Don’t use the product in thunderstorm to avoid malfunction or electric shock.
• Always ask a professional technician or authorized personnel for repair.

This product contains lithium battery. Never expose it to excessive heat such as direct sunlight or fire to avoid explosion.

HOW TO WEAR

Choose the Right Tips (Fig. 3)
Ear tips with different sizes are included in the package, try all sizes and choose the ones fitting you best.

Wear the Earbuds (Fig. 4)
Please wear the earbuds as shown below.

Bluetooth Caution

• When the device is connected wirelessly to another device, place the two devices close to each other to achieve their normal functionalities and avoid possible signal interference.
• The maximum effective Bluetooth range is 10 meters (33 feet), which may vary with the environmental circumstances.
• When using a wireless connection, make sure there are no obstacles between the two devices. Obstacles including walls and fences may shorten the effective range.

USING YOUR EARBUDS

Charging

Charging the Earbuds

1. Put the earbuds into the charging case as per the L (left) and R (right) marks (Fig. 5).
2. Charging will start automatically. The LED indicator will flash blue slowly when charging and turn off when charging is completed (Fig. 6).

Note:

• Put the earbuds into the charging case, the charging indicator on the charging case will be on for 5 seconds to show the current battery level then turn off.
• Please fully charge the earbuds when using them for the first time.
• When battery is low, a “Battery low” voice prompt will be heard (if you are wearing the earbuds). Please charge it in time or the earbuds will turn off automatically around 10 minutes later.
• Charge the earbuds at least once every 6 months when not using for a long time.

Charging the Case

1. Connect the charging port with any USB charging adapter or active computer USB port. (Fig. 7)
2. The four charging indicators will light up progressively.
   Note: Unplug the charging cable (timely) when fully charged.

Power On (Fig. 8)
Take out the earbuds from the charging case, they will power on automatically.

Power Off (Fig. 9)
Place the earbuds into the charging case, they will turn off automatically.

Pairing

• You can use one earbud or both earbuds as per your preference. Please refer to the corresponding pairing instructions.
• Before pairing, please turn off other Bluetooth devices and place the device to be connected close to the earbuds.
• When the earbuds are disconnected from your device for more than 10 minutes, they will turn off automatically.

Couple Earbuds Mode

1. Take the earbuds out of the charging case. They will connect with each other automatically. The LED indicators on both earbuds will flash blue once. Then the LED indicator on both earbuds will flash blue and white alternately indicating the earbuds are in pairing mode now.
2. Turn on the Bluetooth function on your device and search for nearby devices. Find “TAOTRONICS SoundLiberty 53”in the searching results, tap on the name to connect.
3. Once connected, the LED indicators on both earbuds will flash blue slowly. Note: It is not recommended to wear the two earbuds on different people. If needed, please keep the 2 earbuds within 3 meters / 9.8 feet in couple earbuds mode.

Single Earbud Mode

1. Take out one earbud from the charging case, it will enter pairing mode with the LED indicator flashing blue and white alternately.
2. Turn on the Bluetooth function on your device and search for nearby devices. Find “TAOTRONICS SoundLiberty 53”in the searching results, tap on the name to connect.
3. Once connected, the LED indicator will flash blue slowly.

Note:
If you want to change to couple mode, simply take out the other earbud from the charging case, they will pair with each other automatically.

Restore to Factory Settings

If you failed to pair your device with the earbuds, please restore them to factory settings as instructed below:

1. Take the earbuds out of the charging case, then place them back again. Tap and hold the Multifunction Touch Control of both earbuds for 10 seconds until the LED indicators flash three times to enter reset mode.
2. If you have paired your device with the earbuds before, remove
   “TAOTRONICS SoundLiberty 53” from the bluetooth device list and pair again.
3. Take out both earbuds, and they will pair with each other automatically. Pair them with your device when the LED indicator on the right earbud flashes blue and that on the left earbud flashes blue and white alternately.
   Note:
   If you want to pair the earbuds with another device when you have already paired them with a device, deactivate the Bluetooth function on the paired device or clear “TAOTRONICS SoundLiberty 53” from its Bluetooth list. Restore the earbuds to factory settings as instructed above if pairing failed.

OPERATION AND FUNCTIONS

Note: Only when you are wearing the earbuds can you hear the voice prompt.

CLEANING AND MAINTENANCE

1. Clean the earbuds and the charging case on a regular basis.
2. Use dry and soft cotton cloth to wipe the unit.
   Note: Do not insert anything into the product.
3. Keep away from sharp objects to avoid scratches.
4. Put the unit in a dry and shady place if it is to be idle for a long time.
5. Do not clean the product with detergent or chemicals.

TROUBLESHOOTING

WARRANTY AND SERVICE

If any problems occur, please contact the TaoTronics Customer Care Centre in your country via the contact information listed in this User Guide.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sunvalleytek International Inc. is under license. Other trademarks and trade names are those of their respective owners.

WEEE Compliance

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

www.taotronics.com

TAOTRONICS TT-AH044 Ultrasonic Cool Mist Humidifier

STATEMENT

Thank you for purchasing a TaoTronics product that has been tested to meet our stringent quality standards. This product is covered with TaoTronics product and labor warranty for 12 months from the date of its original purchase. Please email us with your order ID and problem or issue via support@taotronics.com, we will respond within 24 hours.  Please read the User Guide thoroughly. Clean and maintain the product as instructed. If any abnormalities occur, please refer to the Troubleshooting Guide first. This warranty is void if the defect is caused by accidental damage, misuse, abuse, neglect, improper repair or alteration by unauthorized persons, or a failure to follow operating instructions provided with the product including adding essential oils directly into the tank and base. This warranty does not apply to normal wear and tear or commercial use. In no event shall liability exceed the purchase price paid by the purchaser of the product. Under no circumstances shall there be liability for any loss – direct, indirect or incidental – or consequential damage arising out of, or in connection with the use of the product.

SAFETY INSTRUCTIONS

The humidifier was made with safe and environmental protection materials, it has been certified and complied with the requirement of sale regions’ related regulations or laws.
IMPORTANT: Please read and save this SAFETY INSTRUCTIONS before using the device. Basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons or damage to the product. For indoor humidifying use only.

BEFORE USING THE HUMIDIFIER

1.  Please extend the cord and check any signs of damage. Do not use the humidifier if the cord has been damaged.
2. DO NOT place this humidifier in wet environments.

Please always keep the humidifier out of reach of patients & children & pet.

1. Please always place the unit on a smooth, flat, lint-free, non-metallic, waterproof and level surface and keep it away from direct sunlight.
2. Always place the unit 2 feet (60 cm) above the floor, 12 inches (30 cm) away from the wall, other appliances or wooden furniture.

DO NOT place the humidifier near naked flames and heat sources, such as stove tops, ovens, radiators or computers.

WHEN USING THE HUMIDIFIER

1. DO NOT plug the unit with wet hands.
2. DO NOT use your hand or any other object to cover the nozzle while the unit is on to avoid damaging the product or causing injury.

AFTER USING THE HUMIDIFIER

PACKAGE CONTENTS

• 1 x TaoTronics Humidifier (Model: TT-AH044)
• 1 x Cleaning Brush
• 1 x Dustproof Sponge
• 1 x Thank You Card
• 1 x User Guide

SPECIFICATIONS

PRODUCT DIAGRAM

1. Nozzle
2. Water Tank
3. Water Level Window
4. Tank Cap
5. Water Inlet
6. Handle
7. LED Display
8. Control Buttons
9. Base
10. Night Light
11. Floater
12. Air Outlet
13. Tank Light
14.  Water Reservoir
15. Atomizer
16. Dustproof Sponge
17.  Air Inlet

OPERATIONS AND FUNCTIONS

OPERATIONS AND FUNCTIONS

OPERATIONS AND FUNCTIONS

• Connect the humidifier to a power source, the unit is in Standby mode now with the LED display showing the current humidity level.
• If no operation is done within 5 seconds under Standby mode, the LED display will turn off automatically.
• When there is not enough water inside the water reservoir, the humidifier will stop misting and Low Water Protection will be activated with 0 light­ing up on the display.

Power Button

•  Press the Power Button once to turn the humidifier ON with default settings: medium mist (200ml/h, 4 lines) & tank light on.
• Press it again to turn the humidifier OFF (mist off & tank light off). The fan will continue working for 3 minutes to dry the mist tube.

Mist Adjustment

When the unit is on, press the Mist Button to cycle through Medium (4 lines)-> High (6 lines)-> Low (2 lines) mist levels.

Timer Setting

• Press the Timer Button to set the timer from 01 to 12 hours by 1 hour increments, the timer will flash three times to confirm your setting.
• Once set, the LED display will show the countdown timer and the current humidity level. When time is up, the unit will automatically turn off.
• To cancel Timer setting, press and hold the Timer Button for 1.5 seconds or adjust the timer setting to 00.

Humidity Setting

• Press the Humidistat Button to set the humidity level from 30% to 95% in .  501 10 increments, t h e set h umI .d. Ity I eve I wI ·11 fl as h t h ree . times to con f· Irm your setting.
• When the preset humidity level is reached, the unit will stop misting with the whitevturning green.
• To cancel Humidity setting, press and hold the Humidistat Button for 1.5 seconds. The most comfortable environmental humidity is between 40%-60%. Please adjust the mist as needed.

Sleep Mode

• When the mist is on, press the Sleep Button once to turn on the Sleep mode. All the indicators on the LED display will turn off except the Sleep indicator. If no operation is done within 3 seconds under Sleep mode, the sleep indicator will turn off automatically.
• Press any button (except the Light Button) to wake up Sleep Mode and LED display. All the other buttons remain functional. If no operation is done within 3 seconds, the LED display will turn off automatically.
• Press it again to exit Sleep mode. The sleep indicator will turn off and the LED display will remain on.
• When there is not enough water inside the water reservoir under Sleep Mode, the humidifier and the LED display will turn off automatically.
• When the Sleep mode is turned on under night light on, all the indicators on the LED display and the night light will turn off except the Sleep indicator. You can press the Light Button again to turn the night light on.

Light Button (Night Light & Tank Light)

• Night Light: Press the Light Button to turn on/ off the night light (default: OFF).
• Tank Light: Press and hold the Light Button for 1.5 seconds to turn on/ off the tank light (default: ON).
• The night light is separately controlled. You can turn on/ off the night light when the unit is connected to power.

Low Water Protection

• When there is not enough water inside the water reservoir, the humidi-fier will stop misting and Low Water Protection will be activated with the icon lighting up on the display. It is designed for safety to prevent the humidifier from possibly overheating and damaging the atomizer.
• The humidifier cannot be started under low water status.

Memory Function
If power is not disconnected, the humidifier will always remember your last settings (mist level, humidity & night light) once you turn it on again.

CLEANING AND MAINTENANCE

Caution

1.  DO NOT submerge the base in water.
2.  Make sure water does not enter the base through the air outlet, air inlet, or the control buttons and LED display.
3. DO NOT wash any part of this humidifier in dish washer which will damage the humidifier and void the warranty.

Daily Maintenance
Turn off the humidifier, unplug it from the power source. Drain water from the tank, reservoir and base.
Weekly Maintenance

1. To properly clean your humidifier, we recommend you to remove scale and disinfect the humidifier separately.
2. DO NOT mix vinegar and bleach solutions together. Do not use more than 1 tsp. of bleach per gallon of water to avoid damaging your humidifier.
3. Please make sure the rubber ring & rubber cap & spring on the tank cap is installed properly after cleaning to avoid water leakage. For more detailed information, please refer to the Troubleshooting Guide.

Scale Removal Instructions

1. Turn off and unplug the humidifier. Remove the nozzle.
2. Remove the water tank from the base. Remove the tank cap. Make sure that the sealing ring does not come off. Drain water from the water tank and base. Remove any accessories and set aside.
3.  Fill the water tank half full. Add in 1 teaspoon of undiluted distilled white vinegar. Attach the tank cap and shake for 15 seconds.
4. Place the tank onto the base. The vinegar solution will enter the water reservoir to loosen mineral buildup (scale) on the atomizer, water floater and the bottom of the water tank. Set still for 15- 20 minutes.
5. Uncap the tank cap and drain the solution. Wipe the atomizer and floater with a soft cloth to remove loosened mineral deposits.
6.  Rinse both the water reservoir and water tank until the smell of vinegar (for scale removal) or bleach solution (for disinfecting, see below) is gone.

Disinfecting Instructions

1. Follow steps 1-2 of the previous section on scale removal.
2. Fill the water tank half full. Add in½ tsp of bleach. Place the tank cap back on. Swish the solution around in tank. Place the tank on the base. The bleach solution will enter and disinfect the water reservoir as well as the other components. Set still for 15-20 minutes.
3. Follow steps 4-6 of the previous section on scale removal to complete disinfecting the humidifier.

Clean the Dustproof Sponge

Clean the dustproof sponge (at the back of base) with water or detergent once a month. Put it back in place after cleaning.

End-Of-Season Care and Storage

1. Follow the cleaning instructions when the humidifier will not be used for at least one week, or at the end of the season. Remove any accessories used with the humidifier and allow the humidifier and accessories to dry completely before storing.
2. DO NOT store with water inside the base, water reservoir, or tank.
3. Pack the unit safely and store in a cool, dry location.

TROUBLESHOOTING GUIDE

1. If the information listed in the troubleshooting guide can’t solve your problem, please email us for help.
2. Failure to keep this unit clean from mineral deposits may affect operation of this unit.
3. Customer failure to follow these instructions may void the warranty.


   LED display is on, no mist or little mist is produced	Not enough water inside the tank	Refill and reinstall the water tank
   	Mist level is set too low	Adjust to maximum mist
   	Preset humidity is set too low	Check if current humidity is higher than preset humidity, reset humidity to a higher level
   	The base might be overfilled	Remove the tank, empty the base & replace the filled tank on the empty base
   	Mineral buildup on atomizer	Feel if air comes out from the the nozzle, if yes, then clean water scale on the atomizer as instructed
   Tank leakage	Tank may be damaged	Check for possible cracks in the tank, replace if necessary
   	Tank cap is not tightened securely	Tighten the tank cap
   	Rubber ring was not installed on tank cap	Check the tank cap for rubber ring, rubber cap and spring, contact us if any is missing
   	Spring stuck	Ensure the        spring is secured properly to the tank allowing water to pass through to the base
   Mist height is low, damping surrounding desk or floor. Condensation forms around humidifier or on windows and walls	Mist level is set too high for the room size	1. Check if the room is too humid, adjust to lower mist, 40%-60% works best 2. Open door and windows, or change to a larger room
   	Air inlet is blocked	Humidifier should be placed on a hard flat surface, 2 feet above the floor, 12 inches away from the wall. Point Mist Outlet away from wall or window
   	Low indoor temperature leads to liquefaction	Raise the room temperature to 25°C/77°F

   Poor humidification	Mist level is set too low for the room size	1-1. Adjust to maximum mist 1-2. Close door or windows to reduce air ventilation, or change to a smaller room
   	Air inlet is blocked	Humidifier should be placed on a hard flat surface, 2 feet above the floor, 12 inches away from the wall
   	Low indoor temperature leads to liquefaction	Raise the room temperature to 25°C/77°F
   White Dust Appears/ Black coating in the base flakes off	Tap water may contain too much minerals	Replace with filtered or distilled water or use with a TaoTronics Demineralization Cartridge
   Strange Odor	Unit needs to be cleaned	Clean the humidifier as instructed
   		Leave the empty water tank open in a cool place for 12 hours without the water tank cap attached
   Strange water noise	Water is going down to the water reservoir	This is normal while it is working
   Humidifier is getting too hot	Unit works for too long	Power off and place in a well-ventilated place for 10 minutes

WARRANTY

This product is covered with TaoTronics product and labor warranty for 12 months from the date of its original purchase. You will be given a warranty extension of 18 months if the product is registered on our website (www.taotronics.com). Any defective part will be, at the discretion of SUNVALLEYTEK INTERNATIONAL INC., repaired or replaced at no charge if the appliance has not been tampered with and has been used according to these printed directions. If any problems occur, please contact TaoTronics support (support@taotronics.com) immediately to launch a warranty claim. Specify model number and your Amazon order number. Our Consumer Service Representative will respond within 1 business day, advise you how to correct the problem yourself, or instruct you on how to return the defective unit back to us for repair or replacement. We can only provide after sales service for products that are sold by TaoTronics or TaoTronics authorized retailers and distributors. If you have purchased your unit from a different place, please contact your seller for return and warranty issues.

CONTACT/ TAOTRONICS CUSTOMER CARE

PLEASE CONTACT US BEFORE RETURNING THIS PRODUCT TO THE STORE. EMAIL TAOTRONICS CUSTOMER CARE FOR PROBLEMS AND QUESTIONS. WE WILL RESPOND WITHIN 1 BUSINESS DAY. E-mail: support@taotronics.com Website: www.taotronics.com

FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

WEEE Compliance
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Thank you for choosing the TaoTronics TT-BA09

Wireless Adapter
Please read this guide carefully and keep it in a safe place for future reference. If you need any further assistance, please contact our the customer support team at support@taotronics.com

Package Contents

Specifications

Product Diagram

1. Power Button
2. Transmitter (TX) / Receiver (RX) Mode Switch
3. SPDIF / AUX Mode Switch
4. 3.5mm Audio Port
5. Optical Audio Input Port
6. Optical Audio Output Port
7. Charging Port
8. LED Indicator

Control Functions

Note:

RX / TX mode can only be successfully switched after the adapter is turned off for 3 seconds. After the switch, the pairing history of the devices will be cleared.

• You can freely switch between SPDIF and AUX mode.
• In SPDIF mode, connect devices through SPDIF IN for TX mode and SPDIF OUT for RX mode.

LED Indicators

How to Use

Charging

1. Connect the Micro USB end of the charging cable to the charging port of the Bluetooth ® adapter.
2. Plug the USB end of the charging cable into a USB charging port or any active USB port.
3. The LED indicator will turn red when charging. It will automatically turn off when the device is fully charged.

Note:

• You can use the adapter while it is charging.
• We recommend charging the unit for at least 2 hours before using it for the first time.

Pairing

Pair in TX mode:

1. Set the TT-BA09 to TX mode and connect it to your non-Bluetooth ® audio transmitting device.
2. Place your Bluetooth ® audio receiving device, like earphones or speakers, within a 3 feet / 1-meter range and set it to pairing mode.
3. Turn on the TT-BA09 and tap the power button twice to enter pairing mode. After approximately 10 seconds, the pairing will be complete.

Pair in RX mode:

1. Set the TT-BA09 to RX mode and connect it to your non-Bluetooth ® audio receiving device.
2. Turn on the TT-BA09 and tap the power button twice to enter pairing mode.
3. Activate the Bluetooth ® function on your transmitting device – phone/tablet, and search for the nearby Bluetooth ® devices:
   • For iOS: Settings > Bluetooth ® > On
   • For Android: Settings > Bluetooth ® > On > Scan for devices
4. Find “TaoTronics TT-BA09” in the search results and tap on it to connect. Once connected, the LED indicator will turn solid blue.

Note:

• The adapter will enter pairing mode automatically when powered on for the rst time.
• The original pairing memory will be cleared after a mode switch. It will automatically start pairing each time it’s powered on.
• If a PIN code is required for pairing, try 0000 (four zeroes), 8888 (four eights), 1111 (four ones), or 1234.
• The adapter can remember previously paired devices and will attempt to pair with devices automatically, without going into pairing mode.

Pair with two devices at the same time In TX mode:
In TX mode, the adapter is able to pair with two Bluetooth ® stereo earphones/speakers at the same time.

1. Follow the previous instructions in the “Pairing” section to pair the TT-BA09 with your first device.
2. Turn of the Bluetooth ® function on your first device, tap the Power Button twice to pair and connect to your second device.
   3. Turn on the Bluetooth ® function on your atrst device. In approximately 10 seconds, the atrst device will automatically connect in.

Note:

• When you pair with two devices, both can play music at the same time.
• The adapter will automatically re-pair when powered on.

In RX mode:

In RX mode, the adapter is able to pair with two Bluetooth ® devices at the same time.

1. Follow previous instructions in the “Pairing” section to pair the TT-BA09 with your first device. Disable the Bluetooth ® function on your first device.
   Tap the Power Button twice to pair with the second device.
2. Turn on the Bluetooth ® of the first device, now the TT-BA09 adapter is successfully paired with both devices.

Note:

• Only one device can play music at any time. You have to stop the music on one device to play on the other.
• The adapter will automatically re-pair when powered on.

Care and Maintenance

• Do not expose the adapter to direct sunlight or extreme heat.
• Do not try to take the adapter apart. It may cause serious damage.
• Do not drop or knock the adapter on hard surfaces as it may damage the interior circuitry.
• Do not use chemicals or detergents to clean the product.
• Do not scrape the surface with sharp objects.

Troubleshooting

My adapter will not power on:
Please recharge it and make sure the adapter has enough battery power.
Plug the unit into a charger and see if the LED indicator turns red.
I am having trouble pairing and connecting to my Bluetooth device.

Please check the following:

• Your Bluetooth ® device supports the Bluetooth ® proles listed in the specifications.
• The adapter and your device are next to each other or within 3 feet / 1 meter.
• The adapter is in pairing mode; this is indicated by the LED ashing in red and blue alternately.
  After connecting and pairing with my Bluetooth ® device, I cannot hear any music from my sound system.

Please check the following:

• Your sound system is connected to the adapter via the 3.5mm Audio Cable.
• Make sure the music volume is at an audible level on both your Bluetooth ® device and sound system.
• For some systems, you may need to select “AUX” or “Line-in” as the audio input mode.
• Please make sure your audio device is playing music via Bluetooth ®. Some devices (such as computers) require manually selecting the music output mode.

Can I use the TT-BA09 adapter while it is charging?
Yes, the adapter is designed to be used while charging. The internal circuit is protected from over-charging.

Warranty
This product is covered by the TaoTronics Product and Labor Warranty for 12months from the date of its original purchase. If manufacturing defects occur, please contact  TaoTronics support (support@taotronics.com) immediately to launch a warranty claim. We will instruct you on how to return the defective unit back to us for repair or replacement. No return will be accepted without seller authorization.
The following are excluded from TaoTronics warranty cover:

• Device purchased as 2nd hand, used, or from unauthorized sellers
• Damage resulted from misuse and abusive action
• Damage resulted from chemical, are, radioactive substance, poison, or liquid
• Damage resulted from natural disaster
• Damage caused to any 3rd party, person, object, and beyond

Statement
We can only provide after-sale services for products that are sold by TaoTronics or TaoTronics authorized retailers and distributors. If you have purchased your unit from a  different place, please contact the seller for return and warranty issues.

The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sunvalleytek International Inc. is under license. Other trademarks and trade names are those of their respective owners.

FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must withstand any interference received, including interference that may cause undesired operation.

www.taotronics.com

NORTH AMERICA
E-mail: support@taotronics.com
Tel : 1-888-456-8468 (Monday-Friday: 9:00 – 17:00 PST)
Address: 46724 Lakeview Blvd, Fremont, CA 94538

EUROPE
E-mail: support.uk@taotronics.com

 R 204-520093
MADEIN CHINA
FCC ID:2AFDGBAXX
TECHNOLOGY ENHANCES LIFE
