Smart Security System
USER’S GUIDE

DO THIS FIRST.

Things to be Noted Before Getting Started
This guide is for:
Hub cellular model ( Hub 2G model, Hub 4G model )
Hub cellular + Wi-Fi model ( Hub 2G+Wi-Fi model, Hub 4G+Wi-Fi model )
Please check the following conditions for a successful set-up:

• If using 4G SIM card, make sure the 2G network of your wireless service provider is still available in your country. You should purchase the hub with 4G cellular communicator if the 2G network is unavailable.

The followings are for hub cellular + Wi-Fi model only.

• You should select a 2.4GHz Wi-Fi network. The hub does not support the 5GHz Wi-Fi. Select the 5GHz band instead of the 2.4GHz band is the most common mistake when setting up the hub for the first time.
• Your Wi-Fi password must not contain space or other special characters.
• Place your hub as close as possible to your router when setting up.
• A slow network speed will also affect the performance of your hub. It is recommended to have an upload speed of at least 2Mbps or faster.
• Make sure that the AP isolation setting in your router is disabled.

What You Need

To set up and use Alarm System, you’ll need an iPhone or Android phone, the Smart Security System app, an unused indoor power outlet, a micro SIM card supporting 2G/GSM(for 2G version) or 4G network (for 4G version), and a Wi-Fi 802.11 b/g/n(2.4GHz) network connection (Hub cellular + Wi-Fi only).

IN THE BOX.

	Smart Hub (Panel) Alarm, display and keypad.
	PIR Motion Detector x1  Senses when someone walks nearby.
	Remote Tag x2 Wireless key to quickly away-arm, home-arm and disarm your home, and to trigger an emergency alarm.
	RFID Tags x2 (Optional) Key fob to quickly arm and disarm your home.
	Door/Window Sensor x1(x2 optional) Senses when a door or window is opened.
	Wireless Siren (Optional) Sounds when the alarm goes off.

MEET YOUR ALARM SYSTEM.

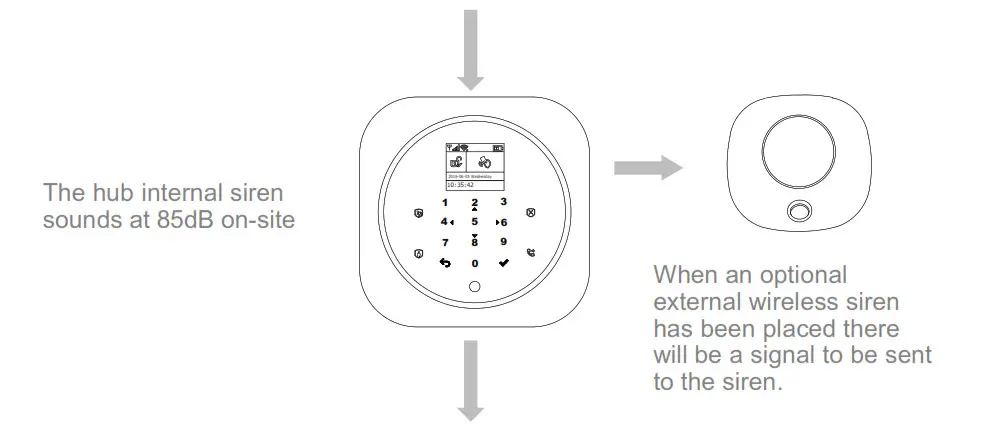

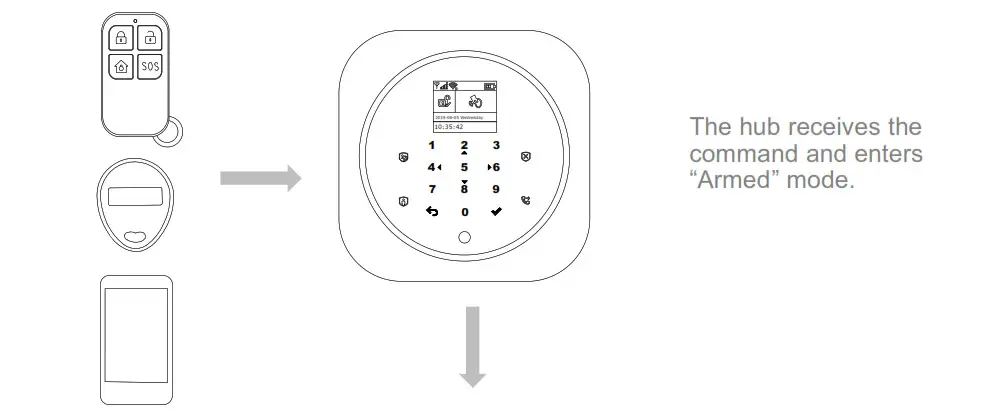

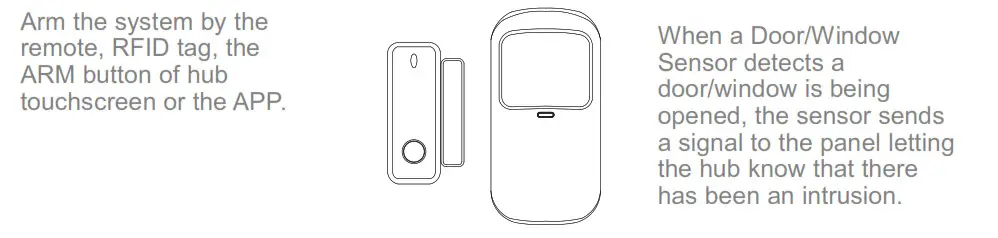

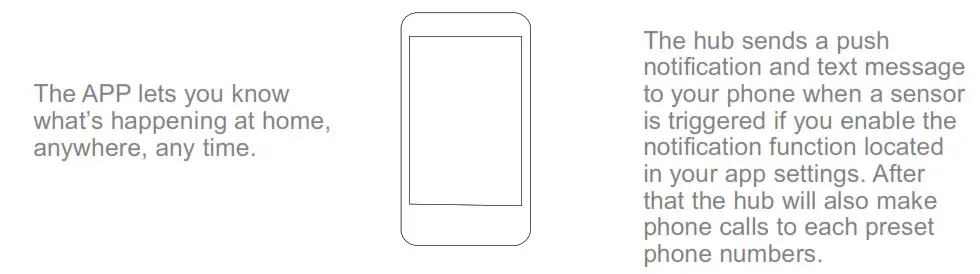

How the Alarm System Works

Getting to Know Your System

The hub cellular+Wi-Fi model is a dual network system that utilizes both Wi-Fi and cellular(GSM/4G).
All sensors are wirelessly connected to the hub. In the event of alarm activation, for example, when a sensor is triggered, a push notification will be sent and an alarm call will be made automatically to all registered users. The system can be controlled on-site by the remote tag supplied, or remotely from anywhere with our free dedicated mobile application.
The system can connect with up to 100 wireless sensors, 10 remote tags and 10 RFID tags.

Smart Hub

Alarm, display, keypad and the brains of the system

Overview

Home screen

Your home screen may look different if you use another version of hub.
Status bar
The icons in the status bar at the top of the screen shows information about the hub.

	What you see	What it means
Cellular  network		No SIM card inserted or SIM card faulty
		Shows that your carrier’s cellular network is available in case of white bars. More bars means stronger signal. The bars are gray if not registered with cellular network.
Wi-Fi network (Cellular+Wi-Fi model)		Shows that the system is connected to a Wi-Fi source and the signal strength when it is shown in white. More bars means stronger connection.
		Shows that the hub has a Wi-Fi Internet connection when dot is shown.
SMS		Text message sending
Call		Calling
Lock keypad		The keypad is locked
Power		AC powered, and the progress bars shows in case of charging.
		Shows the battery level when the system has lost AC power. The icon is red when the backup battery power is low.

Arm/Disarm status
Here’s the Arm/Home Arm/Disarm status of system.

What you see	What it means
	System is AWAY ARMED.
	System is HOME ARMED.
	System is DISARMED.

Alarm information
Display what happened in case of alarm.

Countdown bar
Clock is shown without countdown process.

Quick view of menu features
Your icons may look different if you use another version of hub.

Icon	Item	What you can do with it
	Menu
	Settings
	Delay
	Exit Delay	Adjusting Exit Delay(1) (0~65535 seconds, default: 40)
	Entry Delay	Adjusting Entry Delay (1) (0~65535 seconds, default: 30)
	Siren Duration	Adjusting Siren Duration(0~65535 minutes, default: 3)
	Switch	Turn on/off features
	Arm Beep	Turning arm and disarm beep(2) on or off(default:on)
	Siren	Turning alarm continuous siren on or off when an alarm occurs. (default:on)
	Arm SMS	Turning SMS notification on or off when the system arms or disarms (default:off).
	Keypad Lock	Turning touchscreen lock(3) on or off(default: off)
	Backlight	Turning touchscreen backlight(4) on or off(default: off)
	Keypad Tone	Turning operation chime on or off(default: on)
	Delay Tick	Turning exit and entry chime on or off(default: on)
	Human Voice	Turning Human Voiceon or off(default:on)(5)
	Door/Window Open Warning	Turning warning notification on or off if you leave a window or door open and arm (default: on).
	Password
	System	Changing System Code(6) (4 digits, default: 8888)
	User	Changing User Code(7) (4 digits, default: 1234)
	Language	Language Selection(8) (default: English)
	Phone
	1st Phone	Setting the first Phone Number, dialing on or off and SMS on or off
	2nd Phone	See 1st phone
	3rd Phone	See 1st phone
	4th Phone	See 1st phone
	5th Phone	See 1st phone
	Log
	Alarm Log	Viewing system alarm events
	Arm Log	Viewing system arm/disarm events
	Parts	Paring, deleting/editing, deleting all accessories
	Remote	Pairing, deleting or deleting all the remote tags
	Detector	Pairing, editing, deleting or deleting all the wireless sensors
	RFID	Pairing, deleting or deleting all the RFID tags
	Add	Pairing a new remote tag, sensor or RFID tag
	Delete/Edit	Deleting a remote tag or RFID tag from the list Editing/Deleting a wireless sensor from the list
	Delete All	Deleting all remote tags, sensors or RFID tags
	Siren Learn	Sending a transmission signal to the wireless siren be paired
	Alarm Socket	Pairing a wireless switch that syncing on/off with the siren
	Socket Timer	Setting a schedule(in 24-hour) for opening/closing wireless switch automatically
	Decoder	Read the serial number of detector from its transmitting signal. You can know which wireless accessory were paired in your hub by this tool.
	Wi-Fi	(Available on hub cellular+Wi-Fi model only)
	Smart Configuration	Connecting your bub to the Wi-Fi network and internet by Smart Configuration(Requires the mobile APP)
	Unbind	Unbinding the hub link from the server
	MAC/IP	Getting the MAC and IP addresses of the Wi-Fi module
	SoftAP Configuration	Connecting your bub to the Wi-Fi network and internet by Soft AP Configuration(Requires the mobile APP)
	Record
	Record	Recording voice message and playback
	Play	Listening to the recorded message
	Delete	Deleting the recorded message
	Duration	Adjusting Record Duration (1-20 seconds is available)
	Timer
	Arm Timer/Schedule	Setting a schedule(in 24-hour) for arming automatically
	Disarm Schedule	Setting a schedule(in 24-hour) for disarming automatically
	Zone&Sync	Reserved
	Date&Time	Setting the date and time(in 24-hour)
	Wi-Fi Sync	Turning using the Wi-Fi network-provided time on or off (hub cellular+Wi-Fi model only)
	2G/4G Sync	Turning using the cellular network-provided time on or off
	Version	Getting the firmware and Serial Number of hub, the firmware and IMEI of the GSM module, and MAC address of the Wi-Fi module (hub cellular+Wi-Fi model only)

Here’re some of menus how to use.

Remote Tag (Wireless Key)

Remote tag to quickly away-arm, stay-arm and disarm your home, and to trigger an emergency alarm.

RFID Tag

RFID tag lets you arm or disarm without entering a password.
Disarm with a tap
Tap and hold RFID tag on the RFID zone of your panel to arm or disarm when you’re leaving and coming home.

Mounting strips
Attaches sensor and magnet to a flat surface.

PIR Motion Detector

The motion detector is designed for the usage on interior walls and is set to Out Arm Active Mode in default. Whenever the sensor detects movement (only while the alarm is armed), a push notification including the sensor name will be automatically sent to the registered users, and the alarm will sound.

Setting Jumpers OPEN CLOSED

Setting the Pulse Counter (PULSE2 & PULSE1 jumpers)
The motion detector is equipped with a programmable pulse counter which can be set to count 1,3 or 5 pulses. Place the pulse count jumpers at the desired setting as shown below.
Working mode (TEST & NORMAL jumpers)
To save battery power in normal use, if the detector is triggered twice within 3 minutes, it enters sleeping state immediately. During this period, any movement detected does not generate an alarm.  After no movement within the next 3 minutes, it goes back to working state again.
For effective walk testing, set jumpers as shown on the right.
When walk testing is done, set jumpers to save power as shown on the right .
LED jumper
CLOSED enables LED on.

PLACEMENT/INSTALLATION TIPS

Where to Place/Install Smart Hub

It should be close to where you come and go.
So it’s easy to access on your way in and out.
Find a spot with a good Wi-Fi and cellular signal.
The hub needs a Wi-Fi Internet connection (hub cellular+Wi-Fi only) and cellular network so it can send notifications and text message to your phone.

Use an unswitched wall outlet.
Choose an outlet that’s not controlled by a switch, so you don’t accidentally turn off the hub. The included bracket helps keep the hub is plugged in.

Where to Place Door/Window Sensor

The magnet should be aligned with the middle of  sensor and placed within 0.6 inches (1.5cm) of sensor when the door or window is closed, as shown
in the image on the left.

How to Install PIR Motion Detector

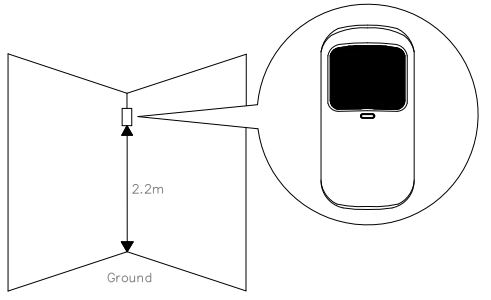

Mounting height
Motion Detector must be mounted 79 to 87 inches(2 to 2.2m) above the floor.

Mount the bracket with the included screws as shown above. Then place the motion detector in the bracket. Specify the right direction of the detection range of the motion sensor. Test the operation of the motion detector by putting it into testing mode which has been described at the former page.

Detection Area

Special considerations

• Don’t install PIR Motion Detector outdoors, in a garage and on the glass.
• PIR Motion Detector can’t detect motion through glass, like if someone’s moving outside a window.
• Don’t install in places where PIR Motion Detector could get wet, like swing-out windows that could be rained on.
• Don’t install PIR Motion Detector within 3 feet (1 meter) of a heat source like an electric heater, heat vent or fireplace or another source that may produce turbulent air.
• Don’t install PIR Motion Detector behind large appliances or furniture that may obstruct its motion sensors.

GETTING STARTED

Install the SIM Card

Important: A regular SIM card is required in order to use cellular services when connecting to cellular networks. The availability of cellular capabilities depends on the wireless network.

Cellular Network Connection

If the cellular indicator at the top of home screen turns white, your hub is connected to a cellular network.
Important: If the gray or is always shown, the hub has not connected to a network. Make sure the SIM card has been put in the hub when it was off and the security code of the SIM card is permanently deactivated

How to Set Phone Numbers for SMS and Phone Calls by Panel

Up to 5 stored Phone Numbers will receive text messages (SMS) and phone calls in case of triggered alarms.
The hub will make phone calls to the stored phone numbers successively (up to 2 rounds in turn). If the phone call is answered and any Keypad Command has been operated by one of these users, it will stop calling the next phone number; otherwise it will continue to remind users until it is up to 2 rounds.
When the stored phone calls the hub, two-way talk is connected automatically.

Keypad Commands

Go to Menu>Phone>1st Phone/2nd Phone/3rd Phone/4th Phone/5th Phone to set a phone number.

• Use ▼ to scroll to and tap ► to enable keypad, then use digits keypad to enter the Phone Number (up to 18 digits), tap √ to enter.
• Use ▼ to scroll to , then tap ► to toggle between ‘off’ and  ‘on’. When ‘on’ is selected, the Alarm Call will be actived.
• Use ▼ to scroll to , then tap ► to toggle between ‘off’ and ‘on’. When ‘on’ is selected, the Alarm Text Message will be actived.
• Press √ to save your new settings.


Exit / Entry Delay

Entry Delay and Exit Delay are countdowns that allow you to enter and leave your home easily without causing the alarm to sound.

Exit Delay
Exit Delay allows you to leave your home once you’ve armed the security system. When you place the system into Away Arm Mode, it makes a countdown tick to let you know that it is preparing to arm. Once the Exit Delay period ends, the system is armed. To give yourself enough time to exit your home before the countdown ends, you can adjust the countdown timing from 0(No Exit Delay) to 255 seconds. The default Exit Delay is 40 seconds.

How to change the Exit Delay
Go to Menu>Settings>Delay>Exit Delay and enter to edit the delay value.

Entry Delay
Entry Delay allows you to enter your home and disarm your system while the system is in Away Arm Mode. When you enter your home while the system is in Away Arm Mode, your hub makes a countdown tick to let you know that you have a short time until your alarm goes off. When you hear this, you should disarm your system as soon as possible. You can adjust the countdown timing from 0(No Entry Delay) to 255 seconds. The default Entry Delay is 30 seconds.

How to change the Entry Delay
Go to Menu>Settings>Delay>Entry Delay and enter to edit the delay value.

How to Record a Voice Message by Panel

Your system can Record/Play/Delete a brief voice message (up to 20 seconds) that can be played back later. The voice message will be played to the remote when a alarm call is connected.

Go to Menu>Record> and enter.

• Select Record.
• Ready to record when Recording is shown and the system display will count down the recording time remaining.
• Speak into the panel and the recording automatically stops after the time expires.
• The panel plays back the message automatically.
• Press √ to save the message.
  Go to Menu>Record>Duration to adjust the record time.
  Go to Menu>Record>Play to playback the voice message recorded.
  Go to Menu>Record>Delete to delete the voice message recorded.

How to Pair a Remote Tag by the Panel

Go to Menu>Parts>Remote>Add and enter.

• You need to enter a digit from 0 to 9 to designate a unique number for the remote tag to be paired.
• Synchronizing is shown, the hub goes into the paring mode and count down the pairing time remaining.
• Press any button of remote tag to send a transmission signal to the hub.
• As the serial number of remote tag is added to the hub, Leaning OK will be shown.
• The hub will show Device code has been learned if serial number of remote tag have been paired.
  Go to Menu>Parts>Remote>Delete to delete the remote tag specified by serial number .
  Go to Menu>Parts>Remote>Delete All to delete all the remote tags. Total number of paired remote tags is shown before deleting.

How to Pair a Wireless Sensor by Panel

(Door/Window Sensor or PIR Motion Detector)
Go to Menu>Parts>Detector>Add and enter.

• Scroll to to select the desired Zone Name.
• Scroll to to select the desired Zone Mode(Type).
• You must assign a Zone Mode to each zone(sensor), which defines the way in which the system responds to faults in that zone.
  Normal: Sensors set to Normal Zone are activated in Arm (full arm) or STAY Mode (partial arm). We recommend setting door/window sensor to Normal Zone.
  24H: Sensors set to 24H Zone will activate the alarm and sounding when triggered, regardless of the alarm status (Armed or Disarmed).
  Delay: If sensors set to Delay Zone are triggered, the Hub will sound the alarm after the delay time passed. We recommend setting door sensors with a delay if they are used as primary entryways.
  Home: Sensors set to Home Zone are only activated in Arm (full arm). If Stay Arm Mode (partial/home arm) is used, these sensors are not armed and will not activate the alarm if triggered. We recommend setting PIR Motion Detectors to Home Zone.
  24H mute: The mode is same as 24H but sound. To be used as doorbell, select Doorbell.
• Scroll to and tap ► to enable keypad, use the digits keypad to enter Zone Number (0-89 are available) which should be unique if more than one sensor needs to be paired, then tap √ to to enter.
• Select √ , Synchronizing is shown, the panel goes into the paring mode and count down the pairing time remaining.
• Trigger wireless sensor to send a transmission signal to the panel as shown on the right.
• As the serial number of wireless sensor is added to the panel, Leaning OK will be shown.
• The system will show Device code has been learned if serial number of this wireless sensor has been paired, and Zone
  Name/Mode/Number will be refreshed.
  Press the panic button or separate the sensor from the magnet by at least 1.0 inches(2.5 cm)


Press the pairing button or place the PIR motion detector in a high position and then walk within the detection area to trigger the PIR alarm once (the
indicator light flashes once)

Go to Menu>Parts>Detector>Edit to edit Zone Name/Zone Mode of selected zone specified by the zone number, or delete the selected zone.
Go to Menu>Parts>Detector>Delete All to delete all the wireless sensors. Total number of paired sensors is shown before deleting.

How to Pair a RFID Tag by Panel

Go to Menu>Parts>RFID>Add and enter

• You need to enter a digit from 0 to 9 to designate a unique number for the RFID tag to be paired.
• Synchronizing is shown, the panel goes into the paring mode and count down the pairing time remaining.
• Tap the RFID Tag on the RFID read zone of your panel.
• As the serial number of RFID Tag is added to the hub, Leaning OK will be shown.
• The hub will show Device code has been learned if serial number of RFID Tag has been learned.
  Go to Menu>Parts>RFID>Delete to delete the RFID Tag specified by serial number.
  Go to Menu>Parts>RFID>Delete All to delete all the RFID Tags. Total number of paired tags is shown before deleting.

How to Pair a Wireless Siren by Panel

Go to Menu>Parts>Siren Learn

•  Press and hold the SET button of the siren until you hear two beeps, then the siren goes into the paring mode and the light ring blinks quickly.
• Press √ button on the panel within 6 seconds. The panel shows Learn Signal Sent and sends a transmission signal to the siren.
• The siren gives four beeps of successful indication.
  If you want to unbind the wireless siren with the hub, press and hold the SET button of the siren until you hear three beeps.

How to Pair a Alarm Wireless Switch by Panel
Go to Menu>Parts>Alarm Socket

• Press and hold the button of the switch until it lights up, then the switch goes into the paring mode.
• Tap ◄/▲ to send ON transmission signal to the switch.
• Tap ►/▼ to send OFF transmission signal to the switch.
• The siren gives three flashes of successful indication.


When a sound alarm occurs, the alarm wireless switch opens until the system is disarmed or alarm sounder timeout occurs. If you want to unbind the alarm wireless switch with the hub, press and hold the button of the switch for about 10 seconds until light is off.

APP

Download App

Scan the QR codes via a smart phone to download and install the application.
Your App may look different if you purchased the different hub model.

APP for Hub Cellular Model
For hub cellular model, you can arm, stay arm, disarm your system by sending text messages using the APP. You can also name your accessories, set Phone Number, Change Exit/Entry Delay or Enable/Disable some features, and more by APP.

APP for Hub Cellular + Wi-Fi Model

Special Tips
After installing the app, the phone will request permission to receive notifications from APP. Forbidden to receive notifications may result in an application running failure.

Signing Up/In
If you have not registered an account yet, please tap the Sign up on the app and follow the instructions to create your account first.
If you do not receive an account verification code in your email box during the registration process, please remember to check your spam/junk folder.
Once you have an account with us, please enter your email address and password to log in.

Adding Device
One account can operate multiple devices in this app.
You can establish a connection between your panel and your smartphone via Wi-Fi.

Important: The hub does not support the 5GHz Wi-Fi band. If you have a dual-band router (5GHz and 2.4GHz) and both the 2.4GHz and 5.0GHz networks are under the same name, you will need to separate those two bands into different names in your router settings. Android users may need to disable cellular (mobile) data before proceeding to this step. This setting is normally found in your smartphone’s settings under Data Usage, or Mobile
Networks.
If you’re unable to find the setting location, we suggest using a search engine with the following syntax: Disable (Phone Model) cellular data.

• Tap the [+] button on home page on your smartphone.
• Go to Security & Sensor > Alarm(Wi-Fi) on Search Device page.
• Set the panel to Wi-Fi network configuration mode:
  Go to Menu>Wi-Fi>Smart Configuration and enter, Airlinking… is shown, the panel goes into the configuration mode and counts down the time remaining.
• Enter the Wi-Fi network password on Add Device page on your smartphone.
• APP displays connecting process. This binding process should take about 15 seconds.
• You’ll find the device on home page when the network is connected.
• Pick the device, now you can control your hub.

USING SMART SECURITY SYSTEM.

The Security Levels

Smart Hub has three different security levels you’ll use when you’re home or away. You can easily  switch between them on Smart Hub or with RFID tag, remote tag, or the app.

	WHAT YOU HEAR	WHAT HAPPENS	WHAT’S DETECTED Motion Open	NOTIFICATIONS and CALLS
Away Arm Use when no one is home.	“Please input password” “System Armed”	The alarm sounds when a door or window opens, or when there’s motion in a room.	√  √	√
Home Arm Use when you’re home and want security.	“Please input password” “System Armed”	The alarm sounds when a door or window opens.	–          √	√
Disarm Use when you don’t want security.	“System Disarmed”	The alarm won’t sound.	–          –	–

Away Mode
All sensors in your home are monitored. This is useful when you’re going out and want to be notified if anything happens to your home.

Home Mode
All NORMAL and DELAY
(exterior and perimeter ) sensors are monitored, but interior sensors are not monitored. This is useful if you’re at home but want to be alerted if anyone tries to break in through a door or window.
Disarmed Mode
No sensors but 24 HOUR sensors in your home are monitored. This is useful when you’re at home and want the freedom to go in and out easily.

How to Arm and Disarm

You can arm and disarm your home in three ways: entering your passcode on the panel if it is locked and press Arm/Stay Arm/Disarm icons, tapping RFID Tag on the panel, or using the remote tag, or app. When you hear the panel’s chime alert, the screen will also show you a countdown so you know how much time you have before the alarm sounds.

No Rush
With No Rush, you can take the time you leave home or disarm before the alarm sounds. By default, you have 40 seconds.
To adjust the countdown timing by the panel, go to Menu>Settings>Delay>Exit Delay/Entry Delay. (see Exit/Entry Delay description on page 16)

RFID tag
Tap the tag on the panel to

• Disarm in case of arm mode.
• Arm in case of disarm mode.

Remote tag

• Press to away arm.
• Press to home arm.
• Press to disarm.
• Press SOS to trigger an emergency alarm.

Panel

• Tap to away arm.
• Tap to home arm.
• Tap to disarm.

APP

• Tap to away arm.
• Tap to home arm.
• Tap to disarm.

Schedule
You can set an arm schedule and a disarm schedule to arm or disarm the system automatically at a daily time. Go to Menu>Timer>Arm  imer/Disarm Timer and enter

• Scroll to and tap ► to enable keypad, enter the Daily Arm/Disarm time (in 24-hr) and tap √ to enter.
• Scroll to and tap ► toggle to ‘on’ to enable the schedule.
• Press √ to save your schedule.

Make a Call on Panel

On the home screen, tap , enter the number, then tap √ to dial.
Important: The call will be cancelled if cellular network is not registered, the system is armed or in voice alarming.

Smart Hub Features

Battery backup
If the building has lost electrical power, Smart Hub includes a backup battery that will last for more than 6 hours. So even if the power is out, Smart Hub can still detect when an intruder is in your home and sound the alarm.
The battery icon in the upper-right corner shows the battery level or charging status, this level is just for reference.
If the backup battery is very low, the battery icon turns red, and for up to 15 minutes before the hub works well. And Low Battery notifications will be sent to the registered phone numbers.
The battery is fully charged within 8 to 12 hours.

Loss/Restoration of AC power
If the event of AC power loss or restoration, the hub will send you an alert notification to let you know that.

Tamper detection
If someone tampers with Smart Hub and removes it from the back plate, the hub will send you an alert notification to let you know that.

RESET TO FACTORY SETTINGS

You have two ways to reset Smart Hub to factory settings.
Go to Menu>Settings>Initialization> and enter, or press the TAMPER switch underneath the bracket 5 times.
Important: You won’t be able to reset if Smart Hub is locked. All the paired accessories and event logs will be deleted when reset is done.

SPECIFICATIONS

Hub
Power Supply: Micro USB 110/220VAC to 5V, 1000mA
Backup Battery: 3.7V, 500mAh Rechargeable Lithium Battery
Consumption: <55mA@normal
Radio Frequency: 433Mhz
GSM: 850/900/1800/1900MHz
Wi-Fi: IEEE802.11b/g/n
Operation Temperature: 0~55℃

Remote
Power Supply: DC 3V (CR2025 Lithium Battery x1)
Standby Current: <5uA
Alarm Current: <15mA
Transmitting Distance: <80m (Open Area and No Interference)
Radio Frequency: 433Mhz
Operation Temperature: 0~55℃

Door/Window Sensor
Power Supply: DC 3V (CR2032 Lithium Battery x1)
Standby Current: <8uA
Alarm Current: <15mA
Transmitting Distance: <80m (Open Area/No Interference)
Radio Frequency: 433Mhz
Operation Temperature: 0~55℃

PIR Motion Sensor
Power Supply: 1.5V AA Battery x3
Standby Current: <15uA
Alarm Current: <25mA
Detection Scope: <12m/110°
Transmitting Distance: <80m (Open Area and No Interference)
Radio Frequency: 433Mhz
Operation Temperature: 0~55℃

RFID Tag
Chip: 4100/4200
Frequency: 125KHz
Read Distance: <2cm

Wireless Siren
Power Supply: Micro USB 110/220VAC to 5V, 1000mA
Backup Battery: 3.7V, 300mAh Rechargeable Lithium Battery
Standby Current: <15mA
Alarm Current: <230mA
Volume: 100dB
Radio Frequency: 433Mhz
Operation Temperature: 0~55℃

SimpliSafe CMOB1 Wireless Outdoor Security Camera

CMOB1 FCC Statement Procedure

1. Quick Start Guide in Box tells users to download app
2. App links to FCC Statement
   Main Menu > Setting > FCC Statement

Federal Communication Commission Interference Statement

The devices listed above comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) The devices may not cause harmful interference, and (2) the devices must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Industry Canada Statement

This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with greater than 20cm between the radiator & your body.
