INSTRUCTION MANUAL

Forehead Thermometer
Model: MC-720

Thank you very much for purchasing the Forehead Thermometer. Be sure to read this Instruction Manual thoroughly before use. Keep this Instruction Manual at hand for future reference.

Thank you for purchasing the OMRON Forehead Thermometer MC-720.

Intended Use:
The OMRON Forehead Thermometer MC-720 offers safe, comfortable and quick temperature measurement from the forehead. It is mainly designed for household use.

Please read this instruction manual thoroughly before using this unit. Please keep for future reference. For specific information about your own temperature, CONSULT YOUR DOCTOR.

Important Safety Information

To assure correct use of the product, basic safety measures should always be followed, including the precautions listed below.

Warning: The following situations are potentially hazardous and, if not avoided, could result in death or serious injury.

• Conducting self-diagnosis based on the measurement results and/or treatment can be dangerous. Please follow the instructions of your doctor. Self-diagnosis may worsen the symptoms.
• A high or prolonged fever requires medical attention, especially for young children. Please contact your doctor.
• Keep the unit out of children’s reach.
• If a child swallows the battery, immediately consult with a doctor.
• Do not throw batteries into a fire. The battery may explode.
• Remove the battery when the unit will not be used for three months or more. Failure to do so may lead to fluid leakage, heat generation or bursting, resulting in damage to the unit.
• Do not use the unit to measure any item with a temperature higher than 80.0°C (176.0°F).

General Precautions

• Do not apply a strong shock to, drop, step on, or vibrate the main unit.
• Do not use a mobile phone near the unit.
• The main unit is not waterproof. Be careful when handling this unit so that no liquid (alcohol, water, or hot water) will get into the main unit. When the unit is wet with vapor, wait until it dries or wipe it lightly with a soft dry cloth.
• Do not disassemble, repair, or modify the unit.
• When the probe lens becomes dirty, wipe it lightly with a soft dry cloth or a cotton swab. Do not wipe the probe lens with tissue paper or a paper towel. For details, refer to section 4.3.
• If there is any temperature difference between the places where the unit is stored and where you are going to measure, leave the unit in the room where you are going to use it for more than 30 minutes to allow it to reach room temperature first, then measure.

1.Overview

2. Preparation

2.1 Removing the Insulating Tape
When using the unit for the first time, pull the insulating tape out of the battery compartment.

The unit is turned on and after 1 minute the room temperature
appears on the display.

Notes:
• The room temperature remains on the display even after the unit turns off.
• Place the unit on a level surface, in a place that is at room temperature (away from direct sunlight or air conditioning, etc.).

2.2 Switching between °C and °F
This unit is set in °C as default.

1. While the room temperature is displayed, press and hold the START button.
2. While holding it down, press and hold the ON/MEM button until °F appears on the display with two beeps.

Notes:

• To select °C mode again, start from step1.
• When the unit is switched between °C and °F, all the readings stored in the memory are deleted.

2. Preparation

2.3 Setting the Buzzer
The buzzer is activated by default, but can be deactivated.
Note: The buzzer is only available in forehead measurement mode.

1. Press the ON/MEM button to turn on the unit.
2. Press and hold the ON/MEM button for 3 seconds.

The ” Buzzer ” icon flashes on the display.

3. Release the ON/MEM button.

The ” Buzzer ” icon remains lit and the buzzer is deactivated.

Notes:

• • If the ON/MEM button is pressed down for more than 5 seconds after the ” Buzzer ” icon starts flashing, the unit turns off without deactivating the buzzer.
• • To activate the buzzer again, start from step1.

3. Using the Unit

3.1 Taking a Reading
Forehead Measurement Mode

This mode displays the oral-equivalent value of the measured forehead temperature.
Always make sure the probe lens is clean and undamaged, and the forehead is clean with no sweat, cosmetics, scars, etc.
Prior to measurement, ensure that the patient has not taken a bath or exercised within the last 30 minutes, and has remained in a stable environment for at least 5 minutes. It is recommended to perform measurement three times. If the three measurements are different, select the highest temperature.

1. Pull off the probe lens cap to remove it.
2. Press the ON/MEM button.

All indicators appear on the display for 1 second. Then the display shown on the far right appears with two beeps.

3. Hold the unit with the probe lens 1 to 3 cm away from the center of the forehead.
Notes:

• Holding the unit too long in the hand may cause a higher ambient temperature reading of the probe. This could make the body temperature measurement lower than usual.
• Keep still during measurement.

4. Press the START button.

The measurement is complete in 1 second with a long beep.

5. Move the unit away from the forehead and check the measurement result.
The display lights up for 5 seconds.

Notes:

• If the result is higher than 42.2°C (108.0°F), “Hi” appears on the display. If the result is lower than 34.0°C (93.2°F), “Lo” appears on the display.
• You can take another measurement after the display light turns off with two beeps. Make sure the ” ” icon remains lit.
• After the second measurement, the first measurement is displayed in the top right corner, while the second is displayed in the center.

6. Press and hold the ON/MEM button until “OFF” appears on the display to turn off the unit.
The unit stores the measurement in memory, then turns off with the room temperature on the display. The unit also turns off automatically if no operation is performed for 1 minute.

Surface Measurement Mode
Surface measurement mode shows the actual and unadjusted surface temperature of an object, which is different from the body temperature. This mode can help you determine if the object temperature is suitable for a patient or baby (such as baby milk). The unit is set to forehead measurement mode as default. Follow the steps below to switch to surface measurement mode.

1. Press the ON/MEM button to turn on the unit.
2. Press and hold the ON/MEM button. While holding it down, press the START button.
   The ” SCAN ” icon appears on the display.

3. Move the unit close to the object and press the START button.
It measures continuously until the START button is released.

Notes:

• Move the probe lens as close to the object as possible when using in surface measurement mode (1 cm apart is recommended). Do not apply the probe lens to the object directly.Surface measurement mode shows the surface result. The surface and internal temperature may be different. Make sure it is safe when measuring an object with extremely high or low temperature.
• The display does not light up and the buzzer is off when using this mode.
• To switch to forehead measurement mode, go back to step 2 and make sure the icon changes to the icon.
• The unit automatically turns off if no operation is performed for 1 minute with the room temperature on the display. To manually turn off the unit, you can press and hold the ON/MEM button until “OFF” appears on the display.
• Surface measurement mode is not intended for body temperature measurement or medical use.

3.2 Using the Memory Function
This unit automatically stores the last 25 measurement results (excluding Hi/Lo results).
Notes:

• If the memory is full, the unit will delete the oldest reading.
• When the unit is switched between °C and °F, all the readings stored in the memory are deleted.

1. Press the ON/MEM button to turn on the unit.
2. Press the ON/MEM button again.
   The memory number appears on the display

3. Release the ON/MEM button.
The most recent result appears on the display.
Press the ON/MEM button repeatedly to view the older results.

4. Press and hold the ON/MEM button until “OFF” appears on the display to
turn off the unit.
The unit turns off with the room temperature on the display.

4. Troubleshooting and Maintenance
4.1 The Icons and Error Messages

4.2 Questions and Answers

1. The temperature indicated is rather high.

• The unit has been stored in a cold room. When the unit has been stored in a cold room, the measured temperature may be rather high if you measure the temperature shortly after bringing the unit to a room that is at normal temperature. Measure temperature after leaving the unit for 30 minutes in the room where it will be used. It is advisable to store the unit in the room where you are going to measure temperature.
• The probe lens has been exposed to direct sunlight.
• Measurement was taken shortly after the subject cried. Crying can increase facial temperature.

2. The temperature indicated is rather low.

• The body is sweaty. Do not use the unit when wet after swimming, bathing, or through sweating after physical exercise, as skin temperature may have fallen. Wipe away moisture and allow 30 minutes for the body to acclimatize to room temperature before measuring.
• The probe lens is dirty.
• Measurement was taken in surface temperature mode. Use forehead measurement mode.
• Measurement was taken shortly after the subject was outdoors in cold weather. Wait until the forehead has warmed up.
• Measurement was taken at a location other than the forehead. Be sure to measure exactly at the forehead, not surrounding areas such as the hairline.

3. There are variances in the measurement values.

• Measurements were not taken at the same location.
• The probe lens is dirty.

4. The temperature measured on this unit is not equivalent to oral-temperature.

• Forehead thermometers may not always calculate the exact oral-equivalent value. It is recommended to take regular measurements on subjects such as family members, etc., who are in good physical condition, to know their normal temperature.

4.3 Maintenance

• Check the unit if it is dropped. If unsure, please contact your local OMRON representative to have your unit checked.
• When the probe lens becomes dirty, wipe it lightly with a soft dry cloth or a cotton swab. Do not wipe the probe lens with tissue paper or a paper towel.
• Clean the probe lens carefully to avoid damaging it.
– Use a 70% alcohol swab or soft cotton moistened with 70% alcohol to clean the probe lens.
– Allow the probe lens to fully dry for at least 1 minute.
• Do not store the unit in the following types of places. Doing so may damage the unit.
– Wet locations.
– Locations with high heat and humidity or those that are exposed to direct sunlight. Areas close to heating equipment, dusty locations, or environments where there are high salt concentrations in the air.
-Locations where the unit will be subjected to leaning over, falling, shock, or vibration.
-Pharmaceutical storage areas or locations where corrosive gases are present.

4.4 Replacing the Battery
Battery: CR2032 lithium button battery
Note: To protect the environment, discard the used batteries in accordance with the local regulations regarding waste disposal procedure.

1. Release the screw and remove the battery cover.

2. Remove the battery with a pointed object.

Note: Do not use a metal tool as it may damage the surrounding parts.

3. Insert the new battery under the metal hook on the right side and press the left side of the battery down until it clicks.

Note: Replace the new battery with the plus (+) side on the top.

4. Close the battery cover and tighten the screw.

5. Technical Data

Notes:

• The specification may be changed without prior notice.
• This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co. Ltd., Japan.
• This unit fulfills the provisions of the EC directive 93/42/EEC (Medical Device Directive) and the European Standard EN ISO 80601-2-56:2012: Particular requirements for basic safety and essential performance of clinical thermometers for body temperature measurement.

Important information regarding Electro Magnetic Compatibility (EMC)
With the increased number of electronic devices such as PC’s and mobile (cellular) telephones, medical devices in use may be susceptible to electromagnetic interference from other devices. Electromagnetic interference may result in incorrect operation of the medical device and create a potentially unsafe situation.
Medical devices should also not interfere with other devices. In order to regulate the requirements for EMC (Electro Magnetic Compatibility) with the aim to prevent unsafe product situations, the EN60601-1-2 standard has been
implemented. This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601-1-2:2007 standard for both immunity and emissions.
Nevertheless, special precautions need to be observed:
• Do not use mobile (cellular) telephones and other devices, which generate strong electrical or electromagnetic fields, near the medical device. This may result in incorrect operation of the unit and create a potentially unsafe situation. Recommendation is to keep a minimum distance of 7 m. Verify correct operation of the device in case the distance is shorter.
Further documentation in accordance with EN60601-1-2:2007 is available at OMRON HEALTHCARE EUROPE at the address mentioned in this instruction manual.
Documentation is also available at www.omron-healthcare.com.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other
commercial wastes for disposal.
Disposal of used batteries should be carried out in accordance with the national regulations for the disposal of batteries.

6. Some Useful Information

How the Forehead Thermometer MC-720 Works
This unit measures the temperature at the surface of the forehead by sensing infrared emission of the skin at the measured point, and then calculates the oral-equivalent value using a unique algorithm based on actual body temperature survey data.

About Body Temperature
Body temperature refers to the stable temperature of the inner body (also known as core body temperature). While temperature measurements at the armpit or mouth provides surface temperature values, holding the thermometer steadily at the measurement point for approx. 10 minutes provides a temperature measurement more closely representing that of core body temperature.

Since forehead temperature measurement involves no bodily support of the thermometer, the resulting measured temperature is typically lower than that of the armpit or mouth.

However, since the forehead has blood vessels that are much less prone to vascular constriction (a natural function of body temperature adjustment), it is supposedly a better measurement area for determining core body temperature, even in a lower
temperature environment. By contrast, temperature measured at the arm or leg, for example, is not a suitable gauge of core body temperature, since such body areas are more subject to vascular constriction. (Note that temperature measured at the forehead may still be influenced by other conditions, such as sweating, or wind from
an air conditioner, etc. It is therefore advised to perform measurement in as stable an environment as possible.)

When measuring the temperature of an infant, note that infant body temperature is generally higher than adult body temperature and easily affected by external factors. For example, body temperature tends to increase after nursing or crying. Therefore, it is recommended to take measurements with the infant in calm and normal condition.

Temperature differences between body temperature and forehead temperature

This unit measures the temperature at the surface of the forehead by sensing infrared emission of the skin at the measured point, and then calculates the oral-equivalent value using a unique algorithm (forehead measurement mode) based on actual body temperature survey data.

Knowing One’s Normal Temperature In order to make a correct judgment of suspected fever conditions, it is important to know one’s normal temperature.
Normal temperature varies with the individual and also changes depending on the time through a day. In addition, measured body temperatures may vary depending on the thermometer or the body part where you measure (see the graph “Variances in core body temperatures obtained at the forehead and mouth”). To find out one’s normal temperature, therefore, we recommend performing regular measurements under the following conditions:

• Measure with the same thermometer.
• Measure at the same area.
• Measure at the same time of day.

Quick Start Guide

IMPORTANT: This kit has been prepared specifically for you and your health needs.
It should not be used by anyone else, including family.

WHAT’S INSIDE THE BOX?

Your clinician determines which of the following devices you’ll receive:

An OMRON BLOOD PRESSURE MONITOR

An OMRON BODY WEIGHT SCALE

A DATA HUB
(with Charger)

NOTE: You may receive only a BP monitor or a BP monitor with a weight scale, depending on what your clinician has ordered.

DEVICE SETUP

IMPORTANT: To work properly, your kit components must be set within 10 feet of each other.

(1) Plug in the data hub

(2) Position the blood pressure monitor where you’re able to sit up straight

(3) If you received a scale, place it on a hard, level surface (not on carpet)

PROPER USE OF YOUR MONITORS

Using your monitors properly is important in order to capture accurate data.
Follow these tips to obtain your measurements:

• Don’t exercise, drink alcohol, smoke or eat a big meal 30 minutes before taking a measurement
• Be seated with your feet flat on the floor
• Sit quietly for 5 to 15 minutes before taking the measurement

Body Weight Scale

• Be sure to place the scale on a hard, level surface
• Use the bathroom before stepping on the scale
• When done together, step on the scale after taking your blood pressure

NOTE: Always use the bathroom before taking your blood pressure and stepping on the scale.

FOLLOW YOUR DOCTOR-RECOMMENDED SCHEDULE

(1) Use the toilet
(2) Take your blood pressure (2-3 times per day)	When you wake up	During a rest period	Before bed
(3) Step on the scale	When you wake up		Before bed
(4)	Take your medication as prescribed by your doctor

To speak to a member of the VitalSight Team, call 1-877-510-5902

©2020 Omron® Healthcare, Inc. All rights reserved.
OMR019B RPM Quick Start Guide 10/2020

Silver Upper Arm Blood Pressure Monitor

BP5250 Quick Start Guide

Download the app

Scan the code below with your smart device camera or visit OmronHealthcare.com/app to find the OMRON compatible app for this product.

http://OmronHealthcare.com/app

Install batteries

Push down on the hook of the battery cover and pull downward.

Insert 4 “AA” alkaline batteries.

Close the battery cover. The year flashes.

Pair your smart device

O Make sure that your monitor is off.
If the display is showing any information, press the [START/STOP] button to turn your monitor off
Enable Bluetooth® on your smart device.
Open the app and follow the instructions.
The date and time will automatically be set when your monitor is paired with the app. To set the date and time manually, refer to sub-section 2.2 of the instruction manual.

To transfer manually, refer to the “Help” section in the app.

Apply the arm cuff

Insert the air plug into the air jack securely until it clicks.
Apply the arm cuff onto your left upper arm.
The bottom edge of the arm cuff should be 0.5 inches above the inside elbow.
Wrap the cuff securely.
Make sure that the air tube is on the inside of your arm.

For details, refer to the instruction manual.

Sit correctly

Take a measurement

Press the [START/STOP] button.
Remain still until the arm cuff deflates.
After the measurement, your reading is displayed.

For details, refer to the instruction manual.

Check your readings on the app

Open the app on your smart device and follow the instruction.
Check your readings on the app.
To turn off the monitor, press the [START/STOP] button.
To transfer manually, refer to the “Help” section in the app.

FAQ 1
Why are my blood pressure readings sometimes different?
Your blood pressure changes constantly based on your daily activities and time of day. Because of this, some fluctuations can be expected. That’s why it is important to use averages over time to compare readings. Because each person is different, it is important to consult with your physician about what your numbers mean to you.
FAQ 2
Why could my physician’s reading be different than my readings taken at home?
Having your blood pressure measured by a healthcare professional in a physician’s office can cause nervousness and may result in an elevated reading. Because these readings can vary considerably, you should take your blood pressure on a regular basis at home and share your results with your healthcare provider.

TIP 1
For accurate readings:
– Avoid bathing, drinking alcohol or caffeine, smoking, exercising, and eating for 30 minutes before taking a measurement.
– Rest for at least 5 minutes before taking a measurement.
– Sit quietly with your legs uncrossed and your feet flat on the floor.
TIP 2
Make sure that your blood pressure monitor and smart device are successfully paired, and the app is open on your smart device, before transferring your readings to the app.

Trademarks

The Bluetooth• word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by OMRON HEALTHCARE Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

For customer service

Visit our web site:
Call toll free:
For USA – OmronHealthcare.com For Canada
– OmronHealthcare.ca 1-800-634-4350

OMRON BP7350 Upper Arm Blood Pressure Monitor User Guide

1. Download the app

2. Install batteries

3. Pair your smart device

4. Apply the arm cuff

5. Sit correctly

6. Take a measure

7. Check your readings on the top

FAQ 1: Why are my blood pressure readings sometimes different?
Your blood pressure changes constantly based on your daily activities and time of day. Because of this, some fluctuations can be expected. That’s why it is important to use averages over time to compare readings. Because each person is different, it is important to consult with your physician about what your numbers mean to you.

FAQ 2: Why could my physician’s reading be different than my readings taken at home?
Having your blood pressure measured by a healthcare professional in a physician’s office can cause nervousness and may result in an elevated reading. Because these readings can vary considerably, you should take your blood pressure on a regular basis at home and share your results with your healthcare provider.

TIP 1
For accurate readings:

• Avoid bathing, drinking alcohol or caffeine, smoking, exercising  and eating for 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.
• Sit quietly with your legs uncrossed and your feet flat on the floor.

TIP 2

Make sure that your blood pressure monitor and smart device are successfully paired, and the app is open on your smart device, before transferring your readings to the app.

Trademarks
The Bluetooth’ word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OMRON HEALTHCARE Co., Ltd. is under license.
Other trademarks and trade names are those of their respective owners.

For customer service
Visit our web site: OmronHeaIthcare.com
Call toll free: 1-800-634-4350

Omron 3 Series BP7100 (Upper Arm Blood Pressure Monitor) Manual

Introduction

Thank you for purchasing the OMRON BP7100 Blood Pressure Monitor. This new blood pressure monitor uses the oscillometric method of blood pressure measurement. This means this monitor detects your blood movement through your brachial artery and converts the movements into a digital reading.

Safety Instructions

This instruction manual provides you with important information about the OMRON BP7100 Blood Pressure Monitor. To ensure the safe and proper use of this monitor, READ and UNDERSTAND all of these instructions. If you do not understand these instructions or have any questions, contact 1-800-634-4350 before attempting to use this monitor. For specific information about your own blood pressure, consult with your physician.

Intended Use

This device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population. The device detects the appearance of irregular heartbeats during measurement and gives a warning signal with readings. Environments of Use: Home Patient Population: Adult

Receiving and Inspection

Remove this monitor from the packaging and inspect for damage. If this monitor is damaged, DO NOT USE and contact 1-800-634-4350.

Symbols Glossary

For symbol information, visit: OmronHealthcare.com/symbols-glossary

Important Safety Information

Please read the Important Safety Information in this instruction manual before using this monitor. Please follow this instruction manual thoroughly for your safety. Please keep for future reference. For specific information about your own blood pressure, CONSULT WITH YOUR PHYSICIAN. Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

• DO NOT use this monitor on infants, toddlers, children or persons who cannot express themselves.
• DO NOT adjust medication based on readings from this blood pressure monitor. Take medication as prescribed by your physician. ONLY a physician is qualified to diagnose and treat high blood pressure.
• DO NOT use this monitor on an injured arm or an arm under medical treatment.
• DO NOT apply the arm cuff on your arm while on an intravenous drip or blood transfusion.
• DO NOT use this monitor in areas containing high frequency (HF) surgical equipment, magnetic resonance imaging (MRI) equipment, computerized tomography (CT) scanners or in oxygen rich environments. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.
• Consult with your physician before using this monitor if you have common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation; arterial sclerosis; poor perfusion; diabetes; pregnancy; pre-eclampsia or renal disease. NOTE that any of these conditions in addition to patient motion, trembling, or shivering may affect the measurement reading.
• NEVER diagnose or treat yourself based on your readings. ALWAYS consult with your physician.
• To help avoid strangulation, keep the air tube away from infants, toddlers or children.
• This product contains small parts that may cause a choking hazard if swallowed by infants, toddlers or children.

Battery Handling and Usage

Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient, or cause damage to the equipment or other property.

• Keep batteries out of the reach of infants, toddlers or children.
• Stop using this monitor and consult with your physician if you experience skin irritation or discomfort.
• Consult with your physician before using this monitor on an arm where intravascular access or therapy, or an arteriovenous (A-V) shunt, is present because of temporary interference to blood flow which could result in injury.
• Consult with your physician before using this monitor if you have had a mastectomy.
• Consult with your physician before using this monitor if you have severe blood flow problems or blood disorders as cuff inflation can cause bruising.
• DO NOT take measurements more often than necessary because bruising, due to blood flow interference, may occur.
• ONLY inflate the arm cuff when it is applied on your upper arm.
• Remove the arm cuff if it does not start deflating during a measurement.
• DO NOT use this monitor for any purpose other than measuring blood pressure.
• Do not use a mobile phone or other devices that emit electromagnetic fields, near the monitor. This may result in incorrect operation of the monitor.
• DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading.
• DO NOT use in a location where there is moisture or a risk of water splashing this monitor. This may damage this monitor.
• DO NOT use this monitor in a moving vehicle such as in a car.
• DO NOT drop or subject this monitor to strong shocks or vibrations.
• DO NOT use this monitor in places with high or low humidity or high or low temperatures. Refer to section 5.
• Ensure this monitor is not impairing blood circulation by observing the arm while measurement is occurring.
• DO NOT use this monitor in high-use environments such as medical clinics or physician offices.
• DO NOT use this monitor with other medical electrical (ME) equipment simultaneously. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.
• Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for at least 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.
• Remove tight-fitting, thick clothing from your arm while taking a measurement.
• Remain still and DO NOT talk while taking a measurement.
• ONLY use the arm cuff on persons whose arm circumference is within the specified range of the cuff.
• Ensure that this monitor has acclimated to room temperature before taking a measurement. Taking a measurement after an extreme temperature change could lead to an inaccurate reading. OMRON recommends waiting for approximately 2 hours for the monitor to warm up or cool down when the monitor is used in an environment within the temperature specified as operating conditions after it is stored either at the maximum or at the minimum storage temperature. For additional information of operating and storage/transport temperature, refer to section 5.
• DO NOT crease the arm cuff or the air tube excessively.
• DO NOT fold or kink the air tube while taking a measurement. This may cause an injury by interrupting air flow.
• To unplug the air plug, pull on the plastic air plug at the base of the tube, not the tube itself.
• ONLY use the arm cuff, batteries and accessories specified for this monitor. Use of unsupported arm cuffs and batteries may damage and/or may be hazardous to this monitor.
• ONLY use the approved arm cuff for this monitor. Use of other arm cuffs may result in incorrect readings.
• Inflating to a higher pressure than necessary may result in bruising of the arm where the cuff is applied. NOTE: please refer to “If your systolic pressure is more than 210 mmHg” in section 3 of this instruction manual for additional information.
• Read and follow the “Important information regarding Electromagnetic Compatibility (EMC)” in section 9 of this manual.
• DO NOT insert batteries with their polarities incorrectly aligned.
• ONLY use 4 “AA” alkaline or manganese batteries with this monitor. DO NOT use other types of batteries. DO NOT use new and used batteries together.
• Remove batteries if this monitor will not be used for a long period of time.
• If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Consult with your physician immediately.
• If battery fluid should get on your skin, wash your skin immediately with plenty of clean, lukewarm water. If irritation, injury or pain persists, consult with your physician.
• DO NOT use batteries after their expiration date.
• Periodically check batteries to ensure they are in good working condition.

1. Know Your Monitor

Contents:

Monitor, arm cuff, instruction manual, quick start guide

Monitor:

A. Display                B. START/STOP button C. Memory button   D. Battery compartment E. Air jack

Arm cuff:

F. Arm cuff (Arm circumference 9″ – 17″ (22 – 42 cm)) G. Air plug     H. Air tube

Display:

I. Memory symbol                 J. Systolic blood pressure K. Diastolic blood pressure   L. Low battery symbol M. Heartbeat symbol (Flashes during measurement.) N. Irregular heartbeat symbol      O. Movement error symbol P. Pulse display / Memory number   Q. Deflation symbol

1.1 Display symbols

Irregular Heartbeat Symbol (

When the monitor detects an irregular rhythm two or more times during the measurement, the irregular heartbeat symbol will appear on the display with the measurement values. An irregular heartbeat rhythm is defined as a rhythm that is 25% less or 25% more than the average rhythm detected while the monitor is measuring the systolic and diastolic blood pressure. If the irregular heartbeat symbol displays with your measurement results, we recommend you consult your physician. Follow the directions of your physician.

Movement Error Symbol (

The movement error symbol is displayed if you move your body during the measurement. Please remove the arm cuff, and wait 2 – 3 minutes. Take another measurement, remain still during measurement.

Classification of BP (Blood Pressure)

ACC/AHA 2017 Hypertension guidelines define categories of BP in adults as below: Categories of BP in Adults*

• Individuals with Systolic BP and Diastolic BP in 2 categories should be designated to the higher BP category.

BP indicates blood pressure (based on an average of ≥ 2 careful readings obtained on ≥ 2 occasions). Source: ACC/AHA 2017 High Blood Pressure Clinical Practice Guideline Warning: NEVER diagnose or treat yourself based on your readings. ALWAYS consult with your physician.

1.2 Blood Pressure Measurement Tips

To help ensure an accurate reading, follow these directions:

• Stress raises blood pressure. Avoid taking measurements during stressful times.
• Measurements should be taken in a quiet place.
• It is important to take measurements at the same times each day. Taking measurements in the morning and in the evening is recommended.
• Remember to have a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. You need to take and record several readings over a period of time.

Caution:

• Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for at least 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.

2. Preparation

2.1 Battery Installation

1. Remove the battery cover.
2. Insert 4 “AA” batteries as indicated in the battery compartment.
3. Replace the battery cover.

Notes:

• When the low battery symbol ( ) appears on the display, turn the monitor off, then replace all batteries at the same time. Long life alkaline batteries are recommended.
• The measurement values continue to be stored in memory even after the batteries are replaced.
• Disposal of used batteries should be carried out in accordance with local regulations.

3. Using the Monitor

3.1 Applying the Arm Cuff

Caution: Remove tight-fitting, thick clothing from your arm while taking a measurement.

1. Insert the air plug into the air jack securely.
2. Wrap the arm cuff firmly in place around your left upper arm. The bottom edge of the arm cuff should be 0.5 inch (1 to 2 cm) above the elbow. Air tube is on the inside of your arm and aligned with your middle finger.
3. Secure closed with the fabric fastener.

Notes:

• When you take a measurement on the right arm, the air tube will be at the side of your elbow. Be careful not to rest your arm on the air tube.
• The blood pressure can differ between the right arm and the left arm, and the measured blood pressure values can be different. OMRON recommends to always use the same arm for measurement. If the values between both arms differ substantially, please check with your physician which arm to use for your measurements.

3.2 How to Sit Correctly

To take a measurement, you need to be relaxed and comfortably seated, under comfortable room temperature. Avoid bathing, drinking alcohol or caffeine, smoking, exercising or eating 30 minutes before taking a measurement.

• Sit in a chair with your legs uncrossed and feet flat on the floor.
• Sit with your back and arm supported.
• The arm cuff should be placed on your arm at the same level as your heart, with the arm resting comfortably on a table.

3.3 Taking a Measurement

Notes:

• To stop the measurement, press the START/STOP button once to deflate the arm cuff.
• Remain still and quiet while taking a measurement.

1. Press the START/STOP button. The arm cuff will start to inflate automatically
2. Remove the arm cuff.
3. Press the START/STOP button to turn the monitor off. The monitor automatically stores the measurement result in its memory. It will automatically turn off after 2 minutes. Note: Wait 2-3 minutes before taking another measurement. Waiting between measurements allows the arteries to return to the condition prior to taking a measurement.

3.4 Using the Memory Function

The monitor automatically stores the results up to 14 sets. Note: If the memory is full, the monitor will delete the oldest value.  To View the Measurement Values Stored in Memory

1. Press the button. The Memory number appears for a second before the pulse rate is displayed. The newest set is numbered “1”.
2. Press the button repeatedly to view the values stored in memory.

To Delete All the Values Stored in Memory

1. Press the button, while the memory symbol appears.
2. While holding the button down, press the START/STOP button for more than 3 seconds. Note: You cannot partially delete the values stored in memory.

4. Error Messages and Troubleshooting

4.1 Error Messages

4.2 Troubleshooting

5. Maintenance

5.1 Maintenance

To protect your monitor from damage, please follow the directions below:

• Changes or modifications not approved by the manufacturer will void the user warranty.
• DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading.

5.2 Storage

Store your monitor and other components in a clean, safe location.

1. Unplug the air plug from the air jack.
2. Gently fold the air tube into the arm cuff.

Note:

• Do not bend or crease the air tube excessively.

5.3 Cleaning

• Do not use any abrasive or volatile cleaners.
• Use a soft dry cloth or a soft cloth moistened with neutral soap to clean your monitor and arm cuff, and then wipe them with a dry cloth.
• Do not wash or immerse your monitor and arm cuff or other components in water.
• Do not use gasoline, thinners or similar solvents to clean your monitor and arm cuff or other components.

5.4 Disposal

• Dispose of your monitor, other components and optional accessories according to applicable local regulations.
• Unlawful disposal may cause environmental pollution.

5.5 Optional Medical Accessories

Arm cuff Arm circumference 7″ – 9″ (17 – 22 cm) CD-CS9 (Model: HEM-CS24)

Arm circumference 9″ – 17″ (22 – 42 cm) ” sizes=”(max-width: 300px) 100vw, 300px” alt=”Arm cuff” width=”300″ height=”220″ data-ezsrcset=”https://manuals.plus/wp-content/uploads/2020/12/20-23-300×220.jpg 300w,https://manuals.plus/wp-content/uploads/2020/12/20-23.jpg 304w” data-ezsrc=”https://manuals.plus/wp-content/uploads/2020/12/20-23-300×220.jpg” /> CD-WR17 (Model: HEM-RML31)

6. Specifications

Model BP7100 HEM-7121-Z2 Display LCD digital display Cuff pressure range Pressure: 0 to 299 mmHg Measurement range Pressure: 20 to 280 mmHg Pulse: 40 to 180 beats / min. Accuracy Pressure: ±3 mmHg Pulse: ± 5% of display reading Inflation Fuzzy-logic controlled by electric pump Deflation Automatic pressure release valve Measurement method Oscillometric method IP classification IP 20 Rating DC6 V 4 W Power source 4 “AA” batteries 1.5 V Battery life Approximately 1000 measurements (using new alkaline batteries) Durable period (Service life) Monitor: 5 years Cuff: 5 years Operating conditions +50 °F to +104 °F (+10 °C to + 40 °C) / 15 to 90% RH (non-condensing) / 800 to 1060 hPa Storage / Transport conditions -4 °F to +140 °F (-20 °C to +60 °C) / 10 to 90% RH (non condensing) Weight Monitor : Approximately 8.8 oz. (250 g) not including batteries Arm cuff : Approximately 6 oz. (170 g) Dimensions Monitor : Approximately 4.0″ (w) × 3.1″ (h) × 5.1″ (l) (103 mm × 80 mm × 129 mm) Arm cuff : Approximately 5.7″ × 23.4″ (air tube: 29.5″) (145 mm × 594 mm (air tube: 750 mm)) Cuff circumference applicable to the monitor 7″ to 17″ (170 to 420 mm) (included arm cuff 9” to 17” (220 to 420 mm)) Memory Up to 14 Readings Contents Monitor, arm cuff, instruction manual, quick start guide Applied part Type BF (arm cuff) Protection against electric shock Internally powered ME equipment Notes:

• These specifications are subject to change without notice.
• This monitor is clinically investigated according to the requirements of ISO 81060-2:2013. In the clinical validation study, K5 was used on 85 subjects for determination of diastolic blood pressure.
• This monitor has not been validated for use on pregnant patients.
• IP classification is degrees of protection provided by enclosures in accordance with IEC 60529. This monitor is protected against solid foreign objects of 12.5 mm diameter and greater such as a finger.

Pictogram on the Product ” sizes=”(max-width: 996px) 100vw, 996px” alt=”Inductions” width=”996″ height=”156″ data-ezsrcset=”https://manuals.plus/wp-content/uploads/2020/12/21-22-300×46.jpg 300w,https://manuals.plus/wp-content/uploads/2020/12/21-22-768×119.jpg 768w,https://manuals.plus/wp-content/uploads/2020/12/21-22.jpg 794w” data-ezsrc=”https://manuals.plus/wp-content/uploads/2020/12/21-22-300×46.jpg” />

SPECIFICATION

FAQS

What sizes are available?

The standard cuff fits a wide range of diameters.

Where can I buy a small cuff adult with.7” upper srm?

Search Amazon for Omron Blood Pressure Monitor Upper Arm Children/Adult Kid Small Cuff 17-22cm CS2

compressed tube There is a complete bend in the tube as if it has been compressed/folded. Will this impact the readings?

Yes. Any constriction in the tube will compromise the readings.

does this come with instructions in spanish as well as english? can we get a spanish owner’s manual?

You can also download the Spanish version instructions online. Omron BP1500

Does this monitor come with a warranty?

Yes, the monitor comes with a 1 year warranty.

Does this monitor have a memory feature?

Yes, the Omron 3 Series has a memory feature that stores the last 20 readings.

Can I use this monitor on my wrist?

No, this monitor is designed to be used on the upper arm.

How do I clean this monitor?

To clean the monitor, use a soft cloth and mild soap. DO NOT submerge in water or place in the dishwasher. DO NOT use alcohol or other cleaning agents. DO NOT use abrasive cleaners. DO NOT place near open flame or excessive heat.

Can I use this monitor if I have an implanted pacemaker or defibrillator?

No, you cannot use this device if you have an implanted pacemaker or defibrillator.

does omron have a unit that has date and time?

This particular model does not.

Does this model pair with Samsung health?

No, it is not a digital device, there is no way to transmit any data to the app, but there is a memory function that can store BP readings in the device

Does it indicate when batteries are low?

This particular model has a low battery symbol. It flashes when the batteries are low.

Does the screen light up?

If you have followed the directions correctly, the results for blood pressure and pulse will clearly show on the screen.

Where are the wrist ormon?

Sure

what is the series of this omron blood pressure monitor?

Series 3 Model #BP-710N

Do the make a smaller cup for the Omron BP5100?

Omron makes a “Small D-Ring Cuff” (CD-CS9) that fits smaller arms (7″ – 9″). The standard cuff is 9″ -17″ (22 – 42 cm). Note that the small cuff is only 2 inches but the standard cuff has an 8″ range, so it must be changed out if you are switching from an adult to a smaller person.

Is this made in USA?

No. It is not made in the USA.

is this product latex free?

Yes it is!

Can this monitor be used on an injured arm or an arm under medical treatment?

No, this monitor should not be used on an injured arm or an arm under medical treatment.

Can medication be adjusted based on readings from this monitor?

No, medication should only be taken as prescribed by a physician. ONLY a physician is qualified to diagnose and treat high blood pressure.

Can this monitor be used on children or infants?

No, this monitor should not be used on infants, toddlers, children, or persons who cannot express themselves.

What is the intended use of the Omron 3 Series BP7100 Blood Pressure Monitor?

The Omron 3 Series BP7100 Blood Pressure Monitor is intended for use in measuring blood pressure and pulse rate in adult patients.

Can this monitor be used with other medical electrical (ME) equipment simultaneously?

No, this monitor should not be used with other medical electrical (ME) equipment simultaneously. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.

How often should I take measurements with this monitor?

DO NOT take measurements more often than necessary because bruising, due to blood flow interference, may occur.

What should I do if I experience skin irritation or discomfort while using this monitor?

Stop using this monitor and consult with your physician if you experience skin irritation or discomfort.

Can this monitor be used in high-use environments such as medical clinics or physician offices?

No, this monitor should not be used in high-use environments such as medical clinics or physician offices.

Can this monitor be used for any purpose other than measuring blood pressure?

No, this monitor should not be used for any purpose other than measuring blood pressure.

Can this monitor be used by individuals with common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation; arterial sclerosis; poor perfusion; diabetes; pregnancy; pre-eclampsia or renal disease?

Consult with your physician before using this monitor if you have common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation; arterial sclerosis; poor perfusion; diabetes; pregnancy; pre-eclampsia or renal disease. NOTE that any of these conditions in addition to patient motion, trembling, or shivering may affect the measurement reading.

Can this monitor be used in areas containing high frequency (HF) surgical equipment, magnetic resonance imaging (MRI) equipment, computerized tomography (CT) scanners or in oxygen rich environments?

No, this monitor should not be used in areas containing high frequency (HF) surgical equipment, magnetic resonance imaging (MRI) equipment, computerized tomography (CT) scanners or in oxygen rich environments. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.

1. Introduction

Thank you for purchasing the OMRON Wide-Range D-Ring Cuff (HEM-RML31-B). This upper arm cuff is designed for an upper arm circumference size of 9″ to 17″ (22 to 42 cm).

Safety Instruction

This instruction manual provides you with important information about the OMRON Wide‑Range D-Ring Cuff (HEM-RML31-B).

To ensure the safe and proper use of this blood pressure cuff, READ and UNDERSTAND all of these instructions. If you do not understand these instructions or have any questions, contact 1-800-634-4350 before attempting to use this monitor. Please keep these instructions for future reference.

Receiving and Inspection

Remove this cuff from the packaging and inspect for damage. If this cuff is damaged, DO NOT USE and contact 1-800-634-4350.

Symbols Glossary

For symbol information, visit: OmronHealthcare.com/symbols-glossary

2. Important Safety Information

Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

• To help avoid strangulation, keep the air tube away from infants, toddlers or children.
• Keep components out of the reach of infants, toddlers or children. This product contains small parts that may cause a choking hazard if swallowed by infants, toddlers or children.

Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient, or cause damage to the equipment or other property.

• ONLY use the approved OMRON Blood Pressure Monitor with this cuff. This cuff ONLY works with OMRON Advanced Accuracy blood pressure monitors compatible with the D-Ring Cuff style HEM-RML31-B, as noted on cuff sticker where the cuff plugs into the monitor.
• ONLY use this arm cuff model on OMRON monitors with HEM-RML31-B displayed next to the air jack. DO NOT use any other type of arm cuff.
• Remove tight-fitting and thick clothing from your arm while taking a measurement.
• ONLY use the arm cuff on persons whose arm circumference is within the specified range of the cuff.
• DO NOT crease the arm cuff or the air tube excessively.
• DO NOT fold or kink the air tube while taking a measurement. This may cause an injury by interrupting blood flow.
• To unplug the air plug, pull on the plastic air plug at the base of the tube, not the tube itself.

3. Instructions for use

1. Plug the arm cuff into your monitor by inserting the air plug into the air jack securely until it clicks.

2. Place your hand through the cuff loop. Pull the cuff until it reaches your upper left arm.

The bottom edge of the arm cuff should be 0.5 inch (1 – 2 cm) above the inside elbow. The air tube is on the inside of your arm and aligned with your middle finger.

3. Make sure that the air tube is positioned on the inside of your arm and wrap the cuff securely so it can not move around your arm.

Taking measurements on the right arm

The air tube should run along the side of your elbow, along the bottom of your arm. Be careful not to rest your arm on the air tube.

Note: The blood pressure can differ between the right arm and the left arm, and the measured blood pressure readings can be different. OMRON recommends to always use the same arm for measurements. If the readings between both arms differ substantially, check with your physician to determine which arm to use for your measurements.

4. Maintenance

• Do not use any abrasive or volatile cleaners.
• Use a soft dry cloth or a soft cloth moistened with mild (neutral) detergent to clean the arm cuff and then wipe it with a dry cloth.
• Do not wash or immerse the arm cuff in water.
• Do not use gasoline, thinners or similar solvents to clean the arm cuff.
• Do not store the arm cuff in locations exposed to extreme temperatures, humidity, direct sunlight, dust or corrosive vapors such as bleach.

5. Specifications

Pictogram on the Product

6. Limited Warranty

Your HEM-RML31-B upper arm cuff is warranted to be free from defects in materials and workmanship appearing within 1 year from the date of purchase, when used in accordance with the instructions provided with this upper arm cuff.

The above warranty extends only to the original retail purchaser.
We will, at our option, replace without charge any arm cuff covered by the above warranty.
Replacement is our only responsibility and your only remedy under the above warranty. To obtain warranty service, contact Customer Service by calling 1‑800‑634‑4350 for the address of the inspection center, the return shipping and handling fee.

THE FOREGOING IS THE SOLE WARRANTY PROVIDED BY OMRON IN CONNECTION
WITH THIS PRODUCT, AND OMRON HEREBY DISCLAIMS ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. IMPLIED WARRANTIES AND OTHER TERMS
THAT MAY BE IMPOSED BY LAW, IF ANY, ARE LIMITED IN DURATION TO THE PERIOD
OF THE ABOVE EXPRESS WARRANTY.

OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS, EXPENSES OR DAMAGES.

This warranty provides you with specific legal rights, and you may have other rights that vary by jurisdiction. Because of special local requirements, some of the above limitations and exclusions may not apply to you.

Download the app

Scan the code below with your smart device camera or visit OmronHealthcare.com/app to find the OMRON compatible app for this product. http://OmronHealthcare.com/app

Install batteries

1. Push down the hook of the battery cover and pull downward.

2. Insert 4 “AA” alkaline batteries.

3. Close the battery cover.
   The year flashes.


Pair your smart device

1. Make sure that your monitor is off.
   If the display is showing any information, press the [START/STOP] button to turn your monitor off.

2. Enable Bluetooth® on your smart device.

3. Open the app and follow the instructions.
   The date and time will automatically be set when your monitor is paired with the app.
   To set the date and time manually, refer to sub-section 2.3 of the instruction manual.

For details, refer to the “Help” section in the app.

Apply the arm cuff

1. Insert the air plug into the air jack securely until clicks.

2. Apply the arm cuff onto your left upper arm.
   The tube side of the arm cuff should be 0.5 inches above the inside elbow.

3. Wrap the cuff securely.
   Make sure that the air tube is on the inside of your arm.


Sit correctly

Take a measurement

1. Press the [START/STOP] button.

2. Remain still until the arm cuff deflates.
3. After the measurement, your reading is displayed.


Check your readings on the app

1. Open the app on your smart device and follow the instruction.

2. Check your readings on the app.
   To turn off the monitor, press the [START/STOP] button.

FAQ

Why are my blood pressure readings sometimes different?
Your blood pressure changes constantly based on your daily activities and time of day. Because of this, some fluctuations can be expected. That’s why it is important to use averages over time to compare readings. Because each person is different, it is important to consult with your physician about what your numbers mean to you.

Why could my physician’s reading be different than my readings taken at home?
Having your blood pressure measured by a healthcare professional in a physician’s office can cause nervousness and may result in an elevated reading. Because these readings can vary considerably, you should take your blood pressure on a regular basis at home and share your results with your healthcare provider.

TIP

For accurate readings:

• Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.
• Sit quietly with your legs uncrossed and your feet flat on the floor.

Make sure that your blood pressure monitor and smart device are successfully paired, and the app is open on your smart device, before transferring your readings to the app.

Trademarks

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by OMRON HEALTHCARE Co.,  Ltd. is under license. Other trademarks and trade names are those of their respective owners.

For customer service

Initial Setup

Download the app & pair devices

1. Scan the code to the right with your smart phone camera or visit OmronHealthcare.com/app to find the OMRON compatible app for this product.

2. Follow instructions in the compatible OMRON app to pair your HeartGuide.

Put on the cuff sleeve

Insert the long side of the cuff into the opening of the sleeve as shown in the illustration.

Continue to slide the sleeve around the cuff, then stretch the sleeve opening over the BP8000 short side of the cuff.

Measure

1. Place HeartGuide on your wrist

For accuracy, HeartGuide must be aligned on the wrist and positioned properly during measurement.

With the watch face on the top of the wrist, use 2 fingers to position the band 1” from the base of your hand.

2. Fasten snuggly & align

HeartGuide must have a snug fit prior to measuring; not too tight, not too loose. Your index finger should NOT easily slide between the band and your wrist.

Find the ” ● ”mark on the band. Rotate HeartGuide on your wrist to align the mark with your middle finger.

3. Sit, relax, start

Sit in a comfortable chair with your back supported, your feet flat on the ground and your legs uncrossed. Take a few minutes to relax.

Press the blue button to start the measurement.

4. Position at heart level

With the display facing out, position HeartGuide at heart level with 2 inches space between wrist and chest.
Once you are in the proper position, you will feel a vibration and the measurement will begin.
To ensure accuracy do not bend your wrist or look at the display during measurement.
Remain still until you feel another vibration signaling the end of the measurement.

5. Check your readings

After completing the measurement, view your latest reading on HeartGuide.
Open the app to see how it compares with your previous readings.

(For customer service)
Visit our web site: OmronHealthcare.com
Call toll free: 1-800-634-4350

Omron Blood Pressure Monitor Manual and Symbols

INTRODUCTION

Thank you for purchasing the Omron® BP760 IntelliSense® Automatic Blood Pressure Monitor with ComFitTM Cuff.Your new digital blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood’s movement through your brachial artery and converts the movements into a digital reading. An oscillometric monitor does not need a stethoscope so the monitor is simple to use.BP760 comes with the following components:• Monitor

•  Storage Case
•  Instruction Manual printed in English and Spanish
• Quick Start Guide
• ComFitTM Cuff
•  AC Adapter

The BP760 IntelliSense® Automatic Blood Pressure Monitor is intended for home use.

SAFETY INFORMATION

To assure the correct use of the product basic safety measures should always be followed including the warnings and cautions listed in this instruction manual.

OPERATING THE DEVICE

• Contact your physician for specific information about your blood pressure. Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider.
• DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as prescribed by your physician. Only a physician is qualified to diagnose and treat High Blood Pressure.
• The monitor is not intended to be a diagnostic device.
• If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Contact a physician immediately.
• Read all of the information in the instruction manual and any other literature in the box before operating the unit.

OPERATING THE DEVICE (continued)

• This device is intended for use in measuring blood pressure and pulse rate in the adult population. Do not use this device on infants or persons who cannot express their intentions.
• Read the Special Conditions section (page 30) of the instruction manual if your systolic pressure is known to be more than 220 mmHg. Inflating to a higher pressure than necessary may result in bruising where the cuff is applied.
• Operate the device only as intended. Do not use the device for any other purpose.
• Dispose of the device, components and optional accessories according to applicable local regulations. Unlawful disposal may cause environmental pollution.
• Do not use a cellular phone near the device. It may result in an operational failure.
• only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit.
• only 1.5V alkaline batteries with this device.
• Do not use other types of batteries. This may damage the unit.

RISK OF ELECTRICAL SHOCK

• Do not plug or unplug the power cord into the electrical outlet with wet hands.
• Do not overload power outlets. Plug the device into the appropriate voltage outlet.

CARE AND MAINTENANCE

• Do not subject the monitor to strong shocks, such as dropping the unit on the floor.
• Do not submerge the device or any of the components in water.
• Store the device and the components in a clean, safe location.
• Changes or modifications not approved by Omron Healthcare will void the user warranty. Do not disassemble or attempt to repair the unit or components.

BEFORE TAKING A MEASUREMENT

To ensure a reliable reading follow these recommendations:

1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes prior to taking a measurement. Rest for at least 15 minutes prior to taking the measurement.
2.  Stress raises blood pressure. Avoid taking measurements during stressful times.
3.  Measurements should be taken in a quiet place.
4.  Remove tight-fitting clothing from your arm.
5.  Sit on a chair with your feet flat on the floor. Rest your arm on
6.  table so that the cuff is at the same level as your heart.
7.  Remain still and do not talk during the measurement.
8.  Wait 2-3 minutes between measurements. The wait time allows the arteries to return to the condition prior to taking the blood pressure measurement. You may need to increase the wait time depending on your individual physiological characteristics.
9. Keep a record of your blood pressure and pulse readings for your physician. A single measurement may not provide an accurate indication of your true blood pressure. You need to take and record several readings over a period of time. Try to measure your blood pressure at about the same time each day for consistency.

KNOW YOUR UNIT

Components:

UNIT DISPLAY

DISPLAY SYMBOLS

IRREGULAR HEARTBEAT SYMBOL
When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol will appears on the display with the measurement values.An irregular heartbeat rhythm is defined as a rhythm that varies by less than 25% from the average rhythm or 25% more than the average rhythm detected while the monitor is measuring the systolic and diastolic blood pressure.the irregular heartbeat symbol ( ) displays with your measurement results, we recommend you consult your physician. Follow the directions of your doctor.
MOVEMENT ERROR SYMBOL
The Movement Error Symbol is displayed if you move your body during the measurement. Please remove the arm cuff, and wait 2-3 minutes. Take another measurement, remain still during inflation.The American Heart Association1 recommends the following guideline for upper limit of normal for home blood pressure readings:This is a general guideline because blood pressure depends on age and morbidity. The AHA recommends a lower home blood pressure goal for certain patients, including diabetic patients, pregnant women, and patients with renal failure1.

The monitor is not intended to be a diagnostic device.

MORNING HYPERTENSION SYMBOL
The Morning Hypertension Symbol is displayed if the morning average reading for a week is above 135 for the Systolic Blood Pressure value and/or 85 for the Diastolic Blood Pressure value when viewing the Morning Averages and the Evening Averages in the memory.Omron Healthcare recommends you contact your physician if the MORNING HYPERTENSION SYMBOL and/or the HEARTBEAT SYMBOL appear on the display with your measurement values

TAKING A MEASUREMENT
The Heartbeat Symbol flashes on the display during the measurement. The Heartbeat Symbol flashes at every heartbeat.

• The Average Value Symbol is displayed when you press the memory button. The most recent average reading appears on the display screen.
• The Morning Average symbol is displayed when viewing Morning Averages using the Memory Function.
• The Evening Average symbol is displayed when viewing Evening Averages using the Memory Function.
• When the cuff is applied correctly,  is displayed while taking a measurement or using the memory function. If the cuff is not applied correctly,  is displayed.

USING THE AC ADAPTER

• For connection to a power supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet.
• The power unit (AC Adapter) is intended to be correctly oriented in a vertical or floor mount position.

NOTES: Use only the authorized Omron AC Adapter that came with this monitor.

• We recommend you install the batteries even if the AC Adapter is used. If no batteries are installed, you may need to reset the date and time if the AC Adapter is disconnected. The measurement results will not be deleted.

CAUTION
Use only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit.

USING THE AC ADAPTER

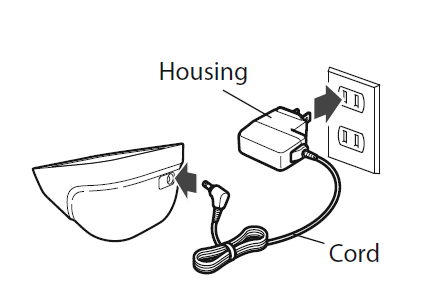

TO CONNECT THE AC ADAPTER

1. Insert the AC Adapter Plug into the AC Adapter Jack on the back side of the monitor as illustrated.
2. Plug the AC Adapter into a 120V AC outlet (60 cycles).

TO DISCONNECT THE AC ADAPTER

1. Hold the Housing to remove the AC Adapter from the electrical outlet.
2. Remove the AC Adapter plug from the monitor.

WARNING
Do not plug or unplug the power cord into the electrical outlet with wet hands.

CAUTION
Do not overload power outlets. Plug the device into the appropriate voltage outlet.

BATTERY INSTALLATION

1.  Remove the battery cover with pulling the hook up while pushing it in the direction of the arrow.
2.  Install 4 “AA” size batteries so the +(positive) and – (negative) polarities match the polarities of the battery compartment as indicated.
3.  Replace the battery cover.

BATTERY REPLACEMENT
When the Low Battery Indicator appears on the display screen turn the monitor off and remove all the batteries. Replace with four new batteries at the same time. Longlife alkaline batteries are recommended.

CAUTION
If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Contact a physician immediately.

NOTES:

• Turn the unit off before replacing the batteries. If the batteries are removed while the unit is still on, the date and time will be reset to that of the previous use. However, the measurement results are not deleted.
• When the batteries are replaced, you may need to reset the date and time. If  appears on the display, refer to page 19, “Setting the Date and Time”.
• The supplied batteries may have a shorter life.

CAUTION
Dispose of the device, components and optional accessories according to applicable local regulations. Unlawful disposal may cause environmental pollution.

SETTING THE DATE AND TIME

Set the monitor to the current date and time before taking a measurement for the first time. If the date and time are not set correctly, the measurement values stored in the memory and the average values may not be correct.If the date and time are not set,  appears during or after measurement.The Blood Pressure Monitor automatically stores up to 60 measurement values with the dates and times. The monitor also calculates weekly averages for measurements in the morning and in the evening. Morning and Evening averages are stored for this week and the last seven weeks.The monitor can also calculate an average reading based on the three most recent measurements taken within 10 minutes of the last reading.
NOTE:
If only two readings are stored in the memory for the 10-minute period, the average is based on the two readings.If one reading is stored in the memory for the 10-minute period, this reading is displayed as the average.

TO START THE SETTING
Press the SET button to adjust the date and time. The year flashes on the display.

SETTING THE YEAR
The year can be set between 2010 and 2040. When the display reaches 2040, it will return to 2010.Press the Up button to advance by increments of one year. Press the SET button to set the current year.The month flashes on the display.
NOTES:
Press the Down button ) to decrease the date and time values by decrements of one.Press and hold the Up or Down button to increase or decrease the date and time values faster.

SETTING THE MONTH
Press the Up button to advance by increments of one month.Press the SET button to set the current month. The day flashes on the display.

SETTING THE HOUR

• The time is set using AM or PM.
• Press the Up button  to advance by increments of one hour.
• Press the SET button to set the current hour.
• The minute flashes on the display.

SETTING THE MINUTE

• Press the Up button to advance by increments of one minute.
• Press the SET button to set the minute setting.

TO TURN THE MONITOR OFF

• Press the START/STOP button.

APPLYING THE ARM CUFF

CAUTION
Read all of the information in the instruction manual and any other literature in the box before operating the unit.
CAUTION
This device is intended for use in measuring blood pressure and pulse rate in the adult population. Do not use this device on infants or persons who cannot express their intentions.

APPLYING THE CUFF ON THE LEFT ARM

1. Make sure the air plug is securely inserted in the main unit.
2. Remove tight-fitting clothing from your upper left arm.
3. Sit on a chair with your feet flat on the floor. Place your left arm on a table so the cuff is level with your heart.
4. Hold the thumb grip on the cuff securely with your right hand.
5. Turn the palm of your left hand upward.
6. Apply the cuff to your left upper arm so the blue stripe is on the inside of your arm and aligned with your middle finger. The air tube runs down the inside of your arm. The bottom of the cuff should be approximately 1/2″ above your elbow.
7. Wrap the cuff firmly in place around your arm using the cloth fastener.

APPLYING THE CUFF ON THE RIGHT ARM
When taking a measurement using the right arm use this instruction for Step 6 on page 25.Apply the cuff to your right upper arm so the thumb grip is centered on the inside of your inner arm. The bottom of the cuff should be approximately 1/2” above your elbow.the flow of air to the cuff.

TAKING A MEASUREMENT

The monitor automatically determines your ideal inflation level. In rare circumstances when a higher inflation may be necessary, the monitor automatically re-inflates the cuff up to 30 mmHg higher than the initial inflation and restarts the measurement.

WARNING
Contact your physician for specific information about your blood pressure. Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider.

CAUTION
Operate the device only as intended. Do not use the device for any other purpose.

CUFF WRAP GUIDE
This monitor checks whether the arm cuff is applied correctly during the inflation. When the cuff is applied correctly, is displayed while taking a measurement or using the memory function. If the cuff is not applied correctly, is displayed. If is displayed, refer to the section “Applying the Arm Cuff”, reapply the cuff and take another measurement.

1. Press the START/STOP button. All symbols appear on the display.The cuff starts to inflate automatically. As the cuff inflates, the monitor automatically determines your ideal inflation level. monitor detects the pulse during inflation. Do not move your arm and remain still until the entire measurement process is completed.NOTE: To stop the inflation or measurement, press the START/STOP button. The monitor will stop inflating, start deflating and will turn off.
2. Inflation stops automatically and the measurement is started. As the cuff deflates, decreasing numbers appear on the display. The Heartbeat Symbol ( ) flashes at every heartbeat.
3. When the measurement is complete, the arm cuff completely deflates. Your blood pressure and pulse rate are displayed.
4. Press the START/STOP button to turn the monitor off.
   NOTE: The monitor will automatically turn off after two minutes.

WARNING
Contact your physician for specific information about your blood pressure. Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider.

WARNING
DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as prescribed by your physician. Only a physician is qualified to diagnose and treat High Blood Pressure.

WARNING
The monitor is not intended to be a diagnostic device.

SPECIAL CONDITIONS

CAUTION
Inflating to a higher pressure than necessary may result in bruising where the cuff is applied.If your systolic pressure is known to be more than 220 mmHg, press and hold the START/STOP button until the monitor inflates 30 to 40 mmHg higher than your expected systolic pressure.

When the measurement is complete, the arm cuff completely deflates. Your blood pressure and pulse rate are displayed.

USING THE MEMORY FUNCTION

The monitor is designed to store the blood pressure and the pulse rate in the memory every time a measurement is completed. The monitor automatically stores up to 60 sets of measurement values (blood pressure and pulse rate). When 60 sets of measurement values are stored, the oldest record is deleted to save the most recent values. The monitor also stores 8 weeks of Morning Averages and 8 weeks of Evening Averages.

AVERAGING FUNCTION
The monitor calculates the average reading based on the three most recent sets of measurement values taken within 10 minutes of the most recent reading.
NOTES: If two sets of measurement values are stored in the memoryfor the 10 minutes period, the average is based on the two sets of measurement values. If one set of measurement values is stored, this is displayed as the average.When viewing the reading taken without setting the date and time,  is displayed instead of the date and time.

TO DISPLAY THE MEASUREMENT VALUES

1. Press the Memory button The Average Symbol  appears on the display when the average reading is shown.
2. Press the Down button for measurement values on the screen. The values are displayed from the most recent to the oldest.
   NOTE: The date and time are alternately displayed with the measurement values.
3. Press the Up or Down button to display the next set of values.NOTE: Press and hold the Up or Down button to display the values faster.

MORNING AND EVENING AVERAGES
The monitor calculates and displays a weekly average for measurements taken in the morning ( ) and evening ( ). The monitor stores 8 weeks of Morning Averages and 8 weeks of Evening Averages.
NOTE: The week begins Sunday at 4:00 AM

MORNING AVERAGES

• Morning averages are based on the first reading. Measurement times must be between4:00 AM and 9:59 AM.

EVENING AVERAGES

• Evening averages are based on the last reading. Measurement times must be between:7:00 PM and 1:59 AM.

TO DISPLAY MORNING AND EVENING AVERAGES

1. TO DISPLAY MORNING AND EVENING AVERAGES Average button ( ) to select the Morning or Evening average.The average for the current week “THIS WEEK” appears on the display.
2. Press the Down ) button to display the previous weeks.
3. With each press of the Down button, the values are displayed from 1 week ago to the older.
4. Press the START/STOP button to turn the monitor off.

DISPLAY COMBINATIONS
In addition to the Morning Average and Evening Average Symbols, the monitor may also display the Morning Hypertension Symbol if the morning average for that week is above the AHA guidelines. (See page 13 for details.) Depending on your measurement results, these may be displayed in the following combinations.

• Morning average from This Week with Morning Average Symbol
• Morning average from 7 weeks ago with Morning Average Symbol + Morning Hypertension Symbol
• Evening average from This Week with Evening Average Symbol
• Evening average from 7 weeks ago with Evening Average Symbol + Morning Hypertension Symbol

The Morning Hypertension Symbol ()appears if the weekly average for morning measurements is above 135/85.In this case the Morning Hypertension Symbol ()is displayed when the Evening Average is displayed, regardless of the values for the Evening Average.

TO DELETE ALL VALUES STORED IN THE MEMORY
You cannot partially delete values stored in the memory. All values will be deleted.

1. . While holding the Memory button  and the START/STOP button simultaneously for more than 2 seconds all values will be deleted.

CARE AND MAINTENANCE

To keep your digital blood pressure monitor in the best condition and protect the unit from damage, follow the directions listed below:

• Keep the monitor in the storage case when not in use. Make sure the AC  is placed under the main unit so that it does not damage the display.
• Avoid kinking or sharply bending the AC
• Adapter cord.
• not forcefully bend the arm cuff or air tube. Do not fold tightly.
• Clean the monitor with a soft dry cloth.
• Do not use any abrasive or volatile cleaners.
• Do not attempt to clean the cuff.

CAUTION
Do not submerge the device or any of the components in water. Do not subject the monitor to extreme hot or cold temperatures, humidity or direct sunlight.
CAUTION
Store the device and the components in a clean, safe location.
CAUTION
Do not subject the monitor to strong shocks, such as dropping the unit on the floor.

Remove the batteries if the unit will not be used for three months or longer. Always replace all the batteries with new ones at the same time. Use the unit consistent with the instruction provided in this manual.

CAUTION
Changes or modifications not approved by Omron Healthcare will void the user warranty. Do not disassemble or attempt to repair the unit or components.
CAUTION
Use only Omron authorized parts and accessories. Parts and accessories not approved for use with the device may damage the unit.

ERROR INDICATORS AND TROUBLESHOOTING TIPS

TROUBLESHOOTING TIPS

FCC STATEMENT

NOTE:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. The product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the product does cause harmful interference to radio or television reception, which can be determined by turning the product on and off, the user is encouraged to try to correct the interference by one or more of the following measures:

•  Reorient or relocate the receiving antenna.
•  Increase the separation between the product and the receiver.
•  Connect the product into an outlet on a circuit different from that to which the receiver is connected.
•  Consult the dealer or an experienced radio/TV technician for help.

POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for Canada only)
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Canadian Department of CommunicationChanges or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

LIMITED WARRANTIES

Your Omron® BP760 IntelliSense® Automatic Blood Pressure Monitor, excluding the arm cuff, is warranted to be free from defects in materials and workmanship appearing within 5 years from the date of purchase, when used in accordance with the instructions provided with the monitor. The arm cuff is warranted to be free from defects in materials and workmanship appearing within one year from the date of purchase when the monitor is used in accordance with the instructions provided with the monitor. The above warranties extend only to the original retail purchaser.We will, at our option, repair or replace without charge any monitor or arm cuff covered by the above warranties. Repair or replacement is our only responsibility and your only remedy under the above warranties.
To obtain warranty service contact Customer Service by calling 1-800-634-4350 for the address of the repair location and the return shipping and handling fee.
Enclose the Proof of Purchase. Include a letter, with your name, address, phone number, and description of the specific problem. Pack the product carefully to prevent damage in transit. Because of possible loss in transit, we recommend insuring the product with return receipt requested.
THE FOREGOING IS THE SOLE WARRANTY PROVIDED BY OMRON IN CONNECTION WITH THIS PRODUCT, AND OMRON HEREBY DISCLAIMS ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IMPLIED WARRANTIES AND OTHER TERMS THAT MAY BE IMPOSED BY LAW, IF ANY, ARE LIMITED IN DURATION TO THE PERIOD OF THE ABOVE EXPRESS WARRANTY.OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER SPECIAL, INCIDENTAL, CONSEQUENTAIL OR INDIRECT COSTS, EXPENSES OR DAMAGES.
This warranty provides you with specific legal rights, and you may have other rights that vary by jurisdiction. Because of special local requirements, some of the above limitations and exclusions may not apply to you.

SPECIFICATIONS

NOTE:
These specifications are subject to change without notice.

FAQS

Where is this made?

Vietnam

Is there an Ac adaptor available?

An ac adapter is available as an option

does it come with a power cord?

No it does mot come with a power cord. It comes with 4 2xa batteries.

Does this unit measure heart rate? If yes, does it store it like its stores the blood pressure readings?

Yes it records & stores your heart rate data. It is an excellent device

does it come with a carrying case?

Yes it did. Please note: it did not come with an ac adapter.

does it come with a carrying case?

Yes it did. Please note: it did not come with an ac adapter.

Can this be used on the lower arm?

BP CUFFS are only made to be used on upper arm. Results will not be accurate if used on lower arm.

Does this model alert me when the cuff is not on correctly?

It will set an Error if it thinks the cuff is too loose and not pressuring properly and getting a reasonable reading …or if you move around while taking a reading. But otherwise, no. If you line it up on your arm as it instructs .. the exact tightness is not critical. It will compensate for small variances . Should be snug..but not pinching tight or sloppy loose.

Is the cuff 16cm (6 in) wide?

5.75 inches

How do I know if the BP760 is ready to take my blood pressure?

When the warm-up period is complete, the display will show an animated heart symbol and a message that reads “WAIT.” The heart symbol indicates that you should wait until the monitor is ready to take your blood pressure. This may take up to 2 minutes depending on your body position.

How do I know if my blood pressure reading is accurate?

The BP760 has been validated against a mercury sphygmomanometer (standard blood pressure measurement device). In addition, Omron’s clinical studies have shown that readings taken with the IntelliSense® technology are comparable to readings taken with a manual cuff. However, variations in individual readings may occur due to environmental conditions or individual differences.

What should I do if my readings are consistently higher than what my doctor says they should be?

Your doctor may want you to check your blood pressure at home more often. He or she may also want you to use a different monitor or cuff size. If none of these actions resolve your problem, contact your doctor for further advice.

How often should I check my blood pressure?

Check your blood pressure once daily in the morning before getting out of bed and after you have been sitting for at least 5 minutes. Record this reading in a notebook or on a calendar chart so that you can see if there is any pattern to your readings (e.g., higher readings in the morning than at night). Your doctor may recommend checking more often and/or using other devices such as an automatic blood pressure cuff, 24-hour ambulatory monitor or home blood pressure machine. Follow your doctor’s instructions carefully. If you have diabetes, consult with your doctor about how often you need to check your blood pressure and whether any special equipment is needed for monitoring purposes. If you are taking medication for high blood pressure, consult with your doctor about how often you need to check your blood pressure and whether any special equipment is needed for monitoring purposes. For more information about home monitoring, ask your doctor or pharmacist for recommendations or contact Omron Healthcare Inc., Dept. 888-746-5626 (USA), www.omronhealthcareusa.com .

What are some common causes of high and low readings?

Some common causes of high readings include being nervous, having an enlarged vein in the arm (varicose veins), being dehydrated, exercising within 30 minutes of taking a reading, being on a diet

does it come with a carrying case?

Yes it did. Please note: it did not come with an ac adapter.

Will the blood pressure monitor be covered by Medicare for seniors?

Contact Medicare directly and they will send you one.

Does this have the capability to send bp data to a printer via bluetooth?

Using the app allows you to export to a CSV file which can be printed.

Does this have an AC adapter port?

Yes there is a DC 6v port on the right side but they did not have an adapter enclosed in the kit.

Omron 3 Series BP7100 (Upper Arm Blood Pressure Monitor) Manual

Introduction

Thank you for purchasing the OMRON BP7100 Blood Pressure Monitor. This new blood pressure monitor uses the oscillometric method of blood pressure measurement. This means this monitor detects your blood movement through your brachial artery and converts the movements into a digital reading.

Safety Instructions

This instruction manual provides you with important information about the OMRON BP7100 Blood Pressure Monitor. To ensure the safe and proper use of this monitor, READ and UNDERSTAND all of these instructions. If you do not understand these instructions or have any questions, contact 1-800-634-4350 before attempting to use this monitor. For specific information about your own blood pressure, consult with your physician.

Intended Use

This device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult patient population. The device detects the appearance of irregular heartbeats during measurement and gives a warning signal with readings. Environments of Use: Home Patient Population: Adult

Receiving and Inspection

Remove this monitor from the packaging and inspect for damage. If this monitor is damaged, DO NOT USE and contact 1-800-634-4350.

Symbols Glossary

For symbol information, visit: OmronHealthcare.com/symbols-glossary

Important Safety Information

Please read the Important Safety Information in this instruction manual before using this monitor. Please follow this instruction manual thoroughly for your safety. Please keep for future reference. For specific information about your own blood pressure, CONSULT WITH YOUR PHYSICIAN. Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

• DO NOT use this monitor on infants, toddlers, children or persons who cannot express themselves.
• DO NOT adjust medication based on readings from this blood pressure monitor. Take medication as prescribed by your physician. ONLY a physician is qualified to diagnose and treat high blood pressure.
• DO NOT use this monitor on an injured arm or an arm under medical treatment.
• DO NOT apply the arm cuff on your arm while on an intravenous drip or blood transfusion.
• DO NOT use this monitor in areas containing high frequency (HF) surgical equipment, magnetic resonance imaging (MRI) equipment, computerized tomography (CT) scanners or in oxygen rich environments. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.
• Consult with your physician before using this monitor if you have common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation; arterial sclerosis; poor perfusion; diabetes; pregnancy; pre-eclampsia or renal disease. NOTE that any of these conditions in addition to patient motion, trembling, or shivering may affect the measurement reading.
• NEVER diagnose or treat yourself based on your readings. ALWAYS consult with your physician.
• To help avoid strangulation, keep the air tube away from infants, toddlers or children.
• This product contains small parts that may cause a choking hazard if swallowed by infants, toddlers or children.

Battery Handling and Usage

Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient, or cause damage to the equipment or other property.

• Keep batteries out of the reach of infants, toddlers or children.
• Stop using this monitor and consult with your physician if you experience skin irritation or discomfort.
• Consult with your physician before using this monitor on an arm where intravascular access or therapy, or an arteriovenous (A-V) shunt, is present because of temporary interference to blood flow which could result in injury.
• Consult with your physician before using this monitor if you have had a mastectomy.
• Consult with your physician before using this monitor if you have severe blood flow problems or blood disorders as cuff inflation can cause bruising.
• DO NOT take measurements more often than necessary because bruising, due to blood flow interference, may occur.
• ONLY inflate the arm cuff when it is applied on your upper arm.
• Remove the arm cuff if it does not start deflating during a measurement.
• DO NOT use this monitor for any purpose other than measuring blood pressure.
• Do not use a mobile phone or other devices that emit electromagnetic fields, near the monitor. This may result in incorrect operation of the monitor.
• DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading.
• DO NOT use in a location where there is moisture or a risk of water splashing this monitor. This may damage this monitor.
• DO NOT use this monitor in a moving vehicle such as in a car.
• DO NOT drop or subject this monitor to strong shocks or vibrations.
• DO NOT use this monitor in places with high or low humidity or high or low temperatures. Refer to section 5.
• Ensure this monitor is not impairing blood circulation by observing the arm while measurement is occurring.
• DO NOT use this monitor in high-use environments such as medical clinics or physician offices.
• DO NOT use this monitor with other medical electrical (ME) equipment simultaneously. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.
• Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for at least 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.
• Remove tight-fitting, thick clothing from your arm while taking a measurement.
• Remain still and DO NOT talk while taking a measurement.
• ONLY use the arm cuff on persons whose arm circumference is within the specified range of the cuff.
• Ensure that this monitor has acclimated to room temperature before taking a measurement. Taking a measurement after an extreme temperature change could lead to an inaccurate reading. OMRON recommends waiting for approximately 2 hours for the monitor to warm up or cool down when the monitor is used in an environment within the temperature specified as operating conditions after it is stored either at the maximum or at the minimum storage temperature. For additional information of operating and storage/transport temperature, refer to section 5.
• DO NOT crease the arm cuff or the air tube excessively.
• DO NOT fold or kink the air tube while taking a measurement. This may cause an injury by interrupting air flow.
• To unplug the air plug, pull on the plastic air plug at the base of the tube, not the tube itself.
• ONLY use the arm cuff, batteries and accessories specified for this monitor. Use of unsupported arm cuffs and batteries may damage and/or may be hazardous to this monitor.
• ONLY use the approved arm cuff for this monitor. Use of other arm cuffs may result in incorrect readings.
• Inflating to a higher pressure than necessary may result in bruising of the arm where the cuff is applied. NOTE: please refer to “If your systolic pressure is more than 210 mmHg” in section 3 of this instruction manual for additional information.
• Read and follow the “Important information regarding Electromagnetic Compatibility (EMC)” in section 9 of this manual.
• DO NOT insert batteries with their polarities incorrectly aligned.
• ONLY use 4 “AA” alkaline or manganese batteries with this monitor. DO NOT use other types of batteries. DO NOT use new and used batteries together.
• Remove batteries if this monitor will not be used for a long period of time.
• If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Consult with your physician immediately.
• If battery fluid should get on your skin, wash your skin immediately with plenty of clean, lukewarm water. If irritation, injury or pain persists, consult with your physician.
• DO NOT use batteries after their expiration date.
• Periodically check batteries to ensure they are in good working condition.

1. Know Your Monitor

Contents:

Monitor, arm cuff, instruction manual, quick start guide

Monitor:

A. Display                B. START/STOP button C. Memory button   D. Battery compartment E. Air jack

Arm cuff:

F. Arm cuff (Arm circumference 9″ – 17″ (22 – 42 cm)) G. Air plug     H. Air tube

Display:

I. Memory symbol                 J. Systolic blood pressure K. Diastolic blood pressure   L. Low battery symbol M. Heartbeat symbol (Flashes during measurement.) N. Irregular heartbeat symbol      O. Movement error symbol P. Pulse display / Memory number   Q. Deflation symbol

1.1 Display symbols

Irregular Heartbeat Symbol (

When the monitor detects an irregular rhythm two or more times during the measurement, the irregular heartbeat symbol will appear on the display with the measurement values. An irregular heartbeat rhythm is defined as a rhythm that is 25% less or 25% more than the average rhythm detected while the monitor is measuring the systolic and diastolic blood pressure. If the irregular heartbeat symbol displays with your measurement results, we recommend you consult your physician. Follow the directions of your physician.

Movement Error Symbol (

The movement error symbol is displayed if you move your body during the measurement. Please remove the arm cuff, and wait 2 – 3 minutes. Take another measurement, remain still during measurement.

Classification of BP (Blood Pressure)

ACC/AHA 2017 Hypertension guidelines define categories of BP in adults as below: Categories of BP in Adults*

• Individuals with Systolic BP and Diastolic BP in 2 categories should be designated to the higher BP category.

BP indicates blood pressure (based on an average of ≥ 2 careful readings obtained on ≥ 2 occasions). Source: ACC/AHA 2017 High Blood Pressure Clinical Practice Guideline Warning: NEVER diagnose or treat yourself based on your readings. ALWAYS consult with your physician.

1.2 Blood Pressure Measurement Tips

To help ensure an accurate reading, follow these directions:

• Stress raises blood pressure. Avoid taking measurements during stressful times.
• Measurements should be taken in a quiet place.
• It is important to take measurements at the same times each day. Taking measurements in the morning and in the evening is recommended.
• Remember to have a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. You need to take and record several readings over a period of time.

Caution:

• Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for at least 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.

2. Preparation

2.1 Battery Installation

1. Remove the battery cover.
2. Insert 4 “AA” batteries as indicated in the battery compartment.
3. Replace the battery cover.

Notes:

• When the low battery symbol ( ) appears on the display, turn the monitor off, then replace all batteries at the same time. Long life alkaline batteries are recommended.
• The measurement values continue to be stored in memory even after the batteries are replaced.
• Disposal of used batteries should be carried out in accordance with local regulations.

3. Using the Monitor

3.1 Applying the Arm Cuff

Caution: Remove tight-fitting, thick clothing from your arm while taking a measurement.

1. Insert the air plug into the air jack securely.
2. Wrap the arm cuff firmly in place around your left upper arm. The bottom edge of the arm cuff should be 0.5 inch (1 to 2 cm) above the elbow. Air tube is on the inside of your arm and aligned with your middle finger.
3. Secure closed with the fabric fastener.

Notes:

• When you take a measurement on the right arm, the air tube will be at the side of your elbow. Be careful not to rest your arm on the air tube.
• The blood pressure can differ between the right arm and the left arm, and the measured blood pressure values can be different. OMRON recommends to always use the same arm for measurement. If the values between both arms differ substantially, please check with your physician which arm to use for your measurements.

3.2 How to Sit Correctly

To take a measurement, you need to be relaxed and comfortably seated, under comfortable room temperature. Avoid bathing, drinking alcohol or caffeine, smoking, exercising or eating 30 minutes before taking a measurement.

• Sit in a chair with your legs uncrossed and feet flat on the floor.
• Sit with your back and arm supported.
• The arm cuff should be placed on your arm at the same level as your heart, with the arm resting comfortably on a table.

3.3 Taking a Measurement

Notes:

• To stop the measurement, press the START/STOP button once to deflate the arm cuff.
• Remain still and quiet while taking a measurement.

1. Press the START/STOP button. The arm cuff will start to inflate automatically
2. Remove the arm cuff.
3. Press the START/STOP button to turn the monitor off. The monitor automatically stores the measurement result in its memory. It will automatically turn off after 2 minutes. Note: Wait 2-3 minutes before taking another measurement. Waiting between measurements allows the arteries to return to the condition prior to taking a measurement.

3.4 Using the Memory Function

The monitor automatically stores the results up to 14 sets. Note: If the memory is full, the monitor will delete the oldest value.  To View the Measurement Values Stored in Memory

1. Press the button. The Memory number appears for a second before the pulse rate is displayed. The newest set is numbered “1”.
2. Press the button repeatedly to view the values stored in memory.

To Delete All the Values Stored in Memory

1. Press the button, while the memory symbol appears.
2. While holding the button down, press the START/STOP button for more than 3 seconds. Note: You cannot partially delete the values stored in memory.

4. Error Messages and Troubleshooting

4.1 Error Messages

4.2 Troubleshooting

5. Maintenance

5.1 Maintenance

To protect your monitor from damage, please follow the directions below:

• Changes or modifications not approved by the manufacturer will void the user warranty.
• DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading.

5.2 Storage

Store your monitor and other components in a clean, safe location.

1. Unplug the air plug from the air jack.
2. Gently fold the air tube into the arm cuff.

Note:

• Do not bend or crease the air tube excessively.

5.3 Cleaning

• Do not use any abrasive or volatile cleaners.
• Use a soft dry cloth or a soft cloth moistened with neutral soap to clean your monitor and arm cuff, and then wipe them with a dry cloth.
• Do not wash or immerse your monitor and arm cuff or other components in water.
• Do not use gasoline, thinners or similar solvents to clean your monitor and arm cuff or other components.

5.4 Disposal

• Dispose of your monitor, other components and optional accessories according to applicable local regulations.
• Unlawful disposal may cause environmental pollution.

5.5 Optional Medical Accessories

Arm cuff Arm circumference 7″ – 9″ (17 – 22 cm) CD-CS9 (Model: HEM-CS24)

Arm circumference 9″ – 17″ (22 – 42 cm) CD-WR17 (Model: HEM-RML31)

6. Specifications

Model BP7100 HEM-7121-Z2 Display LCD digital display Cuff pressure range Pressure: 0 to 299 mmHg Measurement range Pressure: 20 to 280 mmHg Pulse: 40 to 180 beats / min. Accuracy Pressure: ±3 mmHg Pulse: ± 5% of display reading Inflation Fuzzy-logic controlled by electric pump Deflation Automatic pressure release valve Measurement method Oscillometric method IP classification IP 20 Rating DC6 V 4 W Power source 4 “AA” batteries 1.5 V Battery life Approximately 1000 measurements (using new alkaline batteries) Durable period (Service life) Monitor: 5 years Cuff: 5 years Operating conditions +50 °F to +104 °F (+10 °C to + 40 °C) / 15 to 90% RH (non-condensing) / 800 to 1060 hPa Storage / Transport conditions -4 °F to +140 °F (-20 °C to +60 °C) / 10 to 90% RH (non condensing) Weight Monitor : Approximately 8.8 oz. (250 g) not including batteries Arm cuff : Approximately 6 oz. (170 g) Dimensions Monitor : Approximately 4.0″ (w) × 3.1″ (h) × 5.1″ (l) (103 mm × 80 mm × 129 mm) Arm cuff : Approximately 5.7″ × 23.4″ (air tube: 29.5″) (145 mm × 594 mm (air tube: 750 mm)) Cuff circumference applicable to the monitor 7″ to 17″ (170 to 420 mm) (included arm cuff 9” to 17” (220 to 420 mm)) Memory Up to 14 Readings Contents Monitor, arm cuff, instruction manual, quick start guide Applied part Type BF (arm cuff) Protection against electric shock Internally powered ME equipment Notes:

• These specifications are subject to change without notice.
• This monitor is clinically investigated according to the requirements of ISO 81060-2:2013. In the clinical validation study, K5 was used on 85 subjects for determination of diastolic blood pressure.
• This monitor has not been validated for use on pregnant patients.
• IP classification is degrees of protection provided by enclosures in accordance with IEC 60529. This monitor is protected against solid foreign objects of 12.5 mm diameter and greater such as a finger.

Pictogram on the Product

FAQS

What sizes are available?

The standard cuff fits a wide range of diameters.

Where can I buy a small cuff adult with.7” upper srm?

Search Amazon for Omron Blood Pressure Monitor Upper Arm Children/Adult Kid Small Cuff 17-22cm CS2

compressed tube There is a complete bend in the tube as if it has been compressed/folded. Will this impact the readings?

Yes. Any constriction in the tube will compromise the readings.

does this come with instructions in spanish as well as english? can we get a spanish owner’s manual?

You can also download the Spanish version instructions online. Omron BP1500

Does this monitor come with a warranty?

Yes, the monitor comes with a 1 year warranty.

Does this monitor have a memory feature?

Yes, the Omron 3 Series has a memory feature that stores the last 20 readings.

Can I use this monitor on my wrist?

No, this monitor is designed to be used on the upper arm.

How do I clean this monitor?

To clean the monitor, use a soft cloth and mild soap. DO NOT submerge in water or place in the dishwasher. DO NOT use alcohol or other cleaning agents. DO NOT use abrasive cleaners. DO NOT place near open flame or excessive heat.

Can I use this monitor if I have an implanted pacemaker or defibrillator?

No, you cannot use this device if you have an implanted pacemaker or defibrillator.

does omron have a unit that has date and time?

This particular model does not.

Does this model pair with Samsung health?

No, it is not a digital device, there is no way to transmit any data to the app, but there is a memory function that can store BP readings in the device

Does it indicate when batteries are low?

This particular model has a low battery symbol. It flashes when the batteries are low.

Does the screen light up?

If you have followed the directions correctly, the results for blood pressure and pulse will clearly show on the screen.

Where are the wrist ormon?

Sure

what is the series of this omron blood pressure monitor?

Series 3 Model #BP-710N

Do the make a smaller cup for the Omron BP5100?

Omron makes a “Small D-Ring Cuff” (CD-CS9) that fits smaller arms (7″ – 9″). The standard cuff is 9″ -17″ (22 – 42 cm). Note that the small cuff is only 2 inches but the standard cuff has an 8″ range, so it must be changed out if you are switching from an adult to a smaller person.

Is this made in USA?

No. It is not made in the USA.

is this product latex free?

Yes it is!
