Mi True Wireless Earphones Lite User Manual

Read this manual carefully before use, and retain it for future reference.

Product Overview

Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

Instructions

Charging

● Charging the earphones
When the earphones are placed in the charging case, they will automatically start charging.

● Charging the charging case
Use the included USB charging cable to charge the charging case. The indicator blinks white while charging, and turns off when fully charged.

Note: Prior to first use, the earphones are deactivated. To activate them, place them into the charging case, and press the function button for 5 seconds. We recommend fully charging the earphones before using them for the first time.

Checking Battery Level

● Checking the battery level of the earphones
After connecting the earphones to a phone, you can check the earphones’ battery level on the phone’s status bar.

Note: The phone’s status bar always displays the battery level of the earphone with the lowest battery level. This feature is not supported by some phones.

● Checking the battery level of the charging case
Press the button on the charging case, the battery level of the charging case is sufficient if the indicator is white, while the battery level is low if the indicator blinks white. Please recharge the case when the battery level is low as it is insufficient to fully charge the headphones.

● Checking the battery level by a Mi phone
Make sure the headphones are connected with your Mi phone that has Bluetooth enabled. Place the headphones into the charging case, and then keep close to the Mi phone. Press and hold the button for 2 seconds, a message box pops up on the phone. Then you can check the battery level of the headphones and the charging case.

Note: When checking the battery level on your phone, please update your Mi phone to the latest stable version. This feature is currently only supported by some Mi phones.

Turning On
To turn the earphones on, press and hold the button for 2 seconds, or remove the earphones from the charging case.

Sleep Mode
Place the earphones back into the charging case, the earphones will disconnect and automatically enter sleep mode.

Wearing

1. Take the earphones out of the charging case, and insert them into your ears according to the left (L) and right (R) marks.
2. You can switch to a different size ear tips to find the ones that suit you most (size M is installed by default).

Note: After using the earphones, place them back into the charging case. This will extend their lifespan and help you avoid losing or misplacing them.

Connecting

● Connecting the earphones to a new device

1. Remove the earphones from the charging case when using for the first time, the earphones automatically enter the awaiting connection mode. Place the earphones into the charging case, then press and hold the button for 2 seconds. Once the charging case indicator starts blinking, the earphones are waiting for a connection.
2. Enable the device’s Bluetooth, then locate and connect to “Mi TW Earphones Lite”. If a passcode is requested, enter “0000”.

● Connecting the earphones with a Mi phone
Make sure your Mi phone is unlocked and its Bluetooth function is enabled. Place the headphones into the charging case, and then keep close to the Mi phone. Press and hold the button for 2 seconds, follow the on-screen instructions to connect the earphones to your phone.
Note: The feature of fast connection is currently only supported by some Mi phones, please update your Mi phone to the latest stable version.

● Automatic connection
While removing the earphones from the charging case, the earphones will automatically connect to the most recently used Bluetooth device.
If no connection history is detected, or if the earphones cannot successfully connect to any Bluetooth device, the earphones will automatically enter the awaiting connection mode.
Note: If the earphones cannot automatically connect to a device, you will need to manually connect the earphones to the desired device via the device’s Bluetooth settings.

● Connect to a new device
Place the earphones into the charging case, then press and hold the button for 2 seconds. The indicator starts blinking white and the earphones enter the awaiting connection mode. Enable the Bluetooth on your device, then connect the earphones with your device.

● Clearing connection history
Place the earphones into the charging case, then press and hold the button for 10 seconds to clear the connection history of the earphones. The indicator stays white for 5 seconds then starts blinking white, then earphones enter the awaiting connection mode.

Due to the connection characteristics of the Bluetooth signal, in dense environments with 2.4 GHz electromagnetic signal interferences, there may be occasional disconnects or no sound.

Function Overview

Notes:

1. The voice assistant function can be used only if your device supports it, and this function needs to be granted permission on the device.
2. When only using the left earphone, place the right earphone into the charging case and close the lid.

Specifications

• Model: TWSEJ03WM
• Charging Port: Type-C
• Input: 5 V 1 A
• Charging Time: Approx. 1.5 h
• Net Weight: 50 g
• Impedance: 16 Ω
• Wireless Connectivity: Bluetooth 5.0
• Earphones Battery Life: Approx. 4 h
• Bluetooth Profiles: HSP/HFP/A2DP/AVRCP
• Supported Codecs: SBC, AAC
• Wireless Range: 10 m (in an obstacle-free environment)
• Charging Case Battery Life: Approx. 18 h (Including charging the earphones)
• Product Frequency Band: 2402–2480 MHz
• Maximum Transmit Power for BT: 10 dBm (Declaration for EU)
• Maximum Transmit Power for BLE: 10 dBm (Declaration for EU)

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Hereby, Tiinlab declares that the radio equipment type TWSEJ03WM is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
http://www.mi.com/global/service/support/declaration.html

Safety Caution

• Do not expose batteries or battery packs to excessive heat such as sunshine, fire or the like.
• Replacement of a battery with an incorrect type that can defeat a safeguard (such as catching fire, explosion, leakage of corrosive electrolyte etc).
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Risk of explosion if battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
• The product operation maximum ambient temperature is 45°C.

To prevent possible hearing damage, do not listen at high volume levels for long periods. The symbol indicates DC voltage

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Tiinlab is under license. Other trademarks and trade names are those of their respective owners.

For the battery of charging case
Model: 600912
Manufactured by: Chongqing VDL Electronics Co., Ltd.
Address: Building 1-4, Puli Industrial New Area, Zhaojia Street, Kaizhou, District, Chongqing, China

For the battery of earphone
Model: AEC682725
Manufactured by: Apower Electronics Co., Ltd.
Address: 8 Jinghu Road, Xinya Street, Huadu District, Guangzhou, Guangdong, China

Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Tiinlab Acoustic Technology Limited (a Mi Ecosystem company)
Address: Tianliao Building 1403, Tianliao Industrial Area A, Taoyuan
Street, Nanshan District, Shenzhen 518055, China
For further information, please go to www.mi.com

Importer:
Beryko s.r.o.
Na Roudné 1162/76, 301 00 Plzeň
www.beryko.cz

We, SOOCAS (Shenzhen) Technology Co., Ltd., hereby, declare that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/declaration.html All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as the terms and conditions of such collection points.

For further information, please go to www.mi.com Manufactured by: SOOCAS (Shenzhen) Technology Co., Ltd. (a Mi Ecosystem company) Address: Room 1101, 1102, 1103, 1104, 401 & 402,  Building 2, Chongwen Area, Nanshan iPark, No. 3370 Liuxian Avenue, Nanshan District, Shenzhen, China

Safety Instructions

WARNINGS
1. The body of the shaver can be cleaned with water only after being disconnected from the charging cable.
2. Do not disassemble the body to replace the battery.
3. Always hold the plug when plugging in or unplugging the charging cable. Never directly pull the cable.
4. Do not charge this shaver for extended periods of time while leaving it unattended, and do not charge it longer than 24 hours.
5. This shaver contains a built-in rechargeable battery, and should never be exposed to fire, nor charged, used, or stored in high-temperature environments.
6. Do not place or insert any foreign objects into this shaver.
7. Do not modify or repair this shaver yourself.
8. Detach the hand-held part from the supply cord before cleaning it in water.

PRECAUTIONS
1. Immediately stop using the charging cable if it is damaged or working improperly.
2. If the charging cable is damaged, it must be replaced with a genuine charging cable purchased from the manufacturer or after-sales service department.
3. Keep this shaver out of reach of children.
4. Make sure the charging port is dry when charging.
5. Use a 5 V charger when charging.
6. Fully charge the shaver at least once every six months, if it will not be used for an extended period of time.

NOTES
1. This shaver is intended for indoor use only.
2. This shaver is intended for use by a single individual only.
3. When traveling, make sure to install the protective cover and enable the travel lock to protect the shaver.
4. It is recommended to charge, use, and store this shaver at temperatures between 5°C to 35°C.
5. Do not wrap the charging cable around the shaver to avoid damage to the cable.
6. This shaver is only suitable for facial hair and is not recommended to be used to shave one’s head or other parts of the body.
7. This shaver meets the IPX7 s tan d ards for waterproofing and can be cleaned with water. However, it should not be immersed in water for an extended period of time.
8. It is normal for water to drip through the gaps of the body when rinsing the shaver.
However, this poses no danger since all electronic components are enclosed in an independent waterproof compartment inside the shaver. Standing it upright can help get rid of the water quickly.
9. This shaver is not intended for use by people (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge unless they are under the supervision of or have been given instructions concerning the use of the shaver by a person responsible for their safety.

Product Overview

Note:
Illustrations of the product, accessories and user interface in this user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.

How to Use

It is normal for the skin to be slightly irritated after the first few shaves. It is recommended to regularly use the shaver (at least 3 times a week) for 3 weeks to allow the skin to adapt as quickly as possible.

• Press the button to turn the shaver on/off. Once the shaver is turned on, the battery level indicator will display the battery level simultaneously, and the clean/error, travel lock, and speed indicators will sequentially turn on and off. Once the shaver is turned off, all indicators will go off.
• When the shaver is turned on, press and hold the button for 1 second to switch between speed mode (speed indicator is on) and standard mode (speed indicator is off).
• Apply gentle pressure while shaving your face in circular motions. It is not necessary to repeatedly shave the same area to achieve a clean shave (shave dry for an optimal result).

Note: Improper use of the shaver can easily cause damage to the shaving head and its blades. Please check whether the shaving head and its blades are intact before use. Immediately stop using the shaver if the shaving head or its blades are damaged.

Travel Lock

This shaver is equipped with a travel lock to prevent it from accidentally being turned on while it is inside the luggage.

• Enabling the travel lock: When the shaver is turned off, press and hold the button for 3 seconds to enable the travel lock. Once it is enabled, the travel lock indicator will turn on for 3 seconds then go off.
• Disabling the travel lock: When the shaver’s travel lock is enabled, the travel lock and battery level indicators will blink if you press the button. To disable the travel lock,  press and hold the button for 3 seconds. Then the travel lock and battery level indicators will blink and go off, and the shaver will turn on afterward.

Battery Level Indication

To charge the shaver, connect the charging cable to the shaver (Type-C) and an adapter (USB-A). While charging, the battery level indicator will blink slowly and the number will increase. Once it is fully charged, the battery level indicator will display 100% and stop blinking.

Note: The shaver supports plug-and-play. When the battery is low, you can use the shaver during charging. However, never use the shaver in the shower when the charging port is wet during charging.

Cleaning & Maintenance

If the clean/error indicator blinks for 5 seconds and then goes off after turning on the shaver, please clean it for an optimal effect. The clean/error indicator will automatically blink for 5 seconds once every 30 minutes of use to remind the user to regularly clean the stubble buildup.
1. Make sure the shaver is turned off and is not being charged before cleaning it.

2. Rinse the shaving head under a faucet (warm water is recommended).

3. Remove the shaving head from the holder.

4. Rinse away the stubble buildup with water or use the cleaning brush to remove it.

5. Turn over the shaving head to clean its inside under a faucet. lt is recommended to use warm water, and do not use a towel or paper towel to wipe the head.

6. Wipe away any excess water from the shaving head holder, and reinstall the shaving head.
Note: Use the protective cover to cover the charging port while cleaning the shaver. Make sure the charging port is dry when plugging in the cable to charge.

The shaver can be cleaned under a faucet. To keep the charging port dry, make sure it is firmly covered.
Note: To ensure the performance of the shaver, it is recommended to replace the shaving head every two years. Please go to www.mi.com to purchase a replacement.

Environmental Protection

When the shaver reaches the end of its service life, please remove, dispose of or recycle the built-in battery in accordance with local laws and regulations of the country or region it is used in.
Warning:
Do not expose this shaver or its battery to fire to prevent the battery from exploding or releasing toxic and hazardous substances.

Removing Battery:

Note: Make sure the battery is completely depleted before removing it.
1. Use a standard screwdriver to pry open the bottom and top covers, and remove the on/off button of the shaver. These parts cannot be restored once they are disassembled.

2. Use a Phillips-head screwdriver to remove the screws on the bottom and release the inner compartment.
3. Use a Phillips-head screwdriver to remove the screws from the inner compartment, then use a standard screwdriver to pry open the inner compartment from the bottom. Cut off the contact plate on the battery and be careful not to short circuit the contact plate. Remove the battery and handle it appropriately.

Name: Mi Electric Shaver	Model: S500
Rated Voltage: 3,7 V	Charging Port: Type-C
Rated Power: 3 W	Rated Input: 5 V 1A
IP Rating: IP×7	Charging Time: Approx. 90 min
Made in China

Troubleshooting

Warranty Notice

As a Xiaomi consumer, you benefit under certain conditions from additional warranties. Xiaomi offers specific consumer warranty benefits which are in addition to, and not instead of, any legal warranties provided by your national consumer law. The duration and conditions related to the legal warranties are provided by respective local laws. For more information about the consumer warranty benefits, please refer to Xiaomi’s official website https://www.mi.com/en/service/warranty/.

Except as prohibited by laws or otherwise promised by Xiaomi, the after-sales services shall be limited to the country or region of the original purchase. Under the consumer warranty, to the fullest extent permitted by law, Xiaomi will, at its discretion, repair, replace or refund your product. Normal wear and tear, force majeure, abuse or damage caused by the user’s negligence or fault are not warranted. The contact person for the after-sale service may be any person in Xiaomi’s authorized service network, Xiaomi’s authorized distributors, or the final vendor who sold the products to you. If in doubt please contact the relevant person as Xiaomi may identify.

The present warranties do not apply in Hong Kong and Taiwan. Products that were not duly imported and/or were not duly manufactured by Xiao mi and/or were not duly acquired from Xiao mi or Xiaomi’s official seller are not covered by the present warranties. As per applicable law, you may benefit from warranties from the non-official retailer who sold the product. Therefore, Xiaomi invites you to contact the retailer from whom you purchased the product.

Importer:
Beryko s.r.o.
Na Roudné 1162/76, 301 00 Plzeň
www.beryko.cz

MI True Wireless Earphones 2

• True Wireless Stereo
  Mi True Wireless Earphones 2 offer premium sound and call quality without annoying tangled cables.
• Automatic Pop-Up Pairing
  For supported Mi smartphones, the earphones could be paired via a pop-up window easily and quickly,
• Ergonomic Design
  The half in-ear design provides the maximum comfort and the best fit for a long-time use.
• AAC/LHDC Support
  The earphones support AAC and LHDC, which are audio codecs with a premium sound quality.
• In-Ear Detection
  The built-in optical sensors will help your pause the music when either one earphone is removed.
• Single-Ear Mode
  There is no need to pair again when you want to use only either left or right earphone.
• Double-Tap Control
  Tap the earphones twice to access the control of music, call, or voice assistant.
• Stable Bluetooth 5.0 Connection
  The upgraded Bluetooth 5.0 processor greatly improves the connection stability.

Specifications:

• Weight (Single Ear): 4.5g
• Weight (Total): 50g
• Work Distance: 10m
• Audio Codec: SBC/AAC/LHDC
• Impedance: 32Ω
• Input: 5.2V/1.1A
• Charging Port: USB-C
• Charging Time: 1h
• Battery Life (Single Charge): 4h
• Battery Life (with Case): 14h
• Control Type: double-tap
• Bluetooth Version: 5.0

What’s in the Box:

• Mi True Wireless Earphones 2
• Type-C charging cable
• User Manual

* Which codec (SBC/AAC/LHDC) to run depends on the specific operating system and phone model.

Mi Motion-Activated Night Light
User Manual

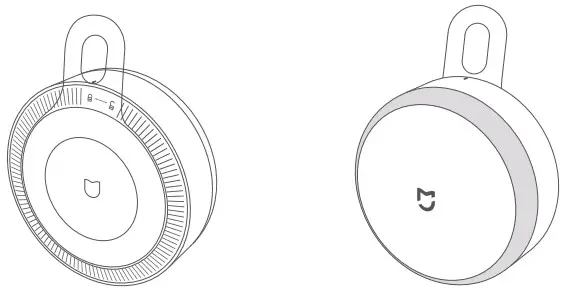

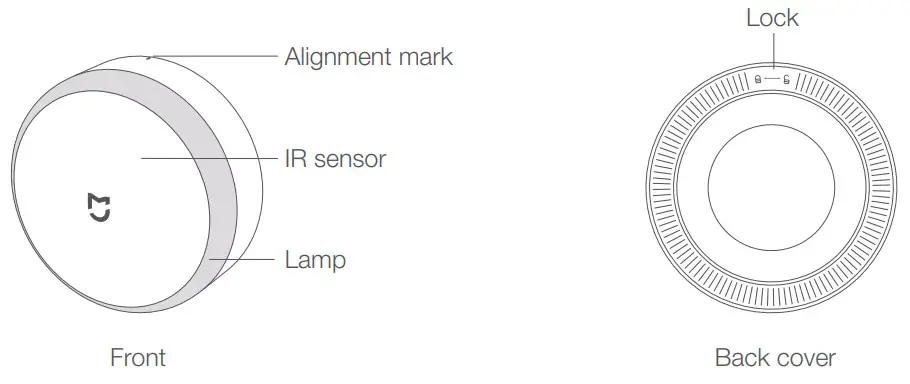

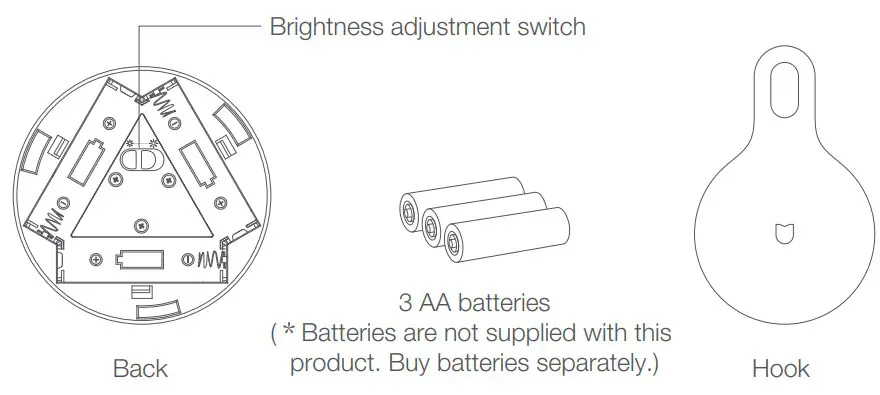

Product overview

Using the night light

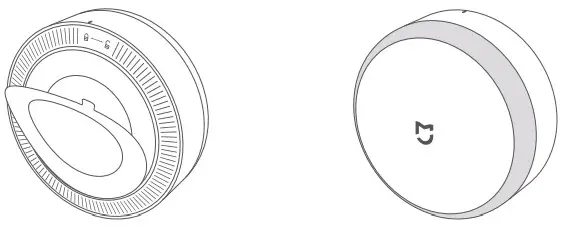

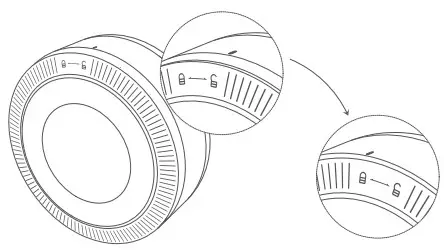

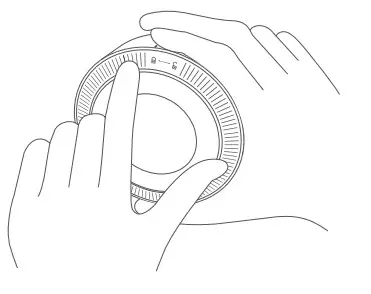

1. Open the back cover
   a. When you’re using the night light for the first time, rotate the back cover counterclockwise to open it, then install 3 AA batteries.

   b. If the back cover is attached to a surface, rotate the night light counterclockwise to open it.

2. Adjusting brightness

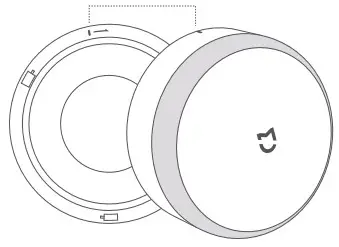

3. Locking the back cover
   a. Align the mark with the “ ” icon, place the cover on the night light, and rotate the cover until the “ ” icon is aligned with the mark.

   b. Align the marks on the night light and the inside of the back cover, then rotate the night light clockwise. then rotate the night light clockwise.

4. Attaching the night light to a surface
   a. Remove the protective film from the back cover and attach the night light to a surface.
   b. Stick the hook to the back cover to hang the night light.
   The optimal distance from the floor is 0.4m – 1m. Make sure the alignment mark points directly upwards so that the motion detector could work properly.
5. When motion is detected in the dark, the night light will turn on auto- matically for 15 seconds.

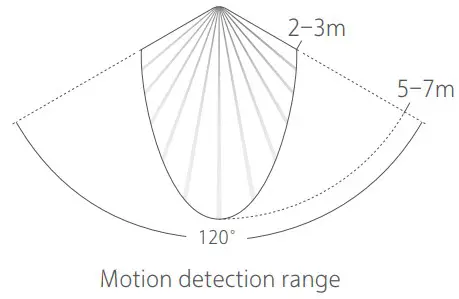

   The night light detects motion from a distance of up to 5-7 meters in the front and 2-3 meters on its sides. Its operating angle is 120°. Motion detection efficiency depends on the room temperature, the shape of the object, and the speed of the movement.


Don’t forget

1. The night light detects motion from a distance of up to 5-7 meters in the front and 2-3 meters on its sides. Its operating angle is 120°. Motion detection efficiency depends on the room temperature, the shape of the object, and the speed of the movement.
2. Don’t cover the motion sensor. Clean the night light with a soft cloth. Don’t use corrosive solvents.
3.  Don’t install the night light near heat sources (air conditioners, radiators, humidifiers, etc.). Avoid direct sunlight.
4. When you install the night light, make sure the logo in the front isn’t tilted.
5. After a certain period of time, the night light’s brightness will decrease. This means that the batteries inside are going low. Replace the batteries and bring the old ones to your local recycling station.

Safety precautions

  1. For household use only.
2. Class Ⅲ luminaire.
3. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
4. The LED module can not be replaced.
5. Do not disassemble the product. The light-emitting diode may cause damage to your eyes.

Specs

Part	Substances
	Pb	Hg	Cd	Cr(VI)	PBB	PBDE
PCB
Lamp coating
Lens
Back cover
This form is created in accordance with the SJ/T11364 standard. : The content of the hazardous substance in all homogenous materials of the product is under the specified limitation of GB/T26572. : The content of the hazardous substance in at least one of the homogenous materials of the product exceeds the limitation of GB/T26572.

Importer:
Beryko s.r.o.,
Na Roudné 1162/76, 30100 Plzeň
www.beryko.cz

Read this manual carefully before using the product.
Manufacturer: Qingdao Yeelink Information Technology Co., Ltd.
(a Mi Ecosystem company)
Address: 10-B4 Qingdao Innovation Park B, Qingdao, China

Mi Home Security Camera
360° 1080p User Manual

Read this manual carefully before use, and retain it for future reference

Product Overview

Package Contents: Mi Home Security Camera 360° 1080p, power cable, wall mounting accessories pack, user manual

Installation

The Mi Home Security Camera 360° 1080p can be placed on a number of horizontal surfaces, such as a writing desk, dining table, and coffee table. It can also be mounted on the wall.

Mounting the Security Camera on a Wall

1. Drill two holes on the wall by using the base of the security camera as a template. It is recommended that you mark the locations of the holes with a pencil before drilling. The diameter of each hole is approximately 6 mm and the depth is approximately 30 mm.

2. Insert the two plastic anchors into the holes on the wall.

3. Place the side of the base with arrows facing forward, and then align the holes. Insert the screws and then tighten them into the wall plugs with a Phillips head screwdriver.

4. Match the grooves on the bottom of the camera unit with the raised area on the base unit. Press down until the two surfaces are flush, then turn the camera unit in either direction to lock it in position.

Warning:
To avoid any damages or injuries, the device must be securely fastened to the floor/wall as specified in the installation instructions.
When mounting the security camera on a wall: please note that the wall must be able to support at least triple the product’s total weight.

Product Instructions

• Turning the Device On
The Mi Home Security Camera will automatically activate once the power cable is inserted into the Micro-USB charging port.

If the indicator light is flashing orange, that means the device is activated successfully. If you do not see a flashing orange light, please press and hold the Reset button to restart the device to enter pairing mode.
Once the Mi Home Security Camera is turned on, please do not attempt to rotate its head by force. If the camera position is incorrect, adjustments can be made through the app.

• Indicator Light

Steady blue on: connected/device status is normal
Flashing blue: network error
Flashing orange rapidly: waiting for connection
Flashing orange slowly: system upgrade in progress

• Installing a MicroSD Card

Make sure that the power to the security camera is already disconnected. Adjust the camera lens upward until the MicroSD slot is revealed, then insert the MicroSD card into the card slot with its contact points facing downward.
Note: Please unplug the security camera before inserting or removing the MicroSD card. Please use a genuine MicroSD card manufactured by a qualified supplier, with a reading/writing speed of no less than U1/Class 10. (Maximum support capacity is 64 GB)

• Restore Factory Settings
Press and hold the Reset button to restore your device to factory settings. Data stored on the MicroSD card is not deleted.

Connect with Mi Home/Xiaomi Home App

This product works with Mi Home/Xiaomi Home app*. Control your device with the Mi Home/Xiaomi Home app.
Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search “Mi Home/Xiaomi Home” in the app store to download and install it. Open the Mi Home/Xiaomi Home app, tap “+” on the upper right and then follow prompts to add your device.
* The app is referred to as the Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.

http://home.mi.com/do/index.html?model=chuangmi.camera.ipc009

Precautions

• The suitable operating temperature range for this product is between -10 °C and 50 °C. Please do not use the product in an environment with temperatures above or below the specified range.
• The security camera is a precision electronic product. In order to ensure its normal operation, please do not install the device in an environment with high humidity levels or allow water to enter the product.
• To improve the product’s performance, please do not place the camera lens facing or next to a reflective surface, such as glass windows/doors and white walls, which will cause the image to appear overly bright in areas close to the camera and darker in areas further away, or cause the camera to produce white images.
• Please install the product in areas with Wi-Fi reception, and try to place the device where the Wi-Fi signal is strong. In addition, please keep the security camera away from metal structures, microwave ovens, or other locations where signal strength may be impacted.
• Under normal use conditions, this equipment should be kept at a separation distance of at least 20 cm between the antenna and the body of the user.

Real-time Surveillance

Launch the Mi Home app and select a Mi Home Security Camera 360° 1080p that is already connected to monitor the surroundings in real-time. The camera’s control interface allows you to adjust the sharpness of the image, as well as to change the device’s vertical and horizontal viewing angles. Additional features such as screen capture or record and remote communications can also be performed.

Note: The diagram is for reference only. Actual displays will vary based on different versions of the Mi Home app and your smartphone model.

Supporting Infrared and Image-intensified Night Vision

The camera will automatically switch to night-vision mode based on changing light conditions.
The 6 built-in infrared night vision lights increase the night vision distance up to 9 meters, so the camera can clearly capture video in the dark.

Note: The diagram is for reference only. Actual displays will vary based on different versions of the Mi Home app and your smartphone model.

Playback

Mi Home Security Camera’s playback feature is only available after installing a compatible MicroSD card. Once a MicroSD card has been installed and the security camera is turned on, videos will be recorded automatically. After entering the user interface of the Playback feature, simply slide the bar on the timeline to select the time period you wish to view.

Note: The diagram is for reference only. Actual displays will vary based on different versions of the Mi Home app and your smartphone model.

Automatic Surveillance

• Home surveillance can be enabled or disabled in the Mi Home app.
• Available options include 24-hour, daytime, and nighttime monitoring. You can also create your own schedule and set the desired camera angle.
• This product is able to detect movements within its field of view. Once movements are detected, a video is recorded and you will receive a notification.

Shared Remote Viewing

Through the Mi Home Security Camera 360° 1080p control interface in the Mi Home app, you can set your security camera as a shared device under the general settings menu, and invite your friends to view the camera remotely. Your friends will be required to download the Mi Home app and log in with his/her Xiaomi account.

Note: The diagram is for reference only. Actual displays will vary based on different versions of the Mi Home app and your smartphone model.

WEEE Disposal and Recycling Information

Correct Disposal of this product. This marking indicates that products should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Hereby, Shanghai Imilab Technology Co., Ltd. declares that the radio equipment type Mi Home Security Camera 360° 1080p is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.mi.com/en/service/support/declaration.html

Specifications

Name Mi Home Security Camera 360° 1080p
Model: MJSXJ05CM
Lens Angle: 110°
Aperture: F2.1
Resolution: 1080p
Net Weight: 310 g
Input: 5 V 2 A
Expandable Memory: MicroSD card (up to 64 GB)
Video Encoding: H.265
Item Dimensions: 118 x 78 x 78 mm
Operating Temperature: -10 °C to 50 °C
Compatible With: Android 4.4 & iOS 9.0 or above
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Frequency: 2412–2472 MHz
Max. Output: 16 dBm

Importer:
Beryko s.r.o.,
Na Roudné 1162/76, 30100 Plzeň
www.beryko.cz

Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Shanghai Imilab Technology Co., Ltd.
(a Mi Ecosystem company)
Address: Room 001A, Floor 11, Block 1, No. 588 Zixing Road, Minhang District, Shanghai, China
For further information, please go to www.mi.com

Product Overview

Mi 20W Wireless Car Charger is a wireless charger for use in cars. With being convenient for one-handed use, it offers smart identification and control, flexible inductive sensing, 2.5D glass surface, and USB-C port. It also supports charging phones that are featured with wireless charging.

How to Use

1. Use the clamp to secure the Mi 20W Wireless Car Charger onto the air vent and tighten the knob on the back. Plug in the supplied charger into the car’s cigarette lighter or power port, and insert the USB-A interface into the charger’s red USB port. Then plug in the USB-C interface into the car charger. When the indicator blinks blue three times, and the welcome light remains lit up, the wireless car charger is functioning normally.
   Note: Please properly tighten the knob before use to prevent accidental movement during use.
2. Make sure there are no metal objects on the surface of the wireless car charger, nor on the back of the compatible phone which meet the Qi standard. Move the phone close to the inductive sensor, and the wireless car charger’s arms will open automatically then close automatically to clamp down the phone. The indicator light will be blue while charging normally.

3. In order to achieve a better charging performance, make sure the phone is properly placed onto the wireless car charger, so it is close to the charging surface (refer to the figure below). When the indicator blinks, it indicates that the charger is in protection mode. Please check whether there is a metal object on the charging surface or on the back of the phone. If the issue persists, please contact after-sales service. *
   * When a phone that does not support wireless charging is placed onto the car charger, the indicator will blink.
4. When you need to remove the phone from the wireless car charger, press the button to release the arms. The arms will open, and release the phone, then charging will stop.
   Note: When the car’s cigarette lighter or power port are not supplying power, the phone can be removed directly.

5. When the Mi 20W Wireless Car Charger cannot be secured onto an air vent with its clamp, the supplied adhesive mount can be used to secure it onto a flat surface.


Note: The surface for mounting the wireless car charger needs to be clean and flat. Make sure press and hold it firmly for 5 to 10 seconds after mounting. Due to the strength of the adhesive, forced removal may damage the car’s interior. It is recommended to have a professional to remove the adhesive mount.

Precaution

• Do not strike or crush to this product.
• Keep the glass surface of the inductive sensor clean.
• Do not disassemble or modify the product.
• Do not place the product near or in fire, nor submerge it in water.
• Do not use this product in severely hot, humid, or corrosive environments so as to avoid damage to its electrical circuit.
• Do not place any cards including ID card and bank card with a magnetic strip/chip near
• or onto the wireless car charger to avoid corrupting the card. Keep a distance of at least 20 cm between implanted medical devices (pacemakers, cochlear implants, etc.) and the product so as to avoid potential interference to the
• medical devices.
• Do not allow children to touch or play with this product to avoid unnecessary accidents.
• Please unplug the car charger from the car’s cigarette lighter or power port when it will not be used for a long time. For your user experience, it is not recommended to reuse the adhesive mount as the strength of the adhesive will be decreased.
• The operating frequency for wireless charging is 110­148 KHz. The equipment should be installed at least 20 cm (7.9 in.) from your body or nearby persons.

CE

Hereby, Zimi Corporation declares that the radio equipment type Mi 20W Wireless Car Charger is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/declaration.html

WEEE

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Specifications

Product Name: Mi 20W Wireless Car Charger
Model: WCJ02ZM
Input: 5 V=3 A 9 V=2 A 12 V=2 A 15 V=1.8 A 20 V=1.35 A
Output: 20 W Max.*
Inductive Sensing Distance: ≤4 mm
Operating Temperature: 0 ºC to 40 ºC
Item Dimensions: 117.2 × 73.4 × 91.7 mm
*Wireless charging at 20 W is only compatible with Mi 9.
Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

For further information, please go to

Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Zimi Corporation (a Mi Ecosystem company)
Address: A913, No. 159 Chengjiang Middle Road, Jiangyin, Jiangsu, China

Importeur:
Beryko s.r.o.,
Na Roudné 1162/76, 30100 Plze
www.beryko.cz

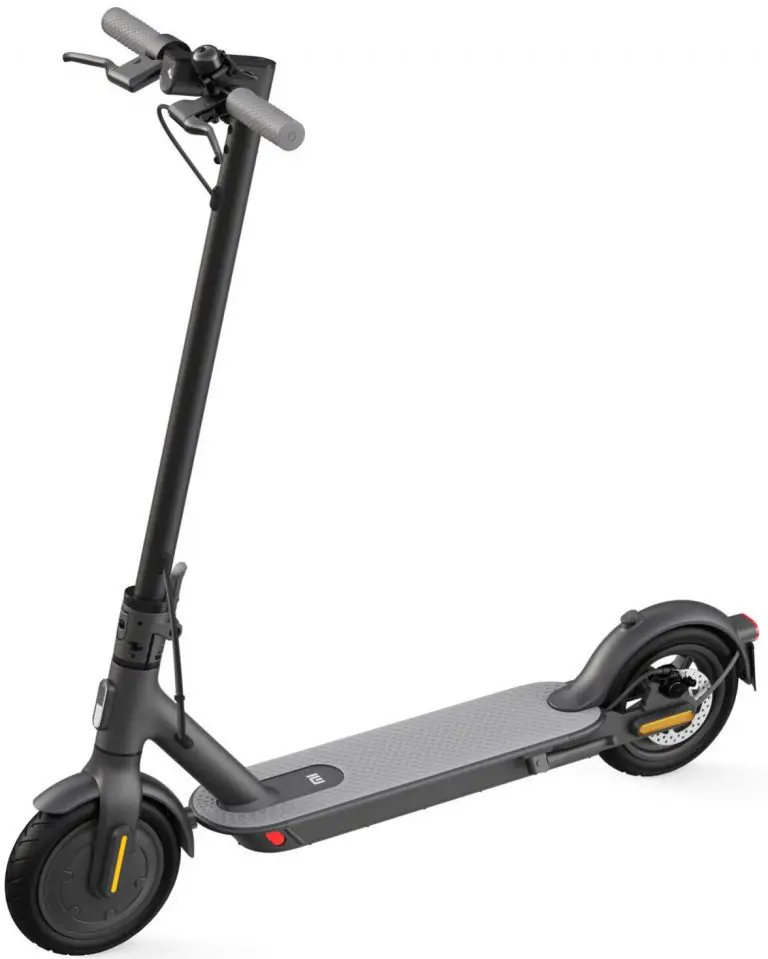

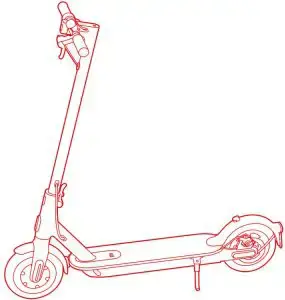

Mi Electric Scooter Essential User Manual

Package Contents

•
  User Manual
•
  Important Information
•
  Specifications
•
  T-shape Allen Key
•
  Extension Nozzle
•
  Screw
•

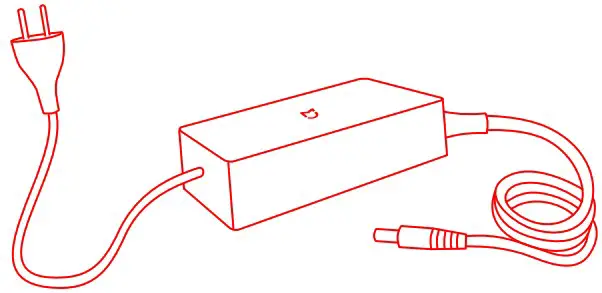

  Power Adapter

Assembly and Set-Up

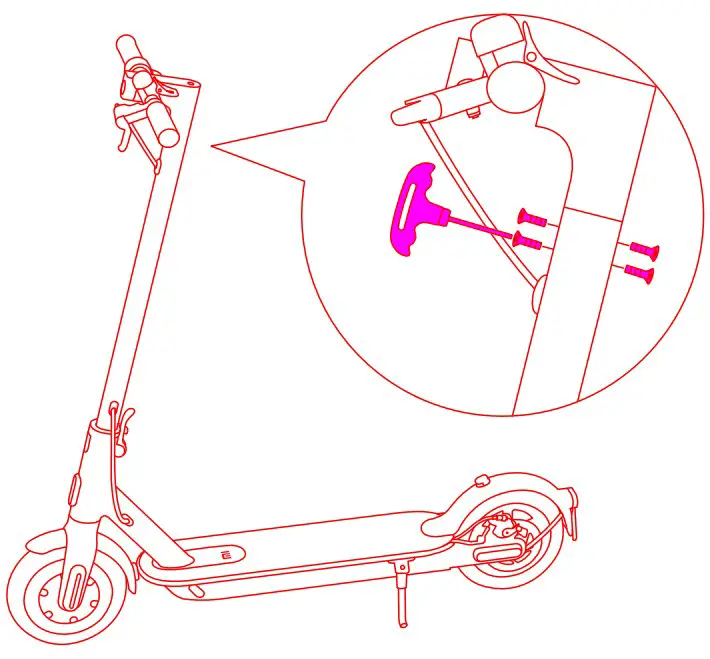

1. Fold the handlebar stem up, fasten it, and put down the kickstand.

2. Install the handlebar onto the stem.

3. Tighten the screws onto both sides of the stem with the T-shaped Allen key.

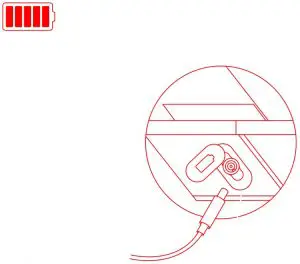

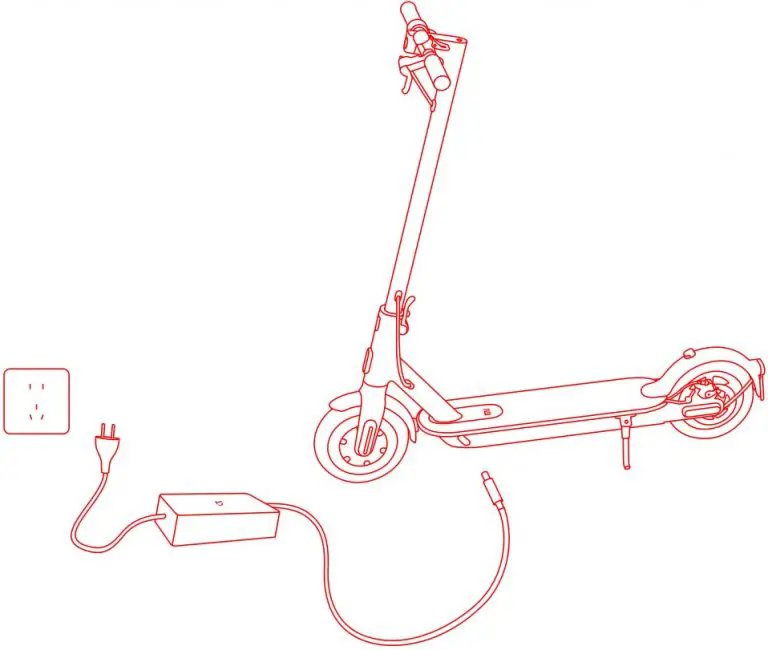

Charge Your Scooter

The scooter is fully charged when the LED on the charger changes from red (charging) to green (trickle charge).

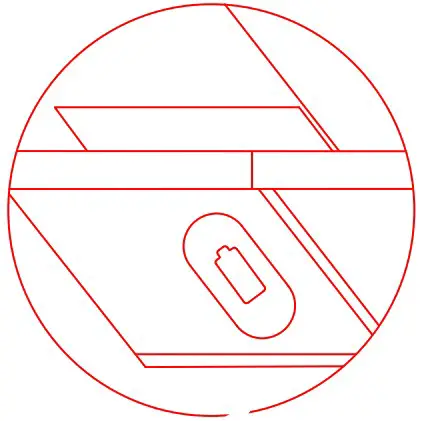

1. Lift up the rubber flap.

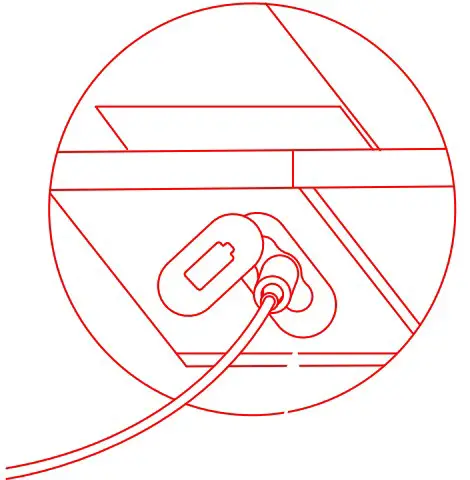

2. Plug the power adapter into the charging port.

3. Unplug when charging is completed.

4. Put back the rubber flap.

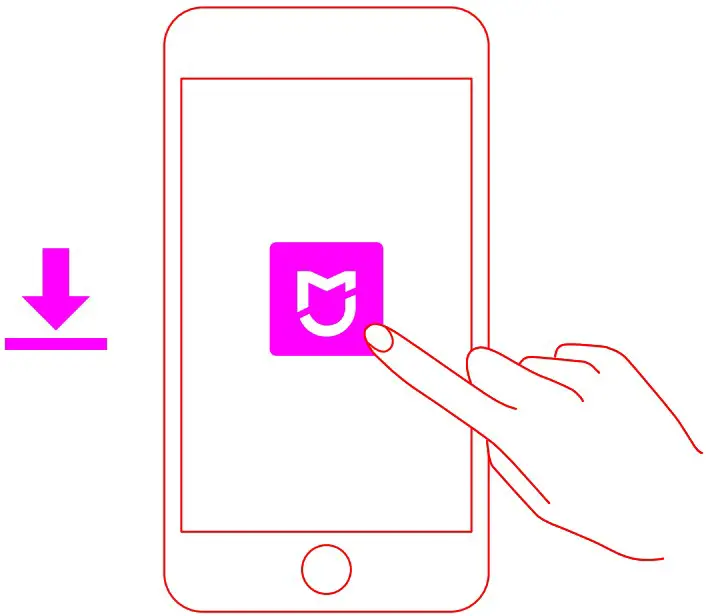

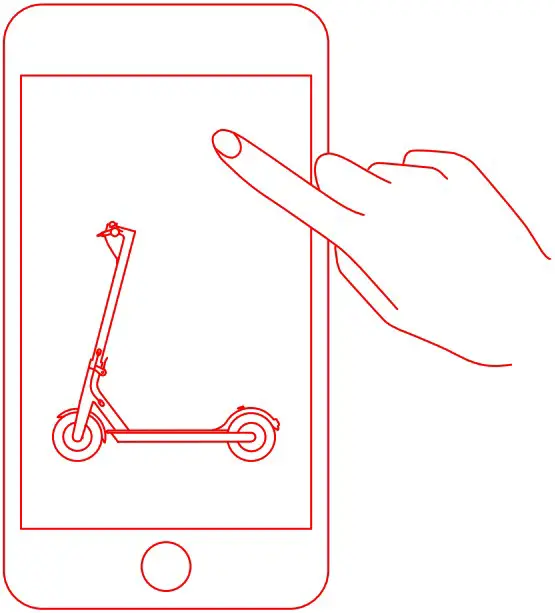

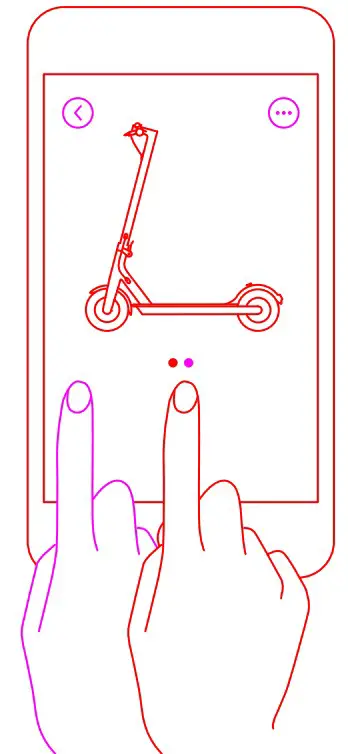

Connect with Mi Home / Xiaomi Home App

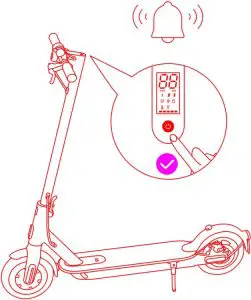

1. The scooter without being activated will keep beeping when turned on, and its speed is limited to 10 km/h.

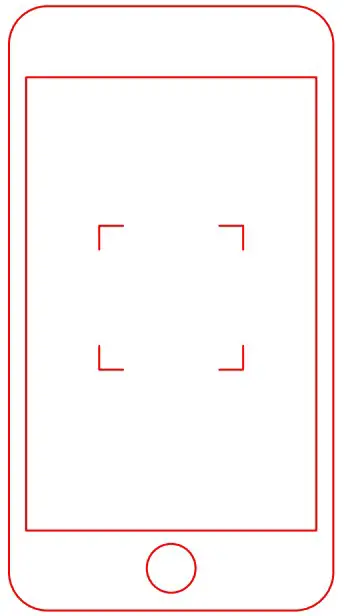

2. Scan the QR code to download and install the app.

   • The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.
3. Open Mi Home / Xiaomi Home app.

4. Tap “+” on the upper right, and then follow prompts to add your device.

   Note: The version of the app might have been updated, please follow the instructions based on the current app version.
5. Follow the on-screen instructions in the app to activate your scooter for the first use.

6. The beeping sound will not stop until the scooter is activated.

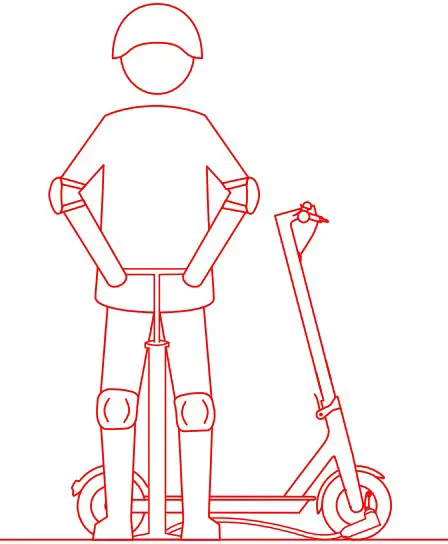

How To Ride

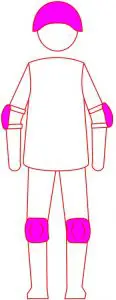

1. Warning: Wear a helmet, elbow pads and knee pads.

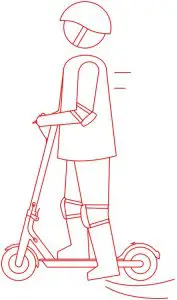

2. Step on the deck with one foot, and slowly kicks off the other on the ground.

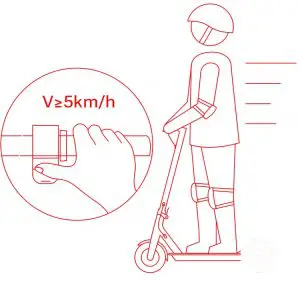

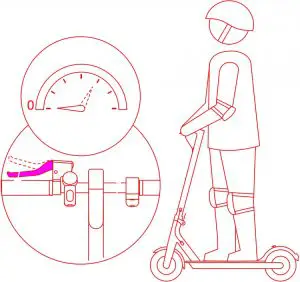

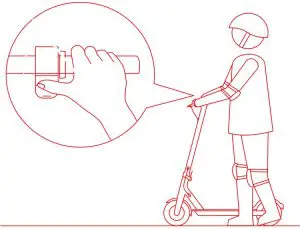

3. The accelerator initiates once the coasting speed exceeds 5 km/h.

4. Release the accelerator and squeeze the brake lever for a sudden brake.

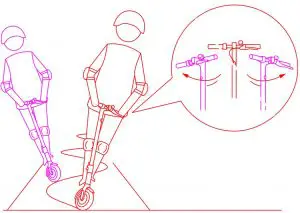

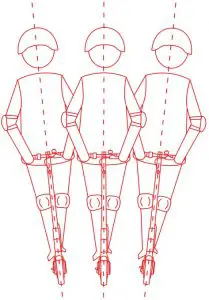

5. Tilt your body to the steering direction as you turn, and slowly turn the handlebar.

6. Put down the kickstand when parking.


Safety Reminder

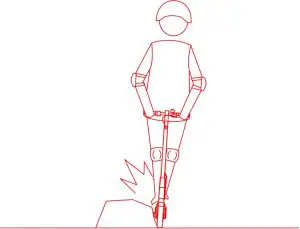

1. Always steer clear of obstacles.

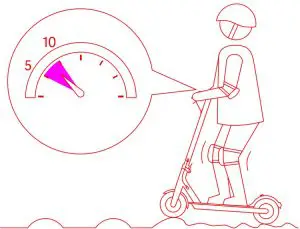

2. Keep your speed between 5-10 km/h when you ride through speed bumps, elevator door stills, bumpy roads or other uneven surfaces. Slightly bend your knee to better adjust mentioned surfaces.

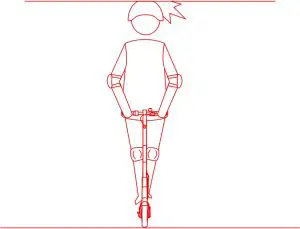

3. Avoid hitting your head on door frames, elevators and other overhead obstacles.

4. Do not press the accelerator when you’re walking alongside the scooter.

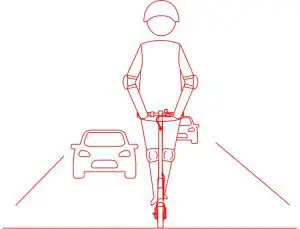

5. Do not ride in traffic lanes or residential areas where vehicles and pedestrians are both allowed.

6. Do not abruptly change the steering direction at high speed.

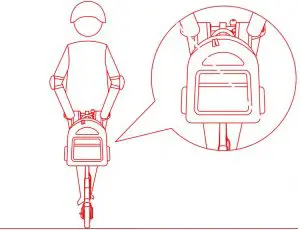

7. Do not hang bags or other heavy stuff on the handlebar.

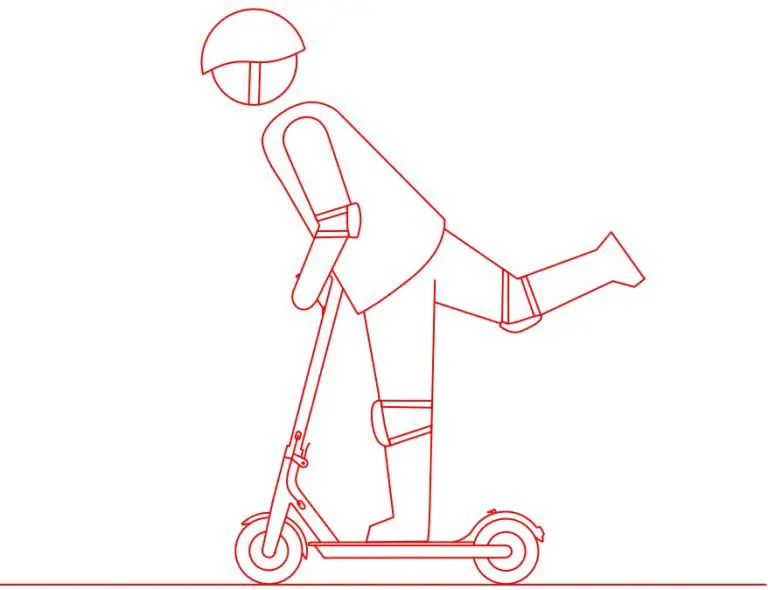

8. Do not ride on one foot.

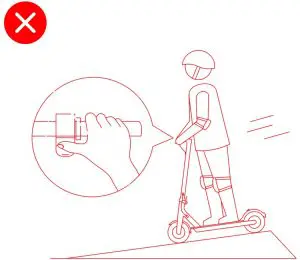

9. Do not accelerate when going downhill, and brake in time to slow down. When encountering a steep incline, you need to step off the scooter and push.

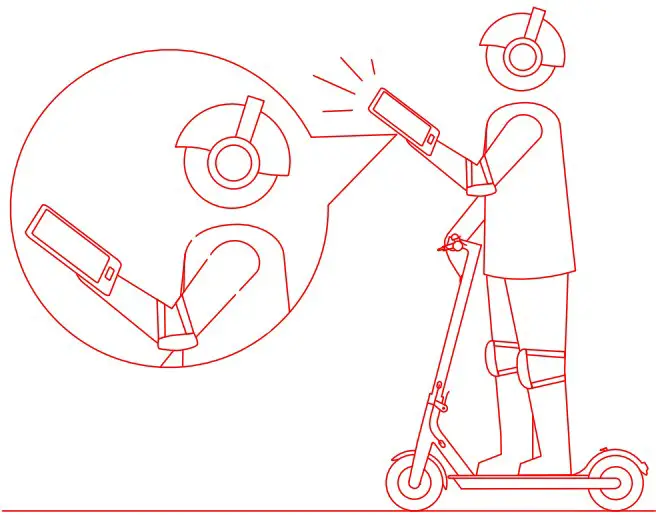

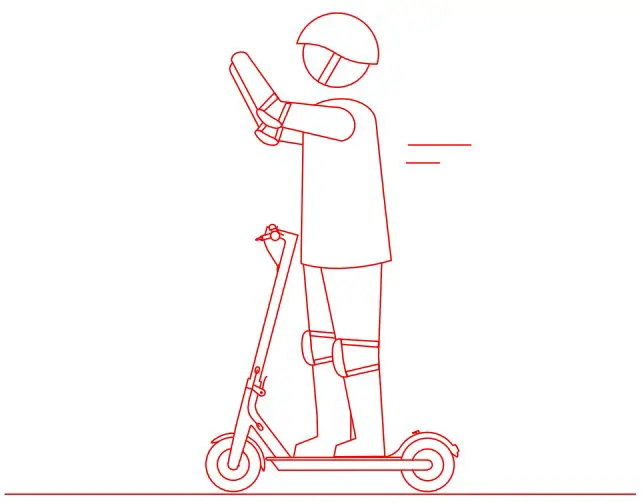

10. Do not use mobile phone or wear earphones when operating the scooter.

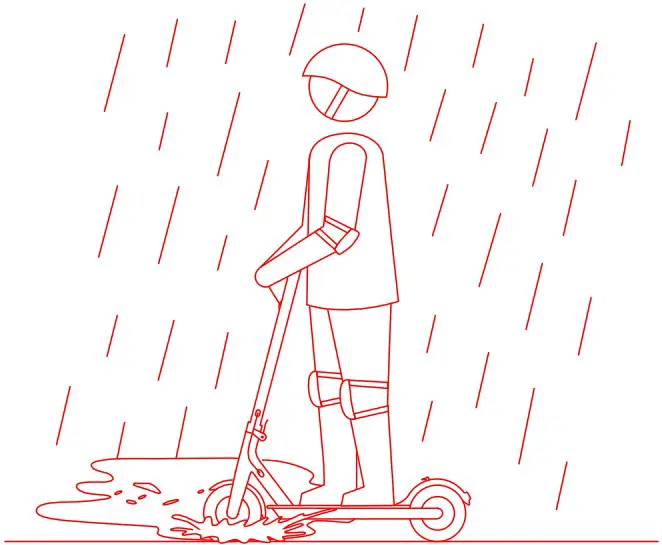

11. Do not ride in the rain. Do not ride through puddles or any other (water) obstacles.

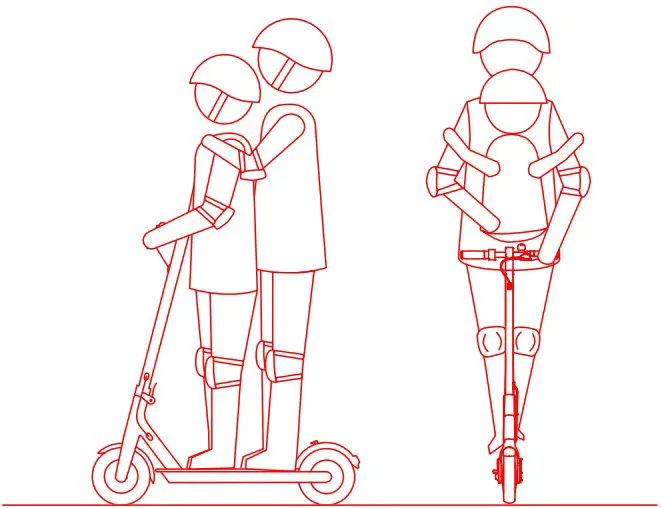

12. Do not ride with anyone else, including children.

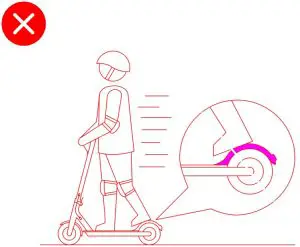

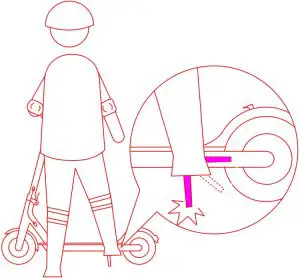

13. Do not keep your feet on the rear mudguard.

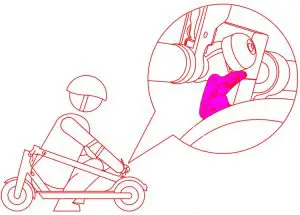

14. Do not touch the disc brake.

15. Do not let go of the handlebar while riding.

16. Do not try riding up or down stairs, nor try jumping over obstacles.

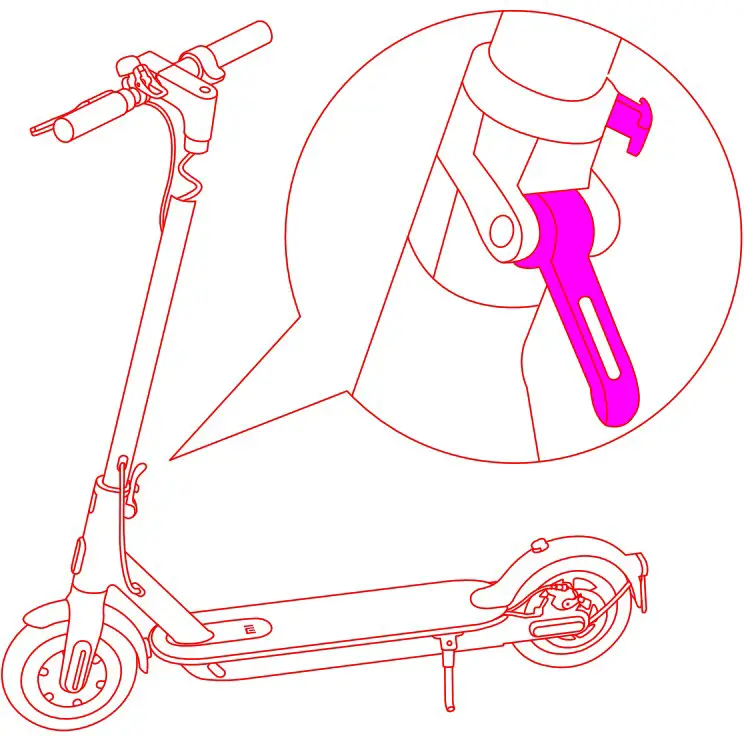

Folding and Carrying

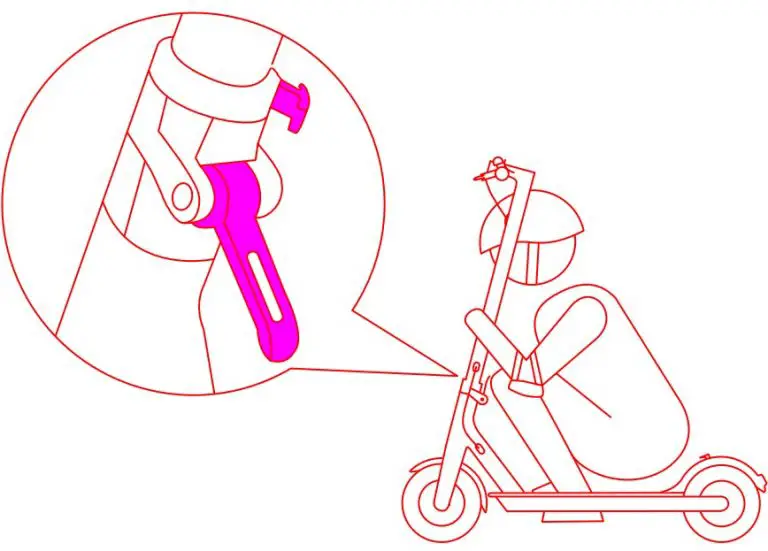

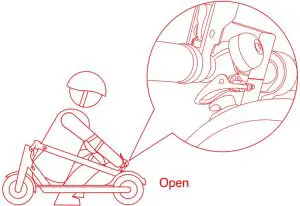

1. Hold the handlebar stem, turn it counterclockwise to open the safety hook and open the quick release lever.

2. Align the bell and the buckle and hook them.

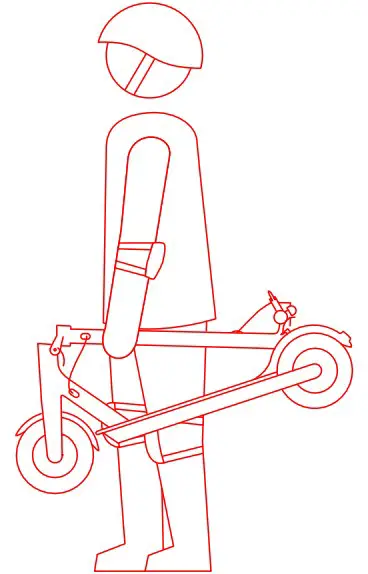

3. Hold the handlebar stem with either one hand or both hands to carry.

4. Disengage the bell lever from the buckle on the mudguard.

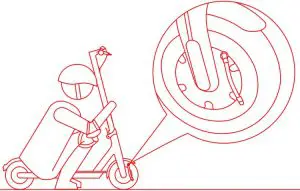

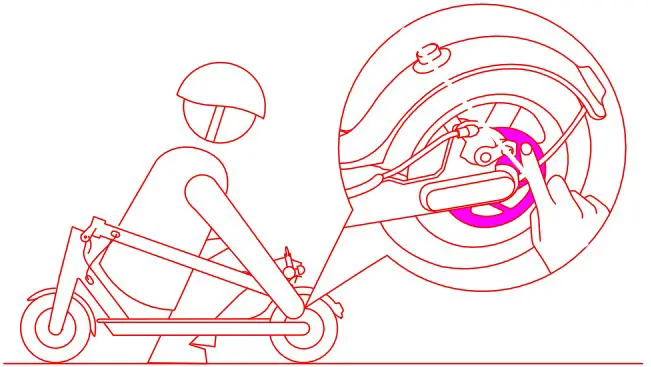

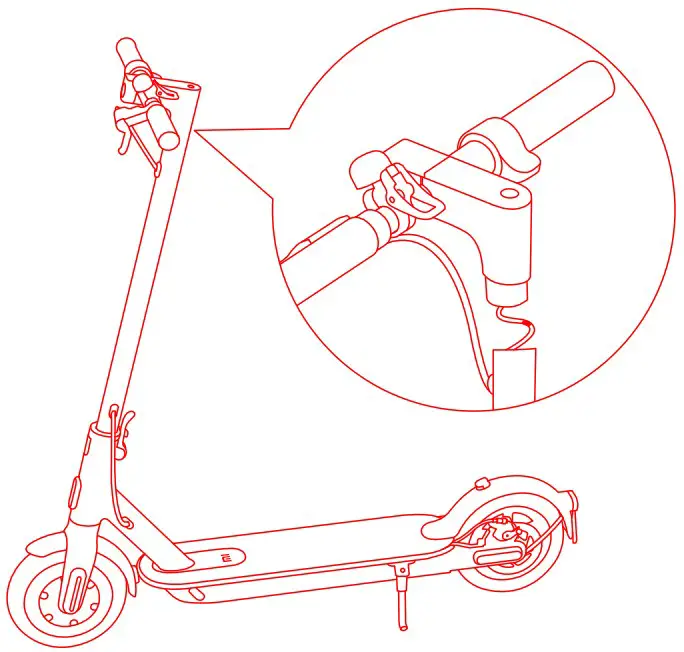

Adjusting the Disc Brake

• Before adjustment, make sure the scooter is powered off and not charging.
  If the brake is too tight/loose, use the 4 mm Allen key to loosen the screw on the caliper. Then slightly adjust the brake line (decrease/increase the exposed length), and tighten the screw again.

Tire Valve Stem

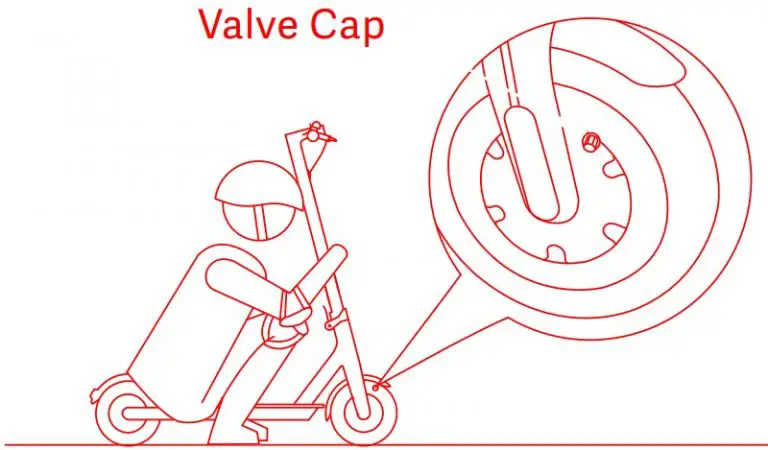

1. Unscrew the valve cap.

2. Connect the extension nozzle to the tire valve stem.

3. Connect the pump to inflate the tire.

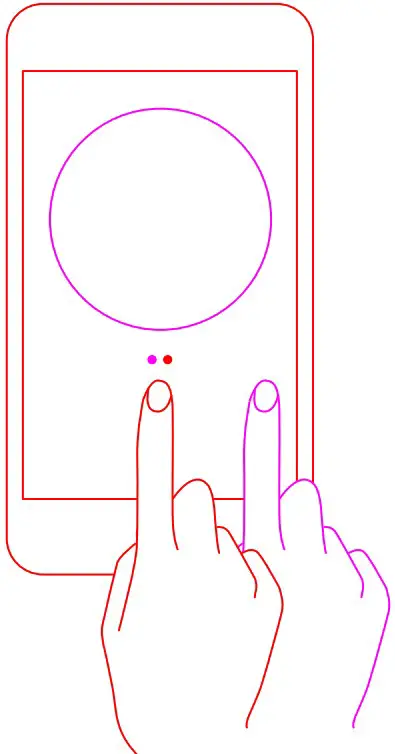

Lock Your Scooter

Lock

Unlock

Once the scooter is locked, the motor will be locked and the headlight will be turned off automatically, and there will be an icon displayed in the control panel.

Set Password

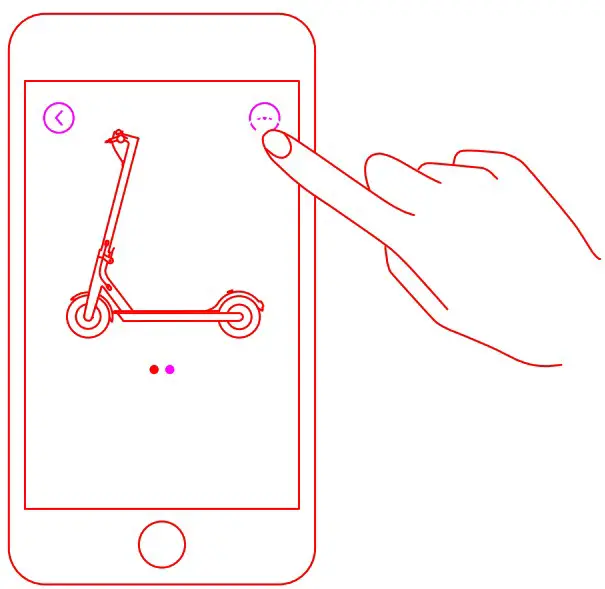

Tap here>”More Settings”>”Set password”

Note: If no password is set, the scooter can be unlocked by the Mi Home/Xiaomi Home app from any of the phones. Make sure you set the password in the app as soon as possible once you get the scooter. In case you forget the password, please go to www.mi.com or contact the after-sales department for help.

Importer:
Beryko s.r.o.
Na Roudné 1162/76, 301 00 Plzeň
Website: www.beryko.cz

Read this manual carefully before use, and retain it for future reference.

Product Overview

Front View

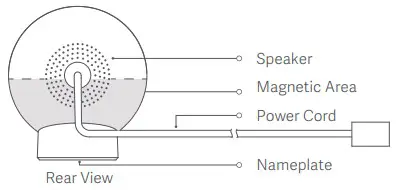

Rear View

Accessory

Installation

Installing the Battery

Remove the cover from the cover opening of the monitor, and place a CR2032 battery with the positive (+) side facing upwards, then reinstall the cover.

Note: Battery is not included and sold separately.

You can use and install your monitor in the following ways:

1. Placing: Directly place the monitor on the surface of the furniture such as table, bookshelf.
2. Using the adhesive sticker: Remove the release liner from one side of the adhesive sticker to stick it on the back of the monitor, then remove the release liner from the other side to stick it at the desired place on the wall.

3. Hanging: Remove the back cover of the monitor, and lead the lanyard’s loop through the hole and around the hook. Reinstall the back cover, then hang the monitor.
   Note: Lanyard is not included and sold separately.



Display Description

Symbol Instructions

Temperature/Humidity	Less than 19°C	Between 19°C and 27°C	More than 27°C
Less than 20%
Between 20% and 85%
More than 85%

Low Battery Notification

When the battery is at a low level, this symbol appears on the display. Please replace the battery.

Smart Connection

Connect with Mi Home/Xiaomi Home App

This product works with Mi Home/Xiaomi Home app *. Control your device, and interact it and other smart home devices with Mi Home/Xiaomi Home app.

Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search “Mi Home/Xiaomi Home” in the app store to download and install it.

Open Mi Home/Xiaomi Home app, tap “+” on the upper right, and then follow prompts to add your device.

• The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.

Note: The version of the app might have been updated, please follow the instructions based on the current app version.

Connect with Other Devices

Make sure your temperature and humidity monitor is connected with Mi Home/Xiaomi Home app. Tap ” ” on the upper right corner of the monitor’s user interface, then follow the on-screen instructions to connect with other smart devices.

Note: The monitor can only connect with these devices supporting the function of Mi Bluetooth Gateway. Please contact the customer service for detailed information.

Restoring Factory Settings

Remove the back cover when the monitor is working normally, and use a conductive material to connect the  two contact points above the battery for about 5–8 seconds. Once the monitor restarts, the factory settings have been restored and previously saved data has been cleared.

Daily Care & Maintenance

• Please prevent water from getting into the monitor when cleaning it.
• When the surface of the monitor is dirty, it can be wiped clean using a damp soft cloth with some neutral detergent.

Precautions

• Do not immerse the ventilation holes into any liquid.
• Do not remove the monitor from a wall with force if it is attached with the adhesive sticker, so as to avoid damage to the wall or the monitor.
• This monitor is not suitable for use in environments with temperatures below 0°C. Please keep it away from harsh environments with high temperatures or high humidity.
• This monitor is designed to facilitate a healthy lifestyle, but should not be used as a measuring tool.

Specifications

Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

Hereby, MiaoMiaoCe Technology (Beijing) Co., Ltd. declares that the radio equipment type LYWSD03MMC is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/-declaration.html

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Visit: www.beryko.cz

Product Overview

Package Contents: Camera, magnetic base, power cord, adhesive sticker, user manual.

Installation

The camera can be placed on flat surfaces including desks, dining tables, coffee tables, or TV cabinets. Furthermore, it can be a ached to metallic surfaces, or non-metallic surfaces using the adhesive sticker.


Note: When installing the camera, the height must not exceed 2 meters. Make sure your camera is firmly installed and well strengthened. illustrations of the product, accessories, and user interface in the user manual are for reference purposes only. The actual product and functions may vary due to product enhancements.

Installing a MicroSD card
Make sure the camera is unplugged. Open the waterproof cover of the MicroSD card slot and insert a MicroSD card with its contact side facing up.
Note: Unplug the camera when installing or removing the MicroSD card. Please use a MicroSD card from a qualified brand with a capacity of up to 32 GB, and a speed class equal to or higher than U1/Class 10. The camera can be used normally without a MicroSD card. However, it cannot save videos nor use the playback and time-lapse photography functions without the card. Therefore, it is recommended to install a MicroSD card on your camera.

How to Use

Turning on the camera

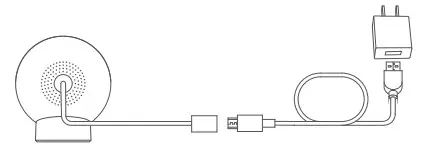

• Connect the power cord and adapter. The camera will turn on automatically once they are connected.

• When the camera is successfully turned on, the indicator light is yellow and you will hear a voice notification.

Note: Use only certified 5 V/1 A power adapter supplied by qualified manufacturers.

Indicator status description

• Yellow: Awaiting connection
• Blinking yellow: Connecting to a network
• Blinking blue: Connecting to a server
• Blue: Connected successfully

Resetting the camera
Use a pin or a similar tool to press and hold the reset bu on. Once you hear a voice notification, the camera is reset successfully.
Note: Resetting the camera will not delete any data on the MicroSD card.

Connect with Mi Home/Xiaomi Home App
This product works with Mi Home/Xiaomi Home app *. Control your device, and interact it and other smart home devices with Mi Home/Xiaomi Home app.
Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search “Mi Home/Xiaomi Home” in the app store to download and install it. Open Mi Home/Xiaomi Home app, tap “+” on the upper right, and then follow prompts to add your device.
* The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.

Note: The version of the app might have been updated, please follow the instructions based on the current app version.
Make sure the network connection is stable. The indicator is yellow when the camera is turned on, and then changes into blue once the connection between your camera and app is successful.

Specifications

• Name: Mi Home Security Camera 1080p (Magnetic Mount)
• Model: MJSXJ02HL
• Rated Input: 5 V 1 A
• Resolution: 1080p
• Viewing Angle: 170°
• Focal Length: 2.52 mm Video Encoding: H.265
• Operating Temperature: -20°C to 50°C
• Item Dimensions: 60.0 × 48.0 × 67.5 mm
• Wireless Connectivity: Wi-Fi IEEE 802.11b/g/n 2.4 GHz
• Operation Frequency: 2412-2472 MHz
• Maximum Output Power: 17.39 dBm
• Storage: MicroSD card (up to 32 GB)
• Compatible with: Android 4.4 & iOS 9.0 or above

Precautions

• The operating temperature range for this camera is -20°C to 50°C. Do not use this camera in environments with temperatures higher or lower than the specified operating range.
• This camera is a precision electronic product that has an IP65 waterproof rating. To ensure the normal use, do not expose the camera in extremely humid environments or locations that are prone to water getting into it.
• To improve the camera’s performance, please do not place it where its lens faces or is next to a reflective surface, such as glass and white walls, as this will cause the image to appear overly bright in areas close to the camera and darker in areas further away, or may cause the camera to produce white images. Make sure the camera is installed in an area with a strong Wi-Fi signal. Do not install the camera near microwave ovens, and other objects or places that affect its Wi-Fi signal.
• If the power cord is damaged or broken, it must be replaced with a genuine power cord purchased from the manufacturer or a er-sales service department, so as to avoid safety hazards.

WARRANTY NOTICE

As a Xiaomi consumer, you benefit under certain conditions from additional warranties. Xiaomi offers specific consumer warranty benefits which are in addition to, and not instead of, any legal warranties provided by your national consumer law. The duration and conditions related to the legal warranties are provided by respective local laws. For more information about the consumer warranty benefits, please refer to Xiaomi’s official website http://www.mi.com/en/service/warranty/ Except as prohibited by laws or otherwise promised by Xiaomi, the a er-sales services shall be limited to the country or region of the original purchase. Under the consumer warranty, to the fullest extent permi ed by law, Xiaomi will, at its discretion, repair, replace or refund your product. Normal wear and tear, force majeure, abuse or damage caused by the user’s negligence or fault are not warranted. The contact person for the a er-sale service may be any person in Xiaomi’s authorized service network, Xiaomi’s authorized distributors or the final vendor who sold the products to you. If in doubt please contact the relevant person as Xiaomi may identify. The present warranties do not apply in Hong Kong and Taiwan. Products which were not duly imported and/or were not duly manufactured by Xiaomi and/or were not duly acquired from Xiaomi or a Xiaomi’s official seller are not covered by the present warranties. As per applicable law you may benefit from warranties from the non-official retailer who sold the product. Therefore, Xiaomi invites you to contact the retailer from whom you purchased the product.

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Hereby, Tianjin Hualai Technology Co., Ltd. declares that the radio equipment type [MJSXJ02HL] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/declaration.html

Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.

Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Tianjin Hualai Technology Co., Ltd.
(a Mi Ecosystem company) Address: 9/F, Huaqiao
Chuangye building, No.10, Jinping Road,Ya’an Road,
Nankai District, Tianjin (Science and Technology Park)
For further information, please go to www.mi.com

Product Overview

Read this manual carefully before use, and retain it for future reference.

Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.

Installation

1. Drill holes

Place the base in the position the ceiling light will be installed, and mark the positions of the mounting holes, then remove the base. Use a φ6 mm drill to drill holes with a
depth of at least 40 mm, then insert the included four wall plugs into the holes.

2. Fix the base

Lead the stripped wires through the wiring hole in the base, and then align the mounting holes with the wall plugs. Screw the included four self-tapping screws into
the wall plugs to fix the base onto the ceiling. Make sure the base is securely installed.

Note: Try to wiggle the base around to make sure it is properly and firmly installed. Otherwise, it may fall down.

3. Connect the stripped wires

The terminal block connector is suitable for wires with a cross-sectional area of 0.75–1.5 mm². Strip about 6–8 mm of the wires, then connect the neutral, ground, and live wires according to the marks (N, , and L) to the terminal block connector on the ceiling light. Use a screwdriver to clamp down each line by tightening the screws. Gently pull each wire to ensure it has been firmly connected.
Note: The wires should run closely along the base in order to avoid shadows on the lampshade. If the wires are too long, please cut off the excess part.

Warning: Risk of an electric shock. This ceiling light must be grounded.

Warning: Before installing, replacing or inspecting the ceiling light, cut off the electricity to prevent an electric shock.

4. Install the lampshade

Hold both sides of the lampshade and align it with the base, then gently place it onto the base. Rotate the lampshade clockwise and lock it into the place until the internal
metal part makes a clicking sound.

Note: Try to wiggle the lampshade around to make sure it is properly and firmly installed. Otherwise, it may fall down.

Connect with Mi Home/Xiaomi Home App

This product works with Mi Home/Xiaomi Home app *. Control your device, and interact it and other smart home devices with Mi Home/Xiaomi Home app. Scan the QR code to download and install the app. You will be directed to the connection setup page if the app is installed already. Or search “Mi Home/Xiaomi Home” in the app store to download and install it.
Open Mi Home/Xiaomi Home app, tap “+” on the upper right, and then follow prompts to add your device.

* The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default.
Note: The version of the app might have been updated, please follow the instructions based on the current app version.

Apple HomeKit Smart Control

1.  Open the Home app on your iPhone or iPad.
2. Tap “Add Accessories” and follow the instructions to scan the QR code either on the back cover of the user manual or on the junction box, or enter the 8-digit setup code above the QR code to grant the Apple Home app access.

* Make sure a Wi-Fi network with Internet access is available (this product does not support 5 GHz networks).
To control this HomeKit-compatible accessory, it is recommended that you use iOS 9.0 or above.
The HomeKit setup code is in the user manual and on the junction box, do not lose it.
When adding the product to the Home app after the factory settings are restored, you will need the
HomeKit setup code again. In case the user manual is lost, remove the lampshade and scan the QR code or enter the setup code on the junction box. iPad and iPhone are the trademarks of Apple Inc., and they are registered in the United States and other countries.

Wall Switch Control

Use the wall switch to turn on and off the ceiling light within 5 seconds, you can change the color temperature from warm yellow light, white light to night light by default. You can set the favorite light via the app.
Note: Cycling the three light modes twice and pressing the wall switch again will restore the factory settings of the ceiling light.

Restoring Factory Settings

Use the wall switch to turn the ceiling light on and off seven times consecutively (turn off the ceiling light and wait for two seconds, then turn it on and wait for two seconds, this counts as one time). The ceiling light then starts breathing and automatically restarts after five seconds, and the factory settings of the ceiling light have been restored.
Note: When using the ceiling light in a new network environment, you need to restore the factory settings and connect to the network again.

Replacing the Light Source

1. Remove the light source
   The ceiling light contains three light boards and three protective covers. Each light board is fixed to the base with two rivets and each protective cover is fixed to the light
   board and base with three rivets. When removing the light source, first uninstall the three rivets from the protective cover of the light board, then remove the protective cover of the light board and unplug the wiring connected to the light board. Finally, uninstall the two rivets from the light board, and then remove the light board.
2. Install the light source
   Place the light board on the base, and use two new rivets to fix the light board onto the base. Connect the wiring, then install the protective cover on the light board with
   three new rivets to fix the cover onto the base.


Specifications

Model: MJXDD01SYL
Power Factor: >0.9
Operating Temperature: -10°C to 40°C
Operating Humidity: 0–85% RH
Color Temperature: 2700–6000 K
Rated Input: 100–240V～ 50/60Hz Max. 0.5A
Rated Power: 45 W (81 × 1 W/LED module)
Compatible with: Android 4.4 & iOS 9.0 or above
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz, Bluetooth 4.2 BLE
Operating Frequency:2412-2472 MHz (Wi-Fi) 2402-2480 MHz (BT)
Maximum Output Power: 18.95 dBm (Wi-Fi) 4.81 dBm (BT)

Product Features

Precautions

• Make sure the voltage is consistent with the ceiling light’s operating voltage before use. Using the mismatched voltage may damage the ceiling light and cause safety hazards.
• Do not replace the light source of the ceiling light by yourself. The light source should only be replaced by the manufacturer, after-sales service, or a qualified electrician.
• The ceiling light generates heat during working. Please keep it is well ventilated for heat dissipation.
• This ceiling light can be controlled by an app or remote control (not included, sold separately). Turning off the ceiling light by remote control or app does not cut it off
  from the electricity, hence, do not touch, replace, or disassemble this ceiling light. Otherwise, it may cause an electric shock, injury, or even death.
• The light installation requires a qualified electrician, and the wiring must comply with IEEE electrical standards or national standards
• The ceiling light should be installed in a stable location to prevent it from dropping down or falling off.
• Under normal use of condition, this equipment should be kept a separation distance of at least 20cm between the antenna and the body of the user.
• For indoor use only.

Hereby, Qingdao Yeelink Information Technology Co., Ltd. declares that the radio equipment type MJXDD01SYL is in compliance with Directive 2014/53/EU. The full
text of the EU declaration of conformity is available at the following internet address: https://www.mi.com/en/service/support/declaration.html.

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Manufactured for: Xiaomi Communications Co., Ltd.
Manufactured by: Qingdao Yeelink Information Technology Co., Ltd. (a Mi Ecosystem company)
Address: F10-B4, Bldg. B, International Innovation Park, 1# Keyuanweiyi Rd., Laoshan District, Qingdao, 266101, Shandong, China For further information, please go to www.mi.com
