Lorex 4K Ultra HD Security DVR

Lorex 4K Ultra HD Security DVR

D841 Series

Quick Setup Guide

Physical setup of the recorder and essential system settings

Package Contents

Dimensions

Setting Up Your Recorder

See the steps below (expanded instructions to the right) to complete initial setup of the recorder:

8-channel configuration shown. 16-channel will have the respective number of video inputs.
For camera compatibility information, visit lorex.com/compatibility.
* Not included / sold separately.

Overview of extra ports:

NOTE: For full instructions on using the extra ports, please refer to your security recorder’s instruction manual at lorex.com.

Need Help?

Visit us online for up-to-date software and complete instruction manuals.

1. Visit lorex.com
2. Search for the model number of your product
3. Click on your product in the search results
4. Click on the Downloads tab

Copyright © 2019 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design,
specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.
D841B_QSG_EN_R

Back panels shown below are for illustration only. Your recorder’s back panel may appear different, with all the same ports in different locations.

Test your cameras prior to selecting a permanent mounting location by temporarily connecting the cameras and cables to your DVR.

NOTES:

• The extension cable must be a single stretch of cable between the recorder and camera. You cannot connect multiple extension cables to each other.
• This guide covers connecting cameras to your security recorder only. For full instructions on installing your cameras, please refer to your camera’s documentation at lorex.com.
• Before selecting a permanent mounting location for your cameras, see Ensuring Accurate Person and Vehicle Detection below for important camera installation notes.

Connect the recorder to your router using the included Ethernet cable.

NOTE: To receive automatic firmware updates and enable remote viewing with mobile apps, a high speed Internet connection is required (minimum upload speed of 5Mbps required for 4K viewing; 3.5Mbps for lower resolutions). All other system features can be used without an Internet connection.

Connect the included mouse to a USB port on the recorder.

Connect the recorder to a monitor using the included HDMI cable or a VGA cable (not included). The HDMI port supports up to 4K resolution, and VGA supports up to 1080p.

IMPORTANT: The system will automatically match the resolution of the connected monitor the first time you use the recorder. If you need to switch monitors, make sure you set the recorder to an output resolution supported by the new monitor before switching. See Changing the Recorder’s Output Resolution on the rear for details.

Use the included power adapter to connect the recorder to a nearby outlet. Turn the recorder on using the power switch on the back panel.

When you first power up your recorder, the Lorex Setup Wizard will begin. The Wizard will help you configure core system settings.
You will also create a secure password. For future reference, it is recommended that you record yourpassword here:

Record your password below and store in a secure place:

Ensuring Accurate Person and Vehicle Detection

The following are important camera installation notes to ensure accurate person and vehicle  detection. For full camera mounting instructions, see your camera’s documentation at lorex.com.

• Angle the camera so that objects of interest appear in the bottom ⅔ of the camera image.
• Choose a location where objects of interest will be no further than 50ft (~15m) from the camera.

• Angle the camera between 30~60° down from the level position.
• Install the camera between 8-16ft (2.5-5m) off of the ground.
  NOTE: Accuracy of person and vehicle detection will be influenced by multiple
  factors, such as the object’s distance from the camera, the size of the
  object, and the height and angle of the camera. Night vision will also impact
  the accuracy of detection.

Additional Installation Tips:

• Point the camera where there is the least amount of obstructions (e.g., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is recommended.

Once you have completed all steps for initial setup on the front of this guide, please refer to the following sections to learn more about using your system.

Using the Mouse

NOTE: In live view, hover the mouse cursor over the top of the screen to open the Navigation Bar. Move the mouse cursor away from the top of the screen to close the Navigation Bar.

Quick Access to System Information

To quickly open a window that displays vital system information such as device ID, model number, firmware version, and IP address:

•  Tap the button on the front panel of the recorder.
  OR
•  Right-click to open the Quick Menu and click Info.

Using the Quick Menu

Right-click anywhere on the live viewing screen to open the Quick Menu.
a. Open Main Menu.
b. Search and playback recordings.
c. Control PTZ cameras (not included).
d. Select camera / live display view.
e. View previous / next channel(s).
f. View system information.
g. Start/stop sequence mode.
h. Temporarily disable all current audible warnings.
i. Open manual recording controls.
j. Adjust camera color and image settings.

Changing the Recorder’s Output Resolution

The system will automatically match the resolution of the connected monitor the first time you use the recorder.
IMPORTANT: If you need to switch the monitor, make sure you set the recorder to an output resolution supported by the new monitor before switching.
To change the recorder’s output resolution:

1. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click DISPLAY, then configure the following:

• Set Resolution to match the highest resolution supported by your monitor. For example,select 3840×2160 for 4K monitors, or 1920×1080 for 1080p.
• Click Apply. The recorder will restart before changes take effect.

Playback

Search through and play video recordings from the hard drive.
To search for and play recordings:

1. From live view, right-click and then click Playback. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Configure the following:

a. Use the calendar on the right to select the date to playback.

b. Check channels you want to play back. Click the icon beside each selected channel to select Mainstream (M) or Substream (S) video quality.
c. Click inside the video bar to select the playback time. Playback starts immediately at the selected time.

To filter for person / vehicle recordings:
PREREQUISITE: You must enable Smart Motion Detection on any and all channels you would like to filter for person / vehicle detection. See the section Motion & Advanced Person/Vehicle Detection for details.

d. Click to stop current playback.

e. Hover over the icon . Check Person and Vehicle to filter available playback events. Wait a few seconds for the video bar to show detection events.

Backup

Back up recordings from the hard drive to a USB flash drive (not included).
To back up recordings:

1. Insert a formatted USB flash drive (not included) into a free USB port on the recorder.
2. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
3. Click BACKUP.
4. Configure the following:

a. Select your USB drive and the folder for the backup.

b. Select the channel(s) and recording types to search by.
c. Select a start and end time.
d. Choose a file format.
e. Click Add to see recordings that match your search.
f. Check boxes next to recordings you want to back up.
g. Click Backup.

Motion & Advanced Person/Vehicle Detection

Set preferences for motion detection. This section includes setup of person/vehicle detection. By default, person/vehicle detection is enabled on channels 1-4.
To configure motion & advanced person/vehicle detection:

1. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click ALARM. Click MOTION on the far-left, then click the Motion Detect tab.
3. Configure the following:

a. Select the channel you would like to configure.
b. Click Enable.
c. Click Setup next to Area to set an active area for motion detection. See Figure 1 below for details.
d. Click Setup next to Schedule to set the weekly schedule for motion detection. See Figure 2 below for details.
e. Set preferences for how the system reacts to motion detection events.
f. Click Smart Motion Detection to enable person / vehicle detection. See Figure 3 below for details.
g. Click Apply to save changes.

• The camera image appears with a red grid overlay. This means the entire image is enabled for motion detection.
• Click or click-and-drag to add / remove boxes from the active area. Cells that have been removed from the active area appear green.
• Hover near the top of the image to reveal zone selection. You can set up to 3 different zones with different sensitivity and threshold values.
• Right-click when finished.

• The default schedule, shown in Figure 2, is active at all times.
• Click Modify to change the schedule for the corresponding day of the week.
• Click OK when finished.

• Click Enable to allow detection of people and vehicles on the selected channel.
IMPORTANT: A maximum of 4 channels will support person/vehicle detection at once. By default, channels 1-4 have person/vehicle detection enabled.

• Select a Sensitivity level (a high sensitivity value will detect smaller objects than a low value).
• Check Person and Vehicle.
• Click OK when finished.

Configuring Deterrence Settings

Set preferences for automatic warning light triggering on compatible Lorex deterrence cameras. For a complete list of compatible deterrence cameras, navigate to your recorder series at lorex.com/compatibility.
To configure deterrence settings:

1. In live view, right-click and click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click ALARM. Click MOTION on the far-left, then click the Deterrence tab.
3. Configure the following:

a. Select the channel of a connected deterrence camera.
b. Check Enable.
c. Click Setup next to Warning Light to configure preferences.
d. Click Setup next to Area to set an active area for automatic deterrence. See Figure 4 below for details.
e. Click Setup next to Schedule to set the weekly schedule for automatic deterrence. See Figure 5 below for details.
f. Click Apply.

• The camera image appears with a grid overlay. The green area is the active area for deterrence.
• Click or click-and-drag to add / remove boxes from the active area.
• In Figure 4, only motion around the doorway will trigger warning light.
• Right-click when finished.

• The default schedule, shown in Figure 5, is active during the night, between 5pm and 7am.
• Click Modify to change the schedule for the corresponding day of the week.
• Click OK when finished.

To set off all connected deterrence cameras’ warning lights and sirens, press and hold the front panel button for 3 seconds.

FAQ’S

What is the difference between a 4K and 1080p security camera?

The main difference is resolution. 4K cameras have a higher resolution than 1080p cameras. For example, a 1080p camera has 1920 x 1080 pixels, while a 4K camera has 3840 x 2160 pixels.

What is the difference between H.264 and H.265?

H.264 is an older compression standard that is still supported by most devices. H.265, also known as HEVC, is newer and more efficient than H.264, so it can deliver video of the same quality at lower bitrates, making it easier to store and transmit video over networks with limited bandwidth.

Can I use any DVR with Lorex cameras?

All Viewtron IP cameras are ONVIF compliant which allows them to work with any ONVIF compliant recorder (DVR / NVR).

Can Lorex security cameras be hacked?

Any device connected to the internet can be hacked, and Lorex security cameras are no different. However, Lorex security cameras are relatively secure because all of the footage is stored locally on a hard drive instead of in cloud storage where hackers can access them.

Do Lorex cameras work without Internet?

Your Lorex Smart Home Security Center (LSHSC) does not need to be connected to Wi-Fi to function. This would be especially useful in the following scenarios: You don’t have an internet connection on your property but you still want to stay updated and record events.

What is difference between NVR and DVR?

A DVR converts analog footage into a digital format, while an NVR typically only works with digital footage. DVR systems process data at the recorder, while NVR systems encode and process data at the camera before transmitting it to the recorder for storage and remote viewing.

Does the orange dot mean someone is listening?

An orange indicator means the microphone is being used by an app on your iPhone. The orange dot wouldn’t indicate that since it is supposed to be on while you are on a call.

What happens when Lorex SD card is full?

when the SD card is full, and files will need to be manually deleted before new recordings can be stored.

How long do Lorex cameras keep footage?

The estimated recording time with a HDD of 2TB for 16 camera is around 1-2 days and 2-4 days for 8 cameras when using continuous recording. The unit can be set to record only when motion is detected however which greatly expands the recording time depending on the amount of motion events detected.

How do I view my Lorex recordings?

To view playback recordings using the Lorex Secure / FLIR Secure app:
Launch the Lorex Secure / FLIR Secure app on your smartphone or tablet.
On the Home screen, tap your camera to stream live video.
Tap the History icon to display all recorded events.
Scroll up / down to browse through all events.

Can you hear sound on Lorex cameras?

Select camera models include a built-in microphone that will capture the sounds around the camera. This can be a very handy feature that can add additional evidence (such as voices) and a greater ability to detect and interpret events, even if they occur off-screen.

How long does Lorex battery last?

These long-lasting, rechargeable lithium ion batteries can now power the cameras up to 8 months on a single charge.

Wireless Security Camera

CAUTION: TO REDUCE THE RICK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

Important Safeguards

In addition to the careful attention devoted to quality standards in the manufacture process of your product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to ensure your enjoyment and proper use of the product and accessory equipment. Please read them carefully before operating and using your product.

General Precautions

1. All warnings and instructions in this manual should be followed.
2. Do not use receivers or video monitors in humid or wet places.
3. Keep enough space around the product for ventilation. Slots and openings in the storage cabinet should not be blocked.
4. It is highly recommended to connect the product to a surge protector to protect from damage caused by electrical surges. It is also recommended to connect the product to an uninterruptible power supply (UPS), which has an internal battery that will keep the product running in the event of a power outage.
5. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a water dampened cloth for cleaning.

Installation

1. Read and Follow Instructions – All the safety and operating instructions should be read before the product is operated. Follow all operating instructions.
2. Retain Instructions – The safety and operating instructions should be retained for future reference.
3. Heed Warnings – Comply with all warnings on the product and in the operating instructions.
4. Polarization – Do not defeat the safety purpose of the polarized or grounding-type plug.
   A polarized plug has two blades with one wider than the other.
   A grounding type plug has two blades and a third grounding prong.
   The wide blade or the third prong are provided for your safety.
   If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
5. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your location, consult your video dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
6. Overloading – Do not overload wall outlets or extension cords as this can result in the risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service technician.
7. Power-Cord Protection – Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
8. Surge Protectors – It is highly recommended that the video equipment be connected to a surge protector. Doing so will protect the equipment from damage caused by power surges. Surge protectors should bear the UL listing mark or CSA certification mark.
9. Uninterruptible Power Supplies (UPS) – Because this product is designed for continuous, 24/7 operation, it is recommended that you connect the product to an uninterruptible power supply. An uninterruptible power supply has an internal battery that will keep the product running in the event of a power outage. Uninterruptible power supplies should bear the UL listing mark or CSA certification mark.
   Caution: Maintain electrical safety. Power line operated equipment or accessories connected to this product should bear the UL listing mark or CSA certification mark on the accessory itself and should not be modified so as to defeat the safety features. This will help avoid any potential hazard from electrical shock or fire. If in doubt, contact qualified service personnel.
10. Ventilation – Slots and openings in the case are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the video equipment on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the product manufacturer’s instructions have been followed.
11. Attachments – Do not use attachments unless recommended by the product manufacturer as they may cause a hazard.
12. Water and Moisture – Do not use receivers or video monitors near water — for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, near a swimming pool and the like.
13. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
14. Accessories – Do not place this video equipment on an unstable cart, stand, tripod, or table. The video equipment may fall, causing serious damage to the product. Use this product only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer’s instructions and use a mounting accessory recommended by the manufacturer.
15. Camera Extension Cables – Check the rating of your extension cable(s) to verify compliance with your local authority regulations prior to installation.
16. Mounting – The cameras provided with this system should be mounted only as instructed in this guide or the instructions that came with your cameras, using the provided mounting brackets.
17. Camera Installation- Cameras are not intended for submersion in water. Not all cameras can be installed outdoors. Check your camera environmental rating to confirm if they can be installed outdoors. When installing cameras outdoors, installation in a sheltered area is required.

Service

1. Servicing – Do not attempt to service this video equipment yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2. Conditions Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
   A. When the power supply cord or plug is damaged.
   B. If liquid has been spilled or objects have fallen into the product.
   C. If the product has been exposed to rain or water.
   D. If the product has been dropped or the cabinet has been damaged.
   E. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
   F. When the product exhibits a distinct change in performance. This indicates a need for service.
3. Replacement Parts – When replacement parts are required, have the service technician verify that the replacements used have the same safety characteristics as the original parts. Use of replacements specified by the product manufacturer can prevent fire, electric shock, or other hazards.
4. Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks recommended by the manufacturer to determine that the product is in safe operating condition.

Use

1. Cleaning – Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
2. Product and Cart Combination – Product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
3. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or “short-out” parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
4. Lightning – For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power line surges.

NOTICES

FCC Notice:

This equipment has been certified and found to comply with the limits regulated by the FCC part 15, subpart C. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment on and off), the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio or television technician for assistance

Warning: To ensure compliance with the FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm (7.87in) between the radiator and nearby persons.

Industry Canada Notice:

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesirable operation.
This Class B digital apparatus complies with Canadian ICES-003.

MODIFICATION:

Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the device.

RoHS:

This product is fully compliant with the European Union Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (“RoHS”) Directive (2002/95/EC). The RoHS directive prohibits the sale of electronic equipment containing certain hazardous substances such as lead, cadmium, mercury, and hexavalent chromium, PBB, and PBDE in the European Union.

It is imperative that the user follows the guidelines in this manual to avoid improper usage which may result in damage to the product, electrical shock, and fire hazard injury. In order to improve the features, functions, and quality of this product, the specifications are subject to change without notice from time to time.

Features

• Real-time (up to 30fps) wireless video with MPEG-4 compression @ 640×480 (VGA) resolution1
• Extended bandwidth delivers super smooth high frame rate video1
• SignalGuard Technology continuously monitors the wireless signal and automatically reconnects upon detecting low signal strength
• Next generation adaptive Frequency Hopping Spread Spectrum (FHSS) technology greatly reduces conflicts with competing signals
• Built-in microphone for listen-in audio2
• Built-in auto-mechanical infrared camera filter achieves accurate color reproduction in varying lighting conditions
• Night vision range up to 135ft (41m) / 90ft (27m)3
• Simple installation. No video cable required4
• Weatherproof camera and power connectors, can be installed indoors or outdoors5
• Easily connects to any surveillance DVR (BNC) or TV (RCA)
• High gain antennas provide up to 165ft (50m) indoor / 500ft (152m) outdoor wireless range6
• Vandal resistant camera design with cable pass-through mounting bracket

1. At full signal strength. Limit number of obstructions to ensure best performance.
2. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology Inc. assumes no liability for use of its products that does not confirm with local laws.
3. Stated IR illumination ranges are based on ideal conditions in typical outdoor night time ambient lighting and total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection/absorption level of object.
4. Camera and receiver requires a wired connection to an electrical outlet (power adapters included).
5. Not intended for submersion in water. Installation in a sheltered area required.
6. Maximum wireless transmission range. Actual range dependent upon building materials and other obstructions in path of wireless signal.

Getting Started

Wireless Receiver

• Removable Antenna (SMA Type): Pre-attached to the receiver
• Pairing Status LED: Glows green continuously when a camera is paired to the receiver. Flashes on and off slowly when pairing mode is active and flashes rapidly when camera is out of range.
• Pairing Button: For details, see Pairing Cameras
• DC Power: Connect power adapter to power on the receiver.
• Termination Cable: Includes BNC video output cable and RCA audio output.
• Antenna Jack

Wireless Camera

1. Microphone
2. Removable Antenna (SMA Type): Pre-attached to the back of camera.
3. Camera Stand
4. DC Power: Connect power adapter to power on the camera.
5. Pairing Button: For details, see “Pairing Cameras” on page 9.
6. Antenna Jack

ATTENTION – This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal and indicates that the camera filter is working.

Installing the Camera

Camera is suitable for outdoor installation. Installation in a sheltered location is recommended. For example, install under shelter protected from the elements, such as beneath roof eaves. The diagram to the right shows an example of an ideal location for outdoor placement.

Installation Warnings

• Aim the camera to optimize the viewing area: select a location that provides a clear view of the area you want to monitor, that is free from dust, and that is not facing a strong light source or direct sunlight.
• Avoid installing the camera where there are thick walls or obstructions between the camera and the receiver.
• Avoid installing in a location which requires the wireless signal to pass through cement, concrete, and metal structures. This will reduce the range of transmission. For details, see “Appendix B: Frequently Asked Questions” on page 11.
• Select a location for the camera that has an ambient temperature between 14°F~122°F (-10°C~50°C)
• Not intended for submersion in water. For outdoor use, installation in a sheltered location is recommended.

Mounting Positions

You may mount your camera on a wall, ceiling, or counter. See the images below for recommended configurations of the camera stand and antenna.

NOTE: For ceiling installation, position the antenna as high as the ceiling allows. See the “Ceiling” mounting position in the figure above.

Before mounting the camera permanently, carefully plan where and how the camera will be positioned and where you will route the cable that connects the camera to the power adapter. Verify the camera’s performance by observing the image on a monitor when the camera is positioned where it will be permanently installed.

To Install the Camera

1. Use the included mounting screws to mount the camera to the mounting surface:
   1. Mark the positions of the screw holes on the mounting surface.
   2. Drill holes and insert the drywall plugs (included) as needed.
   3. Firmly attach the camera to the mounting surface using the included screws.
      NOTE: If you are running the power cable through the mounting surface, connect power before firmly attaching the camera to the mounting surface.
      NOTE: If you are running the power cable along the mounting surface, you need to run the power connector cable through the cable notch on the camera base before firmly attaching the camera to the mounting surface.
2. Loosen the thumbscrews (1, 2) and the adjustment ring (3) by turning them counter clockwise.
3. Adjust the angle of the camera until the desired view is set. Tighten the thumbscrews and the adjustment ring to secure the camera’s position.
4. Connect the power cable from the camera to the weatherproof power connector. Plug the power adapter into a power outlet or surge protector.NOTE: Power cables are only weatherproof when fully inserted at the connection point. Power cables may not be submerged in water.
5. Remove protective film from the camera lens to uncover the microphone. The protective film may prevent the microphone from working if not removed.

Connecting to a DVR

Before powering on the receiver, make sure to first connect and power on the camera. This will ensure a proper connection.

1. Connect the BNC video cable from the receiver to the video input on your DVR.
2. Connect the RCA audio cable from the receiver to the corresponding audio input. The audio input number or name should match the video input where you connect the BNC cable (e.g. Video Input 1 and Audio Input 1).
3. Connect the power cable to the power port on the receiver and plug it into a power outlet or surge protector.
4. Place the receiver where it will have clear reception to your camera1.
   NOTE: If your camera is out of range, the pairing status LED will flash on and off rapidly. OPTIONAL: Use the double-sided tape to secure the receiver to a surface (e.g. wall).

Connecting to a TV

1. Connect the included BNC-to-RCA adapter to the BNC connector on the receiver. Connect the other end of the BNC-to-RCA adapter to the RCA video input on your television.
2. Connect the RCA audio connector from the receiver to the audio input on your television.
3. Connect the power cable to the power port on the receiver and plug it into a power outlet or surge protector.
4. Power on your television and select the input that the receiver is connected to.
5. Place the receiver where it will have clear reception to your camera1.

Pairing Cameras

IMPORTANT:  The camera and the receiver have already been paired out of the box, which means that they are exclusively communicating with each other. If for some reason the pairing is lost, follow these steps to pair the camera and receiver.

To pair the camera to the receiver:

1. Make sure that the camera and receiver are both powered up and all antenn
   as are properly attached.
2. Press and hold the PAIR button on the receiver for 5 seconds to activate pairing mode.
   The pairing status LED will flash on and off slowly.
3. Press the PAIR button on the back of the camera within 30 seconds of pressing the PAIR button on the receiver.
   If pairing is successful, live video from the camera will appear on the monitor.

Appendix A: System Specifications

General Specifications

Maximum wireless transmission range. Actual range dependent upon building materials and other obstructions in path of wireless signal.

Receiver Specifications

Camera Specifications

1. Not intended for submersion in Installation in a sheltered area recommended.
2. Stated IR illumination ranges are based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of OBJECT.

Appendix B: Frequently Asked Questions

 Wired vs. Wireless Cameras

A wired camera has a video cable that transmits the video signal from the camera to a recording or viewing device.
A wireless camera does not use a video cable. Instead, it wirelessly transmits the video signal to a wireless receiver that is connected to your DVR. Wireless cameras do not require video cabling to be run between the camera and the DVR, which reduces installation time and cost.

Does a wireless camera require power?

Yes. Wireless cameras require two power sources: one connected to the camera, and the other to the receiver. The term “wireless” refers to the lack of a video cable between the camera and the receiver.

How far can a wireless camera transmit a video signal?

In an open field (with line of sight), a typical wireless camera has a range between 250 – 500 feet. ‘Line-of-sight’ means that there are no obstructions between the camera and receiver. Obstructions include walls, buildings, trees, and certain electronic devices. Materials containing moisture (for example, leaves) may also act as an obstruction. Cubical walls, drywall, glass, and windows generally do not degrade wireless signal strength.
In a closed environment—such as the interior of a house—the wireless camera range is between 100 – 165 feet. The signal range varies depending on the type of building materials or objects the wireless signal must pass through. The signal range also depends on whether there are competing signals using the same frequency as the camera. For example, signals from cordless phones or routers may affect signal strength. Adaptive Frequency Hopping Spread Spectrum (FHSS) technology featured in the latest Lorex models greatly reduce signal interference.

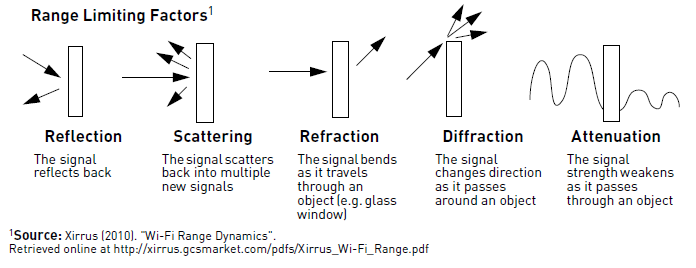

Range Limiting Factors1

Signal Reduction Through Materials

Signal strength decreases as it passes through different types of material. The table below shows how signals become reduced when passing through different materials:

NOTE:  Signals that must pass through wet or moist material (e.g. shrubs and trees) may be significantly reduced.
The stronger the signal strength, the higher the video frame rate. The lower the signal strength, the lower the video frame rate.

Are digital wireless camera signals secure?

Yes. Lorex digital wireless products feature a wireless transmission method called Frequency Hopping Spread Spectrum (FHSS). This type of signal is highly resistant to eavesdropping as it generates a channel hopping sequence using an algorithm generated by the receiver, which only the camera can follow through the “pairing” function.
Pairing is an electronic handshake between digital wireless devices. Digital wireless cameras can only be paired to one receiver. This is to prevent interception by third parties, and prevents any other device from picking up the signal—this also means that you cannot pair one camera to multiple receivers.

How many frames per second should I expect from a digital wireless camera?

Current Lorex digital wireless cameras offer 10 – 30 FPS (Frames Per Second) performance. Actual frame rate depends mainly on signal strength (see the chart in section above).
For details on supported resolutions and frame rates for this model, see “Appendix A: System Specifications” on page 10.

How many wireless cameras can I install?

It is recommended to install a maximum of 4 wireless cameras per system (4 receivers and 4 cameras). Minimum space between receivers should be 4 inches / 10cm and minimum space between cameras should be 6.5ft / 2m to minimize potential signal strength degradation.

Appendix C: Troubleshooting

If you have problems with your system, there is often a quick and simple solution. Please try the following:

Appendix D: Extending Wireless Signal Range

DISCLAIMER: Certain accessories are not available in all markets. There are several ways to boost your wireless signal as well as options to help you extend the range of the wireless signal.
Clear Line-of-Sight:  You should always try to ensure there is a clear line-of-sight between the camera and the receiver.

Extending Your Wireless Signal

Even with a clear line-of-sight between your camera(s) and your receiver(s), you may experience a lower video frame rate simply due to the distance between your wireless devices.
Accessory antennas are available that can help extend the range of your wireless signal.

GHZ Directional Wireless Panel Antenna

Use the 2.4GHz Directional Wireless Panel Antenna
(model #: ACCANTD9) to focus a wireless signal onto the camera in order to increase the range of transmission
(clear line-of-sight between the camera and the antenna is required). A 20ft extension cable is included to help to properly position the antenna.

Scenario 1: Single Receiver Installation

Attach a directional antenna to the camera and/or the receiver. It is recommended to attach the antenna to the receiver and place it in a location that has clear line-of-sight to the camera. Ensure that the directional antenna is pointing toward the other antenna. For example, if the directional antenna is connected to your receiver, the directional antenna should point at the camera (see figure above). During the installation, check the reception on your DVR.

Scenario 2: Multiple Camera / Receiver Installation

If you are using multiple wireless cameras and receivers in your installation, attach directional antennas to the camera(s) and receiver(s) that are farthest away from each other. Follow these guidelines to increase the signal strength between your cameras and receivers:

• Point directional antennas towards the receiver for each camera.
• Keep as much space as possible between each receiver.
• Keep as much space as possible between directional antennas if using more than one.
• Minimize the amount of obstructions (e.g. walls or trees) between the antennas and receivers.
• During the installation, check the reception of each camera on your DVR.

Visit www.lorextechnology.com for more details on wireless antennas and accessories.

Lorex 1080p HD DIGITAL VIDEO RECORDER

1080p recording with advanced motion detection technology

Record and view clear 1080p video with this powerful 8-channel recorder, providing Full HD resolution with impressive definition and detail. This recorder also features advanced person/vehicle motion detection available on up to two channels, so you only receive alerts when someone is on your property. With convenient voice control and smart home compatibility, 1080p resolution and advanced motion detection, this recorder covers all the bases.

Picture Perfect

See more and know more with clear definition and detail

• Capable of recording up to 1080p Full HD Resolution on all cameras1
• Digitally zoom in on distant objects for better clarity

Advanced Person/Vehicle Detection

Be alerted when a person/vehicle is on your property

• Reduce unnecessary alerts and false alarms with advanced motion detection5
• Get push notifications when motion from a person/vehicle is detected5 (available on up to 2 channels)
• Use Smart Search to filter motion events for reviewing footage quickly and easily
• A panic button is located on the recorder to activate all lights and sirens with compatible cameras3

Home is where the smart is

Enjoy the convenience and control of smart home compatibility and voice control features

• Quickly access footage and features with simple voice commands (Compatible with: Amazon Alexa™ and Google Assistant™)6
• View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV™ and Chromecast™)8

No Fee Local Video Storage

Keep your footage private and secure

• Local built-in security-grade hard drive ensures only you can access your footage
• Ample storage space with no monthly cloud fees
• Heavy-duty hard drive designed to handle the workload of 24/7 monitoring

Features

Product Specifications

General

Video Transmission Technology
HD Analog
Channels 8 Channels

Inputs/Outputs

Video Input(s) 8 × 1Vp-p, CVBS, 75ohms, BNC Type
Video Outputs(s) 1 × VGA, 1 × HDMI
Audio Input(s) 1 ch: in RCA
Audio Output(s) 1 ch: out RCA

Display

Display Output Resolution Up to 1080p
Live Display 1,4,8
Live Display Speed (Max)2 240fps NTSC, 200fps PAL
OSD On/Off
System Navigation USB Mouse

Recording

Recording Resolution 1080p, 720p 960H, D1, CIF
Recording Frame Rate 1080p@15fps (NTSC); 720p/960/D1/CIF@25/30fps (PAL/NTSC)2
Recording Schedule Per Channel: Continuous/Motion/Advanced Motion (Person/Vehicle)/Alarm/Day/Hour
Back-up File Format DAV/AVI/MP4 file
Video Compression H.265/H.264

Playback

Simultaneous Playback Up to 4 Channels
Playback Speed Variable Max 16×
Search By Time/Date, All Motion Events or Smart Motion (Person/Vehicle), (Smart Search)

Storage

Hard Drive Bays 1 Bay
Hard Drive Capacity Up to 1 × 10TB (SATA)
Backup Media USB Flash Drive & USB HDD

Special Features

Smart Motion Detection Person/Vehicle Smart Motion
Detection (enabled only on up to 2 channels)
Smart Search Yes
Third Party Integrations N/A

Smart Home

Voice Control Amazon Alexa™, Google Assistant™
Streaming Options Chromecast™, Apple TV,™ Amazon Echo Show™, Google Home Hub™

Connectivity

Mobile Viewing Android, iOS
Compatible APP Lorex Home™
PC/Mac Remote Viewing (Coming Soon. Aug. 2019 Availability)
Email Notification Text and Snapshot
Network Interface 10/100 Base-TX, RJ45
DDNS Yes (Optional)
USB interface USB 2.0 × 2

Additional Specifications

FW Upgrade USB/Network
Watchdog Function Yes
Power Consumption < 10W (Excl. HDD)
Supply Voltage 12V/2A
Unit Dimensions (W × D × H)
12.9 × 9.6 × 2.1” / 328 × 245 × 53mm
Unit Weight 2.75 lbs / 1.26Kg (Excl. HDD)
Operating Temperature 14° ~ 131°F / -10° ~ 55°C

Model Information

D241A81B / 8-channel 1080p DVR with 1TB HDD / 6-95529-02115-7
D241A82B / 8-channel 1080p DVR with 2TB HDD / 6-95529-02116-4

Dimensions

Package Plain Box
Package Weight 6.97lb / 3.16kg
Package Dimensions (W × D × H)
15.43 × 13.07 × 5.31” / 391 × 331 × 134mm
Package Cube 0.62cbf / 0.017cbm

Back Panels

8 channel model

What’s in the box

Disclaimers:

1. Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit: www.lorex.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. Compatible with select Lorex Analog HD cameras only. For a list of compatible cameras, please visit www.lorex.com/compatibility
4. Both firmware and software must be updated to latest version to ensure remote connectivity.
5. Advanced Person/Vehicle Motion Detection can be enabled on up to 2 channels at once. General motion detection will still be available on all remaining channels. Accuracy of Person/Vehicle Advanced Motion detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera.
6. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, instructions visit: www.lorex.com/smarthome
7. HDMI output supports 1080p HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the DVR, as well as TV/ monitor resolution.
8. AppleTV ™ or Chromecast ™ need to be connected to the same network as your recorder. Requires AppleTV Gen 4 or newer with Lorex Home Apple TV APP or Chromecast ™ device connected to the TV that you want to view the system on.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

Quick Features

• FAST AND EASY INTERNET SET-UP
• VIEW ON SMARTPHONE, TABLET, PC & MAC
• RECORD MONTHS OF FOOTAGE
• REAL-TIME WIRELESS VIDEO

SIMPLE CLOUD CONNECTION

Hassle-free Stratus Connectivity for remote viewing. Download the free App, scan the QR code and start viewing your world securely online!

RECORD MONTHS OF FOOTAGE

Record continuous or motion activated video on the reliable surveillance-grade hard drive designed for 24/7 operation.

SUPERIOR 960H RESOLUTION

Records with 34% more resolution than standard D1, offering true to life aspect ratio that provides sharper, more detailed, and non stretched images.1

WIRELESS FLEXIBILITY

No need to run video cables – this system offers true wireless freedom. Versatile wireless cameras boast real-time video and ensure constant connection.

DIGITAL VIDEO RECORDER FEATURES

• 960H (960×480) recording resolution capable 1
• H.264 video compression 2
• HDMI output (HDMI cable included for – simple connection to HDTVs) 3
• Real time recording resolution: 4ch @ 960×480 (960H), 8 @ 480×240
• Pentaplex operation – View, Record, Playback, Back Up & Remotely Control the system simultaneously
• 24/7 100% Duty cycle hard drive pre-installed
• LOREX Stratus Solution – Quick & simple internet cloud connectivity 4
• Instant Mobile Viewing on compatible Smart phones & Tablets †
• PC and Mac Compatible
• Instant email alerts with snap shot attachment
• Accurate Time Stamps with NTP & Daylight Savings Time

WIRELESS CONVENIENCE WITHOUT COMPROMISE

• THE ALTERNATIVE TO WIRED CAMERAS
• REAL-TIME WIRELESS VIDEO
• SIGNAL GUARD TECHNOLOGY
• SAVE TIME AND MONEY ON INSTALLATION

STABLE & FLUID VIDEO

Don’t miss a thing with Real-Time video & fluid video.

WIRELESS FRIENDLY

Minimizes conflicts with competing wireless signals with next generation interference reduction technology.

IDEAL ADD-ON CAMERA

Compliments your home or business surveillance system with extended range and flexibility.

SAVE TIME AND MONEY

No need to run video cables. Simply power up and start monitoring.

LOREX Fusion Series Network Video Recorder User Guide

Package Contents

Setting Up Your Recorder

See the steps below (expanded instructions to the right) to complete initial setup of the recorder.

For camera compatibility information, visit lorex.com/compatibility. * Not included / sold separately.

Overview of extra ports:

NOTE: For full instructions on using the extra ports, please refer to your security recorder’s instruction manual at lorex.com.

Need Help?

Visit us online for up-to-date software and complete instruction manuals.

Copyright © 2020 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

Back panels shown below are for illustration only. Your recorder’s back panel may appear different, with all the same ports in different locations.

STEP 1: Connect cameras*

Test your cameras prior to selecting a permanent mounting location by temporarily connecting the cameras and cables to your NVR using one of the following 2 methods:
a. Connect cameras directly to the recorder (recommended).

b. Connect cameras to a PoE switch or router on your network (not included).

NOTES:

• It may take up to 1 minute for cameras to start up and transmit video to your recorder.
• This guide covers connecting IP cameras to your security recorder only. For full instructions on installing your cameras, please refer to your camera’s documentation at lorex.com.
• Connecting cameras to a router, or a network switch without PoE, requires a power adapter for each camera. Refer to your camera’s documentation at lorex.com for the correct power adapter model number.

STEP 2: Connect router*

Connect the recorder to your router using the included Ethernet cable.

NOTES:

• If you are using a PoE switch, ensure the switch is connected to the same network as your recorder.
• To receive automatic firmware updates and enable remote viewing with mobile apps, a high speed Internet connection is required (minimum upload speed of 5Mbps required for 4K viewing; 3.5Mbps for lower resolutions). All other system features can be used without an Internet connection.

STEP 3: Connect mouse

Connect the included mouse to a USB port on the recorder.

STEP 4: Connect monitor*

Connect the recorder to a monitor using the included HDMI cable or a VGA cable (not included). The HDMI port supports up to 4K resolution, and VGA supports up to 1080p.

IMPORTANT: To optimize picture quality, set the recorder’s video output to match the resolution of your
monitor. See the section Changing the Recorder’s Output Resolution on the rear for details.

STEP 5: Connect power

Use the included power adapter to connect the recorder to a nearby outlet.

STEP 6: Lorex Setup Wizard

Lorex Setup Wizard will begin. The Wizard will help you configure core system settings.
You will also create a secure password. For future reference, it is recommended that you record your password here:

Record your password below and store in a secure place:

Lorex Fusion

Lorex Fusion supports connectivity with select wireless devices to the NVR. To learn more about fusion connectivity and which Lorex devices are compatible with this feature, visit lorex.com/pages/fusion.

Reference: Quick Access to System Information

• To quickly open a window that displays vital system information such as device ID, model number, firmware version, and IP address: Reference: Quick Access to System Informa tionTap the button on the front panel of the recorder.

Using the Mouse

NOTE: In live view, hover the mouse cursor over the top of the screen to open the Navigation Bar. Move the mouse cursor away from the top of the screen to close the Navigation Bar.

Using the Quick Menu

Right-click anywhere on the live viewing screen to open the Quick Menu.
a. Select camera/live display view.
b. Control PTZ cameras (not included).
c. Control auto focus cameras (not included).
d. Adjust camera color and image settings.
e. View system information.
l f. Start/stop sequence mode.
g. Temporarily disable all current audible warnings.
h. Search and play back recordings.
i. Search for and play back person / vehicle detection events.
j. Open manual recording controls.
k. Add IP cameras over the LAN.
l. Open Main Menu

Adding Cameras from the LAN

Follow the steps below to add cameras that are not directly connected to the Power over
Ethernet (PoE) ports on the back of the recorder.
NOTE: Please visit lorex.com/compatibility for a list of compatible Lorex IP cameras.
To add cameras from the LAN:

1. Connect the camera to a router or switch on the same network as the recorder.
2. Right-click and select Device Search. If prompted, log in using the system user name (default: admin) and your new, secure password.
3. Configure the following:

a. Click Device Search.
b. Check the camera(s) you would like to add.
c. Click Add. The status indicator turns green to show the camera is successfully connected.
d. The added device(s) will appear in the Added Device list. Right-click to exit to live view.
NOTE: If the icon in the Status column appears red, there may be a password issue with the camera. Select the camera and click Reconnect IPC.

Playback and Search

Search through and play video recordings from the hard drive.
To search for and play recordings:
1. From live view, right-click and then click Playback. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Configure the following: Playback and Search
a. Use the calendar on the right to select the date to playback.
b. Check channels you want to play back. Click the grey icon beside each selected channel to select Mainstream (M) or Substream
(S) video quality.
c. Click inside the video bar to select the playback time. Playback starts immediately at the selected time.

Backup

Back up recordings from the hard drive to a USB flash drive (not included).
To back up recordings:
1. Insert a USB flash drive (not included) into a free USB port on the recorder.
2. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
3. Click , then click BACKUP.
4. Configure the following: Backup
a. Select the type and quality of recordings to search for.
b. Select the channel(s) to search by.
c. Select a Start Time and End Time for your search.
d. Choose a file format for your backed up files.
e. Click Add to see recordings that match your search.
f. Check boxes next to recordings you want to back up, then click Start. You may also click Onekey Backup to back up all files that match your search.

Advanced Motion Detection & Deterrence Settings

Configure advanced motion detection and/or active deterrence settings. For a complete list of compatible cameras, navigate to your recorder series at lorex.com/compatibility.

To configure advanced person/vehicle detection or active deterrence:

1. In live view, right-click and click Main Menu. If prompted, log in using the system user name(default: admin) and your new, secure password.
2. Click , then select EVENT. Select the Deterrence tab.
3. Configure the following:

Option 1: Advanced Person/Vehicle Detection Cameras

a. Select the channel of
a connected camera with person and vehicle detection.
b. Check Enable underneath Person and/ or Vehicle. a bc f
c. Click Set next to Area to set active areas for person and/or vehicle detection. See Figure 1 below for details.
d. Click Set next to Schedule to set a weekly schedule for person and/or vehicle detection. See Figure 2 below for details.
e. Set preferences for the warning light and siren.
f. Click OK.

•  Click Add to set an area for person or vehicle detection on the selected channel. Click-and-drag the corners to resize the area.
• For most accurate results, set an area where objects of interest will move within the bounding box as well as into / out of.
• Check Light next to a rule to flash the camera’s warning light when an object is detected.
• See your camera’s documentation for optimal camera positioning for person and vehicle detection.

• The default schedule, shown in Figure 2, is active during the night, between 5pm and 7am.
• Click Set to change the schedule for the corresponding day of the week.
• Click OK when finished.

Option 2: Active Deterrence Cameras

• The camera image appears with a grid overlay. The green area is the active area for deterrence.
• Click or click-and-drag to add / remove boxes from the active area.
• In Figure 3, only motion around the doorway will trigger the warning light.
• Right-click when finished.

To set off all connected deterrence cameras’ warning lights and sirens, press and hold the front panel button for 3 seconds.

Changing the Recorder’s Output Resolution

To ensure the best possible picture quality, set the recorder’s output resolution to match the
highest resolution supported by your monitor.
a. Set Resolution to match the highest resolution supported by your monitor. For example, select 3840×2160 for 4K monitors, or 1920×1080 for 1080p.
b. Click OK. The recorder will restart before changes take effect.

To change the recorder’s output resolution:

1. From live view, right-c lick and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click Display, then configure the following: IMPORTANT: If you need to switch the monitor, make sure you set the recorder to an output resolution supported by the new monitor before switching.


Quick Start Guide

Package Contents

• 4K Ultra HD Bullet IP Camera
• Mounting Kit*
• Ethernet Extension Cable with Pre-attached RJ45 Cable Gland*
• Per camera in multi-camera packs.

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE switch. If using a DC power adapter (not included) with the camera, a REGULATED power supply is REQUIRED for use with this camera. Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.

Dimensions

Safety Precautions

• Use the camera only with compatible Lorex NVRs.
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels noted in the camera’s specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of intense light.
• Use only a regulated power supply with the product (optional). Use of a non-regulated, nonconforming power supply can damage the product and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.
• Check the packaging of the included cable to verify cable grade based on model number. CBL605U: The supplied cable is rated for surface and in-wall mounting. CBL100C5: The supplied cable is rated for surface mounting only. Cables for in-wall and floor-to-floor installations are sold separately (CMR type). These and other cables are available at lorex.com.

Disclaimers

• For a full list of compatible recorders, visit lorex.com/compatibility.
• To ensure that you are viewing camera video in full 4K resolution (4K monitor required), check the video output resolution of your recorder. For full instructions, see your recorder’s documentation at lorex.com.
• Not intended for submersion in water. Installation in a sheltered location recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/ Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camera filter is working.

Need Help?
Visit us online for up-to-date software and complete instruction manuals.

Copyright © 2019 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

STEP 1: Important Installation Guidelines

Optimizing Person and Vehicle Detection Accuracy:

• Angle the camera so that objects of interest appear in the bottom ⅔ of the camera image.
• Choose a location where objects of interest will be no further than 50ft (~15m) from the camera.

Lower accuracy for objects further away than 50ft (~15m) and/ or in the top ⅓ of the image.

Optimal accuracy for objects within 50ft (~15m) and in the bottom ⅔ of the image.

• Angle the camera between 30~60° down from thelevel position.
• Install the camera between 8-16ft (2.5-5m) off of the ground.

  STEP 2: Installing the Camera
  NOTE: Accuracy of person and vehicle detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and
  the height and angle of the camera. Night vision will also impact the accuracy of detection.

Additional Installation Tips:

• Point the camera where there is the least amount of obstructions (e.g., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is recommended.

STEP 2: Installing the Camera

ATTENTION:

• Test your camera prior to selecting a permanent mounting location by temporarily connecting the camera and cable to your NVR.
• Review the section “STEP 1: Important Installation Guidelines” above before choosing a permanent mounting location.

Before Installing the Camera

• Decide whether to run the cables through the wall / ceiling (drilling required) or along the wall / ceiling.
• If you run the cables along the wall / ceiling, you must run the cable through the cable notch on the base. This will keep the camera base flush to the surface when mounted.

To install your camera:

1. Use the included mounting template to mark holes for the screws. Drill holes for the mounting screws.
   NOTE: Insert the included drywall anchors if you are installing the camera in drywall.
2.  Connect cables as shown in the section “Connecting the Camera”.
3. Feed the cable through the mounting surface or cable notch and mount the camera stand to the surface using the provided screws.
4. Use a Philips head screwdriver (not included) to loosen the adjustment screws shown below. Adjust the camera position as needed:

   A. Rotate the camera base 360°.
   B. Tilt the camera on the stand up to 90°.
   C. Twist the camera around the stand 360°.
5. Tighten the adjustment screws to secure the position.
6. Remove the vinyl film from the camera lens when your installation is complete.

Connecting the Camera

Using the RJ45 Cable Gland (Optional)

The pre-attached RJ45 cable gland covers the camera’s Ethernet connector and the RJ45 plug to provide weather-resistance and protection from dust, dirt and other
environmental contaminants.

NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with silicone and/or electrical tape for additional sealing if it will be exposed to precipitation regularly.

CSeotnupn Deicagtrinam

Scenario 1: Connect Cameras to NVR

ATTENTION:

• This camera is only compatible with select NVRs. For a list of compatible recorders, visit lorex.com/compatibility.
• You must connect the camera to a supporting H.265 NVR to take advantage of H.265 compression. For instructions on enabling H.265 compression, visit
  orex.com, and search for “How do I enable H.265 compression?”.

Cable Extension Options

Extend the Ethernet cable run for your camera up to 300ft (91m). See table below. It is recommended to use UL CMR approved cables available at lorex.com.

• You can use a RJ45 coupler or network switch (not included) to connect male ends of Ethernet cable together.
• To extend the cable run beyond 300ft (91m), a switch will be required (sold separately).

Audio Settings

ATTENTION:
Audio recording and listen-in audio are disabled by default. Audio recording and/or use of listen-in audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.

To enable audio recording and listen-in audio:

1. From Live View, right-click and click Main Menu. Enter the system user name (default: admin) and password.
2. Click and select Recording.
3. Under Channel, select the channel where the audio-capable camera is connected.
4. Under Audio/Video:
   A. Check to enable audio recording and listen-in audio.
   NOTE: Listen-in audio requires a monitor with speakers or speakers connected to the NVR.
   B. (Optional) Check to enable audio streaming to mobile applications.
5. Under Audio Encode, select the format that will be used to record audio. G711A is recommended.
6. Click OK to save changes.


NOTE: These instructions are based on current NVR interface. For the most up-to-date instructions, see your NVR’s instruction manual on lorex.com.

Troubleshooting

Lorex 4k Ultra HD Smart Network Video Recorder With Fusion

4K Quality with Extensive Storage and Lorex Fusion Compatibility

Record and view impressive 4K video resolution with a heightened level of detail and definition. As part of the Lorex Fusion™ collection you can tailor your security system to your needs, by pairing with both wired and Wi-Fi cameras of your choice, such as video doorbells, floodlights and sensors. Only receive the most important alerts, thanks to Smart Motion Detection, which can differentiate motion generated from either a person or a vehicle and not for things like weather or swaying branches.

Be confident that your security footage is private and secure with the built-in security grade hard drive – with no hidden monthly fees. Expand your storage, using the dual hard drive bays. With 4K resolution, Fusion™ capabilities, smart home compatibility, expandable storage, and support for Smart Motion Detection – this NVR is designed for your security needs.

Features

Picture Perfect

See more and know more with superior definition and detail

• Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras¹
• View live footage in up to 15fps and digitally zoom in on distant objects for better clarity²

Expand your system with Lorex Fusion™

Tailor your security system to your needs

• Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more³
• Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
• Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD

Smart Person and Vehicle Detection

Always know when a person or vehicle is on your property

• Reduce unnecessary alerts and false alarms with Smart motion detection⁵
• Get push notifications when motion from a person or vehicle is detected⁷
• Use Smart Search to filter motion events for reviewing footage quickly and easily

Local Storage – No Monthly Fees

Keep your footage private and secure

• 2 bay hard drive with up to 2 × 8TB of storage space with no hidden monthly fees
• Local built-in security-grade hard drive
• Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring

Home is where the smart is

Enjoy the convenience and control of smart home compatibility and voice control features*

• Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)⁴
• View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)

* Not compatible with PAL version.

Product Specifications

Model Information

Dimensions

Back Panel

What’s in the box

Disclaimers:

1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit
5. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
6. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit
7. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit
8. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
9. NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibilitydisclaimer 9: NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more please visit

Setting Up Your Recorder

See the steps below (expanded instructions to the right) to complete initial setup of the recorder:

For camera compatibility information, visit lorex.com/compatibility.            * Not included / sold separately

Overview of extra ports:

NOTE: For full instructions on using the extra ports, please refer to your security recorder’s instruction manual at lorex.com.

Need Help?
Visit us online for up-to-date software
and complete instruction manuals.

Copyright © 2019 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

Back panels shown below are for illustration only. Your recorder’s back panel
may appear different, with all the same ports in different locations.

STEP 1: Connect cameras*

Test your cameras prior to selecting a permanent mounting location by temporarily connecting the cameras and cables to your DVR.

NOTES:

• The extension cable must be a single stretch of cable between the recorder and camera. You cannot connect multiple extension cables to each other.
• This guide covers connecting cameras to your security recorder only. For full instructions on installing your
  cameras, please refer to your camera’s documentation at lorex.com.
• Before selecting a permanent mounting location for your cameras, see Ensuring Accurate Person and
  Vehicle Detection below for important camera installation notes.

STEP 2: Connect router*

Connect the recorder to your router using the included Ethernet cable.

NOTE: To receive automatic firmware updates and enable remote viewing with mobile apps, a high speed Internet
connection is required (minimum upload speed of 3.5Mbps required for remote viewing). All other system features can be used without an Internet connection.

STEP 3: Connect mouse

Connect the included mouse to a USB port on the recorder.

STEP 4: Connect monitor*

Connect the recorder to a monitor using the included HDMI cable or a VGA cable (not included).
Both HDMI and VGA ports support up to 1080p output resolution.

IMPORTANT: The system will automatically match the resolution of the connected monitor the first time you use
the recorder. If you need to switch monitors, make sure you set the recorder to an output resolution supported by the new monitor before switching. See Changing the Recorder’s Output Resolution on the rear for details.

STEP 5: Connect power

Use the included power adapter to connect the recorder to a nearby outlet. Turn the recorder on using the power switch on the back panel.

STEP 6: Lorex Setup Wizard

When you first power up your recorder, the
Lorex Setup Wizard will begin. The Wizard will help you configure core system settings.
You will also create a secure password. For future reference, it is recommended that you record your password here:

Record your password below and store in a secure place:

The following are important camera installation notes to ensure accurate person and vehicle detection. For full camera mounting instructions, see your camera’s documentation at lorex.com.

• Angle the camera so that objects of interest appear in the bottom ⅔ of the camera image.
• Choose a location where objects of interest will be no further than 50ft (~15m) from the camera. Lower accuracy for objects further away than 50ft
  (~15m) and/or in the top ⅓ of the image                                                    Optimal accuracy for objects within 50ft (~15m)
  and in the bottom ⅔ of the image.
• Angle the camera between 30~60° down from the level position.
• Install the camera between 8-16ft (2.5-5m) off of the ground.

NOTE: Accuracy of person and vehicle detection will be influenced by multiple
factors, such as the object’s distance from the camera, the size of the
object, and the height and angle of the camera. Night vision will also impact
the accuracy of detection.

Additional Installation Tips:

• Point the camera where there is the least amount of obstructions (e.g., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is recommended.

Once you have completed all steps for initial setup on the front of this guide, please refer to the following sections to learn more about using your system.

Using the Mouse

• During split-screen display mode: Click an individual channel to view it in full-screen. Click again to return to the splitscreen display mode.
• While navigating menus: Click to open a menu option.
• During live view: Click anywhere on the screen to open the Quick
  Menu.
• While navigating menus: Click to exit menus.

During live view: Use the scroll wheel to zoom in / out.

NOTE: In live view, hover the mouse cursor over the top of the screen to open the Navigation Bar. Move the mouse
cursor away from the top of the screen to close the Navigation Bar.

Quick Access to System Information

Right-click anywhere on the live viewing screen to open the
b Quick Menu.
a. Open Main Menu.
b. Search and playback recordings.
c. Control PTZ cameras (not included).
d. Select camera / live display view.
e. View previous / next channel(s).
f. View system information.
g. Start/stop sequence mode.
h. Temporarily disable all current audible warnings.
i. Open manual recording controls.
j. Adjust camera color and image settings.

Changing the Recorder’s Output Resolution

The system will automatically match the resolution of the connected monitor the first time you use the recorder.

IMPORTANT: If you need to switch the monitor, make sure you set the recorder to an output resolution
supported by the new monitor before switching.

To change the recorder’s output resolution:

1. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default:
   admin) and your new, secure password.
2. Click DISPLAY, then configure the following:

a. Set Resolution to match the
highest resolution supported
by your monitor. For example,
select 1920×1080 for 1080p
monitors, or 1280×720 for 720p.
b. Click Apply. The recorder will
restart before changes take
effect.

Playback

Search through and play video recordings from the hard drive.
To search for and play recordings:

1. From live view, right-click and then click Playback. If prompted, log in using the system user name (default:
   admin) and your new, secure password.
2. Configure the following:
   a. Use the calendar on the right to
   select the date to playback.
   b. Check channels you want to
   play back. Click the icon beside
   each selected channel to select
   Mainstream (M) or Substream (S) video quality.
   c. Click inside the video bar to select
   the playback time. Playback starts
   immediately at the selected time.

To filter for person / vehicle recordings:

PREREQUISITE: You must enable Smart Motion Detection on any and all channels you would like to filter
for person / vehicle detection. See the section Motion & Advanced Person/Vehicle Detection for details.

d. Click to stop
current playback.

e. Hover over the icon. Check Person / Vehicle to filter available playback events.
Wait a few seconds for the video bar to show detection events.

Backup

Back up recordings from the hard drive to a USB flash drive (not included).

To back up recordings:

1. Insert a formatted USB flash drive (not included) into a free USB port on the recorder.
2. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default:
   admin) and your new, secure password.
3. Click BACKUP.
4. Configure the following:

a. Select your USB drive and the
folder for the backup.
b. Select the channel(s) and
recording types to search by.
c. Select a start and end time.
d. Choose a file format.
e. Click Add to see recordings that
match your search.
f. Check boxes next to recordings
you want to back up.
g. Click Backup.

Motion & Advanced Person/Vehicle Detection

Set preferences for motion detection. This section includes setup of person/vehicle detection. By default, person/vehicle detection is enabled on channels 1 and 2.

To configure motion & advanced person/vehicle detection:

1. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default:
   admin) and your new, secure password.
2. Click ALARM. Click MOTION on the far-left, then click the Motion Detect tab.
3. Configure the following:

a. Select the channel you would like to configure.
b. Click Enable.
c. Click Setup next to Area to set an active area for motion
detection. See Figure 1 below for details.
d. Click Setup next to Schedule to set the weekly schedule
for motion detection. See Figure 2 below for details.
e. Set preferences for how the system
reacts to motion detection events.
f. Click Smart Motion Detection to
enable person / vehicle detection.
See Figure 3 below for details.
g. Click Apply to save changes.

The camera image appears with a red grid overlay.
This means the entire image is enabled for motion
detection.

• Click or click-and-drag to add / remove boxes
  from the active area. Cells that have been
  removed from the active area appear green.
• Hover near the top of the image to reveal zone
  selection. You can set up to 3 different zones with
  different sensitivity and threshold values.
• Right-click when finished.

Figure 1: Motion Detection Area

Figure 2: Motion Schedule

• The default schedule, shown in Figure 2, is
  active at all times.
• Click Modify to change the schedule for the
  corresponding day of the week.
• Click OK when finished.

Figure 3: Smart Motion Detection

• Click Enable to allow detection of people and vehicles
  on the selected channel.
  IMPORTANT: A maximum of 2 channels will support
  person/vehicle detection at once. By default, channels
  1 and 2 have person/vehicle detection enabled.
• Select a Sensitivity level (a high sensitivity value will
  detect smaller objects than a low value).
• Check Person / Vehicle.
• Click OK when finished.

Configuring Deterrence Settings

Set preferences for automatic warning light triggering on compatible Lorex deterrence cameras.
For a complete list of compatible deterrence cameras, navigate to your recorder series at lorex.com/compatibility.

To configure deterrence settings

1. In live view, right-click and click Main Menu. If prompted, log in using the system user name (default: admin)
   and your new, secure password.
2. Click ALARM. Click MOTION on the far-left, then click the Deterrence tab.
3. Configure the following

a. Select the channel of a connected
deterrence camera.
b. Check Enable.
c. Click Setup next to Warning Light to
configure preferences.
d. Click Setup next to Area to set an active area for automatic
deterrence. See Figure 4 below for details.
e. Click Setup next to Schedule to set the weekly schedule for
automatic deterrence. See Figure 5 below for details.
f. Click Apply.

Figure 4: Deterrence Area

• The camera image appears with a grid overlay. The
  green area is the active area for deterrence.
• Click or click-and-drag to add / remove boxes from
  the active area.
• In Figure 4, only motion around the doorway will
  trigger warning light.
• Right-click when finished.

Figure 5: Deterrence Schedule

• The default schedule, shown in Figure 5, is
  active during the night, between 5pm and
  7am.
• Click Modify to change the schedule for the
  corresponding day of the week.
• Click OK when finished.

To set off all connected deterrence cameras’ warning lights and
sirens, press and hold the front panel button for 3 seconds.

LOREX D862 Series 4K DVR with Smart Motion Detection

Physical setup of the recorder and essential system settings

Package Contents

Dimensions

Setting Up Your Recorder

See the steps below (expanded instructions to the right) to complete initial setup of the recorder:

8-channel configuration shown. 16-channel will have the respective number of video inputs.
For camera compatibility information, visit lorex.com/compatibility.
* Not included/sold separately.

Back panels shown below are for illustration only. Your recorder’s back panel may appear different, with all the same ports in different locations.

STEP 1: Connect cameras
Test your cameras prior to selecting a permanent mounting location by temporarily connecting the cameras and cables to your DVR.

NOTES:

• The extension cable must be a single stretch of cable between the recorder and camera. You cannot connect multiple extension cables to each other.
• This guide covers connecting cameras to your security recorder only. For full instructions on installing your cameras, please refer to your camera’s documentation at lorex.com.
• Before selecting a permanent mounting location for your cameras, see Ensuring Accurate Person and Vehicle Detection below for important camera installation notes.

STEP 2: Connect router
Connect the recorder to your router using the included Ethernet cable.

NOTE: To receive automatic firmware updates and enable remote viewing with mobile apps, a high-speed Internet connection is required (minimum upload speed of 5Mbps required for 4K viewing; 3.5Mbps for lower resolutions). All other system features can be used without an Internet connection.

STEP 3: Connect mouse
Connect the included mouse to a USB port on the recorder.

STEP 4: Connect monitor
Connect the recorder to a monitor using the included HDMI cable or a VGA cable (not included). The HDMI port supports up to 4K resolution, and VGA supports up to 1080p.

IMPORTANT: The system will automatically match the resolution of the connected monitor the first time you use the recorder. If you need to switch monitors, make sure you set the recorder to an output resolution supported by the new monitor before switching. See Changing the Recorder’s Output Resolution on the rear for details.

STEP 5: Connect power
Use the included power adapter to connect the recorder to a nearby outlet. Turn the recorder on using the power switch on the back panel.

STEP 6: Lorex Setup Wizard

When you first power up your recorder, the Lorex Setup Wizard will begin. The Wizard will help you configure core system settings.

You will also create a secure password. For future reference, it is recommended that you record your password here:

Record your password below and store in a secure place:

Ensuring Accurate Person and Vehicle Detection

The following are important camera installation notes to ensure accurate person and vehicle detection.
For full camera mounting instructions, see your camera’s documentation at lorex.com.

• Angle the camera so that objects of interest appear in the bottom ⅔ of the camera image.
• Choose a location where objects of interest will be no further than 50ft (~15m) from the camera.

• Angle the camera between 30~60° down from the level position.
• Install the camera between 8-16ft (2.5-5m) off of the ground.

NOTE: Accuracy of person and vehicle detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.

Additional Installation Tips:

• Point the camera where there is the least amount of obstructions (e.g., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is recommended.

Once you have completed all steps for initial setup on the front of this guide, please refer to the following sections to learn more about using your system.

Using the Mouse

NOTE: In live view, hover the mouse cursor over the top of the screen to open the Navigation Bar. Move the mouse cursor away from the top of the screen to close the Navigation Bar.

Quick Access to System Information

To quickly open a window that displays vital system information such as device ID, model number, firmware version, and IP address:

• Tap the button on the front panel of the recorder.
  OR
• Right-click to open the Quick Menu and click Info.

Using the Quick Menu
Right-click anywhere on the live viewing screen to open the Quick b Menu.

a. Open Main Menu.
b. Search and playback recordings.
c. Control PTZ cameras (not included).
d. Select camera / live display view.
e. View previous / next channel(s).
f. View system information.
g. Start/stop sequence mode.
h. Temporarily disable all current audible warnings.
i. Open manual recording controls.
j . Adjust camera color and image settings.

Changing the Recorder’s Output Resolution

The system will automatically match the resolution of the connected monitor the first time you use the recorder.

IMPORTANT: If you need to switch the monitor, make sure you set the recorder to an output resolution supported by the new monitor before switching.

To change the recorder’s output resolution:

1. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click DISPLAY, then configure the following:

a. Set Resolution to match the highest resolution supported by your monitor. For example, select 3840×2160 for 4K monitors, or 1920×1080 for 1080p.

b. Click Apply. The recorder will restart before changes take effect.

Playback
Search through and play video recordings from the hard drive.

To search for and play recordings:

1. From live view, right-click and then click Playback. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Configure the following:

To filter for person and vehicle recordings:
PREREQUISITE: You must enable Smart Motion Detection on any and all channels you would like to filter for person and vehicle detection. See the section Motion & Smart Motion Detection for details.

d. Click to stop current playback.
e. Hover over the icon. Check Person and Vehicle to filter available playback events. Wait a few seconds for the video bar to show detection events.

Backup
Back up recordings from the hard drive to a USB flash drive (not included).

To back up recordings:

1. Insert a formatted USB flash drive (not included) into a free USB port on the recorder.
2. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
3. Click BACKUP.
4. Configure the following:

a. Select your USB drive and the folder for the backup.
b. Select the channel(s) and recording types to search by.
c. Select a start and end time.
d. Choose a file format.
e. Click Search to see recordings that match your search.
f. Check boxes next to recordings you want to back up.
g. Click Backup.

Motion & Smart Motion Detection

Set preferences for motion detection. This section includes setup of person and vehicle detection.

To configure motion:

1. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click EVENTS. Click Events Settings on the far-left, then click the Motion Detect tab.
3. Configure the following:

a. Select the channel you would like to configure.
b. Click Enable.
c. Click Setup next to Area to set an active area for motion detection. See Figure 1 below for details.
d. Click Setup next to Schedule to set the weekly schedule for motion detection. See Figure 2 below for details.
e. Set preferences for how the system reacts to motion detection events.
f. Click Smart Motion Detection to enable person and vehicle detection.
See Figure 3 below for details.
g. Click Apply to save changes.

• The camera image appears with a red grid overlay.
  This means the entire image is enabled for motion detection.
• Click or click-and-drag to add/remove boxes from the active area. Cells that have been removed from the active area appear green.
• Hover near the top of the image to reveal zone selection. You can set up to 3 different zones with different sensitivity and threshold values.
• Right-click when finished.

• The default schedule, shown in Figure 2, is active at all times.
• Click Modify to change the schedule for the corresponding day of the week.
• Click OK when finished.

• Click Enable to allow detection of people and vehicles on the selected channel.
• Select a Sensitivity level (a high sensitivity value will detect smaller objects than a low value).
• Check Person and/or Vehicle.
• Click OK when finished.

Configuring Deterrence Settings

Set preferences for automatic warning light triggering on compatible Lorex deterrence cameras.
For a complete list of compatible deterrence cameras, navigate to your recorder series at lorex.com/compatibility.

To configure deterrence settings:

1. In live view, right-click and click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click EVENTS. Click Event Settings on the far-left, then click the Deterrence tab.
3. Configure the following:

a. Select the channel of a connected deterrence camera.
b. Check Enable.
c. Click Setup next to Warning Light to configure preferences.
d. Click Setup next to Area to set an active area for automatic deterrence. See Figure 4 below for details.
e. Click Setup next to Schedule to set the weekly schedule for automatic deterrence. See Figure 5 below for details.
f. Click Apply.

• The camera image appears with a grid overlay. The green area is the active area for deterrence.
• Click or click-and-drag to add / remove boxes from the active area.
• In Figure 4, only motion around the doorway will trigger warning light.
• Right-click when finished.

• The default schedule, shown in Figure 5, is active during the night, between 5pm and 7am.
• Click Modify to change the schedule for the corresponding day of the week.
• Click OK when finished.

To set off all connected deterrence cameras’ warning lights and sirens, press and hold the front panel button for 3 seconds.

Overview of extra ports

NOTE: For full instructions on using the extra ports, please refer to your security recorder’s instruction manual at lorex.com.

Need Help?
Visit us online for up-to-date software and complete instruction manuals.

1. Visit lorex.com
2. Search for the model number of your product.
3. Click on your product in the search results
4. Click on the Downloads tab

For more information about Lorex’s warranty policy, visit lorex.com/warranty.

Copyright © 2021 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

LOREX W281AA Series Security Camera

Package Contents

Camera Overview

1. Microphone
2. Image Sensor
3. IR LED
4. Warning Light
5. Status LED
6. Power Cable
7. Mounting Point
8. Speaker
9. microSD Slot
10. Reset Button: Press and hold for 10 seconds until you hear the audible chime.

Dimensions

Status LED Behavior

See table below for definitions of camera’s LED behaviors:

Safety Precautions

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Use the camera within given temperature, humidity and voltage levels noted in the camera’s specifications.
• Do not disassemble the camera.
• Do not point the camera directly at the sun or a source of intense light.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.

Installation

STEP 1: Getting Started

Verify your camera image by temporarily plugging it in indoors. You will complete final installation and mounting later in the process.

1. Plug in the camera:
   Connect the included power adapter to the camera cable. No need to use the included extension cable at this time.
2. Download and sign up with Lorex Home:
   • Download and launch the Lorex Home app from the App Store or Google Play Store.
   • Tap Sign up, then follow the on screen prompts to create an account. Record your account details below:
3. Add your camera:
   • Wait until the startup chime is heard and the status LED on the camera is flashing green.
   • From the Devices tab, tap .
     NOTE: If this is not your first device, tap + in the top-right corner.
   • Scan the QR code on the bottom of the camera:
     NOTE: If your mobile device cannot scan the QR code, tap Manually enter Device ID.
4. Create password
   • Create a secure password for the camera.
5. Connect to Wi-Fi
   • Select your Wi-Fi network from the list.
   • Enter your Wi-Fi password, then tap Connect.
6. Finishing touches
   • Wait until the status LED on the camera is solid green, then tap Next.
   • The camera is added to your Lorex Home account.
   • Set the camera name and time zone, then tap Complete.

Congratulations! You can now view live video from your camera on your mobile device.

STEP 2: Important Installation Notes

Ensuring Accurate Person & Vehicle Detection:

Please refer to the following installation notes for outdoor mounting locations:

• Angle the camera so that objects of interest appear in the bottom ⅔ of the camera image.
• Choose a location where objects of interest will be between 5-50ft (1.5-15m) from the camera.
• Lower accuracy for objects further away than 50ft (~15m) and/or in the top ⅓ of the image.
• Optimal accuracy for objects between 5-50ft (1.5- 15m) and in the bottom ⅔ of the image.
• Angle the camera between 30~60° down from the level position.
• Install the camera between 8-16ft (2.5-5m) off of the ground.

NOTE: Accuracy of person and vehicle detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.

Connectivity Guidelines:

• Place the camera as close to your Wi-Fi router or access point as possible.
• Reduce the number of obstructive materials between the camera and the router or access point. Concrete, brick, metal and wood are the most common materials in your house that can cause poor signal strength.
• Other electronic devices such as microwaves, TVs, cordless phones, and baby monitors can cause signal interference. It is recommended to install the camera as far away from these devices as possible.

Additional Installation Tips:

• Point the camera where there is the least amount of obstructions (e.g., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is recommended.

Once you have completed initial setup using the Lorex Home app detailed on the front page, and reviewed all installation notices above, select one of the installation methods below:

STEP 3A: Wall Mounting

1. Unplug the camera.
2. Use the included mounting template to mark holes for the mounting screws (×2) and cable (see Figure 1).
3. Drill holes where marked. If required, insert the included drywall anchors (×2).
4. Set the mounting plate over the screw holes with the TOP indicator pointing up. Secure the mounting plate in place using the included screws (see Figure 2).
5. Twist the camera clockwise onto the wall mount (see Figure 3).
6. Feed the camera cable through the cable notch in the wall mount, as well as the mounting surface (see Figure 4).
7. Use a flathead screwdriver (not included) to unlock the wall mount to move the adjustment arm. Adjust the camera angle as needed, then lock the adjustment arm (see Figure 5).
8. Position the wall mount over the wall mounting plate so the cable notch lines up with the unlocked position marked on the wall mount base (see Figure 6).
9. Twist the wall mount cover clockwise to lock the camera in place.
10. Reconnect the camera to the included power adapter using the optional weatherproof USB extension cable if desired (see Figure 7).

STEP 3B: Ceiling / Tabletop Mounting

For tabletop installation:
Please refer to the following installation notes for outdoor mounting locations:

• Ensure objects of interest will be further than 5ft (1.5m) from the camera.
• Place the camera so that it has a clear view of the scene, and is not blocked by the surface it is installed on.

For ceiling installation:
Refer to “Ensuring Accurate Person & Vehicle Detection” above.

1. Unplug the camera.
2. Use the included mounting template to mark holes for the mounting screws (×4) and cable (see Figure 8).
3. Drill holes where marked. If required, insert the included drywall anchors (×4).
4. Remove the pre-inserted silicon plugs (4×) from the mounting stand (see Figure 9).
5. Twist the camera clockwise onto the mounting stand (see Figure 10)
6. Set the mounting stand over the screw holes. Secure the mounting stand in place using the included screws (see Figure 11).
7. Feed the camera cable through the hole in the mounting stand base, as well as the mounting surface (see Figure 12).
8. Twist the adjustment ring on the mounting stand counterclockwise to adjust the camera angle as needed. Tighten the adjustment ring when finished (see Figure 13).
9. Reconnect the camera to the included power adapter using the optional weatherproof USB extension cable if desired (see Figure 14).

Congratulations! Your camera is fully installed and ready to go. Now let’s start exploring what your camera can do. See the section below for an overview of features using Lorex Home.

Lorex Home Overview

Live Viewing Controls

A. Return to Main Menu
B. Settings: Configure settings for selected device.
C. Pause/Restart Video
D. Viewing Mode: Switch between single and quad-channel views*.
E. Video Quality: Tap to switch to HD** video quality. Tap again for reduced video quality that is optimized for streaming.
F. Audio: Tap to mute / unmute.
G. Fullscreen: Tap to view in landscape mode.
H. Timeline: Tap to search for and play back recorded videos.
I. Snapshot: Tap to save a still image of the current live view.
J. Two-Way Audio: Tap to speak into the microphone on your mobile device. Sound will be transmitted through the camera’s speaker. Tap again to disable.
K. Manual Recording: Tap to begin manual recording of the current live view. Tap again to stop recording and save the video clip to your mobile device storage.
L. Siren: Tap to enable the camera’s siren.
M. Warning Light: Tap to enable the warning light.

• Quad-channel view allows you to view up to 3 other cameras, or channels from a security system. Tap the + sign on an empty channel to select additional devices.
• HD resolution will be limited to the maximum screen resolution of your mobile device. This will not impact the recording resolution of the camera.

Smart Motion Detection

To access smart motion detection settings:
From the Devices tab (default screen when launching Lorex Home), tap your Wi-Fi camera to access the device settings. Tap Detection Settings.

A. Motion Detection: Tap to enable/disable motion detection.
B. Person Detection: Tap to enable/disable person detection. Motion notifications will state when a person is detected.
C. Vehicle Detection: Tap to enable/disable vehicle detection. Motion notifications will state when a vehicle has been detected.
D. Motion Sensitivity: Set a sensitivity level for motion detection (1 is the lowest).
E. Warning LED Light: Tap to enable/disable automatic warning light triggering when motion, person, or vehicle is detected.

NOTE: For complete app instructions, see the Lorex Home manual on your product page at lorex.com.

Disclaimers

• A regulated UL / CSA approved power supply is required for use with this camera (included). Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.
• Not intended for submersion in water. Installation in a sheltered location recommended.
• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camera filter is working.
• Some channels on the 5GHz Wi-Fi band are restricted in Canada. This means certain Wi-Fi networks may not be available to connect to during setup.

1 / 2
Quick Setup Guide
Physical setup of the recorder and essential system settings
D861 Series

Package Contents

Dimensions

Setting Up Your Recorder

See the steps below (expanded instructions to the right) to complete the initial setup of the recorder: 8-channel configuration shown. 16-channel will have the respective number of video inputs.
For camera compatibility information, visit lorex.com/compatibility.
* Not included/sold separately.
Overview of extra ports:

NOTE: For full instructions on using the extra ports, please refer to your security recorder’s instruction manual at lorex.com.
Need Help?
Visit us online for up-to-date software and complete instruction manuals.

1. Visit lorex.com
2. Search for the model number of your product
3. Click on your product in the search results
4. Click on the Downloads tab

Back panels shown below are for illustration only. Your recorder’s back panel may appear different, with all the same ports in different locations.
STEP 1: Connect cameras*
Test your cameras prior to selecting a permanent mounting location by temporarily connecting the cameras and cables to your DVR.

NOTES:

• The extension cable must be a single stretch of cable between the recorder and camera. You cannot connect multiple extension cables to each other.
• This guide covers connecting cameras to your security recorder only. For full instructions on installing your cameras, please refer to your camera’s documentation at lorex.com.
•  Before selecting a permanent mounting location for your cameras, see Ensuring Accurate Person and Vehicle Detection below for important camera installation notes.

STEP 2: Connect router*
Connect the recorder to your router using the included Ethernet cable.

NOTE: To receive automatic firmware updates and enable remote viewing with mobile apps, a high-speed Internet connection is required (minimum upload speed of 5Mbps required for 4K viewing; 3.5Mbps for lower resolutions). All other system features can be used without an Internet connection.
STEP 3: Connect the mouse
Connect the included mouse to a USB port on the recorder.

STEP 4: Connect monitor*

Connect the recorder to a monitor using the included HDMI cable or a VGA cable (not included). The HDMI port supports up to 4K resolution, and VGA supports up to 1080p.

IMPORTANT: The system will automatically match the resolution of the connected monitor the first time you use the recorder. If you need to switch monitors, make sure you set the recorder to an output resolution supported by the new monitor before switching. See Changing the Recorder’s Output Resolution on the rear for details.
STEP 5: Connect the power
Use the included power adapter to connect the recorder to a nearby outlet. Turn the recorder on using the power switch on the back panel.

STEP 6: Lorex Setup Wizard
When you first power up your recorder, the Lorex Setup Wizard will begin. The Wizard will help you configure core system settings.
You will also create a secure password. For future reference, it is recommended that you record your password here:

Record your password below and store in a secure place:

Ensuring Accurate Person and Vehicle Detection

The following are important camera installation notes to ensure accurate person and vehicle detection.
For full camera mounting instructions, see your camera’s documentation at lorex.com.

• Angle the camera so that objects of interest appear in the bottom ⅔ of the camera image.
• Choose a location where objects of interest will be no further than 50ft (~15m) from the camera.
• Angle the camera between 30~60° down from the level position.
•  Install the camera between 8-16ft (2.5-5m) off of the ground.

NOTE: Accuracy of person and vehicle detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.

Additional Installation Tips:

• Point the camera where there is the least amount of obstructions (e.g., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered location is recommended.

Once you have completed all steps for initial setup on the front of this guide, please refer to the following sections to learn more about using your system.

Using the Mouse

NOTE: In live view, hover the mouse cursor over the top of the screen to open the Navigation Bar. Move the mouse cursor away from the top of the screen to close the Navigation Bar.

Quick Access to System Information

To quickly open a window that displays vital system information such as device ID, model number, firmware version, and IP address:

• Tap the button on the front panel of the recorder.
  OR
• Right-click to open the Quick Menu and click Info.

Using the Quick Menu

Right-click anywhere on the live viewing screen to open the Quick Menu.

a. Open Main Menu.
b. Search and playback recordings.
c. Control PTZ cameras (not included).
d. Select camera / live display view.
e. View previous / next channel(s).
f. View system information.
g. Start/stop sequence mode.
h. Temporarily disable all current audible warnings.
i. Open manual recording controls.
j. Adjust camera color and image settings.

Changing the Recorder’s Output Resolution

The system will automatically match the resolution of the connected monitor the first time you use the recorder.

 IMPORTANT: If you need to switch the monitor, make sure you set the recorder to an output resolution supported by the new monitor before switching.
To change the recorder’s output resolution:

1. From the live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click DISPLAY, then configure the following:

a. Set Resolution to match the highest resolution supported by your monitor. For example, select 3840×2160 for 4K monitors, or 1920×1080 for 1080p.
b. Click Apply. The recorder will restart before changes take effect.

Playback

Search through and play video recordings from the hard drive.
To search for and play recordings:

1. From the live view, right-click and then click Playback. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Configure the following:


a. Use the calendar on the right to select the date to playback.
b. Check channels you want to playback. Click the icon beside each selected channel to select Mainstream (M) or Substream (S) video quality.
c. Click inside the video bar to select the playback time. Playback starts immediately at the selected time.
To filter for person and vehicle recordings:
PREREQUISITE: You must enable Smart Motion Detection on any and all channels you would like to filter for the person and vehicle detection. See the section Motion & Smart Motion Detection for details.
d. Click to stop current playback.
e. Hover over the icon. Check Person and Vehicle to filter available playback events. Wait a few seconds for the video bar to show detection events.

Backup

Back up recordings from the hard drive to a USB flash drive (not included).
To back up recordings:

1. Insert a formatted USB flash drive (not included) into a free USB port on the recorder.
2. From the live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
3. Click BACKUP.
4. Configure the following:

a. Select your USB drive and the folder for the backup.
b. Select the channel(s) and recording types to search by.
c. Select a start and end time.
d. Choose a file format.
e. Click Search to see recordings that match your search.
f. Check boxes next to recordings you want to back up.
g. Click Backup.

Motion & Smart Motion Detection

Set preferences for motion detection. This section includes the setup of person and vehicle detection.
To configure motion:

1. From live view, right-click and then click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click EVENTS. Click Events Settings on the far-left, then click the Motion Detect tab.
3. Configure the following:

a. Select the channel you would like to configure.
b. Click Enable.
c. Click Setup next to Area to set an active area for motion
detection. See Figure 1 below for details.
d. Click Setup next to Schedule to set the weekly schedule for motion detection. See Figure 2 below for details.
e. Set preferences for how the system reacts to motion detection events.
f. Click Smart Motion Detection to enable person and vehicle detection.
See Figure 3 below for details.
g. Click Apply to save changes.

• The camera image appears with a red grid overlay.
  This means the entire image is enabled for motion detection.
• Click or click-and-drag to add/remove boxes from the active area. Cells that have been removed from the active area appear green.
• Hover near the top of the image to reveal zone selection. You can set up to 3 different zones with different sensitivity and threshold values.
• Right-click when finished.

• The default schedule, shown in Figure 2, is active at all times.
• Click Modify to change the schedule for the corresponding day of the week.
• Click OK when finished.
• Click Enable to allow detection of people and vehicles on the selected channel.
• Select a Sensitivity level (a high sensitivity value will detect smaller objects than a low value).
• Check Person and/or Vehicle.
• Click OK when finished.

Configuring Deterrence Settings

Set preferences for automatic warning light triggering on compatible Lorex deterrence cameras.
For a complete list of compatible deterrence cameras, navigate to your recorder series at lorex.com/compatibility.
To configure deterrence settings:

1. In live view, right-click and click Main Menu. If prompted, log in using the system user name (default: admin) and your new, secure password.
2. Click EVENTS. Click Event Settings on the far-left, then click the Deterrence tab.
3. Configure the following:

a. Select the channel of a connected deterrence camera.
b. Check Enable.
c. Click Setup next to Warning Light to configure preferences.
d. Click Setup next to Area to set an active area for automatic deterrence. See Figure 4 below for details.
e. Click Setup next to Schedule to set the weekly schedule for automatic deterrence. See Figure 5 below for details.
f. Click Apply.

• The camera image appears with a grid overlay. The green area is the active area for deterrence.
• Click or click-and-drag to add/remove boxes from the active area.
• In Figure 4, only motion around the doorway will trigger a warning light.
• Right-click when finished.
• The default schedule, shown in Figure 5, is active during the night, between 5 pm and 7 am.
• Click Modify to change the schedule for the corresponding day of the week.
• Click OK when finished.

To set off all connected deterrence cameras’ warning lights and sirens, press and hold the front panel button for 3 seconds.

Copyright © 2020 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications, and prices, without notice and without incurring any obligation. E&OE. All rights reserved.
