Modem Information DOCSIS 3.0 Cable Modem 16×4 channel bonding To achieve Gigablast or Ultimate Classic speeds, a DOCSIS 3.1 modem is required	Highest Service Level Preferred 150

DOCSIS 3.0 Cable Modem

16×4 channel bonding

To achieve Gigablast or Ultimate Classic speeds, a DOCSIS 3.1 modem is required

Preferred 150

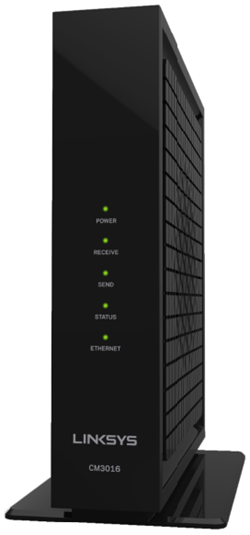

Front View Click to enlarge.		After the cable modem is successfully registered on the network, the Power, Receive, Send, and Status indicators illuminate continuously to indicate that the cable modem is online and fully operational.

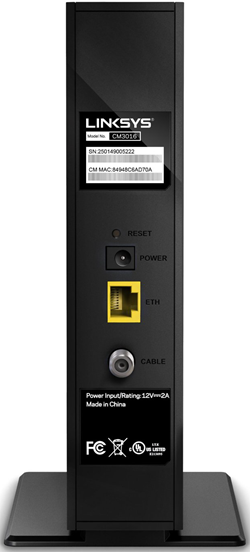

Back View Click to enlarge.		The Linksys CM3016 has the following ports available on the back of the modem. RESET – Press and hold for five seconds to restore to factory defaults and reboot the modem (login/Reset instructions) POWER – Connects to the power adapter ETH – Connects devices to the 10/100/1000 RJ45 Ethernet port CABLE – Connects to a coaxial cable

MAC Address Click to enlarge.		MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the manufacturer of the device.

The modem lights indicate the current status of your cable modem. To troubleshoot any connection problems, use the table below.

Modem Light	Status	Problem
Power	On	None – the modem is powered on
Power	Off	No power – Verify power supply connections and electrical outlet. Ensure the outlet is not connected to a switch.
Receive	Solid Blue	None – multiple downstream channels are in use
	Solid Green	None – one downstream channel is in use
	Blinking	None – scanning for downstream channels
	Off	No downstream channels are in use – Verify all cable connections and try resetting the modem.
Send	Solid Blue	None – multiple upstream channels are in use
	Solid Green	None – one downstream channel is in use
	Blinking Green	None – scanning for an upstream channel
	Off	No upstream channels are in use – Verify all cable connections and try resetting the modem.
Status	On	None – the modem is online
	Blinking	None – the modem is registering a connection
	Off	The modem is offline – Verify all cable connections and try resetting the modem.
Ethernet	On	None – a device is connected to the Ethernet port
	Blinking	None – data is being transferred over the Ethernet connection
	Off	No device is connected or the device is disabled – Verify all cable connections and try resetting the modem.
