You can operate the air conditioner more conveniently with the remote control.

Remote Control Symbols & Meanings

These are the symbols that you will find on the remote control along with their meanings:

Then the list continues with timer controls such as:

and finally the third part of the list of remote symbols:

NOTE: Some functions may not be supported, depending on the model buttons may be changed according to the type of model. Press the SET/CANCEL button to operate the selected FUNC.

Restarting the Air Conditioner Automatically

When the air conditioner (such as the COV34636805) is turned on again after a power failure, this function restores the previous settings.

Disabling Auto Restart

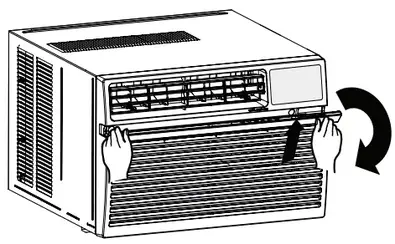

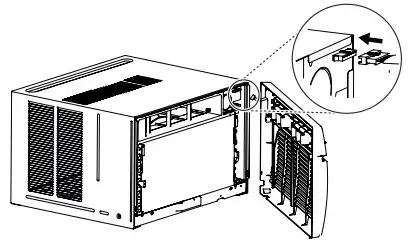

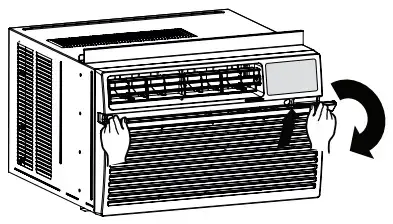

1. Open the front cover (Type2) or horizontal vane (Type1).
2. Press the ON/OFF button and hold it for 6 seconds, then the unit will beep twice and the lamp will blink twice 4 times.

To re-enable the function, press the ON/OFF button and hold it for 6 seconds. The unit will beep twice and the lamp will blink 4 times.

NOTE: The feature may be changed according to the type of model.•

If you press and hold the ON/OFF button for 3 – 5 seconds, instead of 6 seconds, the unit will switch to the test operation.

In the test operation, the unit blows out strong cooling air for 18 minutes and then returns to factory default settings.

Using the Mode Function

This function allows you to select the desired function.

Cooling Only Mode

Mode: Cooling Mode

1. Turn the appliance on.
2. Press MODE button repeatedly to select the Cooling Mode. Dots are displayed on the display screen.
3. Press the button to set the desired temperature.

Using the Fan Speed Function

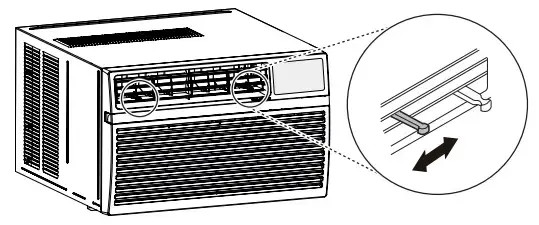

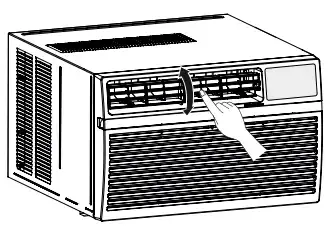

Using the Air Flow Direction Function

OWNER’S MANUAL
AIR CONDITIONER

Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times.
TYPE: WINDOW

W121CE SL0
W122CE SL0

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

The following symbols are displayed on units.

	This symbol indicates that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
	This symbol indicates that the Operation Manual should be read carefully.
	This symbol indicates that service personnel should be handling this equipment with reference to the Installation Manual.
	This symbol indicates that information is available such as the Operating Manual or Installation Manual.

IMPORTANT SAFETY INSTRUCTIONS

WARNING
To reduce the risk of explosion, fire, death, electric shock, scalding, or injury to persons when using this product, follow basic precautions, including the following:

INSTALLATION

• Before use, the appliance must be properly installed as described in this manual.
• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the installer for the installation of this unit.
• The air conditioner is not intended for use by young children or invalids without supervision.
• Keep any required ventilation openings clear of obstruction.
• Compliance with national gas regulations shall be observed.
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts.
• Installation work must be performed in accordance with the National Electric Code by qualified and authorized personnel only.
• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
• Always plug into a grounded outlet.
• Do not under any circumstances, cut or remove the third (ground) prong from the power cord.
• When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.
• Plugin the power plug properly.
• Do not modify or extend the power cord.
• Do not start/stop operation by plugging/unplugging the power cord.
• Do not turn on the circuit breaker or power under the condition that the front grille, cabinet, or control box are removed or opened. Otherwise, it may cause fire, electric shock, explosion, or death.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
• Use a dedicated circuit.
• Do not disassemble or modify the product.
• Adhere to all industry-recommended safety procedures including the use of long-sleeved gloves and safety glasses.
• Disconnect the power cord or circuit breaker before installing or servicing the appliance.
• Keep packaging materials out of the reach of children. These materials can pose a suffocation risk to children.
• Store and install the product where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

OPERATION

• Use this appliance only for its intended purpose.
• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
• Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
• Do not run cord under carpets or mats where it could be stepped on and damaged.
• Keep the cord out from under heavy objects like tables or chairs.
• Do not place the power cord near a heat source.
• Do not use an adaptor or plug the product into a shared outlet.
• Do not tamper with controls.
• If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact the LG Electronics Customer Information Center.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.
• Do not grasp the power cord or touch the appliance controls with wet hands.
• If water enters the product, turn off the power at the main circuit, then unplug the product and call for service.
• If the product has been submerged, contact the LG Electronics Customer Information Center for instructions before resuming use.
• Unplug the product when unused for long periods.
• Unplug the product before cleaning.
• In the event of a gas leak (propane gas, etc.) do not operate this or any other appliance. Open a window or door to ventilate the area immediately.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The interior of the product must only be cleaned by an authorized service center or a dealer.
• Do not use solvent-based detergent on the product. Doing so can cause corrosion or damage, product failure, electrical shock, or fire.

GROUNDING INSTRUCTIONS

• The power cord of this appliance is equipped with a three-prong (grounding) plug. Use this with a standard three-slot (grounding) wall power outlet to minimize the hazard of electric shock. The customer should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded. DO NOT CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER PLUG.
  − Situations when the appliance will be disconnected occasionally; Because of potential safety hazards, we strongly discourage the use of an adapter plug.
• Attaching the adapter ground terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall receptacle is grounded through the house wiring. The customer should have the circuit checked by a qualified electrician to make sure the receptacle is properly grounded.
• Disconnect the power cord from the adapter, using one hand on each. Otherwise, the adapter ground terminal might break. Do not use the appliance with a broken adapter plug.
  − Situations when the appliance will be disconnected often; Do not use an adapter plug in these situations. Unplugging the power cord frequently can lead to an eventual breakage of the ground terminal. The wall power outlet should be replaced by a three-slot (grounding) outlet instead.

CAUTION
To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

INSTALLATION

• Take care when installing the product that exhaust or condensation does not damage nearby property.
• Follow installation instructions exactly to avoid excessive vibration or water leakage.
• Do not install the appliance in an area where it is directly exposed to sea air (salt spray).
  − Saline conditions are a cause of corrosion. (Particularly, corrosion of the condenser and evaporator can damage the appliance or impair its performance.)
• Set up a windbreak in front of the outdoor unit if installing it in coastal areas.
  − Avoid direct exposure to salt winds.
  − Install a firm and stiff concrete-wind shield that can withstand salt winds.
• Wear gloves and use caution when unpacking and installing the appliance. Screws or sharp edges can cause injuries.

OPERATION

• This appliance is not intended for use as a precision refrigeration system. Do not use it for special purposes such as maintaining pets, food, precision machinery, or art objects.
• When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.
• Make sure the air inlet and outlet are free from obstructions.
• Use a soft cloth to clean the appliance. Do not use waxes, thinners, or harsh detergents.
• Do not step on or place heavy objects on top of the appliance.
• Do not operate the appliance without the filter securely installed.
• Do not drink water drained from the appliance.
• Be sure to ventilate sufficiently when the air conditioner and a heating appliance such as a heater are used simultaneously.
• Being exposed to direct airflow for an extended period of time could be hazardous to your health.
• Remove the batteries if the remote control is not to be used for an extended period of time.
• Never mix different types of batteries or old and new batteries for the remote control.
• Stop using the remote control if there is a fluid leak in the battery. If your clothes or skin are exposed to the leaking battery fluid, wash off with clean water.
• If the leaking battery fluid has been swallowed, rinse the inside of the mouth thoroughly and consult a doctor.
• Do not recharge or disassemble the batteries.

MAINTENANCE

• Clean the filter every two weeks.
• Never touch the metal parts of the air conditioner when removing the air filter.
• Never use strong cleaning agents or solvents when cleaning the air conditioner or spray water.

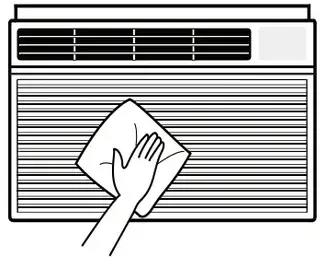

  Use a smooth cloth.

WARNING

Checks to the area

• Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
• Work procedure
  Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

General work area

• All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

Checking for presence of refrigerant

• The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

Presence of fire extinguisher

• If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

No ignition sources

• No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable
  hazards or ignition risks. “No Smoking” signs shall be displayed.

Ventilated area

• Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

Checks to the refrigeration equipment

• Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt consult the manufacturer’s technical department for assistance.
• The following checks shall be applied to installations using flammable refrigerants:
  − The actual refrigerant charge is in accordance with the room size within which the refrigerant containing parts are installed.
  − The ventilation machinery and outlets are operating adequately and are not obstructed.
  − If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant.
  − Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected.
  − Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:
− Capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking.
− No live electrical components and wiring are exposed while charging, recovering or purging the system.
− Continuity of earth bonding.

Repairs to sealed components
During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc.
If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected.
This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.
Ensure that apparatus is mounted securely.
Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres.
Replacement parts shall be in accordance with the manufacturer’s specifications.

Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
The test apparatus shall be at the correct rating.
Replace components only with parts specified by the manufacturer.
Other parts may result in the ignition of refrigerant in the atmosphere from a leak

Cabling Check
Cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of ageing or continual vibration from sources such as compressors or fans.

Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

Leak detection methods

• The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.
• Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed.
• Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipework.
• If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

Removal and evacuation

• When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:
  − Remove refrigerant
  − Purge the circuit with inert gas
  − Evacuate
  − Purge again with inert gas
  − Open the circuit by cutting or brazing.
• The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times.
  Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

Charging procedures

• In addition to conventional charging procedures, the following requirements shall be followed.
  − Ensure that contamination of different refrigerants does not occur when using charging equipment.
  Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.
  − Cylinders shall be kept upright.
  − Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
  − Label the system when charging is complete (if not already).
  − Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

Decommissioning

• Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.
  a) Become familiar with the equipment and its operation.
  b) Isolate system electrically.
  c) Before attempting the procedure ensure that:
  • mechanical handling equipment is available, if required, for handling refrigerant cylinders;
  • all personal protective equipment is available and being used correctly;
  • the recovery process is supervised at all times by a competent person;
  • recovery equipment and cylinders conform to the appropriate standards.
  d) Pump down refrigerant system, if possible.
  e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
  f) Make sure that cylinder is situated on the scales before recovery takes place.
  g) Start the recovery machine and operate in accordance with manufacturer’s instructions.
  h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
  i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
  j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
  k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

Labelling

• Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant

Recovery

• When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.
• When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

REFRIGERANT (FOR R32 ONLY)

WARNING

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater).
• Do not pierce or burn. Be aware that flammable refrigerants may not contain an odor.
• The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• The appliance shall be stored so as to prevent mechanical damage from occurring.

Technical Safety

• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.
• Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

PRODUCT OVERVIEW

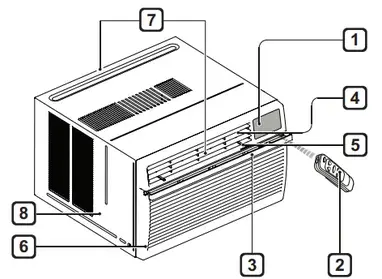

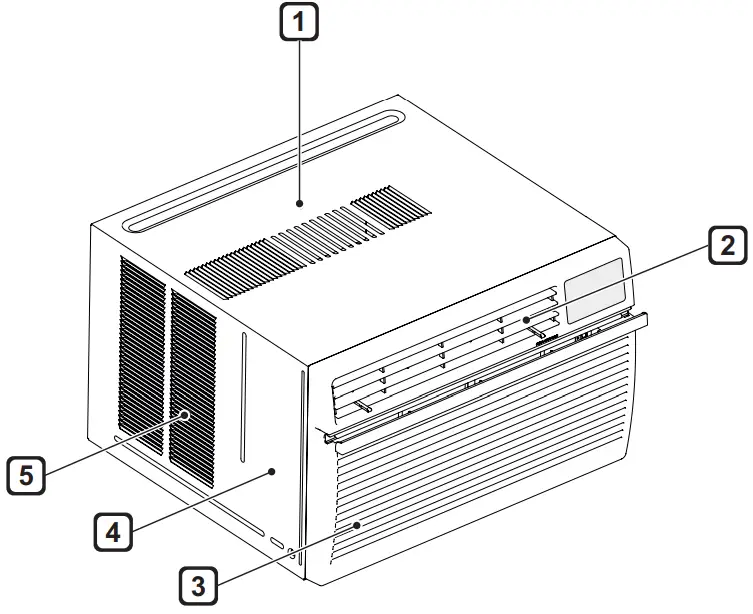

Exterior Parts

1 Control Panel
2 Remote Control
3 Air Filter
4 Vertical Air Deflector (Horizontal Louver)
5 Horizontal Air Deflector (Vertical Louver)
6 Front Grille
7 Air Outlet
8 Cabinet

Interior Parts

1 Evaporator
2 Air Guide
3 Brace
4 Compressor
5 Condenser
6 Base Pan
7 Power Cord

INSTALLATION

Circuit Breaker Installation

Read thoroughly and follow all directions provided.
A circuit breaker must be installed between the power source and the unit if the plug is not used (see illustration below).

NOTE

Installation Overview

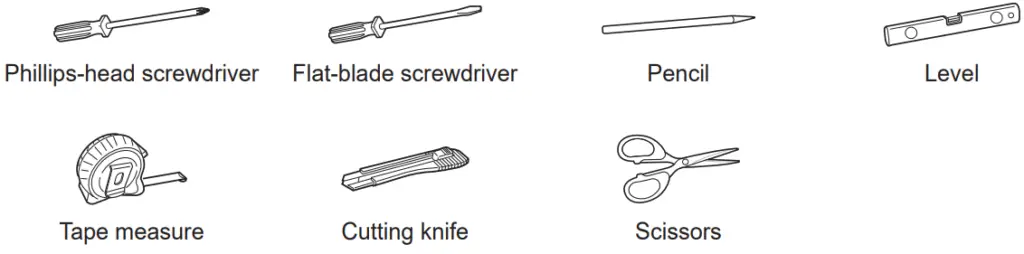

Tools Needed

How to Install the Unit

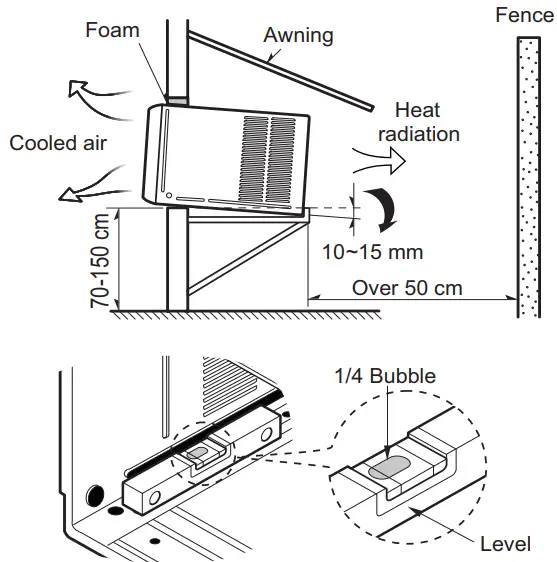

1. Measure the space for installation to assure a good fit. The air conditioner must be installed firmly into place to prevent vibration and noise.
2. Avoid exposure to direct sunlight.
3. Remove all obstacles from the rear of the unit. There must be at least 50 cm (20 in.) of cleared space around the rear of the unit. Obstacles restricting the airflow may reduce the cooling efficiency of the unit.
4. The unit should be installed with a slight tilt towards the outside to allow condensed water to drain. (About 10~15 mm or 1/4 bubble with Level)

CAUTION

• The external grille must be exposed outside for air discharge.

Preparation of the Cabinet

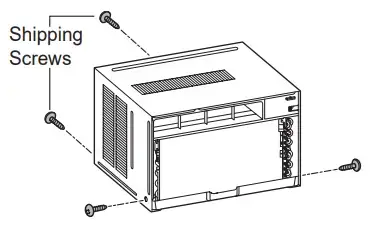

1. Remove 4 screws which fasten the cabinet at both sides and at the back. (Keep the screws for later use.)
2. Slide the unit from the cabinet by gripping the base pan handle and pulling forward while bracing the cabinet.

CAUTION

• The unit is heavy. To prevent injury, use proper lifting techniques when pulling unit forward from cabinet. Obtain assistance from another person if possible.

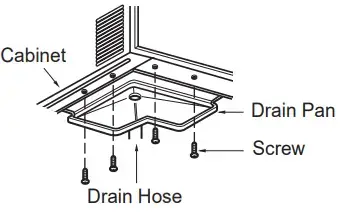

Drainage (Optional)

The base-pan may overflow due to high humidity.
To drain the excess water, remove the drain cap from the base pan of the unit and secure the Drain Pan.

1. Remove the rubber cap from the hole under the base-pan.
2. Install the drain pan over the corner of the cabinet with 2-4 screws.
3. Connect the drain hose to the outlet located on the bottom of the drain pan. (You can purchase the drain hose or tubing locally to satisfy your particular needs. Drain hose is not supplied.)

Installation of the Cabinet

1. Prepare the hole in the wall so that the bottom of the cabinet is well supported, the top has minimum clearace and the air inlet louveres have clearance as shown. Holes from the outside through to the cavity should be sealed. The cabinet should slope down towards the rear by about 10~15 mm to allow water formed during operation to drain.
2. Install the cabinet into the wall and secure. Ensure the foam seals are not damaged. Flash, seal or fill gaps around the inside and outside to provide satisfactory appearance and protection against the weather, insects and rodents.

NOTE
• Unit may be supported by a solid frame from below or by a hanger from a solid overhead support.

Preferred method of installation into a timber framed wall, partition or window.

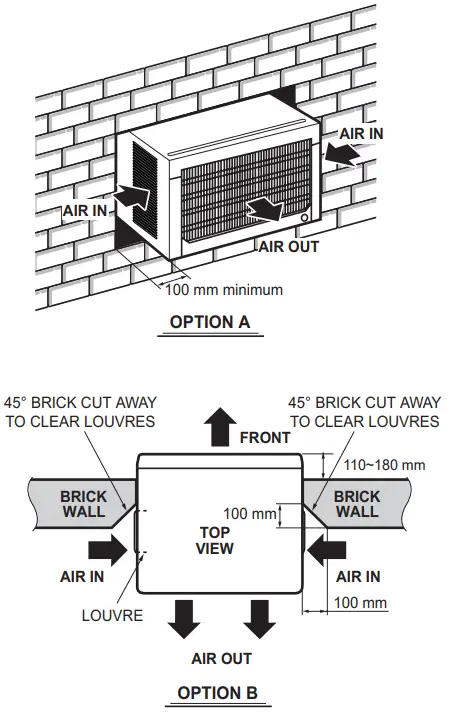

Space for Outside Air Flow

Installations of the unit into the Cabinet

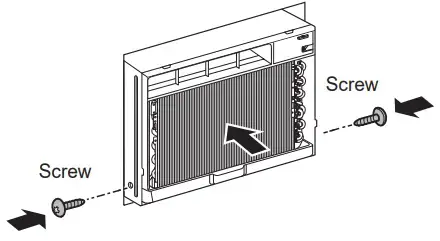

1. Slide the air conditioner into the case. Reinstall the 2 screws removed earlier on each side of the case. CAUTION
   • The unit is heavy. Use an assistant to help lift the unit and set it in place. Lifting and maneuvering the unit by yourself could result in injury.
2. Stuff the foam around the unit to prevent air and insects from getting into the room.

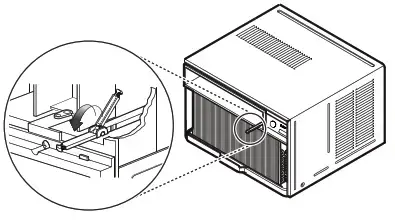

3. Before installing the front grille, pull out the vent control lever located above the unit control knobs, as shown. (for some models)
4. Connect the wire harness from the front grille assembly to the air conditioner.

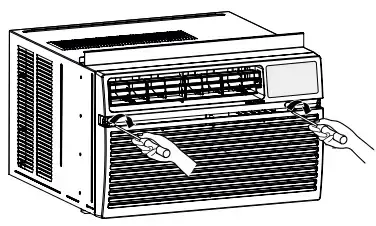

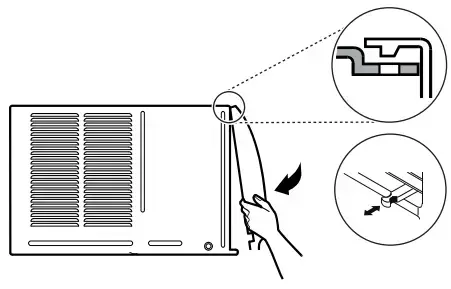

5. Attach the front grille assembly to the cabinet by inserting the grille tabs into the slots on the front of the cabinet. Push the grille in until it snaps into place.NOTE
   • Carefully guide the vent control lever through the grille as you push the grille in.
6. Remove air filter from the front grille by pulling the filter forward and then up slightly.Insert 2 screws (L:10 mm) through the front grille.

OPERATION

Control Panel and Remote Control

Remote Control

NOTE

• The feature may be changed according to the type of model.

1. Power
   Press to turn the air conditioner ON or OFF.
2. Fan Speed
   Press to set the Fan Speed (Nivel Vent.) to Low (Bajo) (F1), Medium (Medio) (F2) or High (Alto) (F3).
3. Delay ON/OFF Timer
   Delay ON – When the air conditioner is off, set it to automatically turn on from 1 to 24 hours later, at its previous mode and fan settings.
   Delay OFF – When the air conditioner is on, set it to automatically turn off from 1 to 24 hours later.
   NOTE
   • Each press of the Timer (Control Tiempo) button advances the timer by 1 hour. After the last press the display returns to the temperature setting.
4. Operation Mode
   Press the Mode (Modo) button to cycle between 4 types of air conditioner operation: Energy Saver (Ahorro Energía)/Cool (Frío)/Fan (Vent.)/Dry (Deshum)
   Energy Saver (Ahorro Energía) – In this mode the compressor and fan turn off when the set temperature is achieved. Approximately every 3 minutes the fan turns on to allow the unit sensor to accurately determine if more cooling is needed.
   Cool (Frío) – This mode is ideal on hot days to cool and dehumidify the room quickly. Use the Temp buttons to set the desired room temperature and use the Fan Speed (Nivel Vent.) button to set the desired fan circulation speed.
   Fan (Vent.) – In this mode the fan circulates air but the compressor does not run. Use the Fan Speed (Nivel Vent.) button to set fan speed to High, Medium or Low. In this mode, you cannot adjust the set temperature.
   Dry (Deshum) – This mode is ideal for rainy and damp days to dehumidify the room rather than cooling it significantly. Humidity is removed from the room by the combination of compressor operation and the fan speed fixed at Low. The compressor and fan turn off once the set temperature is reached. Fan speed cannot be adjusted in Dry (Deshum) mode.
5. Temperature Control
   The thermostat monitors room temperature to maintain the desired temperature. The thermostat can be set between 16 °C–30 °C (60 °F–86 °F).
   Press or arrows to increase or decrease temperature setting.
6. Remote Control Sensor
7. Clean Filter
   The Clean Filter (Limpieza Filtro) LED lights up to notify you that the filter needs to be cleaned. After cleaning the filter, press Temp and together on the control panel to turn off the Clean Filter (Limpieza Filtro) light.
   NOTE
   • The filter reset must be done using the control panel, not the remote control.
   • This feature is a reminder to clean the air filter for more efficient operation.
   The LED light turns on after 250 hours of operation.

NOTE

• Auto Restart: If the air conditioner turns off due to a power outage, it will restart automatically once the power is restored, with the same settings as were set before the unit turned off.
• Energy Saver (Ahorro Energía): The unit defaults to the Energy Saver (Ahorro Energía) mode each time the unit is switched on except in Fan (Vent.) mode or when power is restored after an electrical power outage.
• The remote control will not function properly if the AC infrared sensor is exposed to direct light or if there are obstacles between the remote controller and the air conditioner.

Wireless Remote Control

Inserting Batteries

1. Push out the cover on the back of the remote control with your thumb.
2. With the plus and minus poles facing as marked, and insert two new AAA 1.5 V batteries.
3. Reattach the cover.

NOTE

• New batteries are supplied with the air conditioner for use in the remote control.
• Do not use a rechargeable battery. Make sure that the battery is new.
• In order to prevent discharge, remove the battery from the remote control if the air conditioner is not going to be used for an extended period of time.
• Keep the remote control away from extremely hot or humid places.
• To maintain optimal operation of the remote control, the remote sensor should not be exposed to direct sunlight.

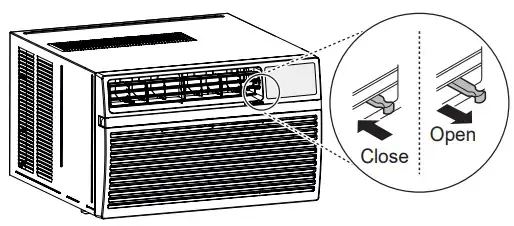

Ventilation

Push the ventilation lever in to the closed position to maintain the best cooling performance. Pull the ventilation lever out to open the vent and draw fresh air into the room.

Air Direction

Airflow can be adjusted by changing the direction of the air conditioner’s louvers.

Adjusting Horizontal Airflow Direction
The horizontal airflow is adjusted by moving the levers of the vertical louvers to the left or right.

Adjusting Vertical Airflow Direction
Touch the horizontal louvers to adjust the airflow up or down.

NOTE

• When the weather is extremely hot, the unit may turn off automatically to protect the compressor.

Slinger Fan

This air conditioner is equipped with a slinger fan. (See drawing.)
The fan’s outer ring picks up the condensed water from the base pan if the water level gets high enough. The water is then picked up by the fan and expelled through the condenser, making the air conditioner more efficient.

MAINTENANCE

WARNING

• Before cleaning or performing maintenance, disconnect the power supply and wait until the fan stops.

Air Filter

Check the air filter at least twice a month to see if cleaning is necessary. Trapped particles in the filter can build up and block the airflow, reducing cooling capacity and causing an accumulation of frost on the evaporator.

Cleaning the Air Filter

1. Remove the air filter from the front grille by pulling the filter forward and then up slightly.
2. Wash the filter using lukewarm water below 40 °C (104 °F).
3. Gently shake the excess water from the filter.
4. Dry the filter in the shade.
5. Insert the filter into the Front grille.

Cleaning the Air Conditioner

• Wipe the front grille and inlet grille with a cloth dampened in a mild detergent solution.
• Wash the cabinet with mild soap or detergent and lukewarm water, then polish using liquid appliance wax.

NOTE

• To ensure continued peak efficiency, the condenser coils (outside of unit) should be checked periodically and cleaned if clogged with soot or dirt from outside air.
• For repair and maintenance, contact a LG Electronics Customer Information Center. See the warranty card for details or call 55-5321-1919. Have your model number and serial number available.

TROUBLESHOOTING

Before Calling for Service

The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service.

Normal Sounds You May Hear

1. High Pitched Chatter
   Today’s high efficiency compressors may have a high pitched chatter during the cooling cycle.
2. Sound of Rushing Air
   At the front of the unit, you may hear the sound of rushing air being moved by the fan.
3. Gurgle/Hiss
   Gurgling or hissing noise may be heard due to refrigerant passing through evaporator during normal operation.
4. Vibration
   Unit may vibrate and make noise because of poor wall or window construction or incorrect installation.
5. Pinging or Swishing
   Droplets of water hitting condenser during normal operation may cause pinging or swishing sounds.

NOTE

• If you see “CH” in the display, please call 55-5321-1919.

LG ELECTRONICS MEXICO,S.A. DE C.V.
Sor Juana Inés de la Cruz No. 555
Col. San Lorenzo Industrial
Tlalnepantla de Baz, Estado de México C.P. 54033
Tel. 55-5321-1919
Página web http://www.lg.com.mx

MFL70643102
Rev.06_111021

www.lg.com
Copyright © 2018 – 2021 LG Electronics Inc. All Rights Reserved

LG G3 Smartphone

Key Features

• 5.5″ Quad HD Display with 538 ppi
• Long-Lasting 3,000 mAh Removable Battery
• Intuitive Rear Key Placement for Ambidextrous Use
• Advanced 13 MP OIS+ Laser Auto Focus Camera
• Easy-Input Customizable Smart Keyboard
• Secure Your Phone with Knock Code™
• Qualcomm® Snapdragon™ 801 Quad-Core Processor up to 2.5 GHz

Design

• 5.5″ Quad HD Display (4x HD Quality)
• Rear Key Placement – ambidextrous, multi-purpose use of Power/Lock and Volume Keys with quick shortcuts to QuickMemo+ or Camera
• Smart Keyboard – customize position of the keyboard or keypad for convenient one-handed access
• Streamlined UI – simplified user interface with consolidated apps and modern flat iconic style
• Corning® Gorilla® Glass 3 Screen Protection
• Customizable Home Touch Buttons – includes Notifications, QuickMemo+, QSlide Function, and Dual Window

Versatility

• Smart Notice – interprets a range of contextual inputs and device usage patterns, and provides recommendations that change with the user’s intent
• Smart Cleaning – free up space by deleting temporary files and removing infrequently used apps
• LG Health – manage daily activities, record health information, track weather conditions to take control of your fitness*
• QuickMemo+ – write or draw on any screen
• QSlide Function – overlay up to two windows with adjustable sizing and transparency on the primary screen for advanced and convenient multitasking
• Dual Window – use two apps simultaneously on a split screen
• ThinkFree Viewer – PC-like office suite app for viewing documents, presentations, and spreadsheets
• Smart Screen – display setting keeps the screen active when phone detects eye movement
• Notification LEDs – colored light alerts for incoming calls, missed calls and messages, and more
• Quiet Mode – specify times to turn off all sounds except alarm and media
• Multilanguage Support for Phone and Keyboard Input
• EasyHome – show the dialer and other frequently used features right on the home screen for quick and easy access

* This app is not intended to diagnose, treat or prevent any disease or medical condition. Always seek the advice of a qualifi ed medical professional before making any changes to your exercise, sleep, or nutrition.

Security

• Knock Code – create a 3-8 point tapping pattern for superior security and direct access to the home screen with over 86,000 possible combinations
• KnockON – double tap the screen to put your phone to sleep/wake it without picking it up or pressing the Power/Lock Key
• Content Lock – password protect certain images and videos in Gallery; prevent fi les from being previewed when linked to a PC1
• Guest Mode – create a separate unlock screen pattern for guests with pre-set access and restrictions2
• Privacy Keeper – hide caller information for incoming calls; tap screen to reveal information
  1. Some owner content may still be accessible to a user that enables Content Lock.
  2. Some owner/personal content and information may still be accessible to a user in Guest Mode.

Camera/Video

• 13 MP OIS+ Laser Auto Focus Camera with Dual Flash
• Laser Auto Focus – adjusts focus by measuring distance to subject using a laser, allowing faster focus speed even in low-light situations
• Soft Light – screen will illuminate a soft light around the photo preview for well-lit selfi es
• 4k Ultra HD Camcorder with 120 FPS Slow Motion Recording1
• 2.1 MP Full HD Front-Facing Camera and Full HD Camcorder
• Camera Resolutions: up to 4160 x 31201 (4160 x 2340 default)
• Shot Mode – Auto, Dual, Panorama,1 Dynamic Tone (HDR), and Magic Focus1
• Burst Shot – hold the shutter button to take multiple shots quickly
• Gesture Shutter2 – take selfies with a simple hand gesture
• Multiple Shutter Options – tap the shutter, tap the screen, use your voice, or press a volume key to take a photo
• Image Editor – add frames and much more to your pictures
• Video Resolutions: up to 3840 x 21601 (1920 x 1080 default)
• Dual Recording/Dual Camera – front and rear cameras take pictures or videos with picture-in-picture technology
• Pause & Resume Recording – pause and start in record mode for one continuous video fi le
• Live Shot – take still shots while recording video3
• Geotagging – include location information with photos and videos

1. Available only on rear-facing camera or camcorder.
2. Available only on front-facing camera or camcorder.
3. Not available in UHD camcorder setting.

Entertainment

• QuickRemote™ – control compatible TVs, audio systems, cable provider set-top boxes, and more
• Loud and Clear Sound – 1W speaker with 1.5W booster amp produces loud and articulate sound with deep bass and reduced clipping
• Live Zooming – zoom in/out on videos during playback
• Video Player with Touch Lock and Resume Play Function; supports DivX,® WMV, MP4, 3GP, 3G2, AVI, MKV, ASF, WebM, and FLV formats
• Customizable Video Screen Ratio, Subtitle Settings, Playback Speed, and Video Auto Off Function
• Edit Recorded Movies with Video Trim
• Music Player with Custom Audio Effects and Sleep Timer: supports AAC, AAC+, eAAC+, M4A, AMR, MP3, MIDI, WAV, WMA, and Ogg formats
• Customizable Music Library – organized by song, album, artist, and genre
• Media Device (MTP) – transfer fi les or synchronize with Windows® Media Player or Android™ File Transfer
• USB1 and Bluetooth® Tethering – share your phone’s Internet connection with your computer
• Accelerometer – control games by turning and tilting the phone2
  1. USB cable required (included).
  2. Only available on certain interactions with the touch screen.

Connectivity

• AT&T 4G LTE Network1
• Mobile Hotspot† – share a 4G LTE data connection with up to 8 compatible wireless devices2
• Bluetooth Wireless Technology Version 4.0
• Wi-Fi® Connectivity – 802.11 a/b/g/n/ac
• Miracast® – enjoy your phone’s content on a compatible larger screen
• SmartShare Beam – wirelessly receive multimedia content from compatible LG devices
• Android Beam – share contacts, web pages, and more via Near Field Communication (NFC)
• Media Server – allow compatible nearby devices to access your content via DLNA®
• S-GPS For Enhanced Location Accuracy
  1. AT&T’s 4G LTE Network not available everywhere.
  2. Depends on network availability. Additional carrier charges may apply.

Specifications

• Display: 5.5″ Quad HD (2560 x 1440) IPS Display with 538 ppi
• Battery Capacity: 3,000 mAh
• Platform: Android 4.4 (KitKat)
• Technology: GSM, LTE
• Processor: Qualcomm Snapdragon 801 Quad-Core up to 2.5 GHz
• Network: GSM Quad Band/UMTS Tri Band/LTE
• Frequencies: GSM 850/900/1800/1900 MHz, UMTS 850/1900/2100, LTE Bands 2/4/5/17/29, Roaming 1/3/7, and CA
• Data Transmission: GPRS, EDGE, UMTS, HSPA+, LTE
• Dimensions: 5.76″ (H) x 2.94″ (W) x 0.35″ (D)
• Weight: 5.36 oz.
• Talk Time: up to 21 hours1
• Standby Time: up to 28 days1
• Internal Memory: 32 GB (up to 24 GB user memory); supports microSD™ card up to 2 TB2
• RAM: 3 GB
• Available Colors: Metallic Black, Silk White
  • Certain features may use more power and cause actual time to vary.
  • microSD card sold separately.

Accessories

• Standard Battery*
• Travel Adaptor and USB Cable*
• LG Quick Circle™ Wireless Charging Folio Case
• Bluetooth Mono Headset (HBM-290)
• LG GRUVE HBS-600
• Bluetooth Stereo Headset (LG TONE ULTRA™ HBS-800, LG TONE PRO™ HBS-750, LG TONE+™ HBS-730)
• Miracast Certified Wireless HDMI® Adaptor (DWD-300)
• Vehicle Power Adaptor
  * Included with phone.

All materials in this spec sheet including, without limitation, the design, the text, and any marks are the property of LG Electronics USA, Inc. Copyright © 2014 LG Electronics USA, Inc. ALL RIGHTS RESERVED. LG, LG Life’s Good, and the LG logo are registered trademarks of LG Corp. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by LG Electronics USA, Inc. is under license. 4G LTE not available everywhere. LTE is a trademark of ETSI. Learn more at att.com/network. AT&T, the AT&T logo, and all other AT&T marks contained herein are trademarks of AT&T Intellectual Property. Google and Android are trademarks of Google Inc. Wi-Fi is a registered trademark of Wi-Fi Alliance. Other trademarks and trade names are property of their respective owners. Unless otherwise specified herein, all accessories referenced herein are sold separately.
All features, functionality, and other product specifications are subject to change without notice. Screen shots are simulated and subject to change.

LG Electronics USA, Inc.
920 Sylvan Avenue
Englewood Cliffs, NJ 07632
Cust. Service: (800) 793-8896
www.lg.com/us/G3-att

LG Magic Remote MR21GA User Manual

Overview and Specifications for the Remote Control

1. Overview – Instructions for using the Premium Magic Remote control are in the TV manual. this remote uses RF(Radio Frequency) instead of IR (infrared light). this remote will operate within 10m of the tv and does not require it to be pointed at the tv. (voice recognition support)
2. Specifications Categories

“This device can be operated in at least one Member State without infringing applicable requirements on the use of radio spectrum”

Precautions

1. After replacement of the battery, use the remote control following pairing in accordance with the user manual.
2. If the unit does not operate after the replacement of the battery, reattempt pairing in accordance with the user manual.
3. If the remote controller is not being used for a prolonged period of time, it is recommended you remove the battery from the unit.
4. Do not dismantle or exert heat on the battery.
5. Do not drop the battery or exert extreme impact that may even cause the case to be damaged.
6. Do not immerse the battery in water.
7. There is a risk of explosion if the battery is inserted incorrectly.
8. Properly dispose of used batteries.
9. Open the battery cover to find the label.

Customer Support

Refer to the contact number for services provided in the TV Manual.

Federal Communications Commission(FCC) Statement Federal Communications Commission(FCC) Statement You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation of the device.

You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC Caution

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment and For indoor use only, use outdoors or in other modes not covered by this manual may violate the FCC regulation and violate the user authority to use the product.

FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must follow the specific operating instructions for satisfying RF exposure compliance. Industry Canada Statement (For Canada) This device complies with Industry Canada’s license-exempt RSS Standard (s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. CE Statement 1) Certification Marking [ENGLISH] Hereby, LG Electronics declares that the radio equipment type [Magic Remote] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.lg.com/global/support/cedoc/cedoc# LG Electronics European Shared Service Center B.V. Krijgsman 1 1186 DM Amstelveen The Netherlands Wireless function S/W Version: 1.0.489.6 H/W Version: PMCFA1520A/HSP-C002AA

FAQS

Is this controller compatible with lg 75up7070pud?

This model is compatible with: 2021: OLED A1, B1, G1, C1, Z1, R1; QNED 90, 91,95, 97, 99; Series Nano (Nano***P*) 75, 80, 81, 85, 86, 88, 90, 91, 96, 99; UP70**, UP71** (only in some countries) UP75**, UP76**, UP8***, UP9*** 2020: CX, BX, GX, WX, ZX, Series Nano all models Nano 80, 81, 86, 90, 91, 95, 99, UN70**, UN…

How to reset the Magic Remote?

Please press the (Home) button and hold it for 10 seconds.

How to connect with the TV?

Please press the Wheel(OK) on the Magic remote for 5 seconds.

How to use the Magic Remote?

Please refer to the User Manual of your TV.

How to pair with Bluetooth device?

Pairing is required when you want to use Bluetooth function. You can search devices by Bluetooth function in advance. If you want to connect a new device, please search and pair the devices as below.

Will this work on the lg up76? (costco version)

Yes, this remote is compatible with UP7670 models.

Will this remotes work for up7000 series led 4k uhd smart webos tv

Yes, this model Magic Remote control #AN-MRGC will work with the UP7000 TV.

does it work in LG UP7000 ?

The LG person says the UP7000 doesn’t have Bluetooth but mine appears to have Bluetooth capabilities. Also at first startup, my 65UP7000 asked to press the scroll wheel on the magic remote or enter button on the regular. It came with the regular but the TV sure thinks it can use a magic remote.

Did this remote have pointer and voice recognition?

Yes, the Magic Remote control #AN-MR21GC does have a pointer and voice recognition.

can this remote work with the lg nano90 4k uhd (2020)? or is there a way to configure it somehow ?

Yes, this remote will work with your TV.

Is it compatible with the 2012 lg smart tv, model number 47lm7600? i cant seem to find a replacement remote for this tv?

No, this is a 2021 remote and only supports 2021 models.

Will this remote work with 55up7000pua?

Yes, the #AN-MR21GC Magic Remote control will work with the 55UP7000PUA TV.

Is this first party lg, and will it work with oled65c1pub?

This remote will work with OLED65C1PUB and is an LG original part.

Will this work for 75up7070pud lg tv 2021?

Model 75UP7070PUD does not have Bluetooth connectivity to support a Magic Remote.

will this remote work on a 55UP76 2021 model?

Yes, this remote is compatible with model UN7300AUD.

VIDEO

www.lg.com

• Contents in this manual may be changed with out prior notice due to upgrade of product functions.
• Complete instructions are included in the owner’s manual.

ACCESSORIES

(Depending upon country)

• Magic Remote and Alkaline Batteries (AA)
• Owner’s manual

INSTALLING BATTERIES

• Please read this manual carefully.
• Press the top of the battery cover, slide it back, and lift the cover as shown below.
• To replace batteries,open the battery cover, replace alkaline batteries (1.5 V, AA) matching and ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control at the remote control sensor on the TV
• To remove the batteries,perform the installation actions in reverse. Don’t mix oldor used batteries with new ones.Close the cover securely.
• Open the battery cover to find the label.


REMOTE DESCRIPTION

• The remote control image shown may differ from the actual product.
• The order of description may differ from the actual product.
• Some buttons and services may not be provided depending on models or regions.

  To use the button, press and hold for more than 1 second.

USING

How to register (pair) or deregister (unpair)
How to register (pair) the Magic Remote

To use the Magic Remote, first pair it with your TV.

1. 1. Put batteries into the Magic Remote and turn the TV on.
   2. Point the Magic Remote at your TV and press the Wheel (OK)on the remote control.
      If  the TV fails to register the Magic Remote, try again after turning the TV off and back on.

How to deregister (unpair) the Magic Remote

Press and hold the (HOME)and button sat the same time for five seconds, to unpair the Magic Remote with your TV.

Press and hold the button for more than 5 seconds to disconnect and re-register the Magic Remote at the same time.

How to use

• Shake the Magic Remote slightly to the right and left or press  (HOME), (INPUT), or (Q. Settings) buttons to make the pointer appear on the screen. (In some TV models, the pointer will appear when you turn the Wheel (OK) button.)
• If the pointer has not been used for a certain period of time or Magic Remote is placed on a flat surface, then the pointer will disappear.
• If the pointer is not responding smoothly, you can reset the pointer by moving it to the edge of the screen.
• The Magic Remote depletes batteries faster than a normal remote due to the additional features.

SPECIFICATION

Supported LG TVs

• 2018 TVs / 2017 TVs –
  • W8/68/E8/C8/88/A8/SK9*/SK8*/SK7*/UK9*/UK8*/UK7* –
  • W7/67/E7/C7/B7519*518*/S.17*/U19*/U18*/U17* –
  • UK6*/LK6*/LK5*/U16*/LJ6*/US* (Please verify whether the TV Bluetooth)
• 2019 TVs
  • – W9/E9/C9/B9/SM9*/SM8*/UM8*/UM7* (Please verify whether the TV Bluetooth)
• 2020 TVs
  •  Th/WX/GX/CX/BX/NANO9*/NANO8
  • UN8*/UN7* (Please verify whether the TV Bluetooth)

2017 TVs can be used after their software has been updated.

Not all models listed are supported in all countries.

Models listed are subject to change without prior notice.

Replacement of Battery

Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com or scan QR code and then download Owner’s Manual. Some of the content in this manual may differ from your product.

https://www.lg.com/global/ajax/common_manual

A. Soundbar
B. Remote Control Receiver / Status Display
C. Rear Speakers / Wireless Receiver (Sold separately, SPK8-S)
D. Wireless Subwoofer – Install it close to the soundbar.
E. External Device – (Blu-ray player, game console, etc.)

1. Connect the soundbar to your TV via an optical cable or an HDMI cable.
2. If you are using an external device (ex. Blu-ray player, game console, etc.), connect it to the soundbar via an HDMI cable.
3. If you purchased the rear speakers and wireless receiver separately, connect the rear speakers to the wireless receiver via a speaker cable. When connecting the rear speakers to the wireless receiver, connect the black striped cable to the negative terminal of each speaker and the remaining cable to the positive terminal of each speaker.
4. Connect to power in the following order: wireless subwoofer → wireless receiver → soundbar. Then, turn on the soundbar. When the connection is automatically established with the soundbar, the LEDs on the wireless subwoofer and the wireless receiver will light up in green.
5. Using the product with your TV
   1. Press the Function button repeatedly until “OPT/HDMI ARC” appears on the status display.
   2. On your TV’s settings, set the output speaker to [HDMI ARC], [Optical], or [External Speaker].
   3. When the TV is properly connected to the product, “OPT”, “ARC”, or “E-ARC” will appear on the status display with a sound.
6. Connecting the product to your smartphone via Wi-Fi
   1. Connect your smartphone to Wi-Fi.
   2. Install the LG Sound Bar app on Google Play or the App Store.
   3. Run the LG Sound Bar app and follow the instructions.
   4. The product will connect to your smartphone and you can control the product with the LG Sound Bar app.
7. Connecting the product to your smartphone via Bluetooth
   1. Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function. ( Off >  On)
   2. Press the Bluetooth pair button. After a moment, you will see “BT READY” on the status display.
   3. Find and tap “LG_Speaker_SP8YA_XXXX” or the name you registered on the Google Home app.
   4. When the product is connected to your smartphone via Bluetooth, you can see the status display change from “PAIRED” → “Connected Bluetooth device name”→ “BT”.

If you see a red LED on the back of the wireless subwoofer or on the front of the wireless receiver, it means that the soundbar is not connected to the speakers. If this is the case, connect them in the following order.

1. Press the Power button on the soundbar to turn it off.
2. Press the PAIRING (Pairing) button on the back of the disconnected wireless subwoofer or wireless receiver. Check if each LED blinks green.
   – If you still see a red LED on the back of the wireless subwoofer, press and hold the button on the back of the subwoofer again.
3. Press the Power button on the soundbar to turn it on.
4. When the connection is established, you will see a green LED light on the back of the wireless subwoofer or on the front of the wireless receiver light up in green.
   Keep the soundbar, the subwoofer, and wireless receiver away from the device (ex. wireless router, microwave oven, etc.) over 1 m (3.3 ft) to prevent wireless interference.

• Some speakers may not make sound depend on the input source. Select CINEMA sound mode to listen through all speakers.
• Design and specifications are subject to change without notice.
• Google Play is a trademark of Google LLC.

Specification

Power consumption

• Refer to the main label.

AC adapter

• Model: DA-50F25
• Manufacturer: Asian Power Devices Inc.
• Input: 100 – 240 V ~ 50 – 60 Hz
• Output: 25 V 0 2 A

Dimensions (W x H x D): Approx. 1060.0 mm x 57.0 mm x 119.0
mm (41.8 inch x 2.2 inch x 4.7 inch)
Bus Power Supply (USB): 5 V 0 500 mA
Amplifier (Total RMS Output power): 440 W RMS
OPEN-SOURCE SOFTWARE NOTICE INFORMATION
To obtain the source code under GPL, LGPL, MPL, and other open-source licenses, that is contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers, and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected].
This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Industry Canada Statement
[For having a wireless function (WLAN, Bluetooth,…)]
This device contains license-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science, and Economic
Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-003(B) / NMB-003(B)
IC Radiation Exposure Statement
[For having a wireless function (WLAN, Bluetooth,…)]
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance  20 cm (7.8 inches) between the antenna & your body.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY  RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO  THIS EQUIPMENT. SUCH MODIFICATIONS  COULD VOID THE USER’S AUTHORITY TO OPERATE THE  EQUIPMENT.

WARNING
[For product having the wireless function using 5 GHz frequency bands]

1. the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
2. for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 52505350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;
3. for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 57255850 MHz shall be such that the equipment still complies with the e.i.r.p. limits as appropriate; and
4. [for devices operating in the band 5250-5350 MHz having an e.i.r.p. greater than 200 mW] antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 of RSS-247 shall be clearly indicated.

Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

LG Customer Information Center
1-888-542-2623
CANADA
Register your product Online!
www.lg.com

www.fsc.org

Please read this manual carefully before operating your set and retain it for future reference.

To view the instructions of advanced features, visit http://www.lg.com and then download Owner’s Manual. Some of the content in this manual may differ from your unit.

MODEL
SN6Y

2105_Rev02

www.lg.com
Copyright © 2020-2021 LG Electronics Inc. All Rights Reserved.

Front Panel

Rear Panel

• It is recommended that you purchase a USB gender separately for the convenience of USB insertion and extraction. (Recommended USB gender type : USB 2.0 extension cable)
• Make sure to properly align and connect the optical cable; improper alignment may cause damage to the jack.

Subwoofer Connection

Place the wireless subwoofer near the sound bar and follow steps below.

1. Connect the power cord of the sound bar and the wireless subwoofer to the outlet.
2. Turn on the sound bar.
   • The sound bar and wireless subwoofer will be automatically connected. The subwoofer’s green LED turns on.

Manual Subwoofer Connection

If the subwoofer does not make sound, try to connect manually.

1. Press PAIRING on the rear of the wireless subwoofer.
   • The green LED on the rear of the wireless subwoofer blinks quickly. (If the green LED does not blink, press and hold the PAIRING.)
2. Turn on the sound bar.
   • Pairing is completed. The green LED on the rear of the wireless subwoofer turns on.

Keep the sound bar and the subwoofer away from the device (ex. wireless router, microwave oven, etc.) over 1 m (3.3 ft) to prevent wireless interference.

TV Connection

Connect the sound bar and TV using Optical (A) or HDMI ARC (B).

(A) Optical Connection

1. Connect the sound bar to the TV using Optical cable.
2. Set up [External Speaker (Optical)] on your TV setting menu.

(B) HDMI (ARC) Connection

1. Connect the sound bar to the TV using HDMI cable.
2. Set up [External Speaker (HDMI ARC)] on your TV setting menu.

• HDMI connection is unavailable if your TV does not support HDMI ARC.
• If this unit is connected by OPTICAL and ARC at the same time, the ARC signal has a higher priority

Additional Device Connection

1. Connect to the external device like as follow.

2. Set the input source by pressing F repeatedly.

Remote control

: Skip/Search

: Play/Pause

• Bluetooth connection lock (BT LOCK): Select the Bluetooth function by pressing F repeatedly. Long press and press it again to limit Bluetooth connection to only BT and LG TV.

SOUND EFFECT: Selects a sound effect mode.

• TV remote: Long press SOUND EFFECT and press it again to use TV remote control.

FOLDER : Searches a folder.

: Displays the information of a file, an input source or connected Bluetooth device name.

• Auto Power ON/OFF: Long press and press it again.

: Adjusts sound level of each speaker

• Surround sound: Long press and press it again.

REPEAT: Listens to your files repeatedly or randomly.

Additional Information

Specification

Design and specifications are subject to change without notice.

Rear Speakers Ready

Ready for surround sound with Rear Speakers Kit sold separately. (SPK8-S)

OPEN SOURCE SOFTWARE NOTICE INFORMATION

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected].

This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

FCC Radio Frequency Interference Requirements:

High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. This device cannot be co-located with any other transmitter

Supplier’s Declaration of Conformity

Trade Name:  LG
Responsible Party: LG Electronics USA, Inc.
Address: 111 Sylvan Avenue, North Building Englewood Cliffs, New Jersey 07632
Email: [email protected]

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

• TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
• Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION:

• Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due to electrical shock.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.
• The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily accessible.
• The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.
• For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other surface of the product.

For models using a Laser device

This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure.

For models using a battery

This device is equipped with a portable battery or accumulator

CAUTION: Risk of fire or explosion if the battery is replaced by an incorrect type.

How to Safely remove the batteries or the battery pack from the equipment: To Remove the old batteries or battery pack, follow the assembly steps in reverse order. To prevent contamination of the environment and bring on possible threat to human and/or animal health, the old batteries or the battery pack must be put in an appropriate container at designated collection points. Do not dispose of batteries or battery pack together with other waste. It is recommended that you use local, free reimbursement systems batteries or battery packs, (may not be available in your area). The batteries or the battery pack should not be exposed to excessive heat such as sunshine, fire or the like.

For models using a built-in battery

Do not store or transport at pressures lower than 11.6 kPa (0.116 bar) and at above 15,000 m (9.32 miles) altitude.

• replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types);
• disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
• leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; and
• a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas

For models using an adapter

Only use the AC adapter supplied with this device. Do not use a power supply from another device or another manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Symbols

USA/Canada Only (Product with embedded rechargeable battery ONLY)

USA: In case rechargeable battery is included in this product, the entire device should be recycled in compliance with rechargeable battery recycling standards because of the internal battery. To dispose of properly, call (800) 822-8837 or visit www.call2recycle.org.

CANADA: In case rechargeable battery is included in this product, the rechargeable battery should be recycled in compliance with rechargeable battery recycling standards. To dispose of properly, call 1.800.822.8837 or visit www.call2recycle.ca.

LGE Open Source Software Notice

This product from LG Electronics, Inc. (“LGE”) contains the open source software detailed below. Please refer to the indicated open source licenses (as are included following this notice) for the terms and conditions of their use.

The source code for the above may be obtained free of charge from LGE at http://opensource.lge.com. LGE will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Please be informed that LG Electronics, Inc. products may contain open source software listed in the tables below.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)

LG Customer Information Center

1-800-243-0000 USA, Consumer
1-888-865-3026 USA, Commercial

Register your product Online!

www.lg.com

Printed in China

Tone Free Bluetooth Stereo Headset
User Manual

NOTE: For the best performance and to prevent any damage to or misuse of the headset, please read all of the information carefully prior to using the headset.
Any modifications or changes to this manual due to typographical errors or inaccuracies of stated information shall only be made by LG Electronics Inc.

HBS-FN6 / HBS-FN4

https://play.google.com/store/apps/details?id=com.lge.tonentalkplus.tonentalkfree	https://apps.apple.com/app/lg-tone-talk-free/id1498881097

www.lg.com
Copyright © 2020 – 2021 LG Electronics Inc. All rights reserved.

The LG TONE Free (HBS-FN6 / HBS-FN4) is a lightweight wireless headset that uses Bluetooth technology this product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth Profile.

Safety Cautions

CAUTION
Do not disassemble, adjust, or repair the product arbitrarily. Do not place the product near excessive heat or flammable material. The product may be damaged if an incompatible charger is used. Make sure that an infant or child does not swallow a magnet or a small component of the product. Make sure that foreign objects do not enter the charger’s connectors (charging port and power plug). Failure to do so may result in fire or electric shock. If you have a medical device implanted, contact your doctor before using this device. This product has a built-in battery, and the battery cannot be removed or replaced arbitrarily. For your safety, do not remove the battery incorporated in the product. If you arbitrarily replace the battery or don’t replace it correctly, it may explode. The lithium-ion battery is a hazardous component that can cause injury. Battery replacement by an unqualified professional can cause damage to your device. Do not replace the battery by yourself. The battery can be damaged, which can cause overheating and injury. The battery must be replaced by an authorized service provider. The battery should be recycled or disposed of separately of household wastes. Do not discard the battery arbitrarily. Follow the local procedure for discarding batteries. Risk of fire or explosion if the battery is replaced by an incorrect type. Do not store or transport at pressures lower than 11.6 kPa and at above 15,000 m altitude. Replacement of a battery with an incorrect type can defeat a safeguard (for example, in the case of some lithium battery types). Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion. Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas. A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Do not carelessly throw away old batteries. It can cause an explosion or fire. The disposal method may vary by country and region. Dispose of it in an appropriate manner.

WARNING
Do not drop the product from a high place.
Make sure there is no water, alcohol, or benzene in contact with the product. Do not store the product in a wet or dusty place. Do not place heavy objects on the product. This product is waterproof to the IPx4 level (daily life waterproof). (The IPx4 waterproof rating applies to the earbud product only.) Do not put the product under the water or use it in a humid location such as a bathroom.

NOTE
If the product is exposed to excessive sweat, clean the product. Keep the earbuds clean.

HD Speaker
If the communication network of the device you are connecting to supports HD Voice Calling, you can enjoy making voice calls and listening to music in high definition.

Product Components

 NOTE: Actual product design may differ from the images shown in the manual.
CAUTION
Make sure authentic LG Electronics components are used. Using a non-authentic component may damage the product and thus void the warranty. Use the USB Type C™ cable provided with the product.

NOTE
The complete manual is available for download from the LG Electronics website. www.lg.com > support or service > Manuals & Downloads > Manuals

Product Description

Charging Case

Earbuds

*The appearance and specifications of the actual product may differ depending on the model.
NOTE: HBS-FN4 does not have a UV-C LED and mood light.

Pairing and Connecting
Fast Pair

1. Activate Bluetooth on your phone or device.
2. While the earbud is mounted in the charging case, open the charging case lid and press the pairing button for 3 to 5 seconds until the blue indicator light blinks.

3. When the Fast Pair connection pop-up appears on the top area of the mobile phone screen,
   tap it to connect. (It only supports Android™ 6.0 or higher, and requires configuring Bluetooth and
   location information settings of the mobile device.)
4. If the pop-up does not appear, select [LG HBS-FN6] from the Bluetooth menu on the mobile phone and connect it (for users of iOS or Android 5.0 or lower versions).
   NOTE: To connect with another device, perform the above procedure again.
   CAUTION: In the list of Bluetooth connected devices, LG HBS-FN6_LE is not the correct model name for connection. Check the model name in use and connect with the model name without “LE”.

Automatic Reconnection
The earbuds are connected automatically when you open the cover of the charging case. If you close the cover of the charging case with both earbuds mounted in the charging case, the earbuds are disconnected.

How to wear earbuds

Separate the earbuds from the charging case and adjust them so that they fit comfortably in your ears. When you wear the earbuds, you will hear a wearing detection alarm.
NOTE: You can easily separate the earbuds from the charging case by turning the part with dotted line in Image 1 to left or right and lifting the earbuds.

Indicator Light

Mobile Calling Functions

Playing Music

Function	Description
Play / Pause	: Touch the left or right earbud once.
Adjusting the Volume	: Touch the left(Decrease volume) or right(Increase volume) earbud twice.
Play Next	: Touch the left or right earbud three times.

NOTE: On the LG TONE Free app, you can switch the operation mode through the touchpad settings.

Listening to the ambient sound

Touch and hold the left or right earbud to hear the ambient sound. You can adjust the intensity of the ambient sound in the LG TONE Free app. The Listen to the Ambient Sound function works only when the product is on hold or playing music. While using the listen to the ambient sound function , the battery discharges faster than usual. CAUTION: When the Listen to the Ambient Sound mode is enabled, you may hear the ambient sound become loud suddenly.

Battery Status
If earbuds are mounted in the charging case, the earbuds’ battery status is displayed. Otherwise, the charging case’s battery status is displayed. If the earbuds are mounted in the charging case while plugged in, the UVnano process will commence for ten minutes. Once this process is complete, the charging case’s battery status will be displayed.

NOTE: When the charging case lid is closed, charging case battery status is displayed. If the charging case has no remaining charge, there will be no display and it cannot function. We recommend you keep the charging case charged at all times as the earbuds are not able to be turned on and turned off independently.

How to charge
Wired Charging
When the charging cable is connected, the charging status is displayed in the charging case.
NOTE: The earbuds and the charging case are charged at the same time. The charging port on the charging case cannot be used to supply power to mobile phones, etc.

Wireless Charging
Align the bottom center of the charging case with the center of the wireless charger.
NOTE: The wireless charger is not provided. HBS-FN4 does not support wireless charging. The wireless charging function may not work in some wireless chargers. Wireless charging feature charges at a slower rate due to less power being transmitted to the charging case.

UVnano Description

UV-C LED process operates for ten minutes and begins when charging case (with earbuds) is plugged in. UV-C LED does not operate while device is charging wirelessly such as on a pad or third party wireless charging device (this only applies to HBS-FN6).
– Independent testing shows the UVnano charging case kills 99.9% of bacteria (Staphylococcus aureus and Escherichia coli) on the speaker mesh of the earbuds in ten minutes while charging. The UV-C LED function works only when the charging case is connected to the power cable.
– For best result, it is recommended that the full 10 minutes of UV-C LED operation be performed while charging.
NOTE: The status indicator light blinks slowly during the UV-C LED operation. The light will slowly illuminate on and off until the UV-C LED function is complete (10 minutes). Once completed, the indicator light will switch back to the always-on battery indicator, see “Battery Status”. HBS-FN4 does not have a UV-C LED and mood light. Performance may vary based on usage conditions.
A white product may slightly differ in the color of the UV-C LED contact area, but there is no problem with the product performance. UV-C LED does not operate while charging wirelessly.
CAUTION: Be aware that the temperature of the earbuds may rise while the UV-C LED is operating. Avoid direct eye and skin exposure to UV light. Keep out of reach of children.
Out of Range
If the device connected to the product is out of effective communication range, the communication signal becomes weak and the communication is lost. The effective communication range may vary depending on surrounding and other conditions. If the device comes back within effective communication range, the product automatically reconnects to the device. If the device is not automatically reconnected, touch the left or right earbud once to connect them.
LG TONE Free
If you install the “LG TONE Free” app, you can use Check Earbud Battery, Voice Alert, Change EqualizerMode, Check Last Connected Location Information, and Find My Earbuds functions. Check out the appfor more details.
To install the “LG TONE Free” app, search LG TONE Free in the Google Play Store or App Store or scanthe QR code below.
It supports Android 5.0 or higher and iOS 11 or higher.

https://play.google.com/store/apps/details?id=com.lge.tonentalkplus.tonentalkfree	https://apps.apple.com/app/lg-tone-talk-free/id1498881097

Troubleshooting

Specifications and Features

Item	Comments
Bluetooth Specifications	V 5.0 (Headset/Hands-Free/A2DP/AVRCP)
Battery	Earbud : 3.7 V / 55 mAh, Lithium-ion Charging case : 3.7 V / 390 mAh, Lithium-ion
Talk Time (Earbuds / With Charging case)	Up to 5 / 15 hours*
Music Play Time (Earbuds / With Charging case)	Up to 6 / 18 hours*
Charging Time	Earbud : within an hour / Charging case : within 2 hours Fast Charging : 5 min charge for up to 60 min playtime ※ When charging wired at room temperature
Rated Input Voltage	Earbud : 5 V 110 mA Charging case : 5 V 500 mA
Operating Temperature	0°C (+32°F) ~ +35°C (+95°F)
Dimensions (mm) / Weight (g)	Earbud : 16.1 mm (W) X 32.65 mm (L) X 25.0mm (H) / 5.4 g (One earbud) Charging case : 54.5 mm (W) X 54.5 mm (L) X 27.5 mm (H) / 39 g
Frequency range	Output power (Max.)
2402 MHz to 2480 MHz	10 dBm
113.49 kHz to 171.23 kHz (HBS-FN6 Only)	-5dBuA/m @10m

*Duration of use may vary depending on the connected mobile device, features being used, settings, signal strength, operating temperature, frequency band, and other methods of use. Fast charging feature does not apply when charging case is placed on wireless charging device such as a pad. Wireless charging feature charges at a slower rate due to less power being transmitted to the charging case.

Declaration of Confirmation

DECLARATION OF CONFORMITY:

Hereby, LG Electronics declares that the radio equipment type this headset iis in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.lg.com/global/support/cedoc/cedoc#
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide. Android, Google Play, the Google Play logo, and other related marks and logos are trademarks of Google LLC.

Additional Information

1. Radio frequency exposure
   This Bluetooth LG Stereo Headset is a radio transmitter and receiver. When in operation it communicates with a Bluetooth equipped mobile device by receiving and  transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2402 to 2480 MHz. Your Bluetooth headset is designed to operate in compliance with the RF exposure guidelines and limits set by national authorities and international health agencies when used with any compatible LG Electronics mobile phone.
2. Bluetooth Connection Precautions
   The following environments affect the range and reception of Bluetooth signals:
   – When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and the connected device
   – When equipment that uses 2.4 GHz frequency signals (Wireless LANs, wireless phones, microwave ovens, etc.) is placed near the devices being used
   – When using a Bluetooth device (TV, laptop, etc.) other than the mobile phone, the sound quality may be affected by the specifications and performance of the device
3. Potentially explosive atmosphere
   Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare, but your electronic device could generate sparks. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but not always, clearly marked.
4. Battery information
   A rechargeable battery has a long service life if treated properly. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used. Do not expose the battery to extreme temperatures, never above +50° or below -10°. For maximum battery capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery capacity will be reduced. The battery can only be charged in temperatures between 0° and +45°. Removal of waste batteries and accumulators (Product with embedded battery ONLY)
   – In case this product contains a battery incorporated within the product which cannot be readily removed by end-users, LG recommends that only qualified professionals remove the battery, either for replacement or for recycling at the end of this product’s working life. To prevent damage to the product, and for their own safety, users should not attempt to remove the battery and should contact LG Service Helpline, or other independent service providers for advice.
   – Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/contacts, and careful extraction of the battery cell using specialized tools. If you need the instructions for qualified professionals on how to remove the battery safely, please visit http://www.lge.com/global/sustainability/environment/take-back-recycling.
5. Recycling the battery in your Bluetooth Headset
   The battery in your Bluetooth Headset must be disposed of properly and should never be placed in municipal waste.

Disposal of waste batteries/accumulators

1. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Contains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
2. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of Your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
4. For more detailed information about disposal of Your old batteries/accumulators, please contact Your city office, waste disposal service or the shop where You purchased the product. (http://www.lg.com/global/sustainability/environment/take-back-recycling/global-network-europe)

Important Safety Information

Avoiding hearing damage
Permanent hearing loss may occur if you use your Headset at a high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging to your hearing.
If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected. Hearing experts suggest that to protect your hearing:

• Limit the amount of time you use Headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.

Please refer to your handset user guide for more information on how to adjust listening levels on your handset.
Using headsets safely
Use of Headset to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or distracting while operating any type of vehicle or performing any other activity that requires your full attention.

Open Source Software Notice Information
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit https://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

RISK GROUP 2
	CAUTION : UV EMITTED FROM THIS PRODUCT. EYE OR SKIN IRRITATION MAY RESULT FROM EXPOSURE. USE APPROPRIATE SHIELDING.
	WARNING : WHEN OPENING THE CHARGING CASE OR WIRELESS CHARGING, THE UV FUNCTION DOES NOT WORK.

The output level shall automatically return to an output level not exceeding RS1 when the power is switched off.

Box Contents

Installing and Using the Product

Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com or scan QR code and then download
Owner’s Manual. Some of the content in this manual may differ from your product.

Sound bar
Remote Control Receiver / Status Display
Rear Speakers / Wireless Receiver (Sold separately, SPK8-S)
Wireless Subwoofer – Install it close to the sound bar
External Device – (Blu-ray player, game console, etc.)

1. Connect the sound bar to your TV via an optical cable or an HDMI cable.
2. If you are using an external device (ex. Blu-ray player, game console, etc.), connect it to the sound bar via an HDMI cable.
3. If you purchased the rear speakers and wireless receiver separately, connect the rear speakers to the wireless receiver via a speaker cable. When connecting the rear speakers to the wireless receiver, connect the black striped cable to the negative terminal of each speaker and the remaining cable to the positive terminal of each speaker.
4. Connect to power in the following order: wireless subwoofer wireless receiver sound bar. Then, turn on the sound bar. When the connection is automatically established with the sound bar, the LEDs on the wireless subwoofer and the wireless receiver will light up in green.
5. Using the product with your TV
   Press the Function button repeatedly until “OPT/HDMI ARC” appears on the status display
   On your TV’s settings, set the output speaker to [HDMI ARC], [Optical], or [External Speaker].
   When the TV is properly connected to the product, “OPT”, “ARC”, or “E-ARC” will appear on the status display with a sound.
6. Connecting the product to your smartphone via Wi-Fi
   Connect your smartphone to Wi-Fi.
   Install the LG Sound Bar app on Google Play or the App Store
   Run the LG Sound Bar app and follow the instructions.
   The product will connect to your smartphone and you can control the product with LG Sound Bar app
7. Connecting the product to your smartphone via Bluetooth
   Tap the Settings button on your smartphone and select Bluetooth. Turn on the Bluetooth function. (Off > On )
   Press the Bluetooth pair button. After a moment, you will see “BT READY” on the status display
   Find and tap “LG_Speaker_SP8YA_XXXX” or the name you registered on the Google Home app
   When the product is connected to your smartphone via Bluetooth, you can see the status display change from “PAIRED” [ “Connected Bluetooth device name” [ “BT”.

If you see a red LED on the back of the wireless subwoofer or on the front of the wireless receiver, it means that the sound bar is not connected to the speakers. If this is the case, connect them in the following order.

Press the Power button on the sound bar to turn it off
Press the PAIRING (Pairing) button on the back of the disconnected wireless subwoofer or wireless receiver. Check if each LED blinks green.
– If you still see a red LED on the back of the wireless subwoofer, press and hold the button on the back of the subwoofer again.
Press the Power button on the sound bar to turn it on.
When the connection is established, you will see a green LED light on the back of the wireless subwoofer or on the front of the wireless receiver light up in green.
Keep the sound bar, the subwoofer and wireless receiver away from the device (ex. wireless router, microwave oven, etc.) over 1 m to prevent wireless interference.
– Some speakers may not make sound depend on the input source. Select CINEMA sound mode to listen through all speakers.

• Design and specifications are subject to change without notice.
• Google Play is a trademark of Google LLC.

Specification

Power consumption

• Refer to the main label

AC adapter

• Model: DA-50F25
• Manufacturer: Asian Power Devices Inc.
• Input: 100 – 240 V ~ 50 – 60 Hz 1.5 A Max.
• Output: 25 V 2 A

Dimensions (W x H x D): Approx. 1060.0 mm x 57.0 mm x 119.0 mm
Bus Power Supply (USB): 5 V 500 mA
Amplifier (Total RMS Output power): 440 W RMS

OPEN SOURCE SOFTWARE NOTICE INFORMATION
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

POWER: This unit operates on a mains supply of 100 – 240 V ~ 50 – 60 Hz.

Wiring: This unit is supplied with a BS 1363 approved main plug.
When replacing the fuse, always use a fuse of the same rating and approved to BS 1362. Never use this plug with the fuse cover omitted. To obtain a replacement fuse cover contact your dealer. If the type of plug supplied is not suitable for the mains sockets in your home, then the plug should be removed and a suitable type fitted. Please refer to the wiring instructions below:

Warning: A mains plug removed from the mains lead of this unit must be destroyed. A mains plug with bared wires is hazardous if inserted in a mains socket. Do not connect either wire to the earth pin, marked with the letter E or with the earth symbol 6 or coloured green or green and yellow. If any other plug is fitted, use same rating of fuse in the plug.

Important: The wires in this mains lead are coloured in accordance with the following codes:

– BLUE: NEUTRAL, BROWN: LIVE – As the colours of the wires in the mains lead of this unit may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

www.lg.com
Copyright © 2021 LG Electronics Inc. All Rights Reserved.

IMPORTANT INSTRUCTIONS

1. Before operating the machine read the Instruction manual carefully.
2. Always keep the machine on the floor level.
3. Place the machine on a flat & firm floor.
4. When not in use, take the power cord out from the power socket outlet.
5. During washing spinning & drain, check that the drain hose is lowered.
6. Don’t touch cloth while running of the cycle.
7. Before putting clothes in the Wash Tub. check the pockets thoroughly for Coins, Keys, and other objects.
8. Transfer the clothes from Wash Tub to Spin Dryer Basket one by one.
9. In case you notice excessive vibration or abnormal noise during spinning, immediately open the Spin Dryer Cover and rearrange the laundry evenly.
10. Rat away is a way to reduce damage caused by specific categories of Rats and may not be effective on all rodents. Actual results may vary depending on actual product use conditions.
11. The machine has mobility function by manual intervention, Care to be taken to avoid any body parts coming under wheels.
12. In case of any doubt contact the nearest service center or Dealer.

Take care of the following signs to avoid any harm to the machine & operator’s

warning

• this is a warning sign specifying users’ applications that might be dangerous.
• This is a sign specifying ‘Strictly Forbidden’ applications.
• Failure to comply with the instructions under this sign may result in major physical injuries or death

CAUTION: Failure to comply with the instructions under this sign may result in minor physical injuries or damages to the product.
This Washing Machine is intended to be used in household and similar applications only.
Disclaimer: The user should follow the instructions as per the owner’s manual to avoid any malfunctioning of the product, accident, or damage. The manufacturer is not liable for any accident or consequential or resulting liability, damage, or loss to property or life arising directly or indirectly from the product. The manufacturer’s liability is limited only to the extent of repair or replacement of the product as per the terms and conditions mentioned elsewhere in the document.

SAFETY MEASURE

WARNING

• In Operation
  Do not insert the hand inside the spin dryer basket while the machine is in operation. Do not let children machine or climb into the tub. climb the on Injury may occur.
• Switch Area
• Avoid watering on the control panel and power socket outlet. It may cause electric shock or fire.
• Installation
  Install the washing machine’s horizontal support. Otherwise, it may cause vibration and noise.
• Installation Area
  Avoid area exposed to high humidity, snow, rain or direct sunlight. It may cause electric shock or deformation in the product. Machine to be used without Packing Base
• Electric Outlet
  Do not use an adapter or extension ord to Supply power to the washing machine. It may cause a fire.
• Heat
  Do not use an electric heater, candlelight, cigarette, bug smoker, etc. near the machine It may ignite or deform plastic part
• Power Cord
  if the power supply cord is damaged, it must only be replaced by a repair shop appointed by the manufacturer because special purpose tools are required.
• Do not touch the power supply cord with your wet hand.
• Plug out the power supply cord, when cleaning or not using the washing machine for a long time.

Caution

• Hot Water
  Avoid using hot water over 50°C. It may deform plastic parts or cause malfunction.
• Drain Hose
  The level of the drain should be slightly lower than the lowest part of the washing machine in order to ensure proper and complete drainage and to avoid falling overflowing water on electrical parts.
• Volatile Material
  Do not use volatile material such as Benzene, or Gasoline bug killer. Do not leave strong alkaline substances such as bleach inside the tub. It may damage the plastic surfaces and rubber parts.
• Water Level
  The washing machine is provided with different water level selection options for the washing/Rinsing process such as, “L” (Low) , “M” (Medium), “H” (High). “H” represents the Maximum water level available. Fill the adequate water quantity as per the laundry load so that Clothes can absorb the required amount of water & water will not be short.

INSTALLATION

Connecting the power plug

Insert the power plug into the power socket-outlet with proper earthing.

Installation area

• Select flat and firm floor
• Maintain more than a 15 cm gap between the side of drain hose and the wall.
• The base openings must not be obstructed by carpeting when the washing machine is installed.ona.carnetedfloar

Drain Hose Installation

Drain Hose

1. Fix the snap ring to the drain hose.
2. Align the drain hose with the drain outlet.
3. Push the hose towards the body of the washing machine & release the snap ring.

Notes

Be sure to re-route the drain hose so that it is not kinked or has sharp bends which will prevent proper drainage. Use only new hose set provided with the machine.

Warning
Packaging materials (such as plastic bags and thermocol) should be kept away from children.The packaging material can cause suffocation.

PARTS IDENTIFICATION

Accessories

• Inlet Hose
• Safety Cover
• Drain Hose
• Sean Rinoa
• Rotation Filter-C
  Accessories may be different according to the model.
• (Please do not match this figure with the model as it may be different from your model . These are schematic diagrams only.)
• (Due to continuous improvements at LG, specifications of washing machines are subject to change without prior notice)

Wash Timer

The wash timer can be used for SOAK, WASH, and RINSE operations. Following combinations can be selected.

1. Soak+ Wash: Select the desired soak time by setting the timer between 15-35/40 min Then total wash time will be selected as soak time+ 15 min of wash time.
2. Wash/Rinse: Any Wash/Rinse time 1-15 min can be selected by setting the timer between 1-15 min
   Washing will take place for the set period, then the machine stops automatically
3. In the Soak option, the machine operates for 1-2 min & remains off for 5 min This cycle continues for the selected soak time.

Soak Function

Soaking is provided for better cleaning of clothes as detergent water goes to inner por of clothes resulting dirt removal in a better way.

PARTS IDENTIFICATION

Control Panel

(Please do not match this igure with model as it may be diferent from your model. These are schematic diagrams only,)For Features and Specifications of your purchased model, please refer 1able “A” on page 15.

Description

1. Water Supply Inlet Connect here with the inlet hose from the water tap to feed water to the tub.
2. Water Selector Select “WASH” to supply water for washing and rinsing and “SPIN” for spin shower rinse.
3. Wash Timer Select the desired time for soaking, washing or rinsing. For Wash Timer please refer to Table “A” on page 15 for your purchased model.
4. Wash Selector Set the Selector to “GENTLE”, “NORMAL”, and ‘STRONG according to kinds and quantity of the laundry.
5. Drain Selector Select “WASH RINSE” for washing and rinsing, and “DRAIN” to drain the water from the tub.
6. Spin Timer Select the desired time for spinning. Don’t rotate the knob more than the prescribed limit,

PREPARATION BEFORE WASHING

Preparation

• Connect the water supply hose to the water supply inlet.
• Set the water selector lever to “WASH” for washing/ rinsing & to “SPIN” for interim spin rinse.
• Note: The water Selector lever should not be placed near the center (as shown in Fig. A flows to the wash and spin tub simultaneously). otherwise water
• For your convenience hang up the wash cOver on the left side of the washing machine tub when not in use.
• Use new inlet hose available with machine
• Connect the power cord to the electrical outlet.
• Drain Hose
• Always keep the level of drain hose slightly lower than the lowest part of the washing machine

Before washing

1. Check the washing instructions labels on the clothing to be washed.
2. Don’t forget to remove any objects from the pockets of the clothing. Object left in the pockets will damage the clothing or washing machine (especially cause clogging of the drain hose).
3. Start washing after separating an oiled or dyed laundry.

HOW TO WASH

1. Set the drain selector to the “Wash Rinse” position.
2. Set the water selector to “WASH”.
3. Open the water tap and fill water in the wash tub about halfway to the desired water level.
4. Put the appropriate amount of detergent and the laundry into the wash tub and add water to the required Water levelFor the model without detergent box
   1. Put the appropriate amount of detergent into the detergent box and the laundry into the wash tub and add water to the required water level
      For model with detergent box
      • For water level refer to Tables for Reference on page 16./ v TR
5. Select the wash selector to “Gentle”, “Normal”, and “Strong” according to kinds and quantity of the laundry.
   1. For Features and Specifications of your purchased model. Please refer Table “A” on name 15,
6. set the desired wash time
   • Refer to TABLES for REFERENCE on page 16 for information on how to select the appropriate washing time.
   • For Features and Specifications of your purchased model, please refer Table “A” on page 15.
7. When washing is finished, select the drain selector to “Drain” position and drain the water out.

HOW TO RINSE

Continuous water supply rinse

The course is to rinse while feeding water continuously

1. Set the drain selector to the “Wash Rinse” position.
2. Put the laundry into the wash tub and open the water tap.
3. Set the rinse time with the wash timer and feed water continuously.For Features and Specifications of your purchased model. please refer Table “A” on page 15.

Interim spin rinse

Interim spin rinse prior to regular rinsing will remove sudsy water from the laundry and improve rinsingg efficiency.

1. After washing
   • Put the laundry into the spin dryer basket.
   • Place the safety cover horizontally on the laundry.
2. Set the water selector to “SPIN” &0pen the tap.
3. Supply water for about 1 minute Adjusts the water flow to prevent overflow from the wash tub.
4. Turn off the water supply, close the safety cover-1, and spin the dryer cOver
5. Set the desired spin time with the spin timer
6. After spinning Put the laundry into the wash tub and rinse

Caution

Do not operate the Spin with the water supply ON.
Spin Motor may stop operation or may be damaged.

HOW TO SPIN

1. Put the laundry evenly into the spin dryer basket.
2. Put the laundry down lightly.
3. Place the safety cover horizontally on the top of the laundry inside the basket.
4. Close the safety over-1 and than spin dryer cover.
5. Set the spin timer according to the following table.

• Do not drain the water out of the wash tub while the spin dryer basket is in operation. Otherwise, the spin motor could be damaged.
• If the spin dryer basket is off-balance and vibrates excessively, stop the spinning, rearrange the clothes evenly, and then resume spinning.
• If the spinning tail stops when the spin dryer cover is opened, the brake is out of order. Immediately stop using the machine and request a repair service

IMPORTANT INSTRUCTION
 For woolen clothes, spin for 1 min only for clothes protection.
**10 min Spin Timer available with selected models only. For Spin Timer please refer to table “A” on page 15 for your purchased model.
Caution
Do not continue Spin over 3 consecutive cycles. After 3 consecutive spin cycles, stop spinning for more than 1 hour.
Spin Motor may stop operation or may be damaged.

AFTER FINISHING WASH

1. Remove the laundry from the spin dryer basket and close the spin dryer cover
2. If there is water in the wash tub, set the drain selector to “DRAIN” in order to drain it out.
3. disconnect the power cord from the electrical outlet.
4. Clean the washing machine. (Refer to CARE AND MAINTENANCE on pages 12-13).

CARE AND MAINTENANCE

Be sure to disconnect the power cord from the electric outlet before starting care and maintenance.

Lint Filter

1. Pull out lint filter in the shown direction.
2. Turn the net over and rinse in water
3. Fit the filter to its original position. Press the filter until you hear a click sound.

Magic Filter

1. Pull out the Magic Filter from 1 tub in the direction as shown in the figure.
2. Open the back cover of the filter in the direction shown in the figure.
3. Pull out the inner filter in the direction shown in the figure.
4. Remove lint.
5. Rinse the filter with water.
6. Place the filter in the original location. Push the filter until a click sound is heard.

Smart Filter

1. Press the upper and lower part of the filter and Dull forward.
2. Remove lint and then wash out.
3. Press the upper part of the overflow filter down and pull forward.
4. Open the lid & remove lint and then wash out.
5. Close the lid and then insert the 5 lower pat of the overflow filter into the wash tub and then press the top part into the original p0sition.
6. Place the filter to the original position.

Overflow filter & Rotation filter-C

• Lift up the area (A of the overflow filter.
• Take out the rotation filter-C by pulling in direction shown.
• Pull the overflow filter forward from the wash tub in the direction of the arrow.
• Turn the net over and rinse in water.
• Use a brush or your hand to remove all of the lints which has adhered to the overflow filter.
• Insert the overflow filter back into the wash tub.
• Insert the rotation filter-C back into the overflow filter.
• If only rotation filter-C need washing, proceed the process 1>3>6 on the upper figure.
  For Features and Specifications of your purchased model, please refer Table “A” on page 15.

Washing machine

• If the washing machine itself becomes dirty.
• The washing machine can be cleaned with cloth soaked in mild liquid detergent.
  Never use abrasive cleaner or chemical Such as benzene or thinner to clean washing machine, because these materials will damage the plastic parts

Pulsator

I lfa button or some other object gets caught in the pulsator

1. Take out the pulsator cap with type screw driver. (Fig. a)
2. Use a screwdriver to unscrew the screw in the center of the pulsator and lift the pulsator straiaht up in order to remove the button or other object. ((Fia.b)
3. Place the pulsator at its original position and tighten the screw.
4. Place the pulsator cap at its original position.

Detergent Box

1. Pull the detergent box as shown in picture 1
2. Press at the side of the detergent box and rotate downwards following the arrow direction in picture 2
3. Clean detergent box with water.
   For Selected models only

Spin dryer basket

1. If clothing becomes trapped between the spin dryer basket and the spin tub.
2. Firmly hold the tub by the other hand.
3. Pull the safety cover-2 upward.
4. Remove the clothing.
5. Close the safety cover-2, pressing down on it so that it fits securely into the spin tub.

TROUBLESHOOTING GUIDE

Before Requesting Service

Disposal of your old appliance (as per e-waste Rules)

1. The product is required to be handed over only to the authorized recycler for disposal.
   • Keep the product in isolated area, after it becomes non-functional/un-repairable so as to prevent its accidental breakage.
   • . The product should not be opened by the user himself/herself, but only by authorized service personnel
   • The product is not meant for re-sale to any unauthorized agencies/scrap dealer/Sabarimala.
   • The product is not meant for mixing into the household waste stream.
   • Do not keep any replaced spare part(s) from the product in the exposed area.
2. Any disposal through unauthorized agencies/persons will attract action under Environment (Protection) Act 1986.
3. “This product complies with the requirement of Hazardous Substances as specified under Rule 13 (1) & (2) of the E-Waste (Management& Handling) Rules, 2011.
4. To locate the nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact Toll-Free No. 1800-315-9999 1800-180-9999 for details. All collection centres and pick-up facilities are done by third parties with LG Electronics India Pvt. Ltd. merely as a facilitator. For more detailed information please visit: http://www.lg.com/in 9711709999 (LG WhatsApp No.)

ENERGY SAVING GUIDE*/ if’cRI *

• Refer below instructions for wash/ Rinse/ Spin function.
• In models having Water Level Selection , the lever should be at “H” Level.
• Water Filling to be done in wash tub till water start flowing from drain hose.
• Rinse to be done in washing tub only.
• Input the detergent directly inside the wash tub input clothes.

Function & Time Selection

• For model capacity : 8.5 kg or more
• For model capacity : 8.0 kg or Less

Mode selection

Washing/ Rinsing: Normal Mode for Model P1155S. / P1145S. and gentle mode for remaining models.
under test conditions, when tested in accordance with standard IEC 60456: 2010 & BEE Schedule-12 (Revision: 03) Actual Performance of the machine will depend on how the appliance is being used.

WARRANTY

The Washing Machine (hereinafter referred as product) comes with 2 year warranty on all parts (except Plastic parts, Consumables, Loose Plastic Parts, Filters, Knobs, Top covers, Inlet/outlet hose) and thereafter a 3 years additional warranty only on the wash motor from the dale of purchases on producing the tax paid invoice of the product provided always that the warranty card bears the rubber stamp, dale and signature of our authorized dealer.
3 YEAR ADDITIONAL WARRANTY ON THE WASH MOTOR
The 3 Year warranty on the Wash Motor will continue even after the expiry of 2 year period from the date of purchase.This warranty covers Wash Motor only except for the models P651 ON* & P6001 R*. During the additional warranty period, it does not cover parts such as Controller Assembly, Timers, Spin motor, Tub assembly, etc. The standard visiting charges will be applicable within municipal limit of town where LG Electronics India Pvt. Ltd. (LGEIL) has its Authorized Service Centre, Service Outside municipal limit will attract to and fro travelling, other incidental expense in addition to standard visiting charges, as per the prevailing from time to time. During the additional warranty period only the parts replaced or repaired shall be free of costs, but service charges shall always be payable by the customer.

COMMON TERMS & CONDITIONS APPLICABLE FOR WARRANTIES AS MENTIONED ABOVE

1. The warranty is confined to the first purchaser of the Washing Machine only & is non-transferable.
2. Repairs & replacements will be carried out through the Authorized Service Centres of LG Electronics India Pvt Ltd. (hereinafter referred as LG or LGEIL). Customer may place their service call through the LG customer care or through the dealer from whom the product has been purchased. In case the customer shifts the place of residence during warranty period, it is advised to contact our helpline.
3. Repair under warranty shall be carried out by an authorized service personnel only. The details of centralized helplines are attached.
4. For units installed beyond municipal limits of the jurisdiction of company’s Authorized Service Centre, ii is responsibility of the purchaser to contact the nearest authorized service centre and bring the unit to the authorized service at its own cost and risk. All expense incurred in collecting the units or parts thereof from the company’s authorized service centre, as well as expenses incurred with deputing of service personnel/technician toward conveyance and other incidentals etc. will be borne by the customer. Local charges for transportation and handling charges may vary from location to location. Customers are advised to verify before. In case the customer desires to bring the unit on its own to the Authorized Service Centre, the same shall be at its own risks & consequences.
5. The concerned authorized service centre will advise the customer whether to effect the repairs at site or at the authorized service centre.
6. Call registered with the centralized helpline/Authorized service centre, wherein only cleaning of the unit/parts in the unit due to dust accumulation on portions of the units are not to be considered as defects.
7. In case of repairs or replacement of any part/s of the unit, this warranty will thereafter continue and remain in force only for the unexpired period of the warranty. LGEIL may use parts that are new or refurbished and equivalent to new in performance and reliability. Replacement of parts would be purely at the discretion of LGEIL alone. In case the replacement of the entire unit is being made, (subject to the sole discretion of LGEIL), the same model shall be replaced and in the event such model has been discontinued, it shall be replaced with the model price equivalent at the time of purchase.
8. In case of any damage to the product/customer abuse/repairs by un-authorized personnel’s/ misuse detected/ by the Authorized Service Centre personnel, the warranty conditions are not applicable and repairs will be done subject to availability of parts and on a chargeable basis only.
9. This warranty shall not cover any consequential or resulting liability, damage or loss to property or life arising directly or indirectly out of any defect being noticed in the equipment during warranty period of the Washing Machine. The company’s obligation under this warranty shall be limited to repair or providing replacement of defective parts only under the warranty period.
10. The company or its Authorized Service Centre reserves the right to retain any part/s or component replaced its discretion, in the event of defect being noticed in the equipment during warranty period.
11. While the company will make every effort to carry out repairs at the earliest, it however is made expressly clear that the company is under no obligation to do so in a specified period of time.
12. Warranty does not cover accessories external to the equipment supplied by the dealer
13. In the event of any unforeseen circumstance, and spares not being available, the company’s prevailing depreciation rules may apply on the purchaser to accept as a commercial solution in lieu of repairs.
14. If any coloured internal or external components are replaced, there will be commitment to ensure that the shades match with the original or other components. The replaced shades, patterns, tints may vary from the customes unit due to continuous usage of the unit. Any matching components changed at customer’s request will be chargeable basis except the component which actually needed.
15. Free Installation or Demo of the product, can be availed only once & within 3 months from the date of purchase.
16. Any extended warranty offered by LGEIL has to be supported by relevant proof.
17. Warranty shall expire after the warranty period as mentioned above even if the Washing Machine may not be in use for any time during the warranty period for any reason.
18. Only courts in state of Delhi and places where LGEIL has its branch office shall have the jurisdiction for settling any claims, disputes arising under the warranty.
19. Warranty is not applicable in any of the following cases where:
    • The warranty card is not completed properly at the time of purchase.
    • The completed warranty card is not presented to authorized service personnel at the time of service of the product.
    • The product is not operated according to instructions given in the Operating Instruction Booklet/Owner’s Manual.
    • The product is used for commercial purposes.
    • The product is used at any places such as public bathroom, lodging houses, training center, dormitory etc.
    • The product has failed under certain conditions like water logging , flood, fire , misuse etc.
    • Defects/malfunction are caused by improper or reckless use, which shall be determined by the company personnel.
    • Any repair work is carried out by persons other than authorized service personnel.
    • Defect/malfunction are caused which are beyond control like lightening, abnormal voltage, Acts of God.virus etc.
    • Any issue is caused by usage of 3rd party product like voltage stabilizer, power outlet socket, MCB, extension board etc.
    • Defects/malfunction caused while in transit to service centre or purchaser’s residence.
    • Defects caused by rodents bite or by pests and vermin ants/Insects/animals/birds etc.
    • The serial number is deleted, defected or altered.
    • Damage is caused to the product or any part/s due to transportation or shifting
    • Any accessory external to the equipment are supplied by dealer or LG.

CUSTOMER’S DETAILS

MODEL No.: SERIAL No.:
