What’s in the Box

Buttons

Connection

Bluetooth

Bluetooth Connection.

Music Control

Speakerphone

Voice Assistant

Tap “Voice Assistant’ in the JBL Connect app, to make the “” button as the activation key of Sid or Google Now on your phone.

Press the “” button on the speaker to activate Sid or Google Now on your phone. Please make sure the Siri or Google Now is enabled on your phone.

JBL Connect

Wirelessly Link 100+ JBL Connect+ Speakers Together.

Play music on one of your JBL speakers and then press the JBL Connect+ button on all desired speakers to start pairing. Al the other JBL speakers will play same music from the music source.

Download the JBL Connect app for the following features: stereo setup, firmware upgrade, and device renaming.

JBL Connect+

LED Behavior

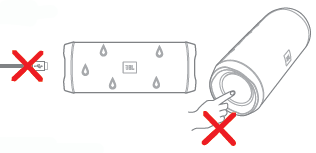

Waterproof Warning

JBL Flip 4 is IPX7 waterproof.

IMPORTANT: To ensure that the JBL Flip 4 is waterproof, please remove all cable connections and tightly close the cap; exposing the JBL Flip 4 to liquids without doing so may result in permanent damage to the speaker. And do not expose JBL Rip 4 to water while charging, as doing so may result In permanent damage to the speaker or power source.

IPX7 waterproof is defined as the speaker can be immersed in water up to lm for up to 30 minutes.

Specification

• Bluetooth version: 4.2
• Support: A2DP V1.3, AVRCP 41.6, HFP V1.6, HSP V1.2
• Transducer 2 x 40mm
• Output power: 2 x 8W
• Frequency response: 70Hz – 20KHz
• Signal-to-noise ratio: z80dB
• Battery type: Lithium ion polymer (3.70, 3000mAh)
• Battery change time: 3.5 hour @ 5V1A
• Music playing time: up to 12 hours (varies by volume level and audio content)
• Bluetooth transmitter power: 0- 9dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480GHz
• Bluetooth transmitter modulation: GFSK, rr./4-DOPSK, 8DPSK
• Dimensions (H x W x D): 68 x 175 x 70 (mm)
• Weight: 515g

The BLUETOOTH word mark and logos ere registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated Is under license. Other trademarks and trade names are those of their respective owners.

Quick Start Guide

1. Music Control
2. Bluetooth Connection

For Windows 7 or Windows 8 Bluetooth setup, please visit our online FAQs.

Wirelessly links multiple JBL Connect compatible speakers together.

Press the JBL Connect button on all desired speakers to begin pairing. All connected speakers will play the same music from the same device.

Download the JBL Connect app for the following features: stereo setup, firmware upgrade, and device renaming.

Voice Assistant
Please make sure the firmware of the JBL speaker and JBL Connect app on your phone are up to date. Tap ‘Voice Assistant” in the app, to make the “Speakerphone” button as the activation key of Sid or Google Now on your phone.

Press the “Speakerphone” button on the speaker to activate Sid or Google Now on your phone. Please make sure the Sid or Google Now is enabled on your phone.

LED Behavior

Warning

BL Flip 3 is splashproof; submerging it in water or other liquids may result in permanent damage to the speaker.

IMPORTANT: To ensure that the JBL Flip 3 is splashproof, please remove all cable connections; exposing the JBL Flip 3 to liquids without doing so may result in permanent damage to the speaker, And do not expose JBL Flip 3 to dripping or splashing while charging. Splashproof is defined as water splashing against the enclosure from any direction shall have no harmful effect to the unit.

EN

• Bluetooth version: 4.1
• Support: A2DP V1.3, AVRCP V1.5, HFP V1.5, HSP V1.2
• Transducer: 2 x 40mm
• Output power: 2 x 8W
• Frequency response: 85Hz — 20kHz
• Signal-to-noise ratio: a80dB
• Battery type: Lithium-ion polymer (3.7V, 3000mAh)
• Battery charge time: 3.5 hour @ 5V1A
• Music playing time: up to 10 hours (varies by volume level and audio content)
• Bluetooth transmitter power: 0 — 4dBm
• Bluetooth transmitter frequency range: 2.402 — 2.480GHz
• Bluetooth transmitter modulation: GFSK, n/4-DOPSK, 8DPSK
• Dimensions (H x W x D): 64 x 169 x 64 (mm)
• Weight: 450g

Voice Logic is a leading-edge voice-enhancement technology that significantly improves the clarity of voice communications by minimizing a wide variety of background noises.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

What’s in the box?

Buttons

Connections

What’s Included?

Button Overview

Quick Start Guide

1. What in the Box…

2. Select your Size….

3. Attached AIR TIP Enhancers

4. TWIST LOCK TECHNOLOGY.

5. Water Proof.

6. MAGHOOK

7. Touch Button Command

8. POWER / PAIR / CHARGE

If connecting for the first time, The headphone will enter pairing mode automatically after it is power on.

9. LED BEHAVIOR

• Transducer: 10mm
• Frequency response: 20Hz-20kHz
• Signal-to-noise ratio: 85dB
• Maximum SPL: [email protected] Hz
• Sensitivity ©1 kHz dBFS/pa: -20dB
• Impedance: 16ohm
• Bluetooth Max Output Power: 4dBm
• Bluetooth transmitter modulation: GFSK, n/4DOPSK,8DPSK
• Bluetooth transmitter frequency range: 2.402GHz-2.48GHz
• Bluetooth profile: HFP V1.6, A2DP V1.3, AVRCP V1.5
• Bluetooth version: V4.2
• Battery type: Lithium-ion polymer (3.7V, 120mAh)
• Charging Time: 2H
• Play time with Bluetooth on: 8H
• Talk time with RI latnnth nn. OH

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of the respective owners.

Everest 300/700

Quick Start Guide

Overview – Buttons & LEDs

2 To turn on Bluetooth to pair

3 To pair Bluetooth with the device

LED behaviors

4. To turn off Bluetooth radio when battery is low. Listen to music using audio cable

Connectors in Everest right earcups

5. To use ShareMe™ 2.0

To use ShareMe™ 2.0
ShareMe 2.0 enables sharing
your audio with another set of
Bluetooth wireless headphones
of any brand.

Step 1: Pair and connect JBL Everest headphone to a source device
Step 2: Pause music or disengage the voice call from the source device
Step 3: Press “ShareMe 2.0” button, the white LED starts blinking. JBL Everest headphone is ready to connect to the other headphone.
Step 4: Turn on the Bluetooth pairing function in the other headphone. Keep both headphones near each other. The white LED stops flashing and remains lit after two headphones connect.
Step 5: Press the play button in the source device to share audio between two headphones.
Step 6: Press “ShareMe 2.0” button to turn off this feature. The white LED is off.

6 To charge battery

7 Adjust Volume

8 Multi-function Button (MFB) to control music

9 Multi-function Button (MFB) to skip track

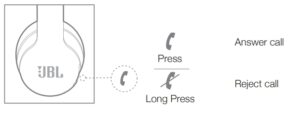

10 Multi-function Button (MFB) to control calls

12 Multi-function Button (MFB) to manage 2 calls at the same time

JBL Everest 700 (AE BT)

Model: V700BT
Drive size: 40mm
Dynamic frequency response range: 10Hz-22kHz
Driver sensitivity: 102dB/1kHz1mW
Maximum SPL: 117dB
Rated power input: 30mW
Microphone sensitivity: -42dBV/Pa
Bluetooth® transmitted power: <4dBm
Bluetooth® transmitted modulation: GFSK π/4, DQPSK, 8-DPSK
Bluetooth® spec: 4.1
Bluetooth® profiles: A2DP V1.3, AVRCP V1.5, HFP V1.6, HSP V1.2
Battery type: Polymer Li-ion Battery (3.7V, 850mAh)
Charging time: 3 hours
Music play time: up to 25 hours
Talk time: up to 25 hours
Dimension WxHxL(mm): 76.9×176.5×169.5
Weight (kg): 0.2736

What’s In The Box?

Inside the box you will find the speaker and a charging cable.

Buttons

Connections

Music Control

Quick Start Guide

LIVE650BTNC

Charging cable

Detachable audio cable with remote

Warranty card, Warning card, Safety sheet, QSR, QSG

Carrying pouch

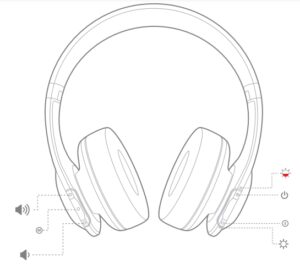

a. Buttons & LEDs

b. Connections

1. Turn on the headphone

Note: A 3 seconds interval is necessary between switching the headphones on and off again to avoid false trigger.
2. If connecting for the first time, the headphone will enter the pairing mode automatically after it is powered on
3. Connect to bluetooth device

Get even more control and personalization of your listening experience with this free App.

a. To set up the Google Assistant
1. Connect your headphones to your mobile device
2. Set up your Google Assistant using your mobile device:
On your  Android device, press and hold the home button to open the Google Assistantand follow the on-screen instructions.
On your iOS devices, open or download the Google Assistant app and follow the app instructions.

Note: The Google Assistant is available on eligible Android 6.0 devices* or later. For iOS devices, the Google Assistant app needs to be downloaded. Works on Lollipop, Marshmallow and Nougat Android Phones with Google Play Services, >1.5GB of memory and 720p or higher screen resolution.

For more information on what your Google Assistant can do, visit: assistant.google.com/ platforms/headphones

b. To use your Google Assistant

Note:
1. The Google Assistant isn’t available in certain languages and countries.
2. If you want to turn on or off the Google Assistant, please download our JBL APP (see Section 7). You can select under Settings > Voice assistant > Google Assistant. For countries without the Google Assistant, you can double tap the left ear cup to activate voice assistant.

1. Connect your headphones to your mobile device.
2. Download JBL APP and follow the app instructions, select Settings > Voice assistant > Amazon Alexa.

3. On your mobile device, open or download the Amazon Alexa app and follow the app instructions.

4. In the Amazon Alexa App, navigate to the Device Page.

5. Click the Plus (+) button on the top right of the screen and select ‘Add Device’.
6. Select Headphones from the list and then choose your Live Series Headphones in the Available
Devices section. Follow the rest of the instructions in the Alexa App to complete set up.
7. Alexa is now enabled on your device. Touch the action button and try one of the below utterances:

Note:
1. For more information and things to try with Alexa, visit: www.amazon.com/alexadevices and  select ‘Use Alexa’.
2. If you want to turn on or off the Amazon Alexa, please download our JBL APP (see Section 7). You can select under Settings > Voice assistant > Amazon Alexa.
3. Alexa is not available in all languages and countries.

a. ANC is on as factory default.
b. In wireless listening mode, long press ANC button to switch it off and on.
c. In wired mode, power on the headphone to switch it on. Power off the headphone to switch it off. Also could use the ANC button to switch it on and off.

1. Pair and connect the headphone with the 1st bluetooth device (see Section 3 Bluetooth pairing)
2. Pair and connect the headphone with the 2nd bluetooth device

3. Connect to bluetooth device

4. Go back to the bluetooth device list on the 1st device and select the headphone* to connect

Items to note:
a. Maximum 2 devices can be connected simultaneously

b. To switch music source, pause the music on the current device and select play on the 2nd device.
c. Phone call will always take priority.
d. If one device goes out of bluetooth range or powers off, you may need to manually reconnect the other device. See Section 13 Step 3.

• Transducer size: 40mm
• Dynamic frequency response range: 16Hz-20kHz
• Sensitivity: 100 [email protected]/1mW
• Max input power: 30mW
• Transmit sensitivity @1kHz dB v/pa: -21
• Impedance: 32ohm
• Bluetooth transmitted power:0-4dbm
• Bluetooth transmitted modulation: GFSK, π/4DQPSK, 8DPSK
• Bluetooth frequency: 2.402GHz-2.48GHz
• Bluetooth profiles: HFP v1.6, A2DP V1.3, AVRCP V1.5
• Bluetooth version: V4.2
• Battery type: Polymer Li-ion Battery (3.7VDC, 700mAh)
• Charging time: 2 hours
• Music play time with BT on and ANC off: Up to 30H
• Music play time with BT on and ANC on:  Up to 20H
• Music play time with BT off and ANC on: Up to 35H
• Weight: 260g

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Google, Android, Google Play, the Google Play logo and related marks and logos are trademarks of Google LLC. The Google Assistant is not available in certain countries and languages. Availability and performance of certain features, services and applications are device and network dependent and may not be available in all areas. Controlling certain devices in your home requires compatible smart devices. Subscriptions for services and applications may be requried and additional terms, conditions and/or charges may apply.

JBL Charge4 User Manual

WHAT’S IN THE BOX?

Included in the box is a speaker, carry strap and a case to keep it all in.

JBL Charge 2 Portable Bluetooth Speakers

What’s in the box

Buttons

Connections

Bluetooth

Hands-free

Social mode

Can connect a maximum of 3 devices.

Press play to take control.

Warning

LED Behavior

• Bluetooth version: 3.0
• Support: A2DP V1 .3, AVRCP V1 .5, HFP V1 .6, HSP V1 .2
• Transducer: 2 x 45 mm
• Rated Power input: 2 x 7.5W
• Frequency response: 75Hz – 20kHz
• Signal-to-noise ratio: >80 dB
• Power supply: 5VDC, 2.3A USB Output: 5V, 2.1A (maximum)
• Battery Type: Lithium-ion Polymer (3.7V, 6000mAh)
• Battery charge time: 4 hrs @ 1.8A
• Music playing time: up to 12 hours (varies by volume level and audio content)
• Bluetooth transmitter power: 0-4 dBm
• Bluetooth transmitter frequency range: 2.402 – 2.480 GHz
• Bluetooth transmitter modulation: GFSK, n/4 DQPSK, 8DPSK
• Dimensions: ct> 79 mm x 185.2 mm
• Weight: 600 g
