Jabra Talk 30 Specifications Manual

Features

• Clear HD calls. High Definition Voice microphone.
• On-ear wearing style. Ergonomically designed for all-day comfort.
• Long lasting. Up to 5 hours of calls. Up to 7 days of standby time.
• Stream from your phone. Music, podcasts and GPS directions.
• Easy to use. One button. Automatically adjusts volume/background noise.
• Premium design. Stylish, brushed steel surface and transparent Earhook.

Specification

Audio

• Speaker 13 mm dynamic speaker
• Speaker sensitivity 105dB SPL at 1 mW/1 kHz
• Speaker impedance 32 Ω
• Speaker max input power 10 mW
• Speaker frequency range 200 Hz -7 kHz
• Microphone type 1 pcs omnidirectional MEMS microphone
• Microphone frequency range 100 Hz – 8 kHz
• Microphone sensitivity -38dBV/Pa

Ease of use

• Paired devices Up to 8, connected to two at the same time (multiuse)
• Wearing style On-the-ear (with or without ear-hook)
• App. support Jabra Assist app.
• Features Answer/end/reject call, Battery/LED indicator, Redial last number*, Advanced Audio, Distribution (A2DP) for music, podcast and GPS streaming*, Voice dialing (activate Siri/Google Assistant)*, Voice control (activate Siri/Google Assistant)*, Voice guidance, Multiuse, Automatic volume control, NFC, Digital signal processing (DSP), HD voice

Battery

• Talk time Up to 5 hours*
• Standby time Up to 7 days*
• Power Nap for extended standby time Up to 180 days*
• Charging time Approximately 2 hours
• Charging cable Standard USB-B connector (30 cm)
• Battery charging current 50mA
• USB Charging Cable 5V 300mA

Connectivity

• What is Bluetooth ® wireless technology? Bluetooth wireless technology is a radio technology developed to deliver short-range wireless mobility. Bluetooth technology eliminates wires between devices, such as mobile phones and headsets, and enables communication between devices that are in close proximity to one another. Bluetooth facilitates fast, secure transmissions of both voice and data. More information is available at www.bluetooth.com or www.bluetooth.org
• Bluetooth ® compliance Bluetooth version 4.0
• Supported Bluetooth ® profiles Advanced Audio Distribution (A2DP) v1.2, hands-free profile v1.6, headset profile v1.2
• Supported modes EDR (2 and 3 Mb), SCO, eSCO, sniff mode
• Security 128 bit encryption
• Operating range Up to 30 meters (98 feet)*
• Pairing passkey or PIN 0

General

• Headset weight 8.3 grams (0.29 oz)
• Dimensions, main unit L 66.9 x W 24.15 x H 16.45 mm (L 2.63 x W 0.95 x H 0.65 in)
• Operating temperature 0° C to 45° C (32 F to 113 F)
• Storage temperature -20° C to 60° C (-4 F to 95 F)
• Materials Eargel materials: PA and Silicon. Headset materials: PC. Earhook material: PA.
• What’s in the box 1 Jabra Talk 30 headset, 2 eargels (one premounted standard eargel), 1 earhook, 1 USB charging cable, quick start guide, warning and warranty leaflets
• Certification Bluetooth 4.0, CE, CB, FCC, IC, CEC, EAC, RoHS, REACH, SRRC, IMDA, NCC, TELEC, KCC, ACMA, RADCOMM, ETA, SIRIM, SDPPI, NTC, ICASA
• Warranty One year limited warranty

*Device dependent

Jabra.com/Talk30

© 2018 GN Audio A/S. All rights reserved.
® Jabra is a registered trademark of GN Audio A/S.
The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license.

Welcome

Thank you for using the Jabra Link 950. We hope you will enjoy it!

Jabra Link 950 features

• Boost productivity. Seamless connectivity to a desk phone, softphone and mobile phone*.
• Ready for the future. Firmware upgrades and central management for optimal performance.
• Easy to install, use and manage. Simple to set up and easy call management.
• Compatible with leading desk phones and softphones. Get full call control via the headset

*Mobile phone connectivity is limited to headsets with Bluetooth functionality. Mobile phone audio, answer/end functionality, etc., is routed directly between the Bluetooth headset and the mobile phone. No mobile phone audio or call functionality is routed via the Jabra Link 950.

Jabra Link 950 overview

Front

Back

Included accessories

Optional accessories

Jabra Link 950 power supply (required for Jabra Evolve 40, Jabra Evolve 80, Jabra GN 1000, and Jabra devices when using the Jabra Link 360 Bluetooth adapter)

Connect to a desk phone

Connect to a desk phone with a headset port

This desk phone has a dedicated headset port (usually at the back of the phone). These phones typically have a button on the front panel for switching between handset and headset.

1. Plug the supplied telephone cable into the port marked  on the Jabra Link 950.
2. Connect the telephone cable to the headset port on your desk phone.


Connect to a desk phone without a headset port

This desk phone does not have a dedicated headset port.

1. On the desk phone, unplug the handset cable from the phone body.
2. Connect the handset cable to the port marked on the Jabra link 950.
3. Plug the supplied telephone cable into the port marked on the Jabra Link 950.
4. Connect the telephone cable into the handset port on the desk phone.


Connect to a desk phone with an electronic hook switch

An electronic hook switch enables an incoming call to be answered or ended by the headset´s multi-function button. If the desk phone has an electronic hook switch, a Jabra Link adapter* will need to be connected between the desk phone and the base.

For specific instructions on connecting an electronic hook switch adapter* to a desk phone, please refer to the cabling documentation supplied with the adapter.

*For details on electronic hook switch compatibility specific to your desk phone, and to purchase the required adapter, visit Jabra.com/accessories.

Connect to a computer

1. Plug the supplied USB cable into the Computer port on the back of the Jabra Link 950, and into an available USB port on your computer.
2. Download and install Jabra Direct. (jabra.com/direct)


Connect your headset

Connect a supported Jabra headset or Bluetooth adapter into the Headset/Bluetooth adapter port on the front of the Jabra Link 950.

Wired headset

Wireless headset with a Jabra Bluetooth adapter

Jabra devices that require a power supply

The Jabra Evolve 40, Jabra Evolve 80, Jabra GN 1000, and Jabra devices when using the Jabra Link 360 Bluetooth adapter require a power supply plugged into the Power supply port of the Jabra Link 950. Please use Jabra Direct to identify if you have a Jabra Link 360.

The power supply is not supplied and can be purchased at Jabra.com/accessories.

How to use

Make a call

When connected to a desk phone and a computer, press the Target phone button to select your desired phone before initiating the call. The LED will indicate which phone is currently selected.

Answer a call

Incoming calls are handled directly from your headset. The Link 950 automatically connects the headset to the phone that is receiving a call.

Note: You can choose your preferred computer softphone client as default in Jabra Direct. Call control support for desk phones require an electronic hook switch.

What the LEDs mean

LED	LED state	Indication
	Solid	Desk phone is target phone
	Solid	Computer is target phone
	Flashing	Incoming call on desk phone
	Flashing	Incoming call on computer
	Flashing	Power supply required for Jabra device Bluetooth adapter is not supported
	Slow flashing	Firmware updating

Adjust the microphone volume for desk phones

The microphone volume of your headset when connected to a desk phone can be adjusted using the Microphone volume buttons on the bottom of the Jabra Link 950.

Please note that setting the microphone volume too high may cause an echo.

Missing dial tone in desk phone

When connected to a desk phone, if you do not hear a dial tone in the connected headset, you may need to rotate the dial tone switch on the bottom of the Jabra Link 950 until you do hear a dial tone.

Jabra Direct

Jabra Direct is computer software designed to support, manage, and enable optimal functionality for your Jabra devices.

Download via jabra.com/direct

Support

FAQ

View the FAQs on Jabra.com/help/link950

Desk phone and softphone compatibility guide

View the Jabra Compatibility Guide at: Jabra.com/compatibilityguide

Jabra Speak 750

How to connect

using Bluetooth or Bluetooth adapter

Before first time use, plug the USB cable into your computer.

How to use

Personalize your Jabra Speak 750 using the Jabra Direct software. Download for free at jabra.com/direct.

Where to position

• When playing music or watching a video use the stand to direct the audio towards you.
• Tap to link two Jabra Speak 750 devices within 0.5m – 4m or 1.6ft – 13ft.

Jabra® BT2047

USER MANUAL

A BRAND BY

THANK YOU

Thank you for purchasing the Jabra BT2047 headset. We hope you enjoy it! This instruction manual will get you started and ready to make the most of your headset.

ABOUT YOUR JABRA BT2047

A Answer/end button, on/off button
B LED light
C Charging socket
D Earhook

WHAT YOUR HEADSET CAN DO

Your Jabra BT2047 lets you do all this:
– Answer calls
– End calls
– Reject calls*
– Voice dialing*
– Last number redialing*
– Call waiting*
– Place call on hold*

* Phone dependent                                                                           2

Specifications
– Talk time up to 10 hours / standby time up to 10 days
– Weight 10 grams
– Operating range up to 10 meters (appr. 33 feet)
– Headset and hands-free profiles (see glossary)
– Bluetooth® version 2.1 + eSCO & EDR

GETTING STARTED

You should follow three steps before using your headset:

1. Charge your headset
2. Activate Bluetooth® on your mobile phone (refer to the manual for your Mobile phone)
3. Pair your headset to your mobile phone
   The Jabra BT2047 is easy to operate. The answer/end button on the headset performs different functions depending on how long you press it.

3

CHARGE YOUR HEADSET

Make sure that your headset is fully charged for 2 hours before you start using it. When the light indicator (LED) has a solid LED light, your headset is charging. When the solid LED light turns off, it is fully charged.

Please note: The lifetime of the battery will be significantly reduced if your device is left uncharged for a long period. We therefore recommend that you recharge your device at least once a month.

TURNING YOUR HEADSET ON AND OFF

– Press the answer/end button until you see a burst of flashes on the indicator light (LED) to turn on your headset.
– Long press the answer/end button until you see a burst of flashes on the indicator light (LED) to turn the headset off.
Please note that the LED indicator light turns off after 1 minute to save battery. Headset is still active, and light will flash again after tap on the Answer/End button or any call activity. To check if the headset is on, tap the answer/end button once ­ the LED indicator light will flash, if the headset is on.

PAIRING IT WITH YOUR PHONE

Headsets are connected to phones using a procedure called ‘pairing’. By following a few simple steps, a phone can be paired with a headset in a matter of minutes.

1. Put the headset in pairing mode
   – When you turn on your Jabra BT2047 for the first time, the headset will automatically start up in pairing mode -­ i.e. it is discoverable for your phone. When the headset is in pairing mode the LED is constantly lit.
2. Set your phone to ‘discover’ the Jabra BT2047
   – Follow your phone’s instruction guide. First make sure that Bluetooth® is activated on your mobile phone. Then set your phone to discover the headset. This usually involves going to a ‘setup’, ‘connect’ or ‘Bluetooth®’ menu on your phone and selecting the option to ‘discover’ or ‘add’ a device.*
3. Your phone will find the Jabra BT2047
   – Your phone will find the headset under name “BT2047”. Your phone then asks if you want to pair with the headset. Accept by pressing ‘Yes’ or ‘OK’ on the phone and confirm with the passkey or PIN = 0000 (4 zeros) if asked. Your phone will confirm when pairing is complete.

5

Put the headset in pairing mode manually
In case of unsuccessful pairing, put the Jabra BT2047 into pairing mode manually. Make sure the headset is off. Press and hold the answer/end button for approximately 5 seconds until the LED has a constant light. The LED will flash before the light is constant ­ keep holding down the button until light is constant. Then follow the steps 2 and 3 above.

WEAR IT HOW YOU LIKE IT

The Jabra BT2047 is designed to wear with an earhook but it can also be worn without the earhook by simply inserting it in your right or left ear. If you prefer to use the earhook, click it on as shown on the illustration.

For optimal performance, wear the Jabra BT2047 and your mobile phone on the same side of your body or within line of sight. In general, you will get better performance when there are no obstructions between your headset and your mobile phone.

6

HOW TO

Answer a call
– Tap the answer/end button on your headset to answer a call.

End a call
– Tap the answer/end button to end an active call.

Make a call
– When you make a call from your mobile phone, the call will (subject to phone settings) automatically transfer to your headset. If your phone does not support this function, tap on the answer/end button on the Jabra BT2047 to receive the call in the headset.

Reject a call*
– Press the answer/end button when the phone rings to reject an in-coming call. Depending on your phone settings, the person who called you will either be forwarded to your voice mail or hear a busy signal.

Activate voice dialing*
– Press the answer/end button to activate the voice-dialing function in the mobile phone. Please consult your phone user manual for more info about using this feature.

Redial last number*
– Double tap the answer/end button.

Call waiting and placing a call on hold*
– This lets you put a call on hold during a conversation and answer a waiting call.
– Press the answer/end button once to put the active call on hold and answer the waiting call.
– Press the answer/end button to switch between the two calls.
– Tap the answer/end button to end the active conversation.

Functions marked with* are dependent on your phone supporting these features. Check your phone’s user manual for further information.

7

WHAT THE LIGHTS MEAN

*BT2047 is equipped with Jabra Discreet Light feature, meaning that light indicator (LED) turns off after 1 min of non-activity. Headset is still active, and light will flash again after a tap on the answer/end button or any call activity.

USING JABRA BT2047 WITH TWO MOBILE PHONES

Jabra BT2047 is capable of having two mobile phones (or Bluetooth® devices) connected to the headset at the same time. This will give you the freedom of having only one headset to operate both your mobile phones.

In order to use the headset with two mobile phone please make sure you have “paired” the Jabra BT2047 with both phones. See the section “PAIRING IT WITH YOUR PHONE” for instructions.

Once you have “paired” your headset with two phones simply make sure your headset is on, and that Bluetooth® is enabled on the phones and the headset will then automatically connect to both phones.

Please note that Last Number Redial will dial the number from the last outgoing call, independent of the mobile phone, and the Voice Dialing function will only work on the last paired mobile phone.

8

If you are on a call and receive a second call you will be alerted by a tone. You can then:
– Put the first call on hold and accept the incoming call by pressing the Answer/end button
– Switch between the two active calls by pressing the Answer/ end button again
– Tap the Answer/end button once to end the first call and accept the new incoming call

TROUBLESHOOTING & FAQ

I hear crackling noises
– For the best audio quality, always wear your headset on the same side of the body as your mobile phone.

I cannot hear anything in my headset
– Increase the volume on your phone.
– Ensure that the headset is paired with the phone.
– Make sure that the phone is connected to the headset ­ if it does not connect either from the phone’s menu or by tapping the answer/end button, follow the pairing procedure (refer to pairing section in this user manual).
– You can determine whether your headset is connected to a device by looking at the flashes on the headset after tapping the answer/end button when the headset is on very slow single flashes means that the headset is connected to a device, slow triple flashes means that the headset is currently not connected.

I have connection problems
– You may have deleted your headset pairing connection in your mobile phone. Follow the pairing instructions (refer to the section in this user manual).
– You can determine whether your headset is connected to a device by looking at the flashes on the headset after tapping the answer/end button when the headset is on very slow single flashes means that the headset is connected to a device, slow triple flashes means that the headset is currently not connected.

9

Will the Jabra BT2047 work with other equipment?
– The Jabra BT2047 is designed to work with mobile phones. It can also work with other devices that are compliant with Bluetooth® and support a headset and/or hands-free profile.

I cannot use Reject call, Call on hold, Redial or Voice dialing
– These functions are dependent on your phone supporting them. Please check your phone’s manual for further details.

NEED MORE HELP?

Web: www.jabra.com/bt2047
(for the latest support info and online User Manuals)

TAKING CARE OF YOUR HEADSET

– Always store the Jabra BT2047 with the power off and safely protected
– Avoid storage at extreme temperatures (above 45°C/113°F ­ including direct sunlight -­ or below -10°C/14°F). This can shorten battery life and may affect operation. High temperatures may also degrade performance.
– Do not expose the Jabra BT2047 to rain or other liquids.

10

GLOSSARY

1 Bluetooth® Bluetooth® is a radio technology that connects devices, such as mobile phones and headsets, without wires or cords over a short distance (approx. 10 meters/33 feet). is safe to use. It is secure too, so once a connection has been made no-one can listen in and there is no interference from other devices either. Get more information at www.bluetooth.com.

2 Bluetooth® profiles are the different ways that devices communicate with other devices. Phones support the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone’s software.

3 Pairing creates a unique and encrypted link between two Bluetooth® devices and lets them communicate with each other. Bluetooth™ devices will not work if the devices have not been paired.

4 Passkey or PIN is a code that you enter on your Bluetooth® enabled device (e.g. a mobile phone) to pair it with your Jabra BT2047. This makes your Bluetooth® device and the Jabra BT2047 recognize each other and automatically work together.

5 Standby mode is when the Jabra BT2047 is passively waiting for a call. When you ‘end’ a call on your mobile phone, the headset goes into standby mode.

Dispose of the product according to local standards and regulations.

www.jabra.com/weee

11

A BRAND BY

© 2016 GN Netcom A/S. All rights reserved. Jabra® is a registered trademark of GN Netcom A/S. All other trademarks included herein are the property of their respective owners. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. (Design and specifications subject to change without notice).

MADE IN CHINA
MODEL : OTE9 / Jabra BT2046 series

www.jabra.com/bt2047

REV B

Jabra
Elite 85h

User manual
GB making life Sound Better

© 2019 GN Audio A/S. All rights reserved. Jabra® is a trademark of GN Audio A/S. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth® SIG, Inc. and any use of such marks by GN Audio A/S is under license.

Made in China
MODEL:OTE100

Declaration of Conformity can be found on www.jabra.com/doc

Welcome

Thank you for using the Jabra Elite 85h. We hope you will enjoy it!

Jabra Elite 85h features

• SmartSound: audio that automatically adapts to your surroundings.
• Block unwanted background noise. Smart Active Noise Cancellation (ANC) for superior sound.
• Exceptional music clarity. Purpose-built speakers offer a distinctly sharper music experience.
• Power through your day. Get up to 36 hours battery life (ANC on).
• Unmatched call quality. 8 microphones for enhanced call quality.
• One-touch access to your voice assistant. Instant access to Amazon Alexa, Siri®, and Google Assistant™.
• Certified rain-resistant durability. Go anywhere with a 2-year warranty against water and dust.
• Personalize your headphones. Pair with the Jabra Sound+ app for SmartSound features, including customizable settings.

Jabra Elite 85h overview

Included accessories

How to wear

Adjust the headband so that the headphones fit your head comfortably.

How to charge

To charge the headphones, connect the USB  charging cable to the USB charging port on the right earcup. It is recommended to charge the headphones using the supplied Jabra charging cable, however, it is possible to use a compatible charger.

Right earcup

It takes approx. 2.5 hours to fully charge the battery. If the headset is fully out of battery, 15 minutes of charging will give 5 hours of battery.

Sleep mode

When the headphones are powered on, but not being worn, they will automatically enter sleep mode after 1 hour to conserve battery. To exit sleep mode, simply wear the headphones again, or press any button.

The length of time before the headphones enter sleep mode can be adjusted using the Jabra Sound+ app.
After 24 hours of sleep mode, the headphones will power down completely.

What the LED means

Right earcup

	Power on Battery full
	Battery medium
	Battery low
	Battery critically low
	Pairing mode
	Resetting/Firmware updating

How to connect

Pair with a smartphone

1. Wear headphones.
2. Press and hold the Multi-function button on the right earcup for 3 seconds until the LED flashes blue and you hear an announcement in the headphones.
3. Go to the Bluetooth menu on your smartphone and select the Jabra Elite 85h from the list of available devices.

Connect to 3.5mm jack port

Plug the supplied audio jack cable into the 3.5mm audio jack port on the headphones.
When connected to a device using the audio jack cable, the headset microphone and Bluetooth are disabled. If the headset is plugged into a smartphone, the smartphone’s microphone will be used for calls.
The volume and Sound Modes can still be controlled using the buttons on the headphones.

Right earcup

How to use

Power on/off

The headphones automatically power on when the earcups are rotated into the wearing position.

The headphones automatically power off when the earcups are folded flat.

Calls & music

Right	Calls & music
	Play/pause music	Press the Multifunction button
	Answer call	Press the Multifunction button,  or say ‘Answer’
	End call	Press the Multi-function button
	Reject call	Double-press the Multi-function button, or say ‘Ignore’
	Adjust volume	Press the Volume up or Volume down button, when listening to music or on a call
	Next track	Press and hold (1 sec) the Volume up button
	Restart track	Press and hold (1 sec) the Volume down button to restart the current track. Press and hold twice to play the previous track.
	Hear battery and connection status	Press the Volume Up or Volume down  button, when not listening to music or on a call
	Activate  oice Assistant (i.e.  iri, Google Assistant, Amazon Alexa)	Press the Voice button, when not on a call
	Mute/un- ute microphone	Press the Voice button, when on a call

Left	Sound Modes
	Cycle between Sound Modes: ANC,  ff, HearThrough	Press the Sound Modes button
	Cycle between Moments in Jabra Sound+	Press the Sound Modes button

Voice Assistant

The Jabra Elite 85h enables you to speak to Siri,  Google Assistant, Amazon Alexa on your smartphone using the Voice button.

Right	Voice Assistant
	Activate Voice Assistant (i.e. Siri, Google Assistant, Amazon Alexa)	Press the  voice button, when not on a call

Active Noise Cancellation (ANC)

Active Noise Cancellation (ANC) counters noise. It detects and analyzes the pattern of incoming sound, and then generates an antinoise signal to cancel it out.
As a result, you experience a drastically reduced level of surrounding noise.
ANC settings can be configured using the Jabra Sound+ app.

Left	ANC
	Turn on ANC	Press the Sound Modes button to cycle through the available Sound Modes until ANC is announced.

HearThrough™

HearThrough utilizes built-in microphones to enable you to pay attention to your surroundings and engage in conversation without needing to remove the headphones.
HearThrough settings can be configured using the Jabra Sound+ app.

Left	HearThrough
	Turn on HearThrough	Press the Sound Modes button to cycle through the available Sound odes until HearThrough is announced.

Jabra Sound+ Moments

Moments are predefined audio configurations in the Jabra Sound+ app that are designed to suit the different moments of your day.

Left	Moments
	Cycle through Moments in the Jabra Sound+ app	Press and hold (1 sec) the Sound Modes button to cycle through the available Moments in the Jabra Sound+ app

Multiuse

The headphones can be paired to two smartphones at once and can accept multiple incoming calls from either smartphone.
To pair to two smartphones, use the normal pairing process separately for each smartphone (refer to section 5).
Note: Voice assistant will be activated on the last paired smartphone.

On-ear detection

The headphones have built-in sensors that can detect when the headphones are being worn.

AUTO-PAUSE MUSIC
When listening to music, removing the headphones will automatically pause the music. Wear the headphones again to automatically resume the music.
MUTE CALL
When you are on a call, removing the headphones will automatically mute the call. Wear the headphones again to automatically un-mute the call. This feature is off by default and can be enabled in Jabra Sound+.

AUTO-ANSWER INCOMING CALL
When the headphones are not being worn and you have an incoming call, wearing the headphones will automatically answer the call. This feature is off by default and can be enabled in Jabra Sound+.

Multiple call handling

The headphones can accept and handle multiple calls at the same time.

Right	Multiple call handling
	End current call and answer incoming call	Press the Multifunction button
	Put the current call on hold and  answer an incoming call	Hold (2 secs) the Multi-function button
	Switch between held call and active call	Hold (2 secs) the Multi-function button
	Reject incoming calls, when on a call	Double-press the Multi-function button

Voice guidance

Voice guidance is announcements intended to guide you through setup or to give your headphone status updates (e.g. connection and battery status). Voice guidance is enabled by default.

Right	Voice guidance
	Turn Voice guidance on/off	Press and hold (5 sec) the Voice button until you hear an announcement in the headphones.

Alternatively, use the Jabra Sound+ app on your smartphone to turn Voice guidance on or off. For the latest list of supported languages, refer to the Jabra Sound+ app.

Update firmware

Firmware updates improve performance or add new functionality to Jabra devices. Download the Jabra Sound+ app for firmware updates.

How to re set

Resetting the headphones clears the list of paired devices and resets all settings.

Right	Reset headphones
	Reset pairing list and settings	Ensure the headphones are powered on and you are not on a call. Then simultaneously press and hold (5 sec) the Volume up button and the Multi-function button until the LED lights up purple and you hear an announcement in the headphones. You will need to repair the headphones to your smartphone.

Jabra Sound+ app

Jabra Sound+ app
Customize your music
Manage HearThrough and
Active Noise Cancellation
Register your
2-year warranty

Support

FAQ

View the FAQs on Jabra.com/help/elite85h.

How to care for your headphones

• Always store the headphones in the supplied case.
• To prevent the depletion of the battery lifetime or capacity, avoid storing the headphones in hot or cold environments, such as a closed car in summer, or in winter conditions.
• When exposed to rain, allow the headphones sufficient time to dry. It may take up to one hour for the headphones to dry thoroughly and power on.
• It is recommended to keep the headphones between 15°C and 25°C (59°F and 77°F).
• Do not store the headphones for extended periods of time without recharging them (max. three months).

User manual

GB Making Life Sound Better

© 2019 GN Audio A/S. All rights reserved. Jabra® is a trademark of GN Audio A/S. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by GN Audio A/S is under license.

MADE IN CHINA
MODEL: OTE090

Declaration of Conformity can be found on www.jabra.com/CP/US/doc

Welcome

Thank you for using the Jabra Elite Active 45e.
We hope you will enjoy it!

Jabra Elite Active 45e overview

How to wear

The earbuds are worn with the cable behind the neck and the earhooks behind each ear.

1. Insert the earbud into your ear canal, ensuring the looped largely fits into the ridge of your ear, as illustrated.

2. Shape the ear hook behind your ear for the best fit. It may help to pre-shape the ear hook before wearing it.


How to charge

To charge the earbuds, connect a USB charging cable to the USB charging port on the left earbud. It is recommended to charge the earbuds using the supplied Jabra charging cable, however, it is possible to charge the earbuds using a compatible charger.

It takes approx. 2 hours to fully charge the battery. If the earbuds are fully out of battery, 15 minutes of charging will give 1 hour of battery.
Note: Always clean and dry the USB charging port before charging the earbuds. It is recommended to recharge the earbuds at least once a month.

What the LEDs mean

How to connect

Power on/off

On: Press and hold (1 sec) the Multi-function button. The LED will flash green and you will hear a power-on tone.

Off: Press and hold (3 sec) the Multi-function button. The LED will flash red and you will hear a power off tone.

Pairing with a smartphone

1. Ensure the earbuds are powered off, and then press and hold (3 sec) the Multi-function button until the LED flashes blue and you hear an announcement in the earbuds.

2. Go to the Bluetooth menu on your smartphone and select the Jabra Elite Active 45e from the list of available devices.

How to use

Calls & music

Right	Calls & music
	Power on	Press and hold (1 sec) the Multi-function button
	Power off	Press and hold (3 sec) the
	Play/pause music	Press and hold (1 sec) the Multi-function button
	Answer/endcall	Press the Multi-function button
	Reject call	Double-press the Multi-function button
	Adjust volume	Press the Volume up or Volume down button, when listening to music or on a call
	Next track	Press and hold (1 sec) the Volume up button (smartphone only)
	Restart track	Press and hold (1 sec) the Volume down button to restart the current track. Press and hold twice to play the previous track.
	Hear battery and connection status	Press the Volume up or Volume down button, when not listening to music or on a call

Left	Calls & music
	Activate Siri, Google Assistant or Amazon Alexa (phone dependent)	Press the Voice button, when not  on a call
	Mute/un-mute microphone	Press the Voice button, when on a call

Voice Assistant

The Jabra Elite Active 45e enables you to speak to Siri or Google Assistant on your smartphone using the Voice button.

Left	Voice Assistant
	Activate Siri, Google Assistant or Amazon Alexa (phone dependent)	Press the Voice button, when not on a call

Multiple call handling

The earbuds can answer or reject calls when you are already on a call.

Right	Multiple call handling
	End current call and answer an incoming call	Press the Multi-function button
	Put the current call on hold and answer an incoming call	Hold (1 sec) the Multi-function button
	Switch between held call and active call	Hold (1 sec) the Multi-function button
	Reject incoming call, when on a call	Double-tap the Multi-function button

Voice guidance

Voice guidance is announcements intended to guide you or give you earbud status updates (e.g. connection and battery status).
Voice guidance is enabled by default.

Left	Voice Guidance
	Turn Voice guidance on/off	Hold (5 sec) the Voice button until you hear an announcement in the earbuds

Alternatively, use Jabra Sound+ on your smartphone to turn Voice guidance on or off.

How to reset

Right	Reset
	Reset the pairing list	Ensure the earbuds are powered on and you are not on a call. Then simultaneously hold (5 sec) the Volume up button and the Multifunction button until the LED lights up purple. You will then need to re-pair the earbuds.

Firmware update

Firmware updates improve performance or add new functionality to Jabra devices.
Download Jabra Sound+ for firmware updates.

Jabra Sound+ app

Jabra Sound+
Customize your music
Manage voice prompts
Register your 2-year warranty

Support

8.1 FAQ
View the FAQs on Jabra.com/help/eliteactive45e
8.2 How to care for your earbuds
• Always store the earbuds with the power off and safely protected.
• Avoid storage at extreme temperatures (above 50°C/122°F or below -10°C/14°F). This can shorten battery life and may affect the earbuds.

Elite 65t

User manual
Making life Sound Better

© 2017 GN Audio A/S. All rights reserved. Jabra ® word mark and logos are registered trademarks owned by the Bluetooth® SIG, Inc. and any use of such marks by GN Audio  /S is under license.

Made in China
MODEL: OTE070 / OTE071 / CPB070

Declaration of Conformity can be found on www.jabra.com/doc

Welcome

Thank you for using the Jabra Elite 65t. We hope you will enjoy it!

Jabra Elite 65t features

• 4-microphone enhanced sound
• Customize your music
• Proven wireless connection
• Up to 15-hours battery
• Voice Assistant enabled
• 2-year warranty (dust & water). Registration is required with the Jabra Sound+ app

Jabra Elite 65t overview

Included accessories

How to wear

Insert the earbud into your ear and rotate to fit comfortably. Ensure the microphone is pointing towards your mouth.

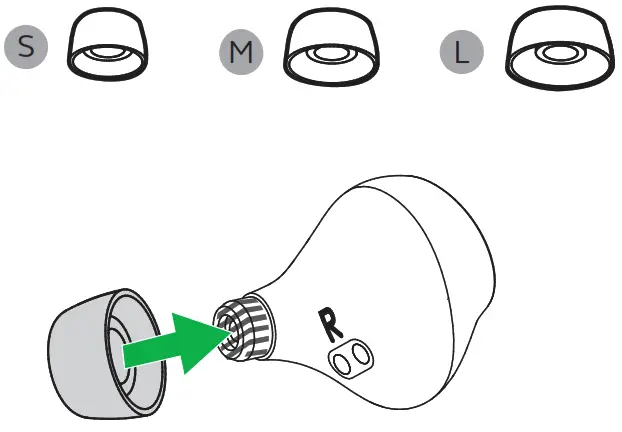

Changing EarGels

For the optimal audio experience, it is recommended to try each of the different EarGel sizes. The fit should feel tight and secure in your ear. The medium EarGel is remounted on the earbuds. Ensure the EarGel is firmly attached.

How to charge

With up to 5 hours of battery in the earbuds, and 2 recharges in the charging case, the Jabra Elite 65t offers up to 15 hours of playtime.

Opening the charging case

Firmly old the charging case and press the small tab on the lid while opening the lid.

Place the earbuds in the charging case and close the lid. The battery LED inside the charging case will flash red, yellow or green when the lid is opened to indicate the earbuds current battery status.

It takes approx. 2 hours to fully recharge the earbuds. If the earbuds are at low battery, you will get up to 1 hour of playtime by charging them in the charging case for 10 to 20  minutes.

Charging the charging case

Plug the charging case into a USB power supply or certified wall charger. It takes approx. 2 hours to fully charge the earbuds and the charging case.
The charging case is designed to charge using a standard USB voltage. It is not recommended to charge using a higher voltage.
Note: non-certified chargers may take longer to charge.

 What the LEDs mean

EARBUD STATUS
		High battery/Power on
		Medium battery
		Low battery/Off
		Very low battery/  Power off
		Connecting/Incoming call
		Pairing
		Resetting

EARBUD BATTERY STATUS
		High battery
		Medium battery
		Low battery

CHARGING CASE STATUS
		Charging – high battery
		Charging – medium battery
		Charging – low battery
		Firmware updating
		Fully charged

 How to pair

Pairing with a smartphone

1. Ensure the right earbud is turned off and not in the charging case. To manually turn off the earbud, hold the Multi-function button until the LED flashes red.
2.  Next, hold the Multi-function button on the right earbud for 5 seconds until you hear the connection instructions in the earbud and the LED flashes blue. Release the button,  and follow the voice-guided instructions to pair to your smartphone.
3.  You may need to hold the Volume down button for 1 second on the left earbud to turn it on.

Turn the earbuds on/off

Place the earbuds in the charging case to turn them off, or remove them from the charging case to turn them on.
The earbuds can be turned on or off individually by holding the Multi-function button on the right earbud, or the Volume down button on the left earbud, until the LED  flashes green (on) or red (off).

Mono earbud use

The right earbud can be used alone for mono playback or for calls. For volume and/or skip track controls, please use your connected smartphone.
When both earbuds are turned on and within 20 centimeters (8 inches) of one another, they will automatically relink.

Calls & music

Right earbud	Calls & music
	Play/pause music	Press the Multi-function button
	Answer/end call	Press the Multi-function button
	Reject call	Double-press the Multi-function function  button when there is an incoming call
	Voice assi tant(Siri, Google Assistant, Alexa)	Hold (1 sec) the Multi-function Multi-function button  when not on a call
	HearThrough on/off	Double-press the Multi-function  Multi-function  button when not on a call

Left earbud	Calls & music
	Adjust volume	Press the Volume up Volume up or  Volume down button
	Skip track	Hold (2 secs) the Volume Volume up or  Volume down  button when  listening to music
	Battery status	Press the Volume up Volume up or Volume  down button when not on a call or listening to music

HearThrough

HearThrough utilizes built-in microphones to enable you to pay attention to your surroundings and engage in conversation without needing to remove the earbuds. HearThrough settings can be configured using the Jabra Sound+ app.

Right earbud	Hear Through
	HearT through on/off	Double-press the Multi-function  button when not on a call

Sidetone

Sidetone enables you to hear your own voice when you are on a call.
Sidetone settings can be configured using the Jabra Sound+ app.

Auto-pause music

When you remove an earbud from your ear while listening to music, the music will automatically pause.
To unpause the music, place the earbud back into your ear within 60 seconds. After 60 seconds (or when mono playback is preferred) the music can be unpaused by pressing the Multi-function button.

Auto-pause music settings can be configured using the Jabra Sound+ app.

Auto power off

To conserve battery the right earbud will automatically power off when it is out of range of your smartphone for 15 minutes and is not in the charging case, or when it has been inactive for 1 hour.
The left earbud will automatically power off when it has not had a link with the right earbud for 15 minutes and is not in the charging case.

To power, the earbuds on, place them in the charging case, or hold the Multi-function button on the right earbud, and/or the Volume down button on the left earbud, until the LED flashes.

Multiple call handling

Right earbud	Multiple call handling
	End current call and answer an incoming call	Press the Multi-function button
	Put the current call on hold and answer an incoming call	Hold (2 secs) the Multi-function button
	Switch between held call and active call	Hold (2 secs) the Multi-function button
	Reject incoming call, when on a call	Double-press the Multi-function button

Multi-use

The earbuds can be paired to two smartphones at once and can accept multiple incoming calls from either smartphone.
To pair to two smartphones, use the normal pairing process separately for each smartphone (refer to section 5).
Note: Voice assistant will be activated on the last paired smartphone.

Voice guidance and languages

Voice guidance can be turned on/off and the language can be changed using the Jabra Sound+ app.

The following languages are available: French, German, Japanese, Chinese.

Voice assistant

To activate your smartphone’s voice assistant (e.g. Siri, Google Assistant, Alexa) hold the Multi-function button when not on a call.
To change Voice assistant, download the Jabra Sound+ App and go to the Voice assistant settings.
Voice assistant settings can be configured using the Jabra Sound+ app.

Update firmware
The Jabra Elite 65t can be updated to the latest firmware version using the Jabra Sound+ app.
If notifications are enabled in the Jabra Sound+ app you will receive an automatic notification when a firmware update is available.

How to reset
Resetting the earbuds clears the list of paired devices and resets all settings.

Right earbud	Reset earbuds
	Reset pairing list and settings	Hold (10 secs) the Multi-function button until the LED flashes purple.
		The earbuds will need to be repaired to your smartphone.

 Jabra Sound+ app

Support

FAQ

View the FAQs on Jabra.com/help/elite65t.

How to care for your earbuds

• Always store the earbuds in the charging case and safely protected them.
• To prevent the depletion of the battery lifetime or capacity, avoid storing the earbuds in hot or cold environments, such as a closed car in summer, or in winter conditions.
• It is recommended to keep the earbuds between 15°C and 25°C (59°F and 77°F).
• Do not store the earbuds for extended periods of time without recharging them (max. three months).
• If the earbuds or the charging case become dirty, it is recommended to clean them with a soft, lint-free cloth that has been dampened with clean water.
• Remove and clean the eargels regularly to avoid earwax buildup on the speakers.
• The charging case is designed to charge using a standard USB voltage. It is not recommended to charge using a higher voltage.

Replacement accessories

Replacement or additional accessories can be purchased online at jabra.com/accessories.

Using the replacement earbuds

The replacement earbuds cannot be used with your old earbuds.
1. Place the replacement earbuds into the charging case and close the lid.
2. Open the charging case lid and remove the earbuds.
3. Wear the earbuds and follow the voice instructions to pair to your smartphone.
4. Update the earbud firmware using the Jabra Sound+ app.

Using a replacement charging case

Before using a replacement charging case for the first time, it will need to be synced with your current earbuds and charged for 1 hour. To begin syncing, place your current earbuds inside the replacement charging case, and close the lid. The LED on the charging case may flash purple to indicate that the firmware is being updated. Please wait until the LED stops flashing purple before opening the charging case.

jabra.com/elite65t

NEED MORE HELP?
For all support go to jabra.com/support

jabra.com/freeway

GET STARTED IN UNDER
5 MINUTES

© 2011 GN Netcom A/S (North America: GN Netcom US, Inc.). All rights reserved. Jabra is a registered trademark of GN Netcom A/S. All other trademarks included herein are the property of their respective owners. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom A/S is under license. (Design and specifications subject to change without notice).

MADE IN CHINA
MODEL: HFS100
FCC ID: BCE-HFS100
IC: 2386C-HFS100

Declaration of Conformity can be found on www.jabra.com/CP/US/declarations-of-conformity

CONNECT TO MOBILE DEVICE

The first time the Jabra Freeway is turned on it will automatically attempt to connect to any mobile phone that has Bluetooth turned on. Simply follow the voice-guided pairing instructions to connect.

CONNECT TO A NEW OR SECOND MOBILE PHONE

1. Turn on Bluetooth on your mobile phone.
2. Turn off the Jabra Freeway.
3. Press and hold (5 secs) the Answer/end button on the Jabra Freeway while sliding the On/Off switch to On. The light will flash blue and the pairing instructions will be announced.
4. Follow the voice-guided pairing instructions to connect to your mobile phone.

POSITION THE SPEAKERPHONE

Clip the Jabra Freeway to the sun visor above the driver’s seat.

HOW TO USE

Did you know?
You can download the Jabra Assist app for your Android TM or iOS device to enhance your Jabra experience.

	Answer call	Tap the Answer/end button, or say ‘Answer’
	End call	Tap the Answer/end button
	Reject call	Double-tap the Answer/end button, or say ‘Ignore’
	Activate phone’s voice assistant (e.g. Siri/Google Now)	Press and hold the Answer/end button until you hear a beep, and then release the button
VOICE	Voice controls	Tap the Voice button. Say ‘What can I say’ for a full list of voice controls
+/-	Adjust volume	Tap the VoI+ or Vol- button
MUTE	Mute microphone	Tap the Mute button
FM	FM radio	Tap the FM button and set your radio to the announced the frequency

How do I Set a Preferred Softphone in Jabra Direct?

How do I set a preferred softphone in Jabra Direct?
Prerequisites

• Jabra Direct – latest version

If you have multiple softphones installed, you can select a preferred softphone.
Follow these steps.

1. Open Jabra Direct.
2. On the left menu, click Settings.
3. In Softphone Integration > Preferred Softphone, select your preference.
   If your organisation has decided to manage the setting centrally, this will be indicated by a Lock icon.

Note
Images and text are for guidance purposes only. Actual images and text may vary depending on the device connected and updates to the software.

https://www.jabra.sg/supportpages/jabra-engage-55/
9559-430-111/faq/e73617ca-f8ec46f2-a355-75c0f8dd29ee
18/08/2022 17:32

Jabra Talk 15 Bluetooth Headset featured

How do I pair my Jabra Talk 15 with my mobile device?

To pair your Jabra Talk 15 with your smartphone, tablet, or another mobile device, follow these step

1.  Turn on Bluetooth on your mobile device.
2. Turn on your Jabra Talk 15 by sliding the switch to the “I” position. The icons will also light up.
3. To enter pairing mode, press and hold the Answer/end button (5 seconds) until the Bluetooth icon flashes blue. Your Jabra Talk 15 is now ready to pair with your mobile device.
4. To pair, go to the Bluetooth menu on your mobile device and select the Jabra Talk 15 from the list of available devices. Enter “0000” (four zeros) if you are asked for a PIN.

Note
If pairing is not successful, try the pairing steps again, or try pairing with a different Bluetooth device. For troubleshooting tips, see here.
Optionally, try using the Bluetooth Pairing Guide which provides detailed steps for pairing with a mobile device.

https://www.jabra.sg/supportpages/jabra-talk-15/100-92200900-40/faq/d7c7db28-8570-40d9-a755-562b7ca82523
