IQUNIX A80 Series Explorer Wireless Mechanical Keyboard

Details

• A Type-C Port B Indicator C Feet
• D Mode Switch
• E Silicone Pads

Product Specification

• Product Name: AVER 80
• Connect Interface: USB Type-C
• Keyboard Type: Mechanical Keyboard
• Cable Length: 180cm
• Key Quantity: 83 Keys
• Dimensions: 321*158*52mm
• Keyboard Material: ABS Case + PBT Keycaps
• Origin: Shenzhen, China
• Character Technology: Dye Sublimation
• Web: www.lQUNIX.store
• Large Key Structure: Costar Stabilizers
• Support E-mail: support@iqunix.store
• Rating: 5Vm1A

Three Ways of Connecting Devices

Bluetooth Connection Mode

1. Toggle the keyboard Mode Switch to wireless side
2. Press FN+1, then hold FN+1 for 5 seconds if the indicator blinks in blue ight. (Bluetooth matching mode on when blue light blinks.)
3. Enable Bluetooth matching (Computer/ Phone / Tablet)
4. Select the matching device [IQUNIX AVER80 BT 1
5. Indicator light turning off when matching successfully. OIf you need to connect a new device, please hold FN+1 for 5 seconds to remove the previous device. When the LED indicator blinks blue light, you can connect your device following the Step 3.

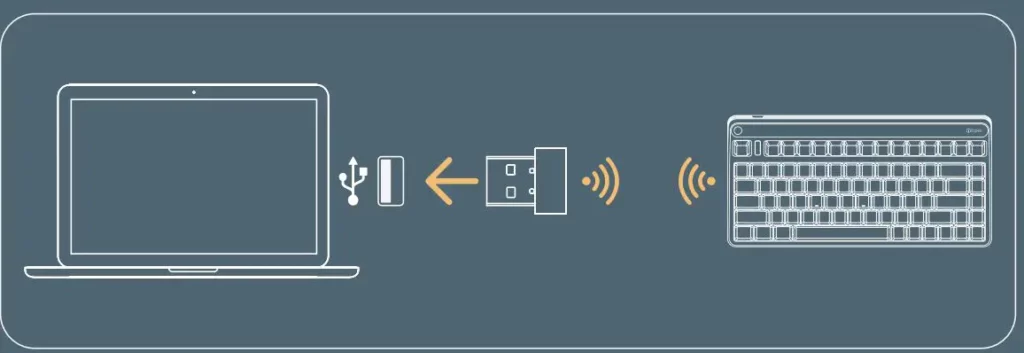

2.4GHz Connection Mode

1. Toggle the keyboard Mode Switch to “wireless mode”() n
2.  Plug the 2.4GHz receiver into your computer.
3. Press FN+4 to enter 2.4GHz matching mode FN 4 (2.4GHz matching mode on when pink light blinks.)
4. Indicator light turning off means successful matching.

Wired Connection Mode

1. For Wireless Version, toggle the keyboard () On Mode switch to wired side.
2.  Plug the USB cable into your device.

Function Keys Combinations

LED Indicator Keys Combinations (RGB Version)
Special Keys Combinations (Hold for 5 Seconds)
Special Keys Combinations (Wireless Mode)
LED Indicator Status Description
Mac/Windows Layout Switch

To learn more details, please reach out to us on the official website or social media. Official website: www.IQUNIX.store
