KW66 User Manual

Read this manual carefully before use, and retain it for future reference.

Product Introduction

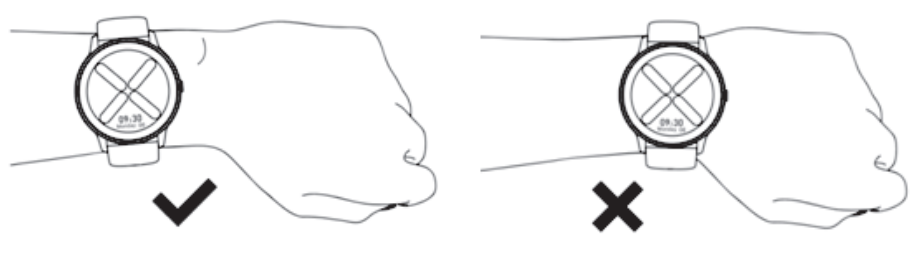

Wearing

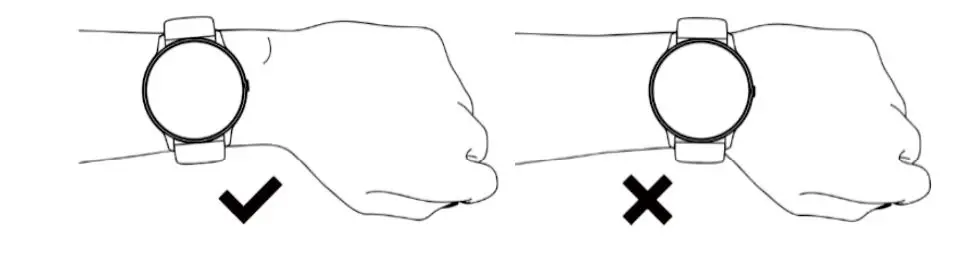

Wear the wristband about one finger away from the wrist bone and adjust the tightness of the wristband to a comfortable position.
Tip: If you wear the strap too loose, the data acquisition of the heart rate sensor may be affected.Connection and binding

1. Scan the QR code on the watch display (Settings-APP Download) by your mobile phone, and then install the APP Run to Sport. You can also scan the QR code below to download and install GloryFit from the mobile APP store.https://app.help-document.com/gloryfit/download/index.html

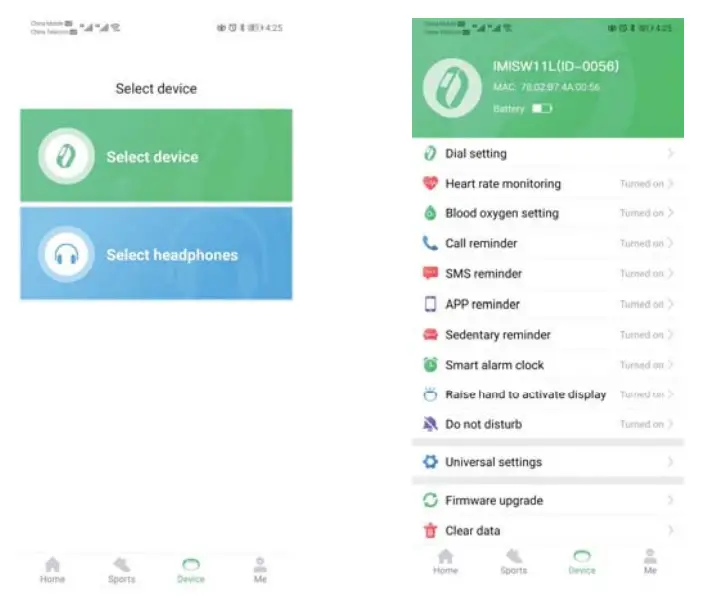

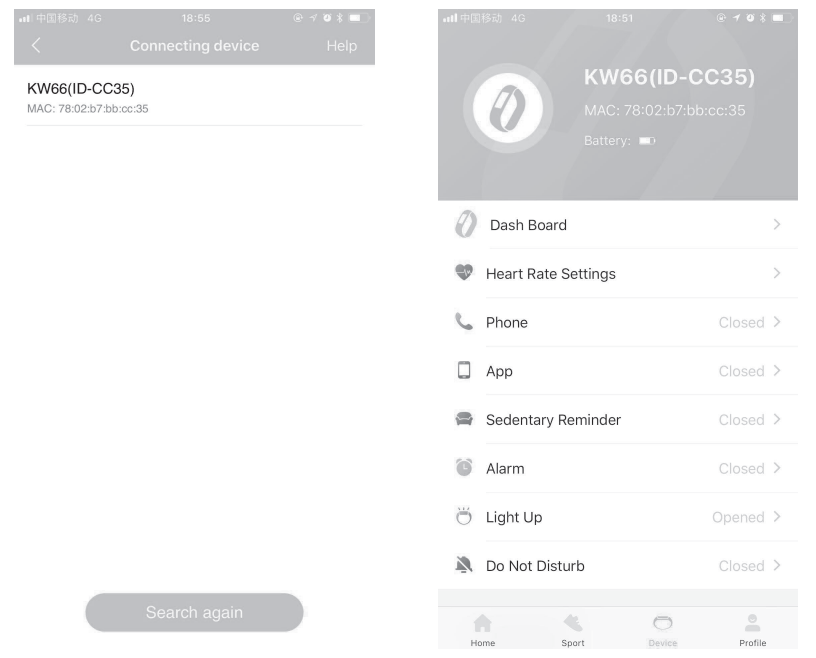

2. After installing the APP, open and log in GloryFit, then select (device KW66 to be added) on the device page so as to connect it.


Tips:

• In the process of pairing, check if the Bluetooth function on your mobile phone is enabled so that the watch can be connected to your mobile phone.
• If the device cannot be found in the pairing process, or the device cannot be connected during use, please click “Settings – Reset” on the watch, then try to start the pairing again.
• If the watch still can not be found, please exit and re-open the APP.

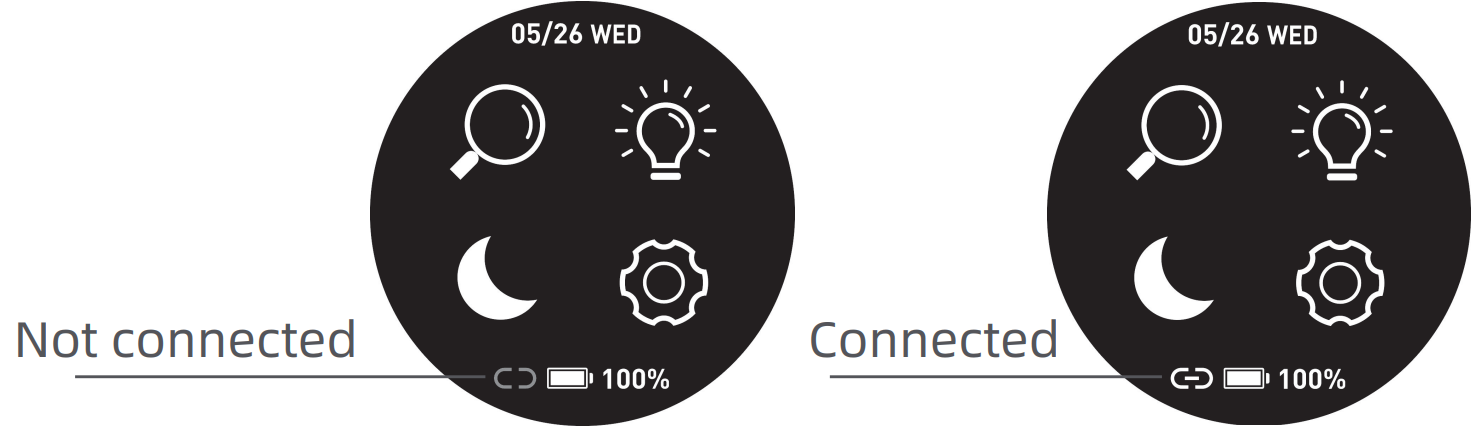

• The connection status of the watch is as shown in the figures below :


Note: The battery power will be shown as 5 different levels on the watch (0%-25%-50%-75%-100%)

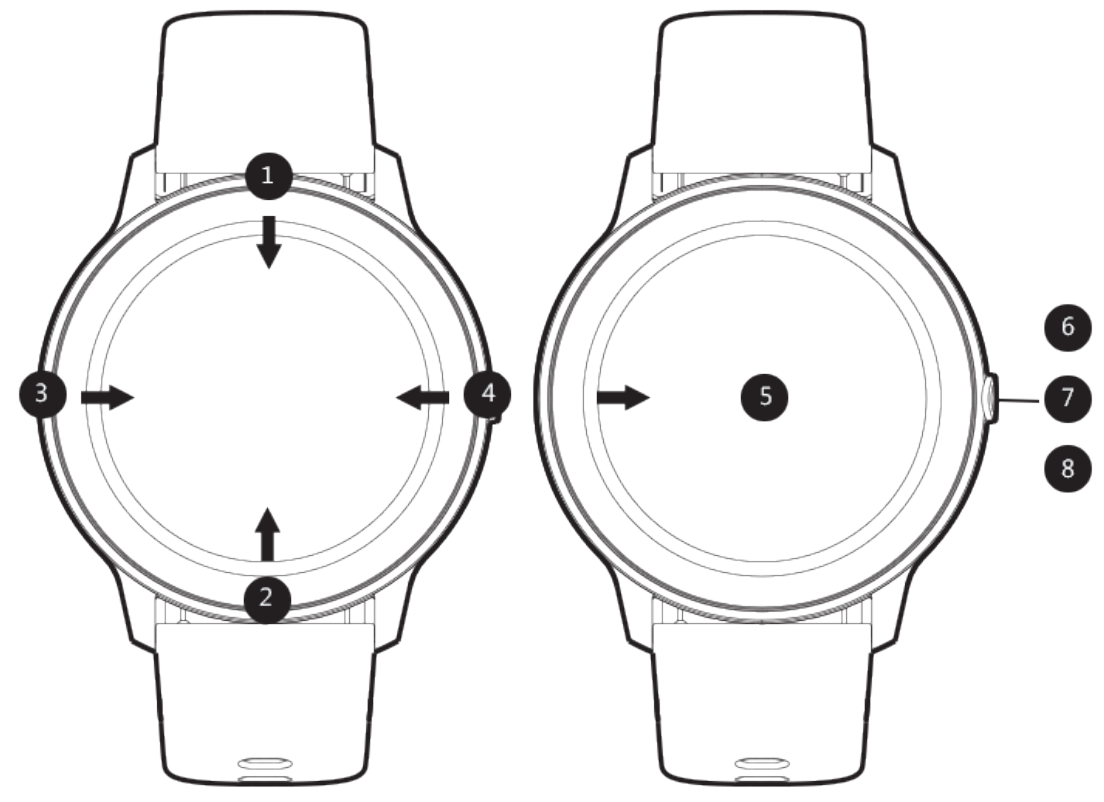

Operation

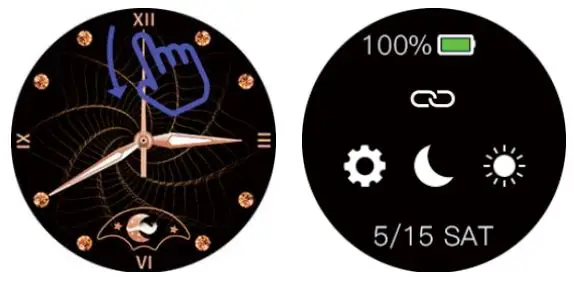

1. Open the control panel: Swipe the screen on the main interface downwards from the top
2. Open the messages/notifications: Swipe the screen on the main interface upwards from the bottom
3. Open the main menu:Swipe the screen on the main interface from left to right (Note: On other interfaces, slide your finger from left to right to return to the previous interface)
4. Open the status interface: Swipe the screen on the main interface from right to left
5. Quick dial change: Press and hold the dial interface for 3 seconds, and the watch vibrates once; then you can slide your finger to left or right to select the dial.
6. Power on: Press and hold the Power button for 5 seconds to switch it on (Power off: You need to press and hold the button for 3 seconds when the display is on to select whether to power off)
7. Quick sports pause/continue: Press the power button.
8. Press the power button to return to the homepage (Note: If you are on the level 2 interface, you will return to the level 1 interface).


Features

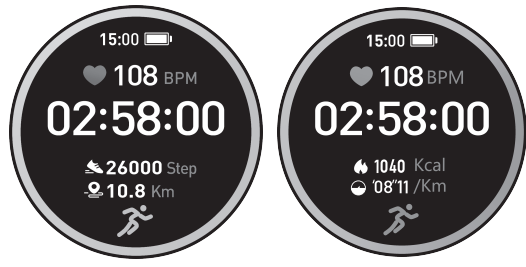

13 sport modes (Running, Walking, Cycling, Alpinism, Yoga, Skipping, Tennis, Baseball, Basketball, Badminton, Football, Rugby, Table Tennis) In running, walking, Alpinism and other sports modes, you can click the screen to view the sports data (steps, pace, calories, distance and duration).

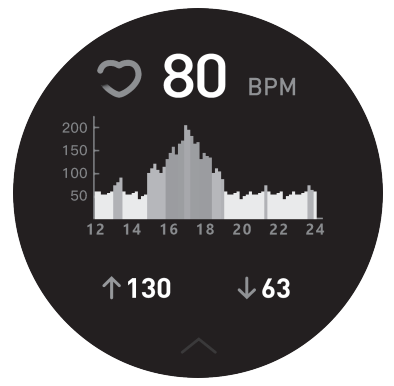

Heart Rate Monitor: The watch will continuously track your heart rate for 24 hours(Need to turn on the “Heart rate monitoring” in the APP at first), you can also view the historical heart rate data in the APP.
Note: When this feature is enabled, the power consumption will be increased, and the battery endurance will be reduced.

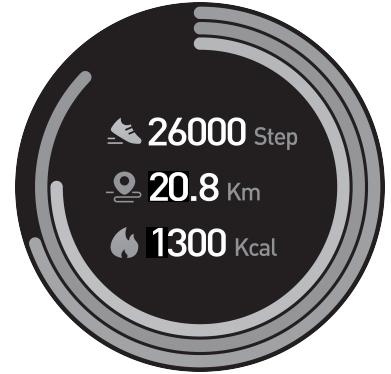

Status Interface: The steps, distance, and calories will be recorded in detail and displayed on watch every day.

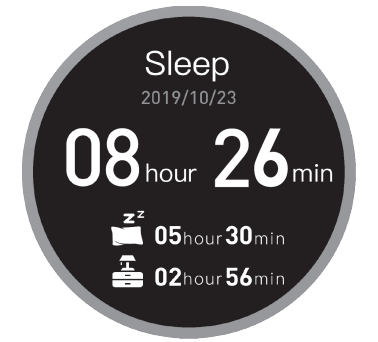

Sleep: The watch will monitor your sleep status from 6:00 pm to 11:59 am of the next day. Note: The sleep data on the watch will be cleared at 6:00 pm every day. But you still can check the historical sleep data in the GloryFit APP.

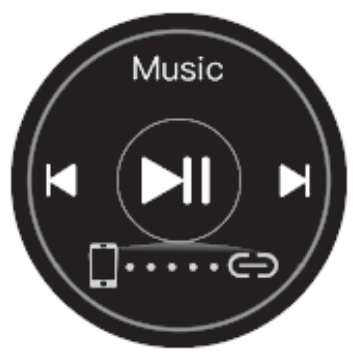

Music: The watch can be used to control the music player of the mobile phone, you can use it to play/pause or skip songs (it is only compatible with the in-built music player of the mobile phone, may not be compatible with third party’s player, and the volume cannot be adjusted on the watch)

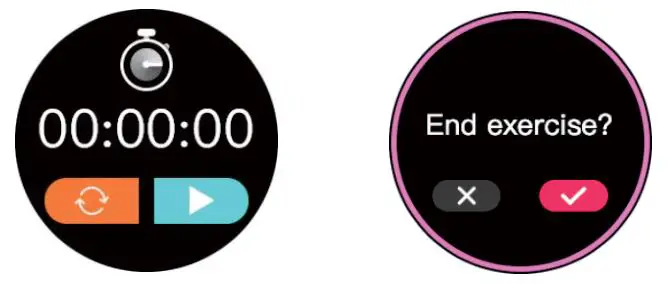

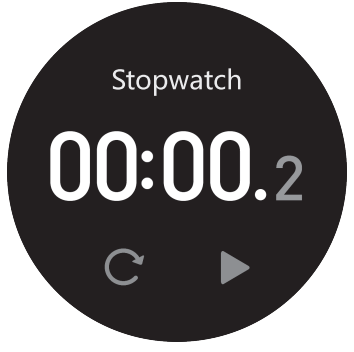

Stopwatch: The watch can be used to count time (slide your finger to the right after pressing the pause button to exit and return to the previous menu)

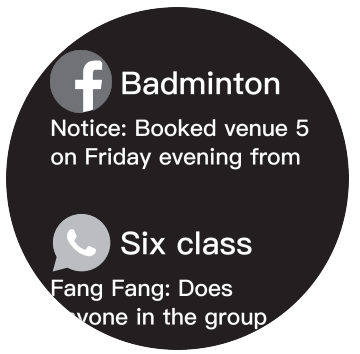

Message: The watch will receive and display texts/ messages/ social media notifications from your phone.

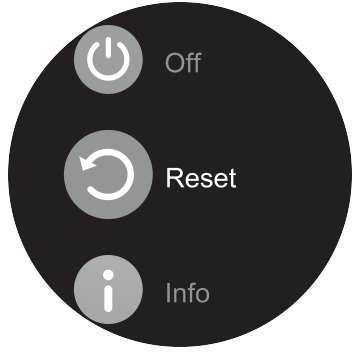

Setting: You can shut down or reset the watch from the setting, and you can also check the info about the watch and App download QR code.

Charging

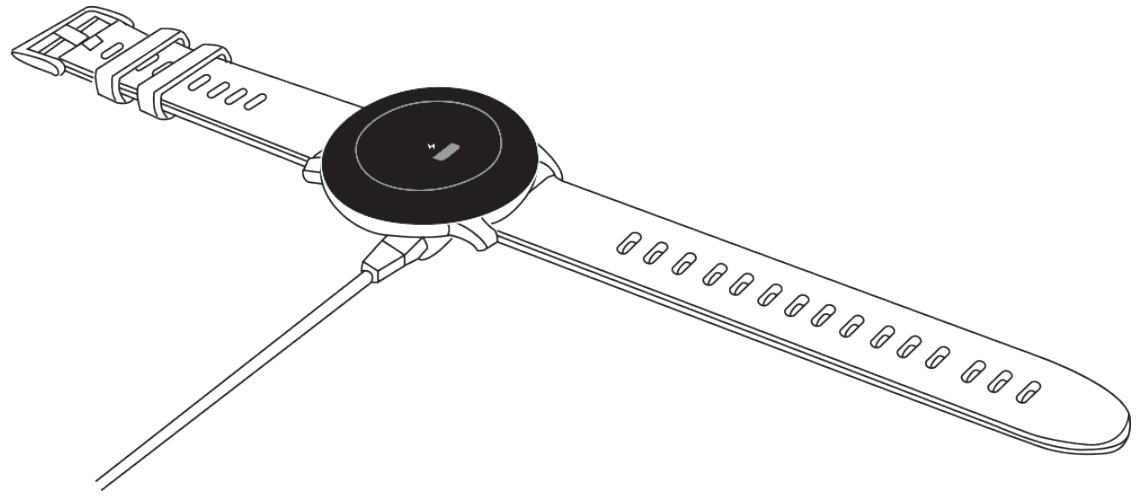

1. Place the watch on the magnetic charger, please make sure the charging contacts on the back of the watch are fully adsorbed to the metal contacts of the charger. It can be fully charged within about 3.5 hours.
2. Plug the charging cable into a standard USB charger purchased via official channels. The output voltage is 5V and the output current is 1A. If the watch cannot be turned on after being out of use for a long time, please wipe the charging contacts of the charging cable when using it again to remove the sweat or moisture residue. Note: (If you do not use the watch often, please charge it once every month.)

Basic parameters

FAQ

1. The watch can not be connected to the APP.(Or the watch cant be found by the APP)

• Please make sure the software version of your smartphone is over Android 4.4 Or iOS 7.0.
• Please check whether the watch was connected to another phone or not, if yes please unbind it at first.
• Please make sure you have enabled the Bluetooth function of your phone. (If it’s still not working, we recommend you to exit all of the other APP and reopen the Bluetooth function)
• If the watch still cant be connected even after trying the above steps, please exit the GloryFit APP and restart the mobile phone and the watch.
  *Note: Some smartphones will not be connected to the watch in low battery mode.

2. Can’t get any text/message on the watch

• First, please make sure the Bluetooth function is enabled on your mobile phone, and check whether the watch is connected successfully with your phone through the GloryFit APP. Then turn on the “Notifications reminders” in the APP.
• Then please check whether you give this APP the permission to keep running in the background on your mobile phone. If not, please allow it to keep running in the background.
  EN-0
• And also check if the message can show up on your phone’s notification bar or not. If not, please allow the APP notifications to pop up in the notification bar in the system setting: SettingNotifications- Notification style-Tick the “Banners”.
• If the messages can still not be displayed on the watch even after trying the above steps, please exit the GloryFit APP and restart the mobile phone and the watch.

3. How to synchronize the watch data to my phone?

• Auto synchronization: When the watch is connected to the APP, it will automatically synchronize data;
• Manual synchronization: After the watch is connected to the APP successfully, you can manually synchronize the data by swiping down the screen from the APP homepage or data interface;
• If the data cannot be synchronized, please try to disable and enable the Bluetooth function again on your mobile phone, or restart your mobile phone;

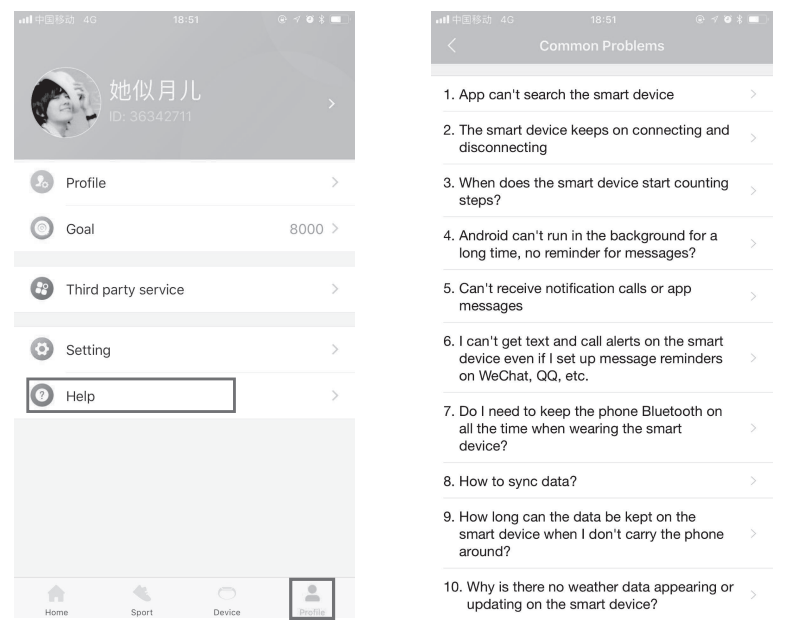

  (Note: In case of any common problems in operation, please refer to the Common problem in My profile of the APP, which can help you solve some problems) As shown in the figure below:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Imilab Technology Company Pty Ltd For further information: www.imilab.net.au
Support:
For Business:

FCC ID: 2APA9-MILAB-KW66
Model: KW66
MADE IN CHINA

How to wear correctly

For comfortable daily use, before wearing please place the watch in the suitable position and adjust tightness to fit your wrist. See below picture.

Tip: The heart rate data may be affected if wearing too loosely.

How to pair the watch with your mobile phones

1. Long press the side button to turn on the watch, slide the homepage of the dial from top to bottom, open the settings-download the QR code, scan the QR code with your mobile phone, you will get to download and install the APP. Or you can also scan the QR code below to download and install it in the mobile app market.
2. Open the APP GloryFit, enter to device page and select the watch accordingly , then connect the device as guided steps.
   Tips:
   1.During paring, please ensure mobile phone’s BT is on to ensure the normal connection.
   2.2.If the device cannot be found or connected in the pairing process , please reboot the smart watch by long press power button, or choose to reset, then re-search the device.

3. How to use the watch

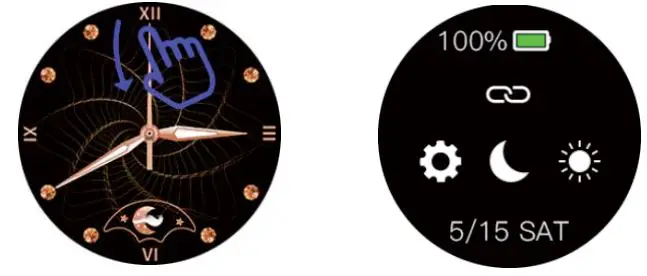

a. Slide down from the homepage to Shortcut Setting Page.

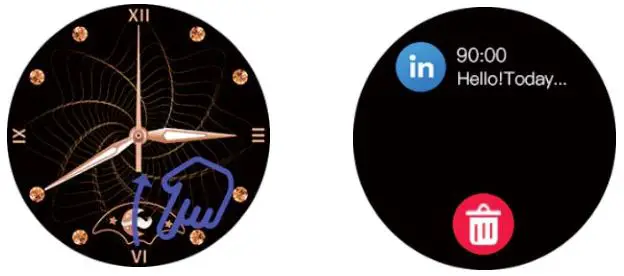

b. Slide up from homepage to the Message Page.

c. Slide right from homepage to Main Menu Page.

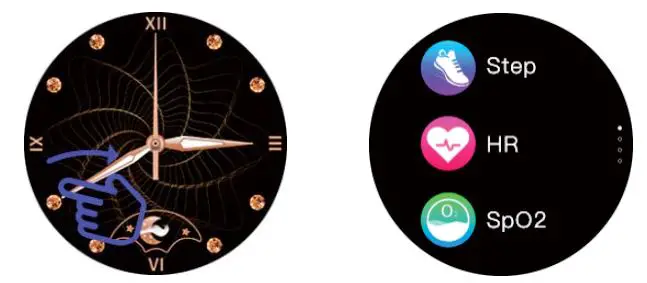

d. Slide left from the homepage to Main Function Shortcut Page.

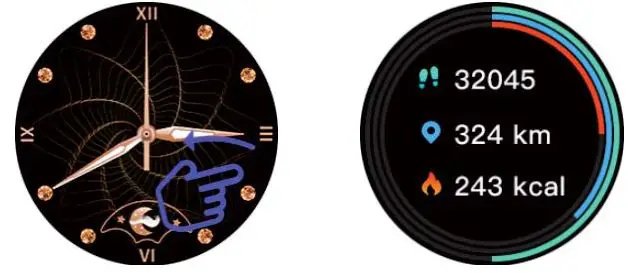

e. Long press the watch face page for 3s to enter into selection page, then slide left or right and click the one you prefer to change dials.

f. Long press the power button for 3s to Power ON; from home page, long press the power button for 3s, and tap√ to Power OFF.

g. Press the power button to pause or continue in Stopwatch page.

h. Tap the power button:
Back to previous menu during normal operation.
Screen on / Screen off at watch face homepage.

Functions

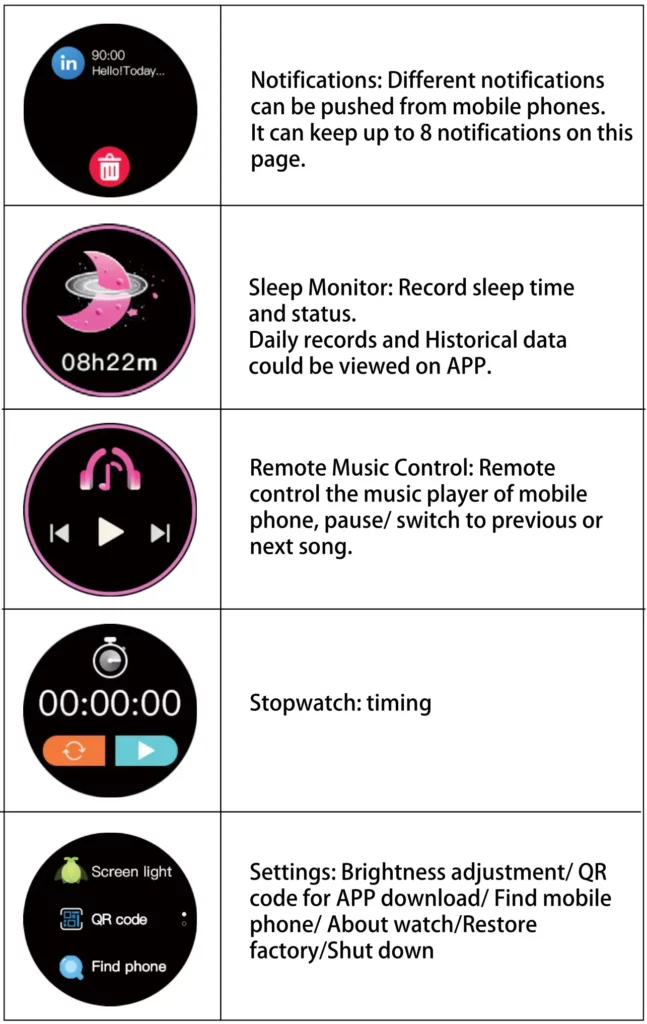

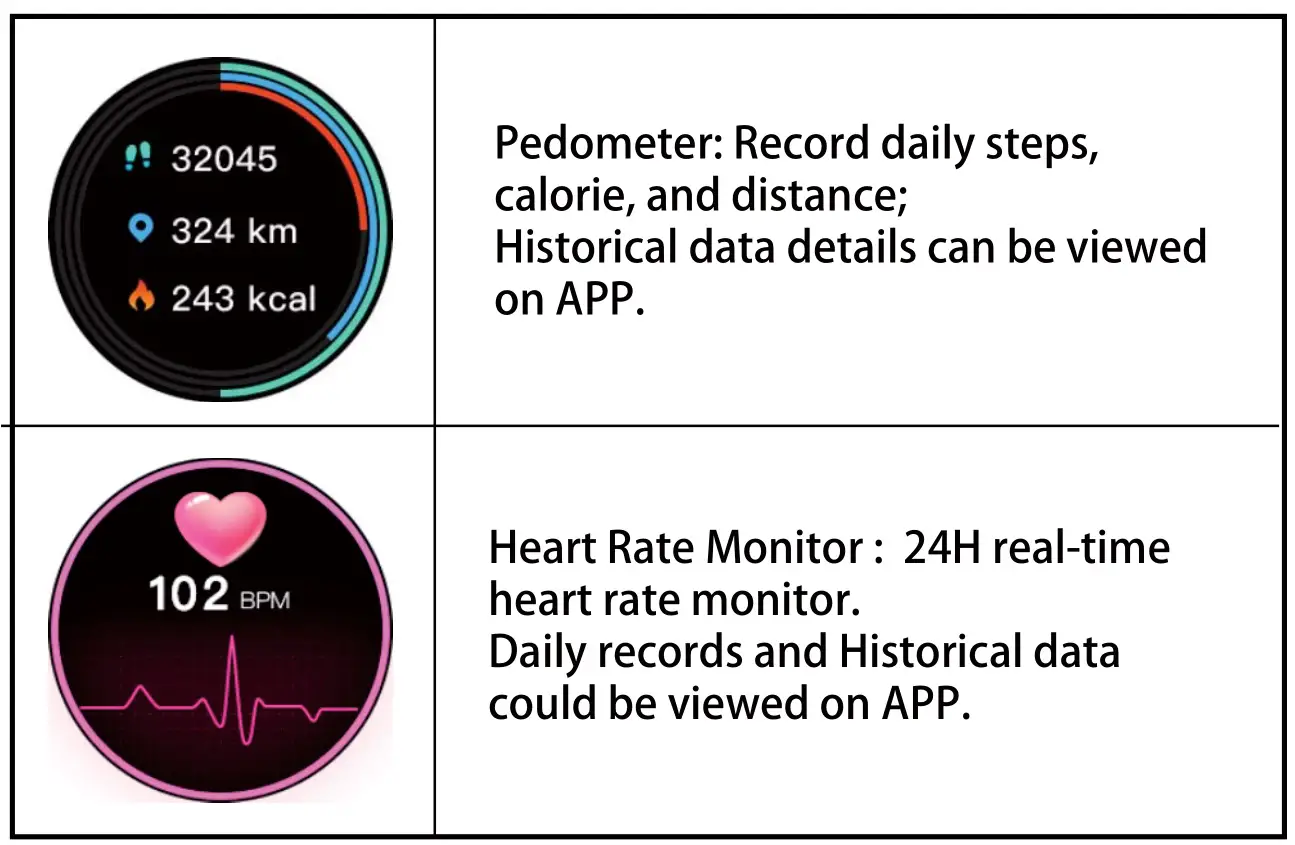

Main Functions Shortcut Page:

Other functions

Alarm clock, Sedentary reminder, Remote Camera control, Low battery reminder, Call reminder, Find smart watch, Watch Face Customized Feature, 12H/24H time format, KM/Mile unit format, Language setting.

Charging

1. Place the charging cable into watch charging port, ensuring the metal pins fully connected.
2. Please use the correct charging adapters which are 5V 0.5A above.
   If smart watch can not be powered on after being left unused for long time, please clean up the charging metal pins to make sure connecting well.

Warranty

1. One year warranty is for default hardware defectives, half of year is for battery and charging cable.
2. Below reasons cause to defectives are not included in free warranty service:
   1) Personal assemble or disassemble.
   2) Falling damage during use.
   3) All man-made damage or due to the third party’s fault, improper use(such as: water in the smart watch, external force shattering, scratch during use etc.
3. Please provide a warranty card with the details filled when request for after selling service.
4. Please contact with direct dealers for warranty service.
5. Please note all functions of the product are based on physical objects.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

Notes:

1. The company reserves the right to modify the contents of this manual without any further notification. It is normal that some functions may vary in different software versions.
2. Please charge the smart watch with configured charger for no less than 2 hours before use.
3. Please install and connect to suggested App and set personal information before use. Please refer to below guidance and use the smart watch properly.

01 Wearing method

Please wear the device on your wrist horizontally, about one finger from the carpal and adjust to a comfortable position. Below picture for reference.
Note: Please wear the device a bit tighter when making heart rate testing.

02 Download App and Pairing

1. Long press the power button to turn on the device, slide down from main interface, open setting- App QR code, and use the mobile phone to scan the code. Or you can also scan below QR code or search
   for “GloryFit” in App store.

2. Open the App and BT, search and select the corresponding device on App as guided.


Notes:

1. Please keep BT on during paring to ensure successful connection.
2. Please long press power button 3s to reboot the device if couldn’t find the device during paring. Or choose reset on the device and search the device again.

03 Operation

a. Shortcut Setting Page: Swipe down from homepage.

b. Message: Swipe up from homepage.

c. Main Menu: Swipe right from homepage.

d. Function Shortcut Interface: Swipe left from homepage.

e. Watch Dial Setting: Long press dial for 3s and slide left or right to choose.

f. Power ON/OFF: Long press power button for 3s to power on; From home page, long press power button 3s, and tap√ to power off.

g. Return Previous Menu/ Screen On or Off: Press power button.
h. Sports Shortcut key: Press the below side button to quickly switch to training interface.

04 Functions

Training:

13 sports modes

Running, Walking, Cycling, Climbing, Spinning Bike, Yoga, Skipping, Gymnastic, Badminton, Ping-pong, Boating, Sit-ups and Free training. Sports records are visible on the App.

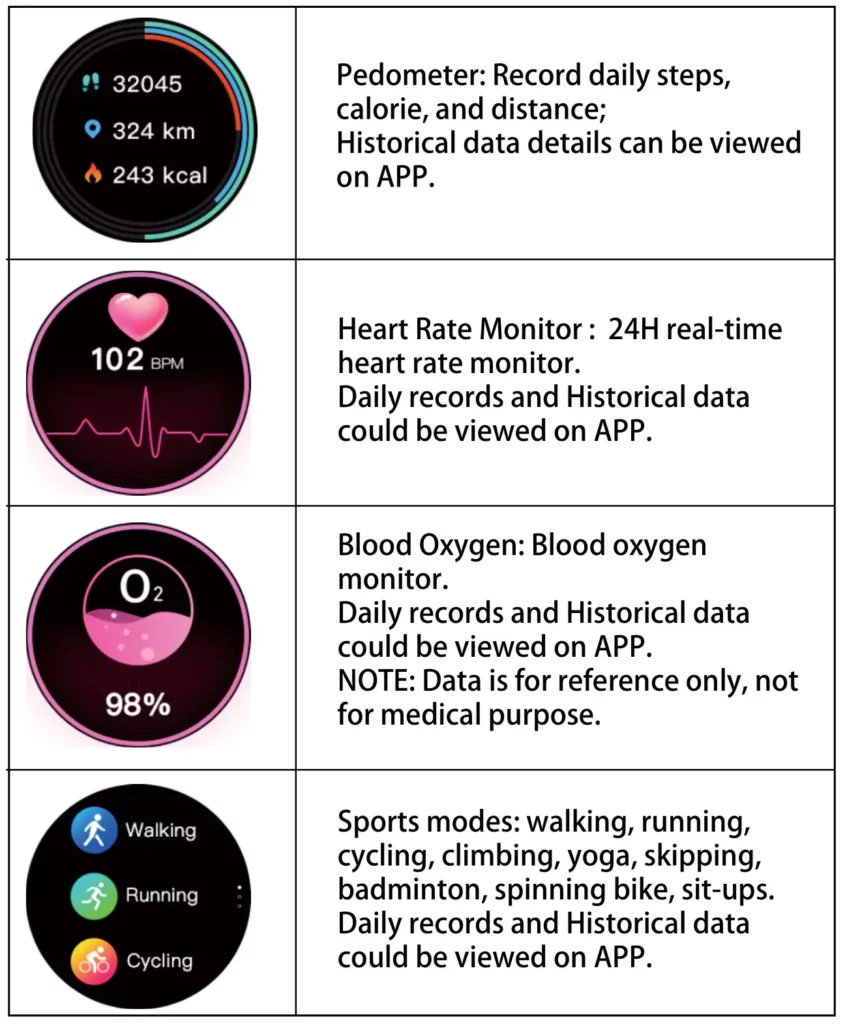

	Pedometer: Record daily steps, distance, and calories. Historical data are visible on the App.
	Heart Rate Monitor: Click and show real-time heart rate. Auto test open on App. Intermittent automatic detection generate histogram, interval unit is 10 minutes. Historical data and analysis are visible on the App.
	Blood Oxygen Monitor: Test the blood pressure. Historical data and analysis are visible on the App. (Data cannot be used for medical purpose)
	Weather: After connected with App, Show daily weather and next 4 days’ weather forecast.

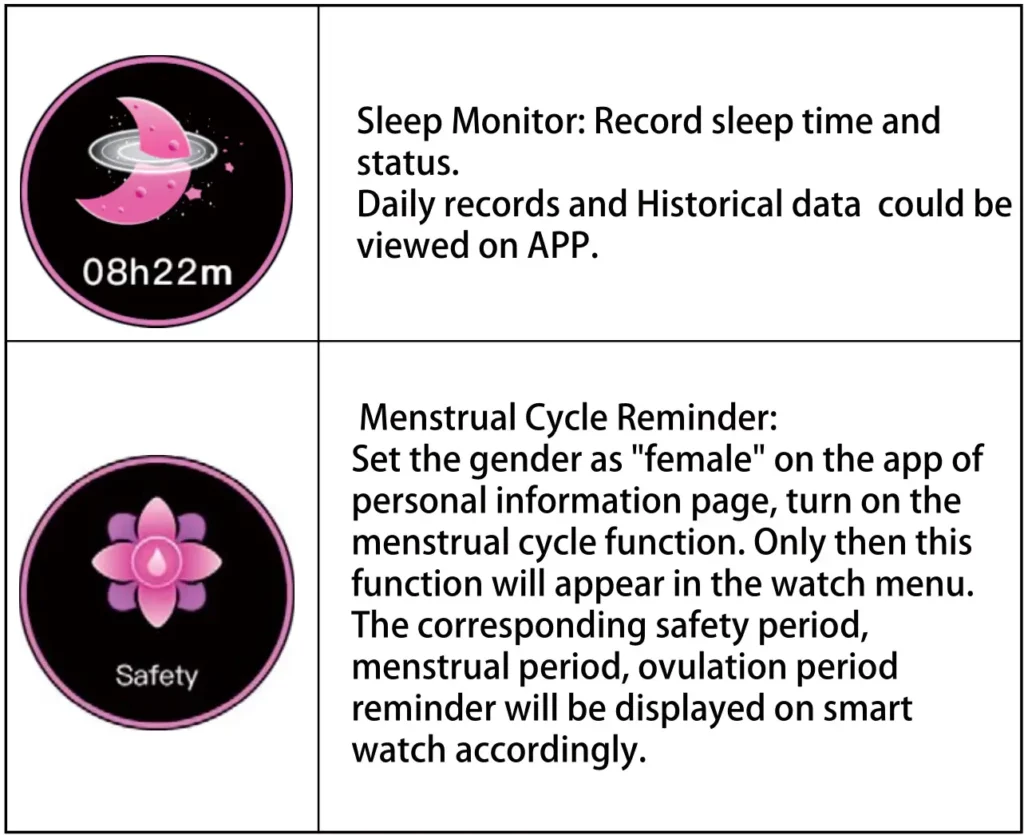

	Sleep Monitor: Record daily sleep time and deep or light sleep duration. History records are visible on the App.
	BT Music Control: Remote control the music player of mobile phone, Play/ Pause/ Switch to previous or next song.

	Message: Notifications push sync, show 8 latest messages on watch. Turn on/off SMS reminder and SNS App reminder on App.
	More: Find Phone, Stopwatch, Timer.
	Settings: Power off/ Reset/ Brightness Dial / App download/ About the watch.

05 Other functions

Sedentary reminder, Smart alarm clock, Low battery Reminder, Call reminder, Find the device, Watch face push/ Customize watch face, 12H/ 24H time format,
Metric/ Imperial unit setting, Raise hand to activate display, Physiological cycle reminder, Goal achieved reminder.

06 Charging

1. Attach the charging cable to the watch charging port, ensuring the metal pins fully connected.
2. Please use the correct charging adapters which are 5V 1A .
   Note: If smart watch can not be powered on after being left unused for long time, please clean up the charging metal pins to make sure connecting well.

07 Warranty

1. One year warranty for default hardware defectives, half of year for battery and charging cable.
2. Below reasons cause to defectives are not included in free warranty service:
   1) Personal assemble or disassemble.
   2) Falling damage during use.
   3) All man-made damage or due to the third party’s fault, improper use(such as: water in the smart watch, external force shattering, scratch during use etc.
3. Please provide a warranty card with the details filled when request for after selling service.
4. Please contact with direct dealers for warranty service.
5. Please note all functions of the product are based on physical objects.
   Notes: 1.To ensure waterproof, please DO NOT: 1)Wear the watch during hot shower or in hot spring.
   2)Remove any screws or buttons.
   2.Products with batteries cannot be disposed with household waste. Please send this product to WEEE collecting points near you.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
