iHome FM Clock Radio Manual

ItsManual — Tue, 07 Mar 2023 11:15:24 +0000

iHome FM Clock Radio + USB Charging User Guide

Questions? Visit ihome.com

What’s Included:

Controls Overview

Quick Set-Up:

Step One
Connecting the Unit

Connect the included AC adapter to the DC jack located on the back of the unit and connect the other end to a working wall outlet.

Step Two
Setting Your Clock

Press and hold the Time Set Button until the display flashes.
Press the - or + Buttons to adjust selections and tap Time Set to confirm (make sure you set the correct AM/PM time). The PM indicator is on the left side of the display. There is no AM indicator.
Do this for time, year, month and date.
All done!

Step Three
Using Color Modes

Press the Color Mode Button repeatedly to cycle through 4 different modes:

Fade
Fast
Stop (Favorite Color)
OFF

Favorite Color Mode: When the unit is in stand-by, press +/- to cycle through the color spectrum.

The Display

Setting the Alarms

This unit features dual alarms which can be set to different times and alarm sources. Each is set in the same way. Instructions are given as “Alarm Button”; use Alarm 1 Button or Alarm 2 Button to set respective alarms.

Note: Each step must be completed while display is flashing or setting will time-out with any changes saved.

Press and hold the Alarm Button for 2 seconds until the alarm time display and alarm icon flash. A beep sounds.
Press the - or + Buttons to adjust the alarm time to the desired time (hold for rapid setting). Make sure you set the correct AM/PM alarm time. The PM indicator appears to the left of the display.
Press the Alarm Button to confirm the alarm time setting. The alarm schedule will flash: 7 (every day), 5 (weekdays) or 2 (weekend only). Press the - or + Buttons to select the desired alarm schedule.
Press the Alarm Button to confirm the alarm schedule. The wake-to source will flash.
Press the or + Buttons to select the desired wake-to alarm source: FM Radio or Tone.
Wake to FM Radio: Press the Alarm Button to confirm. Press the - or + Buttons to select the desired FM frequency to wake to.
Wake to Tone: Press the Alarm Button to confirm.
Press the Alarm Button to confirm wake-to source. The alarm volume will flash.
Press the or + Buttons to adjust the alarm volume.
Press the Alarm Button to confirm alarm volume. The current Wake to Light mode will flash.
Press the or + Buttons to select the light mode to wake to (Sun, Fade, Fast, Stop, None). Sun will activate 4 minutes before your sound alarm is scheduled to wake you.
Press the Alarm Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm alarm setting is complete. The alarm icon will remain on the display, to show the alarm is armed.

Previewing the Alarm and Turning the Alarm On/OFF

Press and release the Alarm Button to view the current alarm time, FM station, volume level, and wake-to color mode.
Press the Alarm Button again to toggle the alarm ON or OFF, indicated by the related white alarm indicator.
When the alarm sounds, press the corresponding Alarm Button (1 or 2) or the Power Button to disable the alarm and reset it to come on at the same time the next day.

Snooze/Display Dimmer

Snooze: When the alarm is sounding, press the Snooze/Dimmer Button to snooze for 9 minutes.
Dimmer: Press the Snooze/Dimmer Button (when alarm is NOT sounding) to adjust display brightness (High, 3, 2, Low, OFF).

Programmable Snooze

To adjust the snooze duration:

Press and hold the Snooze/Dimmer Button until the display starts to flash.
Use the + or – Buttons to adjust the snooze duration from 1-29 minutes.
Press the Snooze/Dimmer Button again to confirm.

Sleep Mode

To set a sleep timer:

Press the Sleep/Time Set Button.
Press the Sleep/Time Set Button repeatedly to toggle through sleep timer settings 120, 90, 60, 30, 15 and off.

FM Radio + Presets

Press and release the FM Radio Button to select FM radio mode.
When FM mode is selected, press the or + Button to tune the radio to a desired station. Press and hold the or + Button for a few seconds to scan for the next clear station.
To memorize a station as a preset:
- A. Press the Presets Button as needed to step through the 4 presets (P1 – P4) to the number you wish to assign, and then hold the Presets Button until the selected preset number begins flashing in the display and 1 beep sounds.
- B. Press the or + Button to tune the radio to a desired station. Hold briefly to have the radio auto scan/search for the next clear station.
- C. Press the Presets Button to confirm the setting, two confirmation beeps will confirm the setting and the preset number you wish to assign. Repeat steps A-C to preset up to 4 stations.
To listen to a preset station, press the Presets Button repeatedly to choose a preset (P1-P4).

AUX Mode

Connect your audio device to play music through the speaker on the iM30. To do so:

Connect one end of a 3.5mm audio cable (not included) to the AUX-IN jack on the unit.
Connect the other end to the headphone jack of your audio device.
Press the AUX Mode Button on the unit, and press play on your device to play music.
Use the controls on your device to navigate tracks.

Charging Devices Via USB Port

Connect the standard size end of a USB cable (not included) to the USB port on the back of the unit and connect the other end to the charging port on your device.
Monitor the charging on your device. Some devices use a proprietary charging method and will not charge using the USB port. If this happens, you must charge your device using the charger that came with it.

NOTE:

Unit must be plugged into working outlet to charge devices.
Some devices my cause charging noise while play via aux-in jack and charge via USB simultaneously

Battery Back-Up

The unit uses 2 AAA back-up batteries (not included) to provide continuous alarm operation and clock settings in the event of a temporary power failure. When the battery icon on the clock display is flashing, it is time to replace the back-up battery. The battery compartment is located on the bottom of the unit.

Make sure the AC adapter is connected, or you will lose your time and alarm settings during battery replacement.
Use a Phillips screwdriver to open the battery compartment door.
Insert 2 AAA batteries, checking that the polarities match the markings on the unit. Replace the compartment door. Do not overtighten.

Maintenance

Place the unit on a level surface away from sources of direct sunlight or excessive heat.
Remove the plastic protective film from the clock display.
Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents such as thinner or similar materials can damage the surface of the unit.

IMPORTANT SAFETY INSTRUCTIONS

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. Please heed all warnings, read and follow all instructions and keep these instructions handy for future reference.

Do not use this product near water, and clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Heat This product should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
Only use attachments/accessories specified by the manufacturer.
Unplug this product during lightning storms or when unused for long periods of time.
Damage Requiring Service This product should be serviced by qualified service
personnel when:
- Plug has been damaged.
- Objects have fallen into or liquid has been spilled into the enclosure.
- The unit has been exposed to rain. The unit has been dropped or the enclosure damaged.
- The unit exhibits a marked change in performance or does not operate normally.
No naked flame sources, such as lighted candles, should be placed on this product.
Attention should be drawn to the environmental aspects of battery disposal.
This product is suitable for use in tropical and/or moderate climates.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Do not dispose of batteries in the household trash or fire.
The mains plug of power adaptor is used as the disconnect device, it shall remain readily operable.

FCC INFORMATION

Model: iM30

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

CAN ICES 3(B) / NMB-3(B)

CANADA STATEMENT

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

ONE YEAR LIMITED WARRANTY

iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase. Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI will repair or, at its discretion, replace this product without charge. This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center authorized by Customer Service.

If service is required, please contact Customer Service at ihomeaudio.com/support/contact to obtain a Return Authorization Number and shipping instructions. A copy of the sales receipt is required to validate in-warranty coverage. If proof of purchase cannot be produced, the product will be deemed out-of-warranty. The date of purchase, vendor, product model number, and purchase price must be legible and verifiable.

Disclaimer of Warranty

NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner. This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser. In no event will SDI or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive damages.

(Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Your acknowledgment and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually binding to you upon your transfer of currency (money order, cashier’s check, or credit card) for purchase of your SDI product.

iHome Waterproof Floatable Wireless Speaker Manual

ItsManual — Fri, 31 Mar 2023 09:17:03 +0000

iHome iBT371 Waterproof Floatable Wireless Speaker Quick Start Guide

Model: iBT371

In the Box » iBT371 speaker » charging cable » carry strap

LED Status Indicator

Quick Flashing red = low battery
Flashing red = charging
Solid red = fully charged
Flashing blue = pairing

BLUETOOTH: PAIRING & PLAYING

Pairing the First Time

Manual Pairing

» Make your Bluetooth device “discoverable”

» Press and hold Power Button for 2 seconds to turn speaker ON.

» The first time the unit is powered on it will enter auto-pairing mode.

» Select “iHome iBT371m” on your device’s Bluetooth menu to complete pairing.

» To manually pair, power ON then press and hold Pairing Button for 2 seconds.

» Press the Play/Pause Button to play/pause music.

COLOR CHANGING MODES

» Press the Color Mode Button to cycle through modes

SPEAKERPHONE

» The speaker must be on and connected with a paired Bluetooth device to receive calls.

» When a call is received, playing music is muted to hear the ring tone. Press the Pairing/ Speakerphone Button to answer call. For call waiting function, use phone controls on your device.

» Press the Pairing/Speakerphone Button again to end call and resume previous function.

WATERPROOF OPERATION

» For waterproof operation, ensure the waterproof cover on side of unit is pressed completely flush with the unit.

IMPORTANT INFORMATION ABOUT WATERPROOF OPERATION

The unit is IP67 waterproof rated, meaning it is immersible for up to 30 minutes at a depth of 1 meter (3 feet). It will typically withstand rain, snow and being submersed in shallow water. Longer duration or deeper immersion that exceeds the tested limits may cause product failure and void the warranty.
DO NOT immerse the unit in water for extended periods.
DO NOT immerse the unit in water deeper than 1 meter (about 3 feet).
Make sure cover and surrounding surfaces are completely dry before opening cover to prevent moisture from damaging the internal electronics.
Keep rubber cover free of dirt, sand, or other objects that can interfere with proper sealing. If for any reason the waterproof cover is not making a tight waterproof seal water may enter the unit.
Rinse with tap water after immersion in salt water or swimming pool.
DO NOT clean unit with oily soaps or use chemicals or solvents. Clean with damp cloth.

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

Internal Rechargeable Lithium-ion Battery

This device uses an internal non-replaceable rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead, try charging it for an extended period of time and try resetting the unit. If this fails, contact Customer Service at 1-800-288-2792.

WARNING/DISPOSAL OF UNIT

Do NOT attempt to change the battery. Doing so will void the warranty and could cause injury and damage to your device. To dispose of the unit, follow the instructions below:

Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
Always dispose of used batteries/electronics in accordance with the prevailing community regulations.
Many electronics retailers now recycle batteries and other electronic components at no charge

GENERAL BATTERY PRECAUTIONS

Never use or charge a battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substances.
Avoid charging a rechargeable battery when the temperature is not within 5°C – 35° C (41° – 95° Fahrenheit).
Never expose a battery to any liquid.
Never expose a battery to excessive heat such as direct sunlight or fire. Never use a battery pack in an unventilated vehicle where excessive internal temperatures may be encountered.
Always keep batteries out of the reach of infants and small children.

iHome Wireless Charger LED Color Changing manual

ItsManual — Fri, 31 Mar 2023 09:41:45 +0000

iBTW281v2 – QSG (English)
Size: 700 x 160 mm (unfold), 140 x 160 mm (folded)
Color: 1C + 1C
material: 154gsm, art card, 1C + 1C, 直角
June 9, 2020 V1 Front Cover

Model: iBTW281v2

Quick Start Guide

For warranty visit: http://www.ihome.com/support

Meet Your iBTW281v2

Top

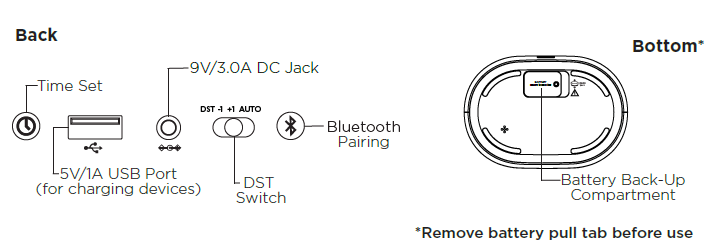

Back

Quick Set-Up:

Connecting the Unit

Connect the included AC adapter to the DC jack located on the back of the unit and connect the other end to a working wall outlet.

Bluetooth Pairing

Turn on your Bluetooth device and make it ‘discoverable’ by turning on Bluetooth mode.
Press the Power Button on the iBTW281v2. The first time the unit is powered on, it will automatically enter pairing mode.
Select ‘iHome iBTW281V2’ on your device’s Bluetooth menu to connect!

Setting Your Clock

Press and hold the Time Set Button until the display flashes.
Press the – or + Buttons to adjust selections and tap Time Set to confirm (make sure you set the correct AM/PM time).
Do this for time, year, month and date.
All done!

Daylight Savings Time:

By default, the DST Switch in the battery compartment is set to Auto and will automatically adjust the time in March and November.

The Display

Using Qi Wireless Charging

This unit will wirelessly charge Qi compatible wireless charging phones. Place Qi compatible device face up on charging rest.

Check the lightning icon on the iBTW281v2 display for charging status:

Slow blinking icon: Device is charging properly.
Solid icon: Device is charged.
Rapid blinking icon: Device is not charging properly. Reposition device.

Note: The lightning icon may continue to blink slowly
when iOS devices are fully charged.

CAUTION: Remove metal protective or magnetic case from phone before charging. When charging phone, do not place magnetic-striped or other metal objects on the charger. Doing so could damage the object or this unit. Qi compatible phones with metallic looking finishes will charge normally.

Setting and Using the Alarms

This unit features dual alarms which can be set to different times and alarm sources. Each is set
in the same way. Instructions are given as “Alarm Button”; use Alarm 1 Button or Alarm 2
Button to set respective alarms. Note: Each step must be completed while display is flashing or
setting will time-out with any changes saved.

Press and hold the Alarm Button for 2 seconds until the alarm time display and alarm icon flash. A beep sounds.
Press the – or + Buttons to adjust the alarm time to the desired time (hold for rapid setting). Make sure you set the correct AM/PM alarm time. The PM indicator appears to the left of the display.
Press the Alarm Button to confirm the alarm time setting. The alarm schedule will flash:7 (every day), 5 (weekdays) or 2 (weekend only). Press the – or + Buttons to select the desired
alarm schedule.
Press the Alarm Button to confirm the alarm schedule. The wake-to source will flash.
Press the – or + Buttons to select the desired wake-to alarm source: Bluetooth, Tone or Light Only (no alarm sound). Wake to Bluetooth: You will wake to the currently linked Bluetooth device. If no device is detected, the alarm will default to the last tone selected. Wake to Tone: Press the Alarm Button to confirm. Press the – or + Buttons to select the desired tone to wake to (Tone 1 -Tone 4). Wake to Light Only: Press the Alarm Button to confirm. Select this mode to wake to silent light only alarm. (You will then skip volume setting and advance to step 9 Wake to Light setting.)
Press the Alarm Button to confirm wake-to source. The alarm volume will flash (unless Wake to Light is set wake to choice, then volume setting is skipped and you are done).
Press the – or + Buttons to adjust the alarm volume.
Press the Alarm Button to confirm alarm volume. The current Wake to Light mode will flash.
Press the – or + Buttons to select the desired light mode to wake to (Slow Fade, Fast, One Color, Twinkle, Pulse, Sky Gradient, Nightlight, Off ).
Press the Alarm Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm alarm setting is complete. The alarm icon will remain on the display, to show the alarm is armed.

Previewing the Alarm and Turning the Alarm On/Off

Press and release the Alarm Button to view the current alarm time.
Press the Alarm Button to toggle the alarm ON and OFF, indicated by the related white
alarm indicator.
When the alarm sounds, press the corresponding Alarm Button (1 or 2) to disable the alarm and reset it to come on at the same time the next day.

Snooze/Display Dimmer

Snooze: When the alarm is sounding, press the Dimmer/ZZZ Button to snooze for 9
minutes.
Dimmer: Press the Dimmer/ZZZ Button (when alarm is NOT sounding) to adjust display
brightness.

Programmable Snooze and Dimmer

Adjust the snooze duration and set a schedule for your clock backlight to automatically dim and brighten at certain times of the day.

Press and hold the Dimmer/ZZZ Button.
2. Use the + or – Buttons to adjust the snooze duration from 1-29 minutes. Press the Dimmer/ZZZ Button again to confirm.
Default is set to OFF. Toggle to ON by pressing the + Button and then the ZZZ Button to confirm. (Note: Choosing OFF will simply exit the setting.)
Now choose the brightness level for daytime hours using the +/- Buttons. Press ZZZ again to confirm.
Now set the time you want the daytime dimmer to take effect. Use the +/- Buttons and press ZZZ again to confirm.
Now choose the brightness level for nighttime hours. Use the +/- Buttons and press ZZZ again to confirm.
Finally, set the time you want the nighttime dimmer to take effect. Use the +/- Buttons and press ZZZ again to confirm.
Done! The icon will appear on the display when Dimmer Schedule is active.

Manual Bluetooth Pairing

Press and hold the Bluetooth Button on the top of the iBTW281v2 for 2 seconds.
Select ‘iHome iBTW281’ on your device’s Bluetooth menu to connect.
If pairing is successful, a voice prompt will announce “CONNECTED”, then Bluetooth indicator appears solid blue, indicating the iBTW281v2 is ready to play music.
To reset Bluetooth settings, press and hold the Bluetooth Button for 10 seconds.

Playing Audio Via Bluetooth

Press the Play/Pause/Speakerphone Button on the unit to play or pause audio from
your linked Bluetooth device.
Press the – or + Buttons to adjust the volume on the unit.

Using the Speakerphone feature

The iBTW281v2 must be ON and connected to a Bluetooth device in order to receive calls.

Press the Play/Pause/Speakerphone Button to accept an incoming call.
Press and hold to end or ignore a call.

Color Modes

Press the Color Button repeatedly to cycle through 8 different modes:

• Slow Fade • Pulse to Music
• Fast Change • Sky Gradient
• Favorite Color • Nightlight
• Twinkle • OFF

Favorite Color Mode: When the unit is in stand-by,
press +/- to cycle through the color spectrum.

Charging Devices Via USB Port

. Connect the standard size end of a USB cable (not included) to the USB port on the back of the unit and connect the other end to the charging port on your device.
Monitor the charging on your device. Some devices use a proprietary charging method and
will not charge using the USB port. If this happens, you must charge your device using
the charger that came with it.

NOTE: Unit must be plugged into working outlet to charge devices.

Battery Back-Up

The unit comes with a CR-2450 back-up battery installed to provide continuous alarm operation and clock settings in the event of a temporary power failure. Remove the battery pull tab before use. When the battery icon on the clock display is flashing, it is time to replace the back-up battery. The battery compartment is located on the bottom of the unit.

Make sure the AC adapter is connected, or you will lose your time and alarm settings during battery replacement.
Use a Phillips screwdriver to open the battery compartment door.
Remove the exhausted battery from the compartment and insert 1 CR-2450 battery, checking that the + side is facing you. Replace the compartment door. Do not overtighten.

WARNING: Lithium batteries can explode or cause burns if disassembled, shorted, recharged, exposed to water, fire, or high temperatures. Do not place loose batteries in a pocket, purse, or other container containing metal objects, mix with used or other battery types, or store with hazardous or combustible materials. Store in cool, dry, ventilated area. Follow applicable laws and regulations for transport and disposal.

WARNING

Do not ingest the battery, Chemical Burn Hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.”
Attention should be drawn to the environmental aspects of battery disposal.

Maintenance

Place the unit on a level surface away from sources of direct sunlight or excessive heat.
Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents such as thinner or similar materials can damage the surface of the unit.

IMPORTANT SAFETY INSTRUCTIONS

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read and follow all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.
Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. Only use the AC adapter that came with the unit.
Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket.
Cleaning – The unit should be cleaned only as recommended. See the Maintenance section for cleaning instructions.
Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product.
Attachments – Do not use attachments not recommended by the product manufacturer.
Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally
Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, remove batteries before storage
Servicing – The user should not attempt to service the unit beyond those methods described in the user manual. Service methods not covered in the operating instructions should be referred to qualified service personnel.
Magnetic Interference: This product’s speakers contain powerful magnets which could cause interference or damage to sensitive equipment such as hard drives, CRT televisions and monitors, as well as medical, scientific, and navigational devices. Keep this unit away from these products at all times.
Only use attachments/accessories specified by the manufacturer. This product is suitable for use in tropical and/or moderate climates.
The unit should be serviced by qualified service personnel when the enclosure damaged or does not operate normally.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture”
CAUTION – Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Do not dispose of batteries in the household trash or fire.
The mains plug of power adaptor is used as the disconnect device, it shall remain readily operable.

FCC INFORMATION Model: iBTW281v2

FCC Radiation Exposure Statement.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Canada Statement

(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

(1) L’appareil ne doit pas produire de brouillage;
(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Ce matériel est conforme aux limites d’exposition aux rayonnements rf de ic énoncés dans un autre environnement.
CCe matériel doit être installé et exploité à une distance minimale de 20 cm entre le radiateur et votre corps. ”
Tout changement ou modification non expressément approuvé par la partie responsable de la conformité pourrait annuler le droit de l’utilisateur à utiliser l’équipement.

CAN ICES 3(B) / NMB-3(B), CAN RSS-216/CNR-216

For warranty and full instructions, visit ihome.com/support

Questions? Visit www.ihome.com

iBTW281v2-060920-B Printed in China

iHome Color Changing Wireless Speaker manual

ItsManual — Sat, 01 Apr 2023 06:47:59 +0000

iHome iHV317 – QSG Color Changing Wireless Speaker Quick Start Guide

Model: iHV317

What’s Included:

iHv317 Speaker
USB Charging Cable

Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free

GETTING STARTED

Charging your speaker

Speaker must be charged before use.

Connect small plug of USB charging cable to USB port and connect the other end to a powered USB adapter.
LED indicator will glow red while charging and turn offonce charged.
Speaker should provide about 3-4 hours of audio when fully charged.
When battery is low, 3 tones will sound every 10 seconds until the unit shuts off.

Basic Controls

LED INDICATORS

BLUETOOTH

Pairing establishes a unique communication connection between your Bluetooth device and the speaker. Once paired, you will be able to stream audio wirelessly to your iHv317 speaker.

The speaker will enter auto-pairing mode whenever you turn it ON. The LED indicator on the back of the speaker will flash blue.
Turn on Bluetooth mode on your device (under Settings, Connections or similar).
Select “iHv317” on your device’s menu of Bluetooth devices. When pairing is successful, the LED will glow solid blue. You can now begin to stream audio and calls from your device. To conserve the battery, remember to shut o the speaker when you are done listening.

SPEAKERPHONE

Press the Light/Speakerphone Button to answer or end a call.
Press and hold the Play/Pause Button to decline a call.

AUX MODE

Connect one end of an audio cable (not included) into the AUX-IN jack and the other end to the headphone jack of your audio device.

Press PLAY on your audio device to start playback.
Control/navigate tracks from your audio device, too.
Press the Play/Pause Button on the speaker to mute audio.
Unplug the audio cable to resume Bluetooth audio operation.

RESET

To reset the unit, insert the extended tip of a paper clip or other thin tool into the AUX-in jack.

FCC Information

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT SAFETY INSTRUCTIONS

Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.

Cleaning – The unit should be cleaned only with dry cloth. Do not use solvents, etc

Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.

Only use attachments/accessories specified by the manufacturer

Damage Requiring Service – The unit should be serviced by qualified service personnel when:

A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.

Attention should be drawn to the environmental aspects of battery disposal.

No naked flame sources, such as lighted candles, should be placed on this product.

This product is suitable for use in tropical and/or moderate climates.

CAUTION – Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Do not dispose of batteries in the household trash or fire

For warranty information:
visit https://www.ihome.com/support

iHome Wireless Charging Alarm Clock With Dual Charging manual

ItsManual — Wed, 05 Apr 2023 06:28:53 +0000

User Guide

iHome Wireless Charging Alarm Clock With Dual Charging

Questions?
visit ihome.com

iW15 – IB (English version)

Size: 399 x 266 mm paper sheet, 133 x 133 mm (fold)
Color: Black
Mat’l: 85gsm WF paper

Mar. 10, 2020.
* Front

What’s in the Box

This product ships with the following items. Make sure all are present.

Controls Overview

Display

Backup Battery

Your new clock includes a built-in battery backup system that will maintain the time settings during a temporary power interruption.

The display will turn off during a power failure, but the clock will continue to run. The alarm will NOT sound during a temporary power interruption, and will need to be reset once connected to power again.

Set Up

Connecting to Power Source
Connect the included AC adapter to the DC jack located on the back of the unit and connect the
other end to a working wall outlet.

Product Care

Place the unit on a level surface away from sources of direct sunlight or excessive heat.
Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
Stronger cleaning agents, such as Benzene, thinner or similar materials can damage the
surface of the unit.

Setting the Time

Setting and Using Alarms

Wireless Charging

Supports:

Qi compatible phones (also works with plastic cases up to 2mm thick)
AirPods with wireless charging case

Place Qi compatible device face up on the wireless charging pad as pictured below:

CAUTION:
Remove metal protective or magnetic case from phone before charging. When charging phone, do not place magnetic-striped or other metal objects on the charger. Doing so could damage the object or this unit. Qi compatible phones with metallic looking finishes will charge normally.

Check the wireless charging status indicator (located above the clock display) to monitor
charging status:

Solid blue LED: Device is charging properly.
Solid red LED: Device is charged.
Rapid blinking red LED: Device is not charging properly. Reposition device.
Note: The LED indicator may continue to glow solid blue when iOS devices are fully charged.

Charging Devices via USB Port

You can also charge your devices via the USB port located on the back of the unit.

To charge devices:

Connect the standard size end of a USB cable (not included) to the USB port on the back of the unit.
Connect the other end to the charging port on your device.

(Make sure the unit is plugged into a working outlet in order to charge devices.)

Display Dimmer

Press and hold the Snooze/Dimmer Button to toggle display brightness between high and low
settings. Dimmer cannot be adjusted when alarm is sounding.

Troubleshooting

The unit does not power ON.
The unit is not connected to AC outlet, the AC outlet has no power, or is controlled by a wall switch that is “OFF”. Check AC outlet and wall switch.
Alarm does not come on.
The alarm time AM or PM incorrectly set, Alarm was OFF, etc. Check alarm settings.
Unit shuts “Off” unexpectedly.
a. A power surge has occurred, or the AC outlet has been disconnected.
b. The AC outlet may be controlled by a wall switch that is turned OFF.
Check AC outlet or wall switch.

IMPORTANT SAFETY INSTRUCTIONS

WARNING/DISPOSAL OF UNIT
Do NOT attempt to change the battery. Doing so will void the warranty and could cause injury and damage to your device. To dispose of the unit, follow the instructions below:

Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
Always dispose of used batteries/electronics in accordance with the prevailing community regulations.
Many electronics retailers now recycle batteries and other electronic components at no charge

GENERAL BATTERY PRECAUTIONS

Never use or charge a battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substances.
Avoid charging a rechargeable battery when the temperature is not within 5°C – 35° C (41° – 95° Fahrenheit).
Never expose a battery to any liquid.
Never expose a battery to excessive heat such as direct sunlight or fire. Never use a battery pack in an unventilated vehicle where excessive internal temperatures may be encountered.
Always keep batteries out of the reach of infants and small children.

IMPORTANT SAFETY INSTRUCTIONS
Please heed all warnings, read and follow all instructions and keep these instructions handy for future reference.

Do not use this product near water, and clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Heat – This product should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
Only use attachments/accessories specified by the manufacturer.
Unplug this product during lightning storms or when unused for long periods of time.
Damage Requiring Service – This product should be serviced by qualified service personnel when:
– Plug has been damaged.
– Objects have fallen into or liquid has been spilled into the enclosure.
– The unit has been exposed to rain. The unit has been dropped or the enclosure damaged.
– The unit exhibits a marked change in performance or does not operate normally.
No naked flame sources, such as lighted candles, should be placed on this product.
Attention should be drawn to the environmental aspects of battery disposal.
This product is suitable for use in tropical and/or moderate climates.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Do not dispose of batteries in the household trash or fire.
The mains plug of power adaptor is used as the disconnect device, it shall remain readily operable.

FCC Information

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
CAN ICES-3 (B) / NMB-3(B), CAN RSS-216 / CNR-216

IC Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

This device may not cause interference.
This device must accept any interference, including interference that may cause undesired operation of the device.

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.

This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Limited 90 Day Warranty Information

iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase. Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI will repair or, at its discretion, replace this product without charge. This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center authorized by Customer Service.

Disclaimer of Warranty

NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD’s or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner. This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser. In
no event will SDI or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive damages.

iHOME Portable Rechargeable Bluetooth Stereo Speaker Manual

ItsManual — Sun, 16 Apr 2023 12:08:16 +0000

iHOME Portable Rechargeable Bluetooth Stereo Speaker Instruction Manual

Introduction

Thank you for purchasing the iHome iDM12. This product is designed to provide high quality wireless sound for your iPad, iPhone, iPod, computer, PDA or other Bluetooth audio device.
Along with the included Quick Bluetooth Connection Guide,this instruction booklet explains the basic operation and care of the unit. Please read them carefully and keep for future reference.

Maintenance

Place the unit on a level surface away from sources of direct sunlight or excessive heat.
Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene, thinner or similar materials can damage the surface of the unit.

Meet Your iDM12

Top/Front
Rear

Included

iDM12 system
Magnetic cover/foldout iPad stand
Micro USB to USB/3.5 mm audio cable

The unit includes a magnetic travel cover that doubles as an iPad stand. To use as a stand, fold out the feet on its bottom. For travel, fold up feet an place cover on the front of the unit.
Place stand on a flat, stable surface. Dock iPad into groove. iPad should not be in a case or skin. For best stability,dock iPad in landscape mode.

Charging the Unit

Connect the micro USB plug to the micro USB charging port on the back of the unit.
Connect the standard USB plug end of the cable to a power USB port on a computer or other USB charging device. For first time use, charge unit for about 8 hours.
A green light flashes while the unit is charging and glows steadily when unit is fully charged. If unit is not powered on when micro USB plug is connected, the green light flashes once to indicate unit is charging.

NOTE: When unit is on and not connected to power source, flashing green light indicates battery needs charging.

Using Bluetooth: Pairing Your Device

NOTE: See the iDM12 Bluetooth Connection Guide for complete pairing details.

Move the Bluetooth/Aux Switch to the Bluetooth position (left).
Press and hold the Power Button to turn on the unit (release when green light appears).
Turn on Bluetooth capability on your device and make it discoverable (see your device’s instructions to add or setup a Bluetooth device).
Press and hold the Play/Pause/Pairing Button on the iDM12 until an amber light flashes on front of the unit and it beeps twice to indicate pairing attempt. The amber light will flash while the unit attempts to pair. If your device asks for a password, enter 1234 on the keyboard of your device.If no device is paired within 3 minutes, the unit will power off. If this occurs, retry steps 2-4.
Once paired with a device, the amber light will glow steadily, then turn green. There should be an indication on your device that pairing is complete. On some devices, you must then select “use as a stereo audio device” or similar on the device’s Bluetooth menu.Once paired, your device should link to the iDM12 whenever within range.

Playing Audio Via Bluetooth

Move the Bluetooth/Aux Switch to the Bluetooth position to listen to audio streamed wirelessly from your paired iPad, iPhone, iPod or other Bluetooth device.
Press and hold the Power Button to turn on the unit. The amber light will flash as the unit searches for a previously paired device, and then turn green when a previously paired device is detected.
Press the Play/Pause/Pairing Button to play or pause audio from your Bluetooth device. NOTE: Play/Pause only works in Bluetooth mode. It does not control aux line-in devices.
Use the Volume +/- Buttons to adjust volume.
When done listening, press the Power Button to turn the unit off.

Playing Audio via Aux

Move the Bluetooth/Aux switch to the Aux position to listen to audio via aux in.
Connect the micro USB plug to the micro USB charging port on the back of the unit and connect the 3.5 mm audio plug to the headphone or line-out jack on your audio device.
Press and hold the Power Button to turn on the unit (release when green light appears).
Use the Volume +/- Buttons to adjust volume. You may wish to adjust the volume on your audio device, too.
When done listening, press the Power Button to turn the unit off. Remember to turn off your audio device, too.

Internal Rechargeable Lithium-ion Battery

This device uses an internal rechargeable lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead, try charging it several times. If the battery does not recharge, please contact us for repair information.

WARNING/DISPOSAL OF UNIT

Please do NOT attempt to change the battery yourself. If the battery has died and you do not want us to replace your battery, you should follow the disposal instructions below :

Never dispose of used batteries/electronics with ordinary solid wastes, since they contain toxic substances.
Always dispose of used batteries/electronics in accordance with the prevailing community regulations that apply to the disposal of batteries/electronics. If there are no local regulations concerning battery/electronics disposal, please dispose of the device in a waste bin for electronic devices.
Many electronics retailers now recycle batteries and other electronic components at no charge. Check to see which ones in your area do so.

CAUTION

The battery used in this device may present a risk of fire, explosion or chemical burn if mistreated.

Never use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substance.
Always confirm that the temperature is 5°C – 35° C (41° – 95° Fahrenheit) before you charge the battery. Leakage or deterioration of the battery may occur if this warning is not heeded.
Never expose the battery to any liquid.
Never expose the battery to excessive heat such as direct sunlight or fire. Never use the battery pack in an unventilated vehicle where excessive internal temperatures may be encountered.
Always keep the battery out of the reach of infants and small children.

Consumer Product Safety Guide

IMPORTANT SAFETY INSTRUCTIONS

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.
Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket.
Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product.
Attachments – Do not use attachments not recommended by the product manufacturer.
Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
Damage Requiring Service – The unit should be serviced by qualified service personnel when:
- the power supply cable or plug has been damaged.
- objects have fallen into or liquid has been spilled into the enclosure.
- the unit has been exposed to rain.
- the unit has been dropped or the enclosure damaged.
- the unit exhibits a marked change in performance or does not operate normally.
Periods of Non use – If the unit is to be left unused for an extended period of time, such as a month or longer, the power cable should be unplugged from the unit to prevent damage or corrosion.
Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.

Troubleshooting

Unit doesn’t respond (no power)
Make sure unit is completely charged. Check that all connections are correct and properly plugged in. Make sure your device is properly paired with the iDM12.

Trouble pairing device/computer with iDM12
Bluetooth implementation varies depending on your computer’s hardware and operating system. Please see our website for updates on pairing.

Make sure you have the latest firmware for your iPad, iPhone or iPod (update via iTunes if needed).
Make sure your device is working properly. Check your device’s manual for details on Bluetooth pairing and linking.

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).
This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

For further information and to see the latest instructions, visit
www.ihomeaudio.com/support

iHome iW18 Bedside/Office Clock with Dual Charging Manual

ItsManual — Sat, 22 Apr 2023 19:08:43 +0000

User Manual

iHome iW18 Bedside/Office Clock with Dual Charging

FEATURES & FUNCTIONS

GETTING STARTED

Step 1: Connecting the Unit

Before use, remove the battery pull tab from the bottom of the unit. Connect the included AC adapter to the DC jack located on the back of the unit and connect the other end to a working wall outlet.

Step 2: Setting Your Clock

Press and hold the Time Set Button until the display flashes.
Press the – or + Buttons to adjust selections and press Time Set to confirm.
Do this for time, year, month and date.
All done!

Daylight Savings Time (DST) Switch:
By default, the DST Switch is set to Auto and will automatically adjust the time each March and November.

DISPLAY ICONS

To adjust the brightness of the display, press the Time Set Button repeatedly to cycle through brightness settings, including OFF.

SETTING THE ALARM

Note: Each step must be completed while display is flashing or setting will time-out with any changes saved.

Press and hold the Alarm Button for 2 seconds until the alarm time display and alarm icon flash.
Press the – or + Buttons to adjust the alarm time to the desired time (hold for rapid setting). Make sure you set the correct AM/PM alarm time. The PM indicator appears to the left of the display.
Press the Alarm Button to confirm the alarm time setting. The alarm schedule will flash: 7 (every day), 5 (weekdays) or 2 (weekend only). Press the – or + Buttons to select the desired alarm schedule.
Press the Alarm Button to confirm the alarm schedule. 2 beeps will confirm alarm setting is complete. The alarm icon will remain on the display, indicating the alarm is armed.
To turn off a sounding alarm and reset it to come on the next day at the same time, press the Alarm Button to reset alarm.

PREVIEWING THE ALARM

Press and release the desired Alarm Button as needed to preview the alarm and to toggle the alarm ON (indicated by the alarm icon) or OFF (no alarm icon).

PROGRAMMABLE SNOOZE

To program Snooze, press down on the front of the unit for 2 seconds during normal operation (when no alarm is sounding).
Press the – or + Buttons to select a snooze time (between 01 and 29 minutes).
Press down and release the front of the unit to confirm setting. While the alarm is sounding, press down on the front of the unit to temporarily silence the alarm (9 minutes is the default). Snooze can be used several times during the one hour alarm cycle.

WIRELESS CHARGING

Supports:

Qi compatible phones (also works with plastic cases up to 3mm thick)
AirPods with wireless charging case
Place Qi compatible device face up on the charging rest as pictured below:

Note: The lightning icon may continue to blink slowly when iOS devices are fully charged.

USB CHARGING

Connect the standard size end of a USB cable (not included) to the USB port on the back of the unit and connect the other end to the charging port on your device.

(Make sure the unit is plugged into a working outlet in order to charge devices.)

BATTERY BACK-UP

Make sure the AC adapter is connected, or you will lose your time and alarm settings during battery replacement.
Use a Phillips screwdriver to open the battery compartment door.
Remove the exhausted battery from the compartment and insert 1 CR-2450 battery, checking that the + side is facing you. Replace the compartment door. Do not overtighten.

Do not ingest the battery, Chemical Burn Hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Attention should be drawn to the environmental aspects of battery disposal.

IMPORTANT SAFETY INSTRUCTIONS

When used in the directed manner, this unit has been designed and manufactured to ensure your
personal safety. However, improper use can result in potential electrical shock or fire hazards.
Please read and follow all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

Water and Moisture – The unit should not be used near water. For example: near a bathtub,
washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the
ventilation openings.
Heat – The unit should be situated away from heat sources such as radiators, heat registers,
stoves or other appliances (including amplifiers) that produce heat.
Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. Only use the AC adapter that came with the unit.
Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket.
Cleaning – Clean only with dry cloth.
Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product.
Attachments – Do not use attachments not recommended by the product manufacturer.
Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
Overloading – Do not overload wall sockets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
Damage Requiring Service – The unit should be serviced by qualified service personnel when:
A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, remove batteries before storage
Servicing – The user should not attempt to service the unit beyond those methods described in the user manual. Service methods not covered in the operating instructions should be referred to qualified service personnel.
Magnetic Interference: This product’s speakers contain powerful magnets which could cause interference or damage to sensitive equipment such as hard drives, CRT televisions and monitors, as well as medical, scientific, and navigational devices. Keep this unit away from these products at all times.
Only use attachments/accessories specified by the manufacturer. This product is suitable for use in tropical and/or moderate climates.
The unit should be serviced by qualified service personnel when the enclosure damaged or
does not operate normally.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
CAUTION – Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Do not dispose of batteries in the household trash or fire
The mains plug of power adaptor is used as the disconnect device, it shall remain readily
operable.

FCC INFORMATION

Model: iW18
FCC ID: EMOIW18
IC: 986B-IW18

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:

This device may not cause interference and
This device must accept any interference received, including interference that may cause undesired operation

This device complies with Part 15 of the FCC Rules, operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAN ICES-3 (B)/NMB-3(B), CAN RSS216 / CNR-216

IC Statement

This device may not cause interference.
This device must accept any interference, including interference that may cause undesired operation of the device.

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and
compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.

This equipment should be installed and operated with a minimum distance of 20 cm between the
radiator and your body.

WARRANTY

For product support information and warranty please visit: www.ihome.com/support
© 2019 SDI Technologies, Inc. All rights reserved
Questions? Visit www.ihome.com
or call 1-800-288-2792 Toll Free

iHome Bluetooth Speaker + Wireless Charger iBTW41 Manual

ItsManual — Wed, 26 Apr 2023 10:19:54 +0000

Bluetooth Speaker + Wireless Charger

What’s Included:

Meet Your iHome TimeBoost iBTW41

Top

Back

*Remove battery pull tab before use

Quick Set-Up:

Connecting the Unit

Connect the included AC adapter to the DC jack located on the back of the unit and connect the other end to a working wall outlet.

Bluetooth Pairing

Turn on your Bluetooth device and make it ‘discoverable’ by turning on Bluetooth mode.
Press the Power Button on the iBTW41.
Press and hold the Bluetooth Pairing Button on the back of the iBTW41 until the Blueooth Pairing Icon flashes to indicate the unit is in pairing mode.
Select ‘iHome Timeboost’ on your device’s Bluetooth menu to connect!

Setting Your Clock

Press and hold the Time Set Button until the display flashes.
Press the – or + Buttons to adjust selections and tap Time Set to confirm (make sure you set the correct AM/PM time).
Do this for time, year, month and date.
All done!

Daylight Savings Time:

By default, the DST Switch is set to Auto and will automatically adjust the time in March and November.
Tip: Press the Alarm 1 Button during clock setting to toggle the clock between 12/24 hour display modes.

The Display

Using Qi Wireless Charging

This unit will wirelessly charge Qi compatible wireless charging phones. Place Qi compatible device face up on charging pad.

Check the lightning icon on the iBTW41 display for charging status:

Slow blinking icon: Device is charging properly.
Solid icon: Device is charged.
Rapid blinking icon: Device is not charging properly. Reposition device.

Note: The lightning icon may continue to blink slowly when iOS devices are fully charged.

CAUTION: Remove metal protective or magnetic case from phone before charging. When charging phone, do not place magnetic-striped or other metal objects on the charger. Doing so could damage the object or this unit. Qi compatible phones with metallic looking finishes will charge normally.

Setting and Using the Alarms

This unit features dual alarms which can be set to different times and alarm sources. Each is set in the same way. Instructions are given as “Alarm Button”; use Alarm 1 Button or Alarm 2 Button to set respective alarms. Note: Each step must be completed while display is flashing or setting will time-out with any changes saved.

Press and hold the Alarm Button for 2 seconds until the display flashes. A beep sounds.
Press the – or + Buttons to adjust the alarm time to the desired time (hold for rapid setting). Make sure you set the correct AM/PM alarm time. The PM indicator appears to the left of the display.
Press the Alarm Button to confirm the alarm time setting. The alarm schedule will flash: 7 (every day), 5 (weekdays) or 2 (weekend only). Press the – or + Buttons to select the desired alarm schedule.
Press the Alarm Button to confirm the alarm schedule. The wake-to source will flash.
Press the – or + Buttons to select the desired wake-to alarm source: Bluetooth or Tone.
Wake to Bluetooth: You will wake to the currently linked Bluetooth device. If no device is detected, the alarm will default to the last tone selected.
Wake to Tone: Press the Alarm Button to confirm. Press the – or + Buttons to select the desired tone to wake to (Tone 1 -Tone 4).
Press the Alarm Button to confirm wake-to source. The alarm volume will flash.
Press the – or + Buttons to adjust the alarm volume.
Press the Alarm Button to confirm the alarm settings and exit alarm setting mode. 2 beeps will confirm alarm setting is complete. The alarm icon will remain on the display, to show the alarm is armed.

Previewing the Alarm and Turning the Alarm On/Off

Press and release the Alarm Button to view the current alarm time.
Press the Alarm Button to toggle the alarm ON and OFF, indicated by the related white alarm indicator.
When the alarm sounds, press the Power/Alarm Reset Button or the corresponding Alarm Button (1 or 2) to disable the alarm and reset it to come on at the same time the next day.

Snooze/Display Dimmer

Snooze: When the alarm is sounding, press the Snooze/Dimmer Button to snooze for 9 minutes.
Dimmer: Press the Snooze/Dimmer Button (when alarm is NOT sounding) to adjust display brightness.

Programmable Snooze

To adjust the snooze duration:

Press and hold the Snooze/Dimmer Button.
Use the + or – Buttons to adjust the snooze duration from 1-29 minutes. Press the Snooze/Dimmer Button again to confirm.

Display Auto-Dimmer

This unit is equipped with a sensor that will automatically adjust the brightness of the clock display based on ambient light in your room. When the room is well lit, the display will adjust to Hi brightness for better visibility. In a dark room, it will dim to a lower brightness.
You can adjust the “lower limit” of the Auto-dimmer to fit your personal preference of display brightness in a dark room.

The 3 options are:
“Auto 2” – minimum brightness setting will be level 2
“Auto 1” – minimum brightness setting will be level 1
“Auto 0” – clock display will turn FULLY OFF in a dark room

To adjust Dimmer settings:
Press the Snooze/Dimmer Button repeatedly to cycle through brightness levels: Auto 1, Auto 2, Auto 0, Hi, 3, 2, 1, or OFF. (Note: choosing Hi, 3, 2, 1, or OFF are fixed settings and will not auto-adjust.)

Manual Bluetooth Pairing

Press and hold the Bluetooth Pairing Button on the back of the iBTW41 for 2 seconds.
Select ‘iHome Timeboost’ on your device’s Bluetooth menu to connect.
If pairing is successful, the Bluetooth indicator appears solid on the clock display, indicating the iBTW41 is ready to play music.
To reset Bluetooth settings, press and hold the Bluetooth Pairing Button for 10 seconds.

Playing Audio Via Bluetooth

Press the Play/Pause/Speakerphone Button on the unit to play or pause audio from your linked Bluetooth device.

Using the Speakerphone

The iBTW41 must be ON and connected to a Bluetooth device in order to receive calls.

Press the Play/Pause/Speakerphone Button to accept an incoming call.
Press and hold to end or ignore a call.

Using Voice Commands

The iBTW41 must be ON and connected to a Bluetooth device to use voice commands.

Press and hold the Play/Pause/Speakerphone Button for 2 seconds to activate Siri or Google Assistant.

Charging Devices Via USB Port

Connect the standard size end of a USB cable (not included) to the USB port on the back of the unit and connect the other end to the charging port on your device.
Monitor the charging on your device. Some devices use a proprietary charging method and will not charge using the USB port. If this happens, you must charge your device using the charger that came with it.

NOTE: Unit must be plugged into working outlet to charge devices.

Battery Back-Up

Make sure the AC adapter is connected, or you will lose your time and alarm settings during battery replacement.
Use a Phillips screwdriver to open the battery compartment door.
Remove the exhausted battery from the compartment and insert 1 CR-2450 battery, checking that the + side is facing you. Replace the compartment door. Do not overtighten.

Do not ingest the battery, Chemical Burn Hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries mtight have been swallowed or placed inside any part of the body, seek immediate medical attention.”
CAUTION – RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Maintenance

Place the unit on a level surface away from sources of direct sunlight or excessive heat.
Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents such as thinner or similar materials can damage the surface of the unit.

IMPORTANT SAFETY INSTRUCTIONS

Please heed all warnings, read and follow all instructions and keep these instructions handy for future reference.

Do not use this product near water, and clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Heat – This product should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
Only use attachments/accessories specified by the manufacturer.
Unplug this product during lightning storms or when unused for long periods of time.
Damage Requiring Service – This product should be serviced by qualified service personnel
when:
- Plug has been damaged.
- Objects have fallen into or liquid has been spilled into the enclosure.
- The unit has been exposed to rain. The unit has been dropped or the enclosure damaged.
- The unit exhibits a marked change in performance or does not operate normally.
No naked flame sources, such as lighted candles, should be placed on this product.
Attention should be drawn to the environmental aspects of battery disposal.
This product is suitable for use in tropical and/or moderate climates.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Do not dispose of batteries in the household trash or fire.
The mains plug of power adaptor is used as the disconnect device, it shall remain readily operable.

FCC INFORMATION

This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

IC Statement

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment.

This device may not cause interference.
This device must accept any interference, including interference that may cause undesired operation of the device.

The device comply with ISEDC RF exposure requirement, users can obtain Canadian information on RF exposure and compliance.

This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

iHome Zenergy White Noise Generator iZ2 Manual

ItsManual — Wed, 26 Apr 2023 12:30:17 +0000

iHome Zenergy White Noise Generator iZ2

USER MANUAL

WELCOME

Thank you for choosing the iZ2 Zenergy White Noise Portable Sleep Therapy Machine from iHome. This user guide will get you up and running quickly. For more information about this and other iHome products, please visit www.ihome.com

GETTING STARTED

This unit ships with the following items. Please check to see that all items are present.

iZ2 speaker
100-240V Universal AC power adapter
Aux-in audio cable

CONNECTING THE IZ2

Plug the included AC adapter into the DC jack on the back of the unit and connect the plug to a working outlet not controlled by a light switch.

INSTALLING/REPLACING BATTERIES FOR PORTABLE USE

This unit requires 4 AA batteries (not included) for portable operation. We recommend alkaline batteries for longest life.

Use a Phillips screwdriver to unscrew battery compartment door on bottom of unit. Remove battery door.
Insert 4 new AA batteries, making sure to match polarity (+/–) as shown.
Replace battery door and tighten screw. Do not over-tighten.

FEATURES & FUNCTIONS

TOP PANEL

BACK PANEL

LOW BATTERY INDICATOR

While operating on batteries, the LED low battery indicator will slowly blink red when batteries are low and need to be replaced.

TURNING THE UNIT ON AND OFF

Press and release the Power Button to turn the unit ON or OFF.

SOUND THERAPY MODE

Distracting noises or a racing mind can make it hard to sleep at night or focus during the day. Sound Therapy uses specially recorded and engineered sounds to cancel out these distractions and allow your mind to calm.

Press the Sound Therapy Button to access Sound Therapy mode. Continue to press to cycle to each mode:
4-7-8 Breathing Guide: See next page for details
Calming Meditation: See Calming Breathing next page for details
Zen: A tonal melody in frequencies that mimic the Delta brainwaves of a mind in meditation or healing sleep Dream: A tonal melody in frequencies that mimic the Theta brainwaves of a mind dreaming in REM sleep
Ocean: Authentic, digitally recorded ocean sounds
Storm: Authentic, digitally recorded storm and rainfall sounds
Nature: Authentic, digitally recorded springtime woodland sounds
Air: Brown noise is a low-toned repeating frequency, like a fan, which helps to negate distracting environmental noises
Focus: Pink noise is a medium-toned repeating frequency, like a soothing waterfall, which helps to negate distracting environmental noises Quiet: The standard white noise repeating frequency, like radio static, which helps to actively negate distracting environmental noises
Peace: White noise and Delta tone melodies layered together help to quiet a noisy environment and an over-active mind
Heartbeat: Listening to a relaxed heart beat encourages your own heart
Press and release the Volume Buttons to adjust speaker volume.
Press and hold the Sound Therapy Button for 2 seconds to exit sound therapy mode. Press the Sound Therapy Button again to resume at the last used sound preset.

MEDITATION & BREATHING

Research has shown that active breathing can calm the nervous system thereby reducing your heart rate and activating the parasympathic (calming) nervous system to improve memory, positively impact emotional behaviors to help cope with stress, anxiety and make it easier to fall asleep.

4-7-8 BREATHING GUIDE

4-7-8 breathing meditation features a soothing voiced guide that fades
and synchronizes with pulsing lighting eects to control your breath, lower
your heart rate and soothe the body and mind.

4 sec: Breathe in through your nose, filling the belly.
7 sec: Hold breath.
8 sec: Slowly exhale through your mouth.
Repeat.

CALMING BREATHING

Frequencies mimicking the delta brainwaves along with a calming breathing sound eect can help coax our minds into a deep meditative state. This is a great alternative and easier excercise to the 4-7-8 method.

5 sec: Breathe in slowly through your nose.
5 sec: Exhale slowly through your mouth.
Repeat.

TIMER MODE

The programmable timer mode lets you set sound therapy to play for a set duration. The sound levels will gradually decrease over the last 15 minutes (fade begins right away if timer is set to 10 minutes or less) until the unit shuts off.

Press and release the Timer Button as needed to cycle to the desired timer duration: 90, 60, 30, 20, 10, 5, 2 minutes or OFF. Timer mode is first indicated by a voice guide and the timer indicator light next to the Timer button. Green indicates more than 1 hour remaining, yellow indicates 11-60 minutes remaining, and red indicates 10 minutes or less remaining. Timer mode is inactive when no timer indicator is lit. Press and hold the Timer Button to cancel timer mode.

AUX-IN AUDIO MODE

Connect the included aux-in audio cable to the headphone or other audio output jack on your audio device and the other end to the aux-in jack located on the back of the Sleep Therapy Machine. The unit will auto-detect the the aux connector once it is plugged in. Aux audio will override other tones while cable is connected.

Power on the Sleep Therapy Machine
Select and control audio on your device
Adjust volume output on your device. Press the Volume Buttons to adjust speaker volume.

BASS BOOST MODE

If more bass is desired in Sound Therapy or Aux-in audio mode, press and release the Bass Boost Button as needed to toggle bass boost ON or OFF (ON is indicated by LED to left of controls flashing green three times, and OFF by flashing red three times).

MAINTENANCE

Place the unit on a level surface away from sources of direct sunlight or excessive heat.
Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents such as thinner or similar materials can damage the surface of the unit.

Battery Cautions and Tips

Only use the recommended/supplied batteries or equivalent.
Use alkaline batteries for longer life.
Do not mix old and new batteries, and do not mix alkaline, carbon-zinc or
rechargeable nickel-cadmium batteries.
Insert batteries with proper polarity (+/–) as indicated.
Remove exhausted batteries from product.
Do not attempt to recharge non-rechargeable batteries.
Do not open batteries or heat them beyond normal ambient temperatures.
To prevent battery leakage or damage remove batteries from a product if it will not be used for a month or longer.
Use extreme caution handling leaking batteries (avoid direct contact with eyes and skin). If battery leakage comes in contact with eyes, IMMEDIATELY flush the eye with lukewarm and gently flowing water for at least 30 minutes. If skin contact occurs, wash skin with clear water for at least 15 minutes. Seek medical attention if any symptoms occur.
Store in cool, dry, ventilated area away from hazardous or combustible material.
Do not dispose of batteries in the household trash or fire.
Follow applicable laws and local regulations for the disposal and transportation of batteries.

FCC Information

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This device complies with Part 15 of the FCC Rules, operation is subject to the
following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that
may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-3 (B)/NMB-3(B)

IMPORTANT SAFETY TIPS

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.
Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. Only use the AC adapter that came with the unit.
Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket.
Cleaning – The unit should be cleaned only as recommended. See the Maintenance section of this manual for cleaning instructions.
Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product.
Attachments – Do not use attachments not recommended by the product manufacturer.
Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
Damage Requiring Service – The unit should be serviced by qualified service personnel
when: A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.
Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, remove batteries before storage
Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.
Magnetic Interference: This product’s speakers contain powerful magnets which could cause interference or damage to sensitive equipment such as hard drives, CRT televisions and monitors, as well as medical, scientific, and navigational devices. Keep this unit away from these products at all times.

iHome aquio Bottle with Waterproof Bluetooth Speaker Manual

ItsManual — Fri, 28 Apr 2023 04:37:47 +0000

iHome Aquio Bottle with Waterproof Bluetooth Speaker Instruction Manual

DOUBLE WALL INSULATED STAINLESS STEEL BOTTLE + REMOVABLE WATERPROOF BLUETOOTH SPEAKER

QUICK START GUIDE
CHARGE BEFORE USE

CONTROLS & INDICATORS

GETTING STARTED

PAIRING BLUETOOTH

Make your Bluetooth device “discoverable”
Press and hold the Power Button on back of speaker for 3 sec. to power ON.
The first time the unit is powered on it will enter auto-pairing mode.
Select “iHome iBTB2” on your device’s Bluetooth menu to complete pairing.
To manually pair, power speaker ON. Press and hold Bluetooth Button for 2 seconds, then select “iHome iBTB2” on your device’s Bluetooth menu to complete pairing.

PLAYING BLUETOOTH AUDIO

Press Play/Pause Button to play or pause Bluetooth audio.
- Press 2x to skip to next song
- Press 3x to skip to previous track OR start of current track
Press and hold the Power Button for 3 sec. to power OFF.

SPEAKERPHONE

Speaker must be ON and paired to Bluetooth device to use speakerphone.
- Press Play/Pause Button to answer/end call
- Press and hold Play/Pause Button for 2 seconds to decline call

TIP: on some iOS (Apple) devices; you can view the iBTB2 battery status on your device’s screen. When device is paired and connected; look for a vertical battery icon next to the Bluetooth icon on the upper right corner of the device’s screen.

Bluetooth is a registered trademarks of Bluetooth SIG Inc.
Bluetooth technology is incorporated under license from Bluetooth SIG Inc.

HOW TO USE BOTTLE & SPEAKER

WATERPROOF OPERATION

For proper waterproof operation, make sure the waterproof cover on the back of the unit is completely flush with the unit by pressing along the entire edge of the cover until it is completely and securely in place.

IMPORTANT INFORMATION ABOUT WATERPROOF OPERATION

The unit is IP67 waterproof rated, meaning it is immersible for up to 30 minutes at a depth of 1 meter (3 feet). It will typically withstand rain, snow and being submersed in shallow water. Longer duration or deeper immersion that exceeds the tested limits may cause product failure and void the warranty.
DO NOT immerse the unit in water for extended periods.
DO NOT immerse the unit in water deeper than 1 meter (about 3 feet).
Make sure cover and surrounding surfaces are completely dry before opening cover to prevent moisture from damaging the internal electronics.
Keep rubber cover free of dirt, sand, or other objects that can interfere with proper sealing. If for any reason the waterproof cover is not making a tight waterproof seal water may enter the unit.
Rinse with tap water after immersion in salt water or swimming pool.
DO NOT clean unit with oily soaps or use chemicals or solvents. Clean with damp cloth.

BOTTLE CAUTIONS

Wash with warm water, mild dish soap and rinse the bottle thoroughly prior to first use and after each use
Remove bottle cap and thoroughly wash the removable silicone cap collar after each use
Do not microwave or place in freezer
Caution: Hot beverages will remain hot for several hours
DO NOT overfill
DO NOT use with alcoholic or carbonated liquids that can cause pressure build up and potential lid failure
Always be certain the lid is securely attached to bottle before using it

RESETTING UNIT

If unit doesn’t respond during use, insert the end of a paper clip or similar into the Reset Port located under the waterproof cover. Doing so will clear all previous settings (Bluetooth devices will need to be re-paired). Power unit on to resume normal operation.

INTERNAL RECHARGEABLE LITHIUM-ION BATTERY

WARNING/DISPOSAL OF UNIT

DO NOT attempt to change the battery. Doing so will void the warranty and could cause injury and damage to your device.

To dispose of the unit, follow the instructions below:

Never dispose of used batteries/electronics with ordinary solid wastes, as they may contain harmful substances.
Always dispose of used batteries/electronics in accordance with the prevailing community regulations.
Many electronics retailers now recycle batteries and other electronic components at no charge.

GENERAL BATTERY PRECAUTIONS

Never use or charge a battery if it appears to be leaking, discolored, deformed, or in any way abnormal.
Never disassemble the unit or attempt to remove battery as that could cause leakage of alkaline solution or other electrolytic substances.
Avoid charging a rechargeable battery when the temperature is not within 5°C – 35° C (41° – 95° Fahrenheit).
Never expose a battery to any liquid.
Never expose a battery to excessive heat such as direct sunlight or fire. Never use a battery pack in an unventilated vehicle where excessive internal temperatures may be encountered.
Always keep batteries out of the reach of infants and small children.

FCC Information

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-3 (B)/NMB-3(B)

Canada Statement

This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
