KAMVAS Pro 16
GT-156
User Manual

Precautions

[Please read this manual carefully before using it, and keep it well for future reference.]

• Before cleaning the display, please unplug the USB cable and wipe with a soft damp cloth, do not use any kind of detergents.
• Please don’t place the display near water sources such as bathtub, washbasin, sinks, washing machine, damp basement, swimming pool, etc.
• Do not place the display on where is unstable or a height for children reaching easily in order to avoid danger.
• Do not place the display and digital pen close to the magnetic field.
• The grooves and holes on the back case are designed for ventilation to prevent the monitor from overheating. Please don’t place the display on beds, sofas, carpets, or embedded devices.
• Only power supplies shown on the nameplate can be used for the display. If you have questions about the power supply which you are using, please consult the distributor of your display.
• To protect your display, please switch off the power when it is not in use. During blackouts or not using for a long time, please unplug the display from the socket.
• Make sure no foreign bodies get inside the monitor through grooves and prevent liquid from splashing on the display as to prevent short-circuit or fire.
• If the display has a breakdown, do not open the main case and try to repair it by yourself.
• Please ask for service for proper repair and maintenance.
• When the following situations occur, please unplug the power adapter and you may need a service for full repair and maintenance:
  A. The power wire or plug is damaged or worn out;
  B. There is liquid splashed inside of the display,
  C. The display has fallen or the LCD is broken;
  D. When obvious abnormalities occur to the display.
• While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.

Product Overview

Display Introduction

Thanks for choosing HUION KAMVAS Pro 16 creative display. This is a new generation of desktop-level professional drawing displays, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely paint and write, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.

To give you a better understanding and use of your display, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Macintosh systems

Product and Accessories

“Long press: OSD
Short press: switch function of the touch bar:
1. Zoom in/out 2. Adjust brush size up/down

Accessories

We designed this ergonomic adjustable stand especially for your KAMVAS display, you can adjust the angle of the display according to your usage habit, and make you feel more comfortable when painting and creating.

3-in-1 Cable

Plug

Please choose the right plug according to your country or region, and assemble it to the power adapter (It may not come with all the plugs)

Setting Up Display

1. Connect your PC and the display with a 3-in-1 cable.
2. Plug the power adapter into the cable power connector and turn it 90° to ensure that the plug does not come off and connect the power adapter to the power source.
3. Turn on computer and switch on the display, the LED indicator will show the current status: Green means working normal, Orange means no signal.


Install Driver

OC Support

Windows 7 or later, macOS 10.12 or later.

Install Driver

Please download the driver from our website: www.huion.com/download After finishing the installation, you can find the driver icon  in the system tray area, which means the driver was installed successfully; when you connect the display to the computer, the icon will change to color which means the driver has already recognized the display and you can start using it now.

Notes:
[1] Before installing, you need to uninstall another driver of similar products, including the old driver of this product.
[2] Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistakes.

Driver Page

After the download is successful, double-click to open the driver, connect the display to your computer with the attached cable. When the connection is complete, watch for a   prompt at the bottom left of the driver page that displays two states “Device disconnected” or “Device connected”.


Pen Basic Operation

Hold the pen

Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen. Notice:

When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of the screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter sleep mode.

Position the cursor

Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.

Click

Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.

Move

Select the object, then slide the pen tip across the screen to move it.

Use the side buttons

The buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the display active area.
You do not have to touch the pen tip to the display in order to use the switch.

Pen Nib Replacement

The nib will be worn off after using it for a long time, then you need to replace a new nib.

1. Anticlockwise rotate the pen holder to open the cover, take a new nib out.
2. Insert the pen nib into the hole on the bottom of the holder and tilt the pen to pull out the old nib.
3. Insert the new nib straight into the pen and push the nib slowly and firmly until it stops.


Using the Display

Power Button

The power button was placed on the left side of the digital screen, you need to turn on the power switch before using.

Press Keys

There are 4 press keys on the top left side of the display, which you can modify the functions according to your own habits, thus will help to improve your work efficiency.

Touch Bar

The left side of the display is provided with a touch bar, you can slide up and down to achieve zoom function, or you can self-define the function on the driver.

OSD Function

Enter OSD Menu:

1. Press [1] “Function Button” around three seconds until the OSD menu appears and meanwhile the indicator will be on. The function of the Keys (2) (3) (4) will become the OSD function.
2. In the menu, the function of 200 will become like the following:
   [2] AUTO: Before entering the menu, its function is “auto adjustment. After entering the menu, its function is “back to the previous menu”.
   (3) MENU: Press to call up the menu, after entering the menu, its function is “confirm”.
   (4) -: After entering menu, its function is “down/left/decrease”.
   (5) +: After entering men its function is “up/right/increase”.
   Exit OSD Menu:
   [3] Press (1) Function Button” again for around three seconds until the indicator will be off, the function of the Keys (2) (3) (4) (5) will become “short cuts function again”.

Function Setting

Working Area Setting

Using Multiple Monitors

Select the Working Area tab to define the relationship between pen movement on the display and cursor movement on the monitor screen. By default, the entire active area of display maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface to which you are going to map. If your monitors are in mirror mode (All monitors display the same content), the display maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.

Working Area Setting

Define the display area that will be mapped to the screen area.
[1] Full Area: the entire active area of the display. This is the default setting.
[2] Screen Ratio: As a general rule, be 16:9.
[3] Customized Area:
1> Enter coordinate values.
2> Drag the corners of the foreground graphic to select the screen area.

Rotate Working Area

By changing the direction of the display to adapt to the left and right-hand operation. You can rotate the display by 0°, 90°, 180° or 270°.

Press Keys Function Setting

Default Setting: Place the cursor on the press key or click the press key to find the default values. Customized Setting: Select the function to be achieved on the pop-up dialog box, then click “Apply” or “OK” to take effect. Enable/Disable Press Keys: Check/Uncheck “Enable Press Keys”.
The following shortcut key customization interface is displayed, with a total of 5 Settings.
(1) Custom: according to the use of custom or professional terms to set.
(2) Key combination function keys: Ctrl, Shift, Alt, Win+ any letter or other. Ctrl, Shift, Alt, Win, you can select one or more of them, and you can arrange them in any combination. Enter the corresponding Settings in the input box. For example: deselect -Ctrl +D, enter task manager -Ctrl+Alt+Delete, etc.
(3) Mouse Button Function: click the box, select the required function, can be set to complete.
(4) Switch function: also click the box, select the required function.
(5) Run the program function: click browse, select the connection, to achieve the required run the program function.

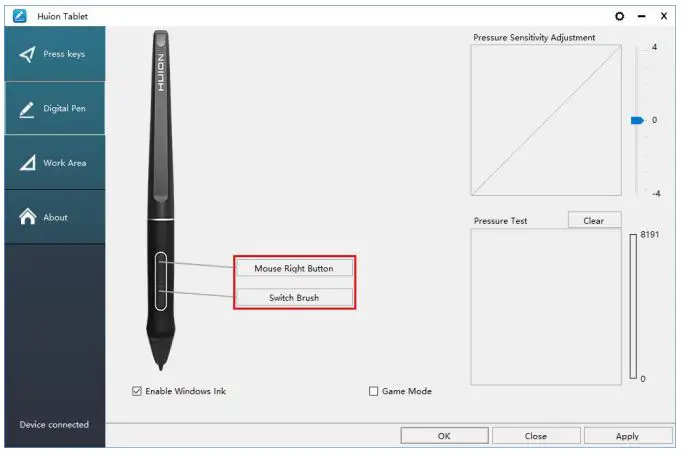

Pen Buttons Function Setting

Select the function to be achieved on the pop-up dialog box, then click “Apply” or “OK” to take effect.

Enable the Windows Ink feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Journal, Adobe Photoshop CC, SketchBook 6 and so on.

Pressure Sensitivity Setting

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.

Drag upward (left): the pressure change is more obvious, small pressure produces a great pressure.
Drag down (right): pressure change is weak, a lot of pressure produces less pressure. Click the button  at the bottom right of the Settings box to reset the pressure sensitivity to the default state.
For example: Apply “N respectively at the same pressure, under different pressure coefficients produced different pressure effects. According to their habit of holding the pen posture and the size of the hand for the appropriate pressure Settings.

Pen Pressure Testing

You can gradually apply pressure to the stylus on the screen to test the pressure level. Click button to clear all the ink.

Enable the Windows Ink feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Journal, Adobe Photoshop CC, SketchBook 6 and so on.

Specifications

Trouble Shooting

Possible Breakdowns Related to DISPLAY

Possible Breakdowns Related to FUNCTIONS

After-service Contact

SHENZHEN HUION ANIMATION TECHNOLOGY CO., LTD.

  +86-755-32998548
 www.huion.com
www.facebook.com/huion

Shuion-skype
https://twitter.com/HuionTabi

HUION Pen Tablet HS611 User Manual

Tablet Introduction

Thanks for choosing HUION ® HS611 creative pen tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. To give you a better understanding and using of your tablet, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Macintosh systems.

1.2 Product and Accessories

Connecting to Computer

Connect the tablet to your computer with USB cable.

Connecting to Android Phone

1.  Please make sure your phone/tablet OS is as following: Android OS 6.0 or later
2. For some models, you need to go phone/tablet “Settings” then enable “OTG” function.
3. Choose the right OTG Adapter from package, which depends on USB port type of your phone/tablet, insert the wireless receiver into the OTG adapter, and then insert the OTG adapter into the mobile phone interface. At this time, turn or the tablet switch to communicate with the mobile phone through 2.4G wireless.


Notes:

1. The phone will reverse charge the tablet when they are wired connected and will quickly drain the phone battery, so it can only be used by wireless connecting to the phone.
2. The pen tablet can works without installing any driver into your phone/tablet.
3. Once connected, the tablet will automatically enter phone mode, in which the pen can only work in the left gray area(166.7×104.2mm).
4. Please note  that the press keys of pen tablet and digital pen are not supported in phone mode. 1.5

Driver Installation

OS Support

Windows 7 or later, mac OS 10.12 or later

Install Driver

Please download the driver from our website: www.huion.com/download After finishing installation, you can find the driver icon  in the system tray area, which means the driver was installed successfully; when you connect the tablet to computer, the icon will change to color , which means the driver has already recognized the tablet and you can start using it now.

Notice：

1. Before installing, you need to uninstall other driver of similar products, including the old driver of this product.
2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.

 Pen Nib Replacement

The nib will be wear off after using for a long time, then you need to replace a new nib.

1. Anticlockwise rotate the holder to open cover, then take a new nib out.
2. Insert the pen nib into the bottom hole and tilt the pen to pull out the nib.
3. Insert the new nib into the pen and push it straight until it stops.

Product Basic Operation

Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.

Notice: When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter the sleep mode.

Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the  pen tip, or touch it to the screen with enough pressure to register a click.

Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.

Select the object, then slide the pen tip across the screen to move it.

The buttons on the pen can be set to two different customized functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area.
You do not have to touch the pen tip to the tablet in order to use the  switch.

Device Connection Prompt

1. Device disconnected: The computer does not recognize the tablet.
2. Device connected: The computer has recognized the tablet.


Working Area Setting

Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen. By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to. If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.

Define the tablet area that will be mapped to the screen area.

1. Full Area: the entire active area of the tablet. This is the default setting.
2. Customized Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area.

By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0°,90°,180° or 270°.

Press Keys Function Setting

Default Setting: Place the cursor on the press key or click the press key to find the default values.
Customized Setting: Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.
Enable/Disable Press Keys: Check/Uncheck” Enable Press Keys ” Enable/Disable Touch: Check/Uncheck ”Enable Touch”

Pen Buttons Function Setting

Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.

Pressure Sensitivity Setting

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.

Pen Pressure Testing

Click “start pressure test”, you can gradually apply pressure to the stylus on the screen to test the pressure level. Click “Clear” button to clear all the ink.

 Enable the Windows Ink feature

Microsoft Windows provides extensive support for pen input. Pen features are
supported in such as Microsoft Office, Windows Journal, Adobe, Photoshop, CC, Sketch Book 6 and so on.

Data Export and Import

The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.

Trouble Shooting

Possible Breakdowns Related to TABLET

1. Please read this manual carefully before using, and keep it well for future reference.
2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.
3. Don’t expose this product to water or other liquids. Take care to never spill liquids onto the tablet and pen. Exposing this product to water or other liquids may cause product malfunction or electrical shock.
4. Do not place the tablet on where is unstable or a height for children reaching easily in order to avoid danger. Prevent children from swallowing the pen nib or side switch. The pen nib, side switch, or other movable parts may accidentally be pulled out if children are biting on them.
5.  Power off your tablet in locations where/when electronic devices is not allowed. Because the tablet may cause other electronic devices to malfunction in some locations where/when the use of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.
6. Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or pen. Such action may cause heat generation, ignition, electronic shock, or other damage, including human injury. Disassembling the product will void your warranty.
7. While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.
8. Do not insert  foreign material into the USB port or any other opening of this product .If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock.

Information in this manual is subject to change without further notice. For more information, please contact us with our email: service@huion.com Or go to our website (www.huion.com) to get the latest driver and user manual.

HUION KAMVAS 13 GS1331 User Manual

Precautions

1. Please read this manual carefully before using, and keep it well for future reference.
2. Before cleaning the display please unplug the USB cable and wipe with a soft damp cloth, do not use any kind of detergents.
3. Please don’t place the display near water sources such as bathtub, washbasin, sinks, washing machine, damp basement, swimming pool, etc.
4. Do not place the display on where is unstable or a height for children reaching easily in order to avoid danger.
5. Do not place the display and digital pen close to the magnetic field.
6. The grooves and holes on the back case is designed for ventilation to prevent the monitor from overheating. Please don’t place the display on beds, sofas, carpets or in embedded device.
7. Only power supplies shown on the nameplate can be used for the display. If you have questions about the power supply which you are using, please consult the distributor of your display.
8. To protect your display, please switch off the power when it is not in use. During blackouts or
   not using for long time, please unplug the display from the socket.
9. Don’t overload the socket or lengthen the power wire, which may lead to electric shocks.
10. Make sure no foreign bodies get inside the monitor through grooves and prevent liquid from splashing on the display as to prevent short-circuit or fire.
11. If the display has a breakdown, do not open the main case and try to repair it by yourself. Please ask for a service for proper repair and maintenance.
12. When the following situations occur, please unplug the power adapter and you may need a service for full repair and maintenance: A. The power wire or plug is damaged or worn out;
    B. There is liquid splashed inside of the display;
    C. The display has fallen or the LCD is broken;
    D. When obvious abnormalities occur to the display.
13. While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.

1. Product Overview

1.1 Display Introduction

Thanks for choosing HUION® KAMVAS® 13 Pen display. This is a new generation of portable desktop-level professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colours, just as the pen writes on the paper, which brings you a real shock experience. To give you a better understanding and using of your KAMVAS display, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Macintosh systems.

1.2 Product and Accessories

1.2.1 Product Overview

1.2.2 3-in-1 Connection Cable

1. USB
2. HDMI
3. Power (Red USB Port)
4. Type-C

1.2.3 Display Stand(Optional)

We designed this stand specially for your KAMVAS display, you can adjust the angle of the display according to your usage habit, and make you feel more comfortable in painting and creating.

1.2.4 Other Accessories

1.3 Connected to Computer

1.3.1 Connected with 3-in-1 Cable

Notice:
Generally the device can be powered on when the black USB-A cable is connected to your computer. A flashing screen of the device may indicate a low battery, in which case you are suggested to connect the red coloured USB-A cable to another USB interface on your computer or the power adaptor. The power adaptor is not included in the package and requires extra cost. Power adaptor of your mobile phone is also compatible.

1.3.2 Connected with USB-C to USB-C Cable

* USB-C to USB-C cable is not included in the package and requires extra cost. Please purchase the cable through official channels as it is customized and cables from unknown sources may not be usable with the device.

1.4 Driver Installation

1.4.1 OS Support

Windows 7 or later, macOS 10.12 or later

1.4.2 Install via Download

Please download the driver from our website: www.huion.com/download After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to computer, the icon will change to colour , which means the driver has already recognized the tablet and you can start using it now.

Notice

1. Before installing, you need to uninstall other driver of similar products, including the old driver of this product.
2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.

1.5 Connected to Android Phone/Tablet

As shown in the figure above, connecting your Android phone and pen display with USB-C to USB-C USB 3.1 Gen1 cable and connecting the pen display and the power adapter or power bank with USB-C to USB-A cable.

Note:

1. USB-C to USB-C cable and USB-C to USB-A cable is not included in the package and requires extra cost. Please purchase the cable through official channels as it is customized and cables from unknown sources may not be usable with the device.
2. The power adaptor is not included in the package and requires extra cost. Power adaptor of your mobile phone is also compatible.
3. Please make sure your smart android phone support Dex or PC mode.

1.6 Pen Nib Replacement

The nib will be wear out after using for long time, then you need to replace a new nib.

2. Product Basic Operation

2.1 Using The Pen

2.1.1 Hold the pen

Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.

Notice:
When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, it may also cause your computer unable to enter the sleep mode.

2.1.2 Position the cursor

Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.

2.1.3 Click

Use the pen tip to tap on the screen once to produce a click. Tap to highlight or select an item on the screen and double-click to open it.

2.1.4 Move

Select the object, then slide the pen tip across the screen to move it.

2.1.5 Use the side buttons

The side buttons of the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the display active area.

You do not have to touch the pen tip to the display in order to use the switch.

2.2 Using the Display

2.2.1 Power Button

The power button was placed on the left side of the digital screen, you need to turn on the power switch before using.

2.2.2 Press Keys

There are 8 press keys on the top left side of the display, which you can modify the functions according to your own habits, thus will help to improve your work efficiency.

2.3 OSD Function

Enter OSD Menu:

1. Press K4 & K5 for around three seconds until the OSD menu appears and meanwhile the indicator will flash green. The function of K2 K3 K6 K7 will become OSD function.
2. In the menu, the function of K2 K3 K6 K7 will become as the following:
   K2 AUTO: Before entering menu, its function is auto adjustment. After entering menu, its function is back to previous menu.
   K3 MENU: Press to call up the menu, after entering menu, its function is confirm.
   K7 – : After entering menu, its function is down/left/decrease.
   K6 + : After entering menu, its function is up/right/increase.
   Exit OSD Menu:
3. Press K4 & K5 again for around three seconds until the OSD menu disappears, the function of K2 K3 K6 K7 will become shortcuts function again.

3. Function Setting

3.1 Device Connection Prompt

1. Device disconnected: The display hasn’t connected to your computer.
2. Device connected: The display has already connected to your computer.

3.2 Working Area Setting

3.2.1 Using Multiple Monitors

When the KAMVAS Display and other monitors are used in the same system, the movement of the screen cursor on the standard display depends on the system configuration. If the secondary display is a mirrored mode connection, this display and another monitor will display exactly the same image and screen cursor movement. If you are in the extended display mode, you need to set the display on the driver that which portion of the display screen your KAMVAS will map to.

3.2.2 Working Area Setting

Define the display area that will be mapped to the screen area.

1. Full Area: the entire active area of the Display. This is the default setting.
2. Same Ratio with LCD.
3. Customize Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area.

3.2.3 Rotate Working Area

By changing the direction of the display to adapt to the left and right hand operation. We provide four directions of choice.

3.3 Press Keys Function Setting

Default Setting: Place the cursor on the button or click the button icon to see the default values for the press keys Customized press Keys: Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. Touch Bar: you can slide up and down to achieve zoom function. Enable/Disable Press Key: Check/Uncheck “Enable Press key”

3.4 Pen Button Setting

Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more sensitive the pressure.

3.6 Pen Pressure Testing

You can gradually apply pressure to the stylus on the screen to test the pressure level. Click “Clear” button to clear all the ink.

3.7 Calibration

Screen Calibration: Click the red point of the cross centre appearing on the screen to complete the calibration. Restore Factory Settings: Click “Restore Default” to restore to the factory settings. Cancel Calibration: Click “Cancel calibration” or press ESC on the keyboard to cancel the calibration.

3.8 Enable the Windows Ink feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office Windows Journal Adobe Photoshop CC Sketch Book 6 and so on.

3.9 Data Export and Import

The driver supports exporting and importing your customized configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.

4. Specifications

5. Trouble Shooting

5.1 Possible Breakdowns Related to DISPLAY

5.2 Possible Breakdowns Related to FUNCTIONS

www.huion.com

Product Information:

The Kamvas 13 is a pen display designed for use with both
Windows and Macintosh operating systems. It includes a 3-in-1
connection cable for USB, HDMI, and power, as well as a variety of
accessories such as a digital pen, pen holder, pen nibs, nib clip,
USB extension cable, stand (optional), cleaning cloth, and glove.
The display stand is designed to be adjustable for user comfort
while painting or creating. The device can also be connected to an
Android phone or tablet using a USB-C to USB-C cable and a USB-C to
USB-A cable.

Precautions:

• When not in use for a long time, unplug the display from the
  socket.
• Do not overload the socket or lengthen the power wire, which
  may lead to electric shocks.
• Make sure no foreign bodies get inside the monitor through
  grooves and prevent liquid from entering.

Specifications:

For specifications related to the Kamvas 13, please refer to
page 17 of the user manual.

Troubleshooting:

For possible breakdowns related to display or functions of the
Kamvas 13, please refer to page 18 of the user manual.

Product Usage Instructions:

Connected to Computer:

To connect the Kamvas 13 to your computer, use the included
3-in-1 cable. Generally, the device can be powered on when the
black USB-A cable is connected to your computer. If the screen
flashes, it may indicate a low battery, in which case you are
suggested to connect the red colored USB-A cable to another USB
interface on your computer or the power adaptor. The power adaptor
is not included in the package and requires extra cost. Power
adaptor of your mobile phone is also compatible.

Driver Installation:

To install the driver for the Kamvas 13, first ensure that your
operating system is Windows 7 or later or macOS 10.12 or later.
Then, download the driver from the official website:
www.huion.com/download. After installation, the driver icon will
appear in the system tray area. When you connect the tablet to your
computer, the icon will change color to indicate that the driver
has recognized the tablet and you can start using it. Before
installing, make sure to uninstall any other drivers for similar
products and close all graphics and anti-virus software to avoid
errors.

Connected to Android Phone/Tablet:

To connect the Kamvas 13 to an Android phone or tablet, use a
USB-C to USB-C cable and a USB-C to USB-A cable as shown in the
figure above.

View Fullscreen

User Manual
For Windows and Macintosh OS
KAMVAS® 13 | Model: GS1331

Kamvas 13
Precautions
1. Please read this manual carefully before using, and keep it well for future reference. 2. Before cleaning the display please unplug the USB cable and wipe with a soft damp cloth, do not use any kind of detergents. 3. Please don’t place the display near water sources such as bathtub, washbasin, sinks, washing machine, damp basement, swimming pool, etc. 4. Do not place the display on where is unstable or a height for children reaching easily in order to avoid danger. 5. Do not place the display and digital pen close to the magnetic field. 6. The grooves and holes on the back case is designed for ventilation to prevent the monitor from overheating. Please don’t place the display on beds, sofas, carpets or in embedded device. 7. Only power supplies shown on the nameplate can be used for the display. If you have questions about the power supply which you are using, please consult the distributor of your display. 8. To protect your display, please switch off the power when it is not in use. During blackouts or
not using for long time, please unplug the display from the socket. 9. Don’t overload the socket or lengthen the power wire, which may lead to electric shocks. 10. Make sure no foreign bodies get inside the monitor through grooves and prevent liquid from
splashing on the display as to prevent short-circuit or fire. 11. If the display has a breakdown, do not open the main case and try to repair it by yourself. Please ask for a service for proper repair and maintenance. 12. When the following situations occur, please unplug the power adapter and you may need a service for full repair and maintenance: A. The power wire or plug is damaged or worn out; B. There is liquid splashed inside of the display; C. The display has fallen or the LCD is broken; D. When obvious abnormalities occur to the display. 13. While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.

1 / 19

www.huion.com

Kamvas 13
Contents
1. Product Overview…………………………………………………………………………………………………………….3 1.1 Display Introduction………………………………………………………………………………………………..3 1.2 Product and Accessories…………………………………………………………………………………………. 3 1.3 Display Connection………………………………………………………………………………………………… 5 1.4 Driver Installation……………………………………………………………………………………………………6 1.5 Pen Nib Replacement………………………………………………………………………………………………6
2. Product Basic Operation………………………………………………………………………………………………….. 8 2.1 Using The Pen…………………………………………………………………………………………………………8 2.2 Using the Display…………………………………………………………………………………………………..10 2.3 OSD Function………………………………………………………………………………………………………..10
3. Function Setting……………………………………………………………………………………………………………. 11 3.1 Device Connection Prompt……………………………………………………………………………………. 11 3.2 Working Area Setting……………………………………………………………………………………………. 11 3.3 Press Keys Function Setting…………………………………………………………………………………… 13 3.4 Pen Button Setting……………………………………………………………………………………………….. 14 3.5 Pressure Sensitivity Setting…………………………………………………………………………………….14 3.6 Pen Pressure Testing…………………………………………………………………………………………….. 15 3.7 Calibration…………………………………………………………………………………………………………… 15 3.8 Enable the Windows Ink feature……………………………………………………………………………. 16 3.9 Data Export and Import………………………………………………………………………………………… 16
4. Specifications…………………………………………………………………………………………………………………17 5. Trouble Shooting…………………………………………………………………………………………………………… 18
5.1 Possible Breakdowns Related to DISPLAY…………………………………………………………………18 5.2 Possible Breakdowns Related to FUNCTIONS……………………………………………………………18

2 / 19

www.huion.com

Kamvas 13
1. Product Overview
1.1 Display Introduction
Thanks for choosing HUION® KAMVAS® 13 Pen display. This is a new generation of portable desktop-level professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. To give you a better understanding and using of your KAMVAS display, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Macintosh systems.
1.2 Product and Accessories
1.2.1 Product Overview

3 / 19

www.huion.com

1.2.2 3-in-1 Connection Cable

Kamvas 13
1 3 2

4
USB HDMI PowerRed USB Port Type-C
1.2.3 Display Stand(Optional)
We designed this standspecially for your KAMVAS display, you can adjust the angle of the display according to your usage habit, and make you feel more comfortable in painting and creating.

4 / 19

www.huion.com

1.2.6 Other Accessories

Kamvas 13

Digital Pen

Pen Holder

Pen Nibs

Nib Clip

USB Extension Cable

3-in-1 Cable

Stand(Optional) Cleaning Cloth

Glove

Quick Start Guide

1.3 Connected to Computer
1.3.1 Connected with 3-in-1 Cable

5 / 19

www.huion.com

Kamvas 13
Notice: Generally the device can be powered on when the black USB-A cable is connected to your computer.A flashing screen of the device may indicate a low battery, in which case you are suggested to connect the red colored USB-A cable to another USB interface on your computer or the power adaptor. The power adaptor is not included in the package and requires extra cost. Power adaptor of your mobile phone is also compatible.
1.3.2 Connected with USB-C to USB-C Cable

* USB-C to USB-C cable is not included in the package and requires extra cost.Please purchase the cable through official channels as it is customized and cables from unknown sources may not be usable with the device.

1.4 Driver Installation

1.4.1 OS Support Windows 7 or latermacOS 10.12 or later 1.4.2 Install via Download
Please download the driver from our website: www.huion.com/download After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; when you connect the tablet to computer, the icon will change to color , which means the driver has already recognized the tablet and you can start using it now. Notice 1. Before installing, you need to uninstall other driver of similar products, including

6 / 19

www.huion.com

Kamvas 13
the old driver of this product. 2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.
1.5 Connected to Android Phone/Tablet
As shown in the figure above, connecting your Android phone and pen display with USB-C to USB-C USB 3.1 Gen1 cable and connecting the pen display and the power adapter or power bank with USB-C to USB-A cable.

Note: 1. USB-C to USB-C cable and USB-C to USB-A cable is not included in the package and requires extra cost. Please purchase the cable through official channels as it is customized and cables from unknown sources may not be usable with the device. 2. The power adaptor is not included in the package and requires extra cost. Power adaptor of your mobile phone is also compatible. 3. Please make sure your smart android phone support Dex or PC mode.
1.6 Pen Nib Replacement
The nib will be wear out after using for long time, then you need to replace a new nib.

7 / 19

www.huion.com

Kamvas 13
2. Product Basic Operation
2.1 Using The Pen
2.1.1 Hold the pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.
Notice: When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, it may also cause your computer unable to enter the sleep mode. 2.1.2 Position the cursor Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.

8 / 19

www.huion.com

Kamvas 13

2.1.3 Click
Use the pen tip to tap on the screen once to produce a click. Tap to highlight or select an item on the screen and double-click to open it.

2.1.4 Move Select the object, then slide the pen tip across the screen to move it.

2.1.5 Use the side buttons
The side buttons of the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the display active area. You do not have to touch the pen tip to the display in order to use the switch.

9 / 19

www.huion.com

Kamvas 13

2.2 Using the Display
2.2.1 Power Button The power button was placed on the left side of the digital screen, you need to turn on the power switch before using. 2.2.2 Press Keys There are 8 press keys on the top left side of the display, which you can modify the functions according to your own habits, thus will help to improve your work efficiency.
2.3 OSD Function

Enter OSD Menu: 1. Press K4 & K5 for around three seconds until the OSD menu appears and meanwhile the indicator will flash green. The function of K2 K3 K6 K7 will become OSD function. 2. In the menu, the function of K2 K3 K6 K7 will become as the following: K2 AUTO: Before entering menu, its function is auto adjustment. After entering menu, its function is back to previous menu. K3 MENU: Press to call up the menu, after entering menu, its function is confirm. K7 – : After entering menu, its function is down/left/decrease. K6 + : After entering menu, its function is up/right/increase.

10 / 19

www.huion.com

Kamvas 13
Exit OSD Menu: 3. Press K4 & K5 again for around three seconds until the OSD menu disappears, the function of K2 K3 K6 K7 will become shortcuts function again.
3. Function Setting
3.1 Device Connection Prompt
1.Device disconnected: The display hasn’t connected to your computer. 2.Device connected: The display has already connected to your computer.

3.2 Working Area Setting
3.2.1 Using Multiple Monitors When the KAMVAS Display and other monitors are used in the same system, the movement of the screen cursor on the standard display depends on the system configuration. If the secondary display is a mirrored mode connection, this display and another monitor will display exactly the same image and screen cursor movement. If you are in the extended display mode, you need to set the display on the driver that which portion of the display screen your KAMVAS will map to.

11 / 19

www.huion.com

Kamvas 13
3.2.2 Working Area Setting Define the display area that will be mapped to the screen area. 1. Full Area: the entire active area of the Display. This is the default setting. 2. Same Ratio with LCD. 3. Customize Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area.

12 / 19

www.huion.com

Kamvas 13
3.2.3 Rotate Working Area By changing the direction of the display to adapt to the left and right hand operation. We provide four directions of choice.

3.3 Press Keys Function Setting
Default Setting: Place the cursor on the button or click the button icon to see the default values for the press keys Customized press Keys: Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. Touch Bar: you can slide up and down to achieve zoom function. Enable/Disable Press Key: Check/Uncheck”Enable Press key”

13 / 19

www.huion.com

Kamvas 13 3.4 Pen Button Setting Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.
3.5 Pressure Sensitivity Setting
The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more sensitive the pressure.

14 / 19

www.huion.com

Kamvas 13 3.6 Pen Pressure Testing You can gradually apply pressure to the stylus on the screen to test the pressure level. Click “Clear” button to clear all the ink.
3.7 Calibration
Screen Calibration: Click the red point of the cross center appearing on the screen to complete the calibration. Restore Factory Settings: Click “Restore Default” to restore to the factory settings. Cancel Calibration: Click”Cancel calibration” or press ESC on the keyboard to cancel the calibration.

15 / 19

www.huion.com

Kamvas 13
3.8 Enable the Windows Ink feature
Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft OfficeWindows JournalAdobe Photoshop CC SketchBook 6 and so on.

3.9 Data Export and Import
The driver supports exporting and importing your customized configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.

16 / 19

www.huion.com

4. Specifications

Screen
Touch Pen
General

Model Panel Size Resolution LCD Type Active Area
Contrast Ratio Brightness
Response Time
View Angle
Gamut Display Color Touch Type
Resolution Pressure Level
Accuracy Sensing Height
Report Rate Model
Dimension Buttons
Output Voltage Video Interface
Press Key Dimension Net Weight Adjustable Stand OS Support

Kamvas 13
GS1331 13.3 inch 1920 x 1080(16:9) IPS LCD 293.76 × 165.24 mm
1000:1 220 cd/m2
25 ms 89°/89°(H)/89°/89°(V)
(Typ.)(CR10) 120% sRGB 16.7 M(8bit)
Passive Electromagnetic Resonance 5080 LPI 8192
±0.5 mm(Center), ±3 mm(Corner) 10 mm 266 PPS PW517
163.7 x 14.3 mm Two Customized Press Key
5V 2A USB-C(3-in-1 Cable) & USB-C (USB 3.1)
8 Customized Press Key 366.5 x 217.4 x 11.8mm 0.98 kg(without stand) Two Levels Stand(Optional) Windows 7 or later, macOS 10.12 or later

17 / 19

www.huion.com

5. Trouble Shooting
5.1 Possible Breakdowns Related to DISPLAY

Abnormal Phenomena

Possible Solutions

Kamvas 13

Power indicator does not flash No display on the screen

*Make sure power is on cable

*Check the socket and power

1. Make sure power is on.

2. Correctly connect the 3-in-1 cable.

3. If you connect the display with a laptop, please make sure the display is on the right display mode: extend or duplicate mode.

4. Check whether the side indicator shows green, if not, it means no signal in. Please reboot your computer or reconnect the cable.

5. Is the signal wire broken or bent? If so, please replace the signal wire.

Images are blurred

Please set the display resolution with 1920 x 1080.

Lack of colors

Check the pins of the signal wire are not bent or fractured.

There is chromatic aberration

As the regional color temperature is different, so minor chromatic aberration is a normal phenomenon.

Images jitter or ripple images appear

It is likely that there is electric equipment nearby that brings about electronic interference.

5.2 Possible Breakdowns Related to FUNCTIONS

Abnormal Phenomena

Possible Solutions

Pen doesn’t work and no pressure in the graphics software
Cursor movement is abnormal
The side button of the pen doesn’t work
There is a deviation between the tip and the cursor

1. If the driver is damaged or is not properly installed, please uninstall the driver and reinstall it. 2. Try restarting your computer. 3. Try re-inserting the USB cable. Try re-inserting the USB cable or restarting your computer. When pressing the side button, please make sure that the nib didn’t touch the glass surface and the distance between the nib and surface is within 10mm
Try calibration

18 / 19

www.huion.com

Kamvas 13
6. After-service Contact
SHENZHEN HUION ANIMATION TECHNOLOGY CO.,LTD.
Building 28, Quarter 4, HuaiDeCuiGang Industrial Park, Fuyong Street, Bao’an District, Shenzhen, 518106, China
Note: Information in this manual is subject to change without further notice. For more information, please contact us with our email: service@huion.com Or go to our website (www.huion.com) to get the latest driver and user manual.

19 / 19

www.huion.com

HS611 Digital Graphics Drawing Tablet

Product Information

The Huion Inspiroy HS611 is a drawing tablet that comes with a battery-free pen, replacement nibs, pen holder, USB-C cable, quick start guide, and warranty card. It can be connected to a computer or an Android phone/tablet. The tablet supports Windows 7 or later and macOS 10.12 or later. The driver for the tablet can be downloaded from the Huion website.

Product Usage Instructions

Precautions

Please read the user manual carefully before using the product and keep it for future reference.

Connecting to Android Phone & Tablet

1. Make sure your phone & pad OS is Android OS 6.0 or later.
2. For some models, you need to enable OTG function in phone or pad settings.
3. Choose the right OTG adapter from the package depending on the USB port type of your phone.
4. Connect the pen tablet to your phone following the illustrations provided in the manual.
5. Please make sure your phone & pad OS is as following: Android OS 6.0 or later.
6. For some models, you need to go phone or pad “Settings” then enable “OTG” function.
7. Choose the right OTG Adapter from package, which depends on USB port type of your phone, then connect pen tablet to your phone following the illustrations below:
   Notes:
   1. The pen tablet can works without installing any driver into your phone.
   2. Once connected, the tablet will automatically enter phone mode, in which the pen can only work in the left gray area.
   3. Please note that the press keys of pen tablet and digital pen are not supported in phone mode.

Install Driver

1. Uninstall other drivers of similar products, including the old driver of this product.
2. Close all graphics software and anti-virus software before installing the driver.
3. Download the driver from the Huion website.
4. Install the driver.
5. Connect the tablet to your computer using the USB cable.
6. The driver icon will appear in the system tray area, indicating that the driver was installed successfully.
7. The icon will change to color when the tablet is connected to the computer, indicating that the driver has recognized the tablet and you can start using it now.

Pen Basic Operation

Position the Cursor

Move the pen slightly above the active area without touching the screen surface, and the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection.

Click

Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.

Hold the pen

Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.

Notice:
When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter the sleep mode.

Position the cursor

Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.

Click

Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.

Move

Select the object, then slide the pen tip across the screen to move it.

Use the side buttons

The buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet active area. You do not have to touch the pen tip to the tablet in order to use the switch.

Pen Nib Replacement

The nib will be wear off after using for a long time, then you need to replace a new nib.

1. Anticlockwise rotate the pen holder to open the cover, take a new nib out.
2. Insert the pen nib into the hole on the bottom of the holder and tilt the pen to pull out the old nib.
3. Insert the new nib straight into the pen and push the nib slowly and firmly until it stops.

After-service Contact

If you have any questions or issues with the product, please contact Huion customer service for assistance.

Precautions

【Please read this manual carefully before using, and keep it well for future reference.】

• Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.
• Don’t expose this product to water or other liquids. Take care to never spill liquids onto the tablet and pen. Exposing this product to water or other liquids may cause product malfunction or electrical shock.
• Do not place the tablet on where is unstable or a height for children reaching easily in order to avoid danger. Prevent children from swallowing the pen nib or side switch. The pen nib, side switch, or other movable parts may accidentally be pulled out if children are biting on them.
• Power off your tablet in locations where/when electronic devices is not allowed. Because the tablet may cause other electronic devices to malfunction in some locations where/when the use of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.
• Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or pen. Such action may cause heat generation, ignition, electronic shock, or other damage, including human injury. Disassembling the product will void your warranty.
• While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers. –Do not insert foreign material into the USB port or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock.

Product Overview

Tablet Introduction

Thanks for choosing HUION® INSPIROY® HS611 creative pen tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. To give you a better understanding and using of your tablet, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Mac systems.

Product and Accessories

Accessories

Tablet Connection

Connecting to Computer

Connect the tablet to your computer with USB cable.

1. Take out the Usb cable from the package, then connect tablet to your computer.
2. Open the driver interface, the lower corner shows device connected, indicating that the tablet is successfully connected to the computer. You can start use the tablet.
3. Take out the USB cable from the package.
4. Connect the tablet to your computer using the USB cable.
5. Open the driver interface.
6. The lower corner of the interface shows the device connected, indicating that the tablet is successfully connected to the computer.
7. You can start using the tablet.

Install Driver

OS Support
Windows 7 or later, macOS 10.12 or later.

Install Driver
Please download the driver from our website: www.huion.com/download. After finishing installation, you can find the driver icon ” ” in the system tray area, which means the driver was installed successfully; when you connect the tablet to computer, the icon will change to color ” “, which means the driver has already recognized the tablet and you can start using it now.

Notes:

1. Before installing, you need to uninstall other driver of similar products, including the old driver of this product.
2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.

Driver Page
After the download is successful, double-click to open the driver, Connect the tablet to your computer and phone using a USB cable. When the connection is complete, watch for a prompt at the bottom left of the driver page that displays two states: “Device disconnected” or “Device connected”.

Function Setting

Working Area Setting

Using Multiple Monitors
Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen. By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.

Working Area Setting
Define the tablet area that will be mapped to the screen area.

1. Full Area: the entire active area of the tablet. This is the default setting.
2. Screen Ratio: As a general rule, be 16:9.
3. Customized Area:
   1. Enter coordinate values.
   2. Drag the corners of the foreground graphic to select the screen area.

Rotate Working Area
By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0° , 90° , 180° or 270° .

Tablet Setting

Click the ” ” in the upper right corner of the driver to set the Tablet, including General settings, Hotkeys and Updates.

General settings
Add App: Shortcut key function can be set by adding different programs. When opening different programs, the driver will automatically recognize that the shortcut function is the corresponding function set.

Hotkeys settings
Set the shortcut key to quickly open the driver interface. The default value is Ctrl+Alt+H, which can be set according to usage habits.

Updates
You can view the driver version number, click “Check for Update”, view the latest driver version, and update according to the system prompt.

Press Keys Function Setting

Default Setting：Place the cursor on the press key or click the press key to find the default values.
Customized Setting：Select the function to be achieved on the pop-up dialog box, then click “Apply” or “OK” to take effect.
Enable/Disable Press Keys: Check/Uncheck “Enable Press Keys”.

The following shortcut key customization interface is displayed, with a total of 5 Settings.

1. Custom: according to the use of custom or professional terms to set.
2. Key combination function keys: Ctrl, Shift, Alt, Win+ any letter or other. Ctrl, Shift, Alt, Win, you can select one or more of them, and you can arrange them in any combination. Enter the corresponding Settings in the input box. For example: deselect -ctrl +D, enter task manager -ctrl +Alt+Delete, etc.
3. Mouse Button Function: click the box, select the required function, can be set to complete.
4. Switch function: also click the box, select the required function.
5. Run the program function: click browse, select the connection, to achieve the required run the program function.

Pen Buttons Function Setting

Select the function to be achieved on the pop-up dialog box, then click “Apply” or “OK” to take effect.

Enable the Windows Ink feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on.

Pressure Sensitivity Setting

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.

Drag upward (left): the pressure change is more obvious, small pressure produces a great pressure. Drag down (right): pressure change is weak, a lot of pressure produces less pressure. Click the button at the bottom right of the Settings box to reset the pressure sensitivity to the default state.
For example: apply *N respectively the same pressure, under different pressure coefficient produced different pressure effect. According to their habit of holding the pen posture and the size of the hand for the appropriate pressure Settings.

Pen Pressure Testing

You can gradually apply pressure to the stylus on the screen to test the pressure level. Click ” ” button to clear all the ink.

Pen Nib Activity Setting

The pen nibs can be set to be Active/Inactive as needed.Click the drop-down option to select, and click OK again to save the Settings. In Active mode, the digital pen can be used normally. In Inactive mode, the digital pen has cursor movement, but cannot complete the specified action.

Data Export and Import

The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.

Specifications

Trouble Shooting

After-service Contact

SHENZHEN HUION ANIMATION TECHNOLOGY CO., LTD.
Bldg 28, Quarter 4,
HuaiDeCuiGang Industrial Park,
Fuyong Street,
Bao’an District,
Shenzhen,
518106,
China

+86-755-32998548
www.huion.com
www.facebook.com
huionservice@huion.com
huion-skype
https://twitter.com/HuionTab
