Haylou-GT1 TWS BT Earphones Manual

Overview
Charging Case

What’s in the Box
BT earphones, Charging case, EarTips × 2 pairs, Manual, Charging cable.

Earphones

Medium Ea r T i p s h ave been assembled in advance. However, you may try large or small ones, if the medium ones do not fit you well.

When calling, adjust Mic towards mouth to gain clear calling.

Power-on
Take out earphones from the case to power on them. Or touch both panels for 1.5s to power on earphones (LED glows solid white) when they are not in the case.

Power-off
Put earphones into the case to power off them. Or touch both panels for 4.5s to power off earphones. (LED glows solid red for 2s).

Ignore Call
Touch the panel for 1s to ignore incoming call.

Stereo Mode
Auto pairing: take out both EarBuds from the case and they will auto pair with each other in 2 or 3s. Earphones will be connectable to cellphone when white slowly. On cellphone, LED on right EarBud blinks search for “Haylou-GT1_R” and tap to connect. If earphones fail to be connected to cellphone, please put EarBuds back to the case and repeat the above steps. Earphones will auto reconnect to the last device in connectivity records, if any.

Note: earphones have been setted to factory when shipping out.

Manual pairing: manually power on two EarBuds and they will auto pair with each other when LED blinks white promptly. Then LED on the right EarBud will blink white slowly and now you can tap it on cellphone to connect.

Mono Mode
Auto pairing: take out one EarBud from the case to power on it. Its LED will soon blink slowly then search for Haylou-GT1 R/L on cellphone and tap to connect. EarBud will auto reconnect to last device in connectivity records, if any.

Note: it may take more times for the left EarBud to reconnect

Manual pairing: manually power on one EarBud. Its LED will soon blink white slowly then search for it on cellphone and tap to connect

How to Charge
Prior to using, please peel off sticker on the pogo pins and top up the earphones.

Play/pause
When standby, touch the panel to pause/play music.
Note: media player should run in background.

Voice Assistant
When standby, triple touch the panel to activate voice assistant.
Note: device needs to support voice assistant and fast awakening be turned on.

Answer/End Call
Double touch the panel to answer incoming call and double touch the panel again to end it.

Skip Track Forward/backward
Touch the panel on right earbud twice to skip track forward.
Touch the panel on left earbud twice to skip track backward.

Three-way Calling & Switch
Touch the panel twice to answer incoming call from phone. if another call is coming in sync , touch the panel to put the first call on hold while activating the second one. Double touch the panel to switch between active call and held call.

Switch Audio Output
When calling, touch the panel for 1s to switch audio output between earphones and cellphone.

Factory Setting
If earphones do not function well, please refer the following steps to reset factory: take EarBuds out from the case. Power off the earphones then toch both panels for about 15s ( LED will blink red and white three times twice). After that, put them back to the case. Delete connectivity record on cellphone before processing another pairing. (All connectivity records relating to the EarBuds will all be removed).

Basic Parameters
Operation range: 10m(with no obstacle)
Battery capacity: 43mAh(single EarBud)
Changing time: approx. 1.5hr
Calling time: approx. 3.5hr
Standby time: approx. 150hr
Input parameter: 5V 100mA
Battery type: li-ion
Wireless connection: BT 5.0
Charging case
Input parameter:5V 500mA
Output parameter:5V 150mA
Charging time: approx. 2hr
Standby time: approx. 4 months
Battery capacity: 310mAh
Battery type: li-ion

Caveats
1. Never disassemble or modify your headset for any
reasons to avoid any damages and danger.
2. Do not store the headset in extreme temperatures
(under 0℃ or over 45℃).
3. Avoid using the indicator close to the eyes of
children or animals.
4. Do not use this headset during a thunderstorm to avoid
irregular function and increased risk of electricshock.
5. Do not use harsh chemicals or strong detergents to
clean the headset.
6. Keep the headset dry.

Warranty Card
Warranty Period
12 months after the next day receiving this item. Free exchange service will not be accessed under
following circumstances：
1. Damages caused unauthorized disassembly.
2. Defects or physical damages caused by leaking or dropping off.
3. Damages by act of God.Supposing your item is within any damages or defects except the above circum stances, please return to us or your distributor for free repairing.

Tips
1. Before using the headset, please read the manual carefully and keep it for future references.
2. The headset need to be fully charged prior to first-time use.
3. If the headset is left unused for over two weeks, please recharge it periodically.
4. Please use the chargers made by qualified manufacturer.
5. If the headset cannot be found by your phone, please check whether it is in pairing mode; if left unconnected for a long while, the headset will exit pairing mode, please re-enter the mode; if a procedure error of your phone occurs, reboot it; if a procedure error of the headsetoccurs, reboot or reset it.

Address: Suite 1303, 1305 and 1306, 13/F, Project Phrase
2 of Gaosheng Tech Tower, Gaosheng Tech Park,
No.5 Longxi Road, Zhouxi Community, Nancheng
District, Dongguan City, Guangdong, China.
Manufacturer: Dongguan Liesheng Electronic Co., Ltd.
Web: www.haylou.com
Perform standard: Q/LS 1-2018
Made In China

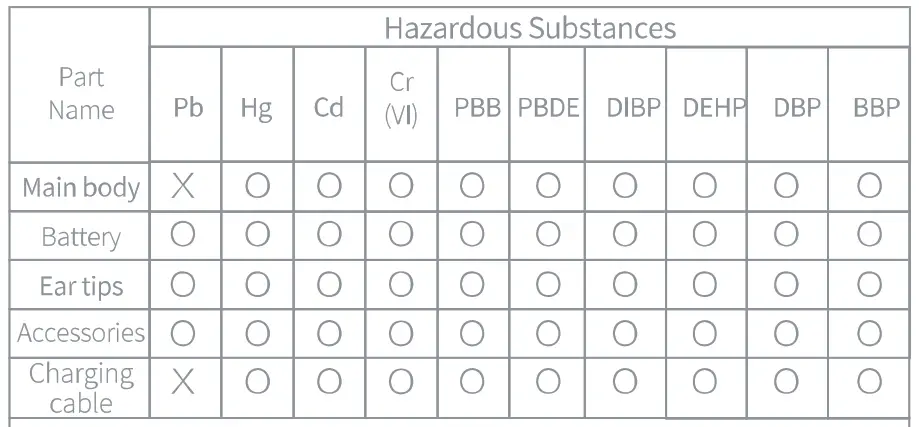

Hazardous substances and their contents in the item

WEEE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

Haylie GT3
User Manual

Overview How

What’s in the Box

Bluetooth earbuds, charging case, eartips (2 pairs) ,
user manual, charging cable

Prior to using,
please peel off the sticker covering the pogo pins and top up both earbuds and charging case.

Earbuds Parameters

Operation range: 10m(open space with no obstacle)
Battery capacity: 40mAh(single earbud)
Charging time: approx. 1.5hr
Calling time: approx. 3hr
Standby time: approx. 105hr
Input: 5V = 100mA
Battery type: Li-ion
Bluetooth version: V5.0
Charging Case Parameters
Input: 5V == 500mA
Output: 5V == 150mA
Charging time: approx.2.Shr
Standby time: approx.5 months
Battery capacity: 600mAh
Battery type: Li-ion

Power-on 1: takeout earbuds to auto power on. 2: keep touching the panel for 1.5s to power on,	Power-off  1: pop earbuds back into the case to power off. 2: keep touching the panel for 4.5s to power off(LEDglows solid red for 2s) .	ignore Call Keep touching the panel for 1s to ignore calls.

How to Charge

Put earbuds back into the case to charge, earbuds will auto power off.LED will glow solid red when charging and turn to white for 1 minute once top-up.

Mono Mode

Auto-connect: take out either earbud to power on.

When LED blinks white slowly(before that it blinks red and white promptly), search for Haylou GT3 on your cellphone and tap to connect.

Manual connection: when earbuds are turned off, manually turn on one of the earbuds. wait for the earbuds LED will then blink white slowly. On your cellphone, search for
the earbud and tap to connect.

Stereo Mode
Auto pairing:
Take out both earbuds from the case. On your cellphone, search for Haylou GT3 and tap to connect. If you fail to build a connection, please pull the earbuds back into the case and repeat the above steps. Once connected, earbuds will auto-reconnect to the last device in connectivity records whenever powering on(Bluetooth faculty needs to be turned on) .

Manual connection: when earbuds are turned off, manually turn on both of them again, they auto-start to pair with each other(LED will blink red and white promptly). When they finish pairing(LED on master earbud will blink white slowly}, search on cellphone and tap to connect.

Function

1. Please charge the product, in case it has not been used for over two weeks.
2. Please use a certificated charger.
3. Do not wear earphones for the long term to protect your hearing.
4. Do not wear earphones in any situations with potential risks as wearing them may reduce your perception to the outside world. aily maintenance
Please do not shower with earbuds. Do not wear them in rainy days.Do not leave them in the washing machines or in other extreme situations. Clean them with a dry cloth after use in pursuing a longer service life.

Factory Setting
If earbuds do not function well, please refer to the following steps to reset the factory: put earbuds back into the case to charge themselves, keep touching both panels for 10s or until the LED blinks red and white 3 times. Delete relative connectivity records on cellphone and re-build connection with cellphones.

Audio only outputs from a single earbud It’s are the case. Please reset the earbuds, remove the connectivity record on your cellphone, and re-connect the earbuds to your cellphone.

 Another problem in charging LED glows solid white for 1 minute when earbuds are topped up. The carry case will not charge earbuds if its battery drains. LEDs on the carrying case will turn off once the case is topped up. If you charge it once again, LEDs will not give any notice, which does not mean the case is not charged.

Tips
1. Before using the earbuds, please read the manual carefully and keep it for future reference.
2. The earbuds need to be fully charged prior to first-time use.
3. If the earbuds is left unused for over two weeks, please recharge it periodically.
4. Please use the chargers made by a qualified manufacturer. 5.If the earbuds cannot be found by your phone, please check whether it is in pairing mode; if left unconnected for a long while, the earbuds will exit pairing mode, please re-enter the mode; _ if a procedure error of your phone occurs, reboot it; if a procedure error of the earbudsoccurs, reboot or reset it.
Address: Suite 1303, 1305 and 1306, 13/F, Project Phrase 2 of Gaosheng Tech Tower, Gaosheng Tech Park, No.5 Longxi Road, Zhouxi Community, Nancheng District, Dongguan City, Guangdong, China. Manufacturer: Dongguan Liesheng Electronic Co., Ltd. Web: www.haylou.com Made in China

Hazardous substances and their contents in the item

This form is made by SJ/T 11364 regulation.
O: means that hazardous substance content in the homogeneous materials of this part is within the limits of(EU) 2015/ 863 regulation.
X: this means that hazardous substance contentin, at least, one certain homogeneous material of this part I beyond the limits of(EU) 2015/ 863 regulation, but there is no mature alternative in the industry at present! it still conforms to the EU ROHS Directive in the scope o exemption.

Notes: Please arrange using time properly as your hearing may be damaged by using the device for a long time.

Aftersales&Support
Warranty Period:
12 months after purchase
(please keep your receipt properly)
Free Service:
If any quality defects happen during the warranty period, please take the receipt and contact your distributor for aftersales service. Following cases or any damages/defects that are not due to quality issues are not covered in the warranty.
1. Any defects or damages caused by natural disasters, abnormal voltage, or other environmental facts.
2. Any unauthorized disassembly, modification, or change of parts.
3. Any damages caused by improper use of the product including soaking, corroding, falling down, squeezing, or exposure to abnormal temperature or humidity.

model Number: ——————–
ate of Purchasing:—————–
ser’s Name:————————
ser’s Phone:———————–
ser’s Address:——————–
op’s Name:———————-
op’s Address:——————–
comments:————————

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will does not occur ina particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC ID: 2AMQ6-GT3

HAYLOU GT1 XR Truly Wireless Earbuds User Manual

Overview

What’s in the Box

Eartips X 3 pairs (medium eartips have been assembled), earbuds, charging case, USB cable, user manual

How to wear

When calling, adjust Mic towards mouth to gain better talking experience.

How to Charge

Prior to using,please peel off sticker covering the  pogo pins and top up both earbuds and charging case.

Power-on

Open lid to power on earbuds.
If earbuds are out of case, keep touching both panels  for 2s to power on(LED glows solid white)

Power-off

Close lid to power off earbuds.
Keep touching panels for 4s to power off ( LED glows solid red for 2s).

How to Pair?

1)Automatically Pair

1. Take two earbuds out from the charging case  simultaneously, then open the Bluetooth device search “Haylou GRI XR R ” or Haylou GTI XR L” , finally click it to complete the connection;
2. Wait for about 2 seconds, the device interface pops up prompting to pair the other side of the earbud, and click on the pairing connection;
3. After the first connection, the earbuds can be automatically connected to the latest paired device (Bluetooth needs to be turned on).

Note: Put the earbuds back to the charging case and repeat  the above operation if the connection tails.

2) App connection

• Scan the 9R code on the package or below to download  the “Haylou ‘ App in the App Store or Google Play;
• When connecting to the App for the first time turn on  the charging case without taking out the earbuds, and keep the Bluetooth of the device turned on;
• Open the”Haylou” App, select “Add Device” on the device page, and follow the page prompts to complete the search

3) Earbuds pop-up window function

• Open the ‘Haylou” App and login the App;
• Open the earbud case, the pop-up window will appear on  the phone;
• Click connection, and the pairing prompt of phone Bluetooth  and earbuds will pop up. Complete the paring according to  the prompt;
• The earbuds are paired with phone Bluetooth and connected  successfully. Click “More Settings” on the pop-up window,  the App successfully binds the earbuds.

Notes:

• Whenever instructions in App diverge from the above steps,  please follow the instructions in the App;
• Keep the charging case and earbuds fully charged and the  Bluetooth function is open on the Bluetooth device.
• iOS device does not support pop-up window animation.

Mono Mode

Auto pairing: take out one earbud from the case to power on it. Its LED will soon blink white promptly then search for Haylou GTI XR R/L on cellphone and tap to connect. Once powering on, earbud will auto reconnect to last device in connectivity records, if any (Bluetooth  faculty has to be activated).

Manual pairing : manually power on one earbud. Its LED will soon blink white flash then search for it on cellphone and tap to connect.

Basic Parameters

• Operation range: 10m(with no obstacle)
• Battery capacity: 43mAh(single earbud)
• Charging time: approx. 1.5hr
• Calling time: approx. 4hr
• Standby time: approx. 130hr
• Input parameter: 5V 100mA
• Battery type: li-ion
• Bluetooth version: 5.0

Charging Case

• Input parameter: 5V 500mA
• Output para meter: 5V 150mA
• Charging time: approx. 3hr
• Standby time: approx. 4 months
• Battery capacity: 800mAh
• Battery type: li-ion

All technical data are subject to practical performance

Functions

Switch Between Mono Mode and Stereo Mode
Pick up two earbuds to auto enter stereo mode  and push one back to enter mono mode. Or you  can pick it up again to resume stereo mode.

LEDs on Charging Case

Whenever you open/close lid, four LEDs will blink 3 times then some/all of them will glow solid for IOS according to practical battery level.

Low battery warning(carry case): If battery level is under 25%, LED for low battery warning will keep blinking white 3 times in I minute.

Battery level display

When charging, four LEDs will blink 3 times with draw marquee effect then some/all of them glow solid according  to practical charging status.

Battery level display in charging

Caveats

1. Please charge the product, in case it has not been used over two weeks.
2. Please use certified charger.
3. Do not wear earphones for a long term to protect your hearing.
4. Do not wear earphones in any situations with potential risks as wearing them may reduce your  perception to the outside world.

If any malfunction emerges in the earbuds, please refer the following steps:

  Factory setting: put earbuds into case to charge them then keep touching earbuds for IOS or until LEDs blink red and white 3 times to set them to factory. They will then auto power on and get charged. Pick up two earbuds(LEDs will blink red and white quickly) and they will auto pair with each other. Earbuds will auto turn to be connectable to phone when LED on left earbud turns off and LED on right earbud blinks white promptly. Delete connectivity record in device and reconnect the earbuds to phone.

  Audio only outputs from single earbud
It’s really rare. Please reset GTI XR , remove connectivity record on your cellphone and re-connect the earphones to your cellphone.

  Other cases in charging
LED glows solid white for I minute when earbuds are topped up.
Carry case cannot charge earbuds, if its battery drains. LEDS on carry case will turn off once the case is topped up.

Daily maintenance

Please do not shower with earbuds. Do not wear them in rainy day. Do not leave them in washing machine or other extreme situations. Clean them with dry cloth after use in pursuing a longer service life.

Tips

1. Before using the headset, please read the manual carefully and keep it for future references.
2. The headset need to be fully charged prior to first-time use.
3. If the headset is left unused for over two weeks, please recharge it periodically.
4. Please use the chargers made by qualified manufacturer.
5. If the headset cannot be found by your phone, please check whether it is in pairing mode; if left unconnected for a long while, the headset will exit pairing mode, please re-enter the mode; if a procedure error of your phone occurs, reboot it; if a procedure error of the headsetoccurs, reboot or reset it.

Address: Suite 1303, 1305 and 1306, 13/F, Project Phase
2 of Gaosheng Tech Tower, Gaosheng Tech Park,
No.5 Longxi Road, Zhouxi Community, Nancheng
District, Dongguan City, Guangdong, China.

Manufacturer: Dongguan Liesheng Electronics Co., Ltd.
Web: www.haylou.com
Made In China

Hazardous substances and their contents in the item

This form is made by SJ/T 11364 regulation.

O: means that hazardous substance content in the homogeneous materials of this part is within the limits of  GB/T 26572 regulation.
X: means that hazardous substance content in, at least, one certain homogeneous material of this part is beyond the limits of GB/T 26572 regulation.

Notes: Please arrange using time properly as your hearing may be damaged by using the device for a long time.

Warranty Card

Warranty Period
12 months after the next day receiving this item.

Free exchange service will not be accessed under following circumstances:

1. Damages caused by unauthorized disassembly.
2. Defects or physical damages caused by leaking or dropping off.
3. Damages by act of God.Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing.

HAYLOU RS4 Plus Smartwatch 1.78” AMOLED Display 105 Sports Modes

Specifications

• Brand
  Haylou

Introduction

With smartwatches, buyers will have a stylish substitute for the expensive smartwatches now on the market. With a 225mAh battery that can last up to 9 days on one charge. You can exercise at a higher level thanks to its high-precision GPS and additional 60+ sports modes. This fitness tracker can withstand all of your daily activities, including swimming, thanks to its 5 ATM water resistance. Come with a variety of health tracking functions, including blood-oxygen level measurement, 24/7 heart rate monitoring, sleep quality and stress monitoring, menstrual cycle tracking, and sleep quality monitoring. These features help you better understand your health.

What’s In the Box?

• Smart Watch (including standard strap)
• Magnetic Charging Base
• Package
• Instruction Manual

Grade AMOLED HD Retina Display

The huge 1.78-inch screen’s unmatched 368*448 Pixel resolution offers a precise and clear experience wherever you are. The user experience is still optimized by the 60Hz refresh rate, which is unusual for currently available round smartwatches.

IP68 Dust and Water Resistant

Waterproof to IP68, the watch is. You can easily deal with sweating during workouts or torrential downpours when you are out and about without taking the watch off.

Wearing a magnetic strap is comfortable

It is easy to put together, comfortable to wear, and convenient to remove. Suitable for those who are concerned about the belt buckle’s size and the hole’s size.

Pairing the Watch

1. Scan the QR code on the Instruction Manual with your mobile phone to download the app to your mobile phone. You can also download the latest version of the App from the Google Play Store or Apple App store.
2. Open the APP, register an account and log in.
3. Follow the steps in the app to pair your watch correctly. Once pairing is complete, the watch will display the correct time.
4. You can set the other watch functions as needed.

Charging the Watch

1. Connect the USB port of the watch charging cable to a mobile phone charger or a computer USB port.
2. Put the watch into the charging base. Pay attention to the direction and position of the watch, and make sure that the metal contacts on the back of the watch fit closely with the charging base.
3. When charging starts, the watch screen displays the charging progress.

Wearing the Watch

1. Wear the watch strap not too tightly or too loosely, and leave enough space for the skin to breathe. This makes you feel comfortable and allows the sensor to function.
2. When measuring blood oxygen saturation, wear the watch correctly. Avoid wearing the watch on the wrist joint, keep your arm flat, maintain comfortable (appropriately tight) fitting between the watch and the skin of your wrist, and keep your arm still throughout the measurement process. When affected by external factors (arm sag, arms sway, arm hair, tattoo, etc.), the measurement result may be inaccurate or the measurement may fail and provide no output.
3. We recommend that you tighten the watch strap during exercise and loosen it afterward.

Frequently Asked Questions

Has the Haylou RS4 Plus GPS?

Additionally, this version works with iOS 10.0 and after as well as Android 5.0 and later, so the connection is made via the Haylou Fun app. However, since it lacks a GPS sensor of its own, you must constantly use a smartphone in conjunction with it to determine your whereabouts.

Haylou RS4 is water resistant?

Waterproof to IP68 standards is the Haylou RS4 watch. You can easily deal with sweating during workouts or torrential downpours when you are out and about without taking the watch off.

Is Haylou worth watching?

With its squarish shape and flat sides, the Haylou LS02 has a straightforward and aesthetically pleasing design for a smartwatch. The smartwatch is made of plastic, as is typical for low-cost products, which makes the watch lightweight and the price low.

Has the Haylou Smart Watch GPS?

A cost-effective smartwatch that works with iOS and Android devices is the Haylou RS3. The smartwatch includes a waterproof casing, integrated GPS, and costs under

Worth is Haylou RS4?

What was previously a stagnant market for smartwatches has had a significant breakthrough with the Haylou RS4. I genuinely enjoy sporting the RS4 on my wrist. It is lightweight, appears to be much more expensive than it actually is, and, unexpectedly, the included strap was rather comfy.

Is Haylou Watch able to take calls?

Taking a call via the wearable is not possible because it lacks a speaker and a microphone. However, it would have been wonderful to have had a button to reject the call and turn off the vibration. Additionally, Haylou Solar provides sleep monitoring. It just keeps track of how much time you spend sleeping overall, in light sleep, and in deep sleep.

Can the Haylou smartwatch receive calls?

You can answer calls made to your smartphone using the device’s speaker and microphone.

What is the Haylou Fit app for?

For users of Android devices, the Haylou Fit app is available through Google Market or the device’s default app market, such as Mi Store or HUAWEI App Gallery. Alternatively, you can read the QR code below.  Start up your smartwatch, the Haylou Solar LS05. Launch the Haylou Fit application, create an account, and then enter Cool Play.

How can I charge my smartwatch from Haylou?

You only need to plug in the included USB cable to start charging the Haylou LS01 smartwatch. The magnetic two-pin charging port and metal contact are features of the Haylou smartwatch. It will automatically tighten, fit, and swiftly charge if you put it on gently.

How does a Haylou watch work?

To pair your watch with your phone, go to “Pairing” on the Haylou Smart Watch and then follow the prompts. Please remember to turn on Bluetooth on your phone and keep the watch close by during pairing.

How does a Haylou timepiece operate?

Go to “Pairing” on the Haylou Smart Watch, then follow the on-screen instructions to link your watch with your phone. Please keep the watch nearby when pairing and maintain Bluetooth turned on on your phone.

Is there a way to turn off the display at night while sleeping?

Yes! I own this model and I have it set to show the display when. From the main screen on the watch, squeeze the side button until you see the app list appear. Scroll down to settings- tap it- scroll down to “ lit upon wrist lift” – tap it- it will take you to options of either “all day on” or setting a scheduled start and stop time, or all day off for the display being on when you lift your wrist.

Is it possible to access message notifications after the initial, immediate notification?

Yes, you will be able to tap the notification to open the message or just swipe up to view them.

HAYLOU LS05 Solar Smart Watch

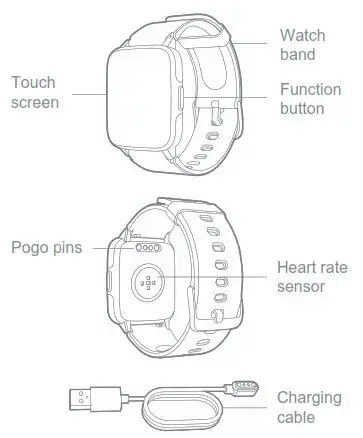

Overview

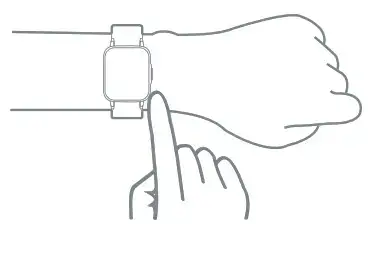

How to Wear

Please put on the watch and move it about one finger distance from your carpus. Please adjust the tightness of the watch band to fit yourself.
Note: Too loose of the band may impact the performance of the heart rate sensor.

How to Link

Hold the function button to power on the watch and a QR code will be displayed. Use your phone to scan the QR code to install the APP. You may also scan the QR code below to install.

Note: The instruction below is for reference only. For actual installation, please follow the instruction in APP.

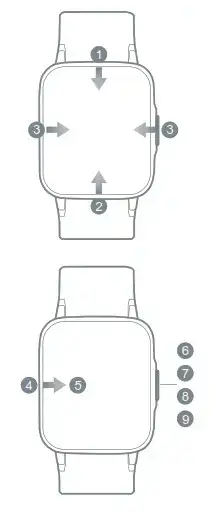

How to Use

1. In-Home Page, slide down from the top of the watch face to open Quick Setting.
2. In-Home Page, slide up from the bottom of the watch face to open Control Panel.
3. In-Home Page, slide right/left to skip to previous/next page.
4. When it’s not on Home Page, slide from the left edge to the right edge to return to the previous page.
5. In-Home Page, keep touching screen for 3s to enter Watch Face Change.
6. Hold function button for 3s to power on/off.
7. Press the function button to return to Home Page (only open one page).
8. Press the function button to skip to the previous page (open two pages).
9. Press the function button to pause/resume your workout (during workout).

Functions

How to Charge

1. Charge the watch via charging cable and make sure pogo pins are well-contacted.
2. Use a qualified adapter with an output voltage of 5V and an output current of 0.5A or above.
3. If you do not use the watch for a long time, the charging icon may not show up until you charge the watch for over 1 minute.
4. Please always keep pogo pins dry.

Note:

• We hold the right to revise the User Manual without any notice to you. Parts of the functions may be different in certain software.
• Please charge the watch more than 2 hours before use.
• This product is within IP68 waterproof, yet do not soak it into hot water or other corrosive liquid, or wear it for a dive to a depth over 3m. Any defects caused by the above practices will not be covered by a warranty.
• Please do not get the band too tight. Keep contact parts of the watch dry and clean the band periodically. For any allergies, please take off the watch at once and consult a doctor.
• Function button and touch screen are not available for use underwater. If the watch gets wet, please dry it before use.

Basic Parameters

• Product name: Haylou Solar
• Product model: Haylou LS05 -1
• Main body size: 45.3 x 11.4mm
• Band size: 22mm
• Weight ( with band ): 54g
• Display: 1.28 inch TFT LCD
• Definition: 240*240
• Bluetooth version: V5.0
• Sensor: heart rate sensor, accelerometer sensor Battery capacity: 340mAh
• Battery life: 15 days ( with 24-hour heart rate monitoring on) Dust, waterproof: IP68
• Working temperature: -20℃~45℃
• Data sync platform: Haylou Fit
• Compatibility: Android 4.4 or IOS 8.0 and later

Warranty Card

Warranty Period: 12 months after you purchase this item. ( or you may inquire your local shopper for more details.)
Free Service Supposing any defects caused by quality issues occur within the warranty period, please take this warranty card and purchase receipts to your distributor for free exchange service.

Free exchange service will not be accessed under the following circumstances:

1. Damages caused unauthorized disassembly.
2. Defects or physical damages caused by leaking or dropping off.
3. Damages by an act of God. Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing.

Manufacturer: Dongguan Liesheng Electronic Co., Ltd.
Address: Suite 1303, 1305 and 1306, 13/F, Project Phrase 2 of Gaosheng Tech District, Dongguan City, Guangdong, China.

Haylou-GT1
TWS BT Earphones
User Manual

Overview

Charging Case

What’s in the Box BT earphones, charging case, EarTips X 2 pairs, user manual, charging cable

Earphones

Medium EarTips have been assembled in advance. However, you may try large or small ones, if the medium ones do not fit you well.

When calling, adjust Mic towards mouth to gain clear calling

Power-on

Take out earphones from the case to power on them. Or touch both panels for 1.5s to power on earphones ( LED glows solid white) when they are not in the case.

Power-off

Put earphones into the case to power off them.
Or touch both panels for 4.5s to power off earphones ( LED glows solid red for 2s ).

Ignore Call

Touch the panel is to ignore the incoming calls.

Stereo Mode

Auto pairing: take out both EarBuds from the case and they will auto pair with each other in 2 or 3s. Earphones will be connectable to cellphones when the LED on right EarBud blinks white slowly. On a cellphone, search for “Haylou-GTLR” and tap to connect.
If earphones fail to be connected to a cellphone, please put EarBuds back to the case and repeat the above steps. Earphones will auto-reconnect to the last device in connectivity records if any.
Note: earphones have been set to the factory when shipping out.

Manual pairing: manually power on two EarBuds and they will auto pair with each other when LED blinks white promptly. Then LED on the right EarBud will blink white slowly and now you can tap it on your cellphone to connect.

Mono Mode

Auto pairing: take out one EarBud from the case to power on it. Its LED will soon blink slowly then search for Haylou-GT1 R/L on cellphone and tap to connect. EarBud will auto-reconnect to the last device in connectivity records if any. Note: it may take more time for the left EarBud to reconnect.
Manual pairing: manually power on one EarBud. Its LED will soon blink white slowly then search for it on cellphone and tap to connect.

How to Charge

Prior to using, please peel off sticker on the pogo pins and top up the earphones

Play/pause

When standby, touch the panel to pause/play music. Note: media player should run in the background.

Voice Assistant

When standby, triple touch the panel to activate the voice assistant.
Note: device needs to support voice assistant and fast awakening be turned on.

Answer/End Cali

Double touch the panel to answer an incoming call and double touch the panel again to end it.

Skip Track Forward/backward

Touch the panel on the right earbud twice to skip track forward
Touch the panel on the left earbud twice to skip track backward

Three-way Calling & Switch

Touch the panel twice to answer incoming calls from the phone. if another call is coming in sync, touch the panel to put the first call on hold while activating the second one. Double touch the panel to switch between an active call and held call.

Switch Audio Output

When calling,touch the panel for is to switch the audio output between earphones and cellphones.

Factory Setting

If earphones do not function well, please refer to the following steps to reset the factory: take EarBuds out from the case. Power off the earphones then touch both panels for about 15s ( LED will blink red and white three times twice). After that, put them back to the case. Delete connectivity record on the cellphone before processing another pairing All connectivity records relating to the EarBuds will all be removed )

Basic Parameters

Operation range: 10m(with no obstacle) Battery capacity: 43mAh(single EarBud) Charging time: approx. 1.5hr
Calling time: approx. 3.5hr
Standby time: approx. 150hr
Input parameter: 5V= 100mA
Battery Type: Li-ion
Wireless connection: BT 5.0

Charging case
Input parameter:5V= 500mA Output parameter:5V— 150mA Charging time: approx. 2hr
Standby time: approx. 4 months Battery capacity: 310mAh
Battery Type: Li-ion

Caveats

1. Never disassemble or modify your headset for any reason to avoid any damages and danger.
2. Do not store the headset in extreme temperatures (under 0°C or over 45°C).
3. Avoid using the indicator close to the eyes of children or animals.
4. Do not use this headset during a thunderstorm to avoid irregular function and increased risk of
5. Do not use harsh chemicals or strong detergents to clean the headset.
6. Keep the headset dry.

Warranty Card

Warranty Period 12 months after the next day receiving this item.
Free exchange service will not be accessed under the following circumstances:

1. Damages caused unauthorized disassembly.
2. Defects or physical damages caused by leaking or dropping off.
3. Damages by an act of God. Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing.

Tips

1. Before using the headset, please read the manual carefully and keep it for future references.
2. The headset needs to be fully charged prior to first-time use.
3. If the headset is left unused for over two weeks, please recharge it periodically.
4. Please use the chargers made by a qualified manufacturer.
5. If the headset cannot be found by you^. phone, please check whether it is in pairing mode; if left unconnected for a long while, the headset will exit pairing mode, please re-enter the mode; if a procedure error of your phone occurs, reboot it; if a procedure error of the headset occurs, reboot or reset it.

Address: Suite 1303,1305 and 1306,13/F, Project Phrase 2 of Gaosheng Tech Tower, Gaosheng Tech Park, No.5 Longxi Road, Zhouxi Community, Nancheng District, Dongguan City, Guangdong, China.
Manufacturer: Dongguan Liesheng Electronic Co., Ltd.
Web: www.haylou.com
Perform standard: Q/LS 1-2018
Made In China

Hazardous substances and their contents in the item 5

Notes: Please arrange using time properly as your hearing may be damaged by using the device for a long time.

Overview

How to Wear

Please adjust earbud to fit yourself best.

When calling, adjust Mic 1 towards mouth to gain better talking experience.

How to Charge

1. Fully charge the charging case and earbuds before first use.
2. Insert the charging cable to simultaneously charge the earbuds and the charging case.
3. Earbuds: Put them back into the case, the earbuds indicator light is solid red. After fully charged, the indicator light is solid white for 60s and then goes out.

Battery Indicator of Charging Case

Open/close the lid, the actual battery level will be displayed after three lights flash 3 times. When the battery is greater than 30%, the battery indicator will be on for 10s and then go out.
(You need to close the case first then open to check battery level display again)
Low battery prompt of charging case: less than 30%, LED1 flashes 3 times every 2s, and goes out after 1 minute of continuous circulation.

Power-on

When the earbuds are in the charging case, open lid to power on.
When the earbuds are outside the case and in power-off state, long press the MFB button for about 1.5s to power on.

Power-off

Put earbuds back into case and close the lid, they will automatically power off.
In power-on state, long press the MFB button for about 4.5s (white light flashes twice).

How to Connect

Take out both earbuds from the case simultaneously. Open device Bluetooth, search for “Haylou W1” and click to connect.
If connection fails, put earbuds back into case and try again. After connection, earbuds will automatically re-connect to the last-paired device whenever powering on (Bluetooth needs to be turned on).

Switch between mono and stereo mode: Pick up two earbuds to auto enter stereo mode and push one back to enter mono mode. Or you can pick it up again to resume stereo mode.

Manual connection: When earbuds are turned off, manually turn on the two earbuds. Wait 2-3s for the earbuds to turn on and connect with each other. When indicator lights on both earbuds flash white slowly, turn on device Bluetooth to connect.

How to Use

Factory Setting

If the earbuds cannot be connected and used normally, please refer to the following methods: When the earbuds are in the charging case and the charging case has power, long press MFB button for 10s, the earbuds will automatically be reset (the connection records between the two earbuds and device will be cleared).
* If the operation fails, please repeat the above steps; or log in to the official store, contact customer service to view the reset operation video.

One of the Earbuds Mute

It’s unusual indeed, please set earbuds to factory, remove connectivity record on phone and re-connect.

Other Charging Problems

1. White LED turns off after 1 minute. It means your earbuds have been fully charged.
2. The earbuds won’t be charged if the charging case is out of power.
3. LED does not turn on when charging the case. It means that the case has been fully charged so the light does not turn on.

Package List

Earbuds, charging case, 3 pairs of ear tips (M size has been pre-installed), charging cable, user manual.

Basic Parameters(earbuds)

Operation range: 10m (open space with no obstacle)
Battery capacity: 32mAh(single earbud)
Charging time: approx. 2hr
Talk time: approx. 3hr
Standby time: approx. 50hr
Input parameter: 5V 100mA
Battery type: Rechargeable li-ion button battery
Bluetooth version: V5.2

Basic Parameters(charging case)

Input parameter: 5V 500mA
Output parameter: 5V 100mA
Charging time: approx. 3hr
Battery capacity: 310mAh
Battery type: li-ion

Caveats

Warning

1. Do not disassemble, repair or modify the product for any reason, as this may cause fire or even completely destroy the product.
2. Do not expose the product to environments where the temperature is too low or too high (below 0°C or above 45°C).
3. Keep the indicators away from the eyes of children and animals while using the earphones.
4. Do not use this product during thunderstorms. Thunderstorms may cause the product to malfunction and increase the risk of electric shocks.
5. Do not wipe and clean the earphones or their case with alcohol or other volatile liquids.
6. Avoid any contact with liquids.

Note

1. Please read this user manual carefully before using the product and please properly store it.
2. When using for the first time, please fully charge this product.
3. Please charge the product, in case it has not been used over two weeks.
4. Please use certificated charger.
5. Do not wear earphones for a long term to protect your hearing.
6. Do not wear earphones in any situations with potential risks as wearing them may reduce your perception to the outside world.

Daily maintenance

Please do not shower with earbuds. Do not wear them in rainy day. Do not leave them in washing machine or other extreme situations. Clean them with dry cloth.

Warranty Card

Warranty Period
12 months after you purchase this item. ( or you may inquire your local shopper for more details.)

Free Service
Supposing any defects caused by quality issues occur within the warranty period, please take this warranty card and purchase receipts to your distributor for free exchange service.

Model Number
Date of Purchasing
User’ s Name
User’ s Phone
User’ s Address
Shop’ s Name
Shop’ s Address Comments

Free exchange service will not be accessed under following circumstances:

1. Damages caused by unauthorized disassembly.
2. Defects or physical damages caused by leaking or dropping off.
3. Damages by act of God. Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing.

FCC Statement:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures:

• Reorient the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

FCC ID : 2AMQ6-W1

Manufacturer: Dongguan Liesheng Electronic Co., Ltd.
Address: Room 401-410, Building 1, No. 86 Hongtu Road, Nancheng District, Dongguan City, Guangdong, China

Haylou SmartWatch 2
User Manual

Overview

What’s in the Box
Smart watch, charging cable and user manual.

How to Wear

Please put on the watch and move it about one finger distance from your carpus. Please adjust the tightness of the watch band to fit yourself.
Note: Too loose of the band may impact the performance of the heart rate sensor.

How to Link

1. Hold the function button to power on the watch and a QR code will be displayed. Use your phone to scan the QR code to install APP. You may also scan the QR code below to install.

https://ls-app.haylou.com/app/international.html

Note: The instruction below is for reference only.
For actual installation, please follow the instruction in APP.

How to Use

1. In-Home Page, slide down from the top of the watch face to open Quick Setting.
2. In-Home Page, slide up from the bottom of the watch face to open Control Panel.
3. In-Home Page, slide right/left to skip to previous/next page.
4. When it’s not in Home Page, slide from left edge to right edge to return to the previous page.
5. In-Home Page, keep touching screen for 3s to enter Watch Face Change.
6. Hold function button for 3s to power on/off.
7. Press the function button to return to Home Page (only open one page).
8. Press the function button to skip to the previous page (open two pages).
9. Press the function button to pause/resume your workout (during workout).

Functions

	12 sport modes ( jogging, hiking, biking, climbing, spinning, indoor running, yoga, gym, free training, basketball, football, and boating)
	A 24-hour heart rate monitoring keeps making records
	It tracks your sleep time and status
	You may check the coming three days’ weather and real-time temperature
	Remote music control on phone (the watch cannot play music  independently)
	Help adjust the breath and relax yourself
	Accuracy is up to two decimal places
	A full-screen timer
	Open, set, check and close the alarm clock
	Sit too long and it’s time to get on your knees

How to Charge

1. Charge the watch via charging cable and make sure pogo pins are well-contacted.
2. Use a quality adapter with an output voltage of 5V and an output current of 0.5A or above.
3. If you do not use the watch for a long time, the charging icon may not show up until you charge the watch for over 1 minute.
4. Please always keep pogo pins dry.

Note:

1. We hold the right to revise the User Manual without any notice to you. Parts of the functions may be different in certain software.
2. Please charge the watch more than 2 hours before use.
3. This product is within IP68 waterproof, yet do not soak it into hot water or other corrosive liquid, or wear it for a dive to a depth over 3m. Any defects caused by the above practices will not be covered by a warranty.
   Please do not get the band too tight. Keep contact parts of the watch dry and clean the band periodically. For any allergies, please take off the watch at once and consult a doctor.
4. Function button and touch screen are not available for use underwater. If the watch gets wet, please dry it before use.

Warranty Card

Warranty Period
12 months after you purchase this item. ( or you may inquire your local shopper for more details.) Free Service
Supposing any defects caused by quality issues occur within the warranty period, please take this warranty card and purchase receipts to your distributor for free exchange service.

Free exchange service will not be accessed under the following circumstances:

1. Damages caused unauthorized disassembly.
2. Defects or physical damages caused by leaking or dropping.
3. Damages by an act of God.

Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing.

Manufacturer： Dongguan Liesheng Electronic Co., Ltd.
Address： Suite 1303, 1305 and 1306, 13/F, Project Phrase 2 of Gaosheng Tech District, Dongguan City, Guangdong, China.

Basic Parameters
Product name: Haylou SmartWatch 2
Product model: Haylou-LS02
Main body size: 48 x 36 x 11.5mm
Band size: 20mm
Weight ( with band ): 38g
Display: 1.4 inch TFT LCD
Definition: 320*320
Bluetooth version: V5.0
Sensor: heart rate sensor, accelerometer sensor
Battery capacity: 260mAh
Battery life: 20 days of long battery life
Dust, waterproof: IP68
Working temperature: -20 ℃~45 ℃
Data sync platform: HAYLOU
Compatibility: Android 4.4 or IOS 8.0 and later

FCC ID: 2AMQ6-LS02
CMIIT ID: 2020DP3517
