Smart True HEPA Air Purifier 2.0

READ AND SAVE THESE INSTRUCTIONS

Notice: The following content is related to safety, users must abide by the
following instructions in order to properly use this product.

Warning – To reduce the risk of fire or electric shock, do not use this unit with
any solid-state speed control device.

Warning – Unplug or disconnect this unit from the power supply before
servicing.

Warning – This applicance has a polarized plug (one blade is wider than other).
To reduce the risk of electric shock, this plug is intended to fit in a polarized
outlet only one way, if the plug does not fit easily in the outlet reverse the plug,
if it still does not fit easily, contact a qualified electrician Do not attempt to
change this safety feature.

1. Do not use any accessories not approved by Hathaspace. They may cause the
device to malfunction. Specifically, do not use step down transformers or
outlet converters, or the warranty will be voided.

2. After unpacking, check the product for damage and check all accessories are
present.
3. If a fault occurs, immediately unplug the power cord. Do not operate the air
purifier if it is defective.

4. The air purifier should be repaired only by Hathaspace, or authorized
Hathaspace dealers.

5. If the power cord is damaged, please contact [email protected]

• Do not insert fingers or foreign matter into the air-inlet and
  outlet.
• Do not use in an environment filled with hydrogen, natural gas, propane and other flammable gases.
• Do not use the air purifier if the power cord or plug is damaged or the wall’s power socket has become loose.
• Do not use in a wet place.
• Do not block the air inlet or outlet.
• Do not operate the air purifier without installing the filter.
• Use 120V U.S. power supply only.
• Do not place the machine near heat resources, such as gas stoves, or ovens.
• Do not use alcohol or organic solvents to clean the machine.
• Please unplug the power cord when cleaning.
• Use a dry cloth to clean the air purifiers surface.
• Use the grip on the back of the purifier to move it. Do not lift from the front panel.

1. Washable Pre-Filter
A preliminary nylon pre-filter removes large particles like pet hair, dust, and
floating debris. This helps extend the life of the composite filter.

2. Polypropylene Filter
Non-woven polypropylene materials serve as an extra pre-filter for the HEPA
filter, capturing small corrosive particles. This extends the life of the H13
HEPA filter.

3. H13 Medical Grade True HEPA Filter
H13 Medical Grade HEPA removes 99.97% of particles down to 0.3 microns in
diameter and 99.95% of particles down to 0.1 microns in diameter. These smaller
particles make up most of the harmful air pollutants in categories like viruses
and combustion chemicals.

1. Front Panel
2. Panel Switch
3. Pre-Filter
4. Main Body
5. Composite Filter
6. Laser Sensor

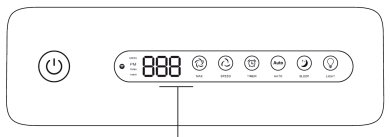

PM Index, Timer, and Display Area

1. Power: Turns purifier on and off.

2. Max: Sets the purifier to the maximum air purification speed (greater than high
mode) for 60 minutes before returning to previous speed.

3. Speed: Choose from 4 different fan speeds (sleep, low, medium, and high).

4. Timer: Sets purifier on a timed mode (1 – 12 hours). Purifier will automatically
shut-off when done.

5. Auto: In Auto, the fan speed automatically changes according to your air
environment.

Front Panel
