GARMIN Bark Limiter 2

BARKLIMITERTM 2

© 2017 Garmin Ltd. or its subsidiaries
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product.
Garmin® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. BarkLimiterTM and Garmin CanineTM are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

Getting Started

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

BarkLimiter 2 Device Overview

1. Collar band
2. Contact points
3. Charge port (under weather cap)
4. Power and mode selection button
5. LED indicator
6. Tone mode
7. Auto-rise/smart mode
8. Vibration mode

Charging the Dog Collar Device

NOTICE To prevent corrosion, thoroughly dry the contacts on the collar and the surrounding area before connecting the charging clip. You should fully charge the battery before you use the device for the first time. Charging a fully depleted battery typically takes about two hours. NOTE: The device does not charge when it is outside the approved temperature range (Specifications, page 4).

1. Pull up the weather cap 1 from the charging port 2.


NOTE: The device turns on automatically when you remove it from the charger.

Turning On the Dog Collar Device

The device remains on until you turn the device off manually (Turning Off the Dog Collar Device, page 1)
TIP: The device does not issue corrections for two minutes after any button press, or after the device is removed from the charger.
Hold the power key until all of the status LED indicators turn green.
The device beeps, and an LED indicates the active mode. An LED turns blue when the smart mode is active. An LED turns green when any other mode is active. After two seconds, a blue or green LED turns red.

Turning Off the Dog Collar Device

Hold the power key until the status LED turns solid red and the device beeps.

Attaching the Dog Collar Device to a Collar Strap

You can attach the dog collar device to a collar strap that is a maximum of 25.4 mm wide (1 in.) and 2.78 mm thick (0.11 in.).

1. With the buckle facing outward, insert the end of the collar
   strap 1 through the slot 2 on the collar device.

2. Pull approximately two-thirds of the collar strap through the slot on the opposite side of the device.
3. Snap the collar band onto the device. 4 Pull the collar strap until it is tight across the front of the device.

Pairing Your Smartphone with the Dog Collar Device

You can use the Garmin CanineTM app on your compatible smartphone to pair your dog collar device using Bluetooth® Smart wireless technology.

1. Go to www.garmin.com/apps, and download the Garmin Canine app to your smartphone.
2. Open the Garmin Canine app on your smartphone.
3. Follow the on-screen instructions to create an account, set up your dog profile, and pair the dog collar device.
4. Bring your smartphone within 10 m (33 ft.) of the dog collar device.
5. Connect the dog collar device to the charger. The device enters pairing mode.

When the device is paired with your smartphone, a message appears.

Fitting the Collar on Your Dog

CAUTION To help reduce the chance of irritation, remove the collar when not in use. You should check the fit and comfort of the collar daily.

This device is not intended for human use. Do not attempt to use on any person.

Do not spray the device with harsh chemicals including but not limited to flea or tick spray. Always ensure that all flea or tick spray applied to the dog is completely dry before placing the collar on the dog. Small amounts of harsh chemicals can damage the plastic components.

In order to effectively train the dog, the collar and device must fit the dog properly. If the collar is too loose or positioned incorrectly, stimulation may be inconsistent. This can delay or prevent successful training.

1. Position the device at the front of the dog’s neck, with the
   status LED facing toward the dog’s chin and the device against the throat. TIP: For bark correction, the device should be positioned near the dog’s vocal cords. This location varies based on the breed of dog. If the device does not seem to detect the dog’s barks, you should move the device closer to or farther from the dog’s body to find the ideal location.
2. Confirm that the ID tags on the collar strap do not come into contact with the device. NOTE: ID tags contacting the device may cause unintentional corrections.
3. Tighten the strap so that it is very snug around the dog’s neck, and fasten the buckle. NOTE: The collar should fit tightly and should not be able to rotate or slide on the dog’s neck. The dog must be able to swallow food and water normally. You should observe your dog’s behavior to verify that the collar is not too tight.
4. Wiggle the device to work the contact points through the dog’s coat. NOTE: The contact points must have contact with the dog’s skin to be effective.


Garmin Canine App

The Garmin Canine app allows you to review your dog’s daily activity and get insights into your dog’s behavior. The app also allows you to wirelessly send software updates to your dog device.

Set up bark correction: Allows the device to detect and correct barks automatically. You can adjust the method of the corrections. When using stimulation, you can adjust the intensity level or use auto-rise.

Analyze your data: You can view summary data, including your dog’s daily activity level and number of barks. You can view more detailed information about your dog’s activity, including event times and corrective actions used.

Set up family members and dogs: Allows you to create and edit dog profiles, pair compatible dog collar devices, and invite other family members.

Syncing the Dog Collar Device with the Garmin Canine App

Garmin® recommends you sync your device daily to review updated data in the app and receive important notifications, such as low battery alerts and software updates.

1. Bring your smartphone within 10 m (33 ft.) of the dog collar device.
   TIP: You may need to wake the device if your dog is stationary for a long period of time.
2. Open the Garmin Canine app. The dog collar device periodically syncs data with the Garmin Canine app automatically. The app indicates when the last sync occurred.
3. View your current data in the Garmin Canine app.

Bark Correction

NOTICE Before playing with your dog, you should remove the dog collar device or deactivate the correction feature.

When using the BarkLimiter 2 device, you should remove all other collars, tags, or other items from your dog. These other items can cause the BarkLimiter 2 device to activate when the dog is not barking.

The BarkLimiter 2 device can correct your dog automatically when the dog barks. The device detects vibrations to distinguish between barking and other vocalizations. You can use the Garmin Canine app to manually adjust the amount of barking allowed. You can allow no barking or set a custom number to indicate how many barks are allowed before correcting your dog. You can also allow some barking (up to 5 barks) to help avoid unintentional corrections resulting from everyday activity, such as yawning, sneezing, or going through a dog door.
You can use any of these methods when correcting your dog with the BarkLimiter 2 device.

• Tone
• Vibration
• Smart mode
• Stimulation

NOTE: If you turn off all correction methods, the device continues to detect your dog’s barks without performing any corrections. This can help you track your dog’s barking behavior using the Garmin Canine app.

Smart Mode

You can configure the bark allowance and correction type in the Garmin Canine app. You must enable smart mode on the device for the changes you make in the Garmin Canine app to take effect. If the device is not in smart mode, the device reports only the bark history.

Selecting a Training Mode

When your device is paired with a smartphone (Syncing the Dog Collar Device with the Garmin Canine App, page 2), you can use smart mode. You must select smart mode on the collar to use the settings in the Garmin Canine app. When you do not select smart mode during setup, the device defaults to the last standard mode you used.
TIP: The device turns off when you hold the button for more than three seconds.

When the mode is set in the app, the center LED indicator turns blue and the smart mode option becomes available after you cycle through the standard corrections. You must press the button to see the current mode. When a correction is issued in smart mode, the corresponding LED indicates your selected correction.
You can select a standard or smart mode.

1. Remove the collar band from the device.
2. Press the mode button until the green LED indicates the current mode.
3. Press the mode button within two seconds to cycle the green LED through the modes, and select a mode.
   NOTE: When the center LED is blue, you can select smart mode.
   After two seconds, the LED turns from green to red, and the device issues a sample correction of your selected mode.
   When you select stimulation mode, the device does not issue a sample correction.
   If the device is in smart mode, the blue LED cycles to a green, then a red LED on the selected correction mode.

Status LED Indicator

The center status LED indicators flashes when the device detects a bark or has a low battery charge.

Correction Methods

Stimulation: Applies a brief stimulation. You can manually adjust the stimulation intensity level using the Garmin Canine app.
Tone: Activates an audible tone. A tone can provide a patterned interruption to stop a behavior. The tone can be more effective when it is already associated with a negative consequence or alternate behavior.
Vibration: Applies a vibration to the dog for a short period of time to help break focus on the current cause of a behavior. The effectiveness of the vibration may vary based on the dog’s temperament and experience.

Automatic Intensity

The device can set the stimulation intensity level automatically based on the barking behavior of the dog. The device starts at the lowest intensity level and increases the intensity level gradually until the dog stops barking. When the dog is quiet, the intensity decreases over time.
The automatic intensity feature is designed to eliminate excessive nuisance barking. To stop barks sooner, you should set the intensity level manually.
The extended panic guard is a safety feature that disables stimulation after four corrections at the highest level, with 10 seconds between corrections. After the fourth correction, the device waits until no barks are detected in 2 minutes.
NOTE: When you set a fixed correction level, the device does not enter extended panic guard, even at the highest level of correction.

Choosing the Correct Intensity Level

You should choose the lowest intensity level that discourages the dog from barking. If you have never used a bark correction collar with the dog, the dog requires time and experience to learn that the bark is the cause of the correction.

1. From the Garmin Canine app, set the intensity to the lowest level.
2. For thirty minutes, when the dog barks, observe the dog for a reaction, such as a head shake, neck movement, a change in the way the dog barks, or just a change in expression.
3. If there is no reaction, increase the intensity by one level until the dog has a slight but recognizable reaction to the stimulation.
4. Allow 24 hours for the dog to learn to respond by not barking.
5. If the dog continues barking while wearing the collar, increase the intensity level gradually until you find the level that discourages the dog from barking.

Troubleshooting

The bark detection is too sensitive
If the BarkLimiter feature activates when the dog is not barking, or if the bark detection appears to be too sensitive, you can try these tips.

• Use the Garmin Canine app to adjust the amount of barking allowed before correcting your dog.
• Use the Garmin Canine app to turn off the BarkLimiter feature during heavy play, when the dog is very active, or when the dog is eating.
• Remove all other collars, tags, or other items from your dog.

My dog collar device is not responding

If the dog collar device stops responding, you can try these tips.

• Verify the dog collar device is turned on (Turning On the Dog Collar Device, page 1).
• Enable Bluetooth wireless technology on your smartphone.
• Pair the dog collar device with your smartphone (Pairing Your Smartphone with the Dog Collar Device, page 1).
• Confirm that you are the only user currently attempting to train the dog. NOTE: Only one smartphone can be connected to the dog collar device at a time.
• Check the battery level of the dog collar device in the Garmin Canine app. NOTE: You should sync your dog collar device with the Garmin Canine app to view updated information and battery level notifications.
• Hold the power key for 10 seconds to reset the dog collar device.

My device does not seem to be active

When the device is active, the selected mode LED flashes only when the device detects a bark, or you press the button.

• Verify the collar is turned on (Turning On the Dog Collar Device, page 1).
• Verify in the Garmin Canine app that the battery is not low.
• Remove the device from the dog, and press the mode button. The device flashes the current battery status. If the LED is red, or the device does not respond, charge the device (Charging the Dog Collar Device, page 1).

My device is not charging or does not hold a charge
If the device does not seem to be charging or holding a charge, you can try these tips.

Troubleshooting

• Verify the charging connections are secure (Charging the Dog Collar Device, page 1).
• Verify the AC adapter and outlet are functional.
  TIP: To determine whether the adapter is functional, you can plug the device into your computer with a USB cord.
• Verify the status LED indicators are green after charging.

My dog is still barking

If the dog continues barking while wearing the device, you can try any of these options to improve the effectiveness of the device.

• Tighten the collar until it is very snug (Fitting the Collar on Your Dog, page 2).
• Adjust the position of the device on the dog’s neck (Fitting the Collar on Your Dog, page 2).
• Wiggle the device to work the contact points through the dog’s coat.
• Gradually increase the intensity level (Choosing the Correct Intensity Level, page 3).

My dog is barking too much

The BarkLimiter 2 device detects barks and, when paired with the Garmin Canine app, shows when barking occurs. You can use this information to determine the cause of the dog barking and take steps to prevent the behavior. Each dog and situation is different, and you should experiment to discover what works for your dog.
TIP: Barking habits can change as a dog ages. A younger dog can outgrow barking behaviors, and an older dog can develop new barking behaviors. You should discuss sudden changes in barking behavior with your veterinarian.
If you are home when the dog barks, you can play with the dog or take the dog for a walk. If the dog barks when you are not home, you can take some precautions to reduce barking.

• Prevent the dog from seeing objects or people that can trigger barking. You can install privacy fencing for outdoor dogs, and close the blinds or curtains for indoor dogs.
• Provide a safe place for the dog to reduce anxiety barking. The safe place should be cozy, limit the view to outside stimuli, and include a toy or food to occupy the dog.
• Increase the physical and mental activity of the dog. Some dogs are vocal when they are bored. You can increase the amount of physical activity and engage the dog in active training and play time.
• Look for suggestions online (Getting More Information, page 4).

Getting More Information

You can find more information about this product on the Garmin website.

• Go to support.garmin.com for additional manuals, articles, and software updates.
• Go to buy.garmin.com, or contact your Garmin dealer for information about optional accessories and replacement parts.

Third-Party Software License Agreement

Copyright © 2009-2012 ARM Limited.
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of ARM nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL COPYRIGHT HOLDERS AND CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Device Information

Specifications

1 The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating.

GARMIN BC 35 Wireless Backup Camera

© 2018 Garmin Ltd. or its subsidiaries
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product.
Garmin® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. BC™ is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. Android™ is a trademark of Google Inc. Wi‑Fi® is a registered mark of Wi-Fi Alliance Corporation.

Introduction

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Viewing the Backup Camera
Your device shows video from the connected backup camera in different ways, depending on how the camera is connected to power.

1. Select an option to show video:
   • If the camera is connected to a reverse lamp (recommended), place the vehicle into reverse. The device automatically shows video from the backup camera.
   • If the camera is connected to a steady power source, select > Rear View to manually view the camera.
2. Select an option to resume normal device operation:
   • If the camera is connected to a reverse lamp (recommended), take the vehicle out of reverse. The device automatically resumes normal operation.
   • If the transmitter is connected to a steady power source, select to manually hide the camera

Pairing a BC 35 Backup Camera with a Garmin® Navigation Device

You must enable the Wi‑Fi® setting on your Garmin navigation device before you can connect to a camera. The BC 35 wireless backup camera is compatible with some Garmin navigation devices with Android™. Go to garmin.com/BC35 for more information about device compatibility. You can pair up to four BC 35 wireless backup cameras with your compatible Garmin navigation device.

1. Update your navigation device to the latest software.
   Your device may not support the BC 35 camera without the latest software. For more information about updating, see the owner’s manual for your navigation device.
2. Turn on the Garmin navigation device, and bring it within 3 m (10 ft.) of the camera.
3. Select > Rear View.
4. Select an option:
   • If this is the first camera you are connecting to the navigation device, select Add New Camera.
   • If this is an additional camera you are connecting to the navigation device, select > Choose Camera > Add New Camera.
5.  Follow the on-screen instructions.
   NOTE: The pairing code or password is located on the transmitter or the camera. After you complete the pairing process with a camera for the first time, it connects automatically to the Garmin navigation device.

Guidance Lines

NOTICE:  The guidance lines feature is intended for informational and reference purposes only. You are responsible for maintaining awareness of your surroundings.

Guidance lines provide an approximate visual representation of the vehicle’s path when in reverse. To provide the most accurate reference, you must align the guidance lines for each backup camera. You should not use the guidance lines feature if you have not aligned the guidance lines.

Aligning the Guidance Lines

For best reference, the guidance lines should be aligned to reflect the outside edges of the vehicle. You should align the guidance lines separately for each backup camera.

1. Position the vehicle with one side closely aligned to a curb, driveway, or parking stall lines. You may want to position the vehicle in the center of a parking stall, and then pull forward into the next stall. This allows you to use the parking stall lines in the rear of the vehicle as reference points for alignment. The curb, driveway, or parking stall lines should be clearly visible on the device.
2. From the main menu, select > Rear View.
3. If you have more than one camera paired, select > Choose Camera and select the camera to adjust.
4. Select > Settings > Adjust Guidance Lines.
5. Drag the circles on the corners of the guidance lines until they match the angle and position of the curb, driveway, or parking stall lines. The guidance lines should appear directly on top of your reference points. The red section of the guidance lines should be aligned with the rear of your vehicle.
6. If necessary, reposition the vehicle with the other side closely aligned to a curb, driveway, or parking stall lines, and repeat the alignment process.
   You should attempt to keep the guidance lines symmetrical, even if your vehicle is not in perfect alignment with the curb, driveway, or parking stall lines.
7. Select after alignment is complete.

Showing or Hiding Guidance Lines

1. Select > Rear View.
2. If you have more than one camera paired, select > Choose Camera and select the camera to adjust.
3. Select > Settings.
4. Select or clear the Show Guidance Lines check box.

Restoring Alignment
You can reset the guidance lines to their default alignment.

1. Select > Rear View.
2. If you have more than one camera paired, select > Choose Camera and select the camera to adjust.
3. Select > Settings > Adjust Guidance Lines.
4. Select > RESET.

Multiple Cameras

You can pair up to 4 wireless cameras with a compatible Garmin device. For example, you can pair one backup camera installed on the cab and a second backup camera installed on a trailer. From the camera view, you can cycle through the video feeds from all paired cameras. You can change the order in which cameras appear when you switch cameras.

Switching Cameras

When multiple backup cameras are transmitting to your device, you can switch between the views from the cameras.

1. Select > Rear View.
2. Select > Choose Camera.
3. Select a camera. The video feed from the camera appears, and the camera name appears at the top of the screen.

Changing the Camera Orientation

Depending on where the camera is placed on your vehicle, the video on your device may appear upside down or mirrored by default. You can rotate the video horizontally or flip the video vertically to correct the video.

1. Select > Rear View > > Settings.
2. Select an option:
   • Select Rotate Video.
     NOTE: This is useful for cameras placed on the front or rear of your vehicle.
   • Select Flip Video.
     NOTE: This is useful for cameras placed on either side of your vehicle.

Changing the Camera Order
You can change the order of the cameras in the list. When more than one camera is transmitting, the order of the cameras determine which video is shown.

1. Select > Rear View.
2. Select > Set Priority. A list of paired cameras appears.
3. Drag each camera to the desired location in the list. Cameras towards the top of the list have priority when more than one camera is transmitting.
   NOTE: You can switch manually to any transmitting camera, regardless of the position in the list (Switching Cameras, page 2).

Renaming a Camera
You can change the name that appears above a camera in the camera view. You should use a descriptive name that clearly identifies the location of the camera.

1. From the main menu, select > Rear View.
2. If you have more than one camera paired, select > Choose Camera and select the camera to rename.
3. Select > Settings > Rename.

Removing a Paired Camera
If you have already paired 4 BC 35 cameras with your device, you must remove a paired camera before you can pair a new one.

1. Select > Rear View.
2. If necessary, select > Choose Camera and select the camera to remove.
3. Select > Settings > Unpair.
4. Select OK.

Wireless and Network Settings

Turning on and Off the Quick Connection Setting

The BC 35 wireless backup camera uses Wi‑Fi to communicate with your Garmin navigation device. Turning on the Quick Connection setting increases the priority of the camera connection on the device. This helps the device establish a connection with the paired camera more quickly, but may affect the connection speed for other Wi‑Fi devices.

1. From the main menu, select > Rear View.
2. If you have more than one camera paired, select > Choose Camera and select the camera to adjust.
3. Select > Settings.
4. Select or clear the Quick Connection check box.

Appendix

Specifications

• Camera and transmitter input voltage From 9 to 28 Vdc
• Transmitter fuse 500 mA, fast-blow
• Camera and transmitter current usage 150 mA at 12 Vdc
• Water rating (camera) IEC 60529 IPX7*
• Water rating (transmitter) Not waterproof
• Operating temperature range From 20° to 70°C (from -4° to 158°F)

The camera withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to garmin.com/waterrating

30 cm (11.8 in.)

• Compass Safe Distance

October 2020      Printed in Taiwan        190-02783-91_0A

Push cables FIRMLY.

1 Blue and Brown wires are only needed for sharing data with another ECHOMAP™ or STRIKER device.

User Manual

© 2021 Garmin Ltd. or its subsidiaries
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product.

Garmin®, the Garmin logo, ANT+®, Approach®, Auto Lap®, Auto Pause®, Edge®, and Venu® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Body Battery™, Connect IQ™, Firstbeat Analytics™, Garmin AutoShot™, Garmin Connect™, Garmin Express™, Garmin Golf™, Garmin Index™, Garmin Move IQ™, Garmin Pay™, Health Snapshot™, tempe™, TrueUp™, and Varia™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

Android™ is a trademark of Google LLC. Apple®, iPhone®, and iTunes® are trademarks of Apple Inc., registered in the U.S. and other countries. The BLUETOOTH® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. iOS® is a registered trademark of Cisco Systems, Inc. used under license by Apple Inc. Wi‑Fi® is a registered mark of Wi-Fi Alliance Corporation. Windows® is a registered trademark of Microsoft Corporation in the United States and other countries. Other trademarks and trade names are those of their respective owners.
This product is ANT+® certified. Visit www.thisisant.com/directory for a list of compatible products and apps.
M/N: A03947, A03948

Introduction

WARNING :

• See the Important Safety and Product Information guide in the product box for product warnings and other important information.
• Always consult your physician before you begin or modify any exercise program.

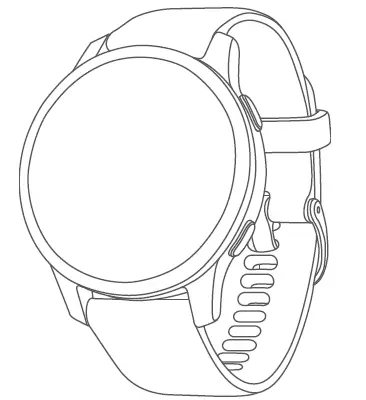

Device Overview

A – Action button: Hold to turn on the device.
Press to start and stop the activity timer.
Hold for 2 seconds to view the controls menu, including device power.
Hold until you feel 3 vibrations to launch the assistance feature.

B – Back (Menu) button: Press to return to the previous screen, except during an activity.
During an activity, press to mark a new lap, start a new set or pose, or advance to the next stage of a workout.
Hold to view a menu of device settings and options for the current screen.

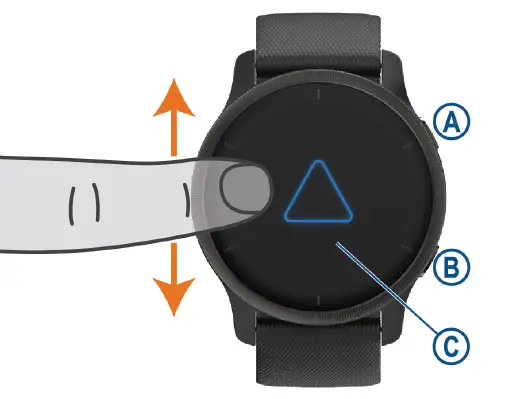

C – Touchscreen: Swipe up or down to scroll through glances, features, and menus.
Tap to select.
Double-tap to wake the device.
Swipe right to return to the previous screen.
During an activity, swipe right to view the watch face and glances.
From the watch face, swipe right to view the shortcut feature.

Touchscreen Tips

• Drag up or down to scroll through lists and menus.
• Swipe up or down to scroll quickly.
• Tap to select an item.

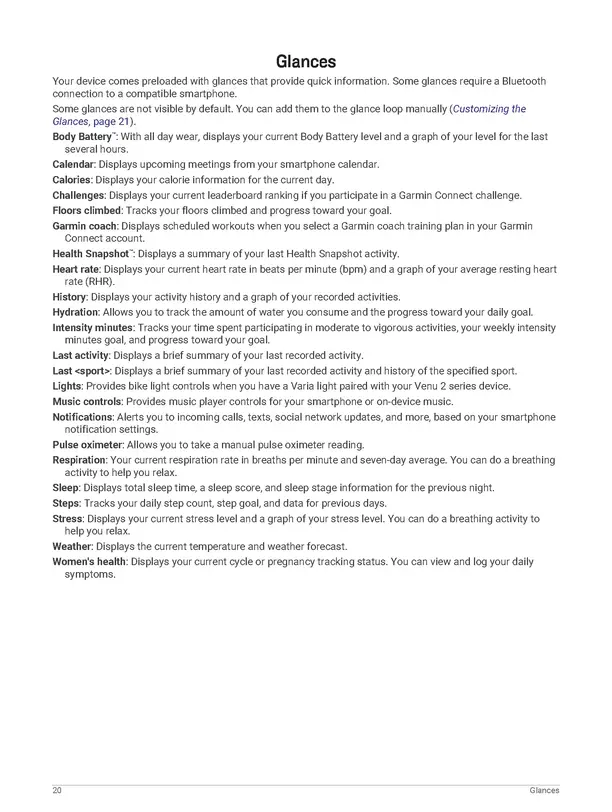

• From the watch face, swipe up or down to scroll through the glances on the device.
• Tap a glance to view additional information, if available.
• During an activity, swipe up or down to view the next data screen.
• During an activity, swipe right to view the watch face and glances, and swipe left to return to the activity data fields.
• When available, select ∧ or swipe up to view additional menu options.
• Perform each menu selection as a separate action.

Locking and Unlocking the Touchscreen

You can lock the touchscreen to prevent inadvertent screen touches.

1.  Hold to view the controls menu.
2. Select .
   The touchscreen locks and does not respond to touches until you unlock it.
3. Hold any button to unlock the touchscreen.

Using the Controls Menu

The controls menu contains customizable shortcuts, such as locking the touchscreen and turning the device off. NOTE: You can add, reorder, and remove the shortcuts in the controls menu (Customizing the Controls Menu, page 39).

1. From any screen, hold A for 2 seconds.

2. Select an option.

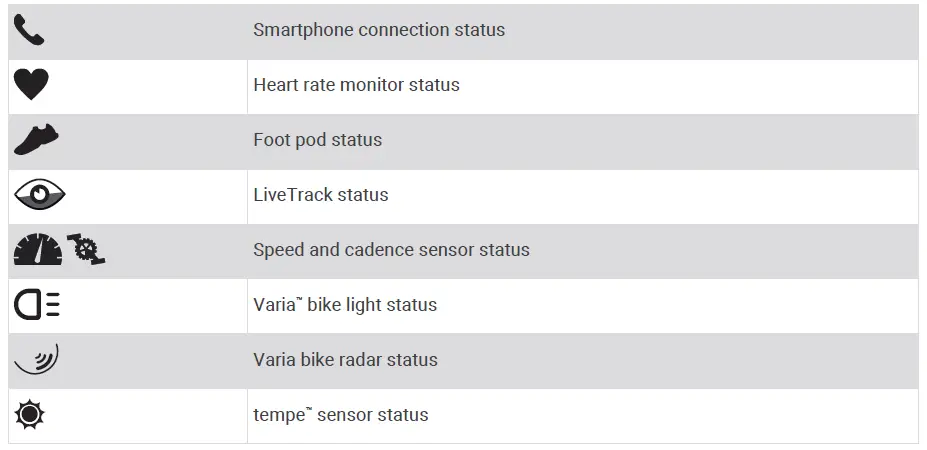

Icons

A flashing icon means the device is searching for a signal. A solid icon means the signal was found or the
sensor is connected. A slash through an icon means the feature is turned off.

Setting Up Your Watch

To take full advantage of the Venu 2 series features, complete these tasks.

• Pair the device with your smartphone using the Garmin Connect™ app (Pairing Your Smartphone, page 3).

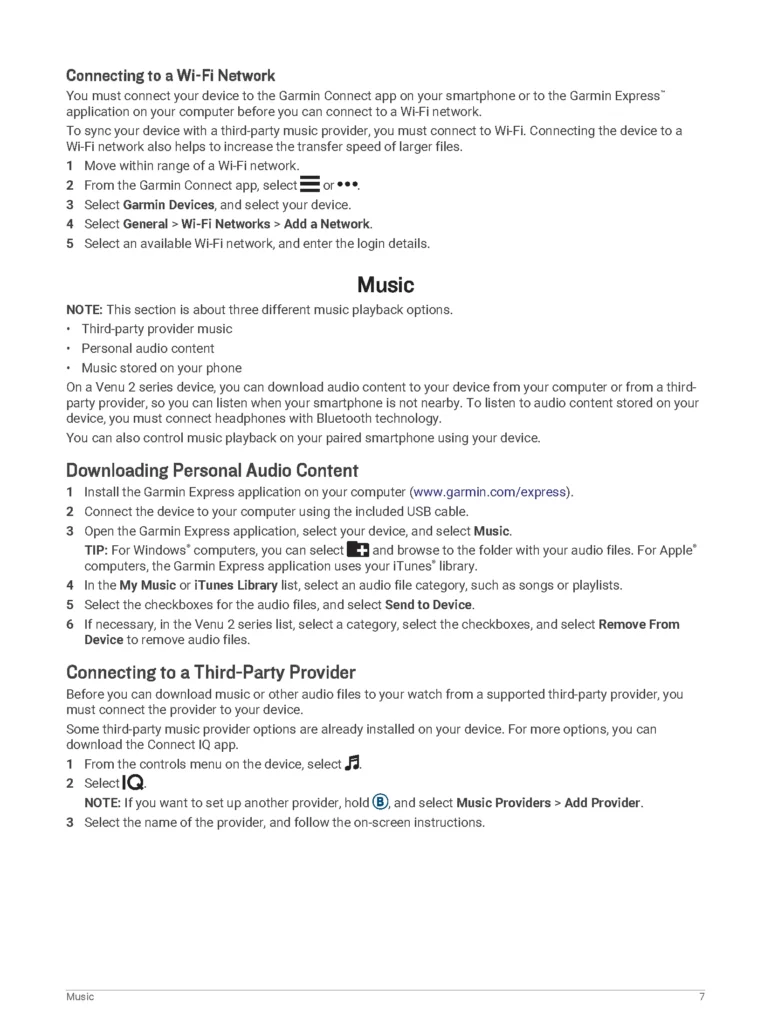

• Set up Wi‑Fi® networks (Connecting to a Wi‑Fi Network, page 7).
• Set up music (Music, page 7).
• Set up your Garmin Pay™ wallet (Setting Up Your Garmin Pay Wallet, page 9).

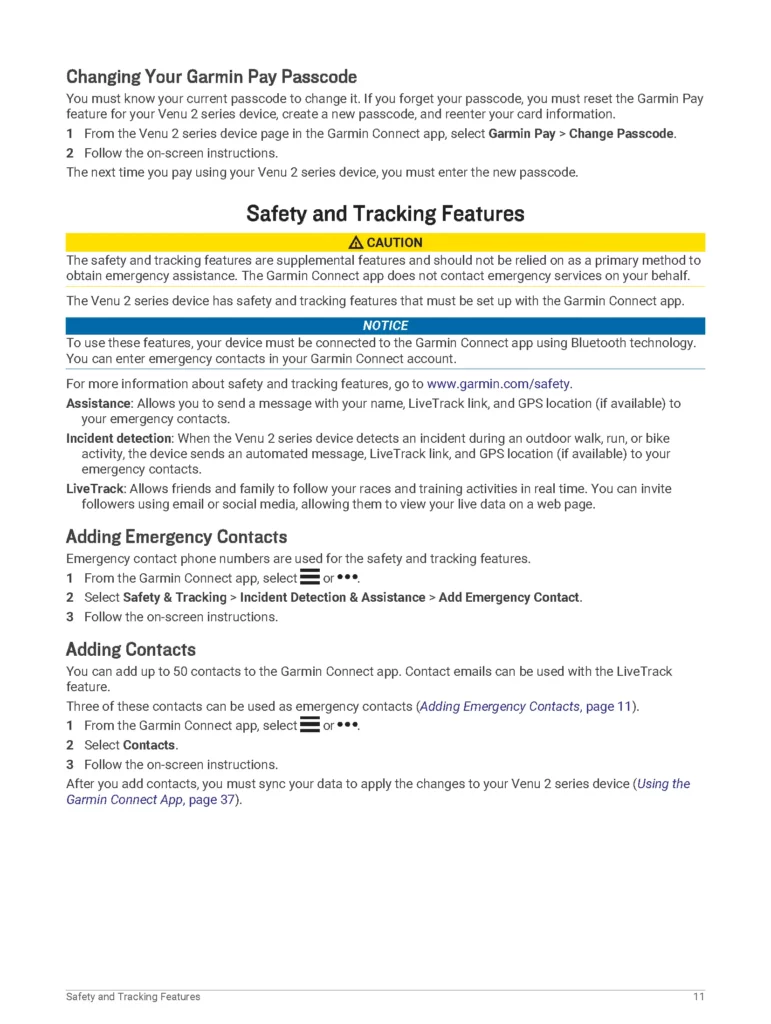

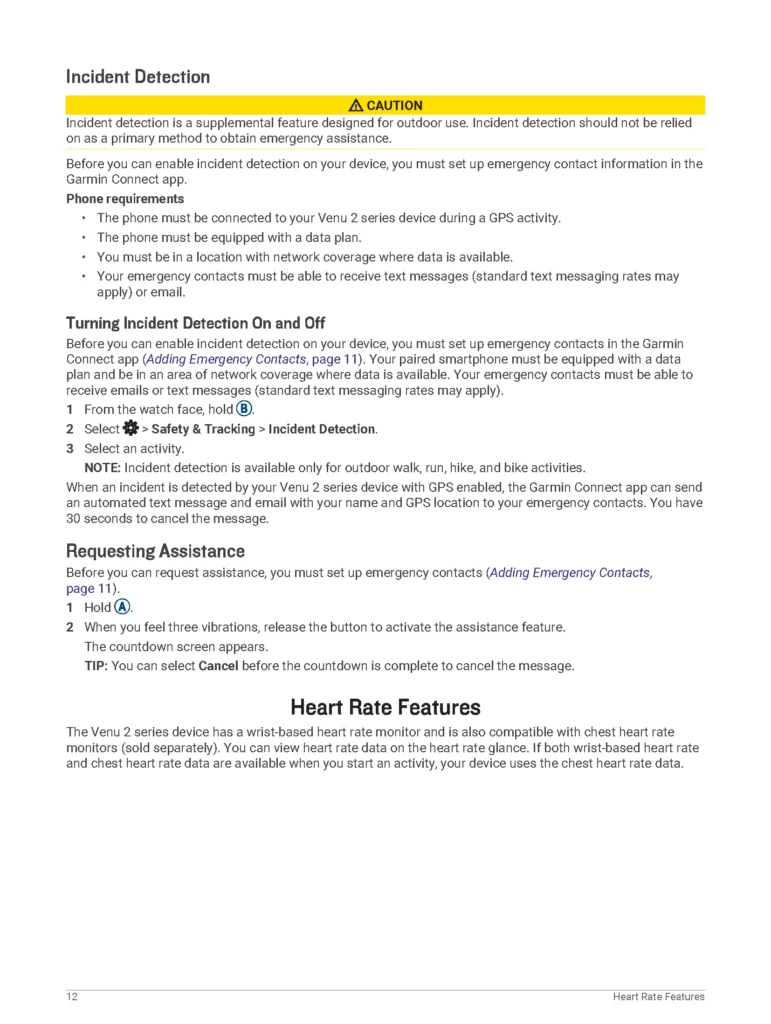

• Set up safety features (Safety and Tracking Features, page 11).

Smart Features

Pairing Your Smartphone
To set up the Venu 2 series device, it must be paired directly through the Garmin Connect app, instead of from
the Bluetooth® settings on your smartphone.

1. From the app store on your smartphone, install and open the Garmin Connect app.
2. Select an option to enable pairing mode on your device:
   • If this is the first time you are setting up your device, hold A to turn on the device.
   • If you previously skipped the pairing process or paired your device with a different smartphone, hold B,
   and select > Connectivity > Pair Phone to manually enter pairing mode.
3. Select an option to add your device to your Garmin Connect account:
   • If this is the first device you have paired with the Garmin Connect app, follow the on-screen instructions.
   • If you have already paired another device with the Garmin Connect app, from the menu, select
   Garmin Devices > Add Device, and follow the on-screen instructions.

Connected Features

Connected features are available for your Venu 2 series device when you connect the device to a compatible smartphone using Bluetooth technology and install the Garmin Connect app on the connected smartphone. Go to www.garmin.com/apps for more information. Some features are also available when you connect your device to a Wi‑Fi network.

Phone notifications: Displays phone notifications and messages on your Venu 2 series device.

LiveTrack: Allows friends and family to follow your races and training activities in real time. You can invite followers using email or social media, allowing them to view your live data on a Garmin Connect tracking page.
Activity uploads to Garmin Connect: Automatically sends your activity to your Garmin Connect account as soon as you finish recording the activity.

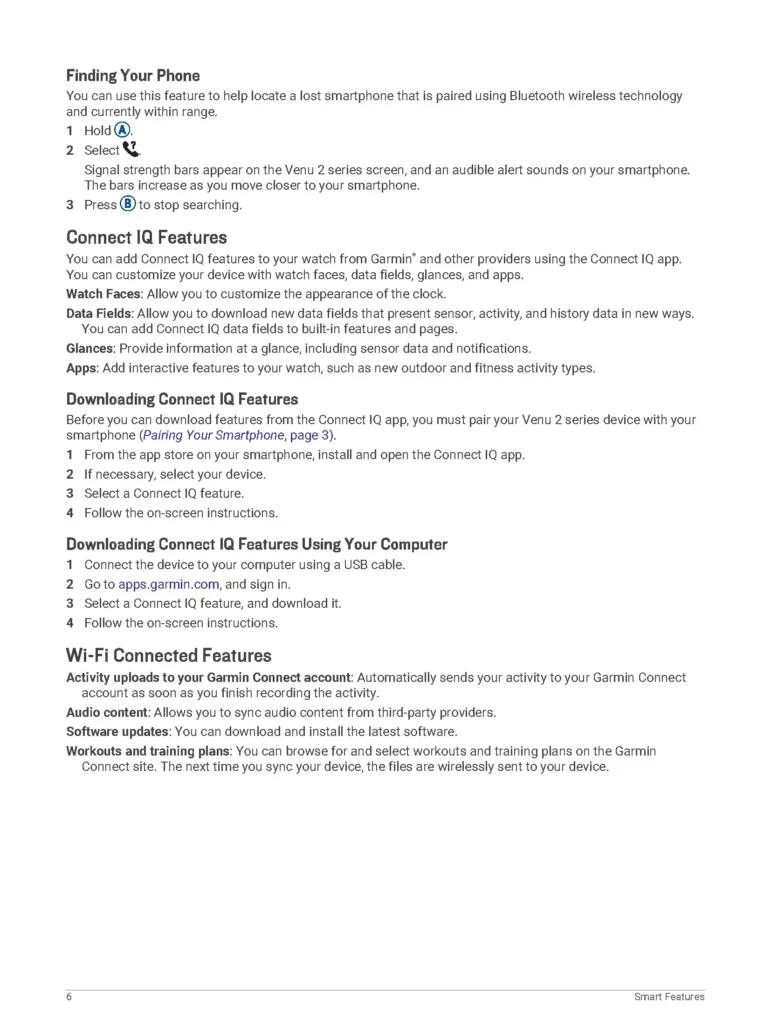

Connect IQ™: Allows you to extend your device features with new watch faces, glances, apps, and data fields.

Software Updates: Allows you to update your device software.

Weather: Allows you to view current weather conditions and weather forecasts.

Bluetooth sensors: Allows you to connect Bluetooth compatible sensors, such as a heart rate monitor.

Find my phone: Locates your lost smartphone that is paired with your Venu 2 series device and currently within Bluetooth range.

Find my device: Locates your lost Venu 2 series device that is paired with your smarphone and currently within Bluetooth range.

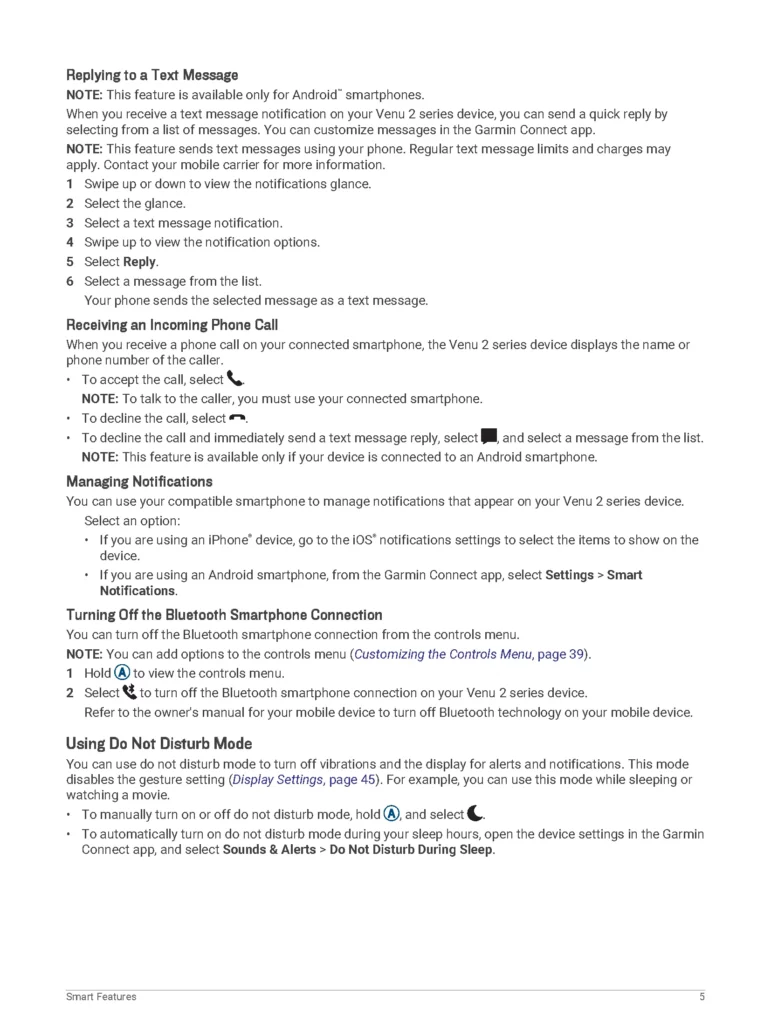

Phone Notifications

Phone notifications require a compatible smartphone to be within Bluetooth range and paired with the device. When your phone receives messages, it sends notifications to your device.

Enabling Bluetooth Notifications

Before you can enable notifications, you must pair the Venu 2 series device with a compatible smartphone (Pairing Your Smartphone, page 3).

1. Hold .
2. Select > Connectivity > Phone > Notifications.
3. Select During Activity to set preferences for notifications that appear when recording an activity.
4. Select a notification preference.
5. Select Not During Activity to set preferences for notifications that appear when in watch mode.
6. Select a notification preference.
7. Select Timeout.
8. Select a timeout duration.
9. Select Privacy.
10. Select a privacy preference.

Viewing Notifications

1. From the watch face, swipe up or down to view the notifications glance.
2. Select the glance.
3. Select a notification to read the full notification.
4. Swipe up to view the notification options.
5. Select an option:
   • To act on the notification, select an action, such as Dismiss or Reply.
   The available actions depend on the type of notification and your phone operating system. When you dismiss a notification on your phone or the Venu 2 series device, it no longer appears in the glance.
   • To return to the notification list, swipe right.

Beginning with G3X Touch software version 8.81, the G3X Touch can be configured to provide display and control for the GTX 345DR transponder with Extended Modes (IFF Modes 1 and 2) enabled. IFF (Identification Friend or Foe) is the military designation used by Air Traffic Control (ATC) to identify and track military aircraft. The GTX 345DR transponder does not support IFF Modes 4 or 5. In addition, support for Mode A/C Lock remote control was also added to provide a means to inhibit all transmissions that include aircraft identification (ICAO address, tail number, flight ID, etc.) and position data.
Only the GTX 345DR transponder is compatible with the G3X Touch for this purpose. These features must be enabled on the transponder using the GTX PC tool (all other configuration items are handled by the GDU). Once a transponder with these features enabled is connected to the G3X Touch, the Transponder Configuration Page displays new configuration items, and new user interface controls.

CONFIGURATION

EXTENDED MODES
When a transponder with extended modes enabled (using the GTX PC tool) is connected to the G3X Touch, the following new configuration items are displayed on the Transponder Configuration Page:

• Mode 1 Code Length – Selects the number of digits to be used for Mode 1 IFF codes. The default is two, which allows for up to 32 IFF codes. You can select four, allowing up to 4096 codes.
• Emergency Mode Discrete – When enabled, a discrete input on the GTX will be configured as an additional way to trigger the IFF emergency mode (pin 10 on GTX J3251, active low). Due to the way the GTX works, IFF emergency can always be enabled via our user interface, but the discrete input takes precedence when active.

MODE A/C LOCK
When a transponder with Mode A/C Lock enabled (using the GTX PC tool) is connected to the G3X Touch, the following new configuration item is displayed on the Transponder Configuration Page.

• Mode A/C Lock Discrete – If enabled, Mode A/C Lock is only controllable via discrete input to the transponder (GTX J3251, pin 11, active low), and is not controllable through the G3X Touch user interface.


PILOT INTERFACE

EXTENDED MODES

Each IFF mode has its own code and can be enabled or disabled individually.

The Mode 3/A code in the data bar is displayed in green when airborne, Mode 3/A is enabled, and the transponder is not in Standby mode. The 1, 2, and 3 characters are displayed in either white or gray, which indicates their enabled/disabled state. The mode is highlighted green when the transponder is replying.

IFF EMERGENCY MODE

When Emergency Mode is enabled, the GTX 345DR includes emergency data replies to Mode 1, 2, and 3/A interrogations. Also, the Mode 3/A code is held at 7700 while Emergency Mode is active. Once Emergency Mode is disabled, Mode 3/A reverts to the code previously entered by the pilot prior to enabling Emergency Mode. Emergency Mode can be enabled or disabled by either a button on the GDU or by an optional discrete input and toggle switch.
Both controls are available if the toggle switch is used. If a toggle switch is used, it is wired as a discrete input to the GTX 345DR unit and it will override the GDU button when switched on. The toggle switch should be guarded to prevent accidentally enabling Emergency Mode.
The GDU button can control emergency mode while the toggle switch is switched ‘OFF’. The GTX 345DR automatically exits ‘Standby’ when the emergency mode is activated. A command to put the GTX into ‘Standby’ will be ignored while Emergency Mode is active.
ALTITUDE REPORTING
The Altitude Reporting button toggles Altitude Reporting On/Off. When Altitude Reporting is ‘On’, altitude data is included in replies to Mode C and S interrogations (when enabled) and ADS-B out squitters (when enabled). When Altitude Reporting is ‘Off’, altitude data is not included in these replies/squitters.
NOTE: For the GTX 345DR to transmit altitude in Mode C replies, Mode 3 must be set to ‘Normal’ (not ‘Standby’). The same is true for Mode S and ADS-B transmissions; in addition, ADS-B Mode S Inhibit (Mode A/C Lock) must be disabled and ADS-B Transmit (when control is present) must be enabled.

FUNCTION

Touching the Normal button allows for the normal operation of all enabled modes. Touching the Standby button places the transponder in ‘Standby’ which disables all transponder RF transmit capability. The option to place the transponder in ‘Standby’ is not available while in emergency mode.
MODE A/C LOCK
Touch the ADS-B/Mode S Inhibit button to inhibit all ADS-B out transmissions, all replies to Mode S interrogations, and acquisition squitter transmissions. The GTX 345DR reverts to ATCRBS (Air Traffic Control Radar Beacon System) the only operation, therefore, it will continue to reply to Mode 1/2 (if the extended modes feature is enabled), and Mode 3/A/C interrogations regardless of aircraft air state.
The intent of this feature is to provide a means to inhibit all transmissions that include aircraft identification (ICAO address, tail number, flight ID, etc.) and position data. This feature does not prevent the aircraft from being tracked as it will still reply to Mode 3/A/C
interrogations if Mode 3 is enabled.
ADS-B/Mode S Inhibit mode can be enabled by either control on the GDU or by a separate toggle switch. Only one of these can be used in the installation. If a toggle switch is used, it is wired as a discrete input to the GTX 345DR unit and the GDU control does not appear. When the toggle switch is not used, control and status are provided on the GDU. Also, when the toggle switch is not used, the ADS-B TX button may be configured to appear on the Transponder page for another level of control over 1090 ES transmissions, while not inhibiting Model S.
The ‘NO MODE S TX’ and ‘NO ADS-B TX’ CAS messages are displayed when ADS-B / Mode
S Inhibit is active. The ‘NO ADS-B TX’ CAS message is displayed when ADS-B TX is disabled.

ADS-B TRANSMIT

The ADS-B Transmit button toggles ADS-B out On/Off. When disabled, 1090 ES transmissions do not occur. When enabled, 1090 ES transmissions occur when the unit is not in Standby, Mode 3 is enabled, and the Mode A/C Lock toggle switch is set to ‘Disable’.
The ADS-B Transmit button is only available in installations that use an external toggle switch to control Mode A/C Lock, or if the Mode A/C Lock feature is not enabled. Otherwise, the ADS-B/Mode S Inhibit button is displayed. In addition, the ADS-B Transmit button is only displayed if the GTX is configured to allow pilot control of ADS-B out.

Garmin International, Inc.
1200 East 151st Street
Olathe, Kansas, 66062, U.S.A.
Garmin AT Inc.
2345 Turner Road SE
Salem, OR 97302, U.S.A.
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park
Southampton, Hampshire SO40 9LR U.K.
Garmin Corporation
No. 68, Zhangshu 2nd Road
Xizhi District, New Taipei City, Taiwan
Contact Garmin Product Support at www.flygarmin.com.
© 2021 Garmin Ltd. or its subsidiaries
190-02856-00 Rev. A

GARMIN
VÍVOFIT® JR. 2
Owner’s Manual

© 2017 Garmin Ltd. or its subsidiaries
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product. Garmin®, the Garmin logo, and vívofit ® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Connect™ and Toe-to-Toe™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. Android™ is a trademark of  Google Inc. Apple ® is a trademark of Apple Inc., registered in the U.S. and other countries. The Bluetooth® word mark and logos are owned by Bluetooth SIG,  Inc. and any use of such marks by Garmin is under license. Other trademarks and trade names are those of their respective owners. M/N: A03380

Introduction

WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other important information.
Always consult your physician before you begin or modify any exercise program.

Using the Device

• Press key 1 to scroll through device features (Icons, page 1).
• Hold the key for 1 second and release it to view the menu (Menu Options, page 2).
• Press the key to scroll through menu options.

• Hold the key for 1 second and release it to select menu options.
• Hold the key for less than 1 second to turn on the backlight. The backlight turns off automatically.

Pairing with Your Smartphone
Before you can pair your vívofit jr. 2 devices with a smartphone, at least one parent or guardian must have a Garmin Connect™ account (Garmin Connect, page 1). Your device must be paired directly through the vívofit jr. app, instead of from the Bluetooth® settings on your smartphone.

1. From the app store on your smartphone, install and open the vívofit jr. app.
2. Log on using your Garmin Connect username and password.
3. Follow the instructions in the app to set up your family and add each child.
4. On the vívofit jr. 2 devices, hold the key until appears. The device enters pairing mode.
5. Follow the instructions in the app to complete the setup process.
   NOTE: You can pair multiple mobile devices, such as a tablet or another parent’s smartphone (Pairing Multiple Mobile Devices, page 4).

vívofit jr. App
The free vívofit jr. app lets you track your children’s daily activity and chore progress.
Activity tracking: Allows you to track your children’s daily steps, active minutes, and sleep data.
Chore progress: Allows you to create and manage chores, award coins for chore completion, and redeem coins for custom rewards.
Adventure map: Allows you to view your children’s progress each day they reach the 60-minute activity goal, revealing adventures.
Leaderboard: Allows you to compare steps for the whole family and connections from your Garmin Connect community.
Settings: Allows you to customize your device and user settings, including alert tones, icons, profile pictures, and more.

Garmin Connect
At least one parent must have a Garmin Connect account to use the vívofit jr. app. To sign up for a free account, go to www.garminconnect.com. Your Garmin  Connect account gives you the tools to track, analyze, share, and encourage each other. Record the events of your active lifestyle and participate in family challenges by connecting a compatible activity tracker with your Garmin Connect account.

Icons
Icons represent the device features. You can press the key to scroll through the features.

	The current date. The device updates the time and date when you send data to your smartphone.
	The total number of steps taken for the day.
	The total number of active minutes for the day and progress toward the 60-minute activity goal.
	The number of chores completed and assigned for the day.
	The total number of coins earned.
	New level. You can earn moves and complete missions on the adventure map.

Activity Goal
To improve children’s health, organizations such as the U.S. Centers for Disease Control and Prevention recommend at least 60 minutes of physical activity each day. This can include moderate-intensity activity, such as brisk walking, or vigorous-intensity activity, such as running. The device encourages children to be active by displaying their progress toward the 60-minute daily goal.
Chore Progress
You can use the vívofit jr. app to create and assign chores, as well as update your children’s chore progress. When your vívofit jr. 2 devices is connected to a  smartphone, the device displays the updated number of chores completed À and assigned Á for the day.

Coins Earned
You can use the vívofit jr. app to award coins for chore completion. When your vívofit jr. 2 devices is connected to a smartphone, the device displays the updated number of coins earned 1.

Coins can be redeemed for rewards in the vívofit jr. app. You can use the app to create custom rewards and set the number of coins needed to redeem a reward.  When you redeem coins in the app and connect your device to a smartphone, the device displays the updated coin total.

Menu Options
You can hold the key for 1 second, and release it to view the menu.
TIP: You can press the key to scroll through the menu options.

	Sends data to your Bluetooth-enabled smartphone.
	Displays task timer options.
	Starts the stopwatch.
	Starts a Toe-to-Toe™  challenge.
	Displays device information.
	Returns to the previous screen.

Using the Task Timer
You can use your device to start a countdown timer.

1. Hold the key to view the menu.
2. Hold.
3. Press the key to scroll through the task timer options.
4. Hold the key to select and start a timer. The device beeps, the timer begins counting down, and the device sends a notification to the nearest paired smartphone. When 3 seconds remain, the device beeps until the time expires.
   TIP: You can hold the key to stop the timer.

Task Timer Options
Your device comes preloaded with task timers that can be used for common activities. For example, you can use the 2-minute timer for brushing your teeth or any other task that takes 2 minutes. Each task is timed for a preset number of minutes.

Starting a Toe-to-Toe Step Challenge
You can start a 2-minute, Toe-to-Toe step challenges with yourself or with a friend.
NOTE: This procedure describes a two-player, step challenge, and both players must start a challenge on their vívofit jr. 2 device. During a single-player challenge, the timer starts when you hold.

1. Hold the key to view the menu.
2. Hold.
3. Select to challenge another vívofit jr. 2 players in range (3 m).
4. When the player name appears, hold.
   The device counts down for 3 seconds before the timer starts.
5. Get steps for 2 minutes.
   When 3 seconds remain, the device beeps until the time expires.
6. Bring the devices in range (3 m).
   The devices display the steps for each player and first or second place.
   Players can start another challenge or exit the menu.

Using the Stopwatch

1. Hold the key to view the menu.
2. Hold.
3. Press to start the timer.
4. Press to stop the timer.
5. If necessary, press to reset the timer.
6. Hold the key to exit the timer.

Move Bar
Sitting for prolonged periods of time can trigger undesirable metabolic state changes. The move bar reminds you to keep moving. After one hour of inactivity,  move bar 1 appears. Additional segments 2 appear after every 15 minutes of inactivity.

You can reset the move bar by walking a short distance.
Sleep Tracking
While you are sleeping, the device monitors your movement. You can set your normal sleep hours in the vívofit jr. app settings. You can view your sleep statistics in the vívofit jr. app.

History

Your device keeps track of your daily activity and sleep statistics. This history can be sent to the vívofit jr. app.
Your device stores your activity data for up to 4 weeks. When the data storage is full, the device deletes the oldest files to make room for new data.
Sending Data Manually to Your Smartphone
Your device periodically sends data automatically to the nearest paired Bluetooth device. You can also manually send data at any time. This allows you to view activities, chores, and coins in the vívofit jr. app.
1 Bring the device near your smartphone.
2 Open the vívofit jr. app.
3 On the vívofit jr. 2 devices, hold the key to view the menu. appears while the device is sending data.
4 On your smartphone, swipe down to refresh the app.

Customizing Your Device

vívofit jr. App Settings
You can customize your device, user, and app settings in the vívofit jr. app.
From the vívofit jr. app, select More.
Family settings: Allows you to customize your family settings. For example, you can edit your family name or invite additional parents or guardians.
App settings: Allows you to customize app settings and view legal and regulatory information.
Help: Includes device care, videos, and other helpful information.
Kid Settings
From the vívofit jr. app, select your child, and select Settings.
Settings: Allows you to customize device settings. For example, you can turn on or off alert tones, change the steps icon, and customize the device’s display text.
Register an Accessory Band: Allows you to register an accessory band and unlock a new adventure map.

Device Information

Specifications

*The device withstands pressure equivalent to a depth of 50 m. For more information, go to www.garmin.com/waterrating.
Software Update
When a software update is available, your device automatically downloads the update when you send data to your smartphone (Sending Data Manually to Your Smartphone, page 2).
A progress bar and appear on the vívofit jr. 2 devices during the update process. The update can take several minutes. You should keep the device near your smartphone during the update. When the update is complete, your device restarts.

Viewing Device Information
You can view the unit ID and software version.
1 Hold the key to view the menu.
2 Hold.

Device Care
NOTICE
Avoid extreme shock and harsh treatment, because it can degrade the life of the product.
Avoid pressing the keys underwater.
Do not use a sharp object to clean the device.
Avoid chemical cleaners, solvents, and insect repellents that can damage plastic components and finishes.
Thoroughly rinse the device with fresh water after exposure to chlorine, saltwater, sunscreen, cosmetics, alcohol, or other harsh chemicals. Prolonged exposure to these substances can damage the case.
Do not place in high-temperature environments, such as a clothes dryer.
Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage.

Cleaning the Device
1 Wipe the device using a cloth dampened with a mild detergent solution.
2 Wipe it dry.
After cleaning, allow the device to dry completely.
TIP: For more information, go to www.garmin.com/fitandcare.

User-Replaceable Batteries
WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Replacing the Battery
The device uses one CR1632 battery.
1 Remove the device from the band.

2 Use a small Phillips screwdriver to remove the four screws on the back of the device.
3 Remove the rear case and battery.

4 Insert the new battery with the negative side facing the inside of the front cover.
5 Verify the gasket is not damaged and that it is fully seated in the rear case.
6 Replace the rear case and the four screws.
7 Tighten the four screws equally and firmly.
8 Insert the device into the flexible silicone band by stretching the band material around the device.
The arrow on the device must be aligned with the arrow inside the band.

Band Replacement
The stretchy band is designed to fit most children ages 4 to 7. The adjustable band is designed to fit children 6 and older. You can contact Garmin® customer support for information about optional accessories and replacement parts. The removable device is compatible with vívofit 3 and vívofit jr. bands.

Replacing the Band
Go to buy.garmin.com, or contact your Garmin dealer for information about optional accessories.
1 Remove the device from the band.

2 Insert the device into the flexible silicone band by stretching the band material around the device.
The arrow on the device must be aligned with the arrow inside the band.

Troubleshooting

My step count does not seem accurate
If your step count does not seem accurate, you can try these tips.
• Go to http://garmin.com/ataccuracy.
• Wear the device on your non-dominant wrist.
• Carry the device in your pocket when actively using your hands or arms only.
NOTE: The device may interpret some repetitive motions, such as clapping your hands or brushing your teeth, as steps.

My device does not display the correct time
The device updates the time and date when you send data to your smartphone. You should manually send data to your smartphone to receive the correct time when you change time zones, and to update for daylight saving time.
1 Confirm that your smartphone or mobile device displays the correct local time.
2 Send data to your smartphone (Sending Data Manually to Your Smartphone, page 2).
The time and date are updated automatically.

Is my smartphone compatible with my device?
The vívofit jr. 2 device is compatible with smartphones for Android™ and Apple® mobile digital devices using Bluetooth Smart wireless technology.
Pairing  Multiple Mobile Devices
After you complete the initial setup (Pairing with Your Smartphone, page 1), you can pair your vívofit jr. 2 device with up to two additional mobile devices, such as a tablet or another parent’s smartphone.

1. From the app store on your smartphone or tablet, install and open the vívofit jr. app.
2. Log on using your Garmin Connect username and password.
3. Follow the instructions in the app to join an existing family.
4. Bring your mobile device within 3 m (10 ft.) of your vívofit jr. 2 devices.
   NOTE: Stay 10 m (33 ft.) away from other mobile devices while pairing.
5. If necessary, turn off Bluetooth wireless technology on previously paired mobile devices.
6. On the vívofit jr. 2 device, hold the key to view the menu.
7. Hold to enter pairing mode.
8. Follow the instructions in the app to complete the pairing process.
9. If necessary, repeat steps 1 through 8 for each additional mobile device.

How do I pair an additional device with the vívofit jr. app?
If you have already paired a device with the vívofit jr. app, you can add a new child and device from the kid menu. You can pair up to eight devices.
NOTE: Each child can pair with one device.
1 Open the vívofit jr. app.
2 Select+.
3 Follow the on-screen instructions.

Resetting the Device
If the device stops responding, you may need to reset it. This does not erase any of your data.
NOTE: Resetting the device also resets the move bar.
1 Hold the device key for 15 seconds.
2 Release the device key.
The screen turns off, the device resets, and the screen turns on.

My device won’t turn on
If your device no longer turns on, you may need to replace the batteries.
Go to (Replacing the Battery, page 3).

Appendix

Getting More Information
• Go to support.garmin.com for additional manuals, articles, and software updates.
• Go to www.garmin.com/intosports.
• Go to www.garmin.com/learningcenter.
• Go to buy.garmin.com, or contact your Garmin dealer for
information about optional accessories and replacement parts.

Index

A
accessories 2, 4
activity tracking 1, 2
apps 1
B
bands 2–4
battery, replacing 3
Bluetooth technology 4
C
challenges 2
cleaning the device 3
customizing the device 2
D
data 1
transferring 1
G
Garmin Connect 1, 2
goals 1
H
history 2
I
icons 1, 2
K
keys 1, 2
M
menu 1
P
pairing, smartphone 4
R
replacement parts 3, 4
replacing the battery 3
resetting the device 4
S
settings 2
sleep mode 2
smartphone 1, 2, 4
pairing 4
software
updating 3
version 3
specifications 3
stopwatch 2
T
time of day 4
timer 2
troubleshooting 4
U
unit ID 3
updates, software 3

support.garmin.com

September 2017
190-02280-00_0A

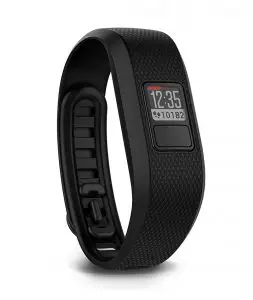

GARMIN vivofit 3 Sizing Guide

Use this guide to make sure you select the right-sized band for your wrist when purchasing your new device.

Regular Band for a wrist circumference between 5.4–8.1” / 135–205 mm
X-Large Band for a wrist circumference between 6.5–8.9” / 165–225 mm

Step 1

Print out the guide at 100 percent. You will know it printed correctly if you measure the 1” or 10mm lines above and they measure correctly

Step 2

Cut along the dotted line under the band.

Step 3

Wrap the paper band around the wrist you would like to wear the product on. Be sure to keep the arrow on top

Step 4

Choose the size that fits your wrist snugly. If you are close to the line between sizes, consider choosing the larger size.

GARMIN Truswing Golf Swing Sensor

Getting Started

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Charging the Device

Warning: This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight.

Notice: To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer.

The device is powered by a built-in lithium-ion battery that you can charge using a USB port on your computer.

1. Pull up the weather cap from the USB port .
2. Plug the small end of the USB cable into the USB port on the Device
3. Charge the device completely.
4. The red LED flashes when charging. When charging is complete, the red LED remains on.

Turning On the Device

Hold the device key for one second.

Turning Off the Device
Hold the device key for approximately two seconds.

Attaching the Sensor to a Club

1. Position the sensor on the shaft of your club below the grip.NOTE: When positioning the device, verify that it is located on a smooth part of the shaft.
2. Align the guide line parallel to the grooves on the club face
3. Close the clamp around the club.
4. Tighten the thumbscrew so the device does not move during use.

NOTICE:

1. Do not overtighten the thumbscrew.
2. Do not attempt to reposition the device after tightening the thumbscrew. You must remove and reattach the device to adjust its position.

Garmin Connect™

Garmin Connect gives you the tools to track your swing through advanced analytics and 3D swing animations. You can also compare swings, view historical data, and manage your golf gear. You can connect with your friends on the Garmin Connect site or mobile app. To sign up for a free account, go to www.garminconnect.com/golf

Store your sessions: After you complete and save a session with your device, you can upload that session to Garmin Connect and keep it as long as you want.
Analyze your data: You can view more detailed information about your swing, including swing speed, swing tempo, and many other detailed metrics.
Share your activities: You can connect with friends to follow each other’s activities or post links to your activities on your favorite social networking sites.

Downloading the Software

1. From your computer, go to www.garminconnect.com/truswing
2. Select an option:
   • If you are using a Windows® operating system, select Download for Windows, and follow the on-screen instructions.
   • If you are using a Mac® operating system, select Download for Mac, and follow the on-screen instructions.

Device Pairing

Pairing mode is activated automatically each time you turn on your TruSwing device. You must pair your TruSwing device with a compatible smartphone or a compatible Garmin® golf device before you can record swings.

Pairing Your Smartphone

To get the most out of the TruSwing device, you should pair it with your smartphone and complete the setup using the Garmin Connect Mobile app.
NOTE: Unlike other Bluetooth® devices that are paired from the Bluetooth settings on your mobile device, your TruSwing device must be paired directly through the Garmin Connect Mobile app.

1. Go to www.garminconnect.com/truswing on your mobile browser.
2. Follow the on-screen instructions to get the app.
3. Install and open the Garmin Connect Mobile app.
4. Select an option to add your device to your Garmin Connect account:
   • If this is the first device you have paired with the Garmin Connect Mobile app, follow the on-screen instructions.
   • If you have already paired another device with the Garmin Connect Mobile app, from the settings menu, select Garmin Devices > , and follow the on-screen instructions.

Pairing Your Watch

You can pair your device with a compatible Garmin golf watch.

1. Turn on your TruSwing device.
2. On your compatible watch, select TruSwing from the main menu.

Pairing a Handheld Device

You can pair your device with a compatible Garmin handheld golf device.

1. Turn on your TruSwing device.
2. On your compatible handheld, select Setup > TruSwing.

Recording Your Swing

1. Turn on the TruSwing device.
2. On your paired device, select a club.
3. Hit a shot.

The device records your swing and uploads data to your paired device automatically.
NOTE: You must make contact with a ball when swinging to record useful swing analysis data.

Swing Metrics

Swing Speed

Swing speed is the speed of the club head when it hits the ball.

Swing Tempo

Swing tempo is the ratio of your backswing time to your downswing time. A 3 to 1 ratio, or 3.0, is the ideal swing tempo based on studies of professional golfers. You can achieve the ideal 3.0 tempo using different swing timings, for example, 0.7 sec./0.23 sec. or 1.2 sec./0.4 sec. Each golfer may have a unique swing tempo based on the golfer’s ability and experience.

• Backswing time is the time from the start of the swing to the top of your backswing.
• Downswing time is the time from the start of the downswing to impact with the ball.

Face to Target

The face to target is the angle of your club face in relation to your target path. The club path and face to target angles affect the ball’s flight.

• Open indicates how far the club face is angled away from you.
• Closed indicates how far the club face is angled toward you.

NOTE: The target path is the direction in which the club face is pointed at the start of the swing.

Club Path

Club path is a measurement of your club’s horizontal motion when viewed from overhead. The club path and face to target angles affect the ball’s flight.

• The in-out angle indicates your club path is angled away from you.
• The out-in angle indicates your club path is angled toward you.

Shaft Lean at Address

Shaft lean at address is the forward or backward angle at which you are holding the club when at address, measured from a 90-degree vertical angle.

Shaft Lean at Impact

The shaft lean at impact is the forward angle or backward angle at which you are holding the club when hitting the ball, measured from a 90-degree vertical angle. The angle of shaft lean determines the amount of dynamic loft in your swing.

Shaft Angle at Address

The shaft angle at address is the angle between the shaft and the ground as measured from the center of the shaft while the club is at address.

Shaft Angle at Impact

The shaft angle at impact is the angle between the shaft and the ground as measured from the center of the shaft when the club hits the ball.

Dynamic Loft

Dynamic loft is the loft angle of the club face at impact plus or minus the loft offset determined by the shaft lean and club face angle.

• If the club is angled backward , the loft offset will be added to the loft of your swing.
•  If the club is angled forward , the loft offset will be subtracted from the loft of your swing.

Ball Flight

The combination of your club path and the club face angle affects the ball’s flight. This illustration shows nine common club path and club face angle combinations and their resulting flight paths. You can improve the accuracy of your ball’s flight path by observing your recorded club path and club face angle and adjusting your swing.
NOTE: The projected flight paths are most accurate when striking the ball with the center of the club face.

Device Information

• Avoid extreme shock and harsh treatment, because it can degrade the life of the product.
• Do not use a sharp object to clean the device.
• Avoid chemical cleaners, solvents, and insect repellents that can damage plastic components and finishes.
• Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage.
• Secure the weather cap tightly to prevent damage to the USB port.

Status LEDs

Specifications

Getting More Information

• Go to garmin.com/golf.
• Go to http://buy.garmin.com, or contact your Garmin dealer for information about optional accessories and replacement parts.

Setting Up Garmin Express™

• Connect the device to your computer using a USB
• Go to garmin.com/express.
• Follow the on-screen

Support and Updates

Garmin Express provides easy access to these services for Garmin devices.

• Product registration
• Product manuals
• Software updates
• Data uploads to Garmin Connect

Garmin AIS 800 Installation Guide

WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other important information.

CAUTION

To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling, cutting, or sanding.
To avoid possible personal injury or damage to the device and vessel, disconnect the vessel’s power supply before beginning to install the device.
To avoid possible personal injury or damage to this device and vessel, only install this device when the vessel is on land, or when properly secured and docked in calm water conditions.

NOTICE When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.

FCC Compliance

NOTICE
In the USA, it is prohibited under FCC regulations to enter incorrect or improper data, and it is prohibited for any person other than the manufacturer or the installing dealer to input an MMSI number.

It is a violation of the rules of the FCC to input an MMSI number that has not been properly assigned to the user, or to otherwise input any inaccurate data in this device.

Assigning Data to the Device

WARNING
When programmed with a valid MMSI number, this device allows you to transmit AIS signals with vessel position data. This device is meant to enhance situational awareness and may not prevent vessel collisions in all circumstances. It is your obligation to be aware of your surroundings and to ensure safe operation of the vessel.

CAUTION
You must program the Garmin AIS 800 device with a valid vessel MMSI number before installing the device on your boat. By default, the device operates in silent mode until you program the device with a valid vessel MMSI number. In silent mode, the device receives, but does not transmit, AIS signals with position data. You can program the device to transmit static vessel data including the vessel name, call sign, type, and dimensions, including the location of the vessel’s GPS antenna.

You can program the device to transmit vessel position data and static vessel data including the vessel name, call sign, type, dimensions, and the location of the vessel’s GPS antenna. It is also possible to temporarily revert to silent mode (only receives, but does not transmit, vessel data) by means of a toggle switch (not included) (Connecting the Device to Power, page 2).

Installing the Garmin AIS 800 Software on Your Computer

1. Go to garmin.com/AIS800, select Software, and download the .zip file to your computer.
2. Connect the included USB cable to your computer and the USB port on the Garmin AIS 800 device.
   NOTE: While you program with the USB cable, you may need to disconnect all other cables from the Garmin AIS 800 device to prevent a ground loop between the computer and your vessel power.
3. Double-click the .exe file, and follow the on-screen instructions.

Programming the Garmin AIS 800

Before the device can be used on a boat, it must be programmed with a unique MMSI number and with additional vessel-specific static data. The MMSI number must be programmed by an authorized marine electronics dealer or installer.

Before you can program the device, you must install the Garmin AIS 800 software on your computer (Installing the Garmin AIS 800 Software on Your Computer, page 1).

1. In the program, select the Static data tab.
2. In the Connection and Status window, select a COM port from the drop-down list.
3. Select Connect.
4. Enter your ship name, call sign, dimensions, vessel type, and MMSI number (Assigning an MMSI Number to the Garmin AIS 800, page 1).
5. Select Save data to AIS 800.
   NOTE: The data is lost if the Garmin AIS 800 device is turned off. You must select Save data to AIS 800 to permanently save your data.
6. Select File > Exit.

Assigning an MMSI Number to the Garmin AIS 800

1. Launch the Garmin AIS 800 setup software.
2. In the Connection and Status window, select a COM port from the drop-down list.
3. Select Connect.
4. In the Static Data window, enter your nine-digit MMSI number in the MMSI Number field.
   NOTICE
   You cannot change the MMSI number after you assign the MMSI number to your boat. If you assign an incorrect MMSI number, you must return the device to the manufacturer for a factory reset.
5. Select Save data to AIS 800.

Tools Needed

• Drill
• Drill bits appropriate for the surface and hardware
• Phillips screwdriver
• Pencil

Mounting Considerations

NOTICE
This device should be mounted in a location that is not exposed to extreme temperatures or conditions. The temperature range for this device is listed in the product specifications. Extended exposure to temperatures exceeding the specified temperature range, in storage or operating conditions, may cause device failure. Extreme-temperature-induced damage and related consequences are not covered by the warranty.

• You must mount the device in a location where it will not be submerged.
• You must mount the device in a location with adequate ventilation where it will not be exposed to extreme temperatures.

For optimal internal GPS reception:

• You should mount the device in a location where it is above the water line when the ship is in the water.
• You should mount the device as far as possible, at least 20 cm (7.9 in.), from cables, electronics, metal objects, and other potential sources of GPS interference.
• If you mount the device in a boat with a metal hull, you must connect the device to an external GPS antenna (sold separately).
• If possible, you should mount the device horizontally, with the face of the device pointing upward or vertically with the LEDs facing upward. The GPS is most sensitive in these positions.

VHF Antenna Mounting and EME Exposure

WARNING
Radio operators with cardiac pacemakers, life-support machines, or electrical medical equipment should not be exposed to excessive radio-frequency (RF) fields, because the RF field may interfere with the function of their medical equipment.

CAUTION
This device generates and radiates radio frequency (RF) electromagnetic energy (EME). Failure to observe these guidelines may expose people to RF radiation absorption exceeding the maximum permissible exposure (MPE).

Garmin® declares an MPE radius of 2.48 m (97.64 in.) for this system, which was determined using 5 W output to an omnidirectional, 6 dBi gain antenna. The antenna should be installed to maintain a distance of 2.48 m (97.64 in.) between the antenna and all people.

Mounting the Device

NOTICE
If you are mounting the device in fiberglass, when drilling the pilot holes, use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer when the screws are tightened.

Before you mount the device, you must select a mounting location and determine the mounting hardware needed for the surface.

NOTE: Mounting hardware is included with the device, but it may not be suitable for the mounting surface.

1. Place the device in the mounting location and mark the location of the pilot holes.
2. Using a bit appropriate for the surface and the mounting hardware, drill a pilot hole for one corner of the device.
3. Loosely fasten the device to the surface with one corner and examine the other three pilot-hole marks.
4. Mark new pilot-hole locations if necessary.
5. Remove the device from the mounting surface.
6. Drill the appropriate pilot holes for the other three marks.
7. Secure the device to the mounting location.

Connection Considerations

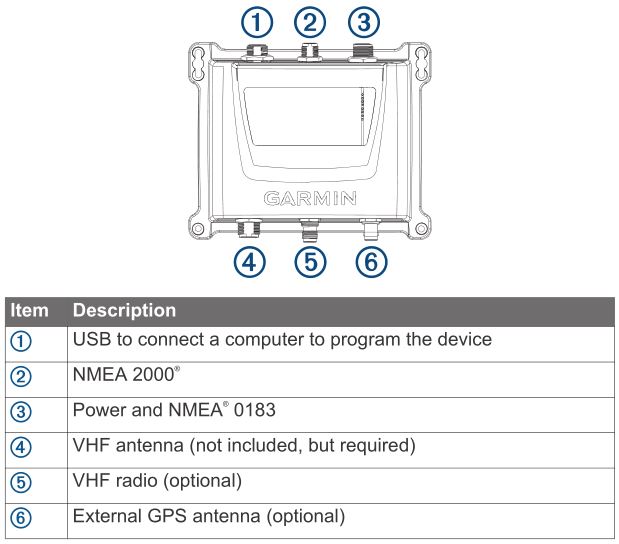

Device Ports

Connecting the Device to Power

WARNING
When programmed with a valid MMSI number, this device allows you to transmit AIS signals with vessel position data. This device is meant to enhance situational awareness and may not prevent vessel collisions in all circumstances. It is your obligation to be aware of your surroundings and to ensure safe operation of the vessel.

CAUTION
After installing the device and programming a valid vessel MMSI number, you can temporarily revert to the default silent mode (only receives, does not transmit) using a toggle switch (not included) (Connecting the Device to Power, page 2). While operating in silent mode, the device does not transmit AIS signals.

Four wires (red, black, green, and yellow) provide the basic power connection.

1. Route the wiring harness from the device POWER (and NMEA 0183) port to the battery .
2. Connect the red wire to the positive (+) battery terminal.
3. Connect the black wire to the power ground on the negative (-) battery terminal.
4. Connect the green wire to the power ground with a switch (not included) between the green wire and power ground, to provide a toggle , switch to revert to the default silent mode (optional).
5. Complete an action, based on the network type:
   • In a NMEA 0183 system, connect the yellow wire (Accessory On) to the power ground, and install a switch (not included) between the yellow wire and the power ground.
     NOTICE
     Turning off the switch prevents the device from draining the battery when the engine is off.
   • In a NMEA 2000 system, the device automatically powers on and off with the system, and you do not need to connect the yellow Accessory On wire.

Connecting a VHF Antenna

To transmit and receive AIS information, the AIS 800 must be connected to external VHF antenna (not included). The device has an internal antenna splitter that allows VHF and AIS to share a single antenna.

1. Mount the VHF antenna (sold separately) according to the installation instructions provided with the antenna.
   NOTE: You can purchase a VHF antenna extension cable. Go to buy.garmin.com or contact your Garmin dealer.
2. Connect the VHF antenna cable to the VHF ANT port on the Garmin AIS 800 device.

NMEA 2000 Device Connections

NOTICE
If you are installing a NMEA 2000 power cable, you must connect it to the boat ignition switch or through another in-line switch. NMEA 2000 devices will drain your battery if the NMEA 2000 power cable is connected to the battery directly.
In a NMEA 2000 system, the device automatically powers on and off with the system, and connecting the yellow Accessory On wire is not necessary (Connecting the Device to Power, page 2).
If you are unfamiliar with NMEA 2000, you should read the “NMEA 2000 Network Fundamentals” chapter of the Technical Reference for NMEA 2000 Products. Go to garmin.com/manuals/nmea_2000.

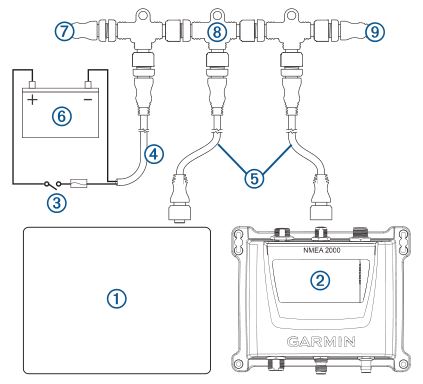

1. Compatible NMEA 2000 chartplotter or other device
2. Garmin AIS 800 device
3. Ignition or in-line switch
4. NMEA 2000 power cable
5. NMEA 2000 drop cable
6. 12 Vdc power source
7. NMEA 2000 terminator or backbone cable
8. NMEA 2000 T-connector
9. NMEA 2000 terminator or backbone cable

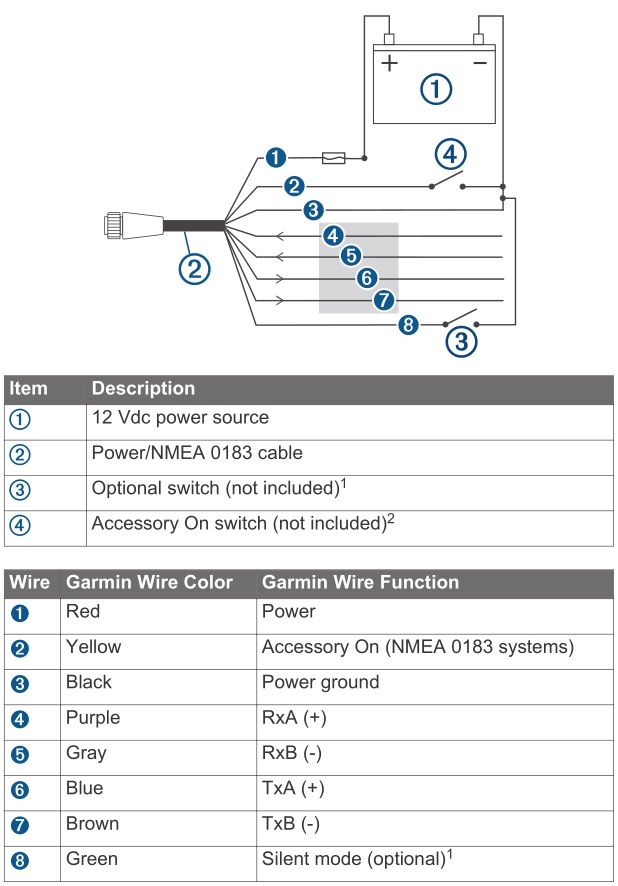

NMEA 0183 Device Connections

This diagram illustrates two-way connections for both sending and receiving data. You can also use this diagram for one-way communication.

To receive information from a NMEA 0183 device, refer to items and when connecting the Garmin device.

To transmit information to a NMEA 0183 device, refer to items and when connecting the Garmin device.

For either NMEA 2000 or NMEA 0183 systems, refer to item when making the basic power connections (Assigning Data to the Device, page 1), (Connecting the Device to Power, page 2).

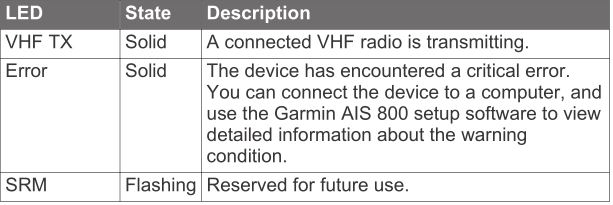

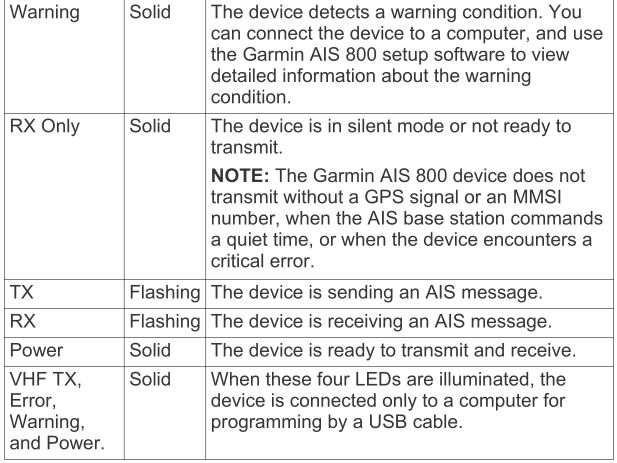

Status LEDs

1. Connecting the green wire to the power ground with a switch (not included) provides a toggle to temporarily revert to silent mode (receives only, does not transmit).
2. In NMEA 0183 systems, use the switch to power off the device when the boat engine is off, to avoid draining the battery.

Connecting the Device to a Remote GPS Antenna

This device must receive GPS information for proper functionality. The device includes an internal GPS antenna. If your mounting location does not provide good GPS reception, you can install a remote GPS antenna (not included) and connect it to the device.

1. Follow the instructions provided with your external GPS antenna to install it on your boat correctly.
2. Route the GPS antenna cable to the back of your device, away from sources of electrical interference.
3. Connect the GPS antenna cable to the GPS ANT port on your device.

Appendix

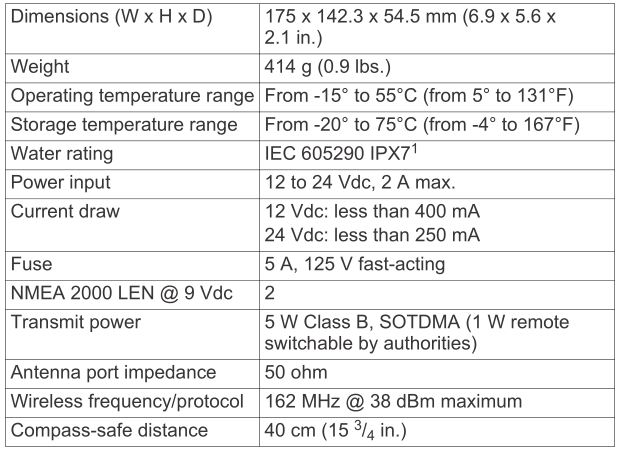

Specifications

NMEA 2000 PGN Information

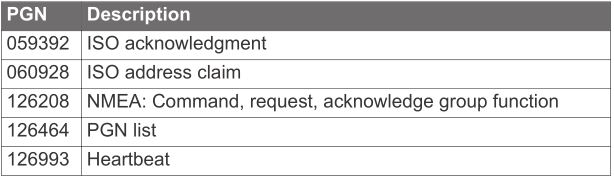

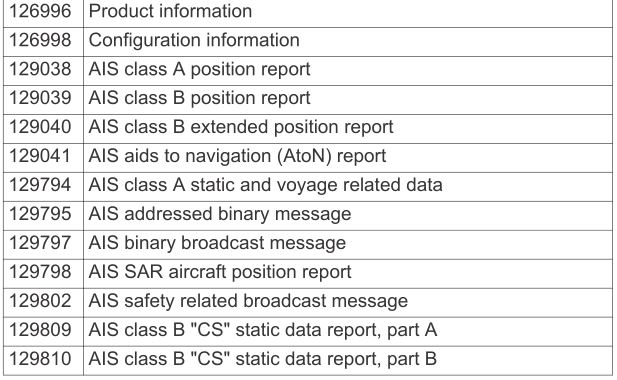

Transmit

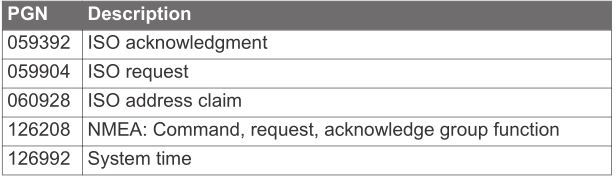

Receive

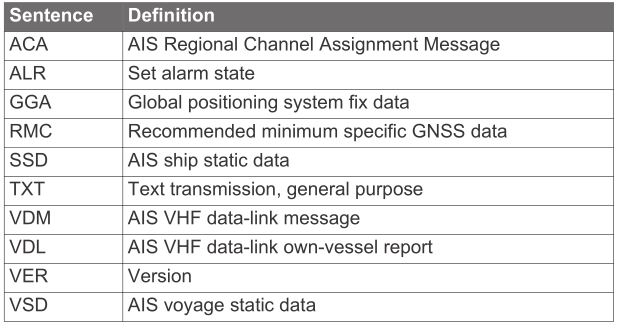

NMEA 0183 Sentences Supported

Testing for Interference from LED Lights

LED lighting from sources such as navigation lights, searchlights, floodlights, interior and exterior lights, and adornments can interfere with your Garmin AIS 800 device. Radio interference can cause poor reception, jam radio signals, and create a safety hazard in emergency situations. You should test for LED interference before mounting the VHF antenna.

NOTICE
If your LED lights interfere with the Garmin AIS 800 device, you must mount the VHF antenna farther away from the LED lights, or use non-jamming lights.

1. Turn off all LED lights.
2. Turn on your chartplotter and Garmin AIS 800 device.
3. Observe the moving AIS targets on the chartplotter screen for at least one minute.
4. Turn on all LED lights.
5. Observe the moving AIS targets on the chartplotter screen for at least one minute.
   If most of the moving AIS targets disappear from the screen, the LED lights interfere with the Garmin AIS 800 device reception.

¹ The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating.

© 2018 Garmin Ltd. or its subsidiaries
Garmin® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin.
NMEA® , NMEA 2000 ® , and the NMEA 2000 logo are registered trademarks of the National Marine Electronics Association.

support.garmin.com

GARMIN APPROACH S10 Smartwatch Owner’s Manual

Getting Started

WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Keys

Turning On the Device

The first time you turn on the device, you are prompted to configure system settings.

1. Hold .
2. Follow the on-screen instructions

Status Icons

	Battery status
	Battery charging
	Sunrise
	Sunset

Playing Golf

Before you can play golf, you must wait until the device acquires satellite signals, which may take 30 to 60 seconds.

1.  Select OK.
2. Select Start Round.
   The device locates satellites, calculates your location, and selects a course if there is only one course nearby.
3. If the course list appears, select a course from the list.
4. Follow the on-screen instructions to complete the setup and
   start a round.

Hole View
The device shows the current hole you are playing, and automatically transitions when you move to a new hole.
NOTE: Because pin locations change, the device calculates the distance to the front, middle, and back of the green, but not the actual pin location.

Measuring a Shot

1.  While playing golf, hold OK.
   The Measuring Shot screen appears.
2. Walk to your ball.
   TIP: You can select DOWN to reset the measurement

Viewing Course Features
You can view distances to course features, such as hazards, layups, and doglegs, for par 4 and 5 holes.

1.  While playing golf, select UP or DOWN.
2. Select a feature.
3. Select UP or DOWN to view other features for the current
   hole.

• The distances to the feature appear on the screen:
  ◦ For large hazards, the distances to the front À and back Á of the hazard are listed. For small hazards, only the distance to the front of the hazard is listed.
  ◦ For layups and doglegs, the distance to the feature is listed.
• The feature type  is listed at the top of the page.
• The green is represented as a half circle à at the top of the screen. The line below the green represents the center of the fairway.
• Features for the current hole Ä are shown below the green in approximate locations relative to the fairway.

Keeping Score
When scoring is enabled, you are prompted to enter your score when you are on the green.  You can adjust the score manually at any time during a game.

1. While playing golf, select OK.
2. Select Scorecard.
3.  Select UP or DOWN to select a hole, and select OK.
4. Select UP or DOWN to set the score, and select OK.

Changing the Course

1. You can change the course manually from the hole view screen. Select OK.
2. Select Change Course.
3. Select a course.

Uploading Your Scorecard Using Garmin Express™

You can upload your scorecard to Garmin Connect™ using the
Garmin Express application.
1 Connect the device to your computer using a USB cable.
2 Go to www.garmin.com/express.
3 Follow the on-screen instructions.

Garmin Golf™ App
The Garmin Golf app allows golfers to compete with each other at different courses. More than 41,000 courses have a weekly leader board that anyone can join. You can set up a tournament event and invite players to compete. You can use Garmin Express to upload scorecards from your compatible Garmin®device to view detailed statistics and shot analyses. The Garmin Golf app syncs your data with your Garmin Connect account. You can download the Garmin Golf app from the app store on your smartphone.

Customizing Your Device

System Settings

From the main menu, select Settings.
Color Theme: Sets the color theme for the screen (Setting the Color Theme, page 2).
Scoring: Enables and disables scoring. Select Always Ask to be prompted to enable or disable scoring when you start playing golf.
Time: Sets the time and time format. Language: Sets the device language.
NOTE: Changing the text language does not change the language of user-entered data or map data.
Units: Sets the unit of measure for distance.
Gender: Sets the user gender.
Software Update: Updates the device software when updates are available.
NOTE: You must connect to Garmin Express to receive software updates.

Setting the Color Theme

1. From the main menu, select Settings > Color Theme.
2. Select an option:
   • To show a dark background with light text, select Dark.
   • To show a light background with dark text, select Light.

Time Settings
From the main menu, select Settings > Time.
Time Format: Sets the device to show time in a 12-hour or a 24-hour format.
Set Time: Sets the time manually or automatically based on your GPS location.

Appendix

Charging the Device

WARNING
This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information.

NOTICE
To prevent corrosion, thoroughly clean and dry the contacts and the surrounding area before charging or connecting to a computer. Refer to th cleaning instructions in the appendix

1. Plug the small end of the USB cable into the charging port on your device.
2. Plug the large end of the USB cable into a USB port on your computer.
3. Charge the device completely.

Device Care

NOTICE
Avoid extreme shock and harsh treatment, because it can degrade the life of the product.
Avoid pressing the keys under water.
Do not use a sharp object to clean the device.
Avoid chemical cleaners, solvents, and insect repellents that can damage plastic components and finishes.
Thoroughly rinse the device with fresh water after exposure to chlorine, salt water, sunscreen, cosmetics, alcohol, or other harsh chemicals. Prolonged exposure to these substances can damage the case.
Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage.
Do not remove the bands.

Cleaning the Device

NOTICE

Even small amounts of sweat or moisture can cause corrosion of the electrical contacts when connected to a charger. Corrosion can prevent charging and data transfer

1. Wipe the device using a cloth dampened with a mild detergent solution.
2.  Wipe it dry. After cleaning, allow the device to dry completely.
   TIP: For more information, go to garmin.com/fitandcare.

Specifications

*The device withstands pressure equivalent to a depth of 50 m.
For more information, go to www.garmin.com/waterrating.

Viewing E-label Regulatory and Compliance Information

The label for this device is provided electronically. The e-label may provide regulatory information, such as identification numbers provided by the FCC or regional compliance markings,as well as applicable product and licensing information.

1. Select OK.
2.  Select About.

Index

A
applications 2

B
battery 3 charging 2

C
charging 2
cleaning the device 2
course
playing  1
selecting  1
courses, selecting  2
customizing the device  2

D
data storing  2
transferring  2

G
green view, pin location  1

H
hazards 1
history, sending to computer  2
holes  1

I
icons  1

K
keys 1, 2

L
license 3

M
measuring a shot 1

S
scorecard 1, 2
screen, settings 2
settings 1
smartphone 2
specifications 3
storing data 2
system settings 2

T
time, settings 2

U
user profile 1

W
water rating 3

Support: support.garmin.com
