Information

• Operation System
  Windows 10 / Windows 7
  Mac OS X 13 or later
• Operation Environment
  Temperature 0 – 40 °C
  Humidity 5 “a – 90

• Hot-plug for USB-C interface
  Supports USB 3.1 Gen-II 10Gbps transfer speed

• USB 0/3.0 compatible
  Additional cable required, cable converter adapters not recommended

• Smart Fan
  Smart fan controlled by the built-in thermal sensor and it comes with 2 modes (auto/manual) and 3 levels of speed:

  Low	below 45“C	1200 rpm
  Medium	45”C – 54°C	1600 rpm
  High	higher than 55°C	2600 rpm

STEP: 2 Hints

Follow all instructions.

• Do not use the device in the immediate vicinity of water.
• Clean the device with a soft, dry cloth.
• Do not block ventilation holes.
• Perform the installation according to these instructions.
• Do not operate the device in the immediate vicinity of heat sources such as heaters, or other devices that give off heat sources.
• Lay the power cord so that nobody can trip over it. I’4ake sure that the cables are not pinched and that no heavy objects are parked on them.
• Use only accessories recommended by the manufacturer.
• Disconnect the power plug during a thunderstorm or if you do not use the device for a long time.
• Always contact our service team for repairs. Maintenance is required if the device, power cord, or plug is damaged, liquids or foreign objects in the device have penetrated, or the device is not working normally or was dropped.
• Do not shake the device, do not drop it.
• Do not use the device during operation.
• Do not pull the power plug by the cable from the socket.

Schritt 3 Front Panel

• LED INDICATION/BUTTON

Descriptions

12. Power button
    It needs to be pressed and held for 3 seconds to power off.
    This design prevents accidental power off.
13. USB Status
    Link interface use
14. Power Indicator Status
    Blue light
    Power on
    Orange light
    Sleep mode
15. Smart Fan automatic mode
16. Smart Fan manual mode
17. Fan speed/level 1
18. Fan speed/level 2
19. Fan speed/level 3
20. Synchronization comes in 2 modes


    Orange light Off

    When the PC is off, the device goes to sleep mode. Synchronization is off.

21. Synchronization mode button
    Switch power Sync mode (no power Sync / Hibernate)
    It needs to be pressed and held for 3 seconds to power off.
    This design prevents accidental power off.
22. Smart Fan button
    Controls auto & manual modes and fan speed from level 1 to level 3.
    HDD1 / HDD2 / HDD3/ HDD4
    HDD5 / HDD6 / HDD7 / HDD8 Status
    Blue Flashing light | Read
23. Key slot

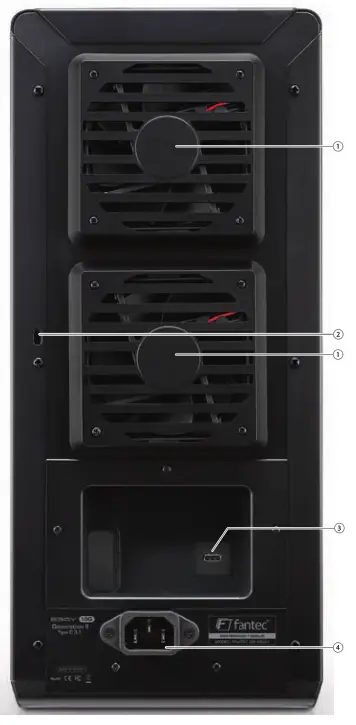

STEP4 Rear Panel

Description

1. Fan
2. Security lock
3. USB- port (Connect with PC/Mac)
4. AC input port

• HDD  Handle

• Keys


SPEP 5 Installation

1. Please use the provided handles to secure

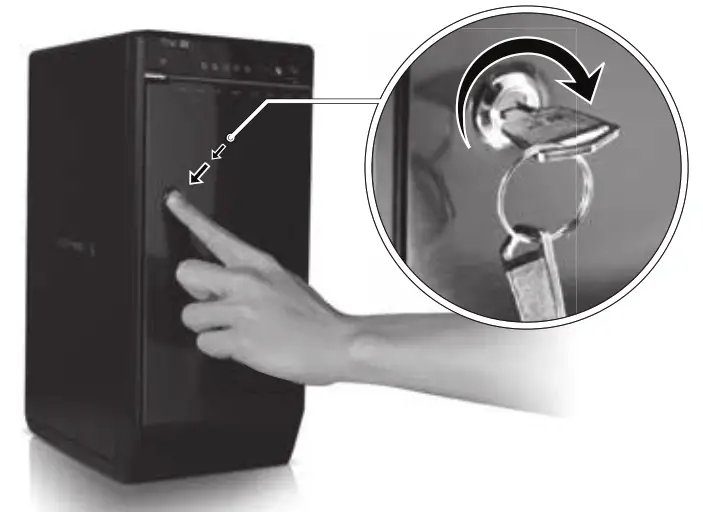

2. Unlock the cover with the key supplied and press the circular depression to open the cover.

3. Release the inner covers.

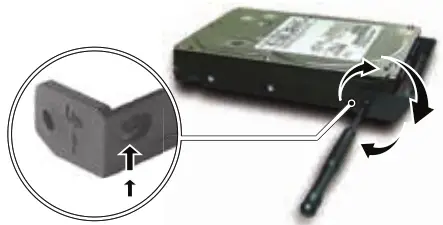

4. . Install the HDDs from up to down

5. Blake is sure the HDD is securely installed first at all times. Otherwise, the PC may not recognize the device.
6. Close and secure the covers
7. Connect the power cord to the device, plug in USB-C cable in the rear panel and power on the device.

Step 6 Initialization

Microsoft Windows
If you are using unformatted disks, they must first be initialized.

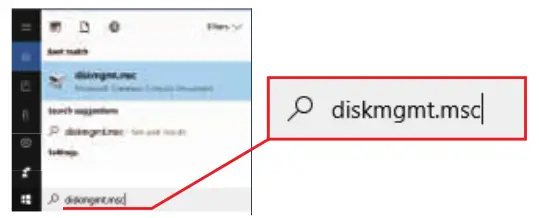

To do this tap the Windows key on your keyboard and enter”diskmgmt.msc” (without quotation marks). Then press the “ENTER” key.

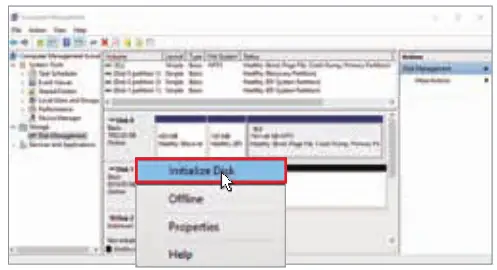

1. Start disk initialization

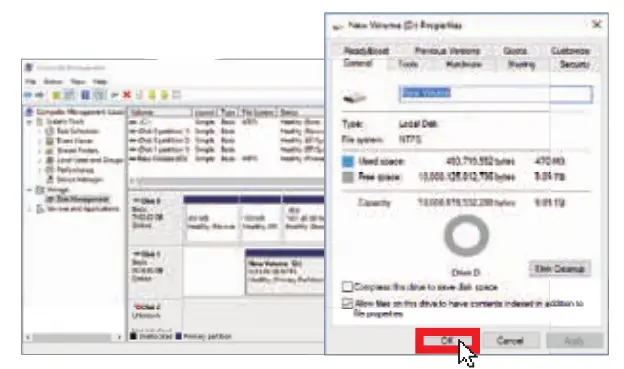

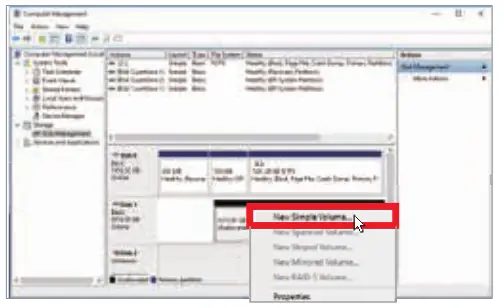

2. Create new partition and format disk

3. HDD format completed


Start disk initialization

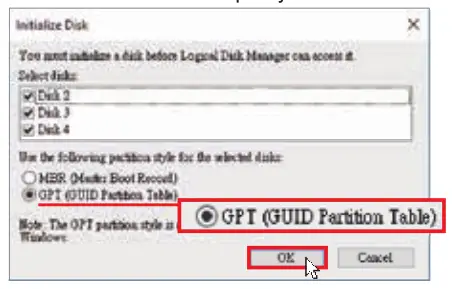

Please enable the GPT mode when the total capacity exceeds 2TB, otherwise choose the MBR mode.

Enable MBR if the total capacity does not exceed 2TB.

Mac OS X 10.13 or later

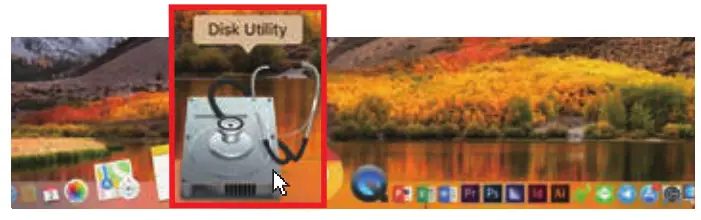

1. Click “Disk Utility’ icon

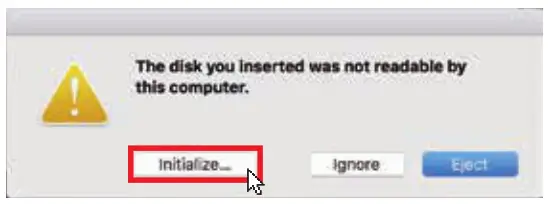

2. HDD initialize..

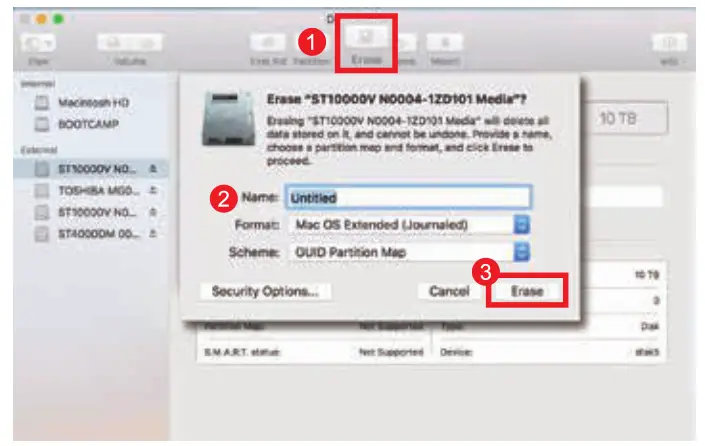

3. Click “Erase”

4. HDD format in process

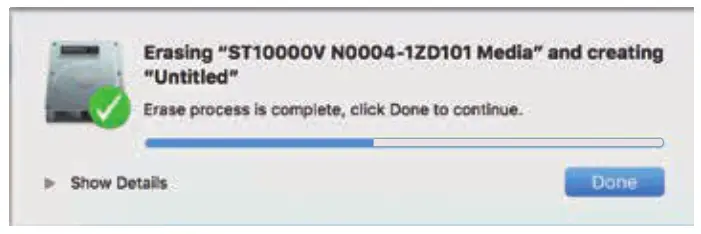

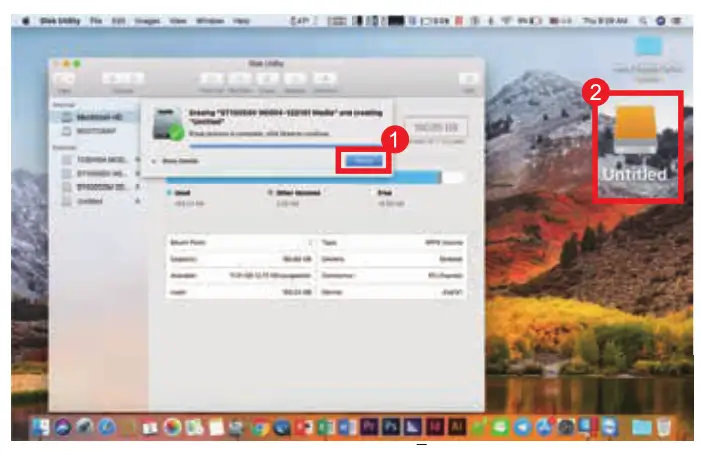

5. Format completed


Troubleshooting

1.  If the device takes too long to detect HDD, please check if the HDD is securely installed or update the drivers according to your hardware manufacture (PC or USB- card).

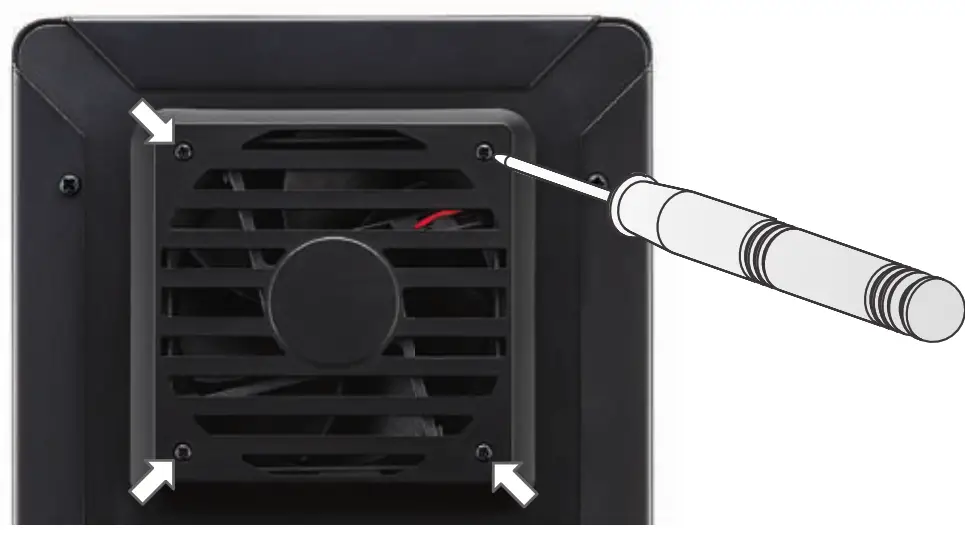

2. If the fan is noisy pull out the power cord, unscrew and take out the fan cover, clean the fan and assemble it back.
3. If the fan noise is still present or it stop working, replace the fan. Fan size is 80x80x20mm 2 pins.

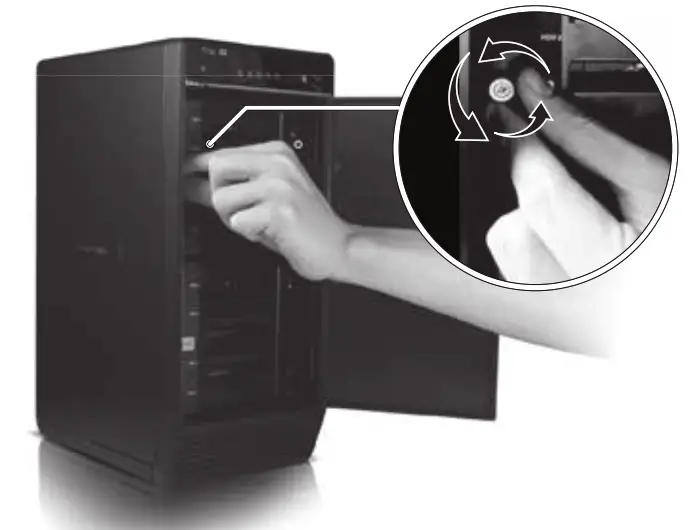

4. To take the HDD out from the device, lightly press down the handle and pull it out.

Declaration of Conformity:

We declare that the article complies with the provisions of Directive 1999/5 / EC. http://www.fantec.de/unternehmen/bestimmungenrichtlinien/ce/
Typing errors, errors and modifications are subject to change. 0 FANTEC GmbH, 2019 – All rights reserved.
