ECOVACS Deebot 8 Robot Vacuum Cleaner Instruction Manual

Live Smart. Enjoy Life.

Congratulations on the purchase of your Ecovacs Robotics DEEBOT! We hope it brings you many years of satisfaction. We trust the purchase of your new robot will help keep your home clean and provide you with more quality time to do other things.

Before you go any further, please register your product on the Ecovacs website at www.ecovacsrobotics.com/registration/. We also suggest you record your model number, serial number, date of purchase and attach your receipt to this page for safekeeping.

MODEL # __________________________
SERIAL # __________________________
DATE OF PURCHASE ____ /____ /_______

Should you have any problems programming the robot or getting your robot to function properly, please call us before contacting or returning it to the place of purchase. For more information, assistance, or Warranty information, please visit the Ecovacs Robotics website at www.ecovacsrobotics.com or call 1-844-ECOVACS (1-844-326-8227).

Thank you for choosing DEEBOT! oo

1. Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS

1. This Appliance is not intended to be used by children under 8 or anyone lacking knowledge on proper use. Supervision may be necessary. Do not allow children to sit on or play with the Appliance.
2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3. If there is a drop-off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. Please make sure your power supply voltage matches the power voltage marked on the Charging Dock.
6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial, or industrial environments.
7. Use only the original rechargeable battery and Charging Dock provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited. For battery information, please refer to the Specifications section.
8. Do not use without a dust bin and/or filters in place.
9. Do not operate the appliance in an area where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments (below -5°C/23°F or above 40°C/104°F).
11. Keep hair, loose clothing, fingers, and all parts of the body away from any openings and moving parts.
12. Do not operate the appliance in a room where an infant or child is sleeping.
13. Do not use Appliances on wet surfaces or surfaces with standing water.
14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper, or any item that may clog the Appliance.
15. Do not use Appliances to pick up flammable or combustible materials such as gasoline, printer, or copier toner, or use in areas where they may be present.
16. Do not use Appliances to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
17. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce airflow.
18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Charging Dock by the power cord, use the power cord as a handle, close a door on the power cord, or pull the power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep the power cord away from hot surfaces.
19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is damaged.
21. Do not use a damaged power cord or receptacle. Do not use the Appliance or Charging Dock if it is not working properly, has been dropped, damaged, left outdoors, or comes in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the Appliance.
23. The plug must be removed from the receptacle before cleaning or maintaining the Charging Dock.
24. Remove the Appliance from the Charging Dock, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and regulations. 2
27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
28. When not using the Charging Dock for a long period of time, please unplug it.
29. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS Robotics cannot be held liable or responsible for any damages or injuries caused by improper use.

For EU Countries
Correct Disposal of this product
This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.

2. Package Contents and Technical Specifications

2.1 Package Contents

2.2 Specifications

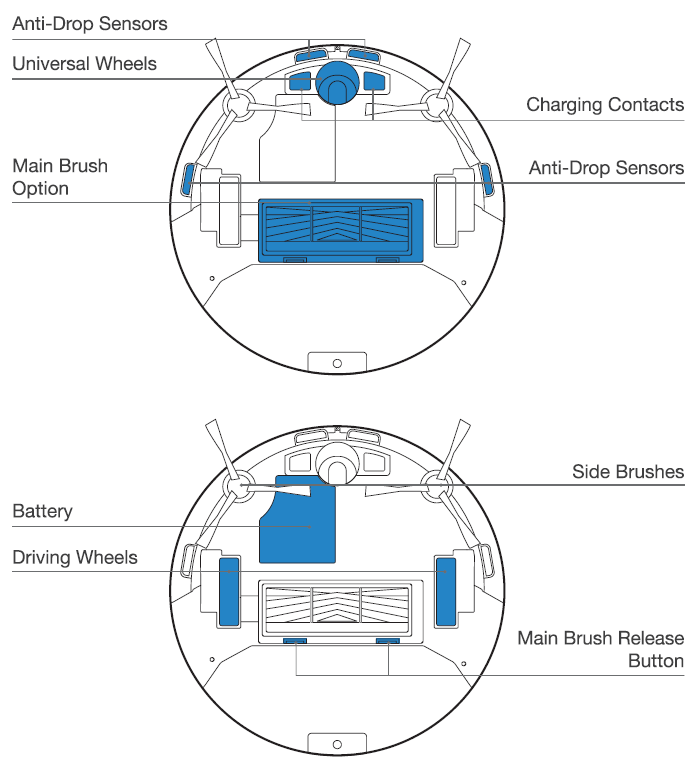

2.3 Product Diagram

Robot

1. Top Cover
2. Control Panel
3. Anti-Collision Sensors
4. Anti-Drop Sensors
5. Side Brushes
6. Battery Cover
7. Cleaning Cloth Plate Slots
8. Universal Wheel
9. Main Brush Option
10. Driving Wheels
11. Bottom Power Switch
12. Dust Sensors
13. Infrared Receiver for Remote Control
14. Battery Cover Screws
15. Charging Contacts

Control Panel

1. Spot Cleaning Mode Button
2. Edge Cleaning Mode Button
3. START/PAUSE Button
4. Intensive Cleaning Mode Button
5. Return to Charger Mode Button

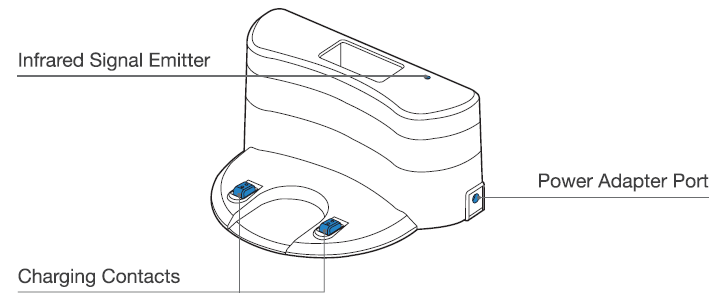

Charging Dock

1. Infrared Signal Generator
2. Charging Dock Pins

Remote Control

1. LED Screen
2. Return to Charger Mode Button
3. AUTO Mode Button
4. Direction Control Buttons
5. START/PAUSE Button
6. Time Scheduling Button
7. Set Current Time Button
8. Spot Cleaning Mode Button
9. Intensive Cleaning Mode Button
10. Edge Cleaning Mode Button

Dust Bin

1. Dust Bin Handle
2. High-Efficiency Filter
3. Filter Net
4. Air Outlet
5. Dust Bin Lock

3. Operating and Programming

3.1 Notes Before Cleaning

Before Operating DEEBOT, take a few moments to survey the area to be cleaned and remove any obstacles.

Remove power cords and small objects from the floor that could entangle the product.

The product is not suitable for use on long-pile carpets. Before using the product near an area rug or on a short-pile area rug with tasseled edges, please fold area rug edges under themselves.

Please be aware that the robot needs at least a 10 cm (4”) clearance to clean under furniture without complications.

If there is a step or stairs in the cleaning area, please operate DEEBOT 8 to ensure its Anti-Drop Sensors can detect the drop-off. It may be necessary to place a physical barrier at the edge of the drop-off to keep the unit from falling over the edge.

3.2 Quick Start

(1) Charging Dock Placement

• Place the Charging Dock on a level floor surface against the wall with the base perpendicular to the ground. Keep the immediate area 1.5m (5′) in front of the charger 1.6 and 0.5m (1.6′) on both sides of the charger clear of objects and reflective surfaces. 1.6
• Plug the Charging Dock in.

(2) Install Side Brushes

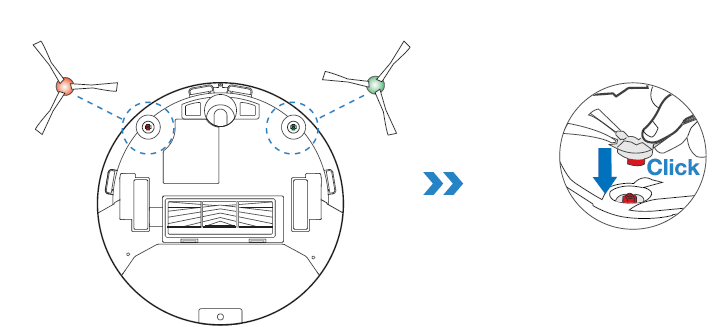

• Attach Side Brushes to the bottom of DEEBOT 8 by pressing a brush into each slot with the matching color until it clicks.

(3) Power ON

• Turn the robot’s Bottom Power Switch to the ON position. “l” indicates ON and “O” indicates OFF.

* When DEEBOT 8 is not working, it is suggested to keep it powered ON and charging, instead of powered OFF.

4 Charge DEEBOT 8

• Place DEEBOT 8 on the Charging Dock making sure the Charging Contacts on DEEBOT 8 and the Charging Dock Pins make a connection. Charge DEEBOT 8 for at least 12 hours before the first use.

* The START/PAUSE Button on the robot’s Control Panel blinks when DEEBOT 8 is charging and stays on when DEEBOT 8 is fully charged.
* If DEEBOT 8’s START/PAUSE Button Blinks RED while charging, move the Bottom Power Switch to the ON position.
* Remove DEEBOT 8’s battery if the robot will not be used for a long time. In case of battery leakage, please remove the battery and wipe the battery slot clean while wearing protective gloves.
* If the battery is fully discharged or not used for a long time, its capacity may decrease and need to be reactivated.
* To reactivate the battery: Place the robot on the Charging Dock by hand, remove after charging for 3 minutes; repeat 3 times, then charge normally for 3-5 hours.
* DEEBOT 8 uses a long-life battery and does not require frequent replacement. To replace the battery, contact Customer Service or follow the below instructions:
a. Unscrew the Battery Cover Screws, remove Battery Cover.
b. Remove the battery and disconnect the fasteners.
c. Connect the corresponding positive and negative fasteners on the new battery. Insert the new battery, reassemble the Battery Cover and screw in the Battery Cover Screws.

5 Attach a Cleaning Cloth

• To use DEEBOT 8’s optional mopping feature, attach a selected Cleaning Cloth before use. When using the mopping feature, fold area rug edges under themselves so DEEBOT 8 avoids the rug.

* Attach the selected Cleaning Cloth to the Cleaning Cloth Plate.
* Insert the Cleaning Cloth Plate tabs into the Cleaning Cloth Plate Slots on the bottom of DEEBOT 8 until you hear a click.

(6) Start

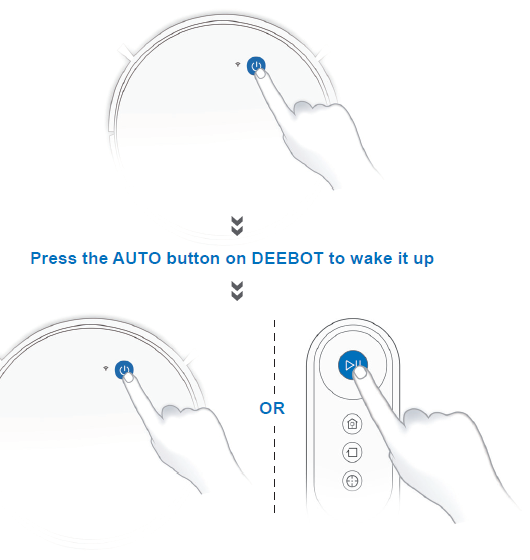

• Press the START/PAUSE button on the robot’s Control Panel, or the AUTO Mode Button on the Remote Control twice. DEEBOT 8 starts to work immediately in AUTO Cleaning Mode.

* To choose another Cleaning Mode, please refer to section 3.3 Cleaning Mode Selection for details.

(7) Pause

• Pause DEEBOT 8 by pressing the START/PAUSE button on the robot’s Control Panel or on the Remote Control.

* DEEBOT 8 can be directed to move forward, backward, left, and right using the Direction Control Buttons on the Remote Control when it is Paused. DEEBOT 8 does not clean when Paused.

3.3 Cleaning Mode Selection

DEEBOT 8 has several Cleaning Modes for you to choose from to effectively clean different floors. Cleaning Modes are selected using the robot’s Control Panel Buttons (D83 model ONLY), or using the Remote Control.

* To switch Cleaning Modes using the robot’s Control Panel Buttons (D83 model only), Pause DEEBOT 8 first, and then press the desired Cleaning Mode Button on the Control Panel.
* To switch Cleaning Modes using the Remote Control, press the desired Cleaning Mode Button twice.

AUTO Cleaning Mode
This is the most commonly used mode. In AUTO Cleaning Mode, DEEBOT 8 cleans in a straight line and changes direction when it meets an obstacle.

Intensive Cleaning Mode
This mode is good for aggressive cleaning or for extremely dirty or dusty floors. In this mode, DEEBOT 8 follows the same cleaning pattern as Automatic Cleaning Mode, but is more sensitive to dirt and dust and performs a more thorough cleaning.

Spot Cleaning Mode
This mode is applicable for an area of highly concentrated dirt or dust. In Spot Cleaning Mode, DEEBOT 8 focuses on a specific area to clean.

Edge Cleaning Mode
This mode is good for cleaning the edges and corners of a room. In Edge Cleaning Mode, DEEBOT 8 cleans along a border (e.g. wall).

Return to Charger Mode
When battery power gets low, DEEBOT 8 automatically switches to Return to Charger Mode and returns to the Charging Dock to recharge itself. DEEBOT 8 can also be sent back to the Charging Dock at any time by Pausing DEEBOT 8, then pressing the Return to Charger Mode Button on the robot’s Control Panel (D83 model ONLY), or pressing the Return to Charger Mode Button on the Remote Control twice.

3.4 Programming the Robot

DEEBOT 8 has a Time Scheduling function. DEEBOT 8 can be programmed to automatically clean once per day, at a specific time, even if nobody is at home. The current time of day and the cleaning time is scheduled using the Remote Control.
* All scheduled cleanings are performed in AUTO Cleaning Mode. * Before programming the robot, press any button on the Remote Control to wake up the Remote Control LED Screen. The Remote Control uses a 12-hour clock with “AM” and “PM” indicators.

1 Set the Current Time of Day

• Press the button on the Remote Control until flashes, and illuminates on the Remote Control LED Screen.
• Press the up and down Direction Control Buttons to adjust the “hour” and “minute” numbers. Press the left and right Direction Control Buttons to switch between hour, minute, and AM/PM.
• Press the button on the Remote Control to confirm and save the current time of day.

(2) Schedule the Cleaning Time

• Press the button on the Remote Control until flashes and illuminates on the Remote Control LED Screen.

• Press the up and down Direction Control Buttons to adjust the “hour” and “minute” numbers. Press the left and right Direction Control Buttons to switch between hour, minute, and AM/PM.
• Press the button to confirm and save the scheduled cleaning time. DEEBOT 8 automatically cleans at the scheduled cleaning time every day.

3 Cancel Scheduled Cleaning Time

• Press and hold the button until disappears from the Remote Control’s LED screen. The scheduled cleaning time is canceled.

3.5 Choosing a Suction Option (D83 model ONLY)

D83 has 2 interchangeable suction options for your convenience.
Main Brush Option: The best choice for deep cleaning with a combination of the Main Brush and strong suction. The Main Brush Option comes pre-installed in DEEBOT 8.
Direct Suction Option: The best choice for daily cleaning with the Main Brush removed for direct suction. This Suction Option is specifically designed to pick up hair without tangling. (D83 model ONLY)

(1) Install the Direct Suction Option

• Turn the robot over. Push both yellow buttons below the Main Brush Option at the same time, and remove the Main Brush Cover. Remove the Main Brush.
  Line up the Direct Suction Option tabs with the slots on the bottom of the robot. Press until the component clicks into place.

2 Install the Main Brush Option

• Turn the robot over. Push both yellow buttons below the Direct Suction Option at the same time, and remove the Direct Suction Option.
• Insert the Main Brush into the bottom of the robot.
• Line up the Main Brush Cover tabs with the slots on the bottom of the robot. Press until the component clicks into place.

3.6 Voice Reporting (D83 model ONLY)

If D83 has something to report, the robot will announce it with a Voice Report.

Voice Report

The current time of day is saved.
My cleaning time is scheduled.
My cleaning time is canceled.

Indicates

The current time of day is saved correctly.
The cleaning time is scheduled correctly.
The cleaning time has been canceled correctly.

If D83 detects a problem, the START/PAUSE button on the robot will flash RED, and the robot will announce the problem with a Voice Report.

4. Maintenance

Before performing cleaning and maintenance on DEEBOT 8, move the Bottom Power Switch to the “O” position and unplug the Charging Dock.

4.1 Dust Bin and Filters

Cleaning the Dust Bin and the Filters
Open DEEBOT 8’s Top Cover and remove the Dust Bin. Open the Dust Bin Cover and empty the Dust Bin.

Remove the filters. Pat the High-Efficiency Filter clean. Do not rinse the High-Efficiency Filter underwater.

Wash and Dry
Rinse the Dust Bin and Filter Net under running water.

Dry the Dust Bin and Filter Net completely before reinstalling.

4.2 Cleaning Cloth

If the mopping feature was used, remove the Cleaning Cloth Plate from DEEBOT 8 and remove the Cleaning Cloth.

Wash the Washable/Reusable Cleaning Cloth by hand or in the washing machine, and lay flat to dry. Throw Disposable Cleaning clothes away.

4.3 Main Brush, Direct Suction Option, and Side Brushes

* A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Cleaning the Main Brush
Turn the robot over. Push both yellow buttons below the Main Brush Option at the same time, and remove the Main Brush Cover. Remove the Main Brush. Use the Multi-Function Cleaning Tool to cut off and remove any hair tangled around the Main Brush.
Cleaning the Direct Suction Option (D83 model ONLY)
Wipe the Direct Suction Option clean with a dry cloth.

Cleaning the Side Brushes
Remove the Side Brushes. Wipe the Side Brushes and their slots with a dry cloth.

4.4 Other Components

Clean the Universal Wheel by removing any hair tangled around it.

Wipe the Anti-Drop Sensors with the brush or the felt side of the Multi-Function Cleaning Tool to maintain their effectiveness.

Wipe the Dust Sensors with the brush or the felt side of the Multi-Function Cleaning Tool to maintain their effectiveness.

Wipe the Charging Contacts and Charging Dock Pins with the brush or the felt side of the Multi-Function Cleaning Tool to maintain their effectiveness.

5. Troubleshooting

Please use this chart to troubleshoot common problems using DEEBOT 8.

ECOVACS Deebot 500

Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep
   the unit from falling. Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. Please make sure your power supply voltage matches the power voltage marked on the Charging Dock.
6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
7. Non-rechargeable batteries are prohibited.
8. Do not use without dust bin and/or filters in place.
9. Do not operate the Appliance in an area where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments (below -5˚C/23˚F or above 40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing water.
14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
17. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Charging Dock by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.
19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Charging Dock if it is damaged.
21. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Charging Dock if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the Appliance.
23. The plug must be removed from the receptacle before cleaning or maintaining the Charging Dock.
24. Remove the Appliance from the Charging Dock, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance
25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and regulations.
27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
28. When not using the Charging Dock for a long period of time, please unplug it.
29. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
30. The robot contains batteries that are only replaceable by skilled persons. To replace or remove the battery, please contact Customer Service.
31. If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Charging Dock.|
32. WARNING: For the purposes of recharging the battery, only use the detachable supply unit YJS015F-1900600G/DK18-190060H-V provided with this appliance.
33. The Remote Control requires two non rechargeable AAA batteries. To replace the battery of the Remote Control, please turn over the Remote Control, press and remove its Battery Cover. Remove the batteries, and insert the new batteries with the correct polarity. Reassemble the Battery Cover.
34. Non-rechargeable batteries are not to be recharged.
35. Different types of batteries or new and used batteries are not to be mixed.
36. Batteries of the Remote Control are to be inserted with the correct polarity.
37. Exhausted batteries are to be removed from the Appliance and safely disposed of.
38. If the Remote Control is to be stored unused for a long period, the batteries should be removed.
39. The supply terminals are not to be short circuited

SAVE THESE INSTRUCTIONS
To disable Wi-Fi module on DEEBOT, power the robot ON.
Place the robot on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection.
Press and hold the AUTO Mode Button on the robot for 10 seconds until DEEBOT emits 3 beeps.
To enable Wi-Fi module on DEEBOT, power the robot OFF and then power ON. The Wi-Fi module is turned on when DEEBOT is restarted
For EU Countries

For EU Declaration of Conformity information, visit https://www.ecovacs.com/global/compliance

Correct Disposal of this Product
This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product

Package Contents

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice

Product Diagram

Robot

Bottom View

Charging Dock

Remote Control

Notes Before Cleaning

WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing waterBefore using the product on a rug with tasseled edges, please fold the rug edges underIt may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper placeRemove power cords and small objects from the floor that the robot could be obstructed by.

Operating and Programming

Preparation

Note: When DEEBOT completes the cleaning cycle or when battery power gets low, DEEBOT automatically returns to the Charging Dock to recharge itself.

Selecting Cleaning Mode

AUTO Cleaning Mode
A Random Cleaning Pattern (optimized for carpets) will be selected by default.

Spot Cleaning Mode (Less than 3 minutes)

Edge Cleaning Mode

Return to Charging Dock

All the functions mentioned above can be enabled on the App. Download ECOVACS App to access more features, including Edge Cleaning, Scheduled Cleaning, etc.

Pause, Wake Up, Power Off

Pause

Note: The robot’s Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot

Wake Up

Note: When DEEBOT is not working, it is recommended to keep it switched ON and charging

Maintenance

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Charging Dock.

Dust Bin and Filters

Dust Bin

Main Brush and Side Brushes

Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Main Brush

Side Brushes

Other Components

Note: Before cleaning the robot’s Charging Contacts and Charging Dock Pins, turn the robot OFF and unplug the Charging Dock

Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies

A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts

Indicator Light and Alarm Sounds

DEEBOT will tell you something is wrong with an alarm indicator light and sounds. More detailed support is available through the ECOVACS App and online website.

Indicator Light

Alarm Sounds

Troubleshooting

Technical Specifications

Note: Technical and design specifications may be changed for continuous product improvement. This equipment should be operated with a minimum distance of 20cm between the radiator and your body.

ECOVACS Deebot

Important Safety Instructions

1. This Appliance is not intended for use by persons Occluding children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the Appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the Appliance.
3. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
4. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
5. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
6. Please make sure your power supply source voltage matches the power voltage marked on the Docking Station.
7. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
8. Use only the original rechargeable battery and Docking Station provided with the Appliance from the manufacturer. Non- rechargeable batteries are prohibited.
9. Do not use without dust bin and/or filters in place.
10. Do not operate the Appliance in an area where there are lit candles or fragile objects
11. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
12. Do not operate the Appliance in a room where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or surfaces with standing water.
14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
16. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
17. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.
19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Docking Station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.
21. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the Appliance.
23. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.
24. Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
26. Please dispose of used batteries according to local laws and regulations.
27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
28. When not using the Docking Station for a long period of time, please unplug it.
29. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
30. The robot contains batteries that are only replaceable by skilled persons. To replace the robot’s battery, please contact Customer Service.
31. If the robot will not be used for a long time, power OFF the robot for storage and unplug the Docking Station.
32. WARNING: For the purposes of recharging the battery, only use the detachable supply unit DN622.13 provided with the Appliance.
33. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision. (For EU Countries)

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

For EU Countries
For EU Declaration of Conformity information, visit https://www.ecovacs.com/globaVcompliance

Correct Disposal of this Product
This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.

Package Contents

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

Product Diagram

Robot

Bottom

Dust Bin and Reservoir (Pre-installed)

XL Dust Bin (For DGN22-74)

Docking Station

Notes Before Cleaning

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

• Put away objects including wires, cloths and slippers, etc. on the floor to improve the cleaning efficiency.
• Before using the product on a rug with tasseled edges, please fold the rug edges under.
• Please do not stand in narrow spaces, such as hallways, and make sure not to block DEEBOT.

Remove Protective Materials

Install Side Brushes

Charging DEEBOT

1. Docking Station Placement
2. Power ON
3. Charge DEEBOT

Note: I = ON, 0 = OFF
DEEBOT cannot be charged when being powered OFF.

• Empty the reseivoir and remove the Cleaning Cloth Plate before charging DEEBOT.
• It is suggested to avoid picking up or moving DEEBOT during the cleaning for DEEBOT to return to charge successfully.

ECOVACS HOME App

To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME app.
Before you start, make sure that:

• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on DEEBOT is slowly flashing.

Tips: If you have any problems during the Wi-Fi setup process, refer to the Troubleshooting > Wi-Fi Connection section in this manual.

Operating DEEBOT

During the first cleaning, please supervise DEEBOT and assist it should there be a problem.

1. Start
2. Start/Pause
   Toe robot’s Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.
   Pause
   If the pause duration is shorter than 10 minutes, DEEBOT will return to finish the cleaning where it left off.
3. Power OFF

• If DEEBOT will not be used for a while, fully charge DEEBOT and power OFF before storage. Charge DEEBOT every 1.5 month to prevent battery drain.
• When DEEBOT is not cleaning, it is recommended to keep DEEBOT powered ON and charging.

Dust Bin & Reservoir

Note:

1. To prolong the service life of the reservoir, it is recommended to use purified water or softened water.
2. Please avoid using the mopping system on the carpet.

Add Water

Install Dust Bin & Reservoir

Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

Troubleshooting

Wi-Fi Connection

Before Wi-Fi setup, make sure DEEBOT, mobile phone, end Wi-Fi network meet the following requirements.
DEEBOT and Mobile Phone Requirements

• DEEBOT is fully charged end the power switch of DEEBOT is turned on.
• Wi-Fi status light slowly flashes.
• Turn off mobile phone’s cellular data (you can turn it back on after setup).

Wi-Fi Network Requirements

• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11 b/g/n and 1Pv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.

ECOVACS Window Cleaner Instruction Manual

Congratulations on the purchase of your ECOVACS ROBOTICS WINBOT! We hope it brings you many years of satisfaction. We trust the purchase of your new robot will help keep your home clean and provide you more quality time to do other things. Live Smart. Enjoy Life. Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where a technician can address your specific problem or question. For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com The company reserves the right to make technological and/or design changes to this product for continuous improvement.
Thank you for choosing WINBOT!

 Important Safety Instructions

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.SAVE THESE INSTRUCTIONS

1. This Appliance is not intended to be used by children under 8 or anyone lacking knowledge on proper use. Supervision may be necessary. Do not allow children to play with the Appliance.
2. Do not use the Appliance in extremely hot, cold or humid environments (below 0°C/32°F, above 40°C/104°F, above 65% humidity). The Appliance can be used to clean outside windows if it is properly tethered to the Safety Pod, winds are calm, and it is not raining or snowing.
3.  Please ensure the Appliance is plugged in while it is cleaning. The Appliance has a Back-Up Battery that charges during use. The Back-Up Battery powers the Appliance if it becomes unplugged or the electricity fails.
4. Do not leave the Appliance unattended when it is plugged in.
5. For household use ONLY. Do not use the Appliance in commercial or industrial environments.
6. Do not use the Appliance on cracked glass.
7. Only use accessories recommended or supplied by the manufacturer. Only use the Power Adapter supplied by the manufacturer
8. Please make sure your power supply voltage matches the power voltage marked on the Power Adapter.
9. Do not use the Appliance on a framed  window with a frame smaller than 5mm (0.2 inches).
10. Do not use the Appliance on wet or greasy windows.
11. Store the Appliance away from heat and flammable materials.
12. Do not use the Appliance if it does not firmly attach to the glass or has visible signs of damage.
13. To reduce the risk of electrical shock, do not put the Appliance in water or other liquid. Do not place or store Appliance where it can fall or be pulled into a tub or sink.
14. Do not touch power plug or the Appliance with wet hands.
15. Do not charge the Appliance in extremely hot or cold environments, or it may affect battery life span.
16. When charging the Appliance, do not place it on other electrical appliances and keep it away from fire and liquid.
17. Take care not to damage the power cord. Do not pull on or carry the Appliance by the power cord, use the power cord as a handle, close a window  on the power cord, or put heavy weights on the power cord. Keep power cord away from hot surfaces
18. Do not use with a damaged power cord or receptacle. Do not use  the Appliance if it is not working properly, has been dropped, damaged,  orcome in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
19. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
20. The plug must be removed from the receptacle before cleaning or maintaining the Appliance. Do not unplug the Power Adapter by pulling on the power cord.
21. The Back-Up Battery must be replaced by the manufacturer or its service agent in order to avoid a hazard.
22. The Back-Up Battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
23. The Appliance must be disconnected from the receptacle before removing the battery for disposal of the Appliance
24. Please dispose of used batteries according to local laws and regulations.
25. Do not incinerate the Appliance even if it is severely damaged. The battery can explode in a fire.
26. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.

For EU Countries
Correct Disposal of this Product :  This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.

Package Contents and Technical Specifications

Package Contents

• WINBOT

• Power Adapter

• Instruction Manual

• Safety Pod and Tether

• Remote Control with Batteries

• (3) Cleaning Pads

• WINBOT Cleaning Solution

• (1) WINBOT Extension Cord(1.5m/4’11”)

• Finishing Cloth


Specifications

• Technical and design specifications may be changed in the course of continuous product improvement.

Product Diagram WINBOT

1.  Speaker
2. Status Indicator Light/START/PAUSE Button
3. Handle
4. Upgrade Port (for after-sale service)
5. Power Cord
6. Edge Detection Sensors
7. Cleaning Pad
8. Squeegee
9. Bottom Power Switch
10. Bottom Status Indicator Light
11. Suction Sensor
12. Fan
13. Driving Treads
14. Balance Wheel
15. Cleaning Pad Plate
16. Cleaning Pad Velcro
17. Side Rollers



Remote Control

1. RESET Button
2. Direction Control Buttons
3. START/PAUSE Button
4. Remote Control Pairing Button


Operating WINBOT

Notes Before Cleaning

1. Do not use WINBOT on a framed window with a frame smaller than 5mm (0.2”).

2. WINBOT can clean framed or frameless glass, larger than 45cm x 45cm (17.7’’ x 17.7’’).

3. If WINBOT’s Status Indicator Light flashes GREEN after powering ON, the Back-Up Battery requires charging. Keep WINBOT plugged in to charge the  Back-Up Battery until the Status Indicator Light flashes BLUE, and WINBOT can now start cleaning. The BackUp Battery is fully charged when the Status Indicator Light stops glowing.

4. If the window is covered with dirt, clean as mall area on the glass before use  and place WINBOT there.


• WINBOT is intended to be used for maintenance cleaning on common windows. The product is not designed to replace heavy-duty or first time  cleaning.
• Please ensure there is a 15cm (5.9”) clearance between the glass and obstacles in the room like curtains or furniture.
• WINBOT can clean horizontally mounted glass but only when using the Direction Control Buttons on the Remote Control.
• WINBOT can clean glass mounted at an angle but may not operate normally; in such a case, a person should be in the vicinity to assist should there be a problem.
• Do not use WINBOT upside down.
• Please refer to the glass manufacturer’s care and cleaning instructions before using WINBOT on glass with an uneven surface, such as frosted, textured, patterned, or coated glass. ECOVACS ROBOTICS cannot be responsible for damage due to improper use on these surfaces.

Attach the Cleaning Pad

Turn WINBOT over and attach the Cleaning Pad to the bottom of WINBOT smoothly. The white side of the Cleaning Pad attaches to the Velcro, and the gray microfiber side faces out. Make sure the Cleaning Pad does not cover the Squeegee or Edge Detection Sensors.

Assemble the Power Adapter

Install the Safety Tether

• End A: WINBOT Power Cord
• End B: Power Adapter Power Cord
• End C: Safety Pod
• End D: Safety Tethe


1. Loop one end of the Safety Tether to End A on the WINBOT Power Cord and tighten.

2. Connect End A and End B and tighten.

3. Loop the other end of the Safety Tether around the Safety Pod’s channel and  pull it tight.


• If the length of the power cord restricts WINBOT’s movement, a WINBOT Extension Cord can be used. Disconnect End A and End B, and connect them with both ends of the Extension Cord respectively and tighten.
• Only one Extension Cord can be used with WINBOT.

Place the Safety Pod

Wipe the surface of the Safety Pod’s suction cup clean with the provided Finishing Cloth. If WINBOT is being used to clean an inside window: Press the Safety Pod FIRMLY on the top corner of the inside window. Make sure the Safety Pod is  attached securely in place. If WINBOT is being used to clean an outside window: Press the Safety Pod FIRMLY on the inside of the window being cleaned. Make sure the Safety Pod is attached and securely in place.

Spray Cleaning Solution

It is recommended to use WINBOT with WINBOT Cleaning Solution from ECOVACS. Using tap water or other cleaners could have an adverse effect on  cleaning performance. Using other cleaning solutions could potentially nullify the warranty.

• Spray the each side of the Cleaning Pad with the provided WINBOT Cleaning Solution 8 times.

• After spraying, wipe the bottom of WINBOT with the provided Finishing Cloth.


Start

1. Plug in WINBOT :  Do not unplug WINBOT while it is cleaning.

2. Power ON :  Move the Power Switch to the “ ” position. WINBOT is powered ON when the Status Indicator Light flashes BLUE.
   Note :  Keep objects away from WINBOT’s Fan to avoid blockage.


3. Place on the Glass :  Place WINBOT on the window at least 10cm (4”) from window corners or other obstacles. WINBOT has successfully attached to the window when the Status Indicator Light glows a continuous BLUE.
   Note :  Please ensure there is a 15cm (5.9”) clearance between the glass and  obstacles in the roomlike curtains or furniture.


4. Start : Start WINBOT by pressing the START/PAUSE Button on the robot or on the Remote Control.

Pause

1. Pause WINBOT during cleaning by pressing the START/PAUSE button on  the robot or on the Remote Control.

2. Direct WINBOT to move forward, backward, left and right using the Direction Control Buttons on the Remote Control when Paused. WINBOT  cleans when the Direction Control Buttons are used.


Stop

When WINBOT completes its cleaning cycle, it returns to the place it started and beeps.

1. Remove WINBOT : Grasp the robot’s Handle. Press and hold the START/PAUSE Button on the robot for approximately 5 seconds and the fan will stop. Remove WINBOT from the window. Polish away any marks left on the glass from the robot’s removal with the provided Finishing Cloth.

2. Power OFF : Move the Power Switch to the “o” position.

3. Remove the Safety Pod : Polish away any marks left on the glass from the Safety Pod’s removal with the provided Finishing Cloth.

4. Unplug WINBOT :



Notes: If WINBOT has a problem and the indicator Light flashes RED, it can be reset by pressing the RESET Button on the Remote Control. See “Troubleshooting” for details.

Maintenance

Before performing cleaning and maintenance on WINBOT, Power OFF and unplug WINBOT from the receptacle.

Cleaning Pad

Turn WINBOT over and remove the Cleaning Pad. Soak the Cleaning Pad in cool, clean water for 2 minutes. Hand wash with mild detergent and lay flat to dry. Allow it to dry completely before re-attaching it to WINBOT.

Warning :

• Do NOT use a wet Cleaning Pad on WINBOT or it may slip on the window.
• Washing the Cleaning Pad regularly can extend its service life.
• If the Cleaning Pad becomes worn or no longer fits exactly within the Velcro area, replace it with a new one to achieve best cleaning performance.

Fan, Sensors and Squeegee

• Fan : Turn WINBOT over and wipe any debris from the Fan with the provided Finishing Cloth to maintain suction.

• Side Rollers : Wipe the four Side Rollers with the provided Finishing Cloth to maintain their effectiveness.
• Edge Detection Sensors : Turn WINBOT over and wipe the four  Edge Detection Sensors clean with the provided Finishing Cloth to maintain their effectiveness

• Squeegee : Turn WINBOT over and wipe the Squeegee with the provided Finishing Cloth to maintain its effectiveness.


Driving Treads

• Plug WINBOT in. Turn WINBOT over and move the Power Switch to “ ” position. Press and hold the START/PAUSE Button for 5 seconds to stop the Fan.

• Inspect the Driving Treads by using the and buttons on the Remote Control.  Stop the Driving Treads if dirt is seen on the Treads.

• Move the Power Switch to the “O” position.

• Clean any dirt on the Driving Treads with the provided Finishing Cloth.


Status Indicator Light and Sounds

Troubleshooting

Instruction Manual

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where a technician will be able to help you with your specific problem or question.
For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com
The company reserves the right to make technological and/or design changes to this product for continuous improvement.

Important Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3. If there is a drop-off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect
   the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. Please make sure your power supply source voltage matches the power voltage marked on the Docking Station.
6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial, or industrial environments.
7. Use only the original rechargeable battery and Docking Station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited. For battery information, please refer to the Specifications section.
8. Do not use without a dust bin and/or filters in place.
9. Do not operate the appliance in an area where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments (below -5˚C/23˚F or above  40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all parts of the body away from any openings and moving parts.
12. Do not operate the appliance in a room where an infant or child is sleeping.
13. Do not use Appliances on wet surfaces or surfaces with standing water.
14. Do not allow the Appliance to pick up large objects like stones, large pieces of paper, or any item that may clog the Appliance.
15. Do not use Appliances to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
16.  Do not use Appliances to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
17. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce airflow.
18. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull the power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep the power cord away from hot surfaces.
19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Docking Station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.
21. Do not use a damaged power cord or receptacle. Do not use the Appliance or Docking Station if it is not working properly,
    has been dropped, damaged, left outdoors, or comes in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the Appliance.
23. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.
24. Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
25. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
26.  Please dispose of used batteries according to local laws and regulations.
27. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
28.  When not using the Docking Station for a long period of time, please unplug it.
29. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
30. The robot contains batteries that are only replaceable by skilled persons. To replace the robot’s battery, please contact Customer Service.
31. If the robot will not be used for a long time, power of the robot for storage and unplug the Docking Station.
32. WARNING: For the purposes of recharging the battery, only use the detachable supply unit CH1630A provided with the appliance.

For EU Countries

Correct Disposal of this Product
This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.

	Class II
	Short-circuit-proof safety isolating transformer
	Switch-mode power supply
	For indoor use only

Package Contents and Technical Specifications

Package Contents

	Robot
	Docking Station
	Instruction Manual
	Quick Start Guide
	(4) Side Brushes
	Main Brush Option (Pre-installed)
	Direct Suction Option
	Sponge Filter and High-efficiency Filter
	Multi-function Cleaning Tool

Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

Specifications

The output power of the WIFI module is less than 100mW.
Note: Technical and design specifications may be changed for continuous product improvement.

Product Diagram

Robot

Bottom View

operating and Programming

Notes Before Cleaning
WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Remove power cords and small objects from the floor that the robot could be obstructed by, and tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.
It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Quick Start

1. Remove Protective Strip

2. Docking Station Placement

3. Install Side Brushes

4. Power ON

5. Charge DEEBOT

   Note: When DEEBOT completes the cleaning cycle or when battery power gets low, DEEBOT automatically returns to the Docking Station to recharge itself. DEEBOT can also be sent back to the Docking Station at any time by using ECOVACS App or by pressing the AUTO Button on the robot for 3 seconds.
6. Start


7. Pause
   Note: The robot’s Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.
8. Power OFF

   Note: When DEEBOT is not working, it is recommended to keep it switched ON and charging.


Note: For models with app-connectivity, various functions can be performed using the ECOVACS App.

iOS 9.0 or later Android 4.0 or later

Choosing a Suction Option

Main Brush Option: The best choice for deep cleaning, with a combination of the Main Brush and strong suction.

Direct Suction Option: The best choice for daily cleaning. This Suction Option is specifically designed to pick up hair without getting clogged by it, and is ideal for pet owners.

Install the Direct Suction Option

Install the Main Brush Option

Maintenance

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

Dust Bin and Filters

Dust Bin

Main Brush, Direct Suction Option and Side Brushes

Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Main Brush

Other Components

Note: Before cleaning the robot’s Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.

Regular Maintenance
To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

Troubleshooting

DEEBOT will tell you something is wrong with an alarm indicator light and sounds.
More detailed support is available through the ECOVACS App and online.

Herzlichen Glückwunsch zum Kauf Ihres neuen DEEBOT von ECOVACS ROBOTICS! Wir hoffen, dass er viele Jahre lang zu Ihrer vollen Zufriedenheit arbeiten wird. Wir sind sicher, dass Ihr neuer Roboter Ihnen dabei helfen wird, Ihr Zuhause sauber zu halten, während Sie Ihre wertvolle Zeit für die angenehmen Dinge im Leben nutzen.
Live Smart. Enjoy Life.
Sollten Sie mit einer Situation konfrontiert sein, die in dieser Bedienungsanleitung nicht ausreichend behandelt wird, wenden Sie sich an das Kundenservicecenter, damit sich ein Techniker mit Ihrem speziellen Problem bzw. Ihrer Frage befassen kann.
Weitere Informationen finden Sie auch auf der offiziellen Website von ECOVACS ROBOTICS: www.ecovacs.com
Das Unternehmen behält sich im Sinne einer kontinuierlichen Verbesserung das Recht auf technische Änderungen und/ oder Designänderungen an diesem Produkt vor.
Vielen Dank, dass Sie sich für den DEEBOT entschieden haben.

EU-Declaration of conformity

Document number:0027
Manufacturer: Ecovacs Robotics Co., Ltd.
Address:No.18, Youxiang Road, Wuzhong District, Suzhou City, Jiangsu Province, China.
We hereby declare that the following products listed below are in accordance with the provisions in the latest version of EC in this document.

Product designation: Automatic battery-operated cleaner
Brand:
Model: DE5G,DE5G.**(*=0-9)(the first * denote different colours,the second * denote different accessories.)
Specification: Electrical appliances for household and similar purposes

EC Regulations or Directives:

RED – Directive 2014/53/EU
RoHS – Directive 2011/65/EU
WEE – Directive 2002/96/EC
REACH – Directive1907/2006/EC
Eco-design – Directive 2009/125/EC

Standards the product is in conformity with:

Signature:

General Manager: Zhuang Jianhua
Date: 2018-01-25
