Dell Alienware Aurora R11 Manual

ItsManual — Mon, 21 Nov 2022 12:52:06 +0000

Alienware Aurora R11

Regulatory Model: D23M

Regulatory Type: D23M003

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its
subsidiaries. Other trademarks may be trademarks of their respective owners.

Set up your computer

Connect the keyboard and mouse.

Connect to your network using a cable, or connect to a wireless network.

Connect the display.

NOTE:

The DisplayPort on the back panel of your computer is covered. Connect the display to the discrete graphics card of your computer.
If you have two graphics cards, the card installed in PCI-Express X16 (graphics slot 1) is the primary graphics card.

Connect the power cable.

Press the power button.

Dell Power Manager Manual

ItsManual — Tue, 07 Mar 2023 11:56:04 +0000

NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2017 – 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its
subsidiaries. Other trademarks may be trademarks of their respective owners.

Introduction

Dell Power Manager provides simplified and efficient power management capabilities for Dell notebooks and tablets running on Windows 10 operating system.

Topics:

Key Features
Access Dell Power Manager

Key Features

Battery Information– Display health information for up to six installed batteries, depending on system capabilities, and edit battery settings or create a custom battery setting.
Advanced Charge – Control battery charging to prolong battery life.
Peak Shift – Reduce power consumption by automatically switching the system to battery power during certain times of the day, even when the system is plugged into a direct power source.
Thermal Management – Control processor and cooling fan settings to manage performance, system surface temperature, and fan noise.
Battery Extender – Conserve battery charge by affecting the CPU power level, screen brightness and keyboard illumination levels, and by muting audio.
Alert Settings – Allows you to restore the default alert settings.

Access Dell Power Manager
To open the Dell Power Manager application, click the Windows Start button, and then do one of the following:

Click All Apps > Dell Power Manager.
Type Dell Power Manager in the Search programs and files box. In the search results, click the application to start it.

NOTE: This software is available only on Windows 10 operating system.

Battery information

NOTE: If a non-Dell battery is attached to your system, the battery graphic is displayed as orange color.
Dell Power Manager provides detailed information about your system’s batteries, including:

Whether your system is plugged in or using battery power
Percentage of your system’s total battery power remaining
Peak shift and battery extender status, if applicable
Battery health
Battery charge status
Battery settings
Battery type (Standard, Extended Warranty, or Enhanced)
Connection (Primary, Battery Slice, or Modular Bay)
Manufacturer
Dell battery (Yes or No)
Serial number
PPID (Piece Part ID)

NOTE: PPID may not always display.

The software supports a maximum of six batteries. To see the details of a particular battery, click the battery number (for example, Battery #1, Battery #2), and scroll down to see any additional batteries your system may contain.

Topics:

Battery health
Battery settings
Battery charge status

Battery health

Battery health indicates the amount of charge that is available to a system. In general, a battery’s health decreases over time at a rate that depends on how often the battery is used and the conditions under which it is used.
Battery health is indicated using the heart icon followed by a set of four circular icons. The number of circular icons that are filled indicates the battery health.

Table 1. Battery health indicator codes

NOTE: Health information is available only if Dell batteries are attached to your system.

Battery settings

Dell Power Manager enables users to select a Battery Setting that is optimized for specific system usage patterns. For example, some settings focus on extending battery life, while others provide fast charge times.
NOTE: Battery settings can be modified only if Dell batteries are attached to your system.

Available settings may be limited depending on the battery. Possible battery settings include:

Standard — Fully charges the battery at a moderate rate. This setting provides a balanced approach to extending battery life while providing a reasonably fast charging time. Recommended for users who frequently switch between battery and external power sources.
Express Charge™ — Quickly charges the battery using Dell fast-charge technology. Recommended for users who need the battery to charge quickly. If the system is powered off, then the battery typically charges to 80 percent within one hour and 100 percent in two hours. The charge time may be longer if the system is powered on.
NOTE: The Express Charge™ setting may cause battery health to diminish more quickly than other settings.
Primarily AC — Extends battery life by lowering the charge threshold, so that the battery never charges to 100 percent capacity. Recommended for users who primarily operate the system while plugged into an external power source.
Adaptive — Automatically optimizes battery settings based on the user’s typical patterns. Recommended for users who want to “set it and forget it.”
Custom — User selects when the battery starts and stops charging. Recommended for advanced users.

Select battery setting

On the Battery Information page, click the battery that you want to change (such as Battery #1 or Battery #2).
NOTE: If Advanced Charge is enabled, you can only access battery setting through the Advanced Charge screen.
Click Settings.
Select a pre-configured battery setting, or select Custom to define your own settings.
NOTE: Available settings may be limited depending on the battery.
Click OK to save your changes, or click Cancel to discard them.

Create custom battery setting

The Custom battery setting enables users to define when a battery starts and stops charging. This setting is recommended for advanced users who are familiar with battery charging cycles.
NOTE: There should be a minimum difference between the Start Charging and Stop Charging values specified in your system’s BIOS.

Go to the Battery Setting page, and then click Custom.
Under Start Charging, move the slider to the percentage threshold at which the battery begins charging, or enter a number in the text box. For example, entering 60 causes the battery to start charging when it depletes to 60 percent of the total available charge.
Under Stop Charging, move the slider to the percentage threshold at which the battery stops charging, or enter a number in the text box. For example, entering 90 causes the battery to stop charging when it reaches 90 percent of the total available charge.
Click OK to apply your settings, or click Cancel to discard your changes and return to the Battery Information page.

Battery charge status

View a battery’s charge status quickly by referring to the battery charge status indicator codes displayed beside the battery number on the Battery Information screen. For precise information on the percentage charged as well as the battery’s charging and AC connection status, see the Charge Status information displayed below the battery number and directly below the battery graphic.

Table 2. Battery charge status indicator codes

NOTE: Charge Status is available only if Dell batteries are attached to your system.

Advanced Charge

Advanced Charge is an optional feature that prolongs the usable life of a system’s batteries by charging them to full capacity only once per day, prior to the Start of day you establish when you Enable advanced charge. For the remainder of the day,
Advanced Charge keeps batteries in a lower charge state that is better for storage, even when the system is plugged into a direct power source.

NOTE: If the hours assigned to Peak Shift and Advanced Charge overlap, then Peak Shift takes priority. Batteries will not charge during Peak Shift hours.

Topics:
Enable Advanced Charge

Enable Advanced Charge

Advanced Charge is not enabled by default. When Advanced Charge is enabled, the feature applies to all batteries in the system, and individual battery configuration is disabled.

Click the Advanced Charge tab in the left pane.
NOTE: Hover your cursor over the icon if you want to see further information on advanced charge.
To enable Advanced Charge, click the toggle at the top of the page to the On position.
Click the toggle for each day of the week to enable or disable Advanced Charge for each day. If you enable the advanced charge feature, you must configure the feature for at least one day.
To set the times of day when Advanced Charge is active and inactive, click Settings.
NOTE: If you have not enabled Advanced Charge for a particular day, that day will not be displayed on the Time Settings page, and you will not be able to set the Advanced Charge schedule for that day. Go back to the main Advanced Charge page and enable Advanced Charge for that particular day.
In the Time Settings screen, click a day of the week. In the main portion of the page, you can use either the circular slider or the drop-down menus to set the time.
NOTE: You can select times in 15-minute increments—for example, you can enter 11:15 AM or 9:30 PM.
The circular slider represents a 24-hour period. To use the circular slider:
- Slide the Start of day thumb control to the start time of a typical workday.
- Slide the End of day thumb control to the end time of a typical workday.
  NOTE: The segment of time displayed in blue represents the work period, or when the system is active.
  Alternatively, you can use the drop-down menus to set the times:
- Select a time for Start of day.
- Select a time for End of day.
Select the Copy the same settings to multiple days check box. In the left pane, select the days to which these settings apply.
Click OK to save your settings, or click Cancel to discard them.

Peak Shift

Peak Shift is an optional feature that reduces power consumption by automatically switching the system to battery power during certain times of the day, even if the system is plugged into a direct power source. After Peak Shift begins, the system will run on battery power until the combined charge level of all batteries reaches a minimum threshold. See Enabling peak shift for instructions on how to change these settings. Then, if the system is plugged in, it is powered by the direct power source;
however, the battery will not charge until the peak shift ends. Users can program the start and end times at which the Peak Shift feature is active and inactive each day.

NOTE: If the hours assigned to Peak Shift and Advanced Charge overlap, then Peak Shift takes priority. Batteries will not charge during Peak Shift hours.

Topics:
Enable Peak Shift

Enable Peak Shift

Click the Peak Shift tab in the left pane.
NOTE: Hover your cursor over the icon if you want to see further information on Peak Shift.
To enable Peak Shift, click the toggle at the top of the page to the On position. Your system BIOS already has a minimum threshold setting below which the system always draws AC power if it is available; this BIOS setting always takes precedence over any setting you enter here.
To select the percentage at which the system will Restore AC power if available system charge falls below, move the slider. For example, selecting 15 percent causes the system to switch from battery to AC power during Peak Shift if the power remaining falls below 15 percent. While the system runs as normal on AC (direct) power, the battery does not charge until Peak Shift ends.
To enable or disable Peak Shift for a specific day, click the toggle next to each day of the week.
NOTE: If you have not enabled Peak Shift for a particular day, that day will not be displayed on the Time Settings page, and you will not be able to set Peak Shift schedule for that day. Go back to the main Peak Shift page and enable Peak Shift for that particular day.
To set the time of day when Peak Shift is active, click Settings.
On the Time Settings screen, click a day of the week. Using either the circular slider or the drop-down menus:
NOTE: You can select times in 15–minute increments—for example, you can enter 11:15 AM or 9:30 PM. The circular slider represents a 24-hour period.
- Activate peak shift: Select the time you want Peak Shift to begin.
  NOTE: If you enable Operate only on AC, then the time between starting Peak Shift and operating on AC power is indicated in blue, and the time between starting to operate on AC power and ending Peak Shift is indicated in yellow. Green indicates the period of operation on AC power without charging the battery.
- Set a time at which the system begins to operate only on AC power without charging the battery: Select the Operate on AC power without charging battery check box, then select the time that you want the system to start operating on AC power without charging the battery.
- End peak shift: Select the time you want Peak Shift to end.
  NOTE: The Copy the same settings to multiple days check box is automatically cleared once you leave the page.
Select Copy the same settings to multiple days. Then, in the left pane, select the days to which these settings apply.
To save your changes, click OK, or to discard them, click Cancel.

Thermal Management

NOTE: If your system does not support thermal settings, then the Thermal Management feature is not available.

Dell Power Manager allows you to manage your system’s processor and cooling fan settings so that you can manage performance, system surface temperature, and fan noise. Each option represents a different balance of these three elements. Choose the configuration that best suits the way you use your system.

CAUTION: If a fan has failed, the Thermal Management feature is disabled.

Table 3. Thermal setting options

Setting	Description
Optimized	Balances performance, noise, and temperature.
Cool	Cooling fan speed is raised to maintain a cooler system surface temperature. Your system may produce more noise and experience reduced performance.
Quiet	Cooling fan and processor speeds are lowered to reduce fan noise. This configuration may also reduce system performance and raise system surface temperature.
Ultra performance	Both processor and cooling fan speeds are increased to produce higher system performance. This configuration may also produce more noise and higher system surface temperature. Press Fn+T to enable or disable Ultra performance mode. NOTE: Enabling or disabling the Ultra performance mode, displays a notification on your system.

Additional thermal setting options may be available through your operating system. Click Control Panel in the Operating System Power Plan box that is displayed in the upper right side of the Thermal Management page.
See Changing Thermal Management Settings for instructions on changing the thermal settings on your system using Dell Power Manager.

Topics:
• Changing thermal management settings

Changing thermal management settings
Perform the following to change the thermal management setting:

Click the Thermal Management tab in the left pane.
Click the radio button beside the thermal management setting you want to select.

Battery Extender

Dell Power Manager’s Battery Extender feature allows you to conserve battery charge.
NOTE:

If your system does not support Reduce CPU Power (Quiet Thermal Setting), then the Battery Extender feature is not available.
Battery Extender only reports setting changes you make within the Battery Extender feature. Changes you make within the BIOS and operating system settings that affect battery charge consumption are not reflected within Battery Extender.
Battery Extender cannot be turned on when you have plugged the system into an electrical outlet.

Use Battery Extender to affect the following:

Reduce CPU power level
Screen brightness level
Keyboard illumination level
Mute audio

From the Battery Extender tab you can:

Turn On or Off Battery Extender
Access the Battery Extender Setting screen
View your battery settings summary

Topics:

Extend battery charge
Turn off Battery Extender

Extend battery charge
Dell Power Manager’s Battery Extender feature allows you to change the settings of some system functions that affect your system’s battery consumption. To access Battery Extender:

Click the Battery Extender tab in the left pane.
Click the Settings button.
Click in the box beside the feature you want to affect, and where available, slide the slider or enter a percentage number to adjust the level of change you want to apply.
Click OK to apply your changes, or click Cancel to discard your changes.
Click the toggle to the On position.

To restore any settings you have changed using Battery Extender, click Restore Defaults.

Turn off Battery Extender

To turn off the Battery Extender feature:
NOTE: Turning off Battery Extender causes any setting changes you made to revert to those in effect at the time you turned on battery extender.

Click the Battery Extender tab in the left pane.
Slide the control to the Off position.

Alert Settings

The Alert Settings feature in Dell Power Manager allows you to restore the default alert settings. Dell Power Manager supports the following types of alerts:

Adapter alerts
Battery alerts
Docking station alerts
Other alerts
Thermal alerts

NOTE: Alert Settings functions only if the service is installed.
NOTE: To enable or disable the display of specific alerts, click Continue to display this message or Do not display this message again options respectively.

Topics:
Restore alert defaults

Restore alert defaults
Perform the following steps to restore the alert defaults:

Click the Alert Settings tab in the left pane.
Click Restore alert settings. This feature restores the display of an alert if you previously clicked the Do not display this message again option.
A confirmation dialog window displays the message Are you sure you want to restore all alert settings?
Click Yes to continue or Cancel to abort.

Install, uninstall, and upgrade Dell Power Manager

You can install Dell Power Manager from the Dell support site or from the Microsoft Store.
NOTE: You cannot install Dell Power Manager version 3.8 if you have installed My Dell version 1.8 or higher on your system.
After installing or upgrading to MyDell, Dell Power Manager is uninstalled from your system. However, you can still access the Power settings from MyDell.

Dell Power Manager Service Installer is released as a Dell Update Package (DUP) available at Dell.com/support and Dell Update Catalog. You can install, uninstall, and upgrade Dell Power Manager using the Dell Update Package.
NOTE: This service installer supports only 64-bit operating systems and is available only on Windows 10 operating system.

Topics:

Install Dell Power Manager from the Microsoft Store
Install Dell Power Manager from the Dell support site
Uninstall Dell Power Manager using the command prompt
Uninstall Dell Power Manager
Install Dell Power Manager using the command prompt

Install Dell Power Manager from the Microsoft Store
Perform the following to install Dell Power Manager:

Open Microsoft Store from the Windows Start menu, and sign in to the Store.
Select Search, and find Dell Power Manager.
On the Dell Power Manager page, select Install. The Dell Power Manager application is installed in your system.
Click Launch. A message is displayed to confirm whether you want to install the service.
Select Download. Dell Power Manager is launched and the service is installed in your system. You can now configure the power management capabilities of your system.

NOTE: If you select Skip, instead of all the supported features of the application, only the battery information of your system is displayed in the application.

Install Dell Power Manager from the Dell support site
Perform the following steps to install Dell Power Manager from support site:

To download Dell Power Manager, go to Dell.com/support.
Enter the model number in the Keyword field and click Search. For example: Latitude 5510.
Click DRIVERS & DOWNLOADS.
Download the DUP.exe file.
Double-click the *.exe file to start the installation wizard.
Follow the steps in the wizard until you complete the installation or upgrade. The Dell Power Manager application and installer is installed.

Uninstall Dell Power Manager using the command prompt

To uninstall Dell Power Manager using the setup.exe file, run the following command:
DPM_ Setup _3_3_0.exe /x
For example:
DPM_Setup64_3_3_0.exe /x

Uninstall Dell Power Manager
Perform the following steps to uninstall Dell Power Manager:

Open the Windows Start menu, and search for Apps and Features. The list of applications and features available on the system appears.
Search for Dell Power Manager Service and select Uninstall. Dell Power Manager is uninstalled from your system.

NOTE: Uninstalling the Dell Power Manager Service also uninstalls the application from your system.
NOTE: In Windows 7, uninstall the application using the Windows Programs and Features option available in the Control Panel. However, in Windows 10, uninstall the application using the Apps and Features option available in Settings.

Group Policy

This chapter provides details about Dell Power Manager administrative features, including enabling and customizing Group Policies.
CAUTION: The tasks in this chapter should be performed only by a System Administrator.

Topics:

Group Policy template
Customize Group Policy settings

Group Policy template
Administrators can apply the Dell Power Manager settings across multiple systems using the Group Policy feature in Windows Server. For more information about Windows Group Policies, see the Group Policy Overview article at www.docs.microsoft.com. After you apply a Group Policy Template to a system, end users cannot change the settings that are associated with that template.

To use Group Policy Templates:

Install the Group Policy Management Console. See, Installing the Group Policy Management Console.
Install the Group Policy Templates. See, Installing the Group Policy Templates.
Optionally, customize one or more policies. See, Customizing a Group Policy.
Apply policies to specific systems, groups, or users. See Applying a Group Policy.

NOTE: If the administrator restricts all the available settings, the user cannot change any configuration components.
However, if the administrator stipulates only some of the settings, the remaining settings are available for the user to configure.

Installing the Group Policy Management Console

Dell Power Manager uses the Group Policy Management Console (GPMC) in Windows Server to administer Group Policies. The GPMC feature is in Windows Server 2008 and newer. However, it is not automatically installed with the operating system. An administrator must install GPMC on the domain server using Server Manager or Windows PowerShell.
An administrator must set Active Directory as a server role. In Server Manager, right-click Roles, and then click Add Roles. On the Server Roles screen, select Active Directory Domain Services, and complete the wizard.
For detailed instructions on installing GPMC, see the Group Policy Management Console article at www.docs.microsoft.com.

Install Group Policy templates

Before you create, apply, or change Group Policy Templates, an administrator must first make the templates available in the Group Policy Management Console (GPMC).

Obtain and extract the Dell Power Manager update package.
- You can download the Dell Power Manager update package for your system from www.dell.com/support.
- Once you have downloaded the package, run it and select the Extract option to extract the files.
On the domain server, go to the directory where you have extracted the Dell Power Manager file.
Open the Policy Definitions folder.
Copy the .admx files in the Policy Definitions folder to the default Windows Policy Definitions folder—typically, the default path is C:WindowsPolicyDefinitions.
Copy the .adml files in the Policy Definitions folder (for example, Policy DefinitionsEn) to C:WindowsPolicyDefinitions.
The Group Policies is available in GPMC under Administrative Templates.

Customize a Group Policy

Dell Power Manager includes several Group Policy settings that administrators can customize based on their domain and environment requirements. To configure Dell Power Manager Group Policy settings:

Open the Group Policy Management Editor.
- Click Server Manager > Features > Group Policy Management > Forest: > Domains > .
- Right-click the Default Domain Policy, and select Edit.
In the left pane, expand Computer Configuration > Policies > Administrative Templates > System > Dell > Command Power Manager.
In the left pane, select one of the categories to configure the settings you want to apply to the domain.

For a complete list of the available Group Policy settings and their values, see the Group Policy Management Editor on your domain server.

Apply a Group Policy
Administrators can apply a Group Policy to specific systems, groups, or users by associating the Group Policy Object (GPO) with an Active Directory Organizational Unit (OU) in the Group Policy Management Editor.

Create a Group Policy Object (GPO).
- In Group Policy Management for your domain, expand Group Policy Objects.
- Right-click the Group Policy Objects group and create a GPO.
- Enter a Name for the GPO, and click OK.
Add a policy to the new GPO.
- In Group Policy Management for your domain, right-click the new GPO you created in previous step and select Edit.
- In the left pane, select Computer Configuration > Policies > Administrative Templates > System > Dell Power Manager.
- Set the wanted policy.
Create an Active Directory OU, if it does not exist.
- In Active Directory, right-click the domain, and select New > Organizational Unit.
- Enter a Name for the organizational unit, and click OK.
- In the right pane, right-click the new OU, and select New.
- Select the system, group, or users to which this policy applies.
Link the GPO to the OU.
- Close Active Directory and the Group Policy Management Editor, if they are open.
  NOTE: Restart the Group Policy Management Editor to see new OUs.
- Reopen the Group Policy Management Editor.
- Select Group Policy Management > Domains >
- Right-click the OU, and select Link an existing GPO.
- Select the GPO created in a previous step, and click OK.

Apply Group Policy template changes to client systems

Changes to Group Policy Templates do not immediately apply to systems, because they must first be replicated in the domain controller. Also, client systems can take up to 90 minutes to refresh Group Policy Objects. For detailed information, see the
Determining When Group Policy Changes are Applied article at www.docs.microsoft.com.

Administrators can manually force updates to take effect immediately by doing the following:

On the client system, open the command window.
Enter the following command.
GPU update /force
Press Enter.

In Windows Server 2012, administrators can also force client updates from the Group Policy Management Console (GPMC). For detailed information, see the Force a Remote Group Policy Refresh article at www.docs.microsoft.com.

Troubleshooting

Topics: View event log

View event log
Dell Power Manager logs errors and events in the Windows event log.

Click the Windows Start button.
Click Control Panel > Administrative Tools.
Double-click the Event Viewer to open the application in a new window.
In the left pane, expand Windows Logs, and then click Application.
In the right pane, click Filter Current Log. The Filter Current Log window is displayed.
In the Event sources drop-down menu, select Dell Command Power Manager.
Optionally, select one or more Event level options.
Click OK to display the errors and events of the specified levels.

Contacting Dell

NOTE: If you do not have an active Internet connection, you can find contact information from your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country/region or region and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

Go to www.www.dell.com/support.
Select your support category.
Verify your country/region or region in the Choose a Country/Region drop-down list at the bottom of the page.
Select the appropriate service or support link that is based on your need.

Dell P2210 Manual

ItsManual — Tue, 04 Apr 2023 07:40:45 +0000

Dell P2210 Manual and Assembly Guide

Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.

NOTE: Stand and cables are not included when purchased with OptiPlex™ USFF 780/OptiPlex SFF 980 AIO stands.

NOTE: To set up with the respective AIO stand, please refer to the respective stand setup guide for setup instructions.

Monitor

Stand

Power Cable

VGA Cable (attached to the monitor)

DVI Cable

USB up stream cable (enables the USB ports on the monitor)

l Drivers and Documentation media
l Quick Setup Guide
l Safety Information

Product Features
The P2210 flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
■ 22-inch (558.68 mm) viewable area display (Measured diagonally).
■ 1680 x 1050 resolution, plus full-screen support for lower resolutions.
■ Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■ Tilt, swivel, vertical extension and rotate adjustment capability.
■ Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.
■ Plug and play capability if supported by your system.
■ Retractable label card allows convenient access to monitor serial number for technical support and easily hidden away providing label-free clean look.
■ On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■ Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.
■ Energy Saver feature for Energy Star compliance.
■ Security lock slot.
■ Asset Management Capability.
■ Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.
■ EPEAT Gold Rating.
■ Halogen Reduced.

Identifying Parts and Controls
Front View

Label Card View
NOTE: Monitor shipped with label card fully inserted in USB compartment. Pull out the label card to access the barcode serial number label and regulatory rating

Back View with label card pulled out

Side View

1 USB downstream ports Connect your USB devices.
2 Label card Provide clean monitor back view when reference to labels is not required.

Bottom View

1 AC power cord connector Connect the power cable
2 DC power connector for Dell Soundbar. Connect the power cord for the soundbar (optional)
3 DisplayPort connector Connect your computer DP cable
4 DVI connector Connect your computer DVI cable
5 VGA connector Connect your computer VGA cable
6 USB upstream port
Connect the USB cable that came with your monitor to the monitor and the
computer. Once this cable is connected you can use the USB connectors on
the side and bottom of the monitor.
7 USB downstream ports
Connect your USB devices. You can only use this connector after you have
connected the USB cable to the computer and USB upstream connector on
the monitor.

Monitor Specifications
Flat Panel Specifications

Screen type: Active matrix – TFT LCD
Panel type: TN
Screen dimensions: 22 inches (22-inch viewable
image size)
Preset display area: 473.76(H)X296.1(V)
Horizontal: 473.76 mm (18.7 inches)
Vertical: 296.1 mm (11.7 inches)
Pixel pitch: 0.282 mm
Viewing angle:160° (vertical) typical 170° (horizontal) typical
Luminance output: 250 CD/m²(typical)
Contrast ratio: 1000 to 1 (typical), 10000 to 1 (typical Dynamic Contrast On)
Faceplate coating: Antiglare with hard-coating 3H
Backlight: 2-CCFL edgelight system
Response Time: 5ms panel typical
Color depth: 16.7 million colors
Color Gamut: 83%*

*[P2210] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.

Resolution Specifications
Horizontal scan range: 30 kHz to 83 kHz (automatic)
Vertical scan range: 56 Hz to 75 Hz (automatic)
Maximum preset resolution: 1680 X 1050 at 60 Hz

Supported Video Modes

Video display capabilities (DVI & DP playback) 480p, 576p, 720p, 1080p

Preset Display Modes

VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1680 x 1050 65.2 60.0 146.0 -/+

Electrical Specifications
Video input signals
Analog RGB, 0.7 Volts +/- 5%, positive polarity at 75 ohm input
impedance
Digital DVI-D TMDS, 600mV for each differential line, positive polarity at
50 ohm input impedance
DP 1.1a signal input support
Synchronization input signals TTL levels required and separate syncs (including Trigger points), SOG
(Composite SYNC on green)
AC input
voltage/frequency/current 100 to 240 VAC/50 or 60 Hz + 3 Hz/1.5A (Typical)

Inrush current 120 V: 30 A (Max.)
240 V: 60 A (Max.)

Physical Characteristics

Connector type
15-pin D-subminiature, blue
connector; DVI-D, white
connector;DP,black connector.
Signal cable type
Digital: Detachable, DVI-D, Solid
pins, shipped detached from the
monitor
Analog:attachable, D-Sub, 15pins,
shipped attached to the monitor
Dimensions (with stand)
Height (extended) 461.91 mm (18.18 inches)
Height (compressed) 361.91 mm (14.24 inches)
Width 511.77 mm (20.15 inches)
Depth 184.12 mm (7.25 inches)
Dimensions (without stand)
Height 334.17 mm (13.16 inches)
Width 511.77 mm (20.15 inches)
Depth 65.00 mm (2.56 inches)
Stand dimensions
Height (extended) 363.82 mm (14.32 inches)
Height (compressed) 323.52mm (12.74 inches)
Width 279.92 mm (11.02 inches)
Depth 184.12 mm (7.25 inches)
Weight
Weight with packaging 18.2 lb (8.25 kg)
Weight with stand assembly and cables 14.22 lb (6.45 kg)
Weight without stand assembly
(For wall mount or VESA mount considerations –
no cables)
9.97 lb (4.52kg)
Weight of stand assembly 3.88 lb (1.76 kg)

nvironmental Characteristics

Temperature
Operating 0° to 40 ° C
Non-operating Storage: -20° to 60° C (-4° to 140° F)
Shipping: -20° to 60° C (-4° to 140° F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90% (non-condensing)
Altitude
Operating 3,657.60 m (12,000 ft) max
Non-operating 12,192 m (40,000 ft) max
Thermal dissipation 88.77 BTU/hour (maximum)
75.12 BTU/hour (typical)

Power Management Modes
If you have VESA’s DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in
use. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes
functioning. The following table shows the power consumption and signaling of this automatic power saving feature:

Pin Assignments
VGA Connector

DVI Connector

Display Port Connector

Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor
installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.

Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the left side of your monitor.

NOTE: This monitor supports High-Speed Certified USB 2.0 interface.

USB Ports
l 1 upstream – back
l 4 downstream – 2 on back; 2 on left side

NOTE: USB 2.0 functionality requires a USB 2.0-capable computer
NOTE: The monitor’s USB interface works only when the monitor is on or in power save mode. If you turn off the monitor and then turn it on, the attached peripherals may take a few seconds to resume normal functionality.

LCD Monitor Quality and Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and
do not affect the display quality or usability.For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: support.dell.com.

Maintenance Guidelines
Cleaning Your Monitor

WARNING: Read and follow the safety instructions before cleaning the monitor.
WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:
l To clean your antistatic screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the
antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
l Use a lightly-dampened, warm cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
l If you notice white powder when you unpack your monitor, wipe it off with a cloth.
l Handle your monitor with care as a darker-colored monitor may scratch and show white scuff marks more than a lighter-colored monitor.
l To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.

Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be
available in your area. To contact Dell for sales, technical support, or customer service issues:

1. Visit support.dell.com.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.
3. Click Contact Us on the left side of the page.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.

Setting Up Your Monitor
Dell™ P2210 Flat Panel Monitor

If you have a Dell™ desktop or a Dell™ portable computer with internet access
1. Go to http://support.dell.com, enter your service tag, and download the latest driver for your graphics card.
2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1680 x 1050 again.

Back to Contents Page
NOTE: If you are unable to set the resolution to 1680 x 1050, please contact Dell™ to inquire about a Graphics Adapter that supports these resolutions.
If you have a non Dell™ desktop, portable computer, or graphics card
In Windows XP®:
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Select Advanced.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1680 X 1050 again.
In Windows Vista® or Windows® 7:
1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Click Advanced Settings.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1680 X 1050 again.

Back to Contents Page

NOTE: If you are unable to set the resolution to 1680 x 1050, please contact the manufacturer of your computer or consider purchasing a graphics
adapter that will support the video resolution of 1680 x 1050.

Operating the Monitor
Dell™ P2210 Flat Panel Monitor User’s Guide
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
Setting the Maximum Resolution
Using the Dell Soundbar (Optional)
Using the Tilt, Swivel, and Vertical Extension
Rotating the monitor
Adjusting the Rotation Display Settings of Your System

Using the Front Panel
Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls,
an OSD shows the numeric values of the characteristics as they change.

The following table describes the front panel buttons:

1.Use this button to choose from a list of preset color modes.

2.Use this button to directly access the “Brightness/Contrast” menu or to increase the values of the selected menu option.

3. Use the MENU button to launch the on-screen display (OSD) and select the OSD Menu. See Accessing the Menu System.

4 Exit Use this button to go back to the main menu or exit the OSD main menu.

Use the Power button to turn the monitor on and off.

The Blue LED indicates the monitor is on and fully functional. An amber LED indicates DPMS power save mode.

Using the On-Screen Display (OSD) Menu
Accessing the Menu System

NOTE: If you change the settings and then either proceed to another menu or exit the OSD menu, the monitor automatically saves those changes. The changes are also saved if you change the settings and then wait for the OSD menu to disappear.

1. Push the button to launch the OSD menu and display the main menu.

Main Menu for analog (VGA) Input

or
Main Menu for digital (DVI) Input

DELL Laptop Vostro 15 5510 Manual

ItsManual — Tue, 04 Apr 2023 14:36:10 +0000

DELL Laptop Vostro 15 5510 User Manual

Vostro 15 5510
Setup and Specifications

Regulatory Model: P106F
Regulatory Type: P106F001
April 2021
Rev. A00

Notes, cautions, and warnings

: A NOTE indicates important information that helps you make better use of your product.

: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

: A WARNING indicates a potential for property damage, personal injury, or death.

© 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Set up your Vostro 15 5510

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

1. Connect the power adapter and press the power button.

NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the power button to turn on the computer.

2. Finish operating system setup.

For Ubuntu: Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see the knowledge base articles SLN151664 and SLN151748 at www.dell.com/support.

For Windows: Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:

Connect to a network for Windows updates.

NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.

If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an offline account.
On the Support and Protection screen, enter your contact details.

3. Locate and use Dell apps from the Windows Start menu–Recommended.

Table 1. Locate Dell apps

Views of Vostro 15 5510

Topics:

Right
Left
Top
Front
Bottom
Battery charge and status LED

Right

SD-card slot
Reads from and writes to the SD card. The computer supports the following card types:
- Secure Digital (SD)
- Secure Digital High Capacity (SDHC)
- Secure Digital Extended Capacity (SDXC)
USB 3.2 Gen 1 port
Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
RJ-45 Ethernet port
Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access, with a transfer rate of 10/100/1000 Mbps.
Global headset jack
Connect headphones or a headset (headphone and microphone combo).
Security-cable slot (wedge-shaped)
Connect a security cable to prevent unauthorized movement of your computer.

Left

Power-adapter port
Connect a power adapter to provide power to your computer and charge the battery.
Power and battery-status light
Indicates the power state and battery state of the computer.
Solid white–Power adapter is connected and the battery is charging.
Solid amber–Battery charge is low or critical.
Off–Battery is fully charged.
: On certain computer models, the power and battery-status light are also used for diagnostics. For more information, see the Troubleshooting section in your computer’s Service Manual.
HDMI 1.4 port
Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output.
USB 3.2 Gen 1 port
Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
USB 3.2 Gen 2×2 Type C port with DisplayPort and Power Delivery
Connect devices such as external storage devices, printers, and external displays. Provides data transfer rate of up to 10 Gbps. Supports Power Delivery that enables two-way power supply between devices. Provides up to 15 W power output that enables faster charging.
: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Thunderbolt 4.0 port with Power Delivery
Supports USB4, DisplayPort 2.0, Thunderbolt 4 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40 Gbps for USB4 and Thunderbolt 4.
: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, see the knowledge base article SLN286158 at www.dell.com/support.
: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
: USB4 is backward compatible with USB 3.2, USB 2.0, and Thunderbolt 3.
: Thunderbolt 4 supports two 4K displays or one 8K display.

Top

Power button with optional fingerprint reader
Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 4 seconds to force shut-down the computer. If the power button has a fingerprint reader, place your finger on the power button to log in.
NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.
Touchpad
Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click.

Front

Left microphone
Provides digital sound input for audio recording and voice calls.
Privacy shutter
Slide the privacy shutter to cover the camera lens and protect your privacy when the camera is not in use.
Camera
Enables you to video chat, capture photos, and record videos.
Camera-status light
Turns on when the camera is in use.
Right microphone
Provides digital sound input for audio recording and voice calls.
LCD panel

Bottom

Left and right speakers
Provides audio output.
Service Tag label
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

Battery charge and status LED

Table 2. Battery charge and status LED Indicator

S0 (ON) – Computer is turned on.
S4 (Hibernate) – The computer consumes the least power compared to all other sleep states. The computer is almost at anOFF state, expect for a trickle power. The context data is written to hard drive.
S5 (OFF) – The computer is in a shutdown state.

Specifications of Vostro 15 5510

Topics:

Dimensions and weight
Processor
Chipset
Operating system
Memory
Intel Optane Memory H20 with Solid-State Storage (optional)
External ports
Internal slots
Communications
Audio
Storage
Media-card reader
Keyboard
Camera
Touchpad
Power adapter
Battery
Display
Fingerprint reader (optional)
GPU–Integrated
GPU–Discrete
Operating and storage environment

Dimensions and weight

The following table lists the height, width, depth, and weight of your Vostro 15 5510.

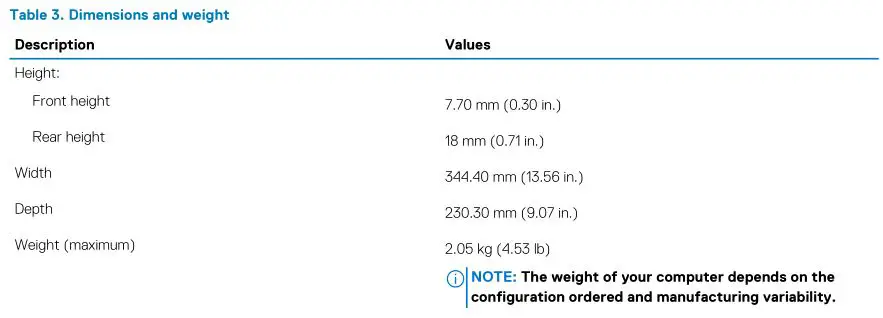

Table 3. Dimensions and weight Description Height:

Processor

The following table lists the details of the processors supported by your Vostro 15 5510.

Table 4. Processor Description Processor type

Chipset

The following table lists the details of the chipset supported by your Vostro 15 5510.

Table 5. Chipset Description Chipset

Operating system

Your Vostro 15 5510 supports the following operating systems:

Windows 10 Pro, 64-bit
Windows 10 Home, 64-bit
Ubuntu Linux 20.04 LTS, 64-bit

Memory

The following table lists the memory specifications of your Vostro 15 5510.

Table 6. Memory specifications

Intel Optane Memory H20 with Solid-State Storage (optional)

Intel Optane Memory technology uses 3D XPoint memory technology and functions as a nonvolatile storage cache/accelerator and/or storage device depending on the Intel Optane Memory that is installed in your system.
Intel Optane Memory H20 with Solid-State Storage functions as both a nonvolatile storage cache/accelerator (enabling enhanced read/write speeds for hard drive storage) and a solid-state storage solution. It neither replaces nor adds to the memory (RAM) installed on your system.

Table 7. Intel Optane Memory H20 with Solid-State Storage specifications

NOTE: Intel Optane Memory H20 with Solid-State Storage is supported on systems that meet the following requirements:

11th Generation or higher Intel Core i3/i5/i7 processors
Windows 10 64-bit version or higher (Anniversary Update)
Intel Rapid Storage Technology driver version 18.1.0.1027 or higher

External ports

The following table lists the external ports of your Vostro 15 5510.

Table 8. External ports

Internal slots

The following table lists the internal slots of your Vostro 15 5510.

Table 9. Internal slots

Communications

Ethernet

Table 10. Ethernet specifications

Wireless module

Table 11. Wireless module specifications

Audio

The following table lists the audio specifications of your Vostro 15 5510.

Table 12. Audio specifications

Storage

This section lists the storage options on your Vostro 15 5510.
Your computer supports one of the following configurations:

M.2 drive x1
M.2 drive x2

The primary drive of your computer varies with the storage configuration. For systems with a M.2 drive, the M.2 drive is the primary drive.

Table 13. Storage specifications

Media-card reader

The following table lists the media cards supported by your Vostro 15 5510.

Table 14. Media-card reader specifications

Keyboard

The following table lists the keyboard specifications of your Vostro 15 5510.

Table 15. Keyboard specifications

Camera

The following table lists the camera specifications of your Vostro 15 5510.

Table 16. Camera specifications

Touchpad

The following table lists the touchpad specifications of your Vostro 15 5510.

Table 17. Touchpad specifications

Power adapter

The following table lists the power adapter specifications of your Vostro 15 5510.

Table 18. Power adapter specifications

Battery

The following table lists the battery specifications of your Vostro 15 5510.

Table 19. Battery specifications

Display

The following table lists the display specifications of your Vostro 15 5510.

Table 20. Display specifications

Fingerprint reader (optional)

The following table lists the specifications of the optional fingerprint-reader of your Vostro 15 5510.

Table 21. Fingerprint reader specifications

GPU–Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Vostro 15 5510.

Table 22. GPU–Integrated

GPU–Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Vostro 15 5510.

Table 23. GPU–Discrete

Operating and storage environment

This table lists the operating and storage specifications of your Vostro 15 5510.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 24. Computer environment

* Measured using a random vibration spectrum that simulates user environment.
Measured using a 2 ms half-sine pulse when the hard drive is in use.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing fn + Esc. Subsequently, multi-media control can be invoked by pressing fn and the respective function key. For example, mute audio by pressing fn + F1.

NOTE: You can also define the primary behavior of the function keys (F1F12) by changing Function Key Behavior in BIOS setup program.

Table 25. List of keyboard shortcuts

The fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 26. List of keyboard shortcuts

Getting help

Topics:
· Contacting Dell

Contacting Dell

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

Go to Dell.com/support.
Select your support category.
Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page.
Select the appropriate service or support link based on your need.

DELL SupportAssist for Home PCs Version 3.11.4 App manual

ItsManual — Sat, 08 Apr 2023 06:25:19 +0000

SupportAssist for Home PCs Version 3.11.4
Release Notes

Release Summary

This release includes security and bug fixes.

Version
3.11.4

Release date
June 2022
Priority and recommendations
URGENT: Dell highly recommends applying this update as soon as possible. The update contains changes to improve the reliability and availability of your Dell system.
Compatibility

SupportAssist is supported on the following Dell PCs with 64-bit Windows 10 version 1809 and later versions of the operating system:

Inspiron
XPS
Alienware
Latitude
Vostro
OptiPlex
Precision

NOTE: SupportAssist is not supported on virtual machines.

Minimum PC requirements

The following table lists the minimum PC requirements for installing and using SupportAssist:

Table 1. Minimum PC requirements

Particulars	Requirements
Operating system	● Microsoft Windows version 1809 or later (only 64-bit) ● Microsoft Windows 11
Software	Microsoft .NET Framework 4.7.2 and .NET Core Runtime v5.0.14 NOTE: If you do not have Microsoft .NET Framework 4.7.2 and .NET Core Runtime v5.0.14, SupportAssist installs the latest Microsoft .NET Framework on your PC.
Web browser	Microsoft Edge or Internet Explorer 10 and later
Hardware	● Memory (RAM)—2 GB for Windows 10 and 4 GB for Windows 11 ● Hard drive free space—1 GB
Network	Internet connectivity
Ports	● 5700—to open the SupportAssist user interface ● 9012—to communicate with Dell SupportAssist service ● 8883, 8884, 8885, or 8886—to communicate with Dell support website ● 28283—to pair your Dell PC to any other PC for data migration ● 28100–28700—to migrate your data to your Dell PC from any other PC The PC must be able to connect to the following destinations: ● https://saservices.dell.com ● https://apidp.dell.com ● https://apigtwb2cnp.us.dell.com ● https://fuslite.dell.com ● https://cs-is.dell.com ● https://tdm.dell.com ● https://api.dell.com ● https://downloads.dell.com ● https://www.dell.com ● https://dl.dell.com ● http://content.dellsupportcenter.com

New and enhanced features

Deprecated support for PCs running Windows 10 version 1803 or earlier versions of operating systems.
Ability to download the migration summary as a PDF file.
Ability to trade in your PC using the Dell Trade-in offer.
Ability to perform software optimizations remotely by Dell Technical Support Agent.
Added additional information about existing service offers.
Bug fixes.

Known issues

Selected files and settings are automatically cleared
Description
If you rescan the drivers on the source PC after you select the files and settings that you want to migrate, the selections are automatically cleared.
Workaround
None.
Version affected

3.5 and later
Tracking number
3072

SupportAssist user interface does not open when accessed by a nonadministrator user

Description
The SupportAssist user interface does not open when you try to open it as a non-administrator user on a PC that is part of a domain such as a work or school network.
Workaround
Reboot the PC and try again.
Version affected
All the versions.
Tracking number
8130

Mismatch in the number of files that were not migrated

Description
When the migration fails or is canceled, the number of files that were not migrated is not displayed correctly. The number of files that is displayed on the migration summary page does not match with the number that is displayed when you click View
Details.
Workaround
None.
Version affected
3.8 and later
Tracking number
1156

Driver scans do not work after updating the Dell Command | Update or Dell Update application

Description
After updating the Dell Command | Update or Dell Update application, the driver scans in SupportAssist do not work.
Workaround
Reboot the system and retry.
Version affected
3.10.4 and later
Tracking number
9623

Driver scans do not work if Dell Command | Update or Dell Update

Description
When you install Dell Command | Update or Dell Update application after installing SupportAssist, the driver scans in
SupportAssist do not work.
Workaround
Reboot the system and retry.
Version affected
3.10.4 and later
Tracking number
15356

Unable to open the SupportAssist user interface as a non-administrator

Description
If you do not have administrator rights, you may not be able to open the SupportAssist user interface after upgrading from
3.10.4 to 3.11.4 version.
Workaround
Reboot the system and retry.
Version affected
3.11.4
Tracking number
12155
Limitations
The Carry-in Service Locator and Call us information are always displayed in the language of the country or region where the
PC was purchased.

SupportAssist for Home PCs resources

This section lists the documentation resources and other useful links that provide more information about SupportAssist for
Home PCs.

Table 2. SupportAssist for Home PCs resources

Contents	Resource	Go to
Minimum requirements, installation, and product features	SupportAssist for Home PCs Version 3.11A User’s Guide	SupportAssist for Home PCs manuals
New features, enhancements, known issues, and limitations in the release	SupportAssist for Home PCs Version 3.11A Release Notes	SupportAssist for Home PCs manuals
Video tutorials to learn about the features of SupportAssist for Home PCs	SupportAssist for Home PCs playlist	YouTube
Peer-to-peer questions about SupportAssist for Home PCs	Community forum	SupportAssist for Home PCs community

Contact Dell

Dell provides several online and telephone-based support and service options. Availability varies by country or region and product, and some services may not be available in your area. If you do not have an active Internet connection, you can find contact information in your purchase invoice, packing slip, bill, or Dell product catalog.

To contact Dell for sales, technical support, or customer service issues, perform the following steps:
a. Go to https://www.dell.com/support.
b. Select your country or region in the selection list at the bottom of the page.
c. Click Contact Support and select the appropriate support link.
To find manuals and documents, perform the following steps:
a. Go to https://www.dell.com/support.
b. Click Browse all products.
c. Select the appropriate product category and then select the desired product.
d. To view or download the manuals and documents, click the Documentation tab.
You can also directly access the manuals and documents for Serviceability Tools from https://www.dell.com/
serviceability tools.

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

DELL XPS 15 9500 Manual

ItsManual — Sun, 16 Apr 2023 11:38:34 +0000

DELL XPS 15 9500 User Manual

Setup and Specifications

Regulatory Model: P91F
Regulatory Type: P91F001

Notes, cautions, and warnings

: A NOTE indicates important information that helps you make better use of your product.

: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

: A WARNING indicates a potential for property damage, personal injury, or death.

© 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners. Rev. A00

Set up your XPS 15 9500

: The images in this document may differ from your computer, depending on the computer configuration you ordered.

1. Connect the power adapter to a power source and to the Thunderbolt 3 (USB Type-C) port with Power Delivery. Then press the power button on your computer.

: You can charge your XPS 15 9500 by connecting the power adapter to one of the Thunderbolt 3 (USB TypeC) ports that are located on the left side of your computer or to the USB 3.2 Gen 2 (Type-C) port located on the right side of your computer.

: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.

2. Complete the operating system setup.

3. If Windows is installed on your computer, there are Dell apps with which you can get assistance and software updates.

: Dell apps are not available on Ubuntu.

Views of XPS 15 9500

Left

Security-cable slot (wedge-shaped)
Connect a security cable to prevent unauthorized movement of your computer.
Thunderbolt 3 (USB Type-C) port with Power Delivery (2)
Supports USB 3.2 Gen 2, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display adapter. Provides data transfer rates up to 10 Gbps for USB 3.2 Gen 2 and up to 40 Gbps for Thunderbolt 3. Supports Power Delivery that enables two-way power supply between devices. Provides up to 5 V power output that enables faster charging.
: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.

Right

USB 3.2 Gen 2 (Type-C) port with DisplayPort
Connect peripherals such as external storage devices, printers, and external displays. Provides data transfer rate of up to 10 Gbps. Supports DisplayPort 1.4 and also enables you to connect an external display using a display adapter.
: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
SD-card slot
Reads from and writes to the SD card. The computer supports the following card types:
- Secure Digital (SD)
- Secure Digital High Capacity (SDHC)
- Secure Digital Extended Capacity (SDXC)
Headset port
Connect headphones or a headset (headphone and microphone combo).

Base

Left speaker
Provides audio output.
Touchpad
Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.
Left-click area
Press to left-click.
Right-click area
Press to right-click.
Right speaker
Provides audio output.
Power button with fingerprint reader
Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut-down the computer.
Place your finger on the power button to log-in with the fingerprint reader.
: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.
Microphones (2)
Provide digital sound input for audio recording, voice calls, and so on.

Display

Infrared emitter
Emits infrared light, which enables the infrared camera to sense and track motion.
Ambient-light sensor
Detects the ambient light and automatically adjusts the keyboard backlight and display brightness.
RGB-infrared camera
This combined camera supports both infrared Windows Hello facial recognition and standard RGB imaging for photos and videos.
Camera-status light
Turns on when the camera is in use.
Infrared emitter
Emits infrared light, which enables the infrared camera to sense and track motion.
Battery-status light
Indicates the battery-charge status.

Bottom

Left woofer
Enhances low-frequency audio output.
Service Tag label
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.
Right woofer
Enhances low-frequency audio output.

Specifications of XPS 15 9500

Dimensions and weight

The following table lists the height, width, depth, and weight of your XPS 15 9500.

The following table lists the details of the processors supported by your XPS 15 9500.

Chipset

The following table lists the details of the chipset supported by your XPS 15 9500.

Operating system

Your XPS 15 9500 supports the following operating systems:

Windows 10 Home, 64-bit
Windows 10 Pro, 64-bit

Memory

The following table lists the memory specifications of your XPS 15 9500.

Internal slots

The following table lists the internal slots of your XPS 15 9500.

External ports

The following table lists the external ports on your XPS 15 9500.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module specifications of your XPS 15 9500.

NOTE: The wireless module is integrated on the system board.

Audio

The following table lists the audio specifications of your XPS 15 9500.

Storage

This section lists the storage options on your XPS 15 9500.
Your XPS 15 9500 supports one of the following storage options:

One M.2 2230 solid-state drive
One M.2 2280 solid-state drive

Media-card reader

The following table lists the media cards supported by your XPS 15 9500.

: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Keyboard

The following table lists the keyboard specifications of your XPS 15 9500.

Camera

The following table lists the camera specifications of your XPS 15 9500.

Touchpad

The following table lists the touchpad specifications of your XPS 15 9500.

Power adapter

The following table lists the power adapter specifications of your XPS 15 9500.

Battery

The following table lists the battery specifications of your XPS 15 9500.

Display

The following table lists the display specifications of your XPS 15 9500.

Fingerprint reader

The following table lists the fingerprint-reader specifications of your XPS 15 9500.
NOTE: The fingerprint reader is located on the power button.

GPU–Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your XPS 15 9500.

Operating and storage environment

This table lists the operating and storage specifications of your XPS 15 9500.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Dell low blue light display

: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The ComfortView feature on Dell laptops and displays is designed to minimize blue light emitted from the display for better eye comfort.

To reduce the risk of eye strain after looking at the laptop’s display for an extended period of time, it is recommended that you:

Set the laptop’s display at a comfortable viewing distance between 20 inches and 28 inches (50 cm and 70 cm) from your eyes.
Blink frequently to moisten your eyes, or wet your eyes with water.
Take a break for 20 minutes every two hours.
Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.

Keyboard shortcuts of XPS 15 9500

: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.

However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + esc. Subsequently, multimedia control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.

: You can also define the primary behavior of the function keys (F1-F12) by changing Function Key Behavior in BIOS setup program.

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

: Availability varies by country/region and product, and some services may not be available in your country/region.

: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

DELL Laptop Latitude 7320 Detachable Active Pen manual

ItsManual — Thu, 27 Apr 2023 04:33:20 +0000

Latitude 7320 Detachable Active Pen
User Guide

Regulatory Model: PN7320A
Regulatory Type: PN7320A
April 2021
Rev. A00

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Views of the Latitude 7320 Detachable Active Pen

The following topic provides an overview of the Latitude 7320 Detachable Active Pen

Charging pins
Barrel body
Pen tip
Barrel buttons
LED charge indicator

Features

The following table lists the features of the Latitude 7320 Detachable Active Pen
Table 1. Features of the Latitude 7320 Detachable Active Pen

Feature	Functionality
Tip	Move the tip over the touch screen to move the pointer. Allows you to write, draw, select objects, and so on.
Bottom barrel button	Press and hold this button and move the tip over the area you want to erase. To change the functionality of this button, see Using Active Pen Control Panel. NOTEActive Pen Control Panel.
Top barrel button	Press this button to open the context menu or perform a right-click. To change the functionality of this button, see Using Active Pen Control Panel. NOTE: The Top barrel button by default functions as right-click, to customize or change the functions install the Active Pen Control Panel

Setting up the Latitude 7320 Detachable active pen

Docking and Charging

Dell Premium Active Pen uses an inbuilt battery. The battery provides power for the tip, barrel buttons and quick-launch features.
To charge the pen, align the connectors on the pen with the connectors on the keyboard and dock the pen to the keyboard. The pen is fully charged in 30 seconds.
NOTE: The LED indicator on the pen powers off when it is fully charged.

Pairing with the computer
Dell Premium Active Pen comes pre-installed with basic software, which pairs the pen to the computer automatically as it gets close to the display.

Latitude 7320 Detachable active pen control panel

Active Pen control panel
You can customize the buttons on your pen, change pressure sensitivity, and so on, using Active Pen Control Panel.

Installing Active Pen Control Panel
To install the Active Pen control panel:

Turn on the tablet.
Go to dell.com/PN7320A.
Tap or click Drivers & Downloads.
Select the operating system from the drop-down menu.
Under Active Pen Control Panel, tap or click Download.
Save the file.
After the download is complete, open the file and follow the instructions on the screen to install the Active Pen Control Panel.

Using Active Pen control panel

Top barrel button: Top barrel button can be disabled or programmed to run specific applications or functions as listed below:
● Barrel button (default), Radial Menu, Erase, Open/Run, Keystrokes, Cortana, Ink Workspace, Sketchpad, Screen Sketch, Sticky Notes, OneNote, Page Up, Page Down, Go Back, Go Forward, Copy, Paste, Undo, Redo, Switch Application, Wacom Settings, Web Browser, E-mail, Play/Pause, Next Track, Previous Track, Volume Up, Volume Down, and Mute.
NOTE: Turn on Hover Click to enable the selected Bottom barrel button function while hovering the tip over the screen without the tip touching the screen.
Bottom barrel button: The bottom barrel button can be disabled or programmed to run specific applications or functions as listed below:
● Barrel button, Radial Menu, Erase (default), Open/Run, Keystrokes, Cortana, Ink Workspace, Sketchpad, Screen Sketch, Sticky Notes, OneNote, Page Up, Page Down, Go Back, Go Forward, Copy, Paste, Undo, Redo, Switch Application, Wacom Settings, Web Browser, E-mail, Play/Pause, Next Track, Previous Track, Volume Up, Volume Down, and Mute.
NOTE: Turn on Show battery status in the taskbar to enable displaying battery status in the taskbar.
Pen tip sensitivity: Move the slider to change your pen sensitivity.
Radial menu

Active Pen

Table 2. Radial menu

Menu option	Function
Play/Pause	Plays or pauses a multimedia file
Volume up	Increases the volume
Volume down	Decreases the volume
Previous track	Plays the previous track
Next track	Plays the next track
E-mail	Opens your mailbox
Web browser	Opens a web browser
Mute	Mutes the microphone/headset
Function for selected radial	Changes the function of the selected radial
Label for selected radial	Customize the name of the selected radial
Use center for right-click	Enables the right-click function on the tip
Restore default settings	Restores all customization back to factory defaults

Holding the Latitude 7320 Detachable active pen

Hold the Active Pen as you hold a pencil or pen. Adjust the grip so that you can use the barrel button easily. Ensure not to accidentally press the barrel buttons while drawing or positioning the Active Pen.

Tip replacement

NOTE: Replace the pen tip when the length reduces to approximately 1 mm (0.04 inch) or has a sharp edge.
To replace the tip:

Using the tip remover shipped with your device pull the tip out of the pen.2.Push in a brand-new tip with fingers until the tip bottoms out in the hole.

Troubleshooting

Pen troubleshooting
Table 3. Latitude 7320 Detachable Active pen troubleshooting

Issue	Possible cause	Possible solution
The pen does not work, the barrel buttons do not work	The battery is out of charge	Place the stylus into a folio to recharge the battery.
The pen is not writing smoothly	The tip is worn out	Replace the Tip
Default functions for the barrel buttons do not work.	Functions not supported by the application.	Test the barrel buttons in OneNote or another an application that supports these features
Charging does not work	Docking issue	Dock the tablet and folio well, place the pen into folio and check its LED indicator.

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:
Table 4. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell
Tips
Contact Support	In Windows search, type C o n t a c t S u p p o r t, and press Enter.
Online help for operating system	www.dell.com/support/windows www.dell.com/support/linux
Access top solutions, diagnostics, drivers, and downloads, and learn more about your computer through videos, manuals, and documents.	Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support. For more information on how to find the Service Tag for your computer, see Locate the Service ag on your computer.
Dell knowledge base articles for a variety of computer concerns	1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

DELL XPS 13 7390 Manual

ItsManual — Mon, 08 May 2023 08:59:49 +0000

XPS 13 7390
Setup and Specifications

Regulatory Model: P82G
Regulatory Type: P82G003
May 2020
Rev. A03

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Set up your XPS 13 7390

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

Connect the power adapter to the primary Thunderbolt 3 (USB Type-C) port with Power Delivery (the USB Type-C port adjacent to the power-adapter port) and press the power button.
NOTE: To conserve battery power, the battery might enter power-saving mode. Connect the power adapter and press the power button to turn on the computer.
Finish operating system setup.
For Ubuntu:
Follow the on-screen instructions to complete the setup. For more information about installing and configuring Ubuntu, see the knowledge base articles SLN151664 and SLN151748 at www.dell.com/support.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
• Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
• If connected to the internet, sign in with or create a Microsoft account. If not connected to the internet, create an offline account.
• On the Support and Protection screen, enter your contact details.
Locate and use Dell apps from the Windows Start menu—Recommended

Table 1. Locate Dell apps

Resources	Description
	My Dell Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.

Resources	Description
	SupportAssist Proactively checks the health of your computer’s hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support. NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty
	Dell Update Updates your computer with critical fixes and the latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support.
	Dell Digital Delivery Download software applications, which are purchased but not pre-installed on your computer. For more information about using Dell Digital Delivery, see the knowledge base article 153764 at www.dell.com/support.

Views of XPS 13 7390

Front

Power and battery status light
Indicates the power state and battery state of the computer. Solid white—Power adapter is connected and the battery is charging. Solid amber—Battery charge is low or critical. Off—Battery is fully charged.
NOTE: On certain computer models, the power and battery-status light is also used for system diagnostics. For more information, see the Troubleshooting section in your computer’s Service Manual.
Microphones (4)
Provide digital sound input for audio recording, voice calls, and so on.

Right

Right speaker
Provides audio output.
microSD-card slot
Reads from and writes to the microSD card. The computer supports the following card types:
• micro secure Digital (SD)
• micro secure Digital High Capacity (SDHC)
• micro secure Digital Extended Capacity (SDXC)
USB 3.1 Gen 2 (Type-C) port with Power Delivery/DisplayPort
Connect peripherals such as external storage devices, printers, and external displays.
Supports Power Delivery that enables two-way power supply between devices. Provides up to 7.5 W power output that enables faster charging.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Headset port
Connect headphones or a headset (headphone and microphone combo).

Left

Security-cable slot (wedge-shaped)
Connect a security cable to prevent unauthorized movement of your computer.
Thunderbolt 3 (USB Type-C) port with Power Delivery (Primary)
Supports USB 3.1 Gen 2 Type-C, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3. Supports Power Delivery that enables a two-way power supply between devices. Provides up to 5 V/3 A power output that enables faster charging.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect to a DisplayPort device.
NOTE: This is the primary port for the power supply. Connect the power adapter to this Thunderbolt 3 (USB Type-C) port with Power Delivery.
Thunderbolt 3 (USB Type-C) port with Power Delivery
Supports USB 3.1 Gen 2 Type-C, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display adapter. Provides data transfer rates up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3. Supports Power Delivery that enables two-way power supply between devices. Provides up to 5 V/3 A power output that enables faster charging.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
Battery-charge status button
Press to check the charge remaining in the battery.
Battery-charge status lights (5)
Turns on when the battery-charge status button is pressed. Each light indicates approximately 20% charge.
Left speaker
Provides audio output.

Base

Touchpad
Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two-finger tap to right-click.
Left-click area
Press to left-click.
Right-click area
Press to right-click.
Power button with optional fingerprint reader
Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for 10 seconds to force shut down the computer.
Press and hold power button over 25 seconds to reset RTC battery if encounter no post issue.
If the power button has a fingerprint reader, place your finger on the power button to log in.
NOTE: You can customize power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals.
NOTE: The power-status light on the power button is available only on computers without the fingerprint reader. Computers shipped with the fingerprint reader integrated on the power button will not have the power-status light on the power button.

Display

Camera
Enables you to video chat, capture photos, and record videos.
Camera-status light
Turns on when the camera is in use.

Bottom

Service Tag
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

Specifications of XPS 13 7390

Dimensions and weight
Table 2. Dimensions and weight

Description	Values
Height:
Front	7.80 mm (0.31 in.)
Rear	11.63 mm (0.46 in.)
Width	301.76 mm (11.88 in.)
Depth	199.24 mm (7.84 in.)
Weight (maximum)	1.29 kg (2.84 lb) NOTE: The weight of your computer depends on the configuration ordered and the manufacturing variability.

Processors
Table 3. Processors

Description	Values
Processors	10th Generation Intel Core i3-10110U	10th Generation Intel Core i5-10210U	10th Generation Intel Core i7-10510U	10th Generation Intel Core i7-10710U
Wattage	15 W	15 W	15 W	15 W
Core count	2	4	4	6
Thread count	4	8	8	12
Speed	Up to 4.1 GHz	Up to 4.2 GHz	Up to 4.9 GHz	Up to 4.7 GHz
Cache	4 MB	6 MB	8 MB	12 MB
Integrated graphics	Intel UHD Graphics	Intel UHD Graphics	Intel UHD Graphics	Intel UHD Graphics

Chipset
Table 4. Chipset

Description	Values
Chipset	Integrated in the processor
Processor	10 Generation Intel Core i3/i5/i7

Description	Values
DRAM bus width	64-bit
Flash EPROM	Values
PCIe bus	Up to Gen3.0

Operating system

Windows 10 Home (64-bit)
Windows 10 Professional (64-bit)
Ubuntu

Memory
Table 5. Memory specifications

Description	Values
Values	Onboard memory NOTE: The memory modules are integrated on the system board. If the memory modules are malfunctioning and need to be replaced, a replacement of the system board is necessary.
Type	Dual-channel LPDDR3
Speed	2133 MHz
Maximum memory	16 GB
Minimum memory	4 GB
Configurations supported	• 4 GB LPDDR3 at 2133 MHz • 8 GB LPDDR3 at 2133 MHz • 16 GB LPDDR3 at 2133 MHz

Ports and connectors

Table 6. External ports and connectors

External:
USB	• Two USB Thunderbolt 3 (Type-C) ports with Power Delivery • One USB 3.1 Gen 2 (Type-C) port with Power Delivery/ DisplayPort
Audio	One headset (headphone and microphone combo) port
Video	DisplayPort (DP) 1.2 support through a USB Type-C connector
Media card reader	One microSD-card slot
Docking port	Not applicable

Table 6. External ports and connectors(continued)

External:
Power adapter port	DC-IN through a USB Type-C connector
Security	One security-cable slot (wedge-shaped)

Table 7. Internal ports and connectors

Internal:
M.2	One M.2 2230/2280 slot for solid-state drive NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626.

Communications

Wireless module
Table 8. Wireless module specifications

Description	Values
Model number	Rivet Killer AX1650W
Transfer rate	Up to 2400 Mbps
Frequency bands supported	Up to 2400 Mbps
Frequency bands supported	2.4 GHz/5 GHz
Wireless standards	• WiFi 802.11a/b/g • Wi-Fi 4 (WiFi 802.11n) • Wi-Fi 5 (WiFi 802.11ac) • Wi-Fi 6 (WiFi 802.11ax)
Encryption	• 64-bit/128-bit WEP • AES-CCMP • TKIP
Bluetooth	Bluetooth 5 (Windows 10 supports Bluetooth 5 with the latest Windows update)

Audio

Table 9. Audio specifications

Description	Values
Controller	Realtek ALC3271-CG with Waves MaxxAudio Pro
Stereo conversion	Supported
Internal interface	High Definition Audio
External interface	7.1 channel output, universal audio jack supports microphone-in, stereo headphones, and headset combo

Description	Values
Speakers	Two
Internal speaker amplifier	Supported (audio codec built-in amplifier)
External volume controls	Keyboard shortcut controls
Speaker output:
Average	2 W
Peak	2.5 W
Subwoofer output	Not supported
Microphone	Dual-array microphones

Storage

Your computer supports one M.2 2230/2280 solid-state drive (either PCIe/NVMe or SATA).
NOTE: The M.2 2230 and M.2 2280 solid-state drives each has a unique thermal plate. The thermal plates cannot be interchanged.
Table 10. Storage specifications

Storage type	Interface type	Capacity
M.2 2230 solid-state drive	PCIe NVMe Gen3 x2 NVMe, up to 32 Gbps	Up to 256 GB
M.2 2280 solid-state drive	PCIe Gen3 x4 NVMe, up to 32 Gbps	Up to 2 TB

Media-card reader

Table 11. Media-card reader specifications

Description	Values
Type	One microSD-card slot
Cards supported	Micro Secure Digital (mSD) Micro Secure Digital High Capacity (mSDHC) Micro Secure Digital Extended Capacity (mSDXC)

Keyboard

Table 12. Keyboard specifications

Description	Values
Type	Backlit keyboard
Layout	QWERTY
Number of keys	• United States and Canada: 82 keys

Description	Values
	• United Kingdom: 83 keys • Japan: 86 keys
Size	X=19.05 mm key pitch Y=18.05 mm key pitch
Shortcut keys	Some keys on your keyboard have two symbols on them. These keys can be used to ype alternate characters or to perform secondary functions. To type the alternate character, press Shift And the desired key. To perform secondary functions, press Fn and the desired key. NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program. See Keyboard shortcuts

Camera

Table 13. Camera specifications

Description	Values
Number of cameras	One
Type	Fixed-focus lens
Location	Top-mount front camera
Sensor type	Top-mount front camera
Sensor type	CMOS sensor technology
Resolution:
Still image	0.9 megapixel (HD)
Video	1280 x 720 (HD) at 30 fps
Diagonal viewing angle	78 degrees

Touchpad

Table 14. Touchpad specifications

Description	Values
Resolution:
Horizontal	305
Vertical	305
Dimensions:
Horizontal	105 mm (4.13 in.)
Vertical	65 mm (2.56 in.)

Touchpad gestures

For more information about touchpad gestures for Windows 10, see the Microsoft knowledge base article 4027871 at support.microsoft.com.

Power adapter

Table 15. Power adapter specifications

Description	Values
Type	SFF 45 W (USB Type-C)
Input voltage	100 VAC–240 VAC
Input frequency	50 Hz–60 Hz
Input current (maximum)	1.30 A
Output current (continuous)	• 20 VDC/2.25A • 15 VDC/3 A • 9 VDC/3 A • 5 VDC/3 A
Rated output voltage	20 VDC/15 VDC/9 VDC/5 VDC
Temperature range:
Operating	0°C to 40°C (32°F to 104°F)
Storage	-40°C to 70°C (-40°F to 158°F)

Battery

Table 16. Battery specifications

Description	Values
Type	4-cell “smart” lithium-ion (52 WHr)
Voltage	7.60 VDC
Weight (maximum)	0.22 kg (0.49 lb)
Dimensions:
Height	257.60 mm (10.14 in.)
Width	98.60 mm (3.88 in.)
Depth	4.30 mm (0.17 in.)
Temperature range:
Operating	0°C to 35°C (32°F to 95°F)
Storage	-40°C to 65°C (-40°F to 149°F)
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Description	Values
Charging time (approximate)	4 hours (when the computer is off) NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on https://www.dell.com/
Life span (approximate)	300 discharge/charge cycles
Coin-cell battery	ML1220
Operating time	Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Display

Table 17. Display specifications

Description		Values
Type	Full High Definition (FHD)	Full High Definition (FHD)	Ultra High Definition (UHD)
Panel technology	Wide Viewing Angle (WVA	Wide Viewing Angle (WVA)	Wide Viewing Angle (WVA)
Luminance (typical)	400 nits	400 nits	400 nits
Dimensions (active area):
Height	165.24 mm (6.51 in.)	165.24 mm (6.51 in.)	165.24 mm (6.51 in.)
Width	293.76 mm (11.57 in.)	293.76 mm (11.57 in.)	293.76 mm (11.57 in.)
Diagonal	337.82 mm (13.30 in.)	337.82 mm (13.30 in.)	337.82 mm (13.30 in.)
Native resolution	1920 x 1080	1920 x 1080	3840 x 2160
Megapixels	2.07	2.07	8.29
Pixels per inch (PPI)	166	166	331
Contrast ratio (min)	1000:01:00	1000:01:00	1000:01:00
Response time (max)	30 ms	30 ms	30 ms
Refresh rate	60 Hz	60 Hz	60 Hz
Horizontal view angle	89	89	89
Vertical view angl	89	89	89
Pixel pitch	0.15 mm	0.15 mm	0.08 mm
Power consumption (maximum)	2.9 W	2.9 W	5.41 W
Anti-glare vs Anti-reflective	Anti-reflective	Anti-glare	Anti-reflective
Touch options	Yes	No	Yes

Fingerprint reader (optional)

Table 18. Fingerprint reader specifications

Description	Values
Sensor technology	Touch
Sensor resolution 500 dpi
Sensor area	5.5 mm x 4.5 mm
Sensor pixel size	108 x 88

Video

Table 19. Discrete graphics specifications

Discrete graphics
Controller	External display support	Memory size	Memory type
Not supported	Not supported	Not supported	Not supported

Table 20. Integrated graphics specifications

Integrated graphics
Controller	External display support	Memory size	Processor
Intel UHD Graphics	DisplayPort (DP) 1.2 support through a USB Type-C connector	Shared system memory	th 10 Generation Intel Core i3/i5/i7

Computer environment

Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 21. Computer environment

Description	Operating	Storage
Temperature range	0°C to 35°C (32°F to 95°F)	-40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum)	10% to 90% (non-condensing)	0% to 95% (non-condensing)
Vibration (maximum) *	0.66 GRMS	1.30 GRMS
Shock (maximum)	110 G†	160 G†
Altitude (maximum)	5.2 m to 3048 m (4.64 ft to 5518.4 ft	10% to 90% (non-condensing)

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.

Keyboard shortcuts

NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For example, mute audio by pressing Fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in BIOS setup program.
Table 22. List of keyboard shortcuts

Table 23. List of keyboard shortcuts

Getting help and contacting Dell

Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 24. Self-help resources

Self-help resources	Resource location
Information about Dell products and services	www.dell.com
My Dell
Tips
Contact Support	In Windows search, type Contact Support, and press Enter.
Online help for operating system	www.dell.com/support/windows www.dell.com/support/linux
Troubleshooting information, user manuals, set up instructions, product specifications, technical help blogs, drivers, software updates, and so on.	www.dell.com/support
Dell knowledge base articles for a variety of computer concern	1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.
Learn and know the following information about your product: • Product specifications • Operating system • Setting up and using your product • Data backup • Troubleshooting and diagnostics • Factory and system restore • BIOS information	See Me and My Dell at www.dell.com/support/manuals. To locate the Me and My Dell relevant to your product, identify your product through one of the following: • Select Detect Product. • Locate your product through the drop-down menu under View Products. • Enter the Service Tag number or Product ID in the search bar.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

DELL D3100 USB 3.0 Docking Station Manual

ItsManual — Sat, 24 Jun 2023 10:25:16 +0000

DELL D3100 USB 3.0 Docking Station

Dell Docking Station – USB 3.0 (D3100)
USB 3.0 I/O cable (2 ft)
Power adapter & power cord
Installation CD
HDMI to DVI adapter

Speciﬁcations

Upstream Input

1 x USB 3.0 (Standard B Type).

Downstream Outputs

3 x USB 3.0
2 x USB 2.0
1 x DisplayPort
2 x HDMI
Gigabit Ethernet
Combo Audio (Headphone/Mic)
Audio line out
2 High-powered ports for battery charging (BC 1.2).

Resolution/Refresh Rate

No. of video ports connected	DP	HDMI 1	HDMI 2
Single	3840 x 2160 / 30Hz	Not connected	Not connected
Single	Not connected	2560 x 1440 / 50Hz	Not connected
Single	Not connected	Not connected	2560 x 1440 / 50Hz
Dual Display	3840 x 2160 / 30Hz	2560 x 1440 / 50Hz	Not connected
Dual Display	3840 x 2160 / 30Hz	Not connected	2560 x 1440 / 50Hz
Dual Display	Not connected	2048 x 1152 / 60Hz	2048 x 1152 / 60Hz
Triple Display	3840 x 2160 / 30Hz	2048 x 1152 / 60Hz	2048 x 1152 / 60Hz

Resolution supports also dependent on display EDID resolution

Product Overview

Front View

Back View

Recommended System Requirements

Hardware

Processor: Intel Core i7 2+GHz or better
Memory: 8 GB
Video Card: Intel HD 4000, ATI Radeon
HD5/6xxx, NVidia GeForce 4xxM or better.
USB: USB 3.0
Disk: 7200 RPM or SSD

Operating System

Wins OS (Win 7, 8, 8.1, 10) 32/64 bits

Operating Temperature
Max. operating temperature is 40oC

Windows 7/8/8.1/10 Setup

Note: Setup with Bundled CD.

Double click on “Setup.exe” when CD is installed.
IMPORTANT: DO NOT connect the Docking Station until you have installed the drivers on your laptop.
Once clicked on “Setup.exe”, it will run installation software end-user license agreement on the window.
Click “I Accept”. DisplayLink Core software and DisplayLink Graphics will be installed.
Connect your docking station and peripherals to your PC.

Note: Setup without Bundled CD

Connect the dock to your laptop
Note: It is recommended to download the latest drivers from the DisplayLink support website at www.displaylink.com/support
Windows will start installing the displaylink Driver Automatically.
Follow the screen instructions until the installation is complete.
Connect your docking station and peripherals to your PC.

DisplayLink Manager Menu

Menu Option	Description
DisplayLink Manager	Clicking on this item will show the version of DisplayLink software installed.
Check for Updates	Windows update checking.
DisplayLink Devices	Connected DisplayLink devices checking.
Audio Setup	Opens the Windows Audio Conﬁguration Window.
Video Setup	Opens the Windows Screen Resolution window.
Screen Resolution	Displays a list of available resolutions.
Screen Rotation	Rotates the screen in clockwise or counter-clockwise direction.
Extend To	Extends the display to the right or left of the main display.
Extend	Extends the Windows desktop onto the display.
Set as Main Monitor	Sets this screen as the main display.
Notebook Monitor Oﬀ	Switches oﬀ the display of the notebook and makes the DisplayLink display the main display.
Mirror	Copies what is on the main display and reproduces it on this display.
Oﬀ	Switches oﬀ the display.
Fit to TV	Use this function to adjust the size of the windows to ﬁt the TV screen.

To set the display into extended mode

Click on the DisplayLink icon .
Select Extend. The device is now extended in the direction it was the last time the display was in this mode. For more control, use the Extend To submenu and select one of the options. This puts the device into extend mode, and places it to the Left/Right/Above/Below the main (primary) monitor.

To set the display into mirror mode

Click on the DisplayLink icon .
Select Mirror. The resolution, colour depth and refresh rate of the primary screen are replicated on the monitor connected to the DisplayLink USB Graphics device.

Fit to TV conﬁguration

1. To conﬁgure Fit to TV, choose the option from the DisplayLink GUI. The following interface appears
You will also see a red border on the DisplayLink screen The red border shows the size of the new Windows desktop. Use the “+” and “-” controls on the Fit to TV GUI to change the size of the red border until it ﬁts on the TV screen.
Note: Finer conﬁguration of the size of the border can be achieved by holding down the CTRL key and clicking the “+” and “-”.
Once the red border is at the edges of the TV screen, click “Apply” to resize the Windows desktop.

FAQs of Dell Docking Station – USB 3.0 (D3100)

Troubleshooting	Suggested Solutions
There is no video on the monitor attached to the dock	Check the video connection cables. Unplug from the power, wait 10 seconds, and then reconnect.
The video on the attached monitor is distorted or corrupted.	Check video connection cables. Check the video resolution under Control Panel Items DisplayChange Display Setting.
The video on the attached monitor is not displaying in extended mode	Change the settings by either: • Conﬁguring under Control Panel ItemsDisplay Change Display Setting. • Switch by cycling the “Windows Key +P”.
The audio jacks are not functioning	Check the settings under Control PanelAll Control Panel ItemsSound to make sure the USB Audio device is available and set to default. Right click to show all available options.
USB ports are not functioning on the docking station	Unplug from the power, wait 10 seconds, and then reconnect. Update to the latest USB 3.0 host controller driver
External USB 3.0 Media Card Reader is not detected.	Unplug from the power, wait 10 seconds, and then reconnect. Update to the latest USB 3.0 host controller driver
HDCP content is not able to display on the attached monitor	HDCP content support is currently not available.
Displaylink Driver not able to install	Get the driver by either: • Downloading the latest driver from the Displaylink website. • Connect to Windows Update with Docking station (by using Wi-Fi or Ethernet port of the laptop).
Laptop failed to boot with dock connected	Remove all USB devices connected to the dock; some unqualiﬁed boot devices may cause lock up at boot screen.
No CD drive and no Internet access for getting the driver	Get an external CD drive to load the driver from CD Download the driver from an Internet connected computer and copy the driver over USB ﬂash drive, and run the setup..

Troubleshooting

DELL XPS 8940 Manual

ItsManual — Mon, 26 Jun 2023 17:08:46 +0000

XPS 8940

View Fullscreen

XPS 8940
Setup and Specifications
Regulatory Model: D28M Regulatory Type: D28M003 July 2020 Rev. A00

Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Contents
Chapter 1: Set up your computer………………………………………………………………………………………… 4
Chapter 2: Views of XPS 8940…………………………………………………………………………………………… 8 Front…………………………………………………………………………………………………………………………………………………………………. 8 Back…………………………………………………………………………………………………………………………………………………………………..9 Back panel……………………………………………………………………………………………………………………………………………………….. 10
Chapter 3: Specifications of XPS 8940……………………………………………………………………………….. 12 Dimensions and weight……………………………………………………………………………………………………………………………………..12 Processors………………………………………………………………………………………………………………………………………………………..12 Chipset……………………………………………………………………………………………………………………………………………………………..13 Operating system…………………………………………………………………………………………………………………………………………….. 13 Memory…………………………………………………………………………………………………………………………………………………………… 14 Ports and connectors………………………………………………………………………………………………………………………………………. 14 Ethernet………………………………………………………………………………………………………………………………………………………….. 15 Wireless module………………………………………………………………………………………………………………………………………………..15 Audio……………………………………………………………………………………………………………………………………………………………….. 16 Storage……………………………………………………………………………………………………………………………………………………………. 16 Intel Optane memory……………………………………………………………………………………………………………………………………….. 17 Media-card reader…………………………………………………………………………………………………………………………………………….17 GPU–Integrated…………………………………………………………………………………………………………………………………………….. 17 GPU–Discrete……………………………………………………………………………………………………………………………………………….. 18 Power ratings……………………………………………………………………………………………………………………………………………………18 Operating and storage environment………………………………………………………………………………………………………………….19
Chapter 4: Getting help and contacting Dell………………………………………………………………………… 20

Contents

1
Set up your computer
NOTE: The images in this document may differ from your computer depending on the configuration you ordered. 1. Connect the keyboard and mouse to suitable ports. For instructions on how to connect a wireless keyboard and mouse, see the
documentation that ships with the wireless keyboard and mouse.

2. Connect to your network using an Ethernet cable. Alternatively, connect to a wireless network while setting up your operating system.

Set up your computer

3. Connect the display. For more information about setting up the display, see the documentation that is shipped with your display.

NOTE: If you have two graphics cards, the card installed in PCI-Express X16 (graphics slot 1) is the primary graphics card.
4. Connect the power cable to the computer and then connect it to the wall outlet.

Set up your computer

5. Press the power button on the front of computer to turn on the computer. If required, press the power button on the display to turn it on.

6. For instructions on how to connect speakers, a printer and other accessories, see Me and My Dell at www.dell.com/manuals. 7. Finish Windows setup.
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: · Connect to a network for Windows updates.

Set up your computer

NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. · If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account. · On the Support and Protection screen, enter your contact details.

8. Locate and use Dell apps from the Windows Start menu–Recommended.

Table 1. Locate Dell apps

Resources

Description

My Dell
Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.

SupportAssist
Proactively checks the health of your computer’s hardware and software. The SupportAssist OS Recovery tool troubleshoots issues with the operating system. For more information, see the SupportAssist documentation at www.dell.com/support.
NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.

Dell Update Updates your computer with critical fixes and latest device drivers as they become available. For more information about using Dell Update, see the knowledge base article SLN305843 at www.dell.com/support.
Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information about using Dell Digital Delivery, see the knowledge base article SLN153764 at www.dell.com/ support.

Set up your computer

Topics:
· Front · Back · Back panel
Front

2
Views of XPS 8940

1. Slim optical drive (optional)
Reads from and writes to CDs, DVDs, and Blu ray discs. 2. Optical-drive activity light (optional)
Turns on when the computer reads from or writes to the optical disc. 3. Optical-drive eject button (optional)
Press to open the optical drive tray. 4. Optical-drive emergency eject pinhole (optional)
Used to eject the optical-drive tray manually if the optical-drive eject button fails.

Views of XPS 8940

NOTE: For more information about manually ejecting optical-drive trays, see the knowledge base article SLN301118 at www.dell.com/support. 5. Power button Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. Press to put the computer in sleep state if it is turned on. Press and hold to force shut-down the computer. NOTE: You can customize the power-button behavior in Power Options. For more information, see Me and My Dell at www.dell.com/support/manuals. 6. SD-card slot Reads from and writes to the SD card. The computer supports the following card types: · Secure Digital (SD) · Secure Digital High Capacity (SDHC) · Secure Digital Extended Capacity (SDXC) 7. Headset port Connect headphones or a headset (headphone and microphone combo). 8. USB 3.1 Gen 1 ports (3) Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. 9. USB 3.1 Gen 1 (Type-C) port Connect to external storage devices. Provides data transfer speeds up to 5 Gbps. NOTE: This port does not support video/audio streaming.
Back

Views of XPS 8940

1. Back panel Connect USB, audio, video, and other devices.
2. PCI-Express x1 slot Connect a PCI-Express card such as graphics, audio, or network card to enhance the capabilities of your computer.
3. PCI-Express x16 (graphics) slot 1 Connect a PCI-Express graphics card to enhance the capabilities of your computer.
4. Expansion slot for dual-width graphics card This expansion slot seats the bottom half of a dual-width graphics card if it is installed in the PCI-Express x16 slot.
5. PCI-Express x4 slot Connect a PCI-Express card such as graphics, audio, or network card to enhance the capabilities of your computer.
6. Power port Connect a power cable to provide power to your computer.
7. Power-supply diagnostics light Indicates the power-supply state.
8. Security-cable slot (wedge-shaped) Connect a security cable to prevent unauthorized movement of your computer.
Back panel

1. Line-out port
Connect speakers. 2. Rear L/R surround port
Connect audio-output devices such as speakers and amplifiers. In a 5.1 speaker channel setup, connect the rear-left and rear-right speakers. 3. Center/subwoofer LFE surround port
Connect the subwoofer.

Views of XPS 8940

NOTE: For more information about speaker setup, refer to the documentation that shipped with the speakers. 4. DisplayPort
Connect an external display or a projector. 5. HDMI port
Connect to a TV or another HDMI-in enabled device. Provides video and audio output. 6. USB 3.1 Gen 1 ports (4)
Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. 7. USB 2.0 ports (2)
Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps. 8. Network port (with lights)
Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet access.
The two lights next to the connector indicate the connectivity status and network activity. 9. Service Tag label
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

Views of XPS 8940

Specifications of XPS 8940

Topics:
· Dimensions and weight · Processors · Chipset · Operating system · Memory · Ports and connectors · Ethernet · Wireless module · Audio · Storage · Intel Optane memory · Media-card reader · GPU–Integrated · GPU–Discrete · Power ratings · Operating and storage environment

Dimensions and weight

The following table lists the height, width, depth, and weight of your XPS 8940.

Table 2. Dimensions and weight Description Height:
Front height

Values 367 mm (14.45 in.)

Rear height

367 mm (14.45 in.)

Width

169 mm (6.65 in.)

Depth

308 mm (12.13 in.)

Weight (maximum)

8.20 kg (18.08 lb)
NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.

Processors

The following table lists the details of the processors supported by your XPS 8940.

Table 3. Processors

Processors

Wattage

10th Generation Intel 65 W Core i3-10100

Core count 4

Thread count 8

Speed Up to 4.30 GHz

Cache 6 MB

Specifications of XPS 8940

Table 3. Processors (continued)

Processors

Wattage

10th Generation Intel 65 W Core i5-10400

10th Generation Intel 65 W Core i5-10400F

10th Generation Intel 125 W Core i5-10600K

10th Generation Intel 125 W Core i5-10600KF

10th Generation Intel 65 W Core i7-10700

10th Generation Intel 125 W Core i7-10700K

10th Generation Intel 65 W Core i7-10700F

10th Generation Intel 125 W Core i7-10700KF

10th Generation Intel 65 W Core i9-10900

10th Generation Intel 125 W Core i9-10900K

10th Generation Intel 65 W Core i9-10900F

10th Generation Intel 125 W Core i9-10900KF

Core count 6 6 6 6 8 8 8 8 10 10 10 10

Thread count 12 12 12 12 16 16 16 16 20 20 20 20

Speed Up to 4.30 GHz Up to 4.30 GHz Up to 4.80 GHz Up to 4.80 GHz Up to 4.80 GHz Up to 5.10 GHz Up to 4.80 GHz Up to 5.10 GHz Up to 5.20 GHz Up to 5.30 GHz Up to 5.20 GHz Up to 5.30 GHz

Cache 12 MB 12 MB 12 MB 12 MB 16 MB 16 MB 16 MB 16 MB 20 MB 20 MB 20 MB 20 MB

Chipset

The following table lists the details of the chipset supported by your XPS 8940.

Table 4. Chipset Description Chipset

Values H470

Processor

· 10th Generation Intel Core i3 · 10th Generation Intel Core i5/i5k/i5f/i5kf · 10th Generation Intel Core i7/i7k/i7f/i7kf · 10th Generation Intel Core i9/i9k/i9f/i9kf

DRAM bus width

64-bit

Flash EPROM

32 MB

PCIe bus

Up to Gen3.0

Operating system
Your XPS 8940 supports the following operating systems: · Windows 10 Home (64-bit)

Specifications of XPS 8940

· Windows 10 Professional (64-bit)

Memory

The following table lists the memory specifications of your XPS 8940.

Table 5. Memory specifications Description Memory slots

Values Four UDIMM slots

Memory type

Dual-channel DDR4

Memory speed

2666 MHz/2933 MHz

Maximum memory configuration

128 GB

Minimum memory configuration

8 GB

Memory size per slot

4 GB, 8 GB, 16 GB, 32 GB

Memory configurations supported

· 8 GB, 2 x 4 GB, DDR4, 2666 MHz/2933 MHz, UDIMM, dualchannel
· 8 GB, 1 x 8 GB, DDR4, 2666 MHz/2933 MHz, UDIMM · 16 GB, 2 x 8 GB, DDR4, 2666 MHz/2933 MHz, UDIMM, dual-
channel · 16 GB, 1 x 16 GB, DDR4, 2666 MHz/2933 MHz, UDIMM · 32 GB, 1 x 32 GB, DDR4, 2666 MHz/2933 MHz, UDIMM · 32 GB, 2 x 16 GB, DDR4, 2666 MHz/2933 MHz, UDIMM, dual-
channel · 64 GB, 2 x 32 GB, DDR4, 2666 MHz/2933 MHz, UDIMM,
dual-channel · 64 GB, 4 x 16 GB, DDR4, 2666 MHz/2933 MHz, UDIMM,
dual-channel · 128 GB, 4 x 32 GB, DDR4, 2666 MHz/2933 MHz, UDIMM,
dual-channel
NOTE: The computer is shipped with 3200 MHz memory. However, with Intel Core i3/i5 processors, it is limited to 2666 MHz. With Intel Core i7/i9 processors, it is limited to 2933 MHz.

Ports and connectors

The following table lists the external and internal ports available on your XPS 8940.

Table 6. Ports and connectors Description External: Network

Values One RJ-45 port

USB

· Seven USB 3.1 Gen 1 ports

· Two USB 2.0 ports

· One USB 3.1 Gen 1 (Type-C) port

Audio

· One headset port

Specifications of XPS 8940

Table 6. Ports and connectors (continued) Description
Video
Media-card reader Power port Security Internal: PCIe expansion card slots
mSATA SATA M.2

Values · One audio line-out port · One rear L/R-surround audio-out port · One center/subwoofer LFE surround audio-out port
NOTE: Depending on the graphics card(s) installed on your computer, the video ports on your computer may vary.
One SD-card slot
Power cord connector
One security-cable slot (wedge-shaped)
· One PCIe x16 · One PCIe x1 · One PCIe x4
Not supported
· Two SATA slots for 2.5-inch hard drive · One SATA slot for a 3.5-inch hard drive
· One M.2 2230 slot for WiFi and Bluetooth combo card · One M.2 2230/2280 slot for solid-state drive/Intel Optane
memory NOTE: To learn more about the features of different types of M.2 cards, see the knowledge base article SLN301626.

Ethernet

The following table lists the wired Ethernet Local Area Network (LAN) specifications of your XPS 8940.

Table 7. Ethernet specifications Description Model number

Values Rivet Networks E2600 PCIe Gigabit Ethernet controller

Transfer rate

10/100/1000 Mbps

Wireless module

The following table lists the Wireless Local Area Network (WLAN) modules supported on your XPS 8940.

Table 8. Wireless module specifications

Description

Option one

Model number

Qualcomm QCA9377 (DW1810)

Option two Killer AX1650i

Transfer rate

Up to 433 Mbps

Up to 2400 Mbps

Specifications of XPS 8940

Table 8. Wireless module specifications (continued)

Description

Option one

Frequency bands supported

2.40 GHz/5 GHz

Wireless standards

· WiFi 802.11a/b/g · Wi-Fi 4 (WiFi 802.11n) · Wi-Fi 5 (WiFi 802.11ac)

Encryption Bluetooth

· 64-bit/128-bit WEP · AES-CCMP · TKIP
Bluetooth 5.0

Option two
2.40 GHz/5 GHz
· WiFi 802.11a/b/g · Wi-Fi 4 (WiFi 802.11n) · Wi-Fi 5 (WiFi 802.11ac) · Wi-Fi 6 (WiFi 802.11ax)
· 64-bit/128-bit WEP · AES-CCMP · TKIP
Bluetooth 5.1

Audio

The following table lists the audio specifications of your XPS 8940.

Table 9. Audio specifications Description Audio type

Values Integrated 5.1 Channel High Definition audio

Audio controller

Realtek ALC3861

Internal audio interface

High definition audio interface

External audio interface

· One headset port · One audio line-out port · One rear L/R-surround audio-out port · One center/subwoofer LFE surround audio-out port

Storage

This section lists the storage options on your XPS 8940.
Your computer ships one of the following configurations:
· One 3.5-inch hard drive · One M.2 2230/2280 solid-state drive · One 3.5-inch hard drive and one M.2 2230/2280 solid-state drive · One 3.5-inch hard drive and one M.2 2280 Intel Optane memory

NOTE: This computer is shipped with two empty 2.5-inch hard-drive cages and one SATA extension cable.

The primary drive of your computer varies with the storage configuration. For computers:
· with a M.2 solid-state drive, the M.2 solid-state drive is the primary drive · without a M.2 drive, the 3.5-inch hard drive is the primary drive

Table 10. Storage specifications Storage type

Interface type

Capacity

3.5-inch hard drive

SATA AHCI, up to 6 Gbps

Up to 2 TB

M.2 2230/2280 solid-state drive

PCIe Gen3.0x4 NVMe, up to 32 Gbps

Up to 2 TB

Specifications of XPS 8940

Intel Optane memory

Intel Optane memory functions only as a storage accelerator. It neither replaces nor adds to the memory (RAM) installed on your computer.
NOTE: Intel Optane memory is supported on computers that meet the following requirements:
· 7th Generation or higher Intel Core i3/i5/i7 processor · Windows 10 64-bit version or higher (Anniversary Update) · Latest version of Intel Rapid Storage Technology driver

Table 11. Intel Optane memory Description Type

Values Storage accelerator

Interface

PCIe 3.0 x2

Connector

M.2 2280

Configurations supported

32 GB

Capacity

32 GB

Media-card reader

The following table lists the media cards supported by your XPS 8940.

Table 12. Media-card reader specifications Description Media-card type

Values One SD card

Media-cards supported

· Secure Digital (SD) · Secure Digital High Capacity (SDHC) · Secure Digital Extended Capacity (SDXC)

NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

GPU–Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your XPS 8940.

Table 13. GPU–Integrated

Controller

External display support

Intel UHD Graphics 630

· One HDMI 2.0 port · Two DisplayPort 1.4

Memory size Shared system memory

Processor
· 10th Generation Intel Core i3
· 10th Generation Intel Core i5/i5k
· 10th Generation Intel Core i7/i7k
· 10th Generation Intel Core i9/i9k

Specifications of XPS 8940

GPU–Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your XPS 8940.

Table 14. GPU — Discrete

Controller

External display support

Memory size

Memory type

NVIDIA GeForce GTX 1030

· One single-link DVI-D port · One HDMI 2.0 port

2 GB

DDR5

NVIDIA GeForce GTX 1650

· One dual-link DVI-D port

4GB

SUPER

· One HDMI 2.0 port

· One DisplayPort 1.4

DDR5

NVIDIA GeForce GTX 1660 SUPER

· One dual-link DVI-D port · One HDMI 2.0 port · One DisplayPort 1.4

6 GB

DDR5

NVIDIA GeForce GTX 1660 Ti

· One dual-link DVI-D port · One HDMI 2.0 port · One DisplayPort 1.4

6 GB

DDR6

NVIDIA GeForce RTX 2060

· One dual-link DVI-D port · One HDMI 2.0 port · One DisplayPort 1.4

6 GB

DDR6

NVIDIA GeForce RTX 2060 SUPER

· One dual-link DVI-D port · One HDMI 2.0 port · One DisplayPort 1.4

8 GB

DDR6

NVIDIA GeForce RTX 2070 SUPER

· One HDMI 2.0 port · Two DisplayPort 1.4

8 GB

DDR6

AMD Radeon RX 5600 XT

· One HDMI 2.0 port · Three DisplayPort 1.4

6 GB

DDR6

Power ratings

The following table lists the power rating specifications of XPS 8940.

Table 15. Power ratings Description Type

Option one 360 W

Input voltage

90 VAC264 VAC

Input frequency

47 Hz63 Hz

Input current (maximum)

5 A

Output current (continuous)

18 A

Rated output voltage

12 VDC

Temperature range

Option two 500 W 90 VAC264 VAC 47 Hz63 Hz 7 A 18 A 12 VDC

Specifications of XPS 8940

Table 15. Power ratings (continued)

Description

Option one

Operating

5°C to 45°C (41°F to 113°F)

Storage

-40°C to 70°C (-40°F to 158°F)

Option two 5°C to 45°C (41°F to 113°F) -40°C to 70°C (-40°F to 158°F)

Operating and storage environment

This table lists the operating and storage specifications of your XPS 8940. Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 16. Computer environment Description Temperature range

Operating 10°C to 35°C (50°F to 95°F)

Storage -40°C to 65°C (-40°F to 149°F)

Relative humidity (maximum) Vibration (maximum)*

20% to 80% (non-condensing) 0.26 GRMS

5% to 95% (non-condensing) 1.37 GRMS

Shock (maximum)

40 G, 2.5 ms

105 G, 2.5 ms

Altitude (maximum)

-15.2 m to 3048 m (-49.87 ft to 10000 ft) -15.2 m to 10668 m (-49.87 ft to 35000 ft)

* Measured using a random vibration spectrum that simulates user environment. Measured using a 2 ms half-sine pulse when the hard drive is in use.

Specifications of XPS 8940

4
Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 17. Self-help resources

Self-help resources Information about Dell products and services

Resource location www.dell.com

My Dell app

Tips

Contact Support Online help for operating system Troubleshooting information, user manuals, set up instructions, product specifications, technical help blogs, drivers, software updates, and so on. Dell knowledge base articles for a variety of computer concerns
Learn and know the following information about your product: · Product specifications · Operating system · Setting up and using your product · Data backup · Troubleshooting and diagnostics · Factory and system restore · BIOS information

In Windows search, type Contact Support, and press Enter.
www.dell.com/support/windows
www.dell.com/support
1. Go to www.dell.com/support. 2. On the menu bar at the top of the Support page, select
Support > Knowledge Base. 3. In the Search field on the Knowledge Base page, type the
keyword, topic, or model number, and then click or tap the search icon to view the related articles.
See Me and My Dell at www.dell.com/support/manuals. To locate the Me and My Dell relevant to your product, identify your product through one of the following: · Select Detect Product. · Locate your product through the drop-down menu under View
Products. · Enter the Service Tag number or Product ID in the search
bar.

Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell. NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

Getting help and contacting Dell
