CTEK DC/DC Battery Charger D250SE

SAFETY

CALIFORNIA PROPOSITION 65

WARNING: This product contains chemical known to the state of California to cause cancer or reproductive toxicity.

• The D250SE and SMARTPASS 120S have been developed for 12V lead-acid and LFP batteries. Do not use the unit for any other type of battery.
• Wear protective goggles when connecting and disconnecting batteries.
• Battery acid is corrosive. Rinse with plenty of water immediately if you get acid on your skin or in your eyes. Get medical assistance.
• Never use a charger with damaged electric cables. Check that the cables have not been dama-ged by hot surfaces, sharp edges or in any other way.
• Explosive gases are generated while lead-acid batteries are being charged. Avoid any sparking near the battery. Use in a well-ventilated location.
• Never place the charger above the battery, and avoid covering the charger during charging.
• Disconnect the battery terminal posts before installing.
• The D250SE and SMARTPASS 120S are not spark-free.
• The installation must include a fuse in accordance with the recommendations in the table “CABLE AND FUSE RECOMMENDATIONS”.

Remember that all installations in boats must comply with ISO 10133!

1. The cabling from the batteries must have fuses near the batteries.
2. The batteries must be securely fastened in a ventilated space.
3. The cabling must be run through pipe ducting, separately from 230V/110V wiring (mains power), or secured by clips at every 30 cm/1 ft.
4. Cabling in the engine compartment must be temperature rated at 70°C/ 158°F.

D250SE

• The D250SE is a DC to DC battery charger for a dual battery system with a starter battery and a service battery.
• The D250SE charges the service battery either from an alternator or from a solar panel, or from a combination of both.
• The D250SE separates the batteries in a dual battery system and thereby replaces, for example, a separation relay, VSR (Voltage Sensitive Relay), diode isolator or a mechanical battery selector.
• The D250SE can be used on its own or in combination with SMARTPASS 120S. In combination, the D250SE and SMARTPASS 120S can charge at up to 140A.
• Starter battery is only available as lead-acid battery.

FUNCTIONS

• Charging service battery from a conventional alternator (constant charging voltage)
  The D250SE charges a service battery at up to 20A from the start battery when a conventional alternator is running. This function is switched off when the engine is not running to prevent discharge of the starter battery.
• Charging of a service battery from a smart alternator (with variable charging voltage)
  The D250SE can charge a service battery at up to 20A from the starter battery when a smart alternator is running. This function is switched off when the engine is not running, so as not to discharge the starter battery. The Installation section describes how the D250SE needs to be con-nected in order to activate the smart alternator functions.
• Charging a service battery from a solar panel
  The D250SE can charge and trickle charge a service battery from a solar panel at up to 20A. The D250SE uses MPPT (Maximum Power Point Tracker) to maximise the power from the solar panel.
• Separation of the starter battery and the service battery
  The D250SE separates the starter battery from the service battery when the engine is not running.
• Temperature compensated charge voltage
  The D250SE optimises the charge voltage by increasing the charge voltage at temperatures below 25°C/77°F and reducing it at temperatures higher than 25°C/77°F. The function is active in AGM and NORMAL programs only.
• Trickle charging of the starter battery from a solar panel
  The D250SE trickle charges the starter battery from a solar panel at intervals of 3 seconds if the service battery is fully charged.
• Optimised charging of AGM batteries
  The D250SE can provide a suitable charging voltage for optimal charging of AGM (Absorbent Glass Mat) batteries, which require a higher charge voltage than other types of lead-acid battery. The installation section describes how the D250SE needs to be connected in order to activate the AGM battery function.
• Optimised charging of Lithium batteries
  The D250SE can provide a suitable charging voltage for optimal charging of Lithium batteries.

SMARTPASS 120S

• SMARTPASS 120S is a solution for supplying current to charge and manage consumers in a dual battery system consisting of a starter battery and a service battery.
• SMARTPASS 120S separates the batteries in a dual battery system and thereby replaces, for exam-ple, a separation relay, VSR (Voltage Sensitive Relay), diode isolator or a mechanical battery selector.
• SMARTPASS 120S connects the starter and service batteries together in order to charge them both from the alternator.
• SMARTPASS 120S protects the service battery from deep discharge which would damage the battery.
• SMARTPASS 120S supplies consumers from the alternator instead of from the service battery while the service battery is charging, which permits faster charging.
• SMARTPASS 120S can be used on its own or in combination with D250SE. In combination, the D250SE and SMARTPASS 120S can charge at up to 140A.

FUNCTIONS

• Charging service battery from a conventional alternator (constant charging voltage)
  The SMARTPASS 120S charges a service battery at up to 120A from the start battery when a conventional alternator is running. This function is switched off when the engine is not running to prevent discharge of the starter battery.
• Charging of a service battery from a smart alternator (with variable charging voltage)
  The SMARTPASS 120S can charge a service battery at up to 120A from the starter battery when a smart alternator is running. This function is switched off when the engine is not running, so as not to discharge the starter battery. The Installation section describes how the SMARTPASS 120S needs to be connected in order to activate the smart alternator functions.
• Battery guard
  SMARTPASS 120S disconnects consumers when the service battery voltage is low in order to avoid deep discharge, which would damage the battery. The consumers are reconnected after the service battery voltage has increased. Connect critical consumers directly to the service battery so they will not be disconnected if the voltage falls to lower than 11.5V.
• Start assistance
  SMARTPASS 120S automatically connects the service battery to the starter battery for 10 sec to assist, if the starter battery on its own is unable to start the engine. After the start assistance func-tion has been activated, SMARTPASS 120S will display a fault indication until starting has been achieved without using the start assistance function.
• Separation of the starter battery and the service battery
  SMARTPASS 120S separates the starter battery from the service battery when the engine is not running.
• Assigning current source priority
  SMARTPASS 120S can sense when the alternator is running and in that case supplies consumers with current from the starter battery to work with the D250SE and maximise charging efficiency. Otherwise the consumers are supplied with current from the service battery.
• Dynamic overcurrent protection
  SMARTPASS 120S has overcurrent protection to shield the product. Overcurrent protection permits up to 350A to be sent from the alternator temporarily so that charging will be accelerated.
• Battery temperature protection
  SMARTPASS 120S protects the battery by switching off charging if the service battery temperature rises too high.
• Starter battery trickle charging
  The service battery trickle charges the starter battery without assistance from the solar panel or alternator to compensate for the self-discharge of the starter battery. The service battery charges in
  3- second pulses when its voltage is higher that of the starter battery and the voltage of the starter battery is low.

CABLE AND FUSE REQUIREMENTS

*If the D250SE and SMARTPASS 120S are installed in different locations and the accompanying connector plate is not used, please follow the recommendations in the table.

FUNCTION INDICATIONS

D250SE

SMARTPASS 120S

INSTALLATION

1. Install the apparatus on a smooth surface where it can be fi rmly secured and where it is not exposed to fuel, oil or dirt. To obtain the correct distance, start by fi tting the two units together with the accompanying connector plate before they are fi nally fastened to the smooth surface.
2. Secure the apparatus with, for example, M4 or ST4.2 screws at each corner.
3. Before connecting the cables, ensure that the negative terminal post on the battery is not connected.
4. Connect the cables to the apparatus connections by securing screws (M8).
   Use an Allen key – tightening by hand without a tool is not enough. Max 6 mm ring terminals.
5. Use tape to secure the temperature sensorto a clean flat surface above the service battery. Position the sensor as close to the positive terminal post as possible.

6. Connect the battery negative terminal post.

RECOMMENDED TIGHTENING TORQUES

DIMENSIONS

SETTINGS D250SE

SETTINGS SMARTPASS 120S

INSTALLATION EXAMPLES

1. Solar Panel
   PREREQUISITES
   Solar panel capable of charging a 40–300Ah service battery. The D250SE uses MPPT (Maximum Power Point Tracker) to maximise the power from a solar panel.
   TIP 1: Do not connect two solar panels in series. Max. input voltage 23V.

2. Small Service Battery
   PREREQUISITES
   A dual battery system where the D250SE charges a 40–300Ah service battery from a generator which also charges a starter battery.
   It is advantageous to use this installation when:
   • The alternator is unable to deliver the desired charging voltage.
     TIP 2: If the alternator has external voltage detection for the service battery, the voltage detection wiring must be connected to the starter battery.
     TIP 3: Complement the D250SE with a SMARTPASS 120S if the service battery capacity is greater than 100Ah or has parallel consumption while charging is in progress. This reduces the charging time.

3. Small Service Battery and Solar Panel
   PREREQUISITES
   A dual battery system where the D250SE char-ges a 40–300Ah service battery from a solar panel, an alternator, or both which also charge a starter battery.
   It is advantageous to use this installation when:
   • The alternator is not able to deliver the desired charge voltage.
   • Charging from a solar panel.
     See also tips 1, 2 and 3.
4. Service Battery with Parallel Consumers
   PREREQUISITES
   A dual battery system where the SMARTPASS 120S charges a 28–800Ah service battery from a alternator which also charges a starter battery.
   It is advantageous to use this installation when:
   • The alternator is able to deliver the desired charging voltage.
   • The service battery capacity is greater than 100 Ah.
   • The consumers are supplied directly from the alternator at the same time as the service bat-tery is being charged.
     See also tips 2 and 3.

5. Large Service Battery with Parallel Consumers
   PREREQUISITES
   A dual battery system where a D250SE together with a SMARTPASS 120S charges a 100–800Ah service battery. Current is supplied from a solar panel and/or an alternator. The starter battery is charged from an alternator.
   It is advantageous to use this installation when:
   • The alternator is not able to deliver the desired charging voltage.
   • The service battery capacity is greater than 100Ah.
     Parallel consumption takes place during charging. By connecting the consumers (See TECHNICAL SPECIFICATION) to the Output Consumers on the SMARTPASS 120S, the servi-ce battery will be able to charge without parallel consumption and the consumers will instead be supplied with current from the alternator.
     • The service battery shall be protected against deep discharge. Connect non-critical consumers to the Output Consumers on the SMARTPASS 120S. Connect critical consumers directly to the service battery. SMARTPASS 120S does not in that case switch off the critical consumers when the service battery is completely discharged.
       TIP 4: Connect the cabling from the starter and service batteries respectively to the SMARTPASS 120S and not to the D250SE.
       See also tips 1, 2 and 3.
6. Connect an AC/DC Charger
   PREREQUISITES
   A dual battery system where there is a 230/110V charger and a D250SE that, together with a SMARTPASS 120S, charge a service battery with a capacity of 150–800Ah. Current is supplied from a solar panel and/or an alternator to the service battery. The starter battery is charged from an alternator.
   It is advantageous to use this installation when:
   • The charge from the alternator while it is char-ging (engine running) is not enough, so it has to be supplemented by a 230/110V charger.
   • The alternator is not able to deliver the desired charge voltage.
   • The service battery capacity is greater than 150Ah.
   • Parallel consumption while charging is taking place. By connecting the consumers (see TECHNICAL SPECIFICATION) to the Output Consumers on the SMARTPASS 120S, the service battery will be able to charge without pa-rallel consumption and the consumers will instead be supplied with current from the alternator.
     TIP 5: Connect a 230/110V charger to the starter battery if it needs charging. In that case both the starter and service batteries will be optimally charged from the 230/110V charger.
     TIP 6: Heavy current consumers (see TECHNICAL SPECIFICATION) must be connected directly to the service or starter battery.
     See also tips 1, 2, 3 and 4.


D250SE CHARGING PROGRAM LEAD-ACID

• STEP 1 DESULPHATION
  Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead plates of the battery restoring the battery capacity.
• STEP 2 BULK
  Charging with maximum current until approximately 80% battery capacity.
• STEP 3 ABSORPTION
  Charging with declining current to maximize up to 100% battery capacity.
• STEP 4 FLOAT
  Maintaining the battery voltage at maximum level by providing a constant voltage charge.
• STEP 5 PULSE
  Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charged.

D250SE CHARGING PROGRAM LITHIUM

• STEP 1 ACCEPT
  Tests if the battery can accept charge. This step prevents that charging proceeds with a defect battery.
• STEP 2 BULK
  Charging with maximum current until approximately 90% battery capacity.
• STEP 3 ABSORPTION
  Charging with declining current to maximize up to 95% battery capacity.
• STEP 4 FLOAT
  Maintaining the battery voltage at maximum level by providing a constant voltage charge.
• STEP 5 PULSE
  Maintaining the battery at 95–100% capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charged.

D250SE FAULT INDICATIONS

SMARTPASS 120S FAULT INDICATIONS

TECHNICAL SPECIFICATION

*) The quality of the charge voltage and charge current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
**) MPPT (Maximum Power Point Tracker) finds the best combination of current and voltage so that the output power is maximised.

LIMITED WARRANTY

CTEK issues this limited warranty to the original purchaser of this product. This limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The customer must return the product together with the receipt of purchase to the point of purchase. This warranty is void if the product has been opened, handled carelessly or repaired by anyone other than CTEK or its authorised representatives. One of the screw holes in the bottom of the product may be sealed. Removing or damaging the seal will void the warranty. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any warranty other than this warranty.

SUPPORT

Visit: www.ctek.com for support, FAQ, the most recent version of the user instructions and further information concerning CTEK products.

Ctek MXS 5.0 Battery Charger User Manual

CONGRATULATIONS

to the purchase of your new professional switch mode battery charger. This charger is included in a series of professional chargers from CTEK SWEDEN AB and represents the latest technology in battery charging.

CHARGING WITH MULTI OPTIONS

1. Connect the charger to the battery
2. Conned the charger to the well socket
3. Press the MODE button to select charging program NORMAL BATTERYрогостам
4. Follow the 8-step display through the charging process. The battery is ready to start the engine when STEP 4 is lit. The battery is fully charged when STEP 7 is lit.
5. Stop charging at any time by disconnecting the mains cable from the wall socket.

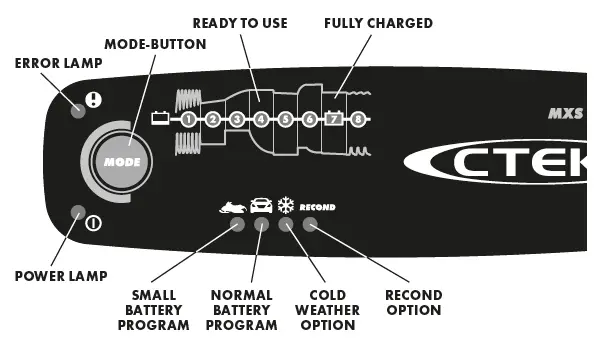

CHARGING PROGRAMS AND OPTIONS

Press the MODE-button to select between the charging programs and to add charging options. The LEDs will indicate which programs and options that are selected. The selected program will be memorised and restarted next time the charger is connected.

The table explains the different Charging Programs:

Charging Options

If the error lamp is lit, check the following:

1. Is the chargers positive lead connected to the battery´s positive pole?
2. Is the charger connected to a 12V battery?
3. Has charging been interrupted in STEP 1, 2 or 5?
   Restart the charger by pressing the MODE-button. If charging is still being interrupted, the battery…
   • STEP 1: …is seriously sulphated and may need to be replaced.
   • STEP 2: …cannot accept charge and may need to be replaced.
   • STEP 5: …cannot keep charge and may need to be replaced.

POWER LAMP

If the power lamp is lit with a:

1. STEADY LIGHT
   The mains cable is connected to the wall socket.
2. FLASHING LIGHT:
   The charger has entered the energy save mode. This happens if the charger isn´t connected to the battery in 2 minutes.

READY TO USE

The table shows the estimated time for empty battery to 80% charge

CHARGING PROGRAMS AND OPTIONS COMBINATIONS

CHARGING STEPS

STEP 1 DESULPHATION
Detects sulphated batteries. Pulsing current and voltage, removes sulphate from the lead plates of the battery restoring the battery capacity.
STEP 2 SOFT START
Tests if the battery can accept charge. This step prevents that charging proceeds with a defect battery.
STEP 3 BULK
Charging with maximum current until approximately 80% battery capacity.
STEP 4 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
STEP 5 ANALYSE
Tests if the battery can hold charge. Batteries that cannot hold charge may need to be replaced
STEP 6 RECOND
Choose the Recond option to add the Recond step to the charging process. During the Recond step voltage increases to create controlled gassing in the battery. Gassing mixes the battery acid and gives back energy to the battery.
STEP 7 FLOAT
Maintaining the battery voltage at maximum level by providing a constant voltage charge.
STEP 8 PULSE
Maintaining the battery at 95-100% capacity. The charger monitors the battery voltage and gives a pulse when necessary to keep the battery fully charged.

CONNECT AND DISCONNECT THE CHARGER TO A BATTERY

INFO
If the battery clamps are incorrectly connected, the reverse polarity protection will ensure that the battery and charger are not damaged.

For batteries mounted inside a vehicle

1. Connect the red clamp to the battery’s positive pole.
2. Connect the black clamp to the vehicle chassis remote from the fuel pipe and the battery.
3. Connect the charger to the wall socket
4. Disconnect the charger from the wall socket before disconnecting the battery
5. Disconnect the black clamp before the red clamp.

Some vehicles may have positively earthed batteries.

1. Connect the black clamp to the battery’ snegative pole.
2. Connect the red clamp to the vehicle chassis remote from the fuel pipe andthe battery.
3. Connect the charger to the wall socket
4. Disconnect the charger from the wall socket before disconnecting the battery
5. Disconnect the red clamp before the black clamp.

TECHNICAL SPECIFICATIONS

• Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers has a very low back current.
• The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode.
• High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.

SAFETY

• The charger is designed for charging only for batteries according to the technical specification. Do not use the charger for any other purpose. Always follow battery manufacturers recommendations.
• Never try to charge non rechargeable batteries.
• Check the charger cables prior to use. Ensure that no cracks have occurred in the cables or in the bend protection. A charger with damaged cord must be returned to the retailer. A damaged mains cable must be replaced by a CTEK representative.
• Never charge a damaged battery.
• Never charge a frozen battery.
• Never place the charger on top of the battery when charging.
• Always provide for proper ventilation during charging.
• Avoid covering the charger.
• A battery being charged could emit explosive gasses. Prevent sparks close to the battery. When batteries are reaching the end of their lifecycle internal sparks may occur.
• All batteries fail sooner or later. A battery that fails during charging is normally taken care of by the chargers advanced control, but some rare errors in the battery could still exist. Don’t leave any battery during charging unattended for a longer period of time.
• Ensure that the cabling does not jam or comes into contact with hot surfaces or sharp edges.
• Battery acid is corrosive. Rinse immediately with water if acid comes into contact with skin or eyes, seek immediate medical advice.
• Always check that the charger has switched to STEP 7 before leaving the charger unattended and connected for long periods. If the charger has not switched to STEP 7 within 50 hours, this is an indication of an error. Manually disconnect the charger.
• Batteries consume water during use and charging. For batteries where water can be added, the water level should be checked regularly. If the water level is low add distilled water.
• This appliance is not designed for use by young children or people who cannot read or understand the manual unless they are under the supervision of a responsible person to ensure that they can use the battery charger safely. Store and use the battery charger out of the reach of children, and ensure that children cannot play with the charger.
• Connection to the mains supply must be in accordance with the national regulations for electrical installations.

LIMITED WARRANTY

CTEK SWEDEN AB, issues this limited warranty to the original purchaser of this product. This limited warranty is not transferable. The warranty applies to manufacturing faults and material defects for 5 years from the date of purchase. The customer must return the product together with the receipt of purchase to the point of purchase. This warranty is void if the battery charger has been opened, handled carelessly or repaired by anyone other than CTEK SWEDEN AB or its authorised representatives. One of the screw holes in the bottom of the charger is sealed. Removing or damaging the seal will void the warranty. CTEK SWEDEN AB makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK SWEDEN AB is not obligated to any other warranty other than this warranty.

SUPPORT

CTEK offers a professional custom support: www.ctek.com.
For latest revised user manual see www.ctek.com.
By e-mail: [email protected],
by telephone: +46(0) 225 351 80,
by fax +46(0) 225 351 95.

CTEK PRODUCTS ARE PROTECTED BY
