RC-1 loop Station

Owner’s Manual

Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (supplied on a separate sheet). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, this manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

Welcome to the Loop Station!

The RC-1 is a petal-type recorder that lets you record audio phrases from your guitar or bass, and play them back by operating the pedal. You can create a wide variety of performances by layering sound while you record and carry out playback in real-time.

• It’s easy to create a loop phrase.
• You can record up to a maximum of approximately 12 minutes (stereo).
• You can input audio in stereo.

Panel Descriptions

Precautions When Connecting

• To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
• Raise the amp volume only after turning on the power to all connected devices.
• When operating on battery power only, the unit’s indicator will become dim when battery power gets too low. Replace the battery as soon as possible.
• When connection cables with resistors are used, the volume level of equipment connected to the INPUT jacks may below. If this happens, use connection cables that do not contain resistors.

Caution When Connecting an External Footswitch

You must power off the unit before connecting an external footswitch. If you connect the footswitch while the power is on, recorded data might be lost.

Turning On the Power

Inserting a connecting plug into the OUTPUT A jack turns on the power to the unit.

Once the connections have been completed, turn on the power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

When powering up: Turn on the power to your guitar amp last.

When powering down: Turn off the power to your guitar amp first.

• This unit is equipped with a protection circuit. A brief interval (a few seconds) after power-up is required before the unit will operate normally.
• Before turning the unit on/off, always be sure to turn the volume down. Even with the volume turned down, you might hear some sound when switching the unit on/off. However, this is normal and does not indicate a malfunction.

Caution when turning off the power

Never turn off the power while the LOOP indicator is rotating or blinking (i.e., don’t pull the plug out of the OUTPUT A jack). The recorded data might be lost if you do so.

Basic Operation

To perform recording, overdubbing, and playback, press the pedal as shown in the diagram.

MEMO

• If a footswitch is connected to the STOP/UNDO jack, you can stop by pressing the footswitch just once.
• The recorded phrase is saved even if you turn off the power.

NOTE

• The minimum recording time for a loop phrase is approximately 0.25 seconds. If you press the pedal within approximately 0.25 seconds after you start recording, the recording will continue until the phrase is at least approximately 0.25 seconds long.
• The maximum recording time for a loop phrase is approximately 12 minutes (stereo). If you exceed the maximum recording time, recording or overdubbing is interrupted, and operation changes to loop playback.
•  Roland assumes no liability concerning the restoration of any stored content that has been lost.

NOTE

•  The minimum recording time for a loop phrase is approximately 0.25 seconds. If you press the pedal within approximately 0.25 seconds after you start recording, the recording will continue until the phrase is at least approximately 0.25 seconds long.
• The maximum recording time for a loop phrase is approximately 12 minutes (stereo). If you exceed the maximum recording time, recording or overdubbing is interrupted, and operation changes to loop playback.
• Roland assumes no liability concerning the restoration of any stored content that has been lost.

Deleting a Phrase

The recorded phrase is erased if you hold down the pedal for two seconds or longer while stopped.

During erasure, the LOOP indicator (red) blinks rapidly.

• Never turn off the power while the LOOP indicator (red) is blinking rapidly. The recorded data might be lost if you do so.
• The phrase plays while you hold down the pedal. If you want to erase the phrase without playing it, use an external footswitch to stop the phrase.

Canceling an Overdub (Undo/Redo)

You can undo/redo by holding down the pedal for two seconds or longer during overdubbing or playback.

During undo/redo, the LOOP indicator (green) blinks rapidly.

Connecting to an External Footswitch

Connect your footswitch to the STOP/UNDO jack as shown in the illustration, and set its POLARITY switch.

* The FS-5L cannot be used.

Changing the Recording Mode or Stop Mode

1. While holding down the pedal switch, turn the power on (insert a plug into the OUTPUT A jack).

The LOOP indicator (red) lights, indicating the current recording mode.

Recording mode		Explanation
Red	Upper half	Switch in the order of recording → overdubbing → playback (default setting).
	Lower half	Switch in the order of recording→playback → overdubbing.

2. Press the pedal switch successively twice (within one second) to change the recording mode.
3. Press the pedal switch.

The LOOP indicator (green) lights, indicating the current stop mode.

Stop mode		Explanation
Red	Upper half	Press the pedal switch successively twice to stop immediately (default setting).
	Lower half	Press the pedal switch successively twice to enable stopping at the end of the phrase; playback stops when the phrase has played to its end. When playback stops, the phrase is erased. Operation when stop has been enabled • The LOOP indicator (green) rotates while blinking. • Press the pedal switch successively twice to stop immediately and erase the phrase. • Hold down the pedal switch for two seconds or longer to cancel the stop-enabled state.

4. Press the pedal switch successively twice (within one second) to change the stop mode.
5. When the power is turned off and on again, the unit returns to normal operation.

Changing the Battery

1. Hold down the pedal and loosen the thumbscrew, then open the pedal upward.
   * The pedal can be opened without detaching the thumbscrew completely.
2.  Remove the old battery from the battery housing, and remove the snap cord connected to it.
3. connected to it. 3. Connect the snap cord to the new battery, and place the battery inside the battery housing.
   * Be sure to carefully observe the battery’s polarity (+ versus -).
4. Slip the coil spring onto the spring base on the back of the pedal, and then close the pedal.
   * Carefully avoid getting the snap cord caught in the pedal, coil spring, and battery housing.
5. Finally, insert the thumbscrew into the guide bush hole and fasten it securely.

Specifications

BOSS RC-1: Loop Station

* 0 dBu = 0.775 Vrms
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

About the Battery

• Batteries should always be installed or replaced before connecting any other devices. This way, you can prevent malfunction and damage.
• The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you prefer to use a battery, please use the alkaline battery.
• If you handle batteries improperly, you risk an explosion and fluid leakage. Make sure that you carefully observe all of the items related to batteries that are listed in “USING  THE UNIT SAFELY” and “IMPORTANT NOTES.”

Repairs and Data

• Although we will do our utmost to preserve the data stored in your unit when we carry out repairs, in some cases, such as when the memory section is physically damaged, restoration of the stored content may be impossible. Roland assumes no liability concerning the restoration of any stored content that has been lost.

Intellectual Property Right

• It is forbidden by law to make an audio recording, video recording, copy, or revision of third party’s copyrighted work (musical work, video work, broadcast, live performance, or other work), whether in whole or in part, and distribute, sell, lease, perform, or broadcast it without the permission of the copyright owner.
• Do not use this product for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this product.
• Roland, BOSS, and Loop Station are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries.
• Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.

Boss Tube Portable Bluetooth Speaker User Manual

Charge the speaker until the LED light turns of.
Tips: There will be a prompt sound when the battery is low. When voltage is below 3.3V the unit will automatically shutdown, When charging your speaker, the red LED light will stay on and shut of when the device is fully charged.

Press  to power on. Short press twice to turn the blue illumination on or of.
For first- time use, the Bluetooth indicator flash’s blue quickly, indicating that the speaker is in pairing mode.

Tips: When you power on the speaker again after Bluetooth setup, the speaker will search for the previously paired device and the Bluetooth indicator will flash slowly. If no paired device is found, it will flash quickly and the speaker will enter pairing mode.

To save power, the speaker turns of automatically after 15 minutes of inactivity. You can reset the speaker by pressing the (+) and buttons (M) at the same time.

1. Make sure that the speaker is in pairing mode.
2. Enable Bluetooth on your device to be paired with the speaker.
   Select ‘ Boss Audio Systems Tube ’ from the available devices(enter the password ‘0000’ if necessary) to start pairing and connection with the speaker.
3. After successful connection, the Bluetooth indicator turns solid blue and you hear a voice prompt “connected”.
   Tips: This speaker supports automatic connection with a previously paired device after power-of and power-on again.
4. Press (M) to cycle thru modes.
   The modes available are SD, Bluetooth and FM.
5. Press (M) twice to switch between English and Spanish voice prompts, the current language setting is memorized when the speaker is turned of.
6. Long press play/pause key to disconnect a paired Bluetooth device.

Listen to FM radio stations

• Long press +/- to adjust volume
• Short press +/- to skip to the previous or next Channel
• Short press  to mute mode.

FM

• To perform an anto-scan, press and hold the Mode (“M”)button. The TUBE will go into auto-scan mode and store all radio stations with a strong enough signal.
• Once the scan is complete, the TUBE will stop on the first station that was stored.
  Note: This cannot manual scan stations. Perform Auto-scan again to maintain strong stations and overwrite existing presets.

True Wireless Stereo (TWS)

You can connect two BOSS Audio Systems TUBE with each other to enrich your listening experience.

1. Hold  on one speaker for 3 seconds to set up True Wireless connection (main speaker), making sure the other speaker (to be purchased separately) is not connected to any Bluetooth device.
2. The two speakers will pair with each other automatically after 15 to 30 seconds.
3. Once paired, the True Wireless will reconnect automatically when both speakers are turned on again.

Tips: After a successful connection, you can use the  , +/- and  keys on either speaker to control both speakers at the same time. You can hold on either speaker for 3 seconds to disconnect True Wireless connection.
You can only pair and connect your mobile device with the main speaker.

Specifications

WWW.BOSSAUDIO.COM

Boss Bolt Speaker

BOLT
All registered and unregistered trademarks are property of their respective owners.
BOSS INTERNATIONAL GROUP BOSS AUDIO SYSTEMS BOLT
All rights reserved.

QUG-Boss Audio Systems BOLT-V2.0

Charge the speaker until the red LED light turns off.

Tips:
When you hear a voice prompt: Battery is low, please recharge the speaker.
To save power, the speaker turns off automatically after 9 minutes of inactivity unless AUX cable is plugged in.

BOLT is sold in pairs to let you enjoy the true stereo sound quality without using the wires (TWS). You can also use each unit individually as an independent Bluetooth speaker.

Long press to power on. The Bluetooth indicator flashes blue slowly, indicating that the speaker is in pairing mode.

Double click  on either speaker to set up True Wireless connection. The two speakers will pair with each other automatically after 5 to 10 seconds.

Once paired, the True Wireless will reconnect automatically when both speakers are turned on again.
Tips: After successful connection, you can use the , +/- and keys on either speaker to control both speakers at the same time. You can double click on either speaker to disconnect True Wireless connection.

Power on the speaker.
Long press to turn on / off the Emergency lighting.

1. After TWS is paired, you can connect your mobile device with the main speaker.
   Select “Boss Audio Systems Bolt” from the available devices (enter the password ‘0000’ if necessary) to start pairing and connection with the speaker.
2. After successful connection, the Bluetooth indicator on the main speaker turns solid blue and you hear a voice prompt “Bluetooth connection successful”.

Tips: This speaker supports automatic connection with a previously paired device after power-off and power-on again. If no paired device is found, the Bluetooth LED will flash slowly for 9 minutes before automatically turning off.

You can double click to enter manual pairing mode. In this way, you can pair the speaker with a new Bluetooth device.

You can reset the speaker/ clear all BT and TWS connections by pressing the button inside the AUX IN port using a non-mental pin.

Press to cycle through modes. The modes available are Bluetooth, AUX IN, USB and SD.

Play music on your device paired and connected with the speaker.

While music is playing:

• Hold +/- to adjust volume.
• Press+/- to skip to the next/previous track.
• Press to pause or resume music playing.

When you make a call or there is an incoming call, you can use the speaker as a speaker phone.
• When there is an incoming call, you can press
once to receive the call or long press to reject the call.

Tips: Music playing is paused during a call and resumed automatically when the call ends.

Important Safety

WARNING: The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
WARNING: Where the mains plug/appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
Read these instructions before operation.
Keep these instructions for future reference.
Follow all instructions for installation, use and maintenance of the device.
To clean the device, disconnect power first. Clean only with soft and dry cloth.
To ensure compatibility, only use accessories recommended by the manufacturer.
When the device is suddenly moved from cold to warm surroundings, condensation may form in the housing of the device. Before use, leave the device in the warm environment until the moisture evaporates.
Keep the device away from heat sources, such as a radiator, heater, oven, amplifier, naked flames or direct sunlight.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Never block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not expose the device to sand or dust, or cover it with items, such as newspapers, table cloths, or curtains.
• Do not operate the device in an enclosed cabinet. Leave sufficient free space around the device for adequate ventilation.

Do not attempt to repair or service the device yourself. Opening or removing the cabinet may expose you to electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualified service personnel.
Do not use the device if any abnormality occurs. If any smoke or odor becomes apparent, contact your dealer immediately. Do not try to repair the device yourself.
Avoid using dropped or damaged appliances. If the device is dropped and the housing is damaged, the internal components may not function normally. Stop use and contact your dealer for repair. Continued use of the device may cause fire or electric shock.
To reduce the risk of electric shock, do not touch any connector with wet hands.
Never remove the housing of the device.
Never lubricate any part of the device.
Never place the device on top of any other electrical equipment.

Notice Modification

Any modification (such as removing the speaker grill) to the device, without prior authorization from the manufacturer, may void your warranty and authority to operate the device.

FCC compliance statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
( 1 ) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
This device and its antenna(s) must not be co-located or conjunction with any other antenna or transmitter.

Recycling Packaging

Observe the local regulations for how to dispose of the packaging materials.

Instructions for Users on Removal, Recycling and Disposal of Used Batteries

For products with a built-in battery that lasts for the lifetime of the product, removal may not be possible for the user. In this case, recycling or recovery centers handle the dismantling of the product and the removal of the battery. If, for any reason, it becomes necessary to replace such a battery, this procedure must be performed by authorized service centers. it is illegal to dispose of any battery with household trash. All batteries must be disposed of in an environmentally sound manner. Contact your local waste-management officials for information regarding the environmentally sound collection, recycling and disposal of used batteries.

WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, don’t disassemble, crush, puncture, short external contacts, expose to temperature above 60°C ( 140°F), or dispose of in fire or water.

Copyright

Bluetooth

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by BOSS AUDIO SYSTEMS is under license.

Specifications

The technical specifications are subject to change without prior notice.

BOSS® MC625BA USER’S MANUAL

BLUETOOTH® | 3″ (76 mm)
WEATHERPROOF 2SPEAKER SYSTEM
FEATURING BUILT-IN AMPLIFIER

BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030
www.bossaudio.com
805-751-4853 Customer Service
Tech Support: www.bossaudio.coin/support

Congratulations on your purchase of a BOSS Audio Systems amplified speaker system. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, for years of listening pleasure.

Thank you for making BOSS AUDIO SYSTEMS your choice for entertainment!

Features:

Aux-In (3.5 mm)
Speaker Clamp Mounts
Weatherproof Media Control
High-Impact, High Temp Speaker Enclosures
Weatherproof Speakers
Bluetooth® Audio Streaming

Installation

1. Unscrew the brackets from the bottom of the speakers.
2. Find a safe, ideal mounting location and fit the brackets over the chosen mounting bars.
3. Fasten the mounting screws after you review the safety of the mounting location.

Wiring

1. Remove the seat.
2. Route the fused power leads to the battery, (keep away from moving parts and/or hot exhaust)
3. Connect the RED ring terminal to the +12V post of the battery.
4. Connect the BLACK ring terminal to ground post of the battery.
5. Connect the power connector to the white mating connecter leading to the speaker

Bluetooth

To pair and connect your Bluetooth device to the MC625BA” Enter Settings > Bluetooth Menu > Search > “ Boss Audio MC625BA” > If Prompted to enter a passcode enter: “0000”

Connections

Amplifier and Loudspeaker Mounting

Install Reminder

The components and wiring should not be installed around any moving parts, keep away from ignition parts, fuel lines, or any hot exhaust

Speakers should not be installed where they might inhibit safety features on the vehicle (i.e. lights, horns, brake levers, etc…)

Specifications

Operation Voltage: 10~16V
THD: <0.1%
S/N: >75 dB
Channel Separation: >50 dB
Frequency Response: 50Hz-15KHz
Speaker Wires: 5.5′
Volume Control Wire: 4.9′
Audio Input Cable: 0.8′
Power Cable: 5.5′
In-Line Fuse/Power Cable: 4.9′
Bracket Size Range: 0.75″ ~1.25″
Fuse Rating: 7.5A

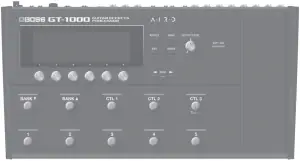

GUITAR EFFECTS PROCESSOR

GT-1000

Owner’s Manual

Provision of Bluetooth functionality

Please be aware that depending on the country in which you purchased the unit, Bluetooth functionality might not be included.

 Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (leaflet “USING THE UNIT SAFELY” and Owner’s Manual (p. 17)).After reading, keep the document(s) where it will be available for immediate reference.

© 2018 Roland Corporation

Owner’s Manual (this document)

Read this first. It explains the basic things you need to know in order to use the GT-1000.

PDF Manual (download from the Web)

• Parameter Guide
This explains all parameters of the GT-1000.

• Sound List
This is a list of the sounds built into the GT-1000.

• MIDI Implementation
This is detailed information about MIDI messages.

To obtain the PDF manual

1. Enter the following URL in your computer.
http://www.boss.info/manuals/

2. Choose “GT-1000” as the product name.

Getting Ready

Connecting the Equipment

1 Turn down the volume of the connected device.
5 Turn on the power of the amp(s).

MAIN OUTPUT jack

Connect these to your guitar amp or mixer. If using a mono connection, use only the L/MONO jack.

PHONES jack

You can connect a set of headphones here.

SUB OUTPUT (L, R) jacks
Connect these to your PA system, etc.
* Pin assignment of SUB OUTPUT connector/jack

SEND (1, 2)/RETURN (1, 2) jacks
Connect an external effect processor here.

You can also use the SEND (1, 2)/ RETURN (1, 2) jacks as SEND (L, R)/RETURN (L, R) jacks for connecting a stereo effect unit. For details on the parameter, refer to the “GT-1000 Parameter Guide” (PDF file).

USB COMPUTER port

Use a USB cable to connect to a computer and exchange audio/MIDI data between the GT-1000 and the computer (p. 10).

Using the cord hook

Ground Terminal

2 Connect your equipment to the OUTPUT jack(s).
3 Connect your guitar.
4 Turning the power on.

INPUT jack
Connect your guitar.

CTL4, 5/EXP2 jacks, CTL6, 7/EXP3 jacks
You can control various parameters by connecting an expression pedal (Roland EV-5: sold separately) or a footswitch (FS-5U, FS-6, FS-7: sold separately).
For details on the settings, refer to “Foot Switch and Expression Pedal Settings” (p. 12).

• Use only the specified expression pedal. By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.

AMP CTL 1,2 jacks
By connecting this to the channel switching jack of your guitar amp, you can switch channels from the GT-1000. For details on the parameter, refer to the “GT-1000 Parameter Guide” (PDF file).

DC IN jack
Connect the included AC adaptor here.
* Place the AC adaptor so the side with the indicator (see illustration) faces upwards and the side with textual information faces downwards. The indicator will light when you plug the AC adaptor into an AC outlet.

MIDI IN/OUT jacks

Connect an external MIDI device here. (p. 10)

• To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
• Before turning the unit on/off, always be sure to turn the volume down. Even with the volume turned down, you might hear some sound when switching the unit on/off. However, this is normal and does not indicate a malfunction.
• To prevent the inadvertent disruption of power to your unit (should the plug be pulled out accidentally), and to avoid applying undue stress to the jack, anchor the power cord using the cord hook, as shown in the illustration.

2

In this manual, the order of the MENU operations is written as follows.
<Example>
Press the [MENU] button.
Use the [2] knob to select “IN/OUT SETTING.”
Use the [1] knob to select “INPUT.”

Choose [MENU] → “IN/OUT SETTING”→“INPUT.”

Turning the Power On

Turn the power on in the order of steps 1–5 .
To turn the power off, reverse the order.

Specify the Type of Amplifier You Have Connected

1. Choose [MENU] → “IN/OUT SETTING”→“MAIN OUT”→“OUTPUT SELECT.”

The menu screen appears.

2. Turn knob [1] to select the type of amp.

For details on the amp types, refer to the “GT-1000 Parameter Guide” (PDF file).

MEMO
In order to take full advantage of the GT-1000’s capabilities, we recommend that you connect to an input that is not affected by a preamp; for example, you should connect to a RETURN jack rather than to a guitar input jack which is affected by the preamp of your guitar amp.

Adjusting the Volume

Use [OUTPUT LEVEL] knob to adjust the overall volume of the GT-1000.

Using the Tuner

The GT-1000 is equipped with a conventional monophonic tuner which lets you tune your instrument one string at a time, and a polyphonic tuner which lets you play and tune all of your open strings simultaneously.

1. Press the [CTL3] (TUNER) switch.

The tuner screen appears.
You can use the PAGE [][] buttons to switch the tuner display.

Monophonic/polyphonic display

Monophonic display

Polyphonic display

You can also start the tuner as follows.
1. Choose [MENU] → “TUNER.”
“TUNER” is located in the second page of the menu. Use the PAGE [] [] buttons to access the second page.

Tuner Settings

To make tuner settings, use knobs [1]-­[6] located below the display.

Tuner settings

3

Playing

Selecting a Patch

A combination of effects and their settings is called a “patch.”

Patch

User patch (U01-1­-U50-5)
Can be overwritten
Preset patch (P01-1-­P50-5)
Cannot be overwritten, however, you can write a Preset patch into the User area, modify the settings to your needs and store your modified version in the User area.

1. Use the [BANK ] and [BANK ] switches to select a bank.
2. Use the [1]-­[5] switches to select a patch within the selected bank.

MEMO
You can also change patches by turning knob [1] below the display.

About the Play Screen

The screen that appears after you turn on the power is called the “Play screen.”
The following four types of play screen are provided; use the PAGE [] [] buttons to switch between the types of display.

Large patch number

Large patch name

Show functions assigned to main unit and external switches

Show effect configuration

Icons shown in the play screen

Indication	Explanation
	Indicates the input level.
	Indicates the output level.
	Indicates the return level.
	Indicates the send level.
	Indicates the amount of compression when the compressor is operating.
	Indicates that the editor is connected wirelessly. * Please be aware that depending on the country in which you purchased the unit, Bluetooth functionality might not be included.
	Indicates the BPM.
	Blinks in time with the BPM.
	Indicates the page to which you navigate using the PAGE [][] buttons (edit screen).

When the play screen is shown, you can turn knobs [1]-­[6] to adjust the parameters that are shown above each knob.

MEMO
You can change the parameters that are adjusted by knobs [1]-[6] when the play screen is shown.
For details, refer to the “Assigning Favorite Parameters to [1]­-[6] Knobs” (p. 8).

4

Editing: Effects

Basic Procedure for Effect Editing

The edit screens show the block configuration (effect chain) of all effects provided by the GT-1000, as well as the output and send/ return. You can edit from this effect chain display by selecting the block that you want to edit.

1. Press the [EFFECT] button.

The edit screen (effect chain) appears.

2. Turn knob [6] to select the block that you want to edit.

The selected block is enclosed by a thick frame.

* By pressing knob [6] you can turn the selected effect on/off. Effects that are off are shown in gray. When the effect is turned on, it is shown in white.

3. Use knobs [1]-­[5] to adjust the parameters that are shown below the screen.

Use the PAGE [][] buttons to switch between the parameters that you want to edit. The current page is indicated in the lower center of the screen.
* To change a value in larger steps, turn a knob while pressing it.
* The number of parameters and pages differs depending on the
effect.

Editing while viewing all parameters

From the edit screen, you can long-press knob [6] to see a list of all parameters of the selected block. You can edit the parameters from this list.

1. Turn knobs [1]-­[6] to edit the value of the parameters shown in the screen.
Use the PAGE [][] buttons to switch between lists of parameters.

Effect Placement

By moving blocks such as effects, output, and send/return, you can freely change the order in which the effects are placed, or arrange them in parallel.

Changing the placement of effects etc.

1. Press the [EFFECT] button.
The effect chain is shown.

2. Use knob [6] to select the block that you want to move.

3. While pressing knob [6], turn it left or right.
The selected block moves left or right.

5

Switching patches without interrupting the sound

The GT-1000 is equipped with a new type of high-speed patch switching system, allowing you to switch patches with minimal interruption of the sound. The fastest possible switching is automatically performed for each patch, and switching without interrupting the sound is also possible.

Tips for preventing interruptions in the sound

To prevent interruptions in the sound, observe the following points when you create the patches that are used before and after the switch.
• Avoid changing the position of blocks within the chain.
• Use multiple blocks when placing the effects (don’t change the TYPE within the same block).
• Use parallel positioning, and switch the channel.

Example:
Switching from a clean sound that uses chorus and deep delay, to a crunch sound that uses phaser and shallow delay.

The same chain is used for both patches, both before and after switching. The settings of the effect used before switching are placed in parallel with the settings used after switching.

Using STOMPBOX

Your preferred settings for each effect can be saved as a “STOMPBOX.” You can select these saved settings and use them to create your sound just as though you were connecting compact pedal effects. The STOMPBOX data is common to all patches; this means that all patches using the same STOMPBOX can be edited simultaneously.

1. Press the [EFFECT] button.
2. Use the [6] knob to choose the effect you’re going to edit.
3. Use the PAGE [] [] buttons to move to the last page.

4. Press the [5] knob.
The STOMPBOX select window appears.

5. Turn knob [5] to select the STOMPBOX type.
6. Press the [5] knob.

Editing the STOMPBOX

1. Turn knobs [1]-­[5] to edit the parameter value that are shown in the screen.
Use the PAGE [] [] buttons to switch between lists of parameters.
* Any changes you make by editing will disappear when you switch patches. Save your changes if necessary.

Reading STOMPBOX Settings into a Patch

1. Press the [EFFECT] button.
2. Use the [6] knob to choose the effect you’re going to edit.
3. Use the PAGE [] [] buttons to move to the last page.
4. Press the [5] knob.
The STOMPBOX select window appears.
5. Turn knob [5] to select the STOMPBOX type.
6. Press the [4] knob.
The contents of the STOMPBOX are recalled into the patch. You can edit the patch without modifying the contents of the STOMPBOX.

Writing Patch Settings into a STOMPBOX

1. Press the [EFFECT] button.
2. Use the [6] knob to choose the effect you’re going to save.
3. Use the PAGE [] [] buttons to move to the last page.
4. Press the [5] knob.
The STOMPBOX select window appears.
5. Press the [3] knob.
6. Turn knob [1] to select the writing-destination STOMPBOX.
7. Use knobs [3]-­[6] to name the STOMPBOX.
Reference
For details on naming the STOMPBOX, refer to “Editing a name” (p. 7).

6

Saving a Patch

When you want to save a patch you have created, save it as a user patch by following the procedure below. If you do not save the patch, the edited settings will be lost when you turn off the power or switch to another patch.

1. Press the [WRITE] button.

2. Press knob [1] to select “WRITE” (PATCH WRITE).

3. Use knob [1] to select the save-destination (U01-1­-U50-5).
You can use knobs [3]-­[6] to edit the name.

Editing a name

To edit the patch name, use knob [6] to move the cursor and use knob [5] to change the character.

4. Press the [WRITE] button once again.
The patch is written.

7

Editing: MENU

Basic MENU Operations

Here you can make settings that are common to the entire GT-1000 (system parameters).

For details on the parameter, refer to the “GT-1000 Parameter Guide” (PDF file).

1. Press the [MENU] button.

* You can use the PAGE [][] buttons to see additional items.
2. Press a knob [1]­-[6] to select the item that you want to edit.
A sub-menu appears.

3. Once again press a knob [1]­-[6] to select the item that you want to edit.
4. Use knobs [1]-­[6] to select parameters or edit the values.
* The method of selecting parameters or editing values differs depending on the item. For details, refer to “GT-1000 Parameter Guide” (PDF).

Assigning Favorite Parameters to [1]­-[6] Knobs

Here’s how to assign the parameters that are controlled by knobs [1]­ [6] when the play screen (p. 4) is shown.

1. Choose [MENU] →“HARDWARE SETTING”→“KNOB.”

2. Use the [1]­-[6] knobs to specify the parameters to be controlled by each knob.

3. Press the [EXIT] button a number of times to return to the play screen.

Adjusting the Contrast (Brightness) of the Display

You can adjust the brightness of the display.

1. Choose [MENU]→“HARDWARE SETTING”→“OTHER.”
2. Adjust the value with the [2] knob.

Restoring the Factory Default Settings (Factory Reset)

Restoring the GT-1000’s settings to their original factory default settings is referred to as “Factory Reset.”
Not only can you return all of the settings to the values in effect when the GT-1000 was shipped from the factory, you can also specify the items to be reset.
* When you execute “Factory Reset,” the settings you made will be lost. Save the data you need to your computer using the dedicated software.

1. Choose [MENU]→ “FACTORY RESET.”

2. Choose the type of settings to be restored to the factory default settings with knobs [1] and [6].

3. Press the [WRITE] button.
Press the [6] button to execute the factory reset.
To cancel factory reset, press the [5] button.
Once the Factory Reset is complete, you are returned to the Play screen.

8

Turning Off the Auto Off Function

The GT-1000 can turn off its power automatically. The power will turn off automatically when 10 hours have passed since you last played or operated the unit. The display will show a message approximately 15 minutes before the power turns off.
With the factory settings, this function is turned “ON” (power-off in 10 hours). If you want to have the power remain on all the time, turn it “OFF.”

1. Choose [MENU]→ “HARDWARE SETTING”→“OTHER.”
2. Use the [1] knob to select “OFF.”
3. Press the [EXIT] button a number of times to return to the play screen.

Using the Metronome

1. Choose [MENU]→“METRONOME.”
“METRONOME” is located in the second page of the menu. Use the PAGE [][] buttons to access the second page.
Metronome display

Metronome settings

Use knobs [1]-­[6] below the display to make metronome settings.

9

Connecting to a Computer

By connecting the GT-1000 to a computer via USB, you can do the following.

• Transmit and receive digital audio signals between the computer and the GT-1000
• Edit and manage patches, and display the “GT-1000 Parameter Guide” (PDF file) on a computer using the dedicated software
• Download patches from our dedicated BOSS TONE CENTRAL website
http://bosstonecentral.com/

Installing the USB Driver

You must install the USB driver before connecting to a computer.
Please download the USB driver from the website shown below. Install this special driver before making a USB connection. For further details, refer to the Readme.htm file that comes with the download.
http://www.boss.info/support/
The program you need to use, and the steps you need to take to install the USB driver will differ depending on your computer setup, so please carefully read and refer to the Readme.htm file that comes with the download.

Using the GT-1000 as an Audio Interface

You can record the sound of the GT-1000 on your computer, or have sound from your computer be output from the OUTPUT jacks.

* For details of the audio signal flow when connected via USB and instructions on how to make settings, refer to “GT-1000 Parameter Guide” (PDF file).
* Refer to the instruction manual for the software you are using to learn how to switch the input source of the software.

Making use of the GT-1000’s dedicated software

You can easily download dedicated software from our BOSS TONE CENTRAL website. For details on how to use the software, refer to the Readme.htm file that comes with the download.
http://bosstonecentral.com/
Using the dedicated software allows you to do the following:
• Easily download patches from our BOSS TONE CENTRAL website.
• Edit patch settings
• Name patches
• Organize patches in order and switch them around
• Back up patches and system settings, and return to the backed up settings
• Display the “GT-1000 Parameter Guide” (PDF file) on your computer

Connecting the GT-1000 with an External MIDI Device

On the GT-1000, you can use MIDI to perform the following operations.

Operations from the GT-1000

Operations from an External MIDI Device

Connection example

Settings

1. Choose [MENU]→ “MIDI.”
2. Use [1]­-[6] knobs to specify the value of each parameter.

For details on MIDI, refer to “GT-1000 Parameter Guide)” (PDF file).

10

Using the

Provision of Bluetooth functionality

Please be aware that depending on the country in which you purchased the unit, Bluetooth functionality might not be included.

Here’s What You Can Do

Bluetooth functionality creates a wireless connection between a mobile device such as a smartphone or tablet (subsequently referred to as the “mobile device”) and this unit, allowing you to do the following.

• You can use the BOSS TONE STUDIO app to edit the sound or edit the sound library.
For details on BOSS TONE STUDIO, refer to the Boss website.
https://www.boss.info/

Connecting to an App

The following steps are one possible example. For details, refer to the owner’s manual of your mobile device.

1. Power-on the GT-1000 unit and the mobile device.
2. In your mobile device’s settings, turn Bluetooth on.

NOTE
Even if the “Available devices” list shows “GT-1000,” don’t tap it.

3. Start the “BOSS TONE STUDIO for GT-1000” app that you installed in your mobile device.
4. Tap [Bluetooth MIDI DEVICE] that appears in the screen, and then tap “GT-1000.”

* If you changed the Bluetooth ID (p. 11), the changed number is shown following “GT-1000.”
Verify that “*” is shown at the upper right of GT-1000.

* If “GT-1000” is not shown, tap “SCAN” at the very bottom of the Bluetooth Devices screen, and search again.

5. Tap the Android back button to return to the previous screen.
6. Verify that “GT-1000” is shown for “CONNECT.”

7. Tap [OK] to start communication.

If you have multiple GT-1000 units

If you set the Bluetooth ID parameter to something other than “OFF,” a number is added following the device name of the GT-1000. This lets you distinguish multiple GT-1000 units.

1. Choose [MENU]→ “HARDWARE SETTING”→“OTHER.”

2. Turn knob [6] to specify the ID.

11

Foot Switch and Expression Pedal Settings

A variety of functions can be assigned each of the top panel footswitches, the expression pedal (EXP1), and expression pedals or footswitches that are connected to the rear panel CTL4, 5/EXP2 jack and CTL6, 7/EXP3 jack (p. 14).

Assigning a Function

1. Choose [MENU]→ “CONTROL ASSIGN”→“CONTROL FUNCTION.”

2. Turn knob [1] to select the item that you want to set.
Turning the knob will move the selected item vertically.

The settings of the selected item can now be edited.
3. Turn knobs [2]-­[6] to edit the value of the item selected for each switch.

* The foot switch and expression pedal functions must be specified for each patch; however, if you set PREFERENCE to SYSTEM, all patches will use those functions in common.

Making Assignments from the Effect Edit Screen (Quick Assign)

In the effect edit screen (p. 5), you can select an effect parameter and assign that parameter to the switch of your choice.

1. Press the [EFFECT] button.
2. Turn knob [6] to select the block that you want to edit.
3. Long-press the knob [1]­-[5] for the parameter that you want to assign.

The assign matrix setting screen appears.

* You can also access the assign matrix setting screen in the same way from the all-parameter list screen (p. 5). You can also access it by selecting [MENU]→ “CONTROL ASSIGN”→“ASSIGN SETTING.”

4. Press knob [1] to turn the SW on.
5. Turn knobs [2]-­[6] to edit parameters.
If necessary, use the PAGE [][] buttons to switch between pages of settings.
Use SOURCE to specify the pedal or MIDI message that you will operate.

12

Adjusting the Expression Pedal (Pedal Calibration)

Although the GT-1000’s expression pedal has been set for optimum operation at the factory, extended use and the operating environment can result in the pedal going out of adjustment.
If you encounter problems such as being unable to fully cut off the sound with the volume pedal or being unable to switch the PEDAL FX, you can use the following procedure to readjust the pedal.

1. Choose [MENU]→ “HARDWARE SETTING”→“CALIBRATION.”
The PEDAL CALIBRATION screen appears.

2. Press the heel end of the pedal, and press the [WRITE] button.
The screen will indicate “OK,” and then a screen like the following will appear.

3. Press the toe end of the pedal, and press the [WRITE] button.
The screen will indicate “OK,” and then a screen like the following will appear.

4. Strongly press the toe end of the pedal.
Verify that the PEDAL FX indicator lights when you strongly press the toe end.
* If you want to change the lighting sensitivity of the PEDAL FX indicator, repeat step 4 while you adjust the THRESHOLD value with knob [6].

5. Press the [WRITE] button.
The screen will indicate “COMPLETED!”

* When you operate the expression pedal, please be careful not to get your fingers pinched between the movable part and the panel. In places where small children are present, make sure that an adult provides supervision and guidance.

13

Connecting External Pedals

14

Looper

You can record up to 38 seconds (MONO) of a performance and play back the recorded section over and over. You can also layer additional performances with the recording as it plays back (overdubbing). This lets you create real-time backing performances on the fly.

Assigning Looper Functions to Switches

To use the looper, you must first assign the looper’s record, play, and overdub functions to the desired switches. Here we explain an example of how you can use the [CTL1]-­[CTL3] switches of the GT1000 to operate the looper.

1. Select the patch with which you want to use the looper.
2. Choose [MENU]→“CONTROL ASSIGN”→“CONTROL FUNCTION.”
3. For “CTL 1″­-”CTL 3,” set FUNCTION as follows.

MEMO
• With the factory settings, preset patches P50-1­P50-5 and user patches U50-1­-U50-5 are set as shown above.
• You can also stop and clear using only the [CTL1] switch that is assigned to LOOPER. Press the switch twice to stop. Hold down the switch for two seconds or longer to clear the phrase.

Record
Recording will start immediately when you press the switch. At the point where you want to loop, press the pedal to switch to playback.

⇓

Loop Playback
Play back the loop.
Pressing the switch will switch to overdubbing.

⇓⇑

Overdub
Record additional layers while playing back the loop.
Press the switch to switch to playback.

⇓

Stop/Clear
To stop, press the switch to which STOP is assigned.
To clear the phrase, press the switch to which CLEAR is assigned.

Loop Playback Level Setting

If you set the playback level at 100 (default value), the volume of the performance and that of the loop playback will be identical.
If you set the playback level to a value lower than 100, the volume of the playback will be lower than that of the performance. As a result, the sound of the performance won’t get buried by the loop playback sound, even if you record a multiple number of times.

1. Press the [EFFECT] button.
2. Turn knob [6] to select LOOPER.

3. Turn knob [1] to specify the “PLAY LEVEL” value.

Switch Color

MEMO

• The recording time is up to 38 seconds (MONO). In stereo mode, the recording time is up to 19 seconds.
• The recorded content will be lost when you turn off the Looper or turn off the power.

15

Main Specifications

BOSS GT-1000: Guitar Effects Processor

Sampling Frequency	96 kHz
AD Conversion	32 bits + AF method AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-tonoise (SN) ratio of the AD and DA converters.
DA Conversion	32 bits
Patches	250 (User) + 250 (Preset)
Phrase Loop	38 sec. (MONO) 19 sec. (STEREO)
Nominal Input Level	INPUT: -10 dBu
	RETURN1: -10 dBu
	RETURN1: -10 dBu
Maximum Input Level	INPUT: +18 dBu
	RETURN1: +8 dBu
	RETURN1: +8 dBu
Input Impedance	INPUT: 1 M Ω
	RETURN1: 1 M Ω
	RETURN2: 1 M Ω
Nominal Output Level	MAIN OUTPUT (L/MONO, R): -10 dBu
	SUB OUTPUT (L, R): +4 dBu
	PHONES: -10 dBu
	SEND1: -10 dBu
	SEND2: -10 dBu
Output Impedance	MAIN OUTPUT (L/MONO, R): 1 k Ω
	SUB OUTPUT (L, R): 600 Ω
	PHONES: 20 Ω
	SEND1: 1 k Ω
	SEND2: 1 k Ω
Recommended Load Impedance	MAIN OUTPUT (L/MONO, R): 10 k Ω or greater
	SUB OUTPUT (L, R): 600 Ω or greater
	PHONES: 44 Ω or greater
	SEND1: 10 k Ω or greater
	SEND2: 10 k Ω or greater
Display	Graphic LCD (512 x 160 dots, backlit LCD)
Connectors	INPUT jack: 1/4-inch phone type
	MAIN OUTPUT (L/MONO, R) jacks, SEND1 jack, RETURN1 jack, SEND2 jack, RETURN2 jack: 1/4-inch phone type
	SUB OUTPUT (L, R) connectors: XLR type
	PHONES jack: Stereo 1/4-inch phone type
	CTL4, 5/EXP2 jack, CTL6, 7/EXP3 jack, AMP CTL1, 2 jack: 1/4- inch TRS phone type
	USB COMPUTER port: USB type B
	DC IN jack
	MIDI (IN, OUT) connectors
Power Supply	AC adaptor
Current Draw	1.2 A
Dimensions	462 (W) x 248 (D) x 70 (H) mm 18-3/16 (W) x 9-13/16 (D) x 2-13/16 (H) inches Maximum height: 462 (W) x 248 (D) x 95 (H) mm 18-3/16 (W) x 9-13/16 (D) x 3-3/4 (H) inches
Weight	3.6 kg 7 lbs 15 oz
Accessories	AC adaptor, Owner’s Manual, Leaflet “USING THE UNIT SAFELY”
Options (sold separately)	Footswitch: FS-5U, FS-5L, FS-6, FS-7, Expression Pedal: EV-30, FV-500L/500H, Roland EV-5

* 0 dBu = 0.775 Vrm
* This document explains the specifications of the product at the time that the document was issued. For the latest information, refer to the Roland website.

16

USING THE UNIT SAFELY

Concerning the Auto Off function

The power to this unit will be turned off automatically after a predetermined amount of time has passed since it was last used for playing music, or its buttons or controls were operated (Auto Off function). If you do not want the power to be turned off automatically, disengage the Auto Off function (p. 9).

Use only the supplied AC adaptor and the correct voltage

Be sure to use only the AC adaptor supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor’s body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.

Use only the supplied power cord

Use only the attached power cord. Also, the supplied power cord must not be used with any other device.

CAUTION

Take care so as not to get fingers pinched

When handling the following moving parts, take care so as not to get fingers, toes, etc., pinched. Whenever a child uses the unit, an adult should be on hand to provide supervision and guidance.
• Expression pedal (p. 12)

Handle the ground terminal carefully

If you remove the screw from the ground terminal, be sure to replace it; don’t leave it lying around where it could accidentally be swallowed by small children. When refastening the screw, make that it is firmly fastened, so it won’t come loose.

IMPORTANT NOTES

Placement
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface.

Repairs and Data
• Before sending the unit away for repairs, be sure to make a backup of the data stored within it; or you may prefer to write down the needed information. Although we will do our utmost to preserve the data stored in your unit when we carry out repairs, in some cases, such as when the memory section is physically damaged, restoration of the stored content may be impossible. Roland assumes no liability concerning the restoration of any stored content that has been lost.

About the Ground Terminal
• If you are using the ground terminal, connect it with an external ground. When the unit is grounded, a slight hum may occur, depending on the particulars of your installation. If you are unsure of the connection method, contact the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.

• Unsuitable places for connection
  • Water pipes (may result in shock or electrocution)
  • Gas pipes (may result in fire or explosion)
  • Telephone-line ground or lightning rod (may be dangerous in the event of lightning)

Additional Precautions
• Any data stored within the unit can be lost as the result of equipment failure, incorrect operation, etc. To protect yourself against the irretrievable loss of data, try to make a habit of creating regular backups of the data you’ve stored in the unit.
• Roland assumes no liability concerning the restoration of any stored content that has been lost.
• Never strike or apply strong pressure to the display.
• Use only the specified expression pedal. By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.

Caution Regarding Radio Frequency Emissions

• The following actions may subject you to penalty of law.
  • Disassembling or modifying this device.
  • Removing the certification label affixed to the back of this device.

Intellectual Property Right
• It is forbidden by law to make an audio recording, video recording, copy or revision of a third party’s copyrighted work (musical work, video work, broadcast, live performance, or other work), whether in whole or in part, and distribute, sell, lease, perform or broadcast it without the permission of the copyright owner.
• Do not use this product for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this product.
• Roland and BOSS are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries.
• ASIO is a trademark and software of Steinberg Media Technologies GmbH.
• This product contains eParts integrated software platform of eSOL Co.,Ltd. eParts is a trademark of eSOL Co., Ltd. in Japan.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Roland is under license.
• This Product uses the Source Code of T-Kernel under T-License 2.0 granted by the T-Engine Forum (www.tron.org).
• Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.

17

BOSS Wireless System Owner's Manual

Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (the leaflet “USING THE UNIT SAFELY”). After reading, keep the document(s) where it will be available for immediate reference.

Stable wireless communication with no dropouts (Auto Wireless Connection)
Simply connect the transmitter with the receiver; the receiver scans the local state of the wireless spectrum and automatically chooses the optimal channel.

Switches to standby mode when silence continues
When one hour passes without you playing your guitar (musical instrument), the transmitter enters standby mode and ends the connection with the receiver. When one hour passes after the connection with the transmitter has ended, the receiver enters standby mode.

Charging Both the Receiver (WL-20 / WL-20L) and Transmitter (WL-T)

1. Connect the included USB cable and a commercially available USB AC adaptor (5 V/0.5 A or higher) to the receiver’s DC IN 5 V port.

2. Insert the transmitter into the TRANSMITTER jack so that the transmitter also charges.

NOTE
Insert only the BOSS WL-T transmitter into the TRANSMITTER jack.
If you connect headphones, high-volume sound might be emitted, or the headphones might be damaged.

Charging only the transmitter

Connect the included USB cable and a commercially available USB AC adaptor (5 V/0.5 A or higher) to the DC IN 5 V port.
* When charging from the DC IN 5 V port, the wireless connection does not operate.

Other parts and their function

Making Wireless Settings (Auto Wireless Connection)

* Execute the following operation before you play your guitar (musical instrument). In particular when you’re playing live or in a session, the wireless conditions might change between the rehearsal and the actual event, so you should execute the following operation once again before the actual event.

1. Insert the transmitter into the TRANSMITTER jack.

For stable wireless communication

If audio dropouts occur, it might be that the local state of the wireless spectrum has changed. Execute the Auto Wireless Connection operation once again.

Since the WL-20 / WL-20L uses a 2.4 GHz wireless system, we recommend that you place the receiver at least three meters away from a Wi-Fi router or other wireless device.

Using a microwave oven might also cause audio dropouts due to wireless interference.

Using multiple wireless systems together
To prevent confusion between the wireless systems, perform the following steps.

1. Power-off the BOSS wireless systems.
2. Power-on any wireless systems not made by BOSS, and set them up so that there are no problems with their sound.
   First wireless system unit made by BOSS
3. Insert the transmitter into the receiver’s TRANSMITTER jack and execute the Auto Wireless Connection procedure.
4. Plug the transmitter into your guitar (musical instrument), making the BATTERY indicator light.
   Second and subsequent wireless system units made by BOSS
5. Repeat steps 3 and 4.

Performing

When you plug the transmitter into your guitar (musical instrument) and plug the receiver into your amp or effect unit, the transmitter and receiver power-on automatically.

* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.

Switches to standby mode when silence continues

• When one hour passes without you playing your guitar (musical instrument), the transmitter enters standby mode and ends the connection with the receiver. The BATTERY indicator blinks green.
• When one hour passes after the connection with the transmitter has ended, the receiver enters standby mode. The POWER indicator blinks green.

Note when returning from standby mode

• When you raise the volume of your guitar (musical instrument) and play it, the transmitter returns from standby mode in approximately two seconds.
• The receiver must be disconnected and reconnected.

When not using the system for an extended time

Unplug the transmitter and receiver. Standby mode does consume battery power, although only very slightly.

Turning the Power Off

1. Minimize the volume of your guitar (musical instrument) and of output devices such as the amp, and then turn off the power.
2. Unplug the transmitter from the guitar (musical instrument).
3. Unplug the receiver.

Troubleshooting

Main Specifications

© 2018 Roland Corporation

Boss Motorcycle Speaker User Manual

MCBC425BA Motorcycle/DIV Amplified Speaker System

Congratulations on your purchase of a BOSS Audio Systems amplified speaker system. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, for years of listening pleasure.

Thank you for making BOSS AUDIO SYSTEMS your choice for entertainment!

Contents

High-Performance, Weatherproof Speakers ———— 2 PCS
Speaker Clamp Mounting Hardware———————- 1 PAIR
Rubber Mounting Shims———————————— 4 PCS
Power Plug with Fuse ————————————— 1 PC
User’s manual ————————————————- 1 PC

Features

On/Off Switch
Aux-In (3.5 mm)
Speaker Clamp Mounts
Weatherproof Volume Control
High-Impact, High Temperature Speaker Enclosures
Weatherproof Speakers
Bluetooth® Audio Streaming

Installation

1. Screw the clamps to the bottom of the speakers.
2. Find a safe, ideal mounting location and fit the clamps over the chosen mounting bars.
3. Fasten the mounting screws after you review the safety of the mounting location.

Wiring

1. Remove the seat.
2. Route the fused power leads to the battery. (keep away from moving parts and/or hot exhaust)
3. Connect the RED ring terminal to the+ 12V post of the battery.
4. Connect the BLACK ring terminal to ground post of the battery.
5. Connect to the connector the white mating connector leading the speaker.

Power Switch

1. The switch is used to Power On/off the system.
2. It can be mounted near the volume control for easy access.
3. Reinstall the seat.

Connections

Note:
1. AUX 3.5 female input connector for output of other audio device like mobile phone, MP3, I pod and so on.
2. Should use standard 3.5mm 3-pole male plug AUX cable (not included).
3. Stop BT connection first when using the 3.5mm AUX input as an audio source input.

Amplifier and Loudspeaker Mounting Installation Reminder

The components and wiring should not be installed around any moving parts, keep away from ignition parts, fuel lines, or any hot exhaust.

Speakers should not be installed where they might inhibit safety features on the vehicle (i.e. lights, horns, brake levers, etc.).

Specifications

Bluetooth

To pair and connect your Bluetooth device to the MCBC425BA Enter Settings> Bluetooth Menu > Search > ” Boss Audio MCBC425BA” >If Prompted to enter a passcode enter: “0000”

NOTES

__________________________________________________________________

__________________________________________________________________

__________________________________________________________________

__________________________________________________________________

__________________________________________________________________

BOSS Audio Systems
3451 Lunar Court• Oxnard, CA 93030
www.bossaudio.com
805-751-4853 Customer Service
Tech Support: www.bossaudio.com/support

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc, and any use of such marks by BOSS Audio Systems is under license. Other trademarks and trade names are those of their respective owners.

BHD3F
USER’S MANUAL
HARLEY DAVIDSON FRONT SYSTEM
FITS SELECT 1998+ HARLEY DAVIDSON
ROAD GLIDE AND STREET GLIDE
MOTORCYCLES

BHD3F
Harley Davidson Front System
Congratulations on your purchase of a POWERSPORTS Speaker System.

It has been engineered to bring you the highest level of performance. Its quality will afford you years of listening pleasure.
Thank you for making your choice for POWERSPORTS entertainment!

specification

Mid Bass Driver: 6.5” (165mm) poly injection cone rubber surround
Tweeter: 1” (25mm) Polymer dome tweeter
Crossover network: Built-in
Impedance: 4 Ohms
Power Handling: 150W MAX
Frequency Response: 105Hz – 20kHz
Sensitivity: 91dB (1 watt/1 meter)
Dimensions: 6-9/16” (W) x 2-5/8” (H) x 6-9/16” (D) (167 (W) x 66 (H) x 167 (D) mm)
Amplifier: 4 Channel class D Amplifier 8-3/8” (W) x 1-5/8” (H) x 4-1/4” (D) (212 (W) x 40 (H) x 108 (D) mm)

Introduction

The BHD3F is the first of its kind to fit 1998 to present Harley Davidson Road Glide and Street Glide models all in one package. This simple to install Plug-n-Play solution is an all-inclusive package that features a NEW compact high power Four-channel Class D Amplifier, a  pair of 6.5” 2-Way Weatherproof Loudspeakers as well as all of the mounts, hardware, and connections to make the installation seamless. The  BHD3F delivers the outstanding sound and performance everyone wants at a price you can afford.

Dimensions:

What is included?
Before you begin installation please check that your system contains the following contents:

Speaker install kit contents:

(1) HD Street Glide Grills (x2)
(2) HD Tour Pak Grills (x2)
(3) HD Road Glide Grills (x2)
(4) Boss Audio 6.5” Speakers (x2)
(5) Speaker adapters (x2)
(6) EVA for speaker adapter (x2)
(7) Screw bag for speaker
(8) Screw bag for speaker adapters (5x25mm 3PC)

Important: Over-tightening mounting fasteners may result in damage to your motorcycle. Please refer to your service manual for proper procedures and torque specifications. Boss Audio is not responsible for damage resulting from improper installation techniques. This kit may not be compatible with some aftermarket head units.

GETTING STARTED

1. Protect all painted surfaces.

2. Remove seat and disconnect negative battery terminal.
3. On 2009 and later models, it will help to remove the two T40 bolts, the ECM and tray

HD Front Speaker installation
1998 – 2013 Street Glide /Batwing models:
1. Cover the front fender.
2. Remove (2) T-27 Torx bolts from inner fairing (under mirrors)

1. Cover the front fender.
2. Remove (2) T-27 Torx bolts from inner fairing (under mirrors)

Note: Windshield and fairing will be loose once these screws are removed. Use extreme caution not to damage fairing or windshield. Lift away and unplug the headlight to remove the outer fairing.

5. Remove windshield taking caution that the outer fairing is loose.
6. Lift away and unplug the headlight to remove the outer fairing.
7. Remove the remaining speaker screws and the speaker. Continue to kit assembly Loosen (6) T-25 Torx bolts from the bottom, middle, and top of the left and right sides of the inner fairing.

1998 – 2013 Road glide / Shark nose models:
1. Loosen (6) T-25 Torx bolts from bottom, middle and top of left and right sides of the inner fairing.

2. Lift away the fairing, unplug the headlights and remove.
4. Remove the speaker screws and the speaker.

2014 + Street and Road Glide
1. Using 3 of the screws in the provided hardware, mount the speaker adapter to the inner fairing. The 4th inner bottom screw locations are not used on FLH/ batwing models. For Road Glide models, rotate the adapter until the notches in the adapter do not hit the factory mounting posts, and make sure the flat spots on the outside of the adapter are toward the outer edge of the fairing.
2. Mount the new speaker with the hardware provided with the speakers. Do not re-use the factory screws. (Figure B) Note: For the  Roadglide and Sharknose models, the longer screw may be needed in the lower mounting hole depending on the new speaker.

Amplifier and Amp plate Installation
1998 – 2013 FLH/Batwing models:
BHD34 Amplifier Mounting Plate Kit Contents

(1) Ultra Classic Street Glide and Tri Glide bracket (x1)
(2) Road Glide mounting bracket (x1)
(3) Road Glide mounting bracket (x1)
(4) Universal Amp mounting plate (x1)
(5) Road Glide Amp mounting bracket (x1)
(6) Front speaker input for the Amplifier (White/Black) (x1)
(7) Front speaker input for the Amplifier (Gray/Black) (x1)
(8) Input from Amplifier front (x1)
(9) Output from Amplifier front (x1)
(10) Remote wire and pin (x1)
(11) Power/Ground harness (x1)
(12) Rear speaker input/output harness (x1)
(13) Rear speaker connector (x2)
(14) Screw Bag (x1)
(15) Nylon spacers (x4) + Double sides tape (x4)
(16) Wire Zip Tie Wraps (x8)

BPS400.4 4 Channel Class D Amplifier Contents

(1) Amplifier (x1)
(2) Remote wire (x1)
(3) Front output harness (x1)
(4) Rear output harness (x1)
(5) Front input harness (x1)
(6) Rear input harness (x1)
(7) Wrench (x1)

Step 1 – Mounting Plate and Bracket Mounting
With the front faring removed. Using the Type(4) bracket, align bracket on the bottom side of the mounting plate using the bracket type indicators. On the top edge, you will screw in the two threaded pins into the mounting plate. These are used to align the mounting plate with the rubber bushings on top of the factory radio.

HD Street Glide 98 – 13
Step 2 – Mounting Plate and Bracket Mounting
Using the Type(1) and Type(4) brackets, align bracket on the bottom side of the mounting plate using the bracket type indicators. On the top edge, you will screw in the two threaded pins into the mounting plate. These are used to align the mounting plate with the rubber bushings on top of the factory radio.

Step 3 – Amplifier Mounting
Mount amplifier upside down with the supplied screws to the mounting plate. Align the amplifier to the appropriate holes on the plate.
HD Road Glide 98 – 13
Step 2 – Mounting Plate and Bracket Mounting
Using the Type(2), Type(3), and Type(4) brackets, align bracket on the bottom side of the mounting plate using the bracket type indicators.  After you have the bracket attached to the mounting plate, remove the clutch side fairing bulkhead nuts. Place the bracket over the studs pushing the bracket upwards while tightening down using the factory hardware.

Step 3 – Amplifier Mounting
Mount amplifier upside down with the supplied screws to the mounting plate. Align the amplifier to the appropriate holes on the plate.

Amplifier Wiring

Once the amplifier is mounted, you can now begin plugging in the wiring harness in their appropriate sockets. Plug the switched power harness into the 2-pin amp connector on the throttle side of the fairing. Note: Be careful when plugging in the harnesses to the appropriate socket. The 4-pin Molex plugs for the Input / Output Harnesses fit in both sides of the amplifier.
Step 4 – Fairing Speaker Wiring
Unplug the factory speaker wires from the speaker and plug them directly into the Front Speaker Input Harness. These are labeled clutch and brake sides. Now you can plug the new Front Speaker Output Harness onto your new speaker terminals. Route power/ground through fairing. Including installing rear speaker wires, feed the Rear Speaker Input / Output Harness through fairing towards the rear of the speaker.
5 – Routing Power Harness / Rear Speaker Harness
Pass the Power / Ground Harness and Rear Speaker Harness through the fairing and route next to the factory wiring harness. Routing the new wire harnesses along with the factory harness is recommended. Be sure to zip tie the harnesses together for a clean, tight fit. Due to the size wire for the Power / Ground Harness and Rear Speaker Harness, it is recommended to route the wiring under the gas tank along the top of the frame on the motorcycle.
Note: Refer to the motorcycle manufacturer owner’s manual for bike. instructions regarding gas tank removal.
Step 6 – Rear Speaker Installation
With the seat already removed, route the Rear Speaker Harness toward the rear of the motorcycle over the fender along the brake side of the motorcycle. Unplug factory speaker wires from the speaker and plug them directly into the Rear Speaker Input / Output Harness. These are labeled clutch and brake side.

Amplifier and Amp plate Installation 2014 – Newer Street Glide FLHT/Batwing models:
AMP INSTALLATION
*NOTE* after installation this vehicles head unit must be flashed to get proper sound from the upgraded system. Please see the following link to find a recommended HD shop that can flash the stock system. https://technoresearch.info/tuning-centers-map/

If you have a 2020 Street or Tri Glide, the following steps must be completed before amplifier installation: Remove four screws from the HD  Connect Module. Remove Module from Bracket. Relocate Module to the clutch side of the radio and secure with two 8” zip ties included. NOTE: There may be some connectors that will need to be relocated off the radio chassis for the amp bracket to fit.

1. Fasten the amplifier to the bracket with the supplied hardware.
   Insert the bolts through the bottom of the bracket and install the locknuts to the amplifier.
2. After finishing System Setup, use the supplied hardware and fasten the amp/bracket assembly to the radio chassis with the 10-pin connector and power connector facing the throttle side.
   HARNESS INSTALLATION

3. Plug the harness into the amplifier and route the speaker wires to their respective locations. Separate the speaker connectors and plug in the amplifier harness to each speaker.
4. Plug the 4-pin male, rear audio connector into the 4-pin female rear audio signal connector coming from the radio harness.
5. Plug the switched power harness into the 2-pin amp connector on the throttle side of the fairing.
6. Plug the Supplied blue wire on the Boss Audio Amplifier kit into the switched power harness lead with one wire. This allows for an accessory 12V port to remain available.
7. Route the power leads along the clutch side of the frame neck, in the electrical caddy to the seat area.
8. Reconnect the battery terminals and pull the excess harness slack back into the fairing. Create a slack loop with excess harness slack.
9. Plug the radio in and set the gain.
10. Test component function and set the gain to optimize system performance.
11.  Carefully reassemble the motorcycle and enjoy your new audio kit

Amplifier and Amp plate Installation 2014 – Newer
Road Glide FLTR 2015 – Newer:
*NOTE* after installation this vehicles head unit must be flashed to get proper sound from the upgraded system. Please see the following link to find a recommended HD shop that can flash the stock system. https://technoresearch.info/tuning-centers-map/

1. Remove the radio. Unplug the four connectors on the back of the radio. Remove the four Allen head bolts holding the radio to the chassis.
   Gently remove the radio from the chassis.
2. Install the Boss Audio amplifier onto bracket Type(4) with supplied hardware. Slide the end of the amplifier with the power connector port into the bracket and fasten with supplied hardware. Install the bolts from the bottom and fasten the locknuts onto the amplifier.
3. Carefully install bracket/amplifier assembly onto radio chassis by installing the assembly through the radio face port in the fairing and sliding the tabs of the bracket over the chassis. The amp bracket assembly mounts under the radio.
   HARNESS INSTALLATION
4. Plug the harness into the amplifier and route speaker wires to their respective connectors. Separate the speaker connectors and plug in the amplifier harness to each speaker. Important: Over-tightening mounting fasteners may result in damage to your motorcycle. Please refer to your service manual for proper procedures and torque specifications. Boss Audio is not responsible for damage resulting from improper installation techniques.
5. Plug the switched power harness into the 2-pin amp connector on the throttle side.
6. Plug the blue wire on the Boss Audio harness into the switched power harness lead with one wire. This allows for an accessory 12V port to remain available.
7. Route both power leads along the clutch side of the neck and through the electrical caddy to the seat area.
8. Reconnect the battery terminals.
9. Plug the radio in, but do not reinstall it until the gain has been set.
10. Test component function and set the gain to optimize system performance.
11. Carefully reassemble the motorcycle and enjoy your new audio system!

This kit comes ready to plug directly into 2014 & Up Harley-Davidson Motorcycles using factory-style connectors. If you are installing on a 1998-2013 motorcycle, you will need to use the wire connector adapters to connect to the factory wire harness and new speakers.
NOTE: This wiring diagram is for a standard 4-Channel amplifier installation. If you are using a 2-Channel amplifier, DO NOT use the Rear Input / Output Harness.

BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030
www.bossaudio.com
805-751-4853 Customer Service
Tech Support: www.bossaudio.com/support

BOSS RC-1 Loop station

Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (supplied on a separate sheet). After reading, keep the document(s) where it will be available for immediate reference.

Panel Descriptions

Precautions When Connecting

• To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
• Raise the amp volume only after turning on the power to all connected devices.
• When operating on battery power only, the unit’s indicator will become dim when battery power gets too low. Replace the battery as soon as possible.
• When connection cables with resistors are used, the volume level of equipment connected to the INPUT jacks may be low. If this happens, use connection cables that do not contain resistors.

Caution When Connecting an External Foot switch

• You must power-off the unit before connecting an external foot switch.
• If you connect the foot switch while the power is on, recorded data might be lost.

Turning On the Power

• Inserting a connecting plug into the OUTPUT A jack turns on the power to the unit.
• Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.
  When powering up: Turn on the power to your guitar amp last.
  When powering down: Turn off the power to your guitar amp first.
• This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.
• Before turning the unit on/off, always be sure to turn the volume down. Even with the volume turned down, you might hear some sound when switching the unit on/off. However, this is normal and does not indicate a malfunction.

Caution when turning off the power
Never turn off the power while the LOOP indicator is rotating or blinking (i.e., don’t pull the plug out of the OUTPUT A
jack). The recorded data might be lost if you do so.

Basic Operation

To perform recording, overdubbing, and playback, press the pedal as shown in the diagram.

MEMO

• If a foot switch is connected to the STOP/UNDO jack, you can stop by pressing the foot switch just once.
• The recorded phrase is saved even if you turn off the power.

NOTE

• The minimum recording time for a loop phrase is approximately 0.25 seconds. If you press the pedal within approximately 0.25 seconds after you start recording, recording will continue until the phrase is at least approximately 0.25 seconds long.
• The maximum recording time for a loop phrase is approximately 12 minutes (stereo). If you exceed the maximum recording time, recording or overdubbing is interrupted, and operation changes to loop playback.
• Roland assumes no liability concerning the restoration of any stored content that has been lost.

Deleting a Phrase

The recorded phrase is erased if you hold down the pedal for two seconds or longer while stopped.
During erasure, the LOOP indicator (red) blinks rapidly.

• Never turn off the power while the LOOP indicator (red) is blinking rapidly. The recorded data might be lost if you do so.
• The phrase plays while you hold down the pedal. If you want to erase the phrase without playing it, use an external footswitch to stop the phrase.

Canceling an Overdub (Undo/Redo)

You can undo/redo by holding down the pedal for two seconds or longer during overdubbing or playback.

During undo/redo, the LOOP indicator (green) blinks rapidly.

Connecting to an External Footswitch

Connect your foot switch to the STOP/UNDO jack as shown in the illustration, and set its POLARITY switch.

• The FS-5L cannot be used.


  Footswitch	Operation
  FS-5U	Stop
  FS-5U/FS-7 pedal connected to the stereo L side	During recording/overdubbing/playback, press the footswitch to stop. Erase the phrase
  FS-6’s pedal B	Hold down the footswitch two seconds or longer to erase the phrase.
  FS-5U/FS-7 pedal connected to the stereo R side	Undo/Redo You can undo/redo by pressing the foot switch.
  FS-6’s pedal A

Changing the Recording Mode/Stop Mode/Display Mode

1. While holding down the pedal switch, turn the power on (insert a plug into the OUTPUT A jack).
   The LOOP indicator (red) lights, indicating the current recording mode.
2. Press the pedal switch successively twice (within one second) to change the recording mode.
3. Press the pedal switch.
   The LOOP indicator (green) lights, indicating the current stop mode.
4. Press the pedal switch successively twice (within one second) to change the stop mode.
5. Press the pedal switch.
   The LOOP indicator (red and green) lights, indicating the current display mode.
6. Press the pedal switch successively twice (within one second) to change the stop mode.
7. When the power is turned off and on again, the unit returns to normal operation.

Changing the Battery

1. Hold down the pedal and loosen the thumbscrew, then open the pedal upward.
   • The pedal can be opened without detaching the thumbscrew completely.
2. Remove the old battery from the battery housing, and remove the snap cord connected to it.
3. Connect the snap cord to the new battery, and place the battery inside the battery housing.
   • Be sure to carefully observe the battery’s polarity (+ versus -).
4. Slip the coil spring onto the spring base on the back of the pedal, and then close the pedal.
   • Carefully avoid getting the snap cord caught in the pedal, coil spring, and battery housing.
5. Finally, insert the thumbscrew into the guide bush hole and fasten it securely.

Specifications

• 0 dBu = 0.775 Vrms
• This document explains the specifications of the product at the time that the document was issued. For the latest information, refer to the Roland website.

About the Battery

• Batteries should always be installed or replaced before connecting any other devices. This way, you can prevent malfunction and damage.
• The use of an AC adaptor is recommended as the unit’s power consumption is relatively high. Should you prefer to use battery, please use the alkaline battery.
• If you handle batteries improperly, you risk explosion and fluid leakage. Make sure that you carefully observe all of the items related to batteries that are listed in “USING THE UNIT SAFELY” and “IMPORTANT NOTES.”

Repairs and Data

Although we will do our utmost to preserve the data stored in your unit when we carry out repairs, in some cases, such as when the memory section is physically damaged, restoration of the stored content may be impossible. Roland assumes no liability concerning the restoration of any stored content that has been lost.

Intellectual Property Right

• It is forbidden by law to make an audio recording, video recording, copy or revision of a third party’s copyrighted work (musical work, video work, broadcast, live performance, or other work), whether in whole or in part, and distribute, sell, lease, perform, or broadcast it without the permission of the copyright owner.
• Do not use this product for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this product.
• Roland, BOSS, and Loop Station are either registered trademarks or trademarks of Roland Corporation in the United States and/or other countries.

MCBK470B
USER’S MANUAL
BLUETOOTH I 3″ (76 mm) WEATHER RATED
SPEAKER AND AMPLIFIER SYSTEM

NCBK470B Motorcycle/UTV Amplified Speaker System

NOTES
___________________________
Congratulations on your purchase of a BOSS Audio Systems amplified speaker system. It has been designed, engineered, and manufactured to bring you the highest level of performance and quality, for years of listening pleasure.
Thank you for making BOSS AUDIO SYSTEMS your choice for entertainment!

Contents

Amplifier …………………………………………….  1 PC
High-Performance, Weatherproof Speakers ……  4 PCS
Amplifier Mounting Screws ……………………..  4 PCS
Mounting Hardware………………………………… 4 PCS
Rubber Mounting Shims ………………………….  8 PCS
Amplifier Mounting Hardware ……………………  8 PCS
Fuse………………………………………………….. 1 PC
User’s manual ………………………………  1 PC

Features

Aux-In (3.5mm)
Speaker Clamp Mounts
Weatherproof Volume Control
High-Impact, High Temp Speaker Enclosures Weatherproof Speakers
Bluetooth Audio Streaming

Specifications

Operation Voltage _______________________10-16 V
THD_________________________________ <0.1%
SIN __________________________________>85 dB
Channel Separation______________________ >50 dB
Frequency Response _____________________50Hz – 15KHz
Sensitivity______________________________ >130mv
Speaker Wires___________________________ 4.6′
Volume Control Wire_____________________ 6.2′
Audio Input Cable_______________________ 1.9′
Power Cable____________________________ 6.2′
Bracket Size Range _______________________0.75″ —1.25″
Fuse Rating _____________________________7.5A
Amplifier dimensions______________________ 3.6″x2.3″x1.5″

Installation

1. Screw the brackets to the bottom of the speakers.
2. Find a safe, ideal mounting location and fit the brackets over the chosen mounting bars.
3. Fasten the mounting screws after you review the safety of the mounting location.

Wiring

1. Be sure to run the wiring securely and far away from any moving components.
2. Connecting the power cable to the power source: You will need to connect the 12V red wire to a (fused 7.5A) switched power source.
3. Use the 3.5mm stereo jack to connect to your entertainment source(MP3 player, etc).
4. Use your player device and wired remote volume controller to control your level of loudness.

Bluetooth

To pair and connect your Bluetooth device to the MCBK470B Enter Settings > Bluetooth Menu > Search > ” Boss Audio MCBK470B” > If Prompted to enter a passcode enter : “0000”

Connections

Note:

1. AUX 3.5 female input connector for output of another audio device like mobile phone, MP3, 1pod, and so on.
2. Should use standard 3.5mm 3-pole male plug AUX cable (not included).
3. Stop BT connection first when using the 3.5mm AUX input as audio source input.

Amplifier and Loudspeaker Mounting

The components and wiring should not be installed around any moving parts, keep away from ignition parts, fuel lines, or any hot exhaust
Speakers should not be installed where they might inhibit safety features on the vehicle (i.e. lights, horns, brake levers, etc…)

Power Supply Connection
Option A
Connected to Battery through a 12 VDC SPDT Relay (Single Pole Double Throw)
NOT INCLUDED, SOLD SEPARATELY
Option B
Connected to Battery through a Waterproof Switch (250V AC/6A) NOT INCLUDED, SOLD SEPARATELY

BOSS Audio Systems
3451 Lunar Court • Oxnard, CA 93030 www.bossaudio.com
805-751-4853 Customer Service
Tech Support: www.bossaudio.com/support

0820

The Bluetooth^– word mark and logos are registered trademarks owned by 8luelooth SIG, Inc. and any use of such marks by BOSS Audio Systems is under license. Other trademarks and trade names are those of their respective owners.
