Arlo Pro 2 Wire-Free HD Security Camera

What’s Included

Thank you For choosing Ario Pro 2. Getting started is easy.

Use Your Camera Wire-Free

Before using your camera wire-free, you must insert the battery.

Note: You do not need to insert the battery if you are connecting your Ario camera to an AC power outlet.

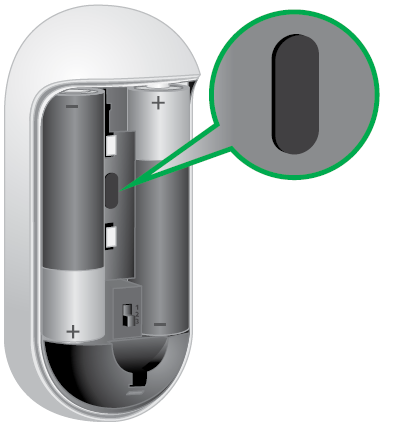

To insert the battery

1. Unlock the battery compartment by pressing and holding the latch.
2. Gently pull the battery door back to open the compartment.
3. Align the battery contacts.
4. Insert the battery.
5. Close the battery door.

Sync Your Camera With the Base Station

• Bring the camera within 1 to 3 feet (30 to 100 centimeters) of the base station.
  Note: Cameras must be synced one at a time.

• Press the Sync button on the top of the base station for about two seconds.
• Release the button.
• Wait for the Sync Status LED to blink green.

• Press the Sync button on top of the camera  for about two seconds.
• Release the button.
  The LED lights as follows:
  -A blue LED on the camera blinks slowly when the sync process starts.
  -The blue LED blinks rapidly to confirm sync.
  -The LED blinks amber if the sync is not successful

If the LED blinks amber, you must repeat the sync process.

Note: Ario’s range varies depending on environmental factors, including physical obstructions. construction materials. and wireless interference.

Charge Your Arla Battery

The Arla battery is fully charged when it leaves the factory.

To recharge the battery:

1. Place the camera indoors.
   If you are using the camera outside, bring it inside while charging the battery.
2. Connect the power adapter cable to the camera power adapter.
   Note: You must use an Arla Pro 2 power adapter and cable to charge the battery.
3. Connect the other end of the adapter cable to the camera.
4. Plug the power adapter into an electrical outlet.

The camera LED lights solid blue when the camera battery is fully charged.

Use Your Camera Plugged In

You can use your camera wire-Free, powered by the battery, or while plugged into an AC power outlet.

To use your camera plugged in:

1. Place the camera indoors or use the optional outdoor power adapter, sold separately, when placing outdoors.
2. Connect the power adapter to an AC electrical outlet.

You’re Done!

Congratulations! Your Arla camera is set up and ready to go.

To view useful tutorial videos, find troubleshooting tips, or get support, visit
http://support.arlo.com.

Camera LED Guide

Notes

Set up your Arlo Pro 3 Camera

1. Insert the battery into your camera.
   Leave the case off until the camera is added to your account.
2. Use the Arlo app and follow the setup instructions to add your Pro 3 Wire-Free Camera.

What’s in the box

Need help?

We are here for you.
Visit www.arlo.com/support for quick answers and resources:

• How-to videos
• Troubleshooting tips
• The Arlo Support phone number for your location

© Arlo Technologies, Inc. Arlo, Arlo logo, and Every Angle Covered are trademarks of Arlo Technologies, Inc. App Store is a service mark of Apple Inc.
Google Play and the Google Play logo are trademarks of Google LLC. Any other trademarks are for reference purposes.

Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français canadien à arlo.com/docs.
(If this product is sold in Canada, you can access this document in Canadian French at arlo.com/docs.)

For regulatory compliance information including the EU Declaration of Conformity, visit www.arlo.com/about/regulatory/.

Arlo Technologies Intl. Ltd
Ground Floor, Building 3
University Technology Centre
Curraheen Road, Cork T12 EF21
Ireland

Arlo Technologies, Inc.
2200 Faraday Avenue, Suite 150
Carlsbad, CA 92008 USA

VMB5000
SmartHub and Base Station
User Guide

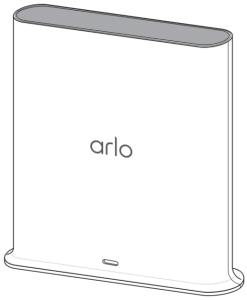

Set up your Arlo SmartHub

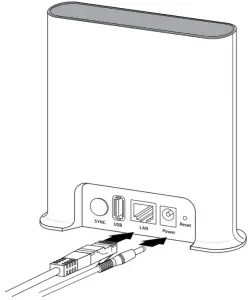

1. Connect the power adapter and the Ethernet cable to your Arlo SmartHub.

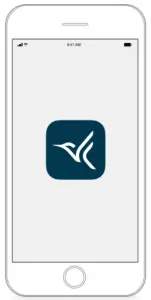

2. Download the Arlo app and follow the setup instructions for an Arlo SmartHub.

HomeKit setup code
Note: To add your Arlo SmartHub to the Apple Home app, tap + and scan the HomeKit setup code.

What’s in the box

Need help?
We are here for you.
Visit www.arlo.com/support for quick answers and:

• How-to videos
• Troubleshooting tips
• Additional support resources

© Arlo Technologies, Inc. Arlo, Arlo logo, and Every Angle Covered are trademarks of Arlo Technologies, Inc. Apple is a trademark of Apple Inc., registered in the US and other countries. App Store is a service mark of Apple Inc. HomeKit is a trademark of Apple Inc. To control this HomeKitenabled accessory, the latest version of iOS or iPadOS is recommended. Google Play and the Google Play logo are trademarks of Google LLC. Any other trademarks are for reference purposes.

Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

(If this product is sold in Canada, you can access this document in Canadian French at arlo.com/docs.)

For regulatory compliance information including the EU Declaration of Conformity and where to find e-label information for US FCC & Industry Canada, visit www.arlo.com/about/regulatory/.
Arlo Technologies Intl. Ltd
Ground Floor, Building 3
University Technology Centre
Curraheen Road, Cork T12 EF21 Ireland

Arlo Technologies, Inc.
2200 Faraday Avenue, Suite 150
Carlsbad, CA 92008 USA

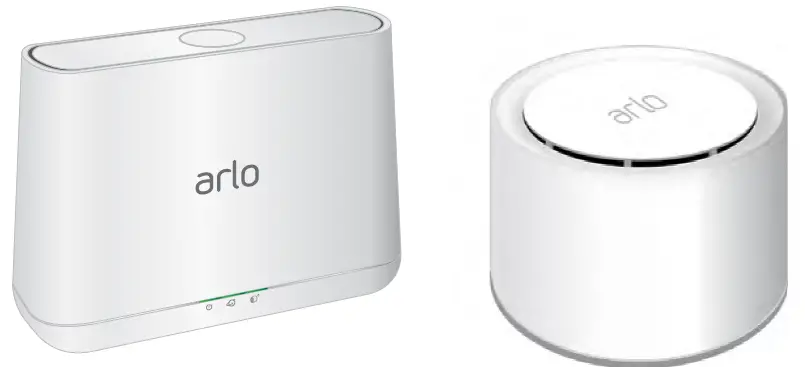

Arlo SmartHub VMB4540

Set up your Arlo SmartHub

1. Connect the power adapter and the Ethernet cable to your Arlo SmartHub.

2. Download the Arlo app and follow the setup instructions for an Arlo SmartHub.




What’s in the box

Arlo SmartHub

SmartHub power adapter

Ethernet cable

Need help?

We are here for you.
Visit www.arlo.com/support for quick answers and:

• How-to videos
• Troubleshooting tips
• Additional support resources

© Arlo Technologies, Inc. Arlo, Arlo logo, and Every Angle Covered are trademarks of Arlo Technologies, Inc. App Store is a service mark of Apple Inc. Google Play and the Google Play logo are trademarks of Google LLC. Any other trademarks are for reference purposes.

(If this product is sold in Canada, you can access this document in Canadian French at arlo.com/docs.)

The regulatory marking information is located on the bottom of the SmartHub. For additional regulatory compliance information including the EU Declaration of Conformity and where to find e-label information for US FCC & Industry Canada, visit www.arlo.com/about/regulatory/.

Arlo Technologies Intl. Ltd Ground Floor, Building 3 University Technology Centre Curraheen Road, Cork T12 EF21Ireland

Arlo Technologies, Inc.
2200 Faraday Avenue, Suite 150
Carlsbad, CA 92008 USA

arlo VMC2030 Essential Spotlight Camera User Guide

Set up your Essential Spotlight Camera

1. Download the Arlo app and follow the setup instructions for an Arlo Essential Spotlight camera.


2. We recommend that you charge your camera before final installation.

What’s in the box

Essential Spotlight Camera

Mount

Camera charging cable

Screw Kit

Need help?

We are here for you.
Visit www.arlo.com/support for quick answers and resources: · How-to videos · Troubleshooting tips · The Arlo Support phone number for your location.

© Arlo Technologies, Inc. Arlo, Arlo logo, and Every Angle Covered are trademarks of Arlo Technologies, Inc. App Store is a service mark of Apple Inc. Google Play and the Google Play logo are trademarks of Google LLC. Any other trademarks are for reference purposes.(If this product is sold in Canada, you can access this document in Canadian French at arlo.com/docs.) For regulatory compliance information including the EU Declaration of Conformity and e-label information for the US FCC and Industry Canada visit www.arlo.com/about/ regulatory/.

Arlo Technologies Intl. Ltd Ground Floor, Building 3 University Technology Centre Curraheen Road, Cork T12 EF21 Ireland April 2020
Arlo Technologies, Inc. 2200 Faraday Avenue, Suite 150 Carlsbad, CA 92008 USA

Set up your Arlo SmartHub

1. Connect the power adapter and the Ethernet cable to your Arlo SmartHub.


2. Download the Arlo app and follow the setup instructions for an Arlo SmartHub.

What’s in the box

Need help?

We are here for you.
Visit www.arlo.com/support for quick answers and resources:

• How-to videos
• Troubleshooting tips
• The Arlo Support phone number for your location

© Arlo Technologies, Inc. Arlo, Arlo logo, and Every Angle Covered are trademarks of Arlo Technologies, Inc. App Store is a service mark of Apple Inc.
Google Play and the Google Play logo are trademarks of Google LLC. Any other trademarks are for reference purposes.
(If this product is sold in Canada, you can access this document in Canadian French at arlo.com/docs.)
For regulatory compliance information including the EU Declaration of Conformity, visit www.arlo.com/about/regulatory/.
Arlo Technologies Intl. Ltd
Ground Floor, Building 3
University Technology Centre
Curraheen Road, Cork T12 EF21
Ireland

Arlo Technologies, Inc.
2200 Faraday Avenue, Suite 150
Carlsbad, CA 92008 USA

Arlo Pro Wire-Free HD Camera Security System

Protect What Matters Most

From kids and pets to an empty home or after-hours business, you’ve got a lot to keep safe. Arlo Pro takes the worrying out of life with its 100% wire-free indoor/outdoor home monitoring system that eliminates the need for cords or electrical outlets. It uses rechargeable batteries that can be swapped in a flash minimizing camera downtime to help you stay protected. Arlo Pro brings a balance of form and features—from 7 days of free cloud HD video recordings to motion and sound-activated alerts and a 100+ decibel siren, Arlo covers every angle to help keep your home safe and protected.

Home

Whether you’re on the couch or at the office, Arlo will alert you when someone’s coming. From housekeepers and babysitters to repairmen and gardeners, keep tabs on all the activity around your home. Arlo motion and sound alerts let you know when anything happens and with 7 days of free cloud recordings, you can review the video any time.

Business Security

See what the employees are up to when you’re not there or if the cleaners locked up properly after close. Use the Arlo app to check in on your business any time of the day, even after-hours without leaving the comfort of your couch.

Pet Monitoring

See what happens when you’re away and take whatever steps are needed to keep pets (and neighbors) smiling. Using pet sitters? Not a problem—make sure those caring for your pets are earning their keep and being nice to your furred and feathered friends.

Features

100% Wire-Free
Free of power cords
and wiring hassles

Rechargeable
Easily charge your batteries anytime
to stay protected

Siren
100+ decibel siren that can be
controlled remotely

Mobile Alerts
Instant alerts is motion or sound
is detected

Scheduling
Set automatic monitoring on
your schedule

HD Quality
Enjoy incredibly sharp
detailed video

Weatherproof
Put Arlo anywhere
indoors or out

2-Way Audio
Listen in or talk
back and forth

FREE Cloud Recording
Rolling 7 days of FREE cloud
recordings + upgrade options

Night Vision
See what’s happening even in
the dark

Local Backup
Connect a USB drive to the base
station for local video backup

Geofencing
Set your cameras to arm/disarm
based on location

Systems

Arlo Pro Wire-free HD Security Cameras have everything you need to keep an eye on the things you love from every angle, indoors or out. Arlo Pro cameras are weatherproof, have night vision, 2-way audio and best of all, run on batteries that are easily rechargeable. Arlo has everything it takes to make home security simple.

1 Wire-Free HD Camera Security System

• (1) Wire-free HD camera with audio
• (1) Rechargeable battery
• (1) Camera power adapter
• (1) Camera power cable
• (1) Base station with a built in siren
• (1) Ethernet cable
• (1) Wall mount
• (1) Wall mount screw set
• (1) Quick start guide
• (1) Window decal

2 Wire-Free HD Camera Security System

• (2) Wire-free HD cameras with audio
• (2) Rechargeable batteries
• (1) Camera power adapter
• (1) Camera power cable
• (1) Base station with a built in siren
• (1) Ethernet cable
• (2) Wall mounts
• (1) Wall mount screw set
• (1) Quick start guide
• (1) Window decal

3 Wire-Free HD Camera Security System

• (3) Wire-free HD cameras with audio
• (3) Rechargeable batteries
• (1) Camera power adapter
• (1) Camera power cable
• (1) Base station with a built in siren
• (1) Ethernet cable
• (3) Wall mounts
• (2) Wall mount screw sets
• (1) Quick start guide
• (2) Window decals

4 Wire-Free HD Camera Security System

• (4) Wire-free HD cameras with audio
• (4) Rechargeable batteries
• (1) Camera power adapter
• (1) Camera power cable
• (1) Base station with a built in siren
• (1) Ethernet cable
• (4) Wall mounts
• (2) Wall mount screw set
• (1) Outdoor security mount
• (1) Outdoor security mount screw set
• (1) Quick start guide
• (2) Window decals

5 Wire-Free HD Camera Security System

• (5) Wire-free HD cameras with audio
• (5) Rechargeable batteries
• (1) Camera power adapter
• (1) Camera power cable
• (1) Base station with a built in siren
• (1) Ethernet cable
• (5) Wall mounts
• (3) Wall mount screw sets
• (1) Outdoor security mount
• (1) Outdoor security mount screw set
• (1) Quick start guide
• (2) Window decals

6 Wire-Free HD Camera Security System

• (6) Wire-free HD cameras with audio
• (6) Rechargeable batteries
• (2) Camera power adapters
• (2) Camera power cables
• (1) Base station with a built-in siren
• (1) Ethernet cable
• (6) Wall mounts
• (3) Wall mount screw sets
• (1) Outdoor security mount
• (1) Outdoor security mount screw set
• (1) Quick start guide
• (2) Window decals

3 Wire-Free HD Camera Security System

• (3) Wire-Free HD Cameras with Audio
• (4) Rechargeable batteries
• (1) Camera power adapter
• (1) Camera power cable
• (1) Base station with a built-in siren
• (1) Ethernet cable
• (3) Wall mounts
• (7) Wall mount screws
• (1) Outdoor security mount
• (1) Outdoor security mount screw set
• (1) Quick start guide
• (2) Window decals

Accessories

Arlo accessories expand your Arlo Pro Wire-free system so you can cover every angle of your home or business. Get additional cameras for other spaces, add extra rechargeable batteries and charge them faster using the Arlo Pro Charging Station, select the best mount for each location or add the Arlo Pro Skins to disguise your cameras. No matter what you need Arlo to do, these extras make it simple.

Add-on Wire-Free HD Security Camera

Expand your Arlo Pro security system with this 100% wire-free HD camera with 2-way audio, motion detection, night vision and a rechargeable battery.

• (1) Wire-free HD camera with audio
• (1) Camera power adapter
• (1) Camera power cable
• (1) Wall mount
• (1) Wall mount screw set
• (1) Rechargeable battery
• (1) Quick start guide
• (1) Window decal

Requires an Arlo Base Station

Arlo Base Station

• (1) Arlo Base Station for Arlo and Arlo Pro Wire-Free HD Security Cameras
• (1) Power adapter
• (1) Ethernet cable
• (1) Quick start guide

Designed for Arlo and Arlo Pro

Arlo accessories expand your Arlo Pro Wire-free system so you can cover every angle of your home or business. Get additional cameras for other spaces, add extra rechargeable batteries and charge them faster using the Arlo Pro Charging Station, select the best mount for each location or add the Arlo Pro Skins to disguise your cameras. No matter what you need Arlo to do, these extras make it simple.

Rechargeable Battery

Why wait for a charge in those unexpected moments when your battery is depleted? Arlo Pro lets you swap out your rechargeable batteries and power up your cameras in seconds.

• (1) Rechargeable battery
• (1) Camera power cable and adapter
• (1) Quick start guide
• (1) Window decal

Designed for Arlo Pro

Charging Station

Charge up to two batteries with the Arlo Pro Charging Station. Easily swap out batteries and power up your cameras in seconds. Arlo Pro Charging Station includes fast charging technology, so you can spend less time charging batteries and more time protecting what matters most.

• (1) Charging station
• (1) Power cable and adapter
• (1) Quick start guide
• (1) Window decal

Designed for Arlo Pro and Arlo Go

Outdoor Power Adapter

Easily and continuously charge your camera’s battery by plugging the weatherproof connector into the camera and the adapter into a weatherproof power outlet.

• Outdoor power adapter
• Quick start guide
• (1) Window decal

Designed for Arlo Pro and Arlo Go

Solar Panel

Connect the Arlo Solar Panel to your Arlo Pro or Arlo Go camera and never have to charge your battery again. The Arlo Solar Panel harvests power from the sun and with only a few hours of direct sunlight, keeps your Arlo Pro or Arlo Go battery charged.

• (1) Solar panel
• (1) 6 ft. power cable
• (1) Mount
• (1) Mounting plate
• (1) Mounting screw kit
• (1) Window decal

Designed for Arlo Pro and Arlo Go

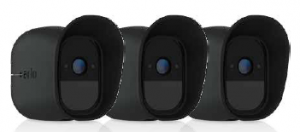

3-Pack of Skins

Arlo Pro Skins are UV- and water-resistant, and ideal for outdoor and indoor use. They have a convenient slip-on, slip-off design, allowing you to easily disguise your cameras while still providing access to connectors for Arlo mounts

Includes VMA4200B

• (3) Black UV-resistant silicone skins
• (1) Window decal

Designed for Arlo Pro

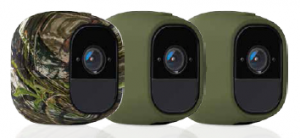

3-Pack of Skins

Arlo Pro Skins are UV- and water-resistant, and ideal for outdoor and indoor use. They have a convenient slip-on, slip-off design, allowing you to easily disguise your cameras while still providing access to connectors for Arlo mounts.

• (2) Green UV-resistant silicone skins
• (1) Camouflage UV-resistant silicone skin

Designed for Arlo Pro

Wall Mounts

Just snap on your Arlo or Arlo Pro Wire-Free cameras onto the magnetic mount for easy placement. The innovative design provides secure magnetic mounting so you can move cameras from one location to another in just a few seconds.

• (4) Indoor mounts
• (4) Mounting screws
• (1) Window decal

Designed for Arlo and Arlo Pro

Table/ Ceiling Mount

• (1) Table/Ceiling/Wall Mount
• (2) Mounting screws
• (1) Quick Start Guide
• (1) Arlo window decal

Designed for Arlo and Arlo Pro

Outdoor Mount (White)

This easily adjustable mount attaches to any wall or surface, inside or out, allowing for best positioning of your Arlo Pro cameras.

• (2) Outdoor mounts in white
• (2) Mounting plates
• (4) Mounting screws
• (1) Quick start guide
• (1) Window decal

Designed for Arlo Pro

Outdoor Mount (Black)

This easily adjustable mount attaches to any wall or surface, inside or out, allowing for best positioning of your Arlo Pro cameras.

• (2) Outdoor mounts in black
• (2) Mounting plates
• (4) Mounting screws
• (1) Quick start guide
• (1) Window decal

Designed for Arlo Pro

Outdoor Security Mount (White)

Easily adjustable mount provides 360 degree swivel and 90 degrees of tilt for the Arlo and Arlo Pro Wire-Free cameras. It’s easy to install and adjust the camera position for indoor, outdoor, wall and ceiling mounting.

• (1) Outdoor mount
• (3) Mounting screws
• (1) Quick start guide
• (1) Window decal

Designed for Arlo, Arlo Pro and Arlo Go

Outdoor Security Mount (Black)

Easily adjustable mount provides 360 degree swivel and 90 degrees of tilt for the Arlo and Arlo Pro Wire-Free cameras. It’s easy to install and adjust the camera position for indoor, outdoor, wall and ceiling mounting.

• (1) Outdoor mount in black
• (3) Mounting screws
• (1) Quick start guide
• (1) Window decal

Designed for Arlo, Arlo Pro and Arlo Go

Arlo Quadpod

Whether you decide to wrap it or hang it, Arlo Quadpod adjusts to any surface and offers the best views for your Arlo cameras.

• (1) Quadpod mount
• (1) 1/4 20 screw and washer
• (1) Window decal

Designed for Arlo, Arlo Pro and Arlo Go

• High-speed Internet connection–
  minimum 1 Mbps upstream recommended
• Available port on your router
• Arlo Pro compatible power adapter and cable
  (included)

Certifications

• FCC, IC, CE, UL

Dimensions & Weight

• Base Station:
  – 2.3 x 6.9 x 5.0 in (58.6 x 174.5 x 126.5 mm)
  – 11.1oz (316g)
• Camera†:
  – 3.1 x 1.9 x 2.8 in (79.3 x 48.6 x 70.5 mm)
  – 4.8oz (136g)
• Wall Mount (VMA1300):
  – 0.9 x 2.1 in (23.0 x 54.0 mm)
  – 1.3oz (38.2g)
• Table/Ceiling/Wall Mount (VMA1100):
  – 0.9 x 2.1 in (23.0 x 54.0 mm)
  – 5.4oz (0.153kg)
• Outdoor Security Mount (VMA1000/VMA1000B):
  – 3.0 x 3.5 in (76.2 x 88.9 mm)
  – 5.04oz (0.143g)
• Outdoor Mount (VMA4000/VMA4000B):
  – 2.06 x 1.45 in (52.5 x 37 mm)
  – .95oz (27g)
• Arlo Quadpod (VMA4500):
  – .027 x 5.9 x 2.75 in (.70 x 150 x 70 mm)
  – 1.69oz (48g)
• Skins (VMA4200):
  – 3.97 x 2.25 x 3.05 in (101 x 57.4 x 77.6mm)
  – 1.69 oz (48g)
• Rechargeable Battery (VMA4400):
  – 1.45 x 1.73 x 1.42 in (37 x 44 x 36.2 mm)
  – 3.53oz (100.3g)
• Charging Station (VMA4400C):
  – 4.33 x 1.69 x 1.98 in (110 x 43 x 50.3 mm)
  -2.69oz (76.5g)
• Solar Panel (VMA4600):
  – 4.5 x 7.9 x .86 in (115 x 201 x 22 mm)
  – 10.83oz (307g)
  • Power Adapter (VMA4700):
  – Power adapter: 1.96 x 1.65 x 1.25 in
  (50 x 42 x 32 mm)
  – Cable length: 8.2 ft (2.5 m)
  – Total weight: 6.4oz (184.1g)

Warranty

• www.netgear.com/warranty

Camera

• HD video resolution
• H.264 format
• 130° Field of view
• 8x digital zoom
• Audio: speaker & microphone
• Night Vision:
  – 850 nm LEDs: illuminates up to 25 feet
• 5 simultaneous video streams
• Battery level indicator
• 2440mAh rechargeable battery & AC
  power options
• Battery life varies based on settings, usage,
  & temperature
• Adjustable motion detection up to 23 feet
• Adjustable sound detection
• Automatic email alerts and push notifications
• Weatherproof:
  – Operating temperature: -4° to 113° F
  (-20° C to 45° C)
  – Weather-resistant IP65 rating

Base Station

• WiFi
  – Frequency: 2.4GHz 802.11n
  – Range: 300 feet line of sight
• Siren: 100+ dB output
• Ethernet interface port
• Indicator LEDs:
  – Power
  – Internet
  – Camera
• IP Configuration DHCP
• Internal antenna
• Processor & Memory:
  – 900MHz ARM Cortex A7
  – 128MB flash; 128MB RAM

This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller.
† Weight does not include battery of 3.6 oz .
Camera range is up to 300 ft. (line of sight). For indoor installations, range will decrease depending on environmental factors, including construction materials and
methods, and wireless interference. Wireless coverage is suitable for a typical 2,500 square foot residence.
©2017 NETGEAR, The NETGEAR logo, Arlo and the Arlo logo are trademarks or registered trademarks of NETGEAR, Inc. Any other trademarks herein are for reference
purposes only.
NETGEAR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA, www.arlo.com

Audio Doorbell and Arlo Chime

Get to Know your Arlo Audio Doorbell

To use an Arlo Audio Doorbell, you need an Arlo base station. The Arlo Audio Doorbell and Arlo Chime are compatible with Arlo Pro 2, Arlo Pro, or Arlo wire-free cameras. You use the Arlo app to set up and manage all your Arlo devices and your Arlo account.

Get the Arlo app
Download the Arlo app. The Arlo app lets you create an Arlo account in the cloud and set up and manage all your Arlo devices.

Note: If you already use the Arlo app, make sure that you’re using the latest version. To find out if an update is available, go to the app store and search for Arlo.

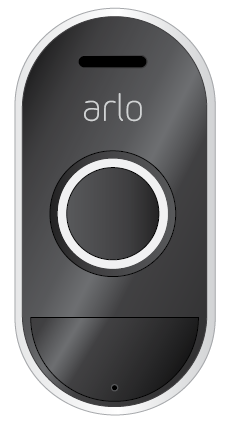

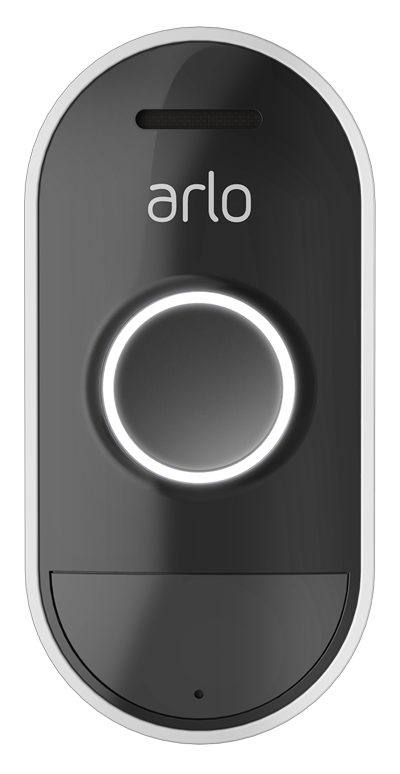

Meet your Arlo Audio Doorbell
Answer your doorbell even when you’re not home. Combine your Arlo Audio Doorbell and Arlo cameras to see who’s there. The Arlo Audio Doorbell calls your smart phone or tablet to notify you when your doorbell is pressed. Your mobile device uses an Internet connection to receive the call.

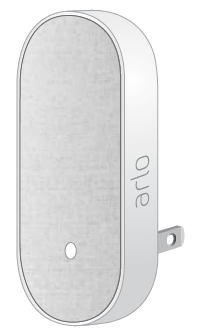

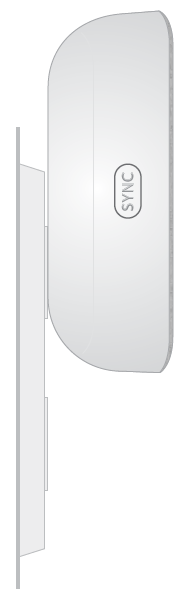

Meet your Arlo Chime
Your Arlo Chime alerts you when your Arlo Audio Doorbell is pressed. You can customize the Arlo Chime melody and volume or turn off alerts for quiet time.

Meet your base station
Your base station connects to the Internet to access your Arlo account in the cloud. The base station appearance varies, depending on the model.

Arlo cameras
Your Arlo Audio Doorbell works with Arlo Pro 2 cameras, Arlo Pro cameras, and Arlo Wire-Free cameras.

Get started

View a tutorial video
To view tutorial videos, find troubleshooting tips, or get support, visit www.arlo.com/support.

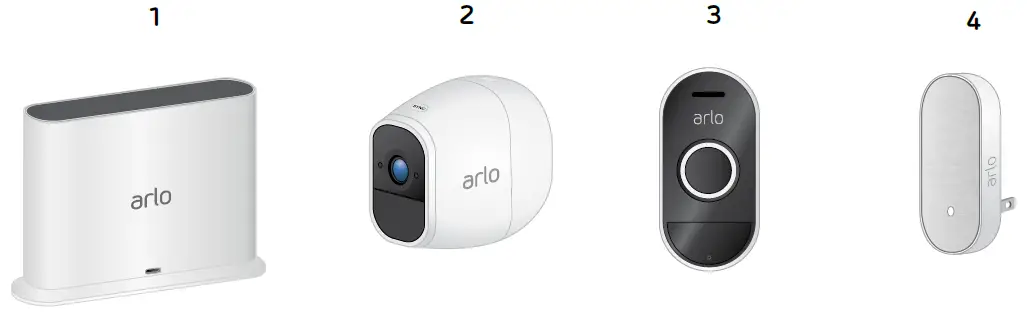

Install and set up your Arlo devices in this order
The Arlo app guides you to add your devices to your Arlo account and provides step-by-step instructions for installation and setup. Use the Arlo app to install your Arlo devices in this order:

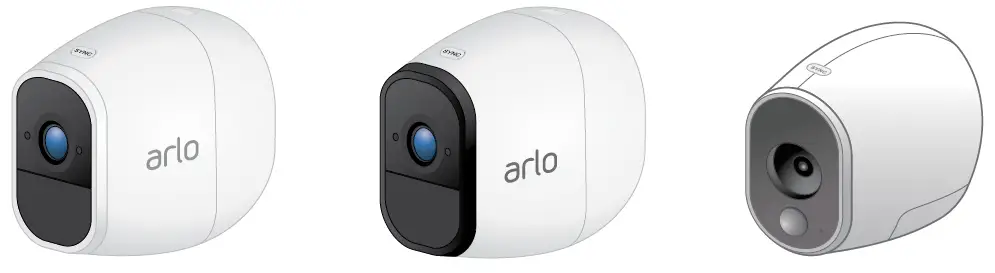

Your base station and cameras might look different from these examples. For help with installation, see the quick start guide that came with your Arlo Audio Doorbell and your Arlo Chime.

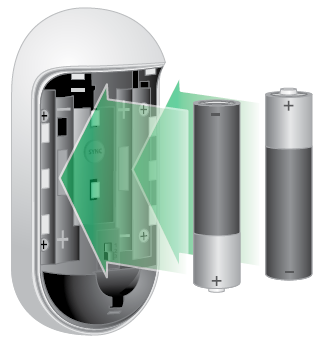

Insert the batteries into your doorbell
Your Arlo Audio Doorbell runs on battery power from two AA batteries. During installation, the Arlo app guides you to insert the batteries.

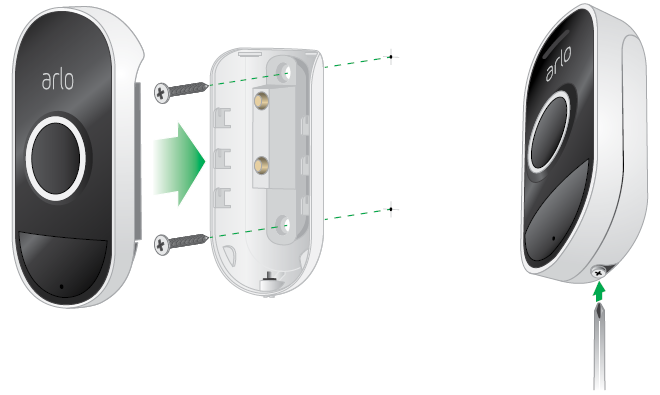

Mount your Arlo Audio Doorbell without wiring
Use this method if you’re not connecting the Arlo Audio doorbell to a traditional chime.

1. Secure the battery cover on your wall using the screws we provide.
2. Attach the doorbell to the battery cover.
3. Secure the Arlo doorbell with the screw on the bottom of the battery cover.

Connect your Arlo Audio Doorbell to a traditional chime
The Arlo Audio Doorbell is compatible with AC-powered mechanical and digital chimes operating between 8-24 volts. The Arlo Audio Doorbell isn’t compatible with wireless door chimes or any chime or intercom system using a DC transformer.

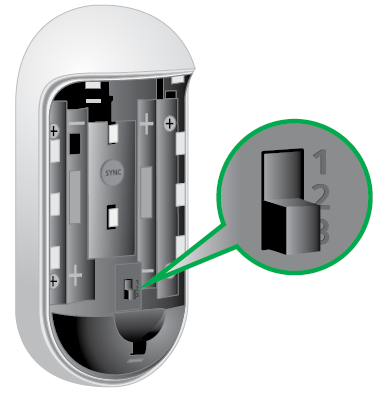

Set the chime switch The chime switch is located inside the Arlo Audio Doorbell. This switch is only used if you connect your Arlo Audio Doorbell to a traditional chime.

The correct switch setting depends on whether you have a mechanical or a digital chime.
Mechanical chimes usually make a sound like ding dong. Digital chimes can have a variety of sounds; some can play tunes.

• If you have a mechanical chime, set the chime switch to position 2.
• If you have a digital chime, set the chime switch to position 1 or 3. During installation, the Arlo app guides you to select the correction position.

During installation, the Arlo app guides you to set this switch. The quick start guide that came with your doorbell also includes information about setting this switch.

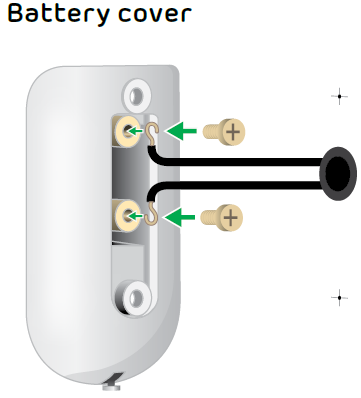

Connect the doorbell battery cover to your existing chime

1. Turn off the power to your current doorbell at the breaker.
2. Remove your current doorbell.
3. Connect the wires coming out of the wall to the terminals on the back of the Arlo doorbell battery cover with the screws we provide.
   Wire screw Current doorbell wires from your wall (Either wire can connect to either terminal.)
   If the wires are too short, use the accessories we provide.
4. Feed the wires back into your wall.

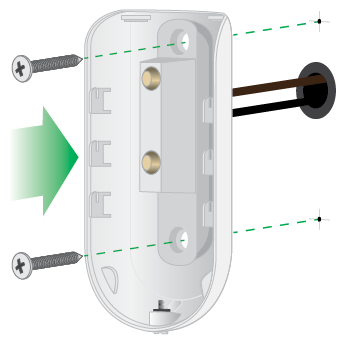

5. Secure the Arlo battery cover to the wall using the mounting screws.
6. Turn the power on at the breaker.

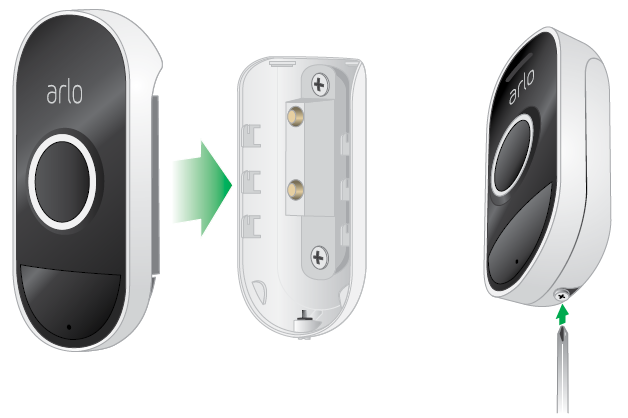

Attach the Arlo Audio Doorbell to the battery cover
Follow the instructions in the Arlo app to install your doorbell (and connect a traditional chime, if you use one) before you attach the battery cover.

1. Attach your doorbell to the battery cover.
2. Secure the Arlo doorbell with the screw on the bottom of the battery cover.

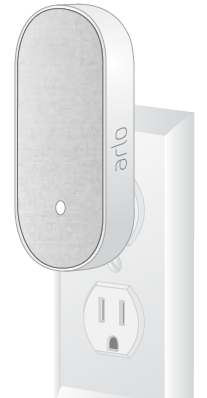

Install an Arlo Chime
You must use the app to install your Arlo Chime..
Note: You must use your chime indoors.

1. Plug your chime into a power outlet.
2. Use your app to set up your Arlo Chime and add it to your Arlo account.

Pair your doorbell to a chime
You can pair your Arlo Audio Doorbell to an Arlo Chime. This is useful if your house is large and you’re using more than one chime or have doorbells in the front and back entrances. You can pair more than one doorbell to a single chime. You can also pair more than one chime to a single doorbell.

1. Open the Arlo app.
2. Tap Settings > My Devices.
3. Tap the doorbell.
4. Under PAIRED DEVICES, tap Add Chime.
5. Select the chime and tap Save.

Use your Arlo Audio Doorbell

Your Arlo Audio Doorbell automatically detects motion.

Answer your doorbell from your smartphone

When a visitor presses your Arlo Audio Doorbell, your mobile device receives a voice over IP (VoIP) call through an Internet connection. You must install the Arlo app on your smartphone and you must be logged in to the Arlo app. The caller displays as the name you gave to your Arlo Audio Doorbell. You can accept or decline the call the same way you do for other calls that you receive on your smartphone.

• Accept the call and speak to your visitor.
• Answer the call with a quick reply. Select a recorded message for the doorbell to play for the visitor.
• Decline the call. If a visitor presses your Arlo Audio Doorbell and you don’t answer your smartphone after five rings, your doorbell prompts the visitor to leave a message. If the visitor leaves a message, it is saved as a Doorbell audio recording in your Arlo library.

If you want to receive the call on a different phone, you can log out of the Arlo app on the first smartphone and log into the Arlo app on another smartphone or tablet.
To receive the call on multiple phones, you can create a grant access account (add doorbell to the grant access account) and log in to the Arlo app using the grant account on the other smartphone.

Receive a call from your Arlo Audio Doorbell

Note: If you don’t want to receive calls when a visitor presses the doorbell, you can select Silent Mode for the doorbell and turn off incoming calls. (Open the Arlo app and tap the doorbell to view or change these settings.) ¾¾
To accept a call on your smartphone from your Arlo Audio Doorbell:

1. When you receive a call from the Arlo Audio Doorbell, tap Accept.
2. If you are prompted to allow Arlo to access the camera, tap OK.
   The incoming call page displays. If you paired a camera to your doorbell, the camera video is included.
3. To talk to the visitor, speak into your phone as you normally do.
   You can also tap a button to toggle between hands-free and earpiece mode, play a quick reply message for the visitor, or mute your sound.
4. To toggle between hands-free and earpiece mode, tap the speaker button.
5. To play a quick reply message, tap the message icon and select a message from the list.
6. To mute yourself so that the visitor does not hear sound, tap the microphone button.
7. When you are finished, tap End.

Respond to a visitor with a Quick Reply

1. When you receive a call from the Arlo Audio Doorbell, tap Accept.
2. If you are prompted to allow Arlo to access the camera, tap OK. The incoming call page displays. If you paired a camera to your doorbell, the camera video is included.
3. To play a quick reply message, tap the message icon and select a message from the list.
   The messages are:

• We will be right there.
• Leave the package outside.
• Sorry, I’m not interested.
• Can I help you?
• I’m busy right now.

Listen to an audio message from a visitor

If a visitor leaves an audio message after pressing your doorbell, the message is saved in your Arlo library.

1. Open the Arlo app.
2. Tap Library.
3. Tap the doorbell recording.

Manage your doorbell recordings

If a visitor leaves an audio message after pressing your doorbell, the message is saved in your Arlo library.
Download Recordings

1. Open the Arlo app.
2. Tap Library.
3. Tap the doorbell recording.
4. Tap the menu at the bottom of the page to open it.
5. Tap Download.

Make a Recording a Favorite

1. Open the Arlo app.
2. Tap Library.
3. Tap the doorbell recording.
4. Tap the menu at the bottom of the page to open it.
5. Tap Favorite.

Share Recordings

1. Open the Arlo app.
2. Tap Library.
3. Tap the doorbell recording.
4. Tap the menu at the bottom of the page to open it.
5. Tap Share.

Donate Recordings for Research

1. Open the Arlo app.
2. Tap Library.
3. Tap the doorbell recording.
4. Tap the menu at the bottom of the page to open it.
5. Tap Donate.

Delete Recordings

1. Open the Arlo app.
2. Tap Library.
3. Tap the doorbell recording.
4. Tap the trash can icon and tap Continue to confirm.

Set the doorbell volume

1. Open the Arlo app.
2. Tap Settings > My Devices > Doorbell >Audio Settings.
3. Move the slider to adjust the volume.

Use the doorbell in silent mode

When your Arlo Audio Doorbell is in silent mode, calls and the chime are turned off. You can still receive notifications when the doorbell is pressed.

1. Open the Arlo app.
2. Tap the doorbell.
3. Tap Silent Mode to toggle silent mode on and off.

Turn off incoming calls from your doorbell

1. Open the Arlo app.
2. Tap the doorbell.
3. Tap Silent Mode to turn on Silent Mode.
4. Tap Incoming call to toggle incoming calls on and off.

Note: You can also turn off the chime by toggling Chime on and off.

Control the sound of your Arlo Chime

Change the melody
You can listen to the available melodies and select the one that you prefer.

1. Open the Arlo app.
2. Tap or click Settings > My Devices.
3. Tap or click your Arlo Audio Doorbell.
4. Tap or click Melody > Chime Melody.
5. Tap or click a melody.

Adjust the volume

1. Open the Arlo app.
2. Tap or click Settings > My Devices.
3. Tap or click your Arlo Audio Doorbell.
4. Tap Melody.
5. Adjust the volume using the Chime Volume slider.

Use silent mode to mute the Arlo Chime

1. Open the Arlo app.
2. Tap or click your Arlo Audio Doorbell.
3. Move the Silent Mode slider to enable or disable silent mode.

Note: If you enable silent mode, but you still want your Arlo Chime to play a melody or receive a phone call when someone presses your doorbell, move the individual sliders on the Silent Mode page.

Pair your doorbell to a camera

You can pair your doorbell with a specific Arlo camera. This is useful if you use more than one camera and you want to trigger a certain camera when the doorbell is pressed. Position your Arlo cameras to see who is at the door.

1. Open the Arlo app.
2. Tap Settings > My Devices.
3. Tap the doorbell.
4. Under PAIRED DEVICES, tap Pair to Camera.
5. Select the camera and tap Save.

Use your doorbell to trigger a camera to record video

When your doorbell detects motion, it automatically notifies the base station. You can change this setting so that the doorbell triggers an Arlo camera to begin recording.

1. Open the Arlo app.
2. Tap the Arlo Audio Doorbell.
3. Tap the menu on the upper-right corner of the page to open it.
4. Tap Motion settings.
5. To receive alerts when your doorbell detects motion, tap Motion Triggered Alerts.
6. Tap Add Device.
   By default, the Base Station is selected.
7. Tap Camera and then tap Next.
8. Tap Record video and then tap Next.

For the recording settings, you can choose one of these options:

• Record until activity stops (up to 300 sec)
• Record for a fixed length of time (then use the slider to select the number of seconds from 10 to 120.)

9. Tap Next
The Motion Settings page shows your settings in Then do the following.
10. Tap Done.

Set your chime to play a sound when a camera detects motion

You can set up your chime to play a sound when your camera detects motion. The camera must be in Armed mode or another mode in which it is active.

1. Open the Arlo app.
2. Tap Mode.
3. Tap Edit next to Armed.
4. Under Then do the following, tap Add Device.
5. Tap Chime and then tap Next.
6. Select an action for the chime to perform when the camera detects motion:
   1. Do nothing
   2. Sound the siren
   3. Simulate home presence
   4. Play a melody
7. Tap Next.
8. Use the slider to set the loudness and tap Next.
9. Tap Siren.
10. Select a Chime Melody (Siren, Home Ambience, or Dog Bark,) and tap Save.

Note: For more information about using modes, see the user manual for your camera.

Use the Arlo Audio Doorbell to trigger the base station siren

When your Arlo Audio Doorbell detects motion, it automatically notifies the base station. You can set up the doorbell to trigger the base station siren when the doorbell detects motion. Because the siren is very loud, we recommend that you use caution triggering the siren when someone might be close to the base station.
Note: You can also use your Arlo Audio Doorbell to trigger your camera to record video when the doorbell detects motion. For more information, visit How can I use my Arlo Audio Doorbell to trigger my camera to record video?

To set up the doorbell to trigger the base station siren when it detects motion:

1. Open the Arlo app.
2. Tap the Arlo Audio Doorbell.
3. Tap the menu on the upper-right corner of the page to open it.
4. Tap Motion settings.
   The base station is displayed in the Then do the following section.
5. Tap Turn siren ON.
6. Tap Edit.
7. Move the sliders to set the number of seconds for the siren and the volume.
8. Tap < to return to the Motion Settings page.
9. To receive alerts when your doorbell detects motion, tap Motion Triggered Alerts.
10. Tap Done.

When your doorbell detects motion, your base station siren is triggered.

Manage your Arlo Devices

Manage your Arlo account

When you use New Setup, the email address and password that you enter are saved as your profile. You can change the password and the user name. Opening the Arlo app on a mobile device automatically logs you in, but you can turn Auto Login off and on.

Change your password and user name

1. Open the Arlo app.
2. Tap or click Settings.
3. Under Account, tap or click Profile.
4. If you’re using a smartphone, tap Edit at the top of the page.
5. Type the new entries in the password and name fields.
6. Tap or click Done.

Turn Auto Login on or off for a smartphone
When Auto Login is turned on, launching the Arlo app on your smartphone automatically logs you in with the email address and password that you used the last time you logged in.

1. Open the Arlo app.
2. Tap or click Settings.
3. Under Account, tap or click Profile.
4. Tap Auto Login.

Turn the Arlo app fingerprint ID login on and off
The Arlo app supports Touch ID® fingerprint identity sensors. If you’re using a mobile device with this feature, you can turn the Arlo app Touch ID login on and off.

1. Open the Arlo app on your mobile device.
2. Tap Settings.
3. Tap Profile.
4. Tap Log in with Touch ID.

Grant access to a friend

You can grant access to specific Arlo devices, such as the Arlo Audio Doorbell without sharing your Arlo account login credentials.

1. Open the Arlo app.
2. Tap Settings > Grant Access > Add.
3. Enter the name of the friend.
4. Select the devices that you would like to share access with.
5. Move the Allow Access Rights slider to the right.

Note: If you grant your friend access rights for an Arlo device that uses modes, such as an Arlo camera, your friend can change modes, share videos, and delete videos.
Your friend receives an email invitation to share your Arlo devices.

Update device software

1. Open the Arlo app.
2. Tap Settings > My Devices.
3. Tap the doorbell or chime.
4. Tap Device Info > Firmware.
5. If a firmware update is available, follow the onscreen instructions to update your device.

Arlo Audio Doorbell LED

The Arlo Audio Doorbell LED lights to indicate the doorbell status and activity.
Arlo Audio Doorbell LED behavior during set up

• Fading white. Your Arlo doorbell is ready to be set up.
• Slowly blinking white. Your Arlo doorbell is applying new settings.
• Quickly flashing white. Your Arlo doorbell is successfully set up.

Arlo Audio Doorbell LED behavior after set up

• Fading white. Your Arlo doorbell detected motion.
• Flashing white for 5 seconds. Your Arlo doorbell was pressed.
• Solid white. Two-way audio is in use.
• White fading off. Two-way audio has ended.

Reset the Arlo Audio Doorbell

Resetting your doorbell returns it to the factory settings. If you reset the doorbell, you will need to set it up again with the Arlo app before you can use it.

1. Open your Arlo doorbell’s battery cover.
   Note: Don’t remove the batteries.
2. Press and hold the Sync button for 10 seconds.
   The LED quickly flashes white.

Arlo Chime LED

The Arlo Chime LED lights to indicate the chime status and activity.
Arlo Chime LED behavior during set up

• Fading white. Your Arlo Chime is ready to be set up.
• Slowly blinking white. Your Arlo Chime is applying new settings.
• Quickly flashing white. Your Arlo Chime is successfully set up.
• Pulsing amber. A set up error occurred.

Reset the Arlo Chime

Press and hold the SYNC button on the side of your Arlo Chime for 10 seconds.

Add a device from another Arlo account

Remove the device from the other Arlo account and then add it to the correct Arlo account.

1. Open the Arlo app.
2. Log in to the old Arlo account.
3. Tap or click Settings.
4. Tap or click My Devices.
5. Tap or click the device.
6. Scroll down and tap or click Remove Device.
7. Log out of the Arlo app.
8. Reset the device to its factory settings.
   (See Reset the Arlo Audio Doorbell on page 22. and Reset the Arlo Chime on page 23.)
9. Add the device to the correct Arlo account.

Remove a device from your Arlo account

1. Open the Arlo app.
2. Tap or click Settings > My Devices.
3. Tap or click the device.
4. Scroll down and tap or click Remove Device.

Note: Before the device can be added to another Arlo account, it must be reset to its factory settings.

FAQs and Troubleshooting

Arlo Audio Doorbell is offline

If your Arlo Doorbell is offline, try these options:

• Make sure that your Arlo base station is powered on and the Power LED is lit green.
• Make sure that your Arlo base station is connected to the Internet and the Internet LED is lit green.
• Make sure that your Arlo Audio Doorbell is powered. Walk past your Arlo Audio Doorbell., The LED ring lights when the Arlo Audio Doorbell detects motion, which indicates that it’s powered on.
• Make sure that you used new batteries to power your Arlo Audio Doorbell.
• Reset your Arlo Audio Doorbell.

My traditional chime doesn’t ring

If your traditional chime doesn’t ring when the Arlo Audio Doorbell is pressed, try these options:

• Make sure the LED ring on the front of your Arlo Audio Doorbell is flashing white to confirm that it’s powered by the batteries you inserted during set up.
• If your existing chime is digital (produces a synthesized melody), make sure that you set the switch in your Arlo Audio Doorbell to position 1 or 3.
• If you have set it to position 1 or 3, and the melody is cutting off, switch to the other position 3 or 1. For example, if you were using position 1 and the melody was cutting off, try using position 3.
• If your existing chime is mechanical (makes a ding dong sound), then make sure you set the switch in your Arlo Audio Doorbell to position 2.

Not receiving calls

If you aren’t getting a phone call when someone presses your Arlo Audio Doorbell, try these options:

• Did you log out of the Arlo app on your smartphone? You must be logged in to the app to receive calls from your doorbell.
• Are incoming calls turned off? To see if incoming calls are turned off, open the Arlo app, tap the doorbell, and check the Incoming call setting.
• Is your smartphone connected to the Internet? The Arlo Audio Doorbell makes VoIP phone calls to your phone, which requires an Internet connection using 3G, LTE, or WiFi.
• Did someone else log in to your Arlo account? That person might be receiving the call. Instead of sharing your personal credentials, you can invite your friend to be an additional user on your Arlo account.

Battery Safety

To use your Arlo Audio Doorbell batteries safely:

• ALWAYS use high-quality batteries from reputable sources and brands. Counterfeit or inferior-quality batteries can damage your Arlo device, cause a fire, or result in personal injury.
• ALWAYS keep batteries away from children.
• ALWAYS store spare batteries in a cool, dry, ventilated area.
• ALWAYS replace all the batteries in a given Arlo device at the same time and with batteries of the same type purchased together from the same source.
• ALWAYS make sure that the battery compartment is clean and free of any debris before inserting new batteries.
• ALWAYS insert your batteries into their slots gently.
• ALWAYS make sure that each battery’s polarity (its positive and negative ends) matches the polarity of its individual slot. (You’ll find a guide inside the battery compartment.)
• ALWAYS follow local waste and recycling laws when throwing used batteries away
• NEVER attempt to recharge a single-use (non-rechargeable) battery.
• NEVER place loose batteries in a pocket, purse, or other receptacle, especially one containing metal objects.
• NEVER store your batteries with hazardous or combustible materials.
• NEVER let your batteries or battery compartment get wet—before, during, or after installation.
• NEVER disassemble, cut, crush, puncture, short-circuit, dispose of in fire or water, or expose your batteries to temperatures above 60°C (140°F).

1. Download the Arlo app.

2. Follow the setup instructions for your camera.

What’s in the box

Mount your camera

We recommend that you use your Dual Charging Station to fully charge the camera battery before you mount the camera.

1. Place the wall plate with the arrow pointing up and secure it with screws.
   For drywall, use the provided wall anchors.
2. Insert your camera with its battery into the Anti-Theft Mount housing.
3. To attach the housing to the wall plate: Align the small screw in the housing with the dot on the wall plate.
   Turn the housing clockwise until it clicks into place.
   Use the security key to tighten the small screw.
4. Adjust your camera position, then finger tighten the mount lock (clockwise) to lock the camera in this position.


Note: To release your camera from the housing, insert the security key into the security keyhole and turn the key clockwise.

Need help?

We are here for you.
Visit www.arlo.com/support for quick answers and:

• How-to videos
• Troubleshooting tips
• Additional support resources

Battery charging

You can use the Dual Charging Station to charge Arlo Pro 4, UltrFloodlight, and XL rechargeable batteries.

1. Connect the power adapter to the charging station.
2. Plug the power adapter into an indoor electrical outlet.
3. Insert one or two Arlo rechargeable batteries.


© Arlo Technologies, Inc. Arlo, Arlo logo, and Every Angle Covered are trademarks of Arlo Technologies, Inc. Apple is a  trademark of Apple Inc., registered in the US and other countries. App Store is a service mark of Apple Inc. Google Play and the  Google Play logo are trademarks of Google LLC. Any other trademarks are for reference purposes.
(If this product is sold in Canada, you can access this document in Canadian French at arlo.com/docs.)
For regulatory compliance information including the EU Declaration of Conformity and where to find e-label information for  US FCC & Industry Canada, visit www.arlo.com/about/regulatory/.

Arlo Technologies Intl. Ltd.
Ground Floor, Building 3
University Technology Center
Curraheen Road, Cork, T12 EF21 Ireland

March 2021

Arlo Technologies, Inc.
2200 Faraday Avenue, Suite 150
Carlsbad, CA 92008 USA

1.  Insert the battery into your camera. Leave the case off until the camera is added to your account.

2. Use the Arlo app and follow the setup instructions to add your Pro 3 Wire-Free Camera.

What’s in the box

Need help?
We are here for you.
Visit www.arlo.com/support for quick answers and resources:

• How-to videos
• Troubleshooting tips
• The Arlo Support phone number for your location

© Arlo Technologies, Inc. Arlo, Arlo logo, and Every Angle Covered are trademarks of Arlo Technologies, Inc. App Store is a service mark of Apple Inc. Google Play and the  Google Play logo are trademarks of Google LLC. Any other trademarks are for reference purposes.

(If this product is sold in Canada, you can access this document in Canadian French at arlo.com/docs.)
For regulatory compliance information including the EU Declaration of Conformity, visit www.arlo.com/about/regulatory/.
Arlo Technologies Intl. Ltd
Ground Floor, Building 3
University Technology Centre
Curraheen Road, Cork T12 EF21
Ireland

Arlo Technologies, Inc.
2200 Faraday Avenue, Suite 150Carlsbad, CA 92008 USA
August 2019
