Please read this manual carefully before using the product, and please retain the user manual.

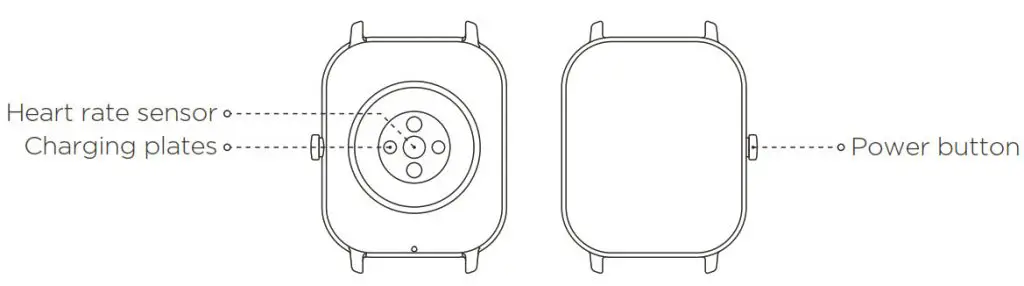

Product Introduction

Installation

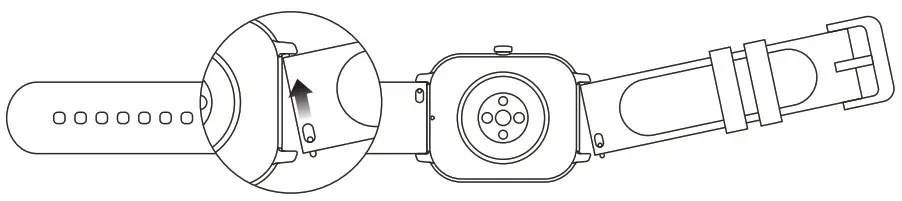

1. Insert one end of the band body into the slot on the strap with the outer face of the strap turned upward.
2. Press your thumb firmly against the other end, so that the entire band body is inserted into the slot on the strap and locks firmly into place.


Wearing

1. Wear the band with a distance of one finger away from the wrist bone, and adjust the strap so that it fits comfortably.

2. To achieve optimal measurement results for the heart rate sensor, the back of the band should be in contact with the skin. Wear the band correctly, not too tight or too loose, and leave enough space for the skin to breathe. The strap can be tightened during exercise and loosened afterwards.


Amazfit Bip S User Manual

Charging Your Watch

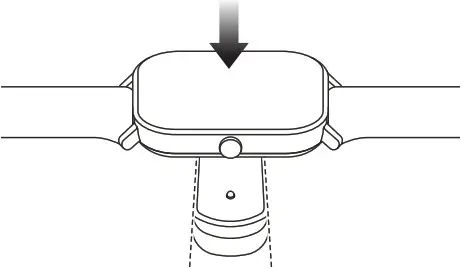

Place the watch on the charging cradle as shown in the figure, and plug the charging cable into a USB power adapter or USB port. Please use a power adapter that is rated 5V and above 500mA.

Built-In Battery Precautions

Do not attempt to replace the device’s battery on your own or force open the built-in battery. Use only the official charging base to charge your device.

Install the Amazfit app on your phone

Search for “Amazfit” on the App Store/Google Play or scan the QR code below to download and install the app.

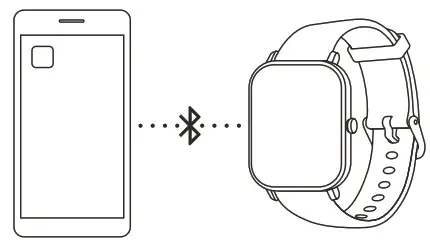

Connecting Your Device

Please make sure you have the Bluetooth feature activated on your phone. Then, open the Amazfit app and follow the onscreen instructions in the app to login into an existing account(or create a new account if needed). Once logged in, pair the device with your phone by selecting into “Profile” > “Add device” > “Watch” > “Amazfit Bip S”. The pairing requires the identification of the device and pressing “Pair” on the watch.

Regulatory Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including the interference that may cause undesired operation.

FCC ID: 2AC8UA1821
Any changes or modifications that are not expressly approved by the party responsible for the compliance may void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences in a residential installation. This equipment generates, uses, and may radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation if the device.

IC: 21806-A1821
CAN ICES-3(B)/NMB-3(B)

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and the maximum(or lesser) gain approved for the transmitter by Industry Canada. To reduce the potential of radio interference to other users, the antenna type and it’s gain should be so chosen that the equivalent isotropically radiated power(e.i.r.p.) is not more than that necessary for successful communication.

Disposal and Recycling Information

The following symbol signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose the electronic equipment at recycling centers so as to help conserve the natural resources.

Certifications and Safety Approvals

Hereby, Anhui Huami Information Technology Co., Ltd., declares that the radio equipment type A1821 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://en.amazfit.com/support.html For more regulatory information and product certification/compliance logos related to Amazfit Bip S , please go to Regulatory on your Amazfit Bip S.

Safety Notice

• The device is water resistant with a certified rating of 5 ATM. This means that the device is resistant to rain and when showering. It may also be used in shallow-water activities, such as swimming in a pool.
• However, the watch should not be used when scuba diving, bathing, using a sauna, or in other activities involving a high-velocity of water or the submersion below shallow depth.
• Please do not operate the watch underwater. After submerging, dry it with a dry cloth before operating or charging.
• The watch is not protected against chemical reagents, acidic or alkaline solutions, etc. Defects caused by liquid damages are not covered under the warranty.

Specifications

Product Name: Amazfit Bip S
Product model: A1821
Wireless connection: Bluetooth 5.0
BLE Input: 5 V — 500 mA (Max.)
Frequency: 2402­2480 MHz
Max. Output: 0 dBm
Operating temperature: 0°C to 40°C
Water resistance rating: 5
ATM Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions

Warranty and Return Policy

All Amazfit products are covered by a 1-year limited warranty. Official website: en.amazfit.com

Help: support.amazfit.com
Email us at: [email protected]

Amazfit Stratos A1619 User Manual

Package Contents
1 . Amazfit Stratos Smartwatch
2. USB Charging Cable and Base
3. User Guide

Download the Amazfit Watch App
The companion app is available for iOS in the Apple App Store and for Android in the Google Play Store. Please search for “Amazfit Watch” to download and install the app.

Turn Your Watch On/Off
To turn on your watch, press and hold the button on its top right side. Your watch screen will light up and show a startup animation. The animation may play for several minutes upon initial startup.

A QR code will display on your watch screen when it first turns on. This code will be used to pair your watch with your mobile device.

To turn off your watch, press and hold the same button for more than six seconds to display the turn off interface.

Connect Your Watch
Make sure your watch is charged and Bluetooth is activated on your mobile device. Open the Amazfit Watch app and follow the setup instructions. Scan the QR code displayed on your watch screen to pair with your mobile device when prompted.

Charging Your Watch
Attach your watch to the charging base as shown below. Make sure to align the 4 charging pins on the backside of the watch with the ones on the charging base. Connect the charging base to a USB plug or computer via the provided USB cable.  “Charging” will display on the watch screen once clipped in. Please use a power adapter that is rated above 5V and 500mA.

Built-In Battery Precautions
Do not attempt to replace the device’s battery on your own or force open the built-in battery. Use only the official charging base to charge your device.

Safety Notice
1. The watch is water-and dust-resistant with a certified 5 ATM rating. This means the device is resistant to rain, shower and may be used for shallow-water activities like swimming in a pool. However, the watch should not be used for scuba diving, bathing and sauna, or other activities involving high-velocity water or submersion below shallow depth.

2. Please do not operate the watch underwater. After submerging, dry it with a soft cloth before operating or charging.

3. The watch is not protected against chemical reagents, acidic and alkaline solutions, etc. Defects caused by liquid damage are not covered under warranty.

Disposal and Recycling Information
The symbol signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources.

Certifications and Safety Approvals
All Amazfit products have been FCC and CE certified and meet the standards required to retail in the US and Europe.

Regulatory Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1 . This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.
FCC ID: 2AC8UA1619

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Technical Specifications
Product Name: Amazfit Stratos
Model Name: A1619
Battery Capacity: 290 mAh
Wireless Connection: Bluetooth 4.0 BLE / Wi-Fi
Input Voltage: 5V DC 0.3A (Max)
Frequency: 2402-2480MHz

Operating Temperatures: 32°F – 104°F / 0°C – 40°C
Water Resistance Rating: 5 ATM / 40 m / 130 ft
Device Requirements: Devices that support Bluetooth 4.0 and run Android 4.4 or iOS 9.0 and above.

Warranty and Return Policy
All Amazfit products are covered by a 1-year limited warranty.
Details at: www.amazfit.com/warranty
Official website: www.amazfit.com
Help: support.amazfit.com
Email us at: [email protected]
Patents: Anhui Huami Information Technology Co Ltd / Amazfit

User Manual for Amazfit Band 5

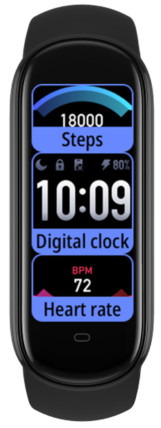

Watch face function navigation

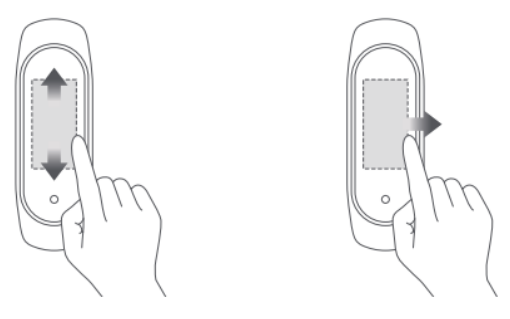

Function navigation operations

On the watch face page:

• Swipe up/down to access Level-1 menus and tap the screen to view the app, or press the band button to return to the watch face page.
• Swipe left/right to show shortcuts and view app details.

On the app details page:

• Swipe right or press the band button to return to the upper-level page.
• Swipe left/right on the app details page to switch between apps and press the band button to return to the watch face page.

Wearing and recharging the band

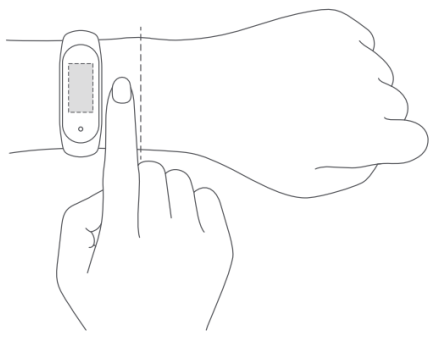

Wearing the band when not exercising

When not exercising, we recommend wearing the band at a distance of one finger away from the wrist with appropriate tightness to ensure that the optical heart rate sensor works properly.

Wear the band when exercising

When exercising, we recommend wearing the band at a comfortable tightness to ensure that it is in close contact with your skin and does not slip. Wear the band at the appropriate tightness and ensure it does not slip on your skin.

Charging

1. Plug the USB connector of the charging base into your phone charger or USB port of your PC.
2. Align the metal contact points on the band back to the gold pins on the magnetic charging base. You do not need to disassemble the band for charging.

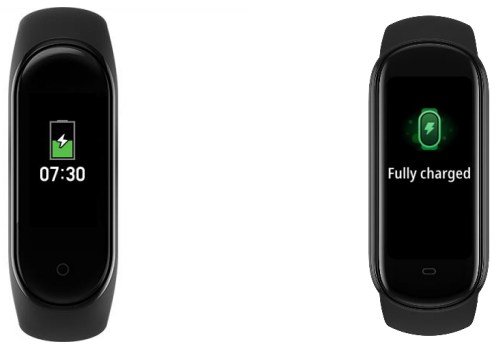

3. When the band is properly placed in the charging base, a charging icon appears on the band screen to indicate charging is in process.

• You can view the time, incoming call alerts, and app notifications while charging.
• We recommend charging the band with a mainstream phone charger or through a PC USB port.

Band functions

App settings

You can sort or show/hide Level-1 menus on your band.
To customize the apps on the screen according to your personal preference, go to Profile > Amazfit Band 5 > Display settings in the bound app, and select the app items to be displayed on the screen.

Shortcut settings

You can add or delete shortcuts or adjust their sequence.
To customize the shortcuts on the screen according to your personal preference, go to Profile > Amazfit Band 5 > Shortcut settings in the bound app, and select the shortcut menus to be displayed on the screen.

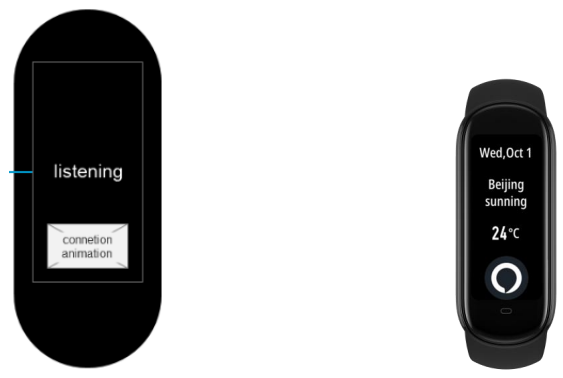

Alexa voice assistant

The Alexa voice assistant lets you query the weather, set the alarm clock, and add memos by voice.
Before using the voice assistant, go to Profile > Add accounts > Amazon in the bound app, and enter the Amazon account and password on the authorization page to complete authorization. After authorization, swipe right on the watch face page to go to the Alexa page.
For example, if you want to query the weather, say “Alexa, what is the weather?” to Alexa. Then, Alexa replies with the weather information.

Alexa supports the functions listed in the following table.

Workout settings

You can add or delete sports or adjust their sequence.
To customize the sports according to your personal preference, go to Profile > Amazfit Band 5 > Workout settings in the bound app, and select the sports to be displayed on the screen.

Vibration mode

Functions that support vibration alerts are displayed on the vibration mode page.
Initially, the default mode is used. You can add custom vibration modes by tapping the phone screen at different durations.
To customize the vibration mode according to your personal preference, go to Profile > Amazfit Band 5 > Vibration in the bound app and set the vibration mode as prompted.

Lift wrist to view info

When this function is enabled in the bound app, the band screen is activated when you raise your wrist and turn the band screen toward yourself. You can select between normal and sensitive screen-activation sensitivity, and set when this function is enabled.

Band lock

When this function is enabled in the bound app, the band screen is locked if the band is removed from your wrist. By default, this function is disabled. It is enabled after you set the unlocking password. To configure this function, go to Profile > Amazfit Band 5 > Band lock in the bound app. There, you can enable or disable this function and change the password.

Night mode

When this function is enabled in the bound app, the screen brightness is automatically lowered when the band screen is lit at night. The initial effective period of the night mode is 19:00 to 07:00 on the next day. You can adjust the period as needed.
To configure night mode, go to Profile > Amazfit Band 5 > Night mode. There, you can enable or disable the night mode, and change the effective period.

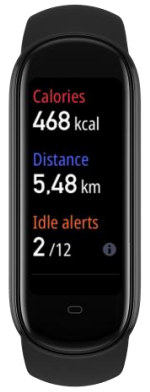

Status

You can view real-time data, such as steps, distance, calories, and idle alerts on the detailed status page. You can swipe down to view steps over the last seven days.

Heart rate

• Single measurement
  You can measure your heart rate on the heart rate details page. The heart rate is displayed if measurement succeeds, and the “Couldn’t measure” message is displayed if measurement fails. Wear the band properly to ensure that heart rate measurement is successful. When a value is displayed on the heart rate page, swipe down to view the heart rate status, as listed below.

Classification rules and descriptions of heart rate zones

Max BPM = 220 – Current age

• Continuous heart rate monitoring
  The band supports continuous heart rate monitoring. Go to Profile > Amazfit Band 5 > Health Monitoring the bound app to enable automatic heart rate detection. You can set the detection frequency to 1 minute, 5 minutes, 10 minutes, or 30 minutes.
  After completing the settings, wear your band, and the band will automatically monitor your heart rate. You can view details on the heart rate details page.

Heart rate alerts

Go to Profile > Amazfit Band 5 > Health Monitoring in the bound app to enable the heart rate alert function. When your heart rate reaches the alert threshold and you have not done strenuous exercise in the last 10 minutes, the band vibrates to alert you.
You can set the alert value as needed.

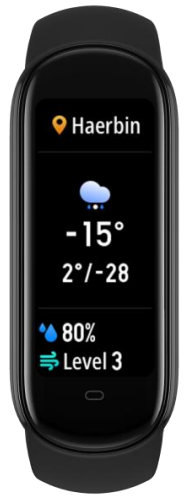

Weather

You can view today’s weather and the weather forecast for the next few days on the weather page.
Maintain the Bluetooth connection between the phone and the band because the phone needs to push weather information to the band.
In addition, the phone pushes weather alerts that it receives to the band. Go to Profile > Amazfit Band 5 > Weather settings in the bound app, and then enable the weather alerts in the bound app.

Blood oxygen saturation (Sp02)

You can measure your current SpO2 on the SpO2 details page. The current SpO2 value is displayed if measurement succeeds, and the “Couldn’t measure” message is displayed if measurement fails. To ensure successful measurement, observe the following instructions while measuring: Wear the band tightly so that you have an appropriate sense of pressure on your wrist. Place your arm on a tabletop or a stationary surface with the band screen facing up. Remain still during the measurement process and focus on the measurement.
You can view your SpO2 measurement history by tapping the icon in the upper right corner of the app homepage, and then going to All data > SpO2.

Sleep breathing quality

The Amazfit Band 5 can monitor your SpO2 when you are sleeping to help you calculate your sleep breathing quality score and establish good sleeping habits.
To enable the sleep breathing quality monitoring function, go to Profile > Amazfit Band 5 > Health Monitoring in the bound app.
After the monitoring data is synchronized to the app, you can tap the icon in the upper right corner of the app homepage, and then choose All Data > Sleep to view the data.
Note The band stores only the sleep breathing quality analysis data of the previous night. After you wake up the next day, you need to synchronize the data to the bound app in time.

Stress

• Single measurement
  You can measure your stress on the stress details page. The stress value is displayed if measurement succeeds, and the “Couldn’t measure” message is displayed if measurement fails. Wear the band properly and remain still to ensure that measurement is successful. When a value is displayed on the stress measurement page, swipe down to view the stress status as shown below.

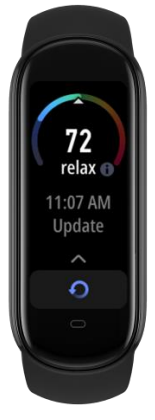

• Continuous measurement
  The band supports continuous stress monitoring. Go to Profile > Amazfit Band 5 > Health Monitoring in the bound app to enable the all-day pressure monitoring function.
  After completing the settings, wear your band, and the band will automatically monitor your stress in the resting state. You can view the details on the heart rate details page.

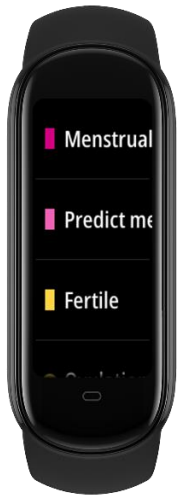

Cycle TrackingMenstruation prediction

You can complete the initial cycle tracking settings on the app Enjoy the page. After selecting setting items, you can view and save the selected menstruation status on the details page that appears. Tap the editing button below the calendar to add menstruations or tap the settings button in the upper right corner to enable menstruation alerts.
After completing app settings, you can view your current menstruation status, including text reminders about when menstruation starts, on the band’s Cycle Tracking page as shown in the following figure:

• Menstruation recording or termination
  During your menstruation period, you can quickly start or terminate the menstruation recording on the band. Accurate menstruation records can improve the band’s menstruation prediction accuracy.
• Alerts
  You can enable the menstruation alert and ovulation day alert on the Cycle Tracking page in the bound app. After these alerts are enabled, the band vibrates when the preset time arrives.

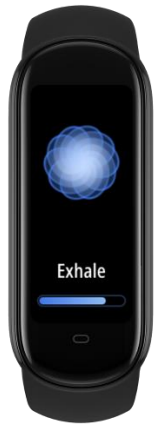

Breathing

Breathing training is available by following the dynamic effect on the breathing details page. During training, a progress bar in the lower area shows the total duration, which is one minute by default, and can be set on the breathing homepage as shown in the following figure:

Notifications

Enable notifications

To use the notification function, you need to enable App alerts in the bound app and keep the connection between the band and the phone active.
For iOS devices, you need to pair the band and phone through Bluetooth to receive notifications.
For Android devices, you need to add the app to the whitelist or auto-start list to keep the app running all the time in the background, so that the band is not disconnected from the app. The method for enabling notifications varies with the operating system of your phone. Go to Profile > Amazfit Band 5 > Run in the background and enable notifications as prompted.

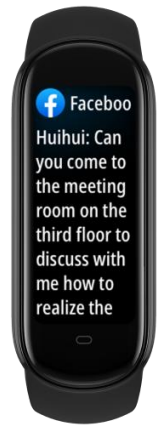

View notifications

When receiving a notification, the band vibrates and automatically displays the notification. To view historical notifications, swipe up on the watch face page to the notification menu.

Delete/clear notifications

The band stores a maximum of 10 notifications. When an extra notification is received, the earliest one is automatically deleted. .

1. Swipe down on the first notification to display the notification clearing page and tap to delete all notifications.
2. You can also swipe up on the notification list page to display the notification clearing page and tap to delete all notifications.

FAQ related to notifications

I have enabled the WhatsApp and Facebook message alerts, but my band does not receive them. Why?
Message alerts from software such as WhatsApp and Facebook can be received only when the following conditions are met:

1. Messages can be received on the notification bar of your phone.
   Otherwise, go to the system settings and enable WhatsApp and Facebook notifications.
2. The band is always connected with your phone, and the Bluetooth is always enabled.
   If the problem persists, try restarting Bluetooth on your phone.

More

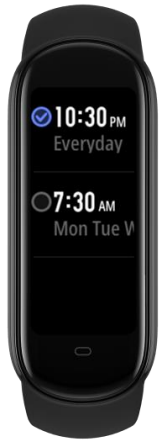

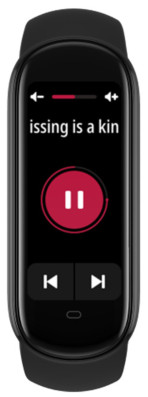

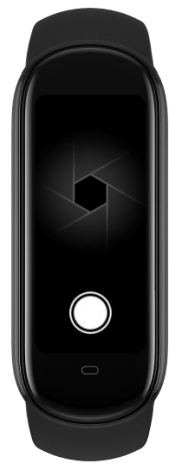

The More menu includes the following functions: DND, alarm, camera, music, stopwatch, timer, find the device, world clock, watch face, and settings.

DND settings

Select DND in the More menu to access the DND settings page. The following options are provided:

• DND: immediately enables the DND mode.
• Auto activate: automatically enables DND when you fall asleep wearing the band.
• Turn off DND: disables DND.
• 1 hour: enters the DND mode for 1 hour immediately from the current time.
• 2 hours: enters the DND mode for 2 hours immediately from the current time.
• 3 hours: enters the DND mode for 3 hours immediately from the current time.
• Customize: This allows you to set the DND period.

After the DND mode is enabled, the band no longer vibrates when it receives incoming calls, SMS notifications, app notifications, e-mail notifications, or nudge alerts. Other alerts are not affected.

Alarm

You can turn off or on alarms on the band screen directly, or add or edit alarms in the bound app. You can set a maximum of 10 alarms on the band.

When the alarm time arrives, the band vibrates. You can tap the Stop button to stop the alarm or tap the Snooze button or press the band button to activate snooze mode.
In snooze mode, the band vibrates every 10 minutes and closes the alarm after the sixth vibration if you do not tap the Stop button.
If you do not feel comfortable with the vibration intensity, you can go to Profile > Amazfit Band 5 > Alarm to customize the vibration intensity in the bound app.

Camera

• Camera settings

Android mobile phone: Go to Profile > Amazfit Band 5 > Lab > Camera Settings in the bound app to pair your phone with the band.
iOS mobile phone: After pairing the band, click Pair on the pop-up. If the band is not paired upon initial pairing, tap Camera to go to the camera page on the band, and then open the app and click Pair on the pop-up.

• Camera operations
  After completing pairing following the preceding steps, first, open the bound camera app. On the band, enter the camera page, and then click Camera to complete the remote control of the bound camera app. The photo-taking status is shown in the following figure:

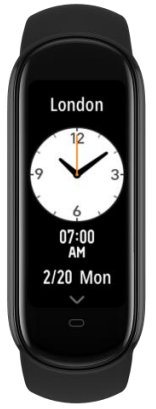

World Clock

You can edit and add time zones and adjust their sequence in the bound app so that time zones can be displayed in the world clock app. To customize the time zones displayed in the world clock according to your personal preference, go to Profile > Amazfit Band 5 > World clock setting in the bound app, and then select the time zones as needed.
After completing the settings, you can view the data corresponding to each city on the band.

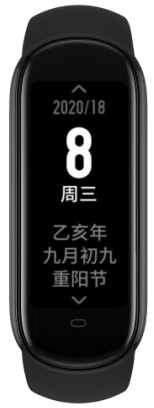

Calendar

The calendar is displayed only when the language is set to simplified Chinese or traditional Chinese.
The calendar page shows the solar and lunar dates, the year, and holiday information. Swipe up/down on the details page to view past and future days.

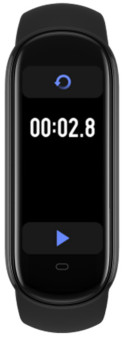

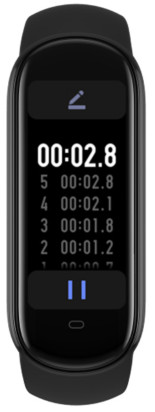

Stopwatch

The stopwatch is used for timekeeping. The maximum value is 99:59. When it is running, you can tap the flag button to count the number of times, or tap the pause button to pause timekeeping. A paused stopwatch can be resumed or ended. When the stopwatch is running in the background, the corresponding icon is displayed.

Timer

The band vibrates when the timer expires. The maximum timer duration is 99:59. The timer cannot start a countdown if it is set to 00:00. During the countdown, you can tap the pause button to pause the countdown. A paused timer can be resumed or ended.

Music

To use the music function, ensure that the band is connected to your mobile phone.
When the phone is playing music, the Music page of the band displays information about the music being played. You can pause the playback or switch to the next or previous track on the band. You can also press the + and － buttons to adjust the volume.

Currently, the following players are supported:

• In China: native music players, KuGou, QQMusic, NetEase Cloud Music, Kuwo & Kuwo HD, Xiami Music, Lizhi, and Dragonfly FM
• Outside China: iOS/Android native music player, Apple Music, Spotify, Pandora, SoundCloud, GoMusic, Google Play Music, AudioMack, iHeartRadio, Samsung Music, and SiriusXM

For a better user experience, ensure that:
The band and phone are paired through Bluetooth if you are using an iOS device.

Grant notification reading permission in the bound app if you are using an Android device. To enable the music function, go to Profile > Amazfit Band 5 > Watch display settings in the bound app, and then click Enable on the status bar.
Note: The user’s experience of this function may be affected by compatibility issues in the Android system and music players.

Silent

This menu is available only for Android devices.
You can choose More > Silent on the band and turn silent mode for the phone on or off.
Note: Ensure that the band and phone are connected when using this function.

Find my phone
You can find your phone from the band through the Bluetooth connection between the two devices.
Note: Keep the bound app running in the background when using this function.

Watch Face
Change the watch face on the band

• On the watch face page, long-press the screen to quickly access the watch face editing page and choose a watch face that you like.
• Alternatively, you can go to More > Band display on the band, choose a watch face that you like, and tap the screen to confirm the selection.

Change the watch face in the bound app

• Online watch face:
  To replace the watch face with an online watch face, open the app, go to Profile > Amazfit Band 5 > Watch face mall, download a watch face from the watch face center, and then synchronize it to the band.
• Photo watch face:
  To replace the watch face with a photo watch face, open the app, go to Profile > Amazfit Band 5 > Store, choose a watch face that you like, go to the watch face details page, replace the watch face with your photo as prompted, and synchronize the photo to the band.

Editable watch face
The band has two built-in watch faces that can be edited. You can edit elements to be displayed on the watch face as follows:

• Long press the watch face page to go to the watch face list page and select a built-in watch face.
• Tap Settings on the watch face preview to go to the settings page of the editable watch face.
• Select and tap a page element, or swipe up or down to switch between elements.
• Long press on the screen to save the customized watch face.

Settings

The Brightness, Lock screen, Reboot, Factory reset, Regulatory, and About menus are provided on the Settings page.

• Brightness: You can press the “+” and “－” buttons to adjust between five levels of screen brightness.
  If night mode is enabled in the bound app, the night mode brightness is automatically applied during night mode’s effective period. If you manually change the brightness during the night mode’s effective period, the change remains effective only during the current night mode period, and the default brightness is automatically restored upon the start of the next night mode period.
• Lock screen: You can swipe up to unlock the band screen when this function is enabled.
• Reboot: reboots the band.
• Factory reset: resets all data after confirmation. After a factory reset, the band MAC address changes, and you need to rebind it.
• Regulatory: displays band certification information.
• About: provides the firmware version and Bluetooth MAC of the band.

Band status alerts
Custom vibration
Band status alerts include incoming call alerts, idle alerts, goal notifications, phone alarm alerts, event reminders, email alerts, SMS alerts, and app alerts.
Go to Profile > Device > Vibration Mode in the bound app, select an alert category, and set the custom vibration mode. On the vibration mode list, tap Edit or Add to delete or add a custom vibration mode. When an alert is triggered on the band, the band vibrates in the selected custom vibration mode.
Note: You can set a maximum of 50 custom vibration modes.

Incoming call alerts

The band vibrates when receiving an incoming call notification. Tap Hang Up on the alert page to hang up the call, or tap Ignore or press the band button to ignore the call and stop the vibration. Before using this function, you need to enable incoming call alerts in the bound app.

Idle alerts

The band vibrates when it detects that you have been sitting for a long time. Before using this function, you need to enable idle alerts in the bound app.

Goal notifications
The band vibrates when you achieve your daily workout goals. Before using this function, you need to enable goal notifications in the bound app.
Phone alarm alert (For the MIUI system only)
The band vibrates when an alarm rings on your phone. This function is supported only in the MIUI system. Before using this function, you need to enable phone alarm alerts in the bound app.

Event reminders

The band vibrates to notify you of scheduled events. Before using this function, you need to enable event reminders in the bound app.

Email alert

The band vibrates when receiving emails. Before using this function, you need to enable email alerts in the bound app.

• Android: To enable email alerts, go to Profile > Amazfit Band 5 > App alerts, and add the email app. Ensure that the app is running in the background.
• iOS: To enable email alerts, go to Profile > Amazfit Band 5 > More > Incoming email, and enable email alerts. For the iOS system, email alerts are processed by the system, meaning the app does not need to run in the background.

SMS alerts
The band vibrates when the phone receives SMS messages. Before using this function, you need to enable SMS alerts in the bound app.
Note: For the Android system, ensure that the app is running in the background. For the iOS system, SMS alerts are processed by the system, meaning the app does not need to run in the background.
App notification alerts
The band vibrates and displays notifications when the phone receives notifications.
Before using this function, you need to enable app notification alerts in the bound app.

Workout secondary screen

After you start workout monitoring on the workout page of the bound app, data related to the workout is automatically displayed on the band through the connection between the band and the phone.

Workout function

You can start workout monitoring directly on the band. The following sports are supported: outdoor running, treadmill, cycling, walking, workout, swimming, elliptical trainer, rowing machine, yoga, and jump rope. For outdoor running, cycling,
and walking, you can connect your brand to the app and use your phone’s GPS to record the workout route. To record the workout route accurately, you need to enable the GPS service on the phone.

Starting a workout

Swipe up to the workout menu on the watch face page and select a sport type. The workout page is displayed after a 3s countdown.
For a GPS-based workout, you need to maintain the connection between the band and the phone and enable the GPS service to track the route.

During a workout

During a workout, you can view the following data on the band:

• Outdoor running: time, distance, pace, heart rate, and heart rate zone
• Treadmill: time, distance, cadence, heart rate, and heart rate zone
• Cycling: time, distance, speed, heart rate, and heart rate zone
• Walking: time, distance, steps, heart rate, and heart rate zone
•  Workout: time, calories, heart rate, and heart rate zone
• Swimming: time, distance, calories, strokes, and stroke rate
•  Elliptical trainer: time, calories, heart rate, and heart rate zone
• Rowing machine: time, total strokes, calories, stroke rate, pull time, release time, heart rate, and heart rate zone
• Yoga: time, calories, heart rate, and heart rate zone
• Jump rope: time, total jumps, calories, frequency, heart rate, and heart rate zone

Pause/Continue/End a workout
Long press the button on the band to pause a workout. The pause page appears. Tap Continue to continue the workout or tap Stop and then tap OK on the confirmation page to end the workout and save the workout record.

View the workout data

• View the data of the current workout:
  After a workout, you can immediately view the data summary on the band.
• View the detailed workout data:
  After a workout, you can connect the band to the app and view all historical workout data in the workout module of the app. You can tap a workout record to view the details, such as the heart rate chart.

Workout heart rate zone
During a workout, the band calculates the heart rate range based on your personal information, allowing you to determine your workout intensity accordingly. The band displays your heart rate zone in the heart rate data column during your workout. After a workout, you can view durations in each heart rate zone on the Details page of the workout record in the bound app.
Six default heart rate zones are provided.
They are calculated based on the estimated maximum heart rate. The maximum heart rate is equal to 220 minus the user’s age, which is the commonly used formula.

Classification rules and descriptions of heart rate zones
Max BPM = 220 – Current age

Band maintenance

1. You are advised to regularly clean the band and strap with water and dry them with a soft cloth.
2. Do not use cleaning agents such as soap, hand sanitizer, or bath foam to clean the band to avoid skin allergy and device corrosion.
3. Clean and dry the device immediately after you bathe, swim, or sweat while wearing the device. Do not wear the device when you bathe or swim unless the device supports such conditions.

Caution

1. The band can withstand pressure equivalent to that of 50m underwater. You can wear it in swimming pools and shallow waters, but you cannot wear it while driving or at the sauna.
2. The band is not waterproof to corrosive liquids such as acidic and alkaline solutions and chemical reagents. Damage or defects caused by abuse or improper use are not covered by the warranty.

AMAZFIT A2017 Bip U Smart Watch

Package Contents

About the Watch

Note: Press and hold the power button to power on the watch. If the watch cannot be turned on, please charge it first.

Pairing the Watch

1. Scan the QR code on the Instruction Manual with your mobile phone to download the app to your mobile phone. You can also download the latest version of App from the Google Play Store or Apple App store.
2. Open the APP, register an account and log in.
3. Follow the steps in the app to pair your watch correctly. Once pairing is complete, the watch will display the correct time.
4. You can set the other watch functions as needed.

Note:

• For a better user experience, please use the most recent version of the app.
• The operating system needs to be Android 5.0, iOS 10.0, or above.
• Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the steps in the app to pair your watch correctly.

Charging the Watch

1. Connect the USB port of the watch charging cable to a mobile phone charger or a computer USB port.
2. Put the watch into the charging base. Pay attention to the direction and position of the watch, and make sure that the metal contacts on the back of the watch fit closely with the charging base.
3. When charging starts, the watch screen displays the charging progress.

Note:

• Please use the charging base that comes with the watch. Make sure that the charging base is dry before charging.
• Please use a 1A or above power adapter.

Disassembly and Assembly of the Watch Strap
Please refer to the illustrations to disassemble or assemble the watch strap.

Note: Once the strap is assembled, pull the strap properly to ensure it is installed successfully.

Wearing the Watch

1. Wear the watch strap not too tightly or too loosely, and leave enough space for the skin to breathe. This makes you feel comfortable and allows the sensor to function.
2. When measuring blood oxygen saturation, wear the watch correctly.
   Avoid wearing the watch on the wrist joint, keep your arm flat, maintain comfortable (appropriately tight) fitting between the watch and the skin of your wrist, and keep your arm still throughout the measurement process. When affected by external factors (arm sag, arm sway, arm hair, tattoo, etc.), the measurement result may be inaccurate or the measurement may fail and provide no output.
3. We recommend that you tighten the watch strap during exercise and loosen it afterwards.

Basic Parameters

Product model: A2017
Input: 5V d.c. 500mA MAX
Bluetooth version: BLE V5.0
BLE output power: <5 dBm
Operating temperature: 0°C to 45°C
View product certification information on the watch’s Settings >
System > Supervision page.
Water resistance rating: 5 ATM
Bluetooth frequency: 2400–2483.5 MHz
Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Anhui Huami Information Technology Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

Regulatory Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AC8UA2017

Any changes or modifications that are not expressly approved by the party responsible for the compliance may void the user’s authority to operate the device.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

IC: 21806-A2017
CAN ICES-3(B)/NMB-3(B)

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Disposal and Recycling Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the
environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Certifications and Safety Approvals

Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device type A2017 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://support.amazfit.com/en/
For more regulatory information and product certification/compliance logos related to Amazfit Bip U, please go to Regulatory on your Amazfit Bip U.

Battery Safety

1. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
2. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
3. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

Safety Notice

1. Do not allow children or pets to bite or swallow the product or its accessories, as this may cause injury.
2. Do not place this product under excessively high or low temperatures, which may cause the product to catch fire or explode.
3. Do not place this product near heat sources or open flame, such as ovens and electric heaters.
4. Some people may experience allergic skin reactions to plastics, leathers, fibers, and other materials, and symptoms such as redness, swelling, and inflammation will occur after long-term contact with this product’s components. If you experience such symptoms, please discontinue use and consult your doctor.
5. Do not use unauthorized or incompatible power adapters or data cables, which may damage the watch and accessories, or cause fire, explosion, or other hazards.
6. The radio waves generated by this product may affect the normal operation of implanted medical devices or personal medical devices, such as pacemakers and hearing aids. If you use any such medical devices, consult the manufacturer for relevant usage restrictions.
7. Do not dispose of this device or its accessories as ordinary household waste. Please comply with local regulations for the disposal of this device and its accessories, and support recycling.

Repair and Maintenance

1. Avoid using detergents such as soap, hand sanitizer, bath foam, or lotion for cleaning to prevent chemical residues from irritating the skin, corroding the device, or degrading the water resistance of the device.
2. After wearing the device while bathing (for devices that support bathing), swimming (for devices that support swimming), or sweating, please promptly clean and dry the device.
3. The leather strap is not waterproof. Avoid getting the strap wet, as this may shorten its service life.
4. When using light-colored watch straps, avoid contact with dark clothing to prevent staining.
5. Do not wear your watch during snorkeling, hot showers, hot springs, saunas (steam rooms), diving, underwater diving, water skiing, and other activities involving high-speed water currents.
6. Do not place the device in direct sunlight for long periods. Excessively high or low ambient temperature may cause device failure.
7. Handle with care during transportation. Keep the device dry and away from humidity.

Troubleshooting
Please check the FAQ on the website: https://support.amazfit.com/en

Warranty and Return Policy

The Amazfit Limited Warranty covers Amazfit products against manufacturing defects beginning on the original purchase date. The warranty period is 12 months or another specified period as the applicable consumer
laws in the consumer’s country of purchase require. Our warranty is in addition to rights provided by applicable consumer laws.

Official website: en.amazfit.com
Support: support.amazfit.com

amazfit Vienna Smart Watch

Package Contents

About the Watch

Note: Press and hold the power button to turn on the watch. If the watch cannot be turned on, please charge it and then try again.

Pairing the Watch

1. Scan the QR code on the Instruction Manual with your mobile phone to download the app to your mobile phone. You can also download the latest version of app from the Google Play Store or Apple App Store.
2. Open the app, register an account and log in.
3. Follow the steps in the app to pair your watch correctly. Once pairing is complete, the watch will display the correct time.
4. You can set other watch features as needed.

Note:

1. For better user experience, please use the most recent version of the app.
2. The operating system needs to be Android 7.0, iOS 12.0, or above.
3. Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the steps in the app to pair your watch correctly.

Charging the Watch

1. Connect the watch’s charging cable to a power adapter or a computer’s USB port.
2. Tightly align the charging port with the charging contacts on the rear of the watch.
3. When charging starts, the watch screen displays the charging progress.

Note:

1. Use the charging cable provided with the watch, and ensure that the charging port is dry before charging.
2. Please use a 1A or above power adapter.

Disassembling and Assembling the Watch Strap

Please refer to the illustrations to disassemble or assemble the watch strap.

Note: Once the strap is assembled, pull the strap properly to ensure it is installed successfully.

Wearing the Watch

1. Wear the watch strap neither too tight nor too loose, and leave enough space for the skin to breathe. This makes you feel comfortable and allows the sensor to function.
2. When measuring blood oxygen saturation, wear the watch correctly. Avoid wearing the watch on the wrist joint, keep your arm flat, maintain comfortable (appropriately tight) fitting between the watch and the skin of your wrist, and keep your arm still throughout the measurement process. When affected by external factors (arm sag, arm sway, arm hair, tattoo, etc.), the measurement result may be inaccurate or the measurement may fail and provide no output.
3. We recommend that you tighten the watch strap during workout and loosen it afterwards.

Basic Parameters

• Product Name: MULTI-SPORT WATCH Product
• model: A2029
• Input: DC 5 V 550 mA
• Bluetooth version: V5.0
• WLAN: 2.4 GHz 802.11 b/g/n
• Bluetooth output power: <18 dBm
• BLE output power: <5 dBm
• Operating temperature: 0°C to 45°C
• Water resistance rating: 20 ATM
• Bluetooth frequency: 2402–2480 MHz
• Wi-Fi frequency: 2402–2480 MHz
• Wi-Fi output power: <20 dBm

View product certification information on the watch’s Settings > System > Regulation page.
Device requirements: Devices installed with Android 7.0 or iOS 12.0 or above OS versions
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Anhui Huami Information Technology Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

Battery Safety

1. This device is equipped with a built-in battery that cannot be removed or replaced. Do not disassemble or modify the battery by yourself.
2. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion.
3. Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas.
4. A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

Safety Notice

1. Do not allow children or pets to bite or swallow the product or its accessories, as this may cause injury.
2. Do not place this product under excessively high or low temperatures, which may cause the product to catch fire or explode.
3. Do not place this product near heat sources or open flame, such as ovens and electric heaters.
4. Some people may experience allergic skin reactions to plastics, leathers, fibers, and other materials, and symptoms such as redness, swelling, and inflammation will occur after long-term contact with this product’s components. If you experience such symptoms, please discontinue use and consult your doctor.
5. Do not use unauthorized or incompatible power adapters, chargers, or data cables, which may damage the watch and accessories, or cause fire, explosion, or other hazards.
6. The radio waves generated by this product may affect the normal operation of implanted medical devices or personal medical devices, such as pacemakers and hearing aids.
7. If you use any such medical devices, consult the manufacturer for relevant usage restrictions.
8. Do not dispose of this device or its accessories as ordinary household waste. Please make sure you dispose of or recycle this device and its accessories in accordance with local laws and regulations.

Repair and Maintenance

1. Avoid using detergents such as soap, hand sanitizer, bath foam, or lotion for cleaning to prevent chemical residues from irritating the skin, corroding the device, or degrading the water resistance of the device.
2. After wearing the device while bathing (for devices that support bathing), swimming (for devices that support swimming), or sweating, please promptly clean and dry the device.
3. The leather strap is not waterproof. Avoid getting the strap wet, as this may shorten its service life.
4. When using light-colored watch straps, avoid contact with dark clothing to prevent staining.
5. Do not place the device in direct sunlight for long periods. Excessively high or low ambient temperature may cause device failure.
6. Handle with care during transportation. Keep the device dry and away from humidity.

Troubleshooting

Please check the FAQ on the website: https://support.amazfit.com/en.

Warranty and Return Policy

The Amazfit Limited Warranty covers Amazfit products against manufacturing defects beginning on the original purchase date. The warranty period is 12 months or another specified period as the applicable consumer laws in the consumer’s country of purchase require. Our warranty is in addition to rights provided by applicable consumer laws.

Official website: en.amazfit.com Support: support.amazfit.com/en

Disposal and Recycling Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Certifications and Safety Approvals

Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device type A2029 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://support.amazfit.com/en/

FCC SAR

This equipment has been tested and meets applicable limits for radio frequency (RF) exposure. SAR limits depend on whether this equipment is used against the head or on the wrist. The FCC SAR limit for extremity SAR is 4.0W/kg (10g) and head SAR is 1.6W/kg (1g). The highest SAR value reported under this this standard during product certification when properly Limb worn (0mm) on the extremity SAR is 0.17 W/kg, and close to mouth (10mm) SAR is 0.23 W/kg.

Amazfit T-Rex Product
Instruction Manual

Packaging contents

Smartwatch with the band × 1	Charging base × 1	Instruction Manual × 1

About the Watch

Note: If the watch is powered off and doesn’t turn on when you press and hold the power button, the battery may be running low. Please charge the watch and try again.

Installing the App

The watch works with the Zepp App. The Zepp App helps you control your smartwatch and all its functions.

1. Press and hold the power button to turn the watch on.
2. Scan the QR code on the Instruction Manual with your mobile phone to download the Zepp App to your mobile phone. You can also download the latest version of the  Zepp App from the Google Play Store or Apple App store.

Note:

1. For a better user experience, please use the most recent version of the Zepp App.
2. The operating system needs to be Android 5.0, iOS10.0, or above.

https://api.huami.com/t/412e492e

Pairing the Watch

1. Open the Zepp App on your mobile phone and create an account. Please login if you already have an account.
2. From the device list, select the watch you want to pair. Finish pairing by following the instructions on the app.
3. Once the pairing is done, the watch will display the correct time. You can set the other watch functions as needed.

Note:
Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the steps in the app to pair your watch correctly.

Charging the Watch

Only use the original charger to charge your watch. The charging plates on the back of the watch should be aligned with those of the charger. Once the watch begins to charge,  the charging indicator will appear on the screen.

Note:
Only use the original charging base provided in the product package to charge your watch. Also make sure that the charging base is always kept dry.

Regulatory Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including the interference that may cause undesired operation.

FCC ID: 2AC8UA1919
Any changes or modifications that are not expressly approved by the party responsible for the compliance may void the user’s authority to operate the device.

Note: This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences in a residential installation. This device generates, uses, and may radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged  to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the device and receiver.
– Connect the device into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation if the device.

IC: 21806-A1919, CAN ICES-3(B)/NMB-3(B)

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and the maximum (or lesser) gain approved for the transmitter by  Industry Canada. To reduce the potential of radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotopically radiated power  (e.i.r.p.) is not more than that necessary for successful communication.

Disposal and Recycling Information

The following symbol signifies that this device has to be disposed of separately from ordinary household wastes at the end of its life. Please kindly be aware that this is your responsibility to dispose the electronic device at recycling centers so as to help conserve the natural resources.

Certifications and Safety Approvals

Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device type A1919 is in compliance with Directive 2014/53/EU. The full text of the EU  declaration of conformity is available at the following internet address:
http://en.amazfit.com/support.html
For more regulatory information and product certification/compliance logos related to Amazfit T-Rex, please go to Regulatory on your Amazfit T-Rex.

Safety Notice

1. The device is water-resistant with a certified rating of 5ATM. This means that the device is resistant to rain and can be worn while showering. It may also be used in shallow-water activities, such as swimming in a pool.
2. However, the watch should not be used when scuba diving, bathing, taking a sauna, or in other activities involving a high velocity of water or the submersion below shallow depth.
3. Please do not operate the watch underwater. After submerging, dry it with a dry cloth before operating or charging.
4. The watch is not protected against chemical reagents, acidic or alkaline solutions, etc. Defects caused by liquid damages are not covered under the warranty.

Basic Parameters

Product model: A1919
Wireless connection: BT 5.0, BLE
Input: 5 V 500 mA MAX
Frequency: 2402–2480 MHz
Max. Output: 0 dBm
Operating temperature: 0°C to 45°C
Water resistance rating: 5 ATM
Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions

Warranty and Return Policy

The Amazfit Limited Warranty covers Amazfit products against manufacturing defects beginning on the original purchase date. The warranty period is 12 months or other period as the applicable consumer laws in the consumer’s country of purchase required. Our warranty is in addition to rights provided by applicable consumer laws.
Offcial website: en.amazfit.com
Support: support.amazfit.com

Amazfit GTS Product Manual

Package Contents

About the Watch

Note: If the watch is powered off and doesn’t turn on when you press and hold the power button, the battery may be running low. Please charge the watch and try again.

Installing the App

The watch works with the Zepp App. The Zepp App helps you control your smartwatch and
all its functions.

1. Press and hold the power button to turn the watch on.
2. Scan the QR code on the Instruction Manual with your mobile phone to download the Zepp App to your mobile phone. You can also download the latest version of the Zepp  App from the Google Play Store or Apple App store.

Note:

1. For a better user experience, please use the most recent version
   of the Zepp App.
2. The operating system needs to be Android 5.0, iOS 10.0, or above.

https://api.huami.com/t/412e492e

Pairing the Watch

1. Open the Zepp App on your mobile phone and create an account. Please login if you already have an account.
2. From the device list, select the watch you want to pair. Finish pairing by following the instructions on the app.
3. Once the pairing is done, the watch will display the correct time. You can set the other watch functions as needed.

Note:
Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the steps in the app to pair your watch correctly.

Charging the Watch
Only use the original charger to charge your watch. The charging plates on the back of the watch should be aligned with those of the charger. Once the watch begins to charge,  the charging indicator will appear on the screen.

Note:
Only use the original charging base provided in the product package to charge your watch. Also, make sure that the charging base is always kept dry.

Disassembly and Assembly of the Watch Strap

1.  The strap can be adjusted according to your wrist size.
2. Please refer to the illustrations to disassemble or assemble the watch strap.

Note:

1.  Once the strap is assembled, pull the strap properly to ensure it is installed successfully.
2. The leather strap is not waterproof or water-resistant. Please keep it away from any liquids.

If you are planning to wear your watch during swimming or any other activities that may expose you to water, please replace the leather strap with a silicon one.

Regulatory Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including the interference that may cause undesired operation.

FCC ID: 2AC8UA1914
Any changes or modifications that are not expressly approved by the party responsible for the compliance may void the user’s authority to operate the device.

Note: This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences in a residential installation. This device generates, uses, and may radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged  to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the device and receiver.
– Connect the device into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation if the device.
IC: 21806-A1914
CAN ICES-3(B)/NMB-3(B)

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and the maximum (or lesser) gain approved for the transmitter by  Industry Canada. To reduce the potential of radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotopically radiated power  (e.i.r.p.) is not more than that necessary for successful communication.

Disposal and Recycling Information

The following symbol signifies that this device has to be disposed of separately of ordinary household wastes at the end of its life. Please kindly be aware that this is your responsibility to dispose of the electronic device at recycling centers so as to help conserve natural resources.

Certifications and Safety Approvals

Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device type A1914 is in compliance with Directive 2014/53/EU. The full text of the EU  declaration of conformity is available at the following internet address: http://en.amazfit.com/support.html For more regulatory information and product ertification/compliance logos related to Amazfit GTS, please go to Regulatory on your Amazfit GTS.

Safety Notice

1.  The device is water-resistant with a certified rating of 5ATM. This means that the device is resistant to rain and can be worn while showering. It may also be used in shallow-water activities, such as swimming in a pool.
2. However, the watch should not be used when scuba diving, bathing, taking a sauna, or in other activities involving a high velocity of water or the submersion below shallow depth.
3. Please do not operate the watch underwater. After submerging, dry it with a dry cloth before operating or charging.
4. The watch is not protected against chemical reagents, acidic or alkaline solutions, etc. Defects caused by liquid damages are not covered under the warranty.

Basic Parameters

Product model: A1914
Wireless connection: BT 5.0, BLE
Input: 5 V 500 mA MAX
Frequency: 2402–2480 MHz
Max. Output: 0 dBm
Operating temperature: 0°C to 45°C
Water resistance rating: 5 ATM
Device requirements: Devices installed with Android 5.0 or iOS 10.0 or above OS versions

Warranty and Return Policy

The Amazfit Limited Warranty covers Amazfit products against manufacturing defects beginning on the original purchase date. The warranty period is 12 months or another period as the applicable consumer laws in the consumer’s country of purchase required. Our warranty is in addition to rights provided by applicable consumer laws.
Official website: en.amazfit.com
Support: support.amazfit.com

 Package Contents

About the Earbuds

Using Your Earbuds

Installing the Zepp app
01. Install the Zepp app to experience more features. Scan the QR code below with your phone to download and install the latest version of the app.
https://api.huami.com/forwarding/MiDongUSAppLink

Pairing with the App

1.  Start the app and log in or register an account.
2. Choose Profile > My Devices > Add to add the Amazfit PowerBuds Pro.
3. Open the charging case cover, press and hold the feature button for 2 seconds, and complete pairing as prompted. When you open the charging case cover for the first time, the earbuds automatically enter the pairing state.

* Keep Bluetooth on when you are performing device pairing and using the earbuds. We recommend charging the earbuds before use.

• Replacing the Earplugs
  Choose the earplugs that best fit your ear canals based on the noise cancellation effect and comfort.
  Align the positioning hole on the earplug with the positioning slot at the earbud mouthpiece.

• Wearing the Earbuds
  For a better noise cancellation effect, adjust the earbuds to ensure that they fit closely with your ear canals.

• Controlling the Earbuds


1. Long press the pressure-sensitive button: switch between Active Noise Cancellation on, Thru Mode, and Active Noise Cancellation off.
2. Press the pressure-sensitive button once: play, pause, or answer a call.
3. Press the pressure-sensitive button twice: skip to the next song or reject a call.
4. Press the pressure-sensitive button three times: wake up the device voice assistant.
   You can personalize features of the left and right earbud buttons in the app. Voice assistant support may vary depending on the device’s brand and model.

• Charging the Earbuds
  Place earbuds into the charging case, which will automatically charge the earbuds.
  Use the USB Type-C charging cable to charge the charging case.
• Viewing Battery Level
  After the earbuds are connected to the device, you can check the power of the earbuds and the charging case in the app.
  Open the lid or press the charging case feature button. The white indicator on the charging case indicates sucient power, and the red indicator indicates that the power is low and the case needs to be charged.

Basic Specifications

Product model: earbuds A2030; charging case A2031
Battery capacity: earbuds 70 mAh; charging case 510 mAh
Charging case input: 5 V 0.8 A
Charging case output: 5 V 0.3 A
Bluetooth frequency: 2400–2483.5 MHz
BLE output power: <8 dBm
System requirements: Android 5.0 or iOS 10.0 or later
Wireless connection: Bluetooth 5.0, BLE∼
Waterproof and dustproof rating: earbuds IP55
Functional ambient temperature: 0°C-45°C
HVIN: A2030-Left, A2030-Right
Tips:
The Amazfit PowerBuds Pro has a waterproof and dustproof rating of IP55. They are resistant to sweat and moderate rain, but cannot be immersed in water and are not suitable for any water activities. Do not wear earbuds while swimming or showering. Do not charge the earbuds in a wet environment. If the earbuds come into contact with liquid, wipe them dry with a soft, dry, and lint-free cloth. The charging case is not waterproof. Keep it dry and clean.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Anhui Huami Information Technology Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

Regulatory Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AC8UA2030
Any changes or modifications that are not expressly approved by the party responsible for the compliance may void the user’s authority to operate the device.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC: 21806-A2030
CAN ICES-003(B)/NMB-003(B)

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Disposal and Recycling Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as the terms and conditions of such collection points.

Certifications and Safety Approvals

Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device type A2030 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://support.amazfit.com/en/

Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device type A2030 is in compliance with Radio Equipment Regulations 2017 (S.I. 2017/1206). The full text of the UK declaration of conformity is available at the following internet address: http://en.amazfit.com/support.HTML08

Battery Safety

This device is equipped with a built-in battery that cannot be removed or replaced. Do not disassemble or modify the battery by yourself.
– Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion.
– Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas.
– A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

Safety Notice

Before using this product, please read and follow the precautions below to ensure the best product performance and avoid dangerous or illegal situations.

When you use the earbuds to listen to music or answer calls, you are recommended to use the minimum volume required for music or calls to avoid hearing loss.
Using the earbuds at high volume for long periods of time may cause permanent hearing loss.

1. Use a power adapter that has passed compulsory certification and meets standard requirements for charging.
2. This product and its accessories are small parts. Keep the product and its accessories out of the reach of children. Children may inadvertently damage the product and its accessories or may swallow small parts, and thereby be exposed to choking or other risks. When not in use, store the earbuds in the charging case and keep them away from children and pets.
3.  Some people are allergic to plastic, silicone, and other materials. Long-term contact with the body may cause redness, swelling, inflammation, and other symptoms. Any user who experiences such conditions should stop using the product and consult a doctor.
4. This product contains lithium batteries. Do not disassemble, knock, squeeze, or put the product into fire. If there is severe swelling, stop using this product. Additionally, do not expose this product to high-temperature environments.
5. This product contains components and radio transmitters that generate electromagnetic fields which may interfere with pacemakers, Defibrillators, hearing aids, or other medical equipment. Keep the product at a safe distance from medical equipment. Consult your medical device manufacturer for restrictions on the use of medical devices. If you suspect that this product is interfering with your pacemaker, defibrillator, hearing aid, or other medical devices, immediately stop using it.
6.  Observe the relevant regulations of your region or country, and do not use this product while driving.
7.  Wireless devices may interfere with the flight systems of aircraft. Please observe relevant airline regulations. Do not use this product in places where wireless devices are prohibited.
8. If you use the earbuds while performing activities that require concentration, pay attention to both your own safety and the safety of others, such as when cycling or walking on or near roads, construction sites, or railways. Remove the earbuds or lower the volume to ensure that you can hear surrounding sounds, including alarms and warning signals.
9. Do not dispose of this product and its accessories as ordinary household garbage.
10. Abide by local laws and regulations on the disposal of this product and its accessories, and support recycling activities.

Troubleshooting

Please check the FAQ on the website: https://support.amazfit.com/en.

Warranty and Return Policy

The Amazfit Limited Warranty covers Amazfit products against manufacturing defects beginning on the original purchase date. The warranty period is 12 months or another specified period as the applicable consumer laws in the consumer’s country of purchase required. Our warranty is in addition to rights provided by applicable consumer laws. Official website: en.amazfit.com
Support: support. amazfit.com/en

User Manual

Packing List

Product Introduction

Note: If turning on the watch by holding the power button doesn’t work, charge the watch and try again.

Power on: press and hold the SELECT button for about 2 seconds until the watch is powered on.
Confirm: press the SELECT button.
Page up: press the UP button.
Page down: press the DOWN button.
Cancel: Press the BACK button.
Activate the backlight: press and hold the BACK button for about 2 seconds.
Pause/continue exercise: press the SELECT button in exercise mode.
Stop exercise: press the BACK button when exercise is paused.
Find phone: press and hold the BACK and UP buttons for about 2 seconds.
Restart: Press and hold the SELECT and UP buttons for about 2 seconds until the watch restarts.
Factory reset: press and hold the BACK and DOWN buttons for about 2 seconds. When the confirmation page appears, press the SELECT button to confirm factory reset or press BACK to cancel.
View certification information: press and hold the SELECT and DOWN buttons for about 2 seconds and view certification information on the Supervision page.

Installing the App

Use your phone to scan the QR code to the right to download and install the app.

https://api.huami.com/t/412e492e

Notes:

1. For a better experience, update the app to the latest version.
2. The system requires Android 5.0 or iOS 10.0 or later.

Pairing the Watch

1. Start the app and log in or register an account.
2. Press and hold the SELECT button to power on the watch.
3. Choose Profile > My Device > Add the app, add Amazfit Neo, and press the SELECT button to confirm the pairing and complete pairing as prompted by the app. The watch will display the correct time after it is paired.

Charging the Watch

Use the original charging base to charge the watch. Connect the watch to the charging base with the charging port of the watch aligned to the metal contacts of the charging base. The charging image is displayed when charging starts.

Notes:
Use the original charging base and ensure the charging port is dry.
Align the metal contacts of the charging base to the positioning groove of the watch and ensure that the watch is securely fastened.
Connect the USB port to a mobile phone charger with an output current above 500 mA or a computer USB port.

Basic Parameters

Model: A2001
Battery capacity: 160 mAh
Input: 5V 500mA
Wireless connection: Bluetooth 5.0 BLE
Water resistance rating: 5 ATM
Functional ambient temperature: 0°C-45°C
System requirements: Android 5.0 or iOS 10.0 or higher

Regulatory notice

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AC8UA2001
Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is  encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. Please take attention that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

IC: 21806-A2001
CAN ICES-3(B)/NMB-3(B)

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry  Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Disposal and Recycling Information

The following symbol signifies that this device has to be disposed of separately of ordinary household wastes at the end of its life. Please kindly be aware that this is your responsibility to dispose of the electronic device at recycling centers so as to help conserve natural resources.

Certifications and Safety Approvals

Hereby, Anhui Huami Information Technology Co., Ltd. declares that the radio device type A2001 is in compliance with Directive 2014/53/EU. The full text of  the EU declaration of conformity is available at the following internet address: http://en.amazfit.com/support.html

Safety Notice

The device is water-resistant with a certified rating of 5ATM. This means that the device is resistant to rain and can be worn while showering. It may also be used in shallow-water activities, such as swimming in a pool. However, the watch should not be used when scuba diving, bathing, while in a sauna, or during other activities involving a high- velocity of water or submersion below shallow depth.

Please do not operate the watch underwater. After submerging, dry it with a dry cloth before operating or charging.
The watch is not protected against chemical reagents, acidic or alkaline solutions, etc. Defects caused by liquid damages are not covered under the warranty.

Warranty and Return Policy

The Amazfit Limited warranty covers Amazfit products against manufacturing defects beginning on the original purchase date. The warranty period is 1 year or another period as required by the applicable customer laws in the customer’s country of purchase. Our warranty is in addition to rights provided by applicable customer laws. Official website: en.amazfit.com Support website: support.amazfit.com

Importer:
Beryko s.r.o.
Na Roudné 1162/76, 301 00 Plzeň
www.beryko.cz
