]]> Advantech EKI-2428G-4FA Startup Manual

Rackmount Unmanaged Redundant Industrial Switch

Overview

The EKI-2428G is an unmanaged switch with 24 Gigabit ports and 4 Gigabit SFP ports that can provide users with abundant ports to connect many devices. It is designed for rack-mount installation and is suitable for edge to core networks.

Packing List

Before installation, please make sure that you have received the following:

  • 1 x EKI-2428G-4FA Rackmount Unmanaged Switch
  • 1 x Startup manual
    If anything is missing or damaged, contact your distributor or sales representative immediately

User Manual

For more detailed information, please refer to the full manual which can be found on Advantech’s website.

Notes

For more information on this and other Advantech products, please visit our websites at: http://www.advantech.com/products

For technical support and service: http://www.advantech.com/support/

This startup manual is for EKI-2428G-4FA

Part No:

1st Edition

Dec 2017

Specifications

General

  • Compatibility: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z
  • LAN: 10/100/1000 Base-TX
  • SFP: Up to 110 km (depends onSFP)
  • Ethernet RJ-45 Distance: Up to 100m
  • Connectors: 24 x 10/100/1000Base-T/TX RJ-45 4 x SFP(mini-GBIC) port
  • PowerRequirements: 100~240V single AC power input
  • Power Consumption: 18W
  • Dimensions (W x H x D): 442 x 44 x 211.1 mm
  • Enclosure: Metal shell with solid mounting kits
  • Operating Temperature: 0 ~ 55°C (32 ~ 131°F)
  • Storage Temperature: -20 ~ 70°C (-4 ~158°F)
  • Operating Humidity: 10 ~ 95%(non-condensing)
  • Storage Humidity: 10 ~95% (non-condensing)
  • EMC: CE FCC Class A
  • Warranty: 5years

Overview

ADVANTECH Rackmount Ummanaged Redundant Industrial Switch rear diagram

Warning: This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

Safety Instructions

  1. Read these safety instructions carefully.
  2. Keep this user manual for later reference.
  3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
  4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  5. Keep this equipment away from humidity.
  6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage.
  7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.
  8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.
  9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
  10. All caution and warning on the equipment should be noted.
  11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
  12. Never pour any liquid into an opening. This may cause fire or electrical shock.
  13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
  14. If one of the following situations arises, get the equipment checked by service personnel:
    • The power cord or plug is damaged.
    • Liquid has penetrated into the equipment.
    • The equipment has been exposed to moisture.
    • The equipment does not work well, or you cannot get it to work according to the user manual.
    • The equipment has been dropped and damaged.
    • The equipment has obvious signs of breakage.
  15. Do NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -20°C (-4°F) OR ABOVE 70°C (158°F) THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.

Rack Mounting

  1. Position one bracket to align with the holes on one side of the switch and secure it with the bracket screws. Then attach the remaining bracket to the other side of the Switch.
    ADVANTECH Rackmount Switch screws
  2. After attaching the mounting brackets, position the EKI-2428G-4FA Unmanaged Switch in the rack by lining up the holes in the brackets with the appropriate holes on the rack. Secure the Switch to the rack with a screwdriver with the rack-mounting screws.
    ADVANTECH Rackmount Redundant Switch mounting with screws
]]> ADVANTECH SOM-5897 6th Gen Intel Celeron Processors COM Express Basic Module Manual https://usemanuals.com/advantech/som-5897-module/ Fri, 21 Jul 2023 11:02:57 +0000 https://usemanuals.com/?p=169522 Read More...

]]> ADVANTECH SOM-5897 6th Gen Intel Celeron Processors COM Express Basic Module User Guide

Features

  • 6th Gen Intel Xeon/Core i7/i5/i3/Celeron + PCH QM170
  • Dual DDR4 2133, 1.2V Low Power Memory, Max. 32GB
  • Support XDP, TPM2.0
  • Flexible I/O support: 8 PCIe x1(Gen3) with LAN, TPM2.0
  • Supports iManager SUSIAccess, and Embedded Software APIs

Software APIs:

  • Watchdog
  • I²C
  • SMBus
  • H/W Monitor
  • GPIO
  • Brightness

Utilities:

  • BIOS Flash
  • Monitoring
  • Embedded Security ID

Specifications


Block Diagram

Block Diagram

Ordering Information

Part No. CPU Freq. Core CPU TDP LLC DDR4 Memory Thermal Solution Operating Temperature
SOM-5897C7-U8A1E i7-6820EQ 2.8 GHz 4 45W 8 non-ECC Active 0 ~ 60 °C
SOM-5897C7-U0A1E i7-6822EQ 2.0 GHz 4 25W 8 non-ECC Active 0 ~ 60 °C
SOM-5897C5-U7A1E i5-6440EQ 2.7 GHz 4 45W 6 non-ECC Active 0 ~ 60 °C
SOM-5897C5-S9A1E i5-6442EQ 1.9 GHz 4 25W 6 non-ECC Active 0 ~ 60 °C
SOM-5897C3-U7A1E i3-6100E 2.7 GHz 2 35W 3 non-ECC Active 0 ~ 60 °C
SOM-5897C3-S9A1E i3-6102E 1.9 GHz 2 25W 3 non-ECC Active 0 ~ 60 °C
SOM-5897CR-U4A1E G3900E 2.4 GHz 2 35W 2 non-ECC Active 0 ~ 60 °C
SOM-5897E4C-U7A1E E3-1505M V5 2.8 GHz 4 45W 8 ECC Active 0 ~ 60 °C
SOM-5897E4C-U0A1E E3-1505L V5 2.0 GHz 4 25W 8 ECC Active 0 ~ 60 °C
SOM-5897E4C-U8A1E E3-1515M V5 2.8 GHz 4 45W 8 ECC Active 0 ~ 60 °C
SOM-5897E4X-U0A1E Xeon E3-1505L V5 2.0 GHz 4 25W 8 ECC Active -40 ~ 85 °C
SOM-5897C7Z2-U0A1E i7-6822EQ 2.0 GHz 4 25W 8 non-ECC Active -40 ~ 85 °C
SOM-5897C7X-U8A1E i7-6820EQ 2.8 GHz 4 45W 8 non-ECC Active -40 ~ 85 °C
SOM-5897E4X-U7A1E Xeon E3-1505M V5 2.8 GHz 4 45W 8 ECC Active -40 ~ 85 °C
SOM-5897E4X-U8A1E Xeon E3-1515M V5 2.8 GHz 4 45W 8 ECC Active -40 ~ 85 °C

Development Board

Part No. Description
SOM-DB5800-00A2E COMe Devel. Board Type6 pint-out Rev. A2

Packing List

Part No. Description Quantity
– SOM-5897 CPU module 1
1960073944N001 Heatspreader 1

Optional Accessories

Part No. Description
1960048820N001 Semi-Cooler 125 x 95 x 33 mm with 12V FAN
1960094209T001 QFCS 125 x 95 x 26.29 mm
  • Test conditions follow Advantech regulations and procedures.
  • QFCS: Quadro Flow Cooling System

Embedded OS

OS Part No. Description
Win10 IoT LTSB 2070015177 Img Win10 IoT Ent_LTSB 64 bit

Online Download www.advantech.com/products

]]> ADVANTECH AIMB-706 LGA1151 Intel ATX with Dual Display, SAT 3.0, USB 3.1, DDR4 Manual https://usemanuals.com/advantech/aimb-706-lga1151-intel/ Mon, 24 Jul 2023 17:01:23 +0000 https://usemanuals.com/?p=174162 Read More...

]]>

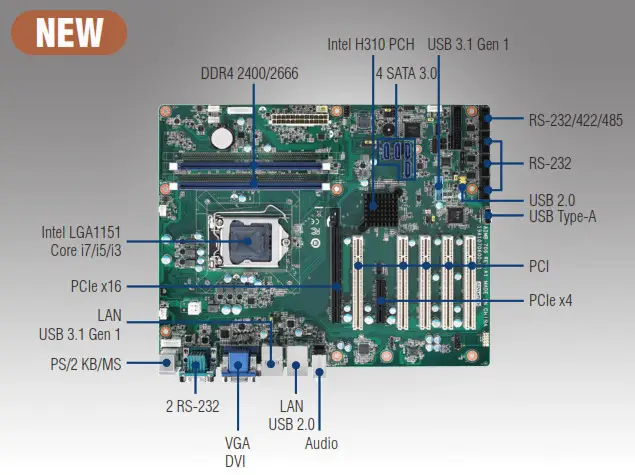

AIMB-706 LGA1151 Intel® Core™ i7/i5/i3 ATX with
Dual Display, SATA 3.0, USB 3.1, DDR4
Startup Manual

Packing List

Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x AIMB-706 Startup Manual
• 2 x Serial ATA HDD data cables
• 1 x Serial ATA HDD power cables
• 1 x I/O port bracket
If any of these items are missing or damaged, please contact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF file. Acrobat Reader can be downloaded at: www.adobe.com/Products/acrobat/readstep2.html (Acrobat is a trademark of Adobe)

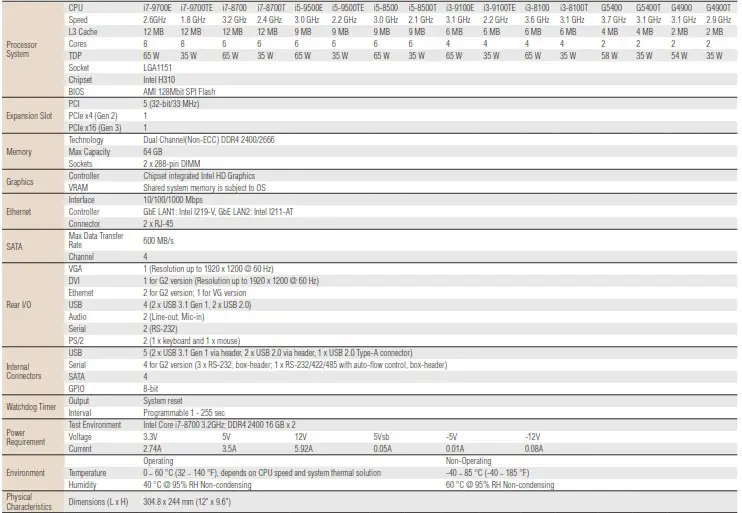

Specifications

Standard Functions
• CPU: LGA1151 socket supporting 8th/9th generation Intel® Core™ i7/i5/i3/Pentium/Celeron processor.
Note:

  1. Intel 8th/9th generation processors only support Windows 10 (64-bit).
  2. BIOS version V2.XX can support both 8th and 9th generation processors while BIOS version V1.XX can only support 8th generation processors.
  •  BIOS: AMI 128 Mbit SPI BIOS.
  •  Chipset: Intel® H310 PCH.
  • System Memory: Up to 32 GB in two 288-pin DIMM sockets supporting dual-channel DDR4 2400/2666 SDRAM. AIMB-706 supports non-ECC unbuffered DIMMs and does not support any memory configuration that mixes non-ECC with ECC unbuffered DIMMs.
    Note: Due to the inherent limitations of the PC architecture, the system may not fully detect 32 GB RAM when 32 GB RAM is installed.
  • SATA Interface: Four onboard Serial ATA 3.0 connectors support data transmission rates up to 600 MB/s. All four SATA 3.0 ports support Advanced Host Controller

Interface (AHCI) technology.

  • PCIe and PCI Slot: 1 PCIe x16 expansion slot, 1 PCIe x4 expansion slot, 5 PCI slots 32-bit/33 MHz PCI 2.2 compliant.
  • LPC Interface: Advantech-designed LPC connector supports TPM module and COM port extension module.
  •  Serial Port: Up to six serial ports: COMD1, COMD2 and COM4 ~ 6 are RS-232; COM3 is RS-232/422/485 with  jumper and BIOS menu options.
  • Parallel Port: One parallel port, which supports SPP/ EPP/ECP mode.
  •  Keyboard/Mouse Connector: Supports standard PS/2 keyboard and mouse.
  • Watchdog Timer: 255-sec timer level intervals.
  • USB 3.1/2.0: 4 USB 3.1 Gen 1 ports (2 rear, 2 via header), 5 USB 2.0 ports (2 rear, 2 via header, 1 internal Type-A).

Graphic Interface

  • Chipset: CPU integrated graphics controller.
  • Display Memory: 1 GB maximum shared memory with 2 GB and above system memory installed.
  • DVI-D: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.
  • VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.

Ethernet Interface

  • Interface: 10/100/1000 Mbps.
  • Controller: LAN1: Intel ® I219-V; LAN2 (G2 sku only): Intel ® I211-AT.
    Mechanical and Environmental
  • Dimensions (L x W): 304.8 x 244 mm (12” x 9.6”)
  • Power Supply Voltage: +3.3 V, ±5 V, ±12 V, +5 Vsb
  • Power Consumption: Intel Core i7-8700 3.2 GHz; DDR4 16GB x 2 Maximum: +3.3 V at 2.74 A, +5 V at 3.5 A, +12 V at 5.92 A, +5 Vsb at 0.05 A, -5 V at 0.01 A, -12 V at  0.08 A
  • Operating Temperature: 0 ~ 60° C (depending on CPU)
  • Weight of Board: 0.7 kg (1.54 lb)

Jumpers and Connectors

The board has a number of jumpers that allow you to configure your system to suit your application.
The table below lists the function of each jumper and connector.

Connector I -Wove List
Label Function
LPTI Parallel port. supporting SPP/EPP/ ECP mode
LAN1 LAN1
LAN2 LAN2 (G2 sku only)
USB3CI USB 3.1 Gen 1 port 1. 2
USB3H1 USB 3.1 Gen 1 port 1. 2 (20-pin header)
USB2C1 USB 2.0 port 1. 2
USB2A1 USB 2.0 port (internal Type-A)
USB2H1 USB 2.0 port 1. 2 (10-pin header)
VGAltDVII VGA connector / DVI-D connector (DVII for G2 sku only)
COMD1+COMD2 Serial port: RS-232 (DB-9 con­nector)
COM4 – COMB Serial port: RS-232 (9-pin header. G2 sku only)
COM3 Serial port: RS-232/4221485 (9-pin header. G2 sku only)
KBMS1 PS/2 keyboard and mouse con­nector
KBMS2 External keyboard and mouse con­nector (6-pin header)
CPUFAN1 CPU fan connector (4-pin)
SVSFAN1 – SVSFAN3 System fan connector (4-pin)
JFP3 Keyboard lock and power LED Suspend: fast flash (ATX/AT) System on: on (ATXJAT) System off: off (AT/ATX)
JFP2 External speaker / HDD LED con­nector / SMBus connector
JFPI Power switch/reset connector
AUD101.AUD102 Audio connector (Line Out. Mic In)
VOLT’ Alarm board power connector
JCASEI Case open connector
LANLEDI Front panel LAN indicator connector
SATAO – SATA3 Serial ATA 3.0 port
PC11 PCI slot
PCl2 PCI slot
PCI3 PCI slot
PCI4 PCI slot
Connector I -Wove List
Label Function
LPTI Parallel port. supporting SPP/EPP/ ECP mode
LAN1 LAN1
LAN2 LAN2 (G2 sku only)
USB3CI USB 3.1 Gen 1 port 1. 2
USB3H1 USB 3.1 Gen 1 port 1. 2 (20-pin header)
USB2C1 USB 2.0 port 1. 2
USB2A1 USB 2.0 port (internal Type-A)
USB2H1 USB 2.0 port 1. 2 (10-pin header)
VGAltDVII VGA connector / DVI-D connector (DVII for G2 sku only)
COMD1+COMD2 Serial port: RS-232 (DB-9 con­nector)
COM4 – COMB Serial port: RS-232 (9-pin header. G2 sku only)
COM3 Serial port: RS-232/4221485 (9-pin header. G2 sku only)
KBMS1 PS/2 keyboard and mouse con­nector
KBMS2 External keyboard and mouse con­nector (6-pin header)
CPUFAN1 CPU fan connector (4-pin)
SVSFAN1 – SVSFAN3 System fan connector (4-pin)
JFP3 Keyboard lock and power LED Suspend: fast flash (ATX/AT) System on: on (ATXJAT) System off: off (AT/ATX)
JFP2 External speaker / HDD LED con­nector / SMBus connector
JFPI Power switch/reset connector
AUD101.AUD102 Audio connector (Line Out. Mic In)
VOLT’ Alarm board power connector
JCASEI Case open connector
LANLEDI Front panel LAN indicator connector
SATAO – SATA3 Serial ATA 3.0 port
PC11 PCI slot
PCl2 PCI slot
PCI3 PCI slot
PCI4 PCI slot
JCMOS1: CMOS clear
JME1: Intel ME update
Closed Pins Result
2-Jan *Keep CMOS data
*Enable ME to update
3-Feb Clear CMOS data
Disable ME update
* Default

JWDT1+JOBS1: Watchdog timer output and OBS alarm
Closed Pins Result
2-4, 8-10 Watchdog timer disable (2-4)
OBS beep (8-10)
4-6, 8-10 *Watchdog timer reset (4-6)
OBS beep (8-10)
* Default

PSON1: ATX/AT mode selection
Closed Pins Result
1-2 AT mode
2-3 *ATX mode
* Default

JUSB_1 (rear USB), JUSB_2 (onboard USB): USB power source switch between +5V and +5V_DUAL
Closed Pins Result
1-2 *USB +5V_DUAL power
2-3 USB +5V power
* Default

JSETCOM3: COM3 RS-232/422/485 jumper setting
Closed Pins Result
5-6, 7-9, 8-10, 13-15, 14-16 *RS-232
3-4, 9-11, 10-12, 15-17,  16-18 RS-422
1-2, 9-11, 10-12, 15-17,  16-18 RS-485
* Default

Note: While RS-485 is selected, it is necessary to change device mode to RS-485 for further choice of auto flow control under the BIOS menu. Please refer to Chapter 3.2.2.10 of the user manual for further settings.

JT1(TX signal), JR1(RX signal): COM3 RS-422/485

termination resistor
Closed Pins Result
1-2 Disable termination
2-3 *Enable termination
* Default

JFV1: VGA dummy load setting
Closed Pins Result
1-2 Disable termination
2-3 *Enable termination
* Default

Declaration of Conformity

This device complies with the requirements in Part 15 of the FCC rules. Operation is subject to the following two conditions:

  1.  This device may not cause harmful interference.
  2. This device must accept any interference received, including interference that may cause undesired operation.
    Caution! The computer is supplied with a battery-powered real-time clock circuit. There is a danger of explosion if the battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Board Layout

4 AIMB-706 Startup Manual

For more information on this and other Advantech products, please visit our website at: http://www.advantech.com

http://www.advantech.com

For technical support and service, please visit our support website for AIMB-706 at: http://advt.ch/aimb706spt

http://advt.ch/aimb706spt

Register your products on our website and get 2 months extra warranty for Free at: http://www.register.advantech.com

http://www.register.advantech.com

This manual is for the AIMB-706 series Rev. A1.
Part No. 2001070611
Printed in China
2nd Edition
August 2019

]]> ADVANTECH VEGA-320/330 Intel Movidius Myriad X Edge AI Module Manual https://usemanuals.com/advantech/vega-320-module/ Wed, 26 Jul 2023 12:36:38 +0000 https://usemanuals.com/?p=175251 Read More...

]]>

ADVANTECH VEGA-320/330 Intel Movidius Myriad X Edge AI

Features

  • Intel® Movidius™ Myriad™ X VPU onboard
  • Ultra compact, Low power consumption
  • Hardware acceleration for common deep neural networks
  • Scalable for multiple video streams edge inference
  • 10 times the performance compared to the previous generation
  • Intel® OpenVINO™ toolkit fully supported

Specification

VEGA-320-01A1 VEGA-330-01A1 VEGA-330-02A1
SoC One Myriad X MA2485 One Myriad X MA2485 Two Myriad X MA2485
Form Factor M.2 2230 (Key A+E) Full size Mini PCIe
Dimensions 22mm x 30mm x 3.63 mm 30mm x 50.95mm x 4.86 mm
Signal Interface PCIe Gen2 x1, USB 2.0
Operating Temp. -20 ~ 60 °C, with 0.7m/s air flow* -20 ~ 60 °C, with 0.7m/s air flow* -20 ~ 55 °C, with 0.7m/s air flow*
Power Consumption 3.8W 7.6W
Cooling Passive Cooling
OS Support Windows 10 Enterprise 64bit
Ubuntu 16.04.3 LTS (64 bit)
CentOS 7.4 (64 bit)
OpenVINO OpenVINO R2 2019 or latest
Framework Support TensorFlow, Caffe

*Note: According to operating temperature tests performed with AIR-101 thermal solution.

Dimensions (Unit: mm)

  1. VEGA-320
  2. VEGA-320 Heat Spreader
  3. VEGA-330
  4. VEGA-330 Heat Spreader

Edge AI Suite Built-in

OpenVINOTM Toolkit
  • Model Optimizer
  • Inference Engine
  • Support TensorFlow, Caffe, mxnet, ONNX
Deployment Wizard
  • AI Model Launcher
  • Deployment Reference
  • CPU/VPU Monitoring
Pre-Trained Models
  • Facial Detection
  • Pedestrian Tracking
  • Human Pose Estimation
3rd Party AI SDK
  • Vehicle Detection
  • License Plate Recognition
  • Optical Inspection

Block Diagram

Ordering Information

Part Number Description
VEGA-320-01A1 M.2 2230 Edge AI acceleration module with One Intel Myriad X
VEGA-330-01A1 Full size miniPCIe Edge AI acceleration module with One Intel Myriad X
VEGA-330-02A1 Full size miniPCIe Edge AI acceleration module with Two Intel Myriad X

Optional Items

Part Number Description
AMK-A0029 VEGA-320 heat spreader
AMK-A0030 VEGA-330 heat spreader

Packing List

Part Number Description
VEGA-320-01A1
  • 1 x VEGA-320 card
  • 1 x 1960091939T001 heat sink
  • 1 x Edge AI Suite download card, Startup manual, China RoHS
  • 1 x M.2 screw
VEGA-330-01A1
VEGA-330-02A1
  • 1 x VEGA-330 card
  • 1 x 1960092232T000 heat sink
  • 1 x Edge AI Suite download card, Startup manual, China RoHS
  • 2 x 1930006235-01 (Silver), 193B0204C0 (Black) screws

ONLINE DOWNLOAD: www.advantech.com/products

]]> ADVANTECH AIMB-786 LGA1151 Intel Motherboard Manual https://usemanuals.com/advantech/aimb-786-motherboard/ Wed, 26 Jul 2023 12:48:51 +0000 https://usemanuals.com/?p=175386 Read More...

]]>  AIMB-786
LGA1151 8th/9th Generation
Intel® Core™ i7/i5/i3 & Pentium® / Celeron ®
ATX with Triple Display, DDR4,
USB 3.1, SATA 3.0

Features

  • Intel® 8th/9th generation Core™ i7/i5/i3 & Pentium® /Celeron ® processor with Q370 chipset
  • Four DIMM sockets up to 128 GB DDR4 2400/2666
  • Triple display VGA/DVI-D/DP and dual GbE LAN
  • SATA RAID 0, 1, 5, 10, USB 3.1
  • Supports Intel vPro, AMT & TPM technologies

Note 1: TPM module is required to enable Intel vPro and TPM technologies.
Note 2: Intel 8th/9th generation processors only support Windows 10 (64-bit).

CEFCC

Specifications

All product specifications are subject to change without notice.

Block Diagram

Ordering Information

Part Number Chipset Memory Display USB 3.1
Gen 2		 USB 3.1
Gen 1		 USB
2.0		 COM GbE
LAN		 AMT SATA 3.0 SW RAID
AIMB-786G2-00A2 Q370 Non-ECC DDR4
2400/2666 up to 128 GB		 VGA + DVI-D + DP 2 4 7 6 2 Yes 5 Yes

Packing List

Part Number Description Quantity
1700003194 SATA HDD cable x 2
1700022749-11/ SATA power cable x 2
1700022749-12/
1700022749-13
1960086615T001 I/O port bracket x 1
2001078611 Startup manual x 1

I/O View

Optional Accessories

Part Number Description
1.7E+09 2-port USB 2.0 cable w/ BKT(27 cm)
1700028292-01 2-port USB 3.0 cable w/ BKT(30 cm)
1960052651N021 CPU cooler for 2U, 4U and wallmount chassis (CPU TDP ≤65W)
1960047669N001 CPU cooler for 2U/4U and wallmount chassis (CPU TDP 95W)
1.7E+09 Dual COM port cable(28.5 cm)
1700019268-11 PS/2 KB/Mouse cable
1960063434N000 IO bracket for PS/2 KB/Mouse cable
PCA-TPM-00B1E TPM2.0 module to enable TPM and vPro technologies

Note: Purchasing AIMB-786’s proprietary CPU cooler from Advantech is a must. Other brands’ CPU coolers are NOT compatible with AIMB-786.

Riser Card

Part Number Description
AIMB-R430P-03A2E 2U riser card with 3 PCI expansion
AIMB-R431F-21A1E 2U riser card with 1 PCIex16 & 1 PCIex1 expansion
AIMB-R43PF-21A1E 2U riser card with 1 PCIex16 & 2 PCI expansion
AIMB-R4301-03A1E 2U riser card with 1 PCIex1 expansion

Online Download
www.advantech.com/products

]]> ADVANTECH MIO-2375 Intel Pico-ITX SBC Board Manual https://usemanuals.com/advantech/mio-2375-board/ Wed, 26 Jul 2023 13:08:58 +0000 https://usemanuals.com/?p=175519 Read More...

]]>  MIO-2375
11th Gen. Intel® CoreTM i7/i5/i3
U-series Pico-ITX SBC

Preliminary

ADVANTECH MIO-2375 Intel Pico-ITX SBC Board

Features

  • 11th Gen. Intel® Core™ Processor with Quad/Dual Cores, TDP 15W
  • On-board LPDDR4x-4267 up to 32G with IBECC for Industrial Sku
  • Dual independent display: eDP/MIPI-DSI, DP up to 8K
  • 2 GbE, 2 USB 3.2, COM Port, SMBus/I2C
  • Expansion: M.2 E-Key, M.2 B-Key/M-Key NVMe x2
  • Supports iManager & Software APIs, WISE-DeviceOn, and Edge AI Suite

Software APIs:

ADVANTECH MIO-2375 Intel Pico-ITX SBC Board-Software APIs

Specifications

ADVANTECH MIO-2375 Intel Pico-ITX SBC Board 0- -tabol1

*Note: Support by request
MI/O Extension SBCs, Modules and Chassis
All product specifications are subject to change without notice.

Block Diagram

ADVANTECH MIO-2375 Intel Pico-ITX SBC Board 0- -Block Diagram

Ordering Information

Part No. CPU Max. Frequency Core Memory Sim Holder TPM Thermal Solution Operating
Temperature
MIO-2375C7P-Q4A1 i7-1185G7E 4.40 GHz 4 16GB Yes Yes Active 0 ~ 60 °C
MIO-2375C7PX-Q4A1 i7-1185GRE 4.40 GHz 4 16GB Yes Yes Active -40 ~ 85° C
MIO-2375C5P-Q1A1 i5-1145G7E 4.10 GHz 4 16GB Yes Yes Active 0 ~ 60 °C
MIO-2375C3P-P9A1 i3-1115G4E 3.90 GHz 2 8GB Yes Yes Active 0 ~ 60 °C

Packing List

Part No. Description Quantity
MIO-2375 SBC
Startup Manual
1.7E+09 SATA cable 30cm 1
1700027546-01 A CABLE SATA Power 15P/1*4P-2.5 15cm 1
1700030406-01 M Cable 2*5P-2.0/USB-A 4P(F)*2 20cm 1
1700030404-01 RS-232 9P(M)/1*10P-1.25 20cm 2
1700019584-01 A Cable 2*5P-2.0/Audio JACK*3 20cm 1
1700019705-01 AT power cable 12 cm 1
1970004956T001 MIO-2375 Cooler 1

Rear I/O View

Optional Accessories

Part No. Description
1970004968N001 MIO-2375 Heatspreader

Embedded OS/API

OS Part No. Description
WIN10 TBD 64-bit (UEFI mode only)
Ubuntu 20.04 LTS TBD
Software API Download by website
Yocto BSP

Online Download
www.advantech.com/products

]]> ADVANTECH AIMB-706 LGA1151 Intel Board Manual https://usemanuals.com/advantech/aimb-706-board/ Wed, 26 Jul 2023 13:14:05 +0000 https://usemanuals.com/?p=175575 Read More...

]]>

AIMB-706
LGA1151 8th/9th Generation Intel® Core™ i7/i5/i3 & Pentium®/Celeron®
ATX with DVI/VGA, DDR4, SATA 3.0, USB 3.1 & 6 COMs

Features

  • Intel® 8th/9th generation Core™ i7/i5/i3 & Pentium®/Celeron®processorwith H310 chipset
  •  Dual-channel (Non-ECC) DDR4 2400/2666 up to 64 GB
  •  Support VGA and DVI display
  •  SATA 3.0, USB 3.1, dual Gbps
  •  5 RS-232 and 1 RS-232/422/485 serial ports
  •  1 PCIe x16 (Gen 3) and 1 PCIe x4 (Gen 2), and 5 PCI expansion slots

Note: Intel 8th/9th generation processors only support Windows 10 (64-bit).

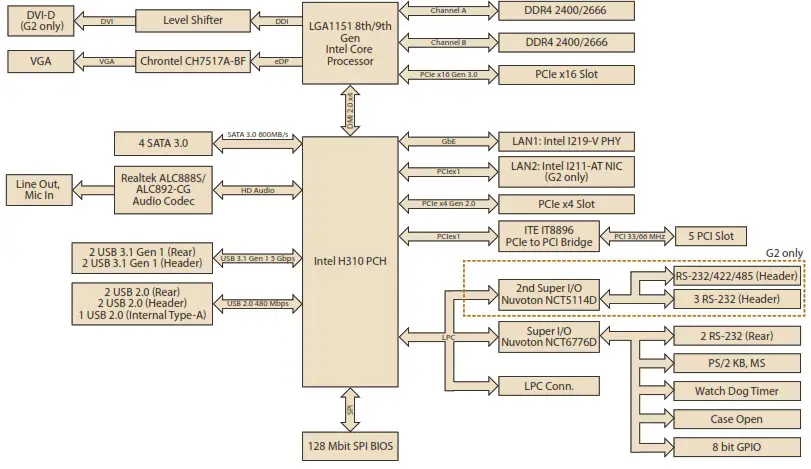

Block Diagram

Ordering Information

Part Number Chipset Memor Display USB 3.1 Gen 1 USB 2.0 COM GbE AMT SATA SW RAID Intelligent System Module Support
AIMB-706G2-00A2 H310 Non-ECC VGA + DVI 4 5 6 LAN No 4 No No
AIMB-706VG-00A2 H310 Non-ECC VGA 4 5 2 2 No 4 No No

Packing List

Part Number Description Quantity
1700003194 SATA HDD cable x2
1700022749-11/ SATA power cable
1700022749-12/ x1
1700022749-13
1960050472T000 I/O port bracket x1
2001070611 Startup manual x1

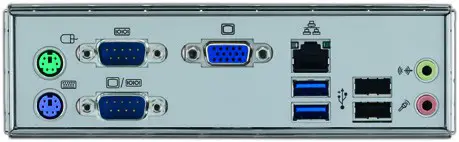

I/O View

AIMB-706VG-00A2

AIMB-706G2-00A2

Optional Accessories

Part Number Description
1701090401 Single COM port cable(40 cm)
1701092300 Dual COM port cable(28.5 cm)
1700028292-01 2-port USB 3.0 cable w/ BKT(30 cm)
1700002204 2-port USB 2.0 cable w/ BKT(27 cm)
1960052651N021 CPU cooler for 2U, 4U, and wall mount chassis (CPU TDP ≤65W)
1960047669N001 CPU cooler for 2U/4U and wall mount chassis (CPU TDP 95W)
1960049408N001 CPU heatsink for 1U chassis
1960055954T000 IO bracket for 1U chassis
PCA-COM232-00A1E 4-port RS-232 LPC module
PCA-TPM-00B1E TPM2.0 module

Riser Card

Part Number Description
AIMB-RP10P-01A1E 1U riser card providing 1 PCI slot
AIMB-RF10F-01A1E 1U riser card providing 1 PCIe x 16 slot
AIMB-RP30P-03A1E 2U riser card providing 3 PCI slots
AIMB-RP3PF-21A1E 2U riser card providing 1 PCIe x 16 and 2 PCI slots

Online Download
www.advantech.com/products

]]> ADVANTECH ASMB-976 LGA 4189 Intel Board Manual https://usemanuals.com/advantech/asmb-976-board/ Wed, 26 Jul 2023 13:40:20 +0000 https://usemanuals.com/?p=175667 Read More...

]]>

ASMB-976
LGA 4189 Intel® Xeon® Scalable Proprietary Server Board with 16x DDR4,
4 x PCIe x16, 10 x SATA3, 8 x USB 3.2 (Gen 1), Dual 10GbE, and IPMI

Preliminary

Features

  • LGA4189 proprietary server board with 3rd Gen Intel® Xeon® scalable processor
  •  DDR4 3200 MHz RDIMM up to 2TB, and Intel® Optane™ support
  •  4 x PCIe x16 and 7 x PCIe x8
  •  Intel® X550 dual 10GbE ports
  • 10 x SATA3 and 2x M.2 connectors (SATA/PCIe compatible)
  •  0 ~ 40 °C ( 32 ~ 104 °F) ambient operating temperature range

Specifications

ADVANTECH ASMB-976

*CPU power design supports up to 270W TDP. Please consider additional air thermal solutions while using CPU > 205W TDP.

Block Diagram

Ordering Information

Part Number Chipset Memory GbE/10GbE LAN IPMI Graphics
ASMB-976-00A1 C621A 16 x DDR4 RDIMM/LRDIMM 2/- – AST 2510
ASMB-976T2-00A1 C621A 16 x DDR4 RDIMM/LRDIMM 2/2 Yes AST 2500

Packing List

Part Number Description Quantity
2041097600 Startup manual x 1
1700003194 SATA data cables x 2
1700022749-11 SATA power cables x 2
1700019748 CPU power cable x 2
1930008089 Screw for M.2 device x 2
1960093947N001 I/O shield x 1
1651003476-01 LGA4189 CPU carrier x 2

Optional Accessories

Part Number Description
PCA-AUDIO-HDB1E HD Audio-card
PCA-TPM-00B1E TPM 2.0 Module by LPC
1970004597T000 LGA-4189 narrow CPU cooler for 2U/4U chassis (205W)
1700028024-01 Dual port USB 3.2 Gen cable (45 cm/17.7″) with bracket
1701090401 COM port cable with bracket
1700019268-11 PS/2 port cable (35 cm/13.7″)
1960063434N000 Cable bracket for 1700019268-11

I/O View

ASMB-976-00A1

ASMB-976T2-00A1

Online Download
www.advantech.com/products

]]> ADvantech WISE-DeviceOn MIO-5152 Intel Atom/Celeron Manual https://usemanuals.com/advantech/mio-5152-intel/ Wed, 26 Jul 2023 18:19:27 +0000 https://usemanuals.com/?p=177057 Read More...

]]> WISE-DeviceOn MIO-5152 Intel Atom/Celeron User Guide

MIO-5152

Features

  • Atom® x6000E series and Intel® Celeron® J and N series with Quad/Dual Cores, TDP 6W/ 10W/ 12W
  • Single Channel DDR4-3200 up to 32GB
  • 3 independent displays via LVDS, DP1.4, and HDMI2.0 up to 4K@60Hz
  • Dual GbE, 6 USB, 6 UART, TPM2.0
  • CE/FCC Class B, Coastline I/O ESD 8KV/15KV Criteria A
  • Support Windows 10 LTSC & Ubuntu 20.04 LTS, embedded software APIs, WISE-DeviceOn

Software APIs:
Software APIs:

Specifications

Platform Processor Intel® Celeron® J6412 Intel® Celeron® N6210 Intel Atom® x6425E
Max Frequency 2.6GHz 2.6GHz 3.0GHz
Base Frequency 2.0GHz 1.2GHz 2.0GHz
Core/Thread 4/4 2/2 4/4
LLC L2 L2 L2
CPU TDP 10W 6.5W 12W
Chipset Intel® Chipset (SoC Integrated)
BIOS AMI EFI 256Mbit
Memory Technology DDR4-3200 SDRAM
Max Capacity 32GB
Channel/Socket Single Channel/ 1 Socket
ECC Support N/A In-Band ECC Supported by SoC In-Band ECC Supported by SoC
Graphic Controller Intel Gen11 Graphics Engines (SoC integrated)
Max Frequency 800MHz 750MHz 750MHz
Base Frequency 400MHz 250MHz 500MHz
Graphic Memory TBU
3D/HW Acceleration DX12, OGL4.5, OCL1.2, Vulkan 1.1, MPEG2, H.264, JPEG/MJPEG, H.265 (HEVC)
Display I/F LCD 1 x LVDS: Dual Channel 18/24-bit, up to 1920 x 1200
HDMI/DP 1 x HDMI 2.0, up to 4096 x 2160 x  4bpp@60Hz
1 x DP1.4a, up to 4096 x 2160 x 36bpp@60Hz
Triple Display 3 simultaneous displays with LVDS, HDMI, DP
External I/O Ethernet 2 x RJ-45; LAN1: Realtek RTL8111H, LAN2: Realtek RTL8111H
HDMI/DP 1/1
USB3.0 4 x Type-A; 2 x USB3.1 Gen 2 (10Gbps), 2 x USB3.0 (5Gbps)
Power DC-Jack Optional
Internal I/O SATA 1 x SATA GenIII 6.0 Gbps
USB 2 x USB2.0
Serial Bus I2C
COM Ports 2 x RS-232/422/485, 4 x RS-232
GPIO 8-bit general purpose input output I/O
Audio Realtek ALC888S, Line-in/Line-out/MIC
Inverter 12V/5V
SPI Bus eSPI eSPI
Fan 4-wire smart fan
Front Panel Control Power-on, Reset, Buzzer, SATA LED, CaseOpen
Board Feature Watchdog Timer Programmable 1 ~ 255 sec/min
TPM TPM2.0 (optional)
Expansion M.2 E-Key/B-Key E-Key for wireless module (Type: 2230) optional B-Key for LTE module
M.2 M-Key M-Key support SATA M.2 2242 module
Power Supply Voltage Vin: DC 12V ± 10%; RTC Battery Lithium 3V/210mAH
Connector ATX 2x2pin 90D, optional DC-Jack
Power Management AT, ATX mode
Max Consumption 1.78 @12V (21.39Watt)
Idle Consumption 0.61 @12V (7.31Watt)
Environment Temperature Operating Standard: 0 ~ 60 °C (32 ~ 140 °F)
Humidity Operating: 40 @95% relative humidity, non-condensing
Vibration Resistance TBD
Certification EMC TBD
Mechanical Dimensions 146 x 102 mm (5.7″ x 4″)
Net weight

MI/O Extension SBCs, Modules and Chassis.
All product specifications are subject to change without notice

Block Diagram

Ordering Information

Part Number CPU TDP Max. Frequency Core GbE USB3.1 USB3.0 USB2.0 RS232/ 422/485 RS232 TPM2.0 Thermal solution Operating Temp
MIO-5152J-U6A1 Intel® Celeron® Processor J6412 10W 2.6GHz 4 2 2 2 2 2 4 optional Passive 0 ~ 60° C
MIO-5152N-U6A1 Intel® Celeron® Processor N6210 6.5W 2.6GHz 2 2 2 2 2 2 4 optional Passive 0 ~ 60° C
MIO-5152A-P0A1 Intel Atom® x6425E Processor 12W 3.0GHz 4 2 2 2 2 2 4 optional Passive 0 ~ 60° C

Packing List

Part No. Description Quantity
MIO-5152 SBC
Startup Manual
MIO-5152 Passive Heatsink for Celeron series 1
MIO-5152 Passive Heatsink for x6000E 1
mini Jumper pack 1
1700006291 M Cable SATA 7P/SATA 7P 30cm C=R 180/90 1
1700031583-01 M CABLE SATA 15P/1*2P-2.0 35cm 1
1700030406-01 M Cable 2*5P-2.0/USB-A 4P(F)*2 20cm 1
1700030404-01 F Cable D-SUB 9P(M)/1*10P-1.25 20cm 6
1700019584-01 A Cable 2*5P-2.0/Audio JACK*3 20cm 1

Embedded OS/API

OS Part No. Description
Win10 TBD 64-bit (UEFI mode only)
Ubuntu 20.04 LTS TBD
Yocto BSP
Software API Download by website

Rear IO View

]]> ADVANTECH Intel Atom E3940 QC SoC with 4K Dual HDMI Dual LAN M.2 DIN-Rail Fanless Box PC Manual https://usemanuals.com/advantech/e3940-box/ Thu, 27 Jul 2023 04:27:19 +0000 https://usemanuals.com/?p=177690 Read More...

]]> ADVANTECH Intel Atom E3940 QC SoC with 4K Dual HDMI Dual LAN M.2 DIN-Rail Fanless Box PC User Manual

ARK-1220L A2

Intel® Atom™ E3940 QC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC

Features

  • Intel® Atom™ E3940 Quad Core SoC turbo burst up to 1.8 GHz
  • DIN-Rail system with essential I/O ports on front-side bezel
  • 2 x Intel GbE and 4 x USB 3.0
  • Dual HDMI display up to 4K resolution
  • 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI #1
  • 1 x 2.5″ SATA III SSD and 1 x full-size mSATA
  • 12V ~ 28V wide range power input
  • -30 ~ 70 °C extended operating temperature
  •  Advantech WISE-DeviceOn support

Specifications

#1 SIM holder and M.2 slot are hardware interfaces for wireless communication integration only. System level RF certification is not available.

Dimensions

ADVANTECH Intel Atom 4K Dual HDMI Dual LAN - Dimensions

Front Panel External I/O Mechanical Layout/Drawing

Top Panel External I/O Mechanical Layout/Drawing

Ordering Information

Packing List

Embedded OS

Optional Items

Online Download www.advantech.com/products

]]>
